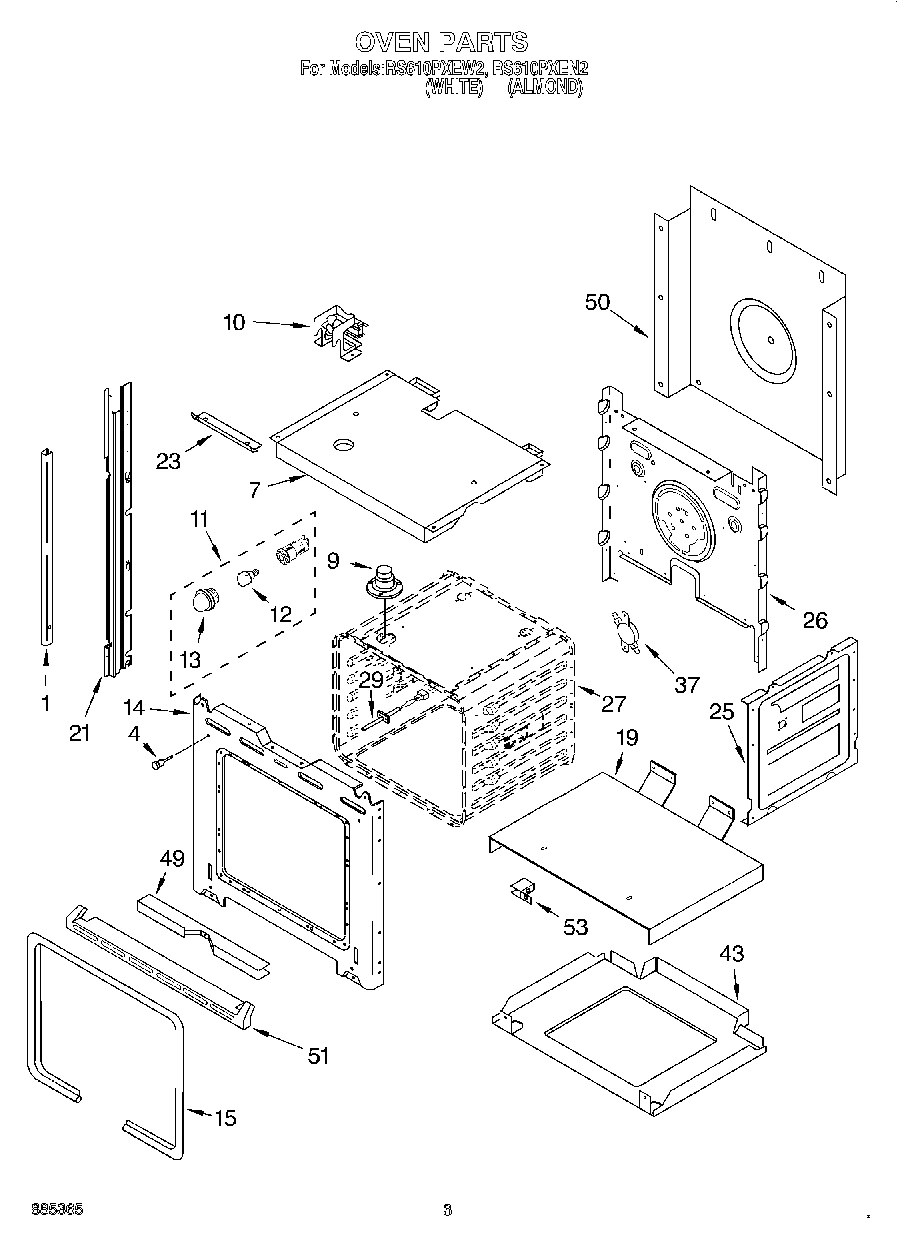

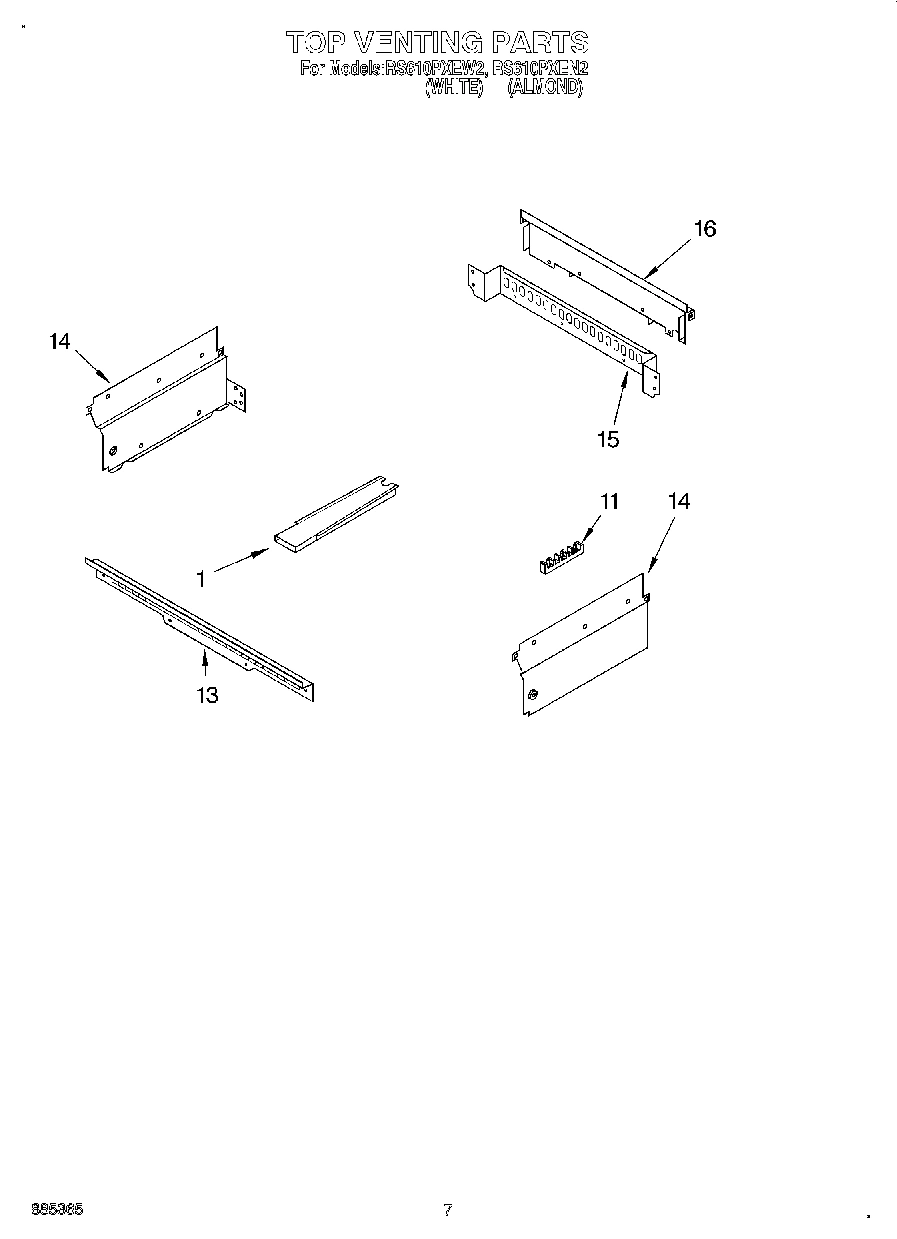

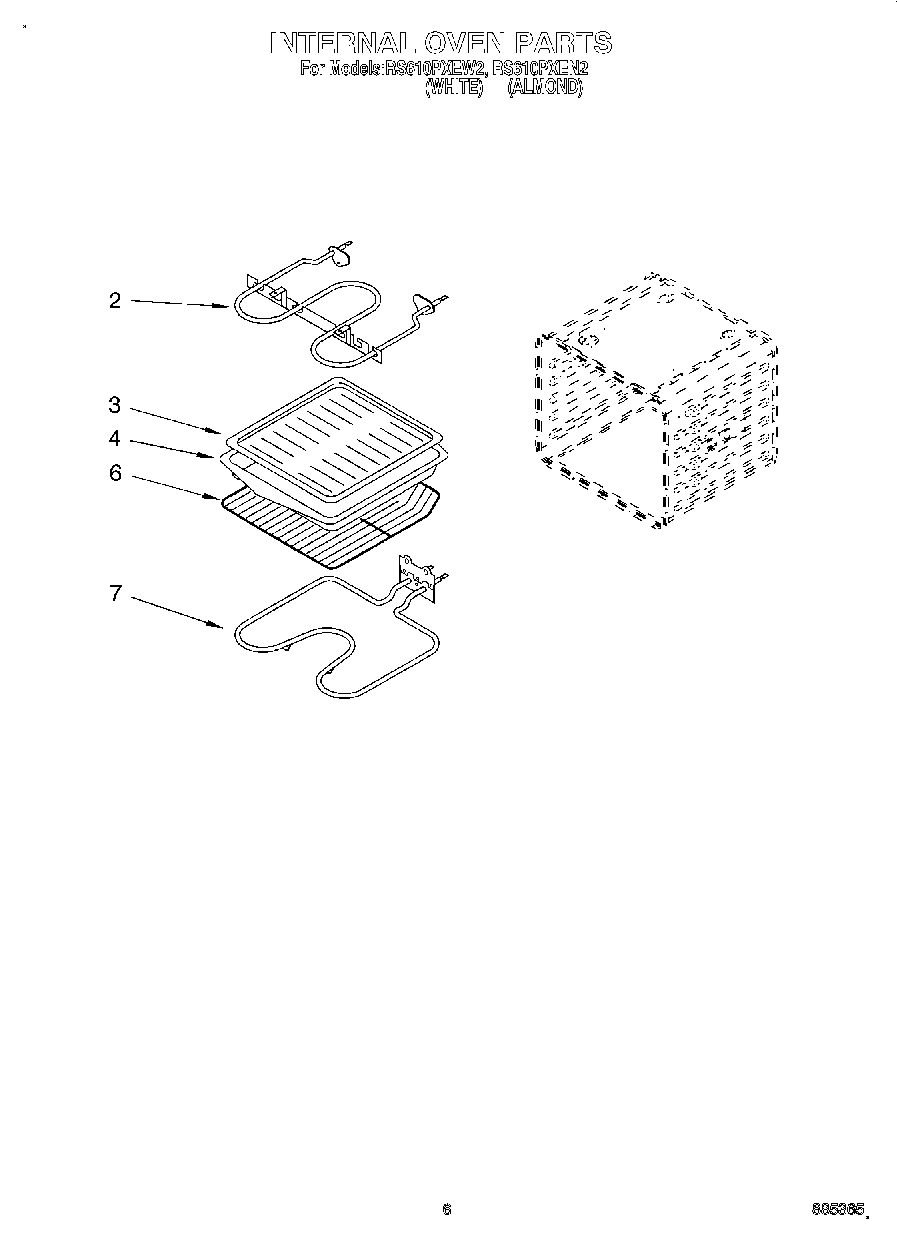

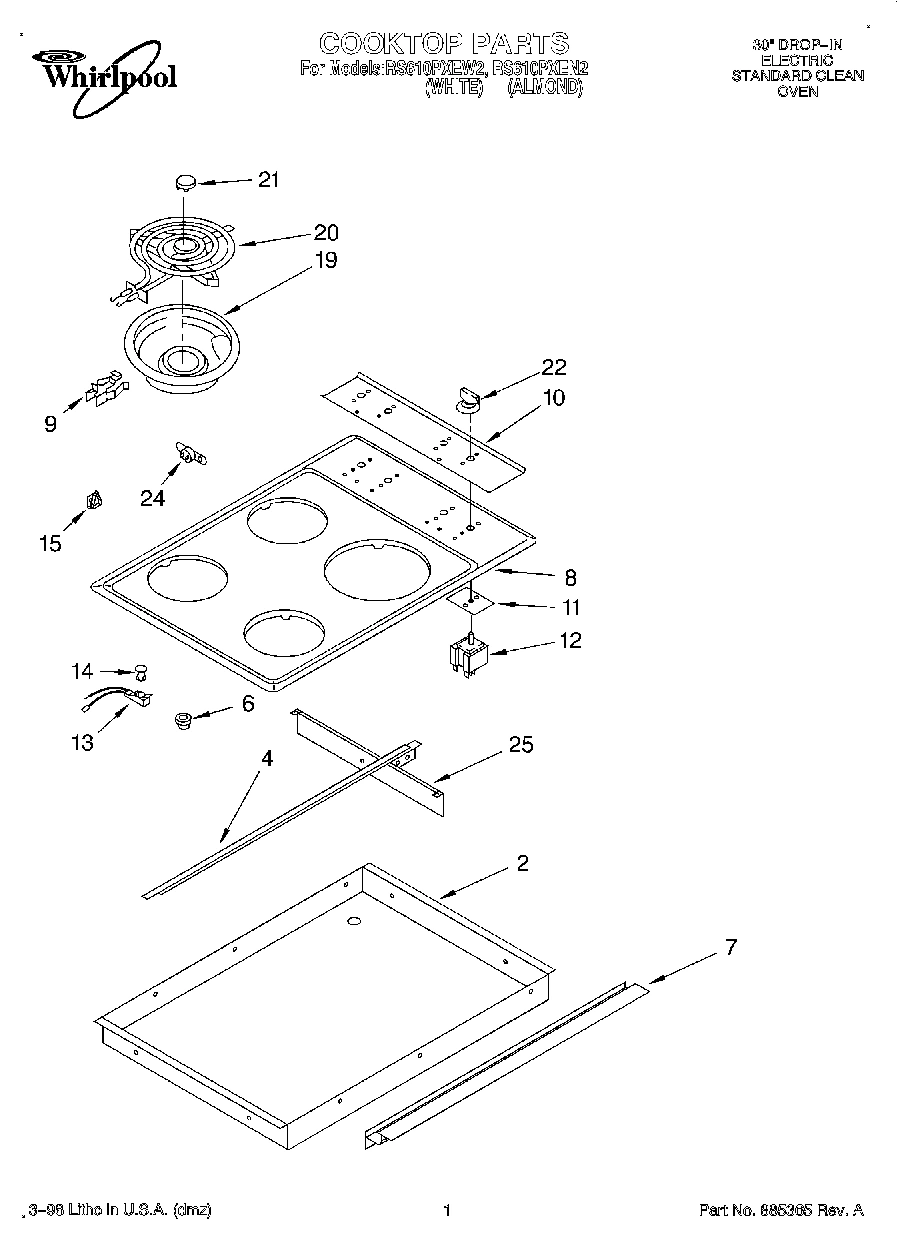

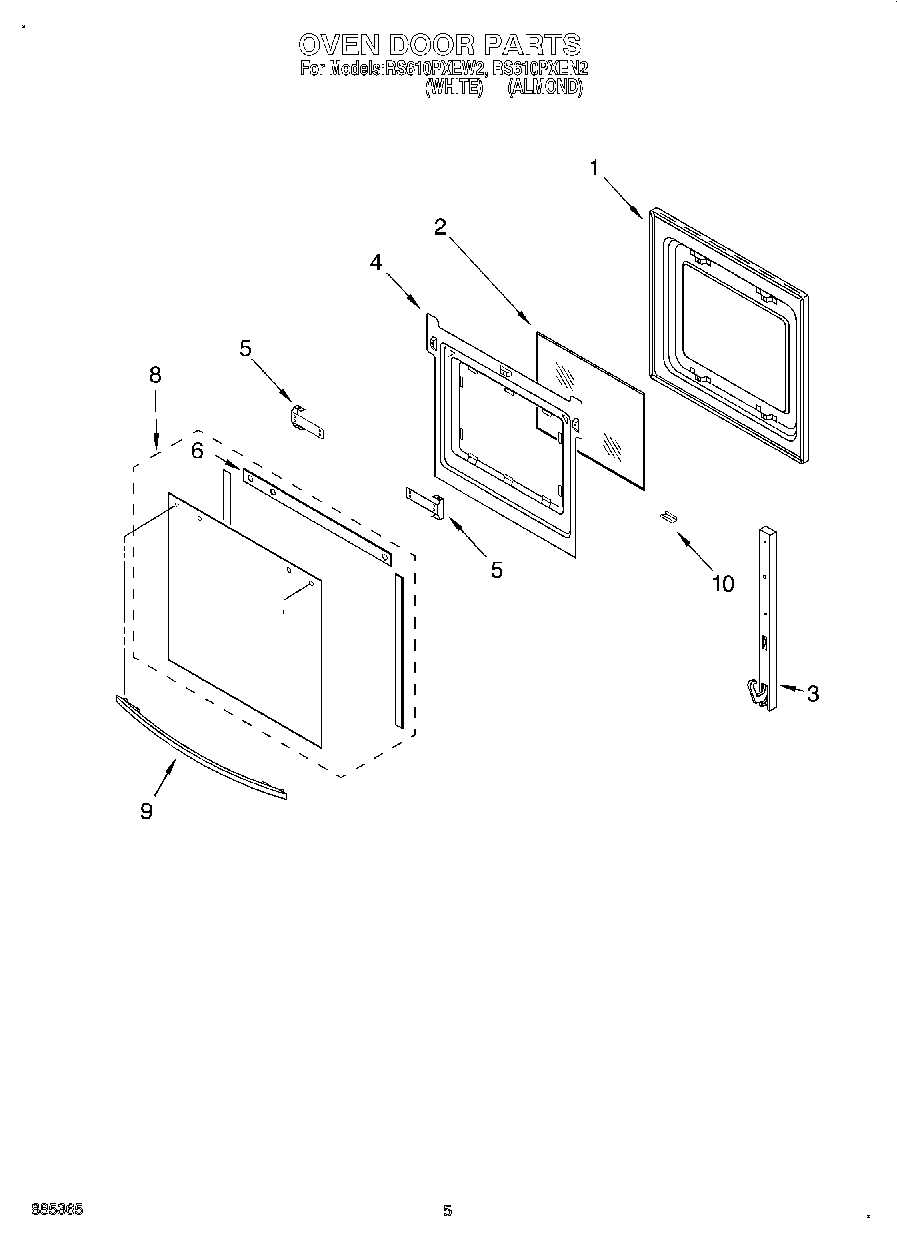

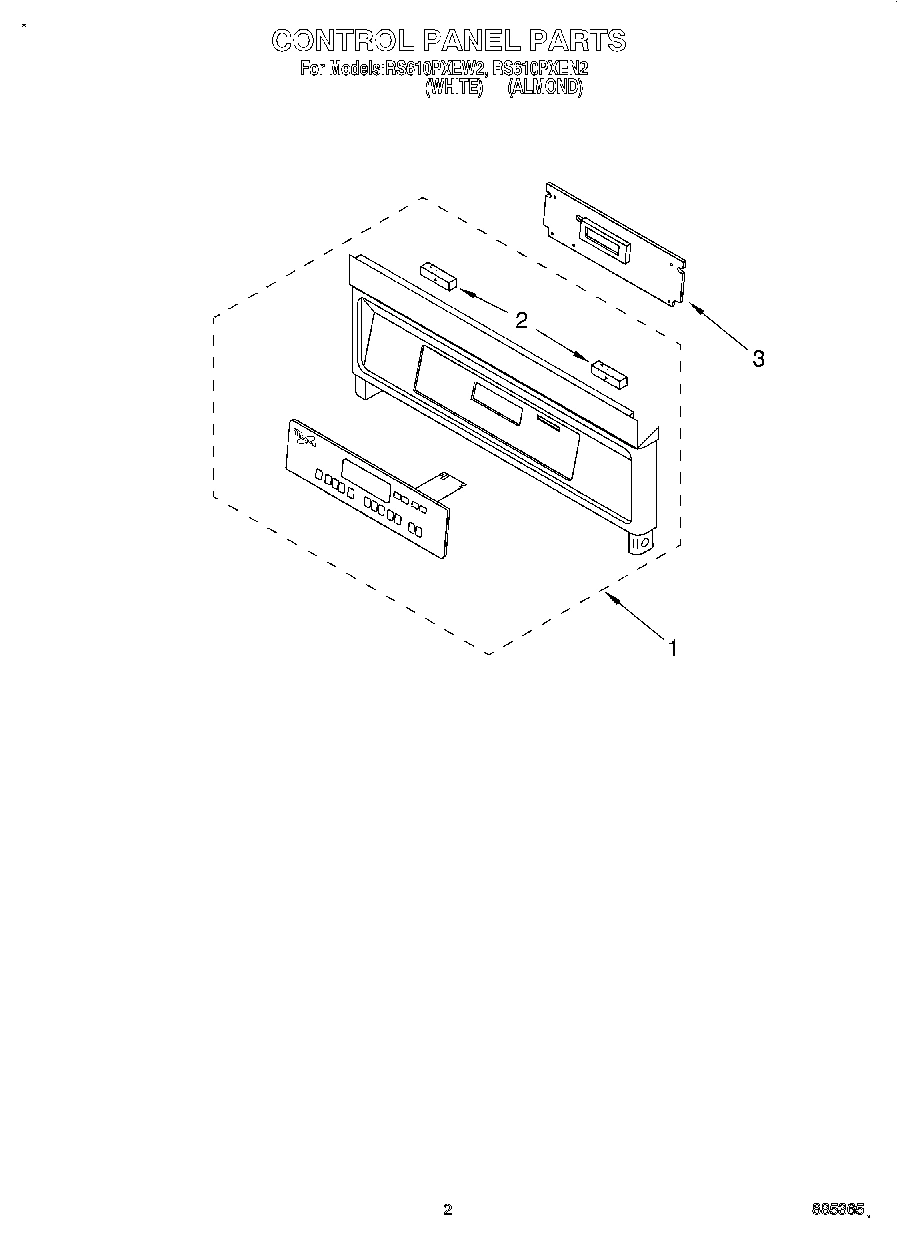

Model Whirlpool RS610PXEW2 – Common Parts &amp; Diagrams

1

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

1

Screw WPL 4449040 Contact Us For Availability

1

Control Panel Assy. (Screw) WPL 3149333 Contact Us For Availability

1

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

1

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

2

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $139.99

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $113.99

2

Burner Box WPL 4450883 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

Bracket, Mounting WPL 4454836 Contact Us For Availability

5

Bracket, Handle WPL 4450813 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $110.69

6

Bushing WPL 4159035 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $55.99

7

Trim, Extension WPL 4451005 Contact Us For Availability

7

Top, Chassis WPL 4452044 Contact Us For Availability

8

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

8

Cooktop (White) WPL 3148754 Contact Us For Availability

8

Cooktop (Almond) WPL 3148755 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

9

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $4.82

9

Handle, Door WPL 4448854 Contact Us For Availability

10

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

10

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

10

Panel, Control WPL 4450908 Contact Us For Availability

11

3183956 Whirlpool Oven Seal Switch In Stock WPL 3183956 $31.84

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $66.70

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $58.99

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

Switch, Infinite (Use W/ 8`` Surface Unit (2) WPL 4454533 Contact Us For Availability

Switch, Infinite (Use W/ 6`` Surface Unit (2) WPL 4454532 Contact Us For Availability

13

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

13

Indicator Light WPL 3187778 Contact Us For Availability

13

Lens, Light WPL 4452165 Contact Us For Availability

14

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

14

Lens, Light WPL 313602 Contact Us For Availability

14

Frame, Front WPL 4451740 Contact Us For Availability

15

814103 Whirlpool Clip In Stock WPL 814103 $5.96

15

Gasket, Door WPL 4450493 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability

Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability

Cover, Rear WPL 4449973 Contact Us For Availability

Conduit WPL 4451163 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4454937 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

19

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.99

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

20

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $74.47

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $74.29

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

Medallion, Surface Unit WPL 309195 Contact Us For Availability

22

Knob, Control (4) WPL 3183120 Contact Us For Availability

23

Deflector WPL 4450051 Contact Us For Availability

24

WP3188286 Whirlpool Thermostat Backorder WPL WP3188286 $45.35

24

Screw, 6-32 (2) WPL 313806 Contact Us For Availability

25

Screw WPL 4159456 Contact Us For Availability

25

Shield, Heat WPL 4454837 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4451546 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI124497A Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

37

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $30.95

43

Base, Chassis WPL 4451398 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

51

Trim, Bottom WPL 4448477 Contact Us For Availability

51

Screw WPL 4159465 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $76.41

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
