Model Whirlpool RM996PXVW4 – Common Parts & Diagrams
02 - COOKTOP

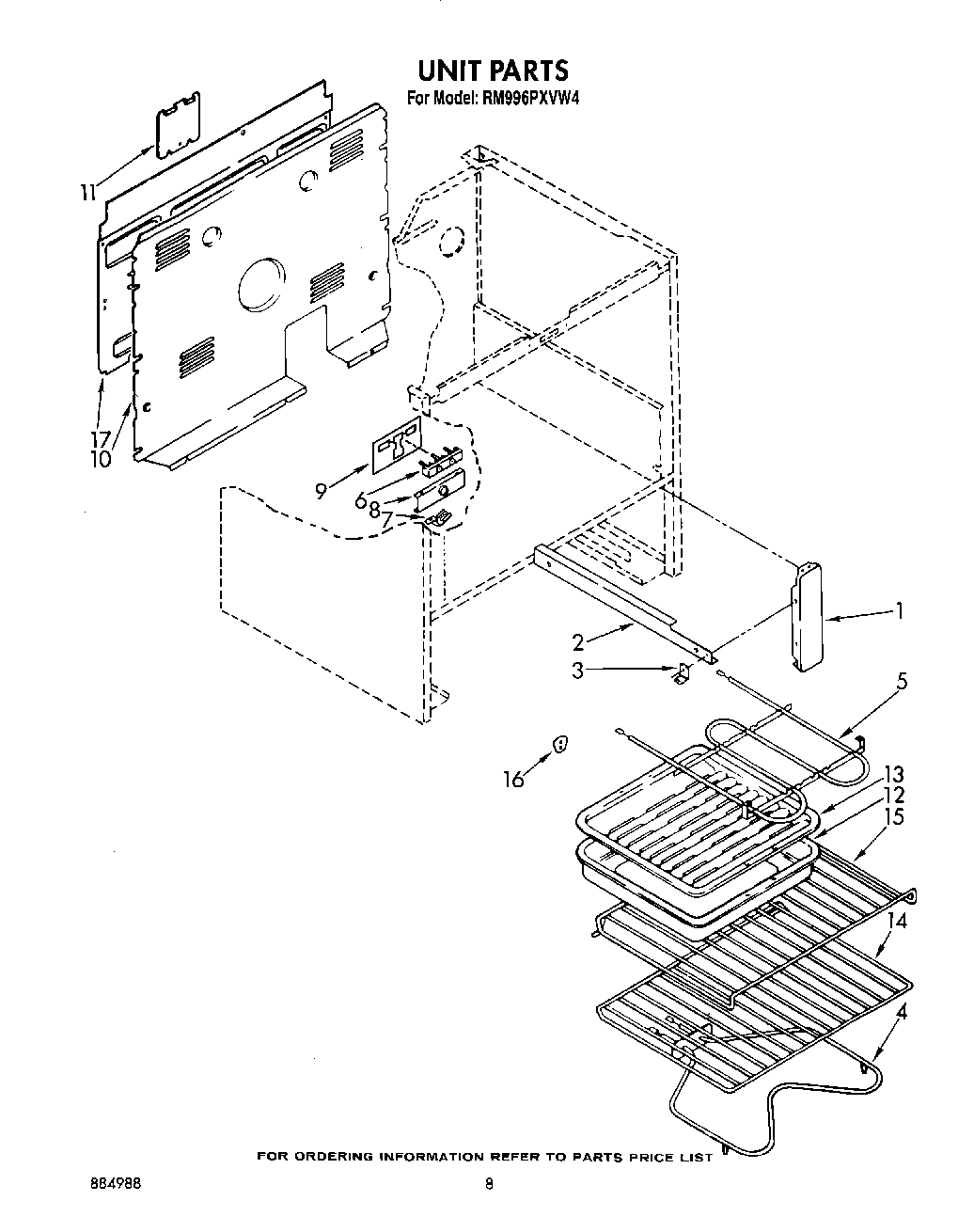

06 - UNIT

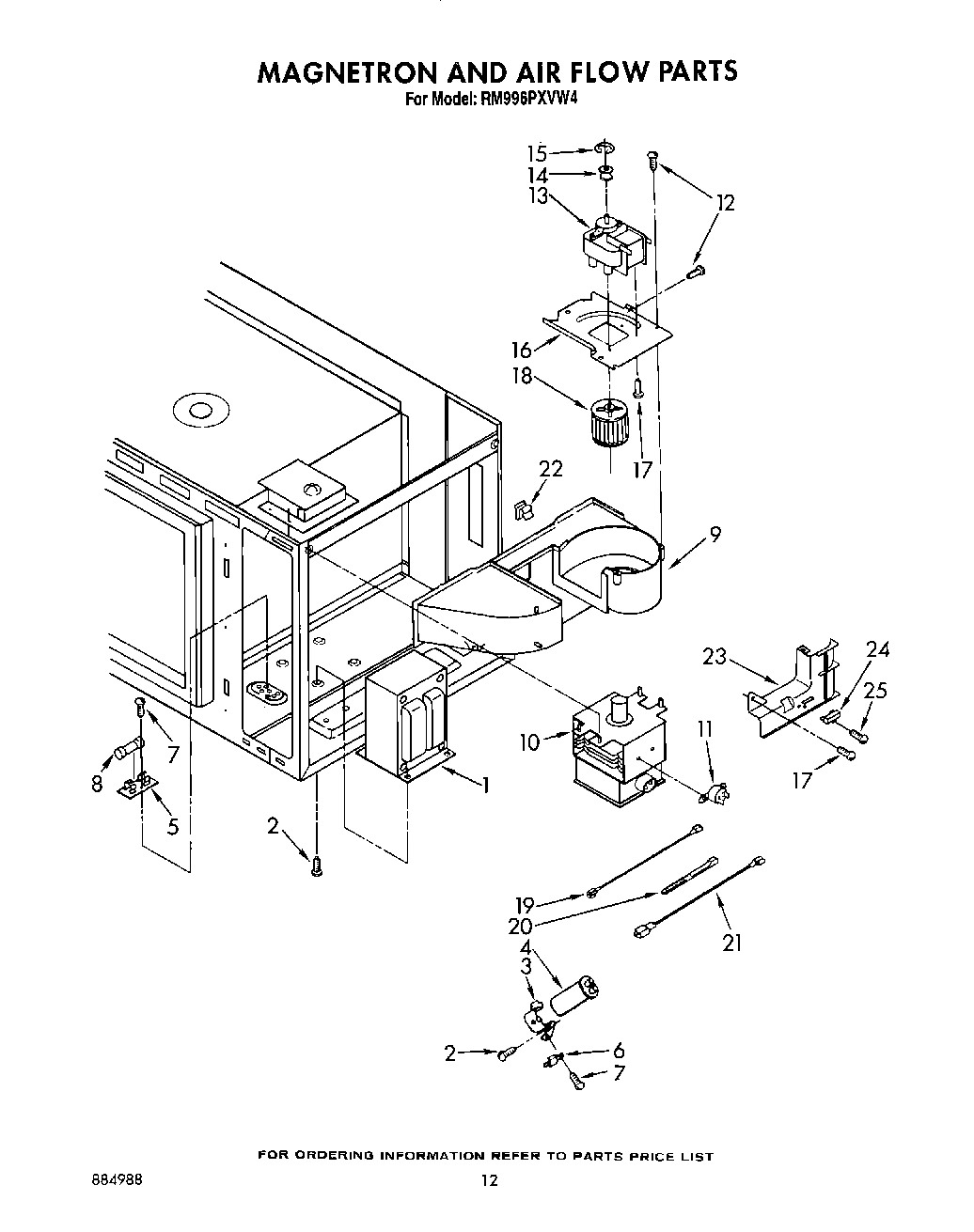

08 - MAGNETRON AND AIR FLOW

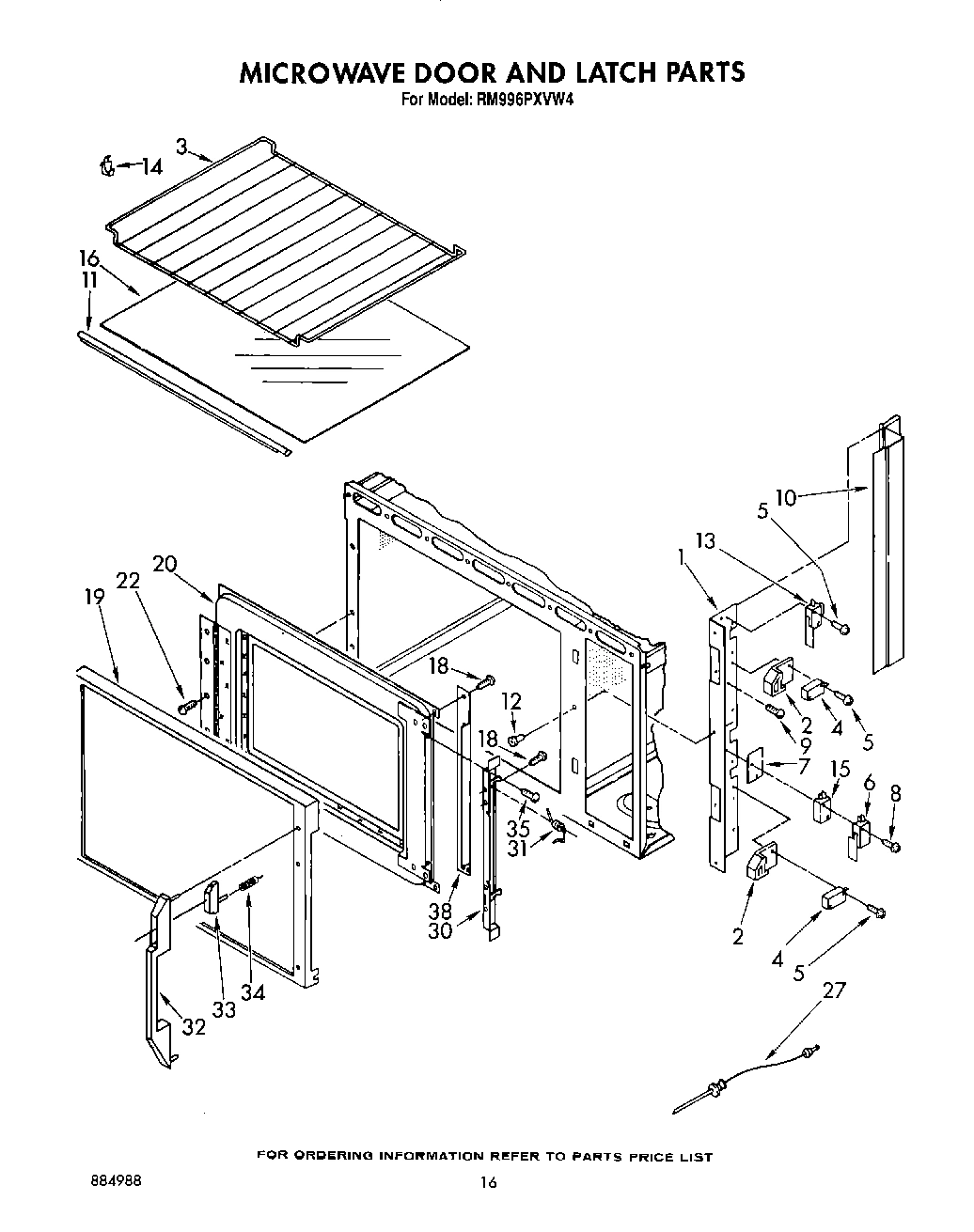

10 - MICROWAVE DOOR AND LATCH, OPTIONAL

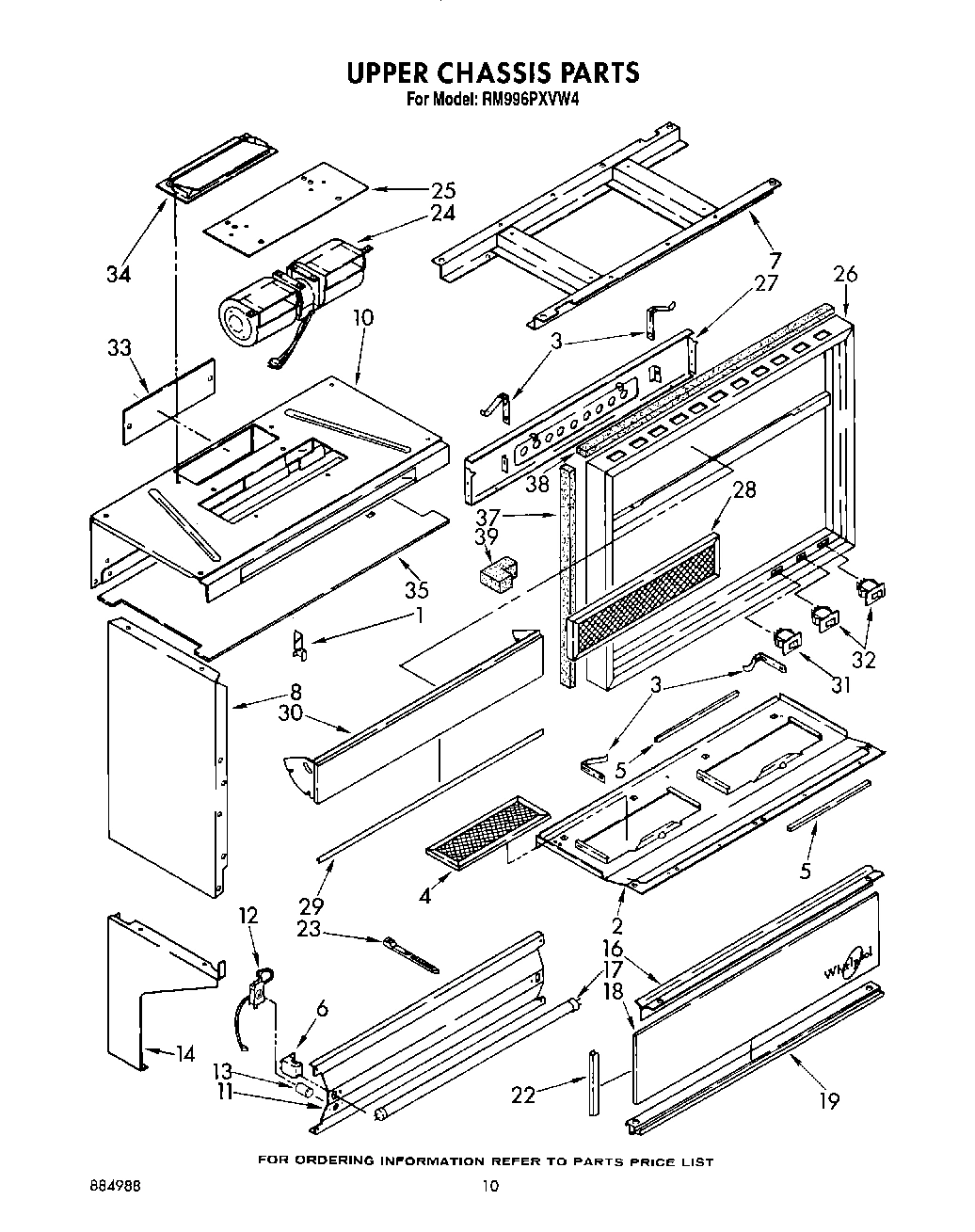

07 - UPPER CHASSIS

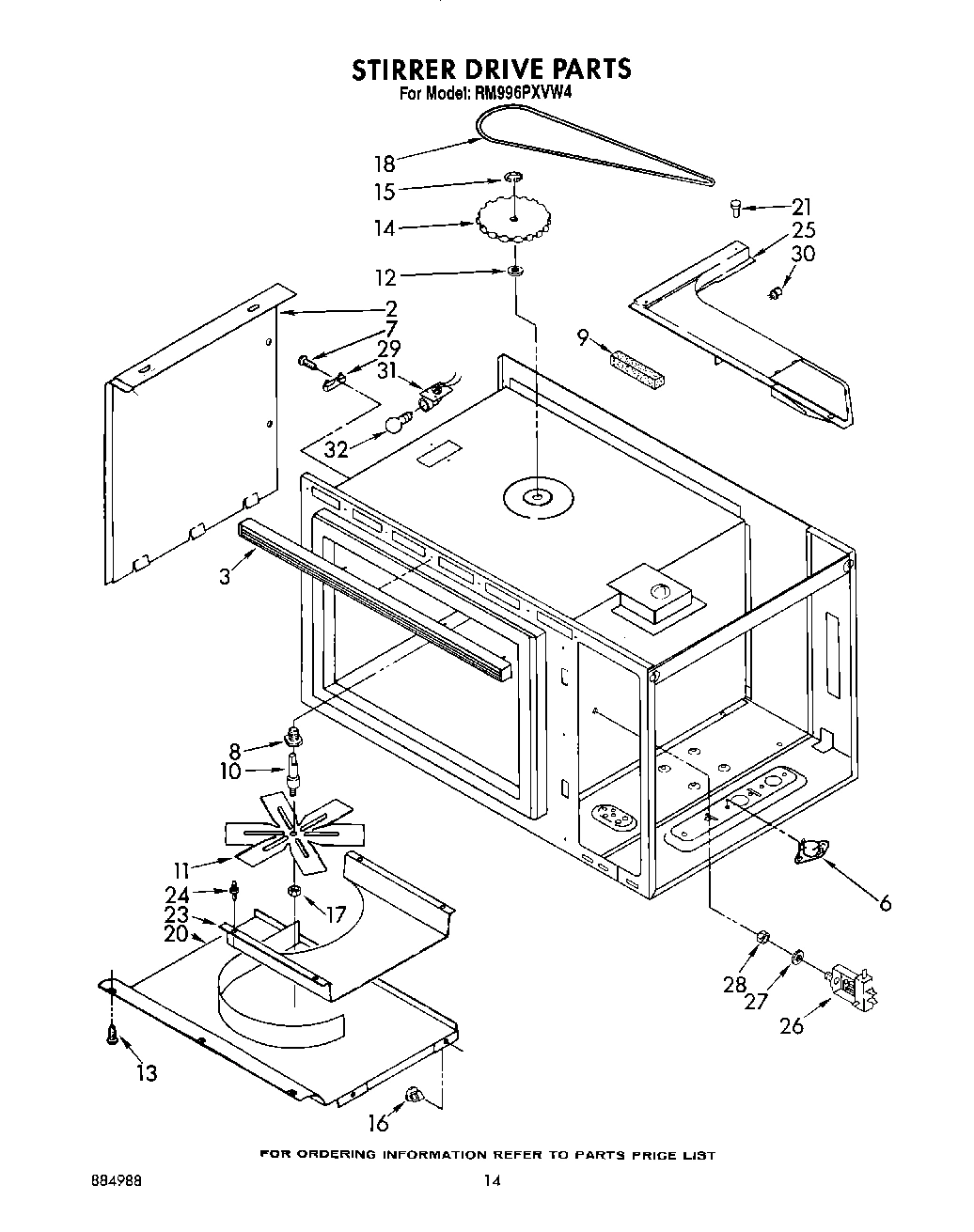

09 - STIRRER DRIVE

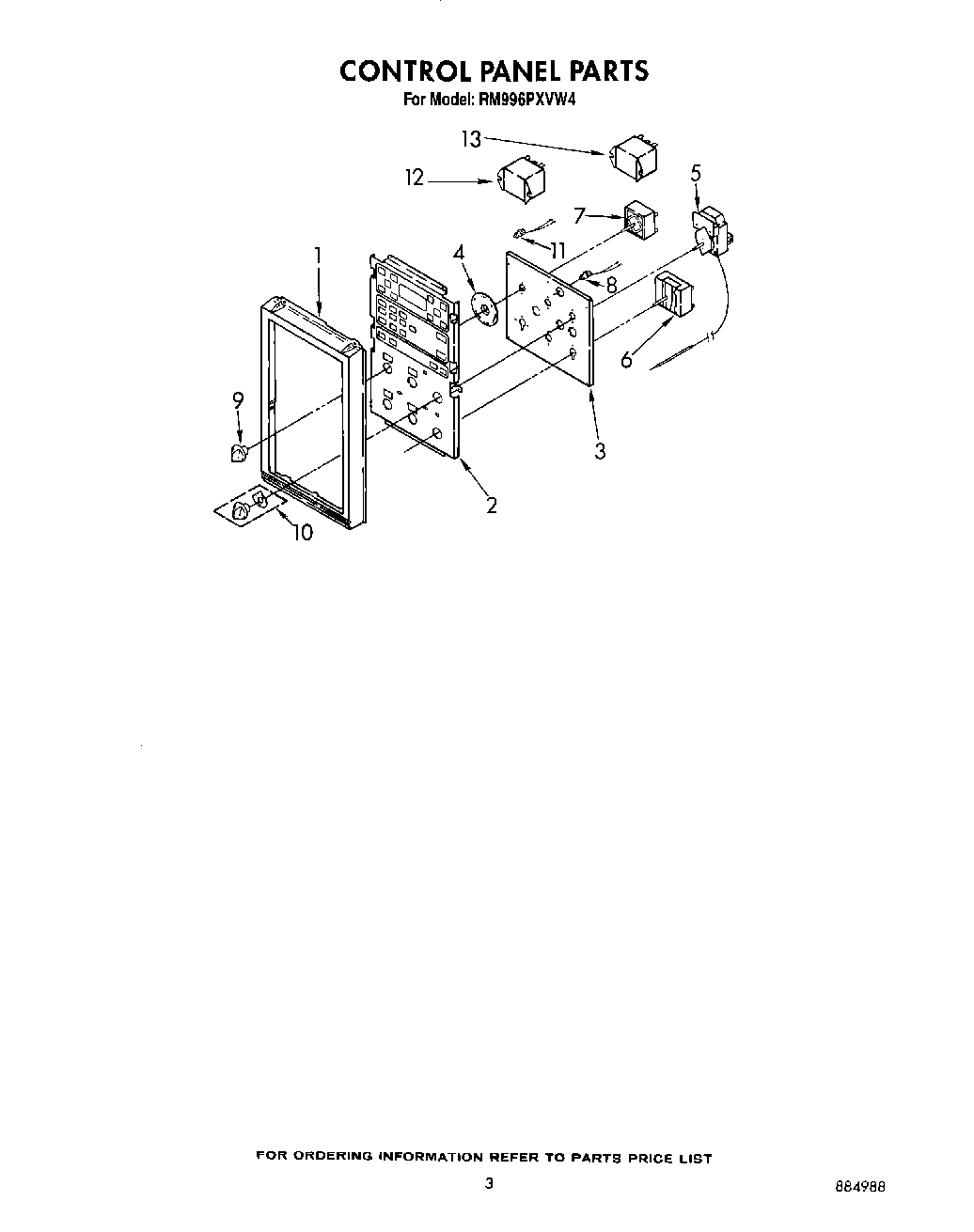

03 - CONTROL PANEL

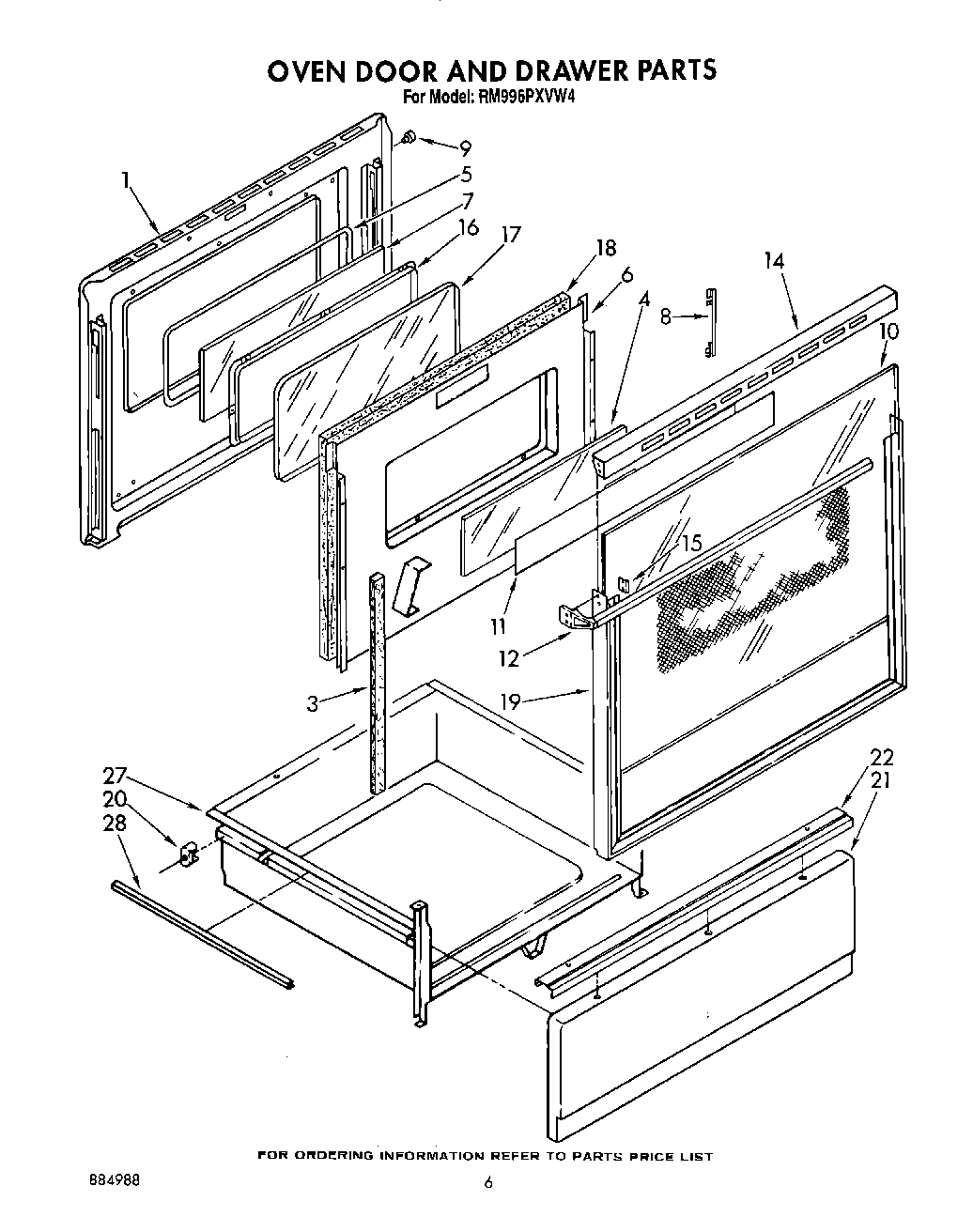

05 - OVEN DOOR AND DRAWER

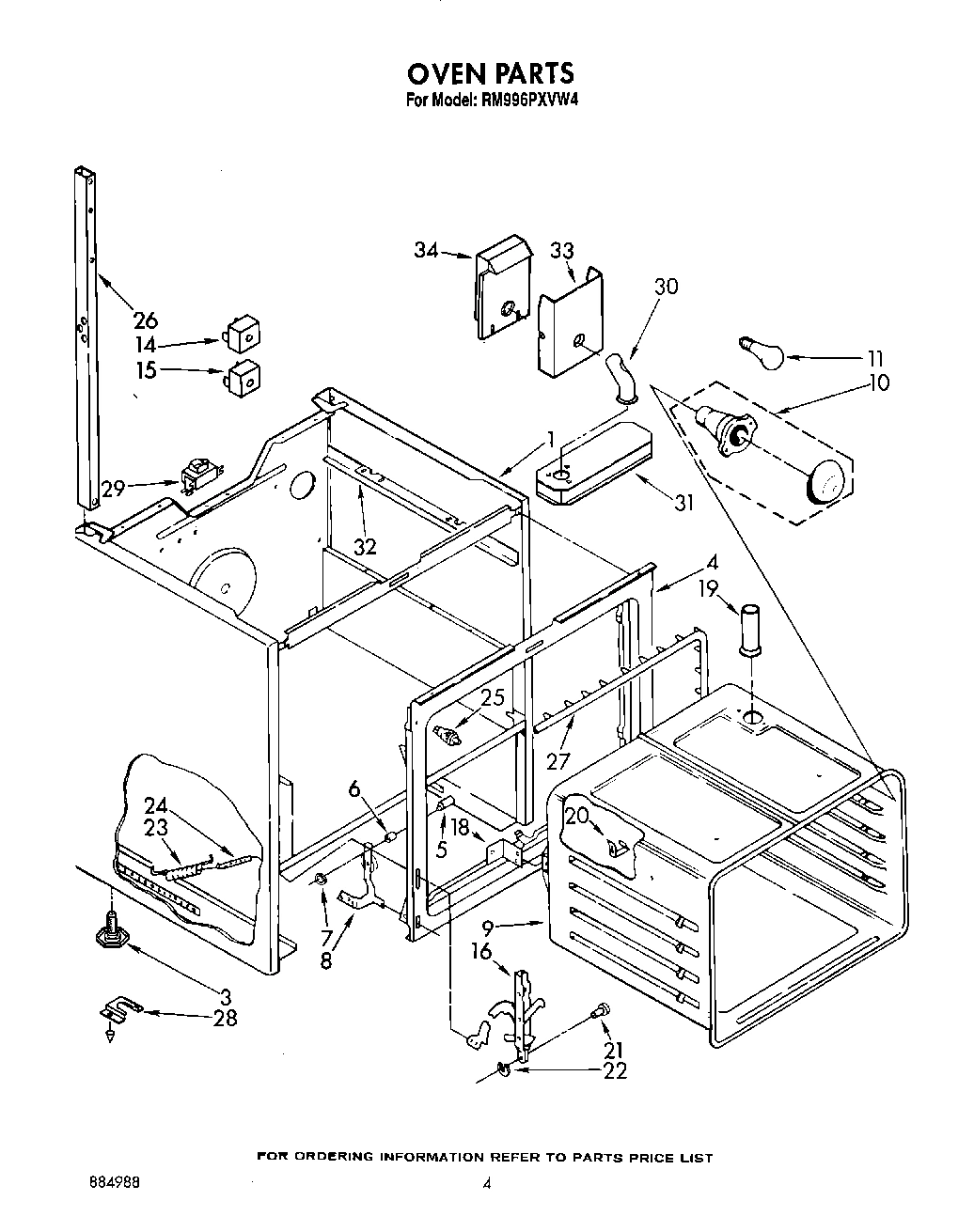

04 - OVEN, LIT/OPTIONAL

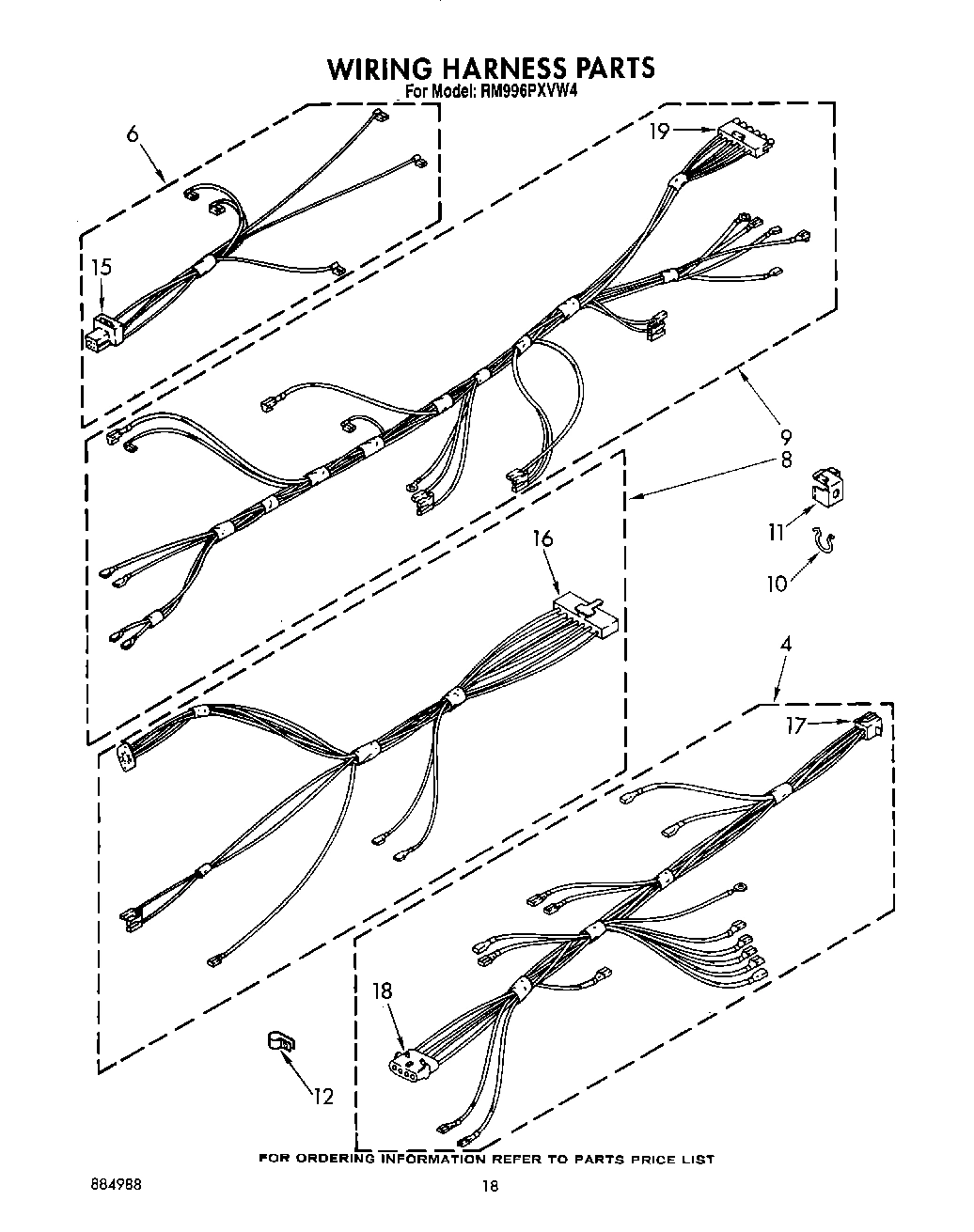

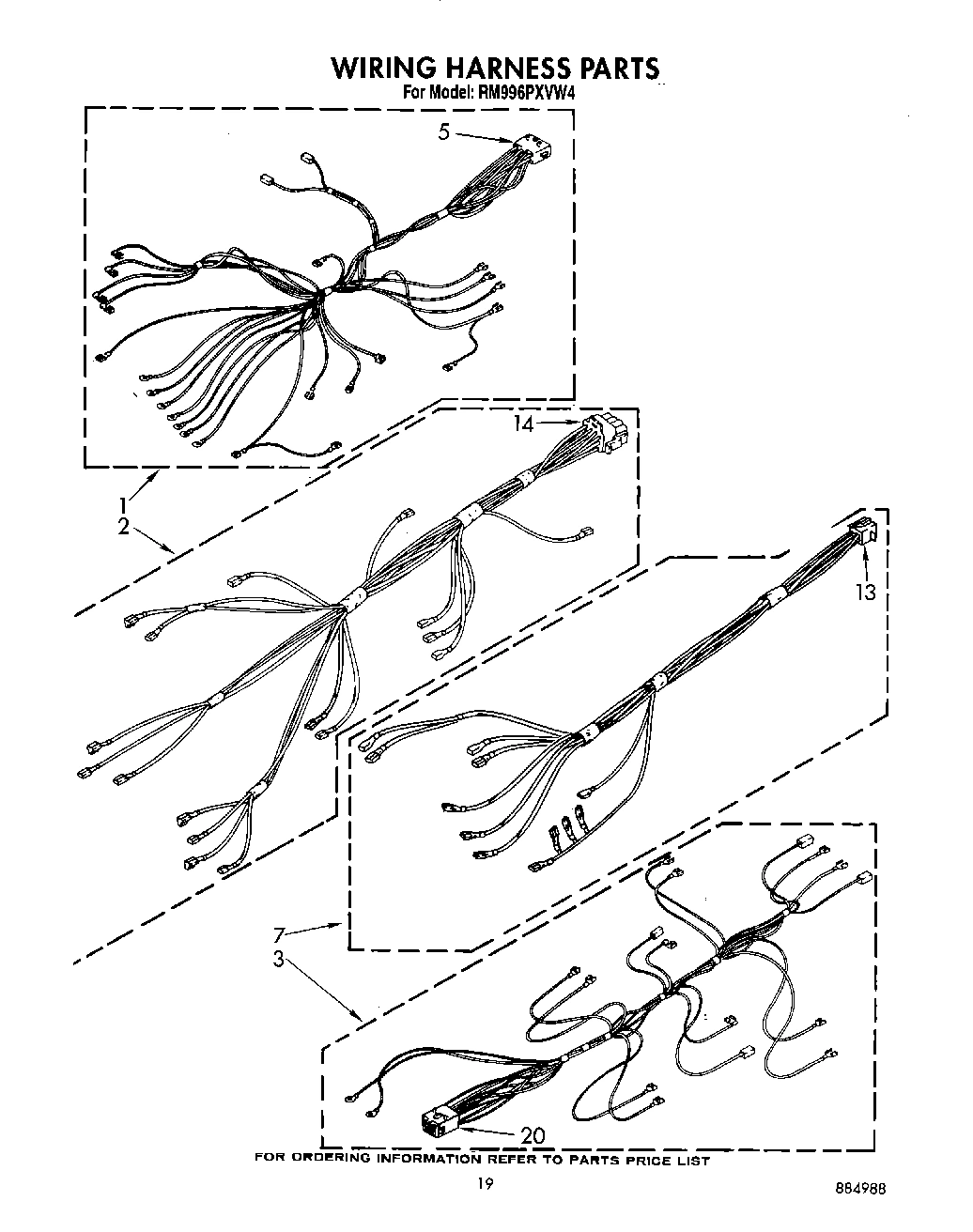

11 - WIRING HARNESSES
12 - SECTION
Common parts from model Whirlpool RM996PXVW4
Cookbook WPL LIT311895 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT312913 Contact Us For Availability
Chart, Sensor Cooking WPL LIT3147329 Contact Us For Availability
Installation Instructions WPL LIT3147391 Contact Us For Availability
Cooking Guide WPL LIT3149507 Contact Us For Availability
Install. Templet WPL LIT3150400 Contact Us For Availability
Use & Care Guide (Range) WPL LIT3150585 Contact Us For Availability
Tech Sheet WPL LIT3150643 Contact Us For Availability
Video, WPL LIT3182687 Contact Us For Availability
WPL LIT884988 WPL LIT884988 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Transformer WPL 3147272 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Bracket, Stop R.H. WPL 3147486 Contact Us For Availability
1
Bracket, Stop L.H. WPL 3147487 Contact Us For Availability
1
Screw (2) WPL 312006 Contact Us For Availability
1
Frame, Control WPL 3182412 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
wire harness (main) WPL 3149579 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Panel, Bottom WPL 314216 Contact Us For Availability
2
Seal, Foam WPL 3147593 Contact Us For Availability
2
Cover, Side WPL 3147004 Contact Us For Availability
2
Module, Control WPL 3148270 Contact Us For Availability
2
Wiring Harness (Select/Therm) WPL 3147917 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Bracket, Capacitor WPL 312619 Contact Us For Availability
3
Screw, 8-32 x 3/16 (4) WPL 313818 Contact Us For Availability
3
rack, wire WPL 313663 Contact Us For Availability
3
Grille, Air WPL 3149300 Contact Us For Availability
3
bracket, control (mounting) WPL 3147280 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Wiring Harness (Infinite Switch) WPL 3147549 Contact Us For Availability
4
(Alt.) WPL 312631 Contact Us For Availability
4
(Alt.) WPL 312632 Contact Us For Availability
4
Capacitor WPL 661004 Contact Us For Availability
4
Filter, Mesh (2) WPL 3147608 Contact Us For Availability
4
Skirt, Dail (4) WPL 3147032 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Frame, Front WPL 3172194 Contact Us For Availability
4
Wire Harness (Vent Motor) WPL 3147556 Contact Us For Availability
5
seal, liner WPL 3148183 Contact Us For Availability
5
Screw, 4.40 x 3/4 WPL 312717 Contact Us For Availability
5
Edge, Protector (2) WPL 3147756 Contact Us For Availability
5
Thermostat, Oven WPL 3148930 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Connector WPL 309408 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 3/4 (2) WPL 98884 Contact Us For Availability
6
Rectifier, High Voltage WPL 313830 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Socket, Assembly L.H. WPL 3147244 Contact Us For Availability
6
Socket, Assembly R.H. WPL 3147245 Contact Us For Availability
6
Thermostat WPL 3147274 Contact Us For Availability
6
Switch, Selector WPL 3148421 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
6
Wire Harness (Rocker Switch) WPL 3147567 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Support, Frame WPL 330677 Contact Us For Availability
7
Screw, 8-32 x 3/16 (8) WPL 308119 Contact Us For Availability
7
switch, infinite (4) WPL 308477 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
wire harness (cooktop) WPL 3149072 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Panel-Duct Assy. Left Side (Seal, Foam (2)) WPL 3147591 Contact Us For Availability
8
Panel-Duct Assy. Left Side (Seal, Foam (2)) WPL 3147592 Contact Us For Availability
8
Panel-Duct Assy. Left Side (White) WPL 3171910 Contact Us For Availability
8
Panel-Duct Assy. Left Side (White) WPL 3171911 Contact Us For Availability
8
Panel-Duct Assy. Left Side (Almond) WPL 3171912 Contact Us For Availability
8
Panel-Duct Assy. Left Side (Almond Right Side WPL 3171913 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
light, indicator (3) WPL 3147862 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Wiring Harness Control (Microwave) WPL 3147559 Contact Us For Availability
9
Barrier, Shield WPL 3150189 Contact Us For Availability
9
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
9
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Knob, Control (4) WPL 3147030 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
10
Spring (8) WPL 3149191 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
(Alt.) WPL 311992 Contact Us For Availability
10
(Alt.) WPL 311993 Contact Us For Availability
10
(Alt.) WPL 311994 Contact Us For Availability
10
(Alt.) WPL 311995 Contact Us For Availability
10
Screw (2) WPL 312782 Contact Us For Availability
10
(Alt.) WPL 313034 Contact Us For Availability
10
Magnetron WPL 660595 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Top Panel WPL 3149068 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
knob, selector (2) WPL 3147888 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
(Alt.) WPL 307856 Contact Us For Availability
10
(Alt.) WPL 310208 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
(Alt.) WPL 312800 Contact Us For Availability
11
(Alt.) WPL 313521 Contact Us For Availability
11
Thermal Protector WPL 661165 Contact Us For Availability
11
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
11
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
11
Panel, Backguard WPL 3147589 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
light, indicator WPL 3149036 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Terminal, Adapter WPL 3147832 Contact Us For Availability
12
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Socket, Flourscent WPL 3147224 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Strain, Relief WPL 308609 Contact Us For Availability
13
Starter, Lamp WPL 387695 Contact Us For Availability
13
Transmotor WPL 313641 Contact Us For Availability
13
Switch, Miniature WPL 313120 Contact Us For Availability
13
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
13
Connector WPL 309406 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Pulley, Motor WPL 311922 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314198 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314199 Contact Us For Availability
14
End Trim R.H. (White) WPL 314203 Contact Us For Availability
14
end trim R.H. (almond) WPL 314204 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
14
Screw, (2) 10-16 x 1/2 WPL 3182345 Contact Us For Availability
14
Switch, Broil WPL 314209 Contact Us For Availability
14
Connector WPL 309405 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
15
Screw, No.6 WPL 314215 Contact Us For Availability
15
Switch, Bake WPL 314210 Contact Us For Availability
15
Connector WPL 3147361 Contact Us For Availability
16
Screw (2) WPL 3150532 Contact Us For Availability
16
Coverplate WPL 311982 Contact Us For Availability
16
Bracket, Motor WPL 313601 Contact Us For Availability
16
Fastener (4) WPL 313740 Contact Us For Availability
16
Shelf, Glass WPL 313639 Contact Us For Availability
16
Trim, Glass (Top) WPL 313320 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
16
Channel, Arm (2) WPL 329710 Contact Us For Availability
16
Connector WPL 308565 Contact Us For Availability
17
Cover WPL 3147490 Contact Us For Availability
17
Connector WPL 3147362 Contact Us For Availability
18
Wheel, Blower WPL 3147223 Contact Us For Availability
18
Glass Backsplash WPL 3149008 Contact Us For Availability
18
Insulation WPL 3147951 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Connector WPL 310960 Contact Us For Availability
19
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
19
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
19
Frame, Door WPL 3150229 Contact Us For Availability
19
Trim, Glass (Bottom) WPL 313321 Contact Us For Availability
19
Frame, Panel WPL 3148235 Contact Us For Availability
19
Vent, Oven WPL 3169109 Contact Us For Availability
19
Connector WPL 311575 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Connector WPL 309409 Contact Us For Availability
21
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
21
Fastener WPL 310423 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
22
Mounting Clip WPL 3149190 Contact Us For Availability
22
Clip WPL 311311 Contact Us For Availability
22
Trim, End (Glass) (2) WPL 313319 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
23
Extension, Air Duct WPL 3147262 Contact Us For Availability
23
Plate, Tuning WPL 313735 Contact Us For Availability
24
Tube Clamp WPL 313570 Contact Us For Availability
24
Fuse, Thermal WPL 3147275 Contact Us For Availability
24
Blower, Exhaust WPL 3147817 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Switch, Lock WPL 3148669 Contact Us For Availability
25
Cover, Access WPL 3147798 Contact Us For Availability
25
Nut (6) WPL 3147866 Contact Us For Availability
25
Baffle, Air Exhaust WPL 3147003 Contact Us For Availability
26
Insulator, Switch WPL 3147864 Contact Us For Availability
26
WPL 309133 WPL 309133 Contact Us For Availability
26
WPL 3149557 WPL 3149557 Contact Us For Availability
26
Probe Jack WPL 661209 Contact Us For Availability
26
Support, Tubing R.H. WPL 314195 Contact Us For Availability
26
support, tubing L.H. WPL 314197 Contact Us For Availability
27
Probe, Temperature WPL 313527 Contact Us For Availability
27
WPL 3147712 WPL 3147712 Contact Us For Availability
27
WPL 3147724 WPL 3147724 Contact Us For Availability
27
WPL 3147755 WPL 3147755 Contact Us For Availability
27
WPL 3147764 WPL 3147764 Contact Us For Availability
27
WPL 3147858 WPL 3147858 Contact Us For Availability
27
Washer, Internal Lock WPL 313105 Contact Us For Availability
27
Drawer, Utility WPL 327887 Contact Us For Availability
27
Seal, Door WPL 3148284 Contact Us For Availability
28
WPL 3147525 WPL 3147525 Contact Us For Availability
28
WPL 3147609 WPL 3147609 Contact Us For Availability
28
Nut WPL 313104 Contact Us For Availability
28
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
28
screw (2) WPL 3148604 Contact Us For Availability
28
Anchor, Plastic (2) WPL 3148605 Contact Us For Availability
29
WPL 3149007 WPL 3149007 Contact Us For Availability
29
Fuse, Thermal WPL 313855 Contact Us For Availability
29
Screw WPL 3147001 Contact Us For Availability
29
(Alt.) WPL 346772 Contact Us For Availability
29
Ballast WPL 660001 Contact Us For Availability
29
(Alt.) WPL 685591 Contact Us For Availability
30
Latch Assembly Includes No.31 WPL 329066 Contact Us For Availability
30
WPL 3170269 WPL 3170269 Contact Us For Availability
30
Sensor, Gas WPL 3147060 Contact Us For Availability
30
Vent, Oven WPL 3148906 Contact Us For Availability
31
Screw No.8-32x3/8 WPL 312713 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Socket-Plate Assy WPL 330514 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
32
Screw No.10x3/8 WPL 254217 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Screw (2) WPL 98520 Contact Us For Availability
33
Button, Door Handle WPL 3149637 Contact Us For Availability
33
WPL 3147726 WPL 3147726 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
WPL 3147843 WPL 3147843 Contact Us For Availability
34
Insulation, Wrapper WPL 3169093 Contact Us For Availability
34
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
34
Box, Vent WPL 3171381 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
35
WPL 3147250 WPL 3147250 Contact Us For Availability
37
WPL 3147595 WPL 3147595 Contact Us For Availability
38
WPL W10355051 No Longer Available
38
WPL 799344 WPL 799344 Contact Us For Availability
38
Leveler, Enamel WPL 206925 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
38
Touch-Up, Oven WPL 254323 Contact Us For Availability
38
Grease WPL 261582 Contact Us For Availability
38
Harvest Gold WPL 261890 Contact Us For Availability
38
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
38
Toast WPL 285365 Contact Us For Availability
38
Paint, Spray (13 Oz.) WPL 285366 Contact Us For Availability
38
WPL 285367 WPL 285367 Contact Us For Availability
38
WPL 285368 WPL 285368 Contact Us For Availability
38
WPL 313823 WPL 313823 Contact Us For Availability
38
WPL 3148297 WPL 3148297 Contact Us For Availability
38
WPL 591014 WPL 591014 Contact Us For Availability
38
WPL 72112 WPL 72112 Contact Us For Availability
38
WPL 799340 WPL 799340 Contact Us For Availability
38
WPL 799832 WPL 799832 Contact Us For Availability
38
WPL 814023 WPL 814023 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
38
WPL 3147590 WPL 3147590 Contact Us For Availability
39
WPL 3149016 WPL 3149016 Contact Us For Availability
× ![]()
