Model Whirlpool RJE395PW1 – Common Parts & Diagrams

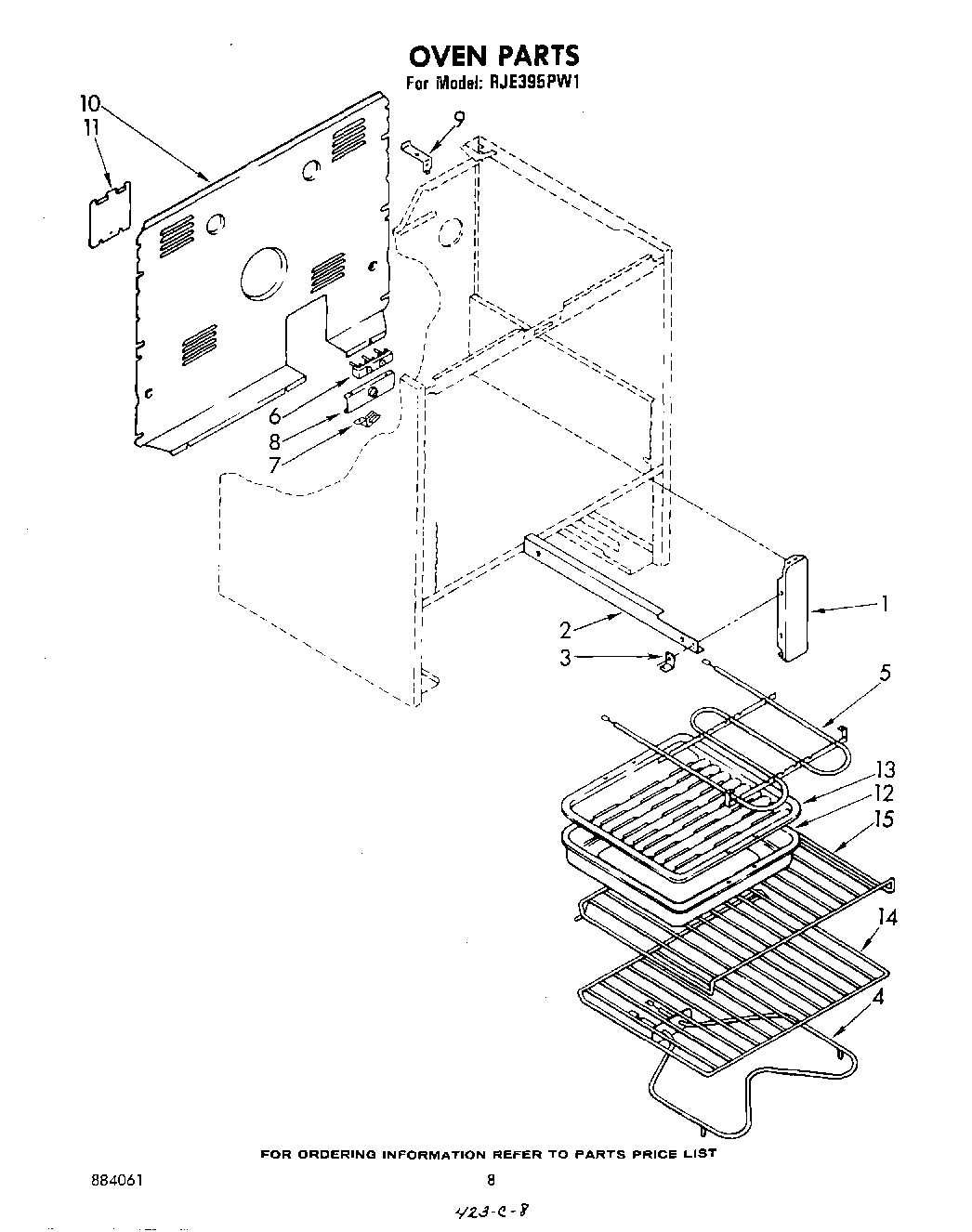

05 - OVEN , LITERATURE AND OPTIONAL

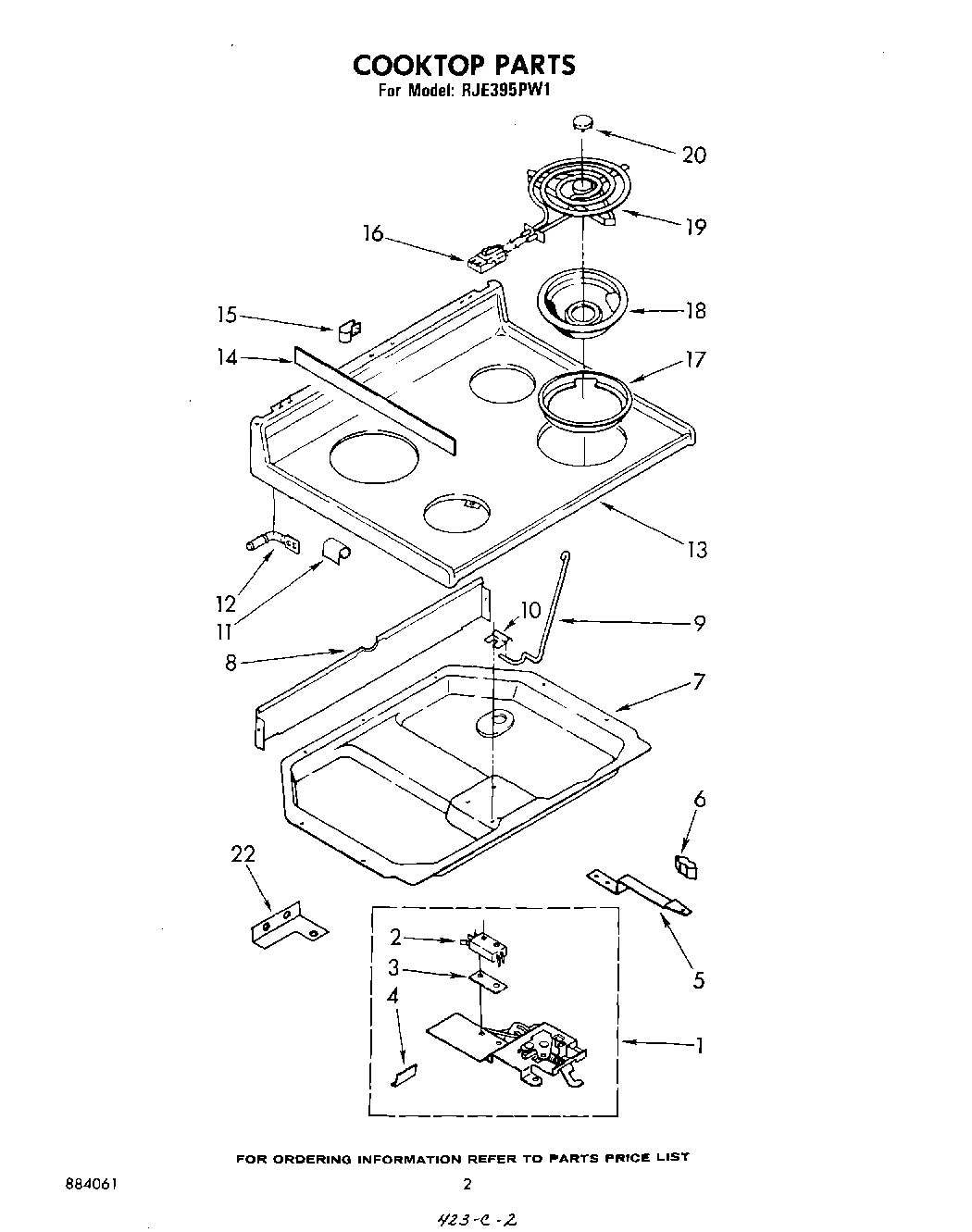

02 - COOKTOP

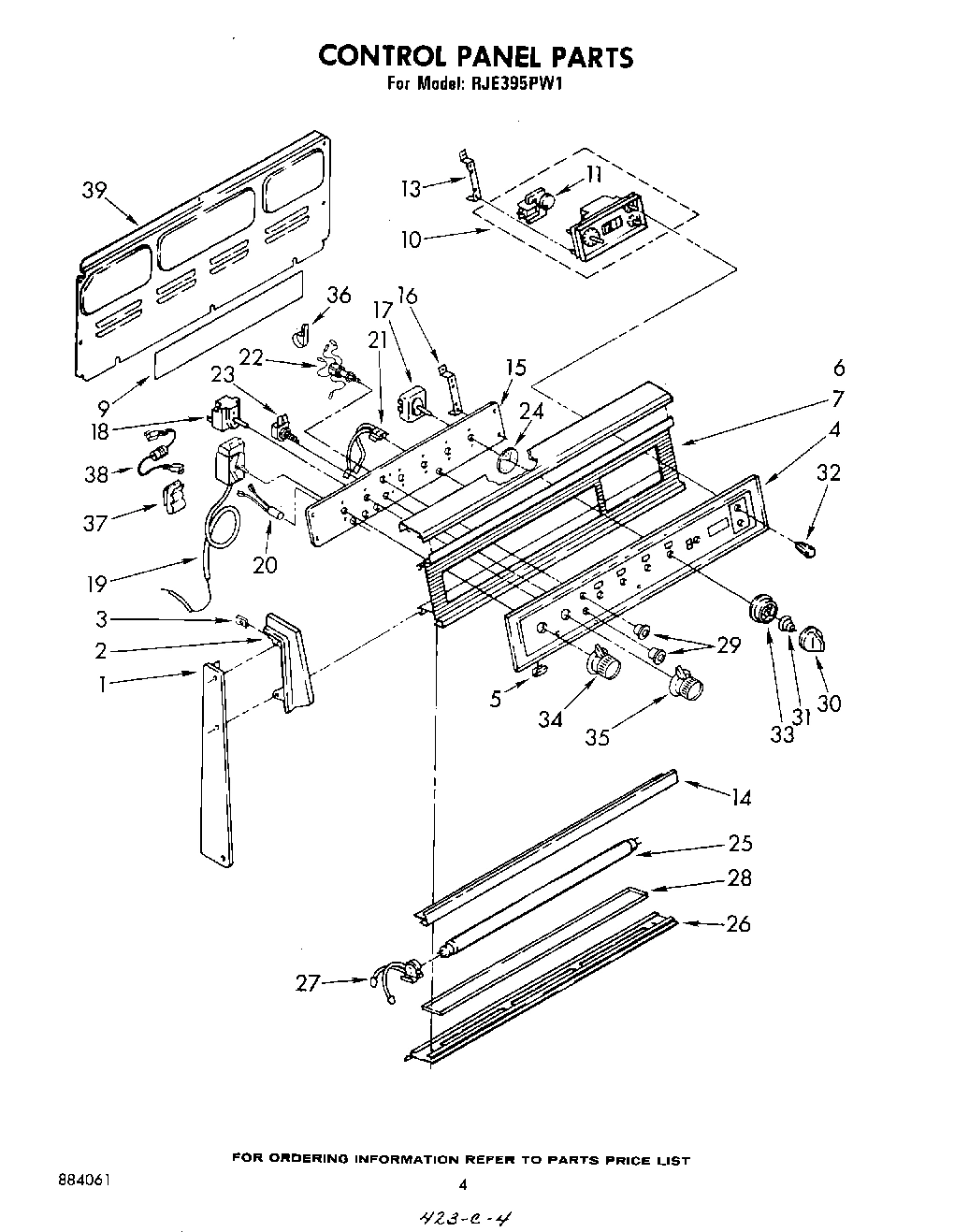

03 - CONTROL PANEL

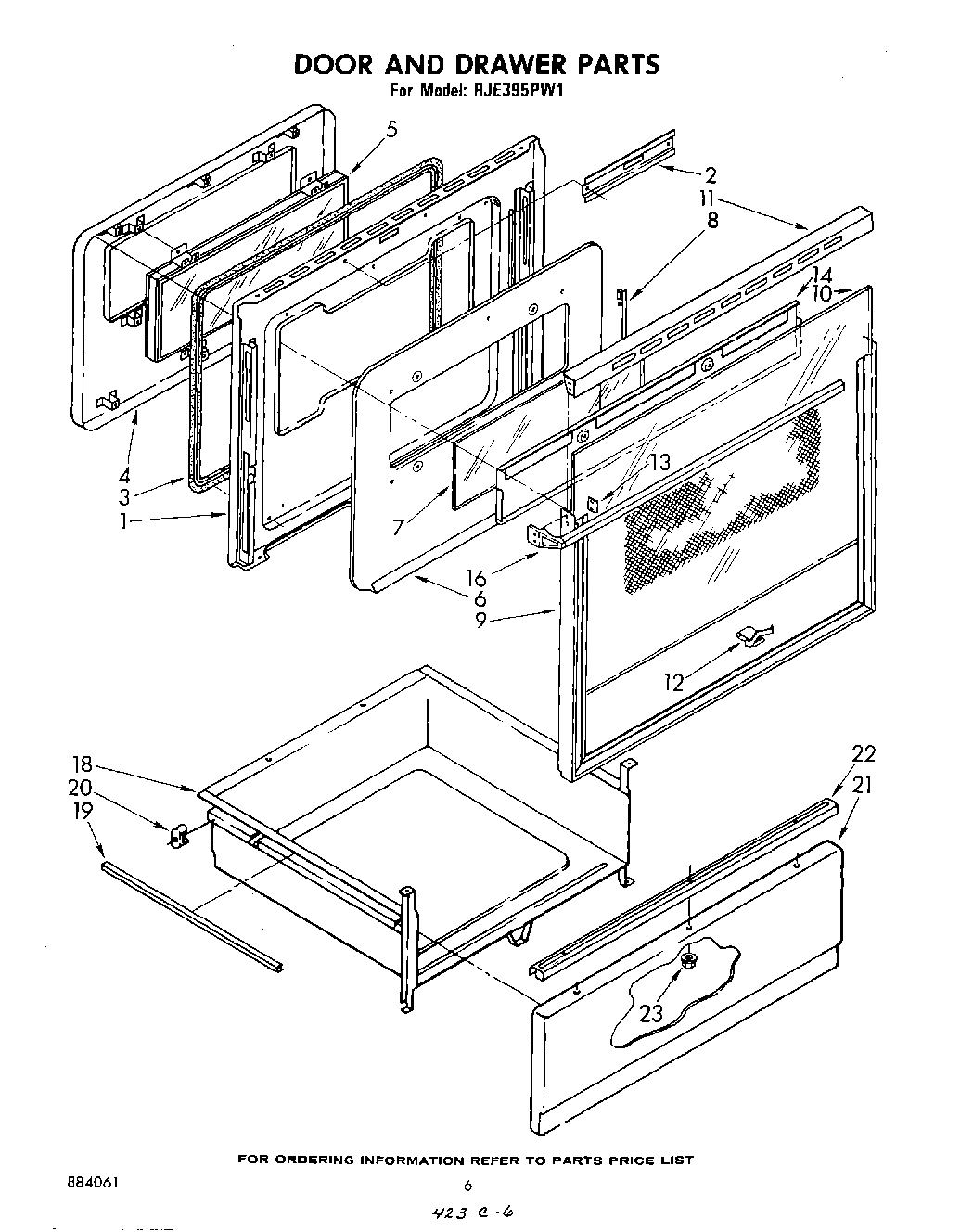

04 - DOOR AND DRAWER

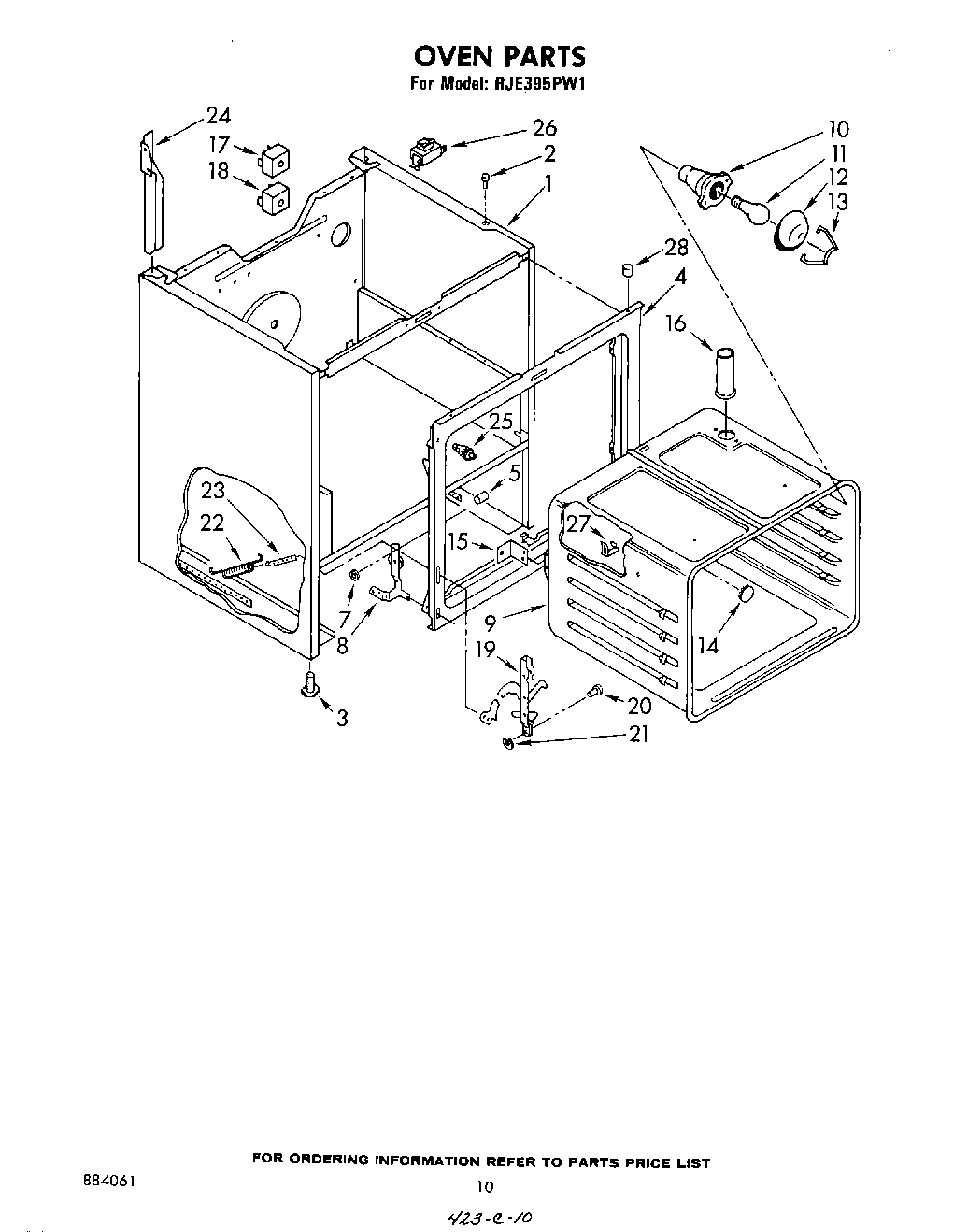

06 - SECTION
Common parts from model Whirlpool RJE395PW1
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
End Trim, R.H. WPL 328331 Contact Us For Availability
1
End Trim, L.H. WPL 328333 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Main Chassis (White) WPL 329962 Contact Us For Availability
1
Main Chassis (New Avocado) WPL 329963 Contact Us For Availability
1
Main Chassis (Coffee) WPL 329964 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 329965 Contact Us For Availability
1
Main Chassis (Almond) WPL 329966 Contact Us For Availability
1
Main Chassis (Toast) WPL 330093 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330094 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
End Cap, R.H. WPL 308470 Contact Us For Availability
2
End Cap, L.H. WPL 308472 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Clip, End Cap (6) WPL 98084 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Control Panel, Glass WPL 312514 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
5
Handle, Latch WPL 307976 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Retainer, Glass WPL 308974 Contact Us For Availability
5
Window Package WPL 309844 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Rail, Top WPL 308579 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
7
Burner Box WPL 307929 Contact Us For Availability
7
Screw, 8A x 5/8 (4) WPL 307831 Contact Us For Availability
7
Panel, Back WPL 311925 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Barrier Strip WPL 309289 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Timer, Digital (Includes Illus. 11) WPL 310325 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
11
Motor, Timer WPL 308594 Contact Us For Availability
11
Palnut, Timer 10-32 (4) WPL 308846 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Clip, Glass (8) WPL 310706 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
13
Cooktop (Harvest Gold) WPL 307863 Contact Us For Availability
13
Cooktop (Coffee) WPL 307864 Contact Us For Availability
13
Cooktop (New Avocado) WPL 307865 Contact Us For Availability
13
Cooktop (White) WPL 307866 Contact Us For Availability
13
Cooktop (Almond) WPL 307871 Contact Us For Availability
13
Cooktop (Toast) WPL 313165 Contact Us For Availability
13
Cooktop (Platinum) WPL 313166 Contact Us For Availability
13
Bracket, Timer (2) WPL 308823 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
14
Cooktop Trim R.H. WPL 328870 Contact Us For Availability
14
Cooktop Trim L.H. WPL 328871 Contact Us For Availability
14
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
14
Rail, Bottom WPL 308580 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
WPL 242832 WPL 242832 Contact Us For Availability
15
WPL 261582 WPL 261582 Contact Us For Availability
15
WPL 261886 WPL 261886 Contact Us For Availability
15
WPL 261888 WPL 261888 Contact Us For Availability
15
WPL 261890 WPL 261890 Contact Us For Availability
15
WPL 285365 WPL 285365 Contact Us For Availability
15
WPL 285366 WPL 285366 Contact Us For Availability
15
WPL 308172 WPL 308172 Contact Us For Availability
15
WPL 308500 WPL 308500 Contact Us For Availability
15
WPL 312489 WPL 312489 Contact Us For Availability
15
WPL 312718 WPL 312718 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 72112 WPL 72112 Contact Us For Availability
15
WPL 799351 WPL 799351 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 884061 WPL 884061 Contact Us For Availability
15
Plate, Control Panel WPL 311926 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Bracket, Control Mounting WPL 308824 Contact Us For Availability
16
Screw (11) WPL 98520 Contact Us For Availability
16
Handle, Oven Door WPL 312721 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
17
Switch, Broil WPL 310643 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 310005 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Switch, Bake WPL 310644 Contact Us For Availability
19
Thermostat, Oven Pyro WPL 310018 Contact Us For Availability
19
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Light, Indicator (3) (Oven, Lock, Clean) WPL 311550 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Light, Indicator (1) (Surface Unit) WPL 311689 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
21
Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Shield, In WPL 312320 Contact Us For Availability
22
Switch, Fluorescent Light WPL 312370 Contact Us For Availability
22
Handle, Drawer WPL 307956 Contact Us For Availability
23
nut, 3/8 x 27 WPL 255912 Contact Us For Availability
23
Switch, Oven Light WPL 308829 Contact Us For Availability
24
Skirt, Knob WPL 308352 Contact Us For Availability
24
Support, R.H. Channel WPL 309240 Contact Us For Availability
24
Support, L.H. Channel WPL 309241 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
26
Retainer, Lamp Glass WPL 309242 Contact Us For Availability
26
Ballast (Alternate) WPL 346772 Contact Us For Availability
26
Ballast (Alternate) WPL 685591 Contact Us For Availability
27
Fastener, Speed Nut (2) WPL 308845 Contact Us For Availability
27
Socket, Fluorescent Light R.H. WPL 308850 Contact Us For Availability
27
Socket, Fluorescent Light L.H. WPL 308851 Contact Us For Availability
28
Lens, Lamp WPL 308756 Contact Us For Availability
28
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
28
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
29
Bezel, Switch (2) WPL 313030 Contact Us For Availability
30
Knob, Control (4) WPL 313307 Contact Us For Availability
31
Spring, Knob (4) WPL 308348 Contact Us For Availability
32
WPL 255853 WPL 255853 Contact Us For Availability
33
WPL 308350 WPL 308350 Contact Us For Availability
34
WPL 328709 WPL 328709 Contact Us For Availability
35
WPL 328707 WPL 328707 Contact Us For Availability
37
WPL 309211 WPL 309211 Contact Us For Availability
38
WPL 328923 WPL 328923 Contact Us For Availability
39
WPL 309239 WPL 309239 Contact Us For Availability
× ![]()
