Model Whirlpool RJE385PW0 – Common Parts & Diagrams

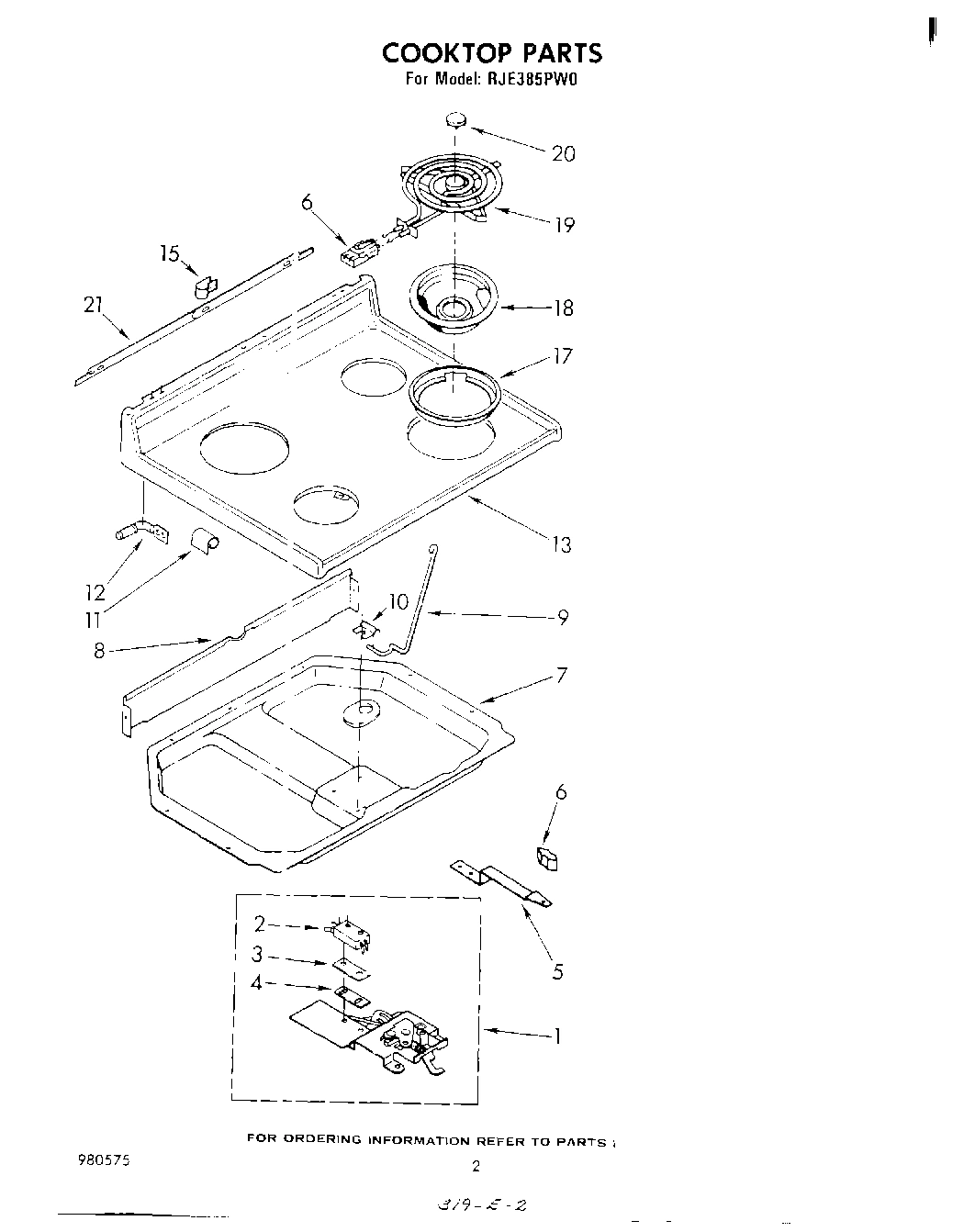

02 - COOKTOP

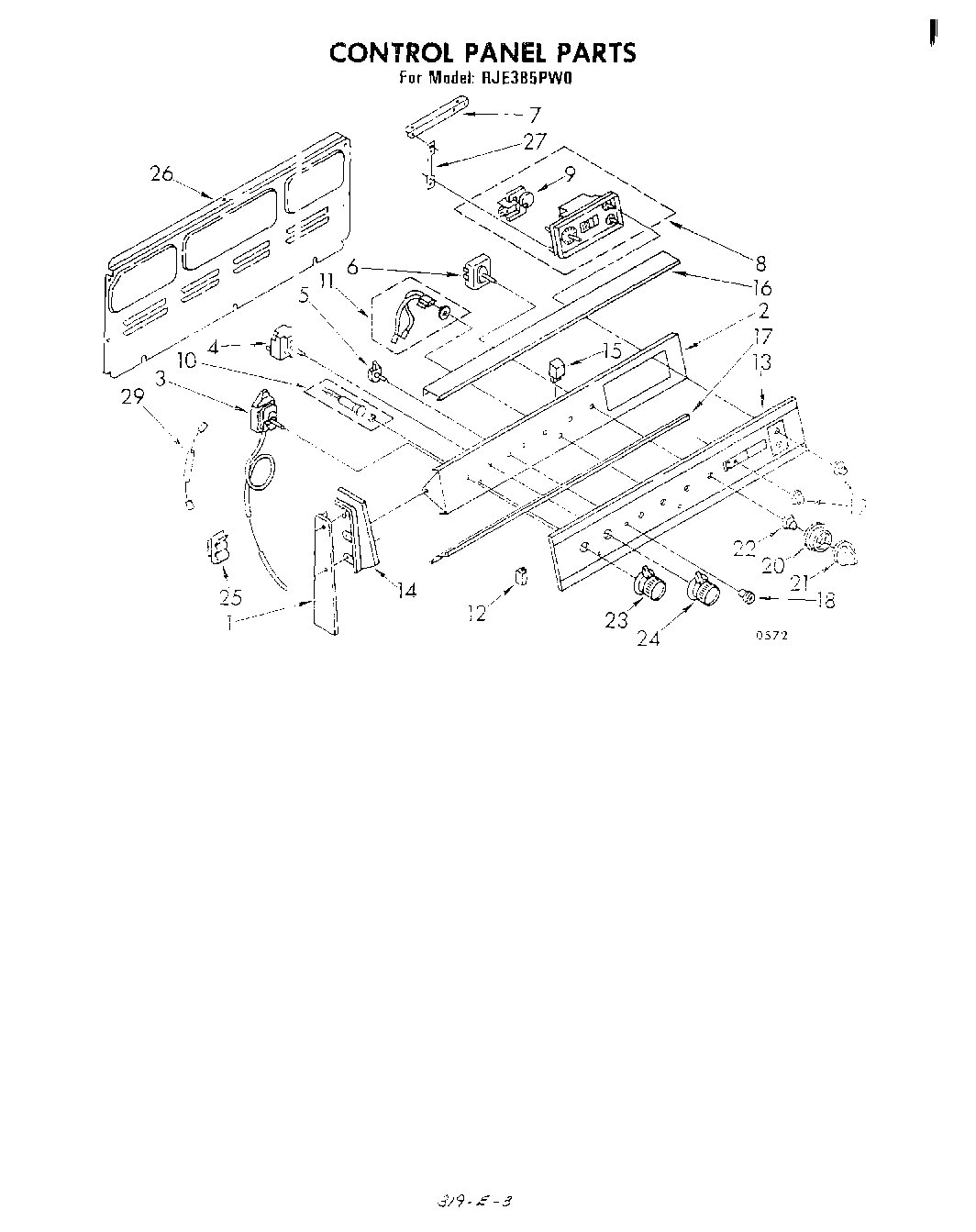

03 - CONTROL PANEL

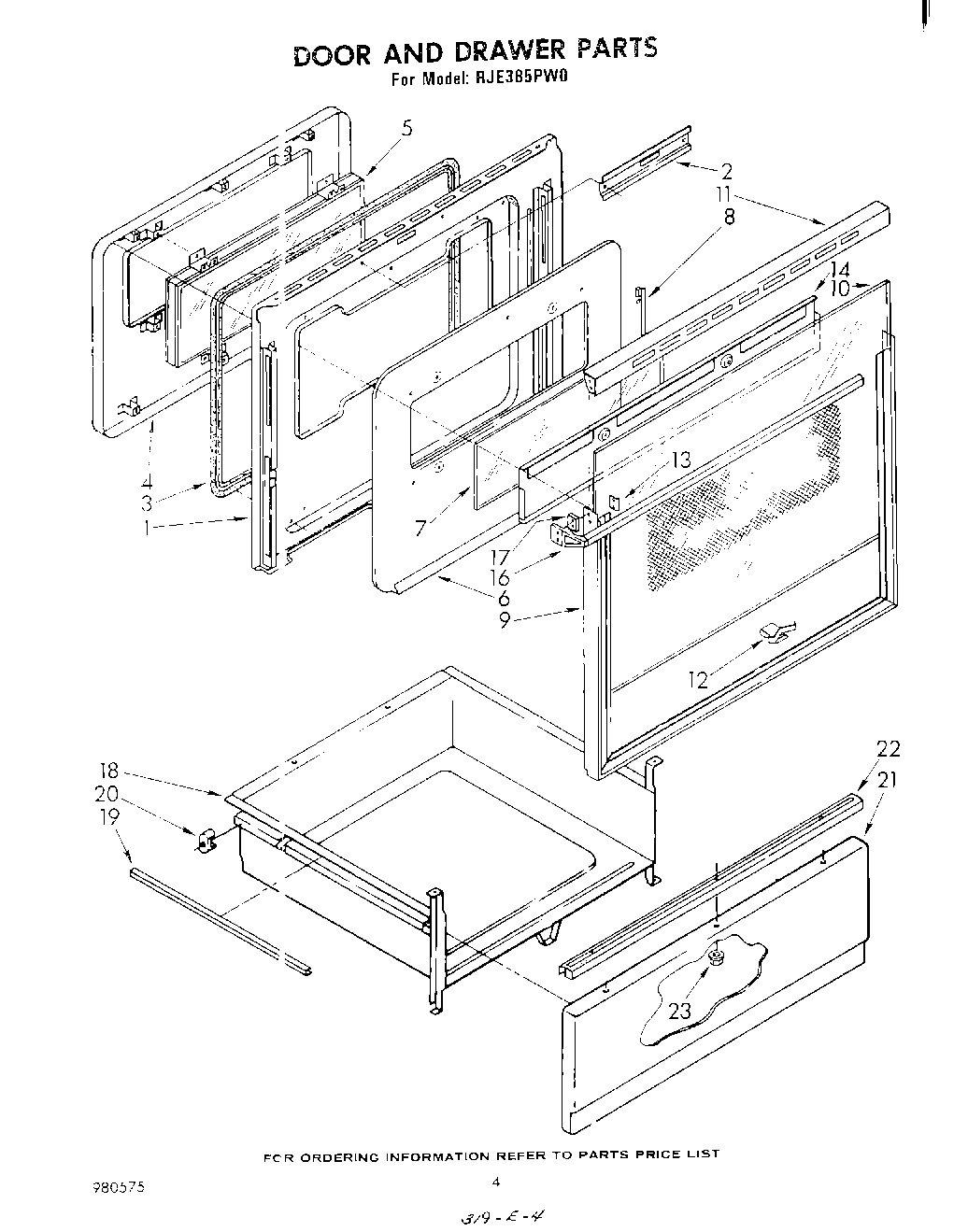

04 - DOOR AND DRAWER

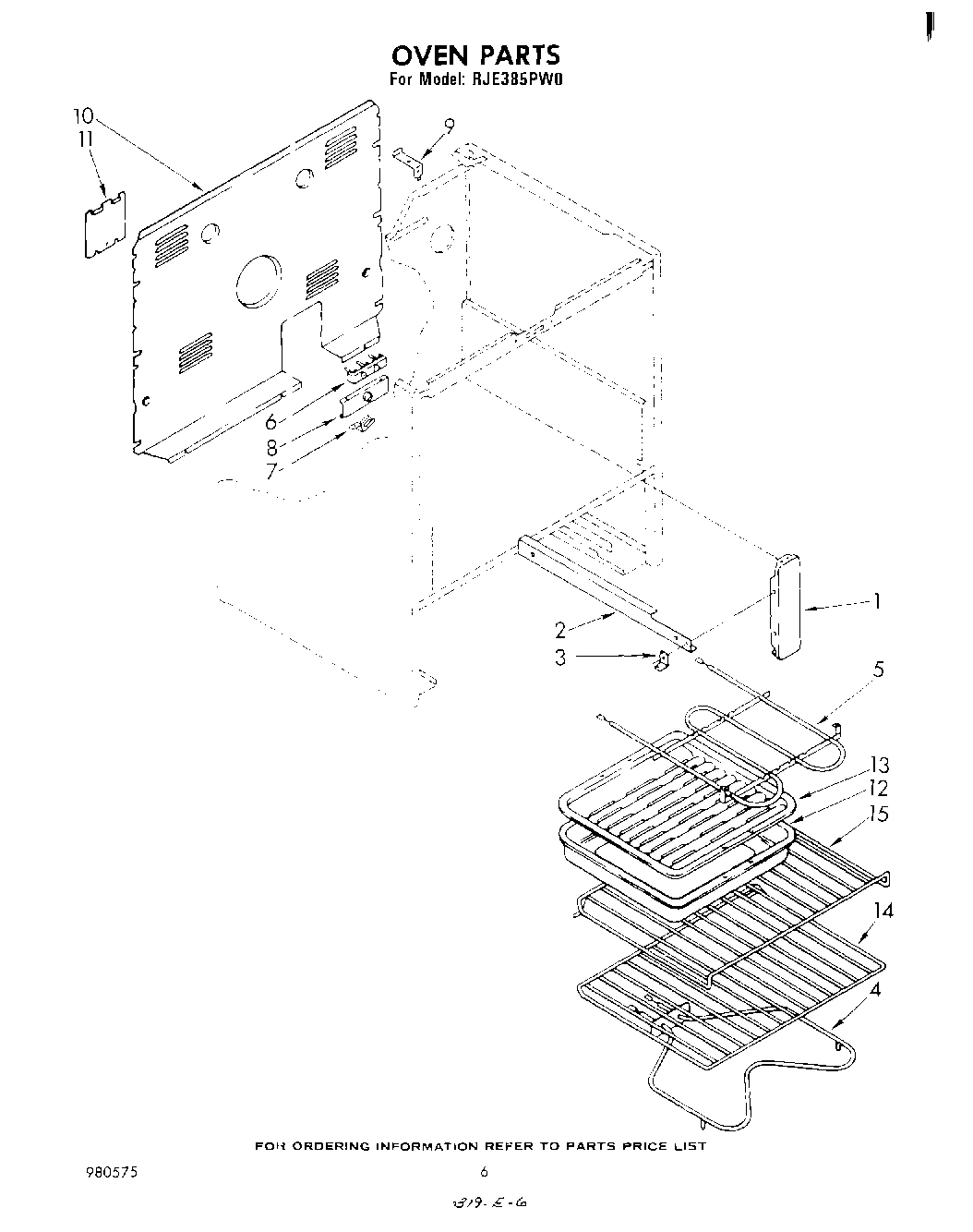

05 - OVEN , LITERATURE AND OPTIONAL

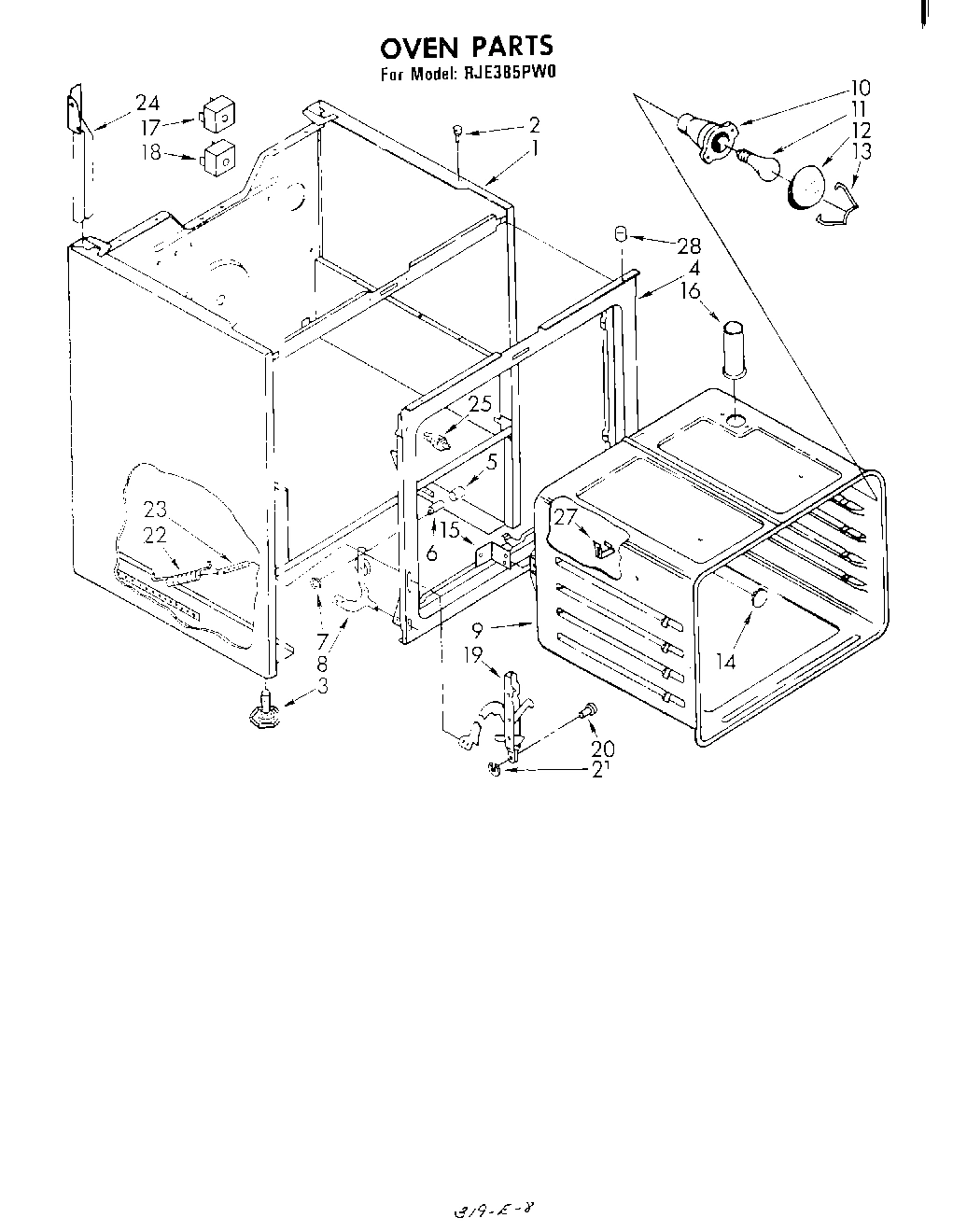

06 - SECTION
Common parts from model Whirlpool RJE385PW0
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
End Trim (R.H.) WPL 308854 Contact Us For Availability
1
End Trim (L.H.) WPL 308858 Contact Us For Availability
1
Liner, Door WPL 327869 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 327871 Contact Us For Availability
1
Main Chassis (New Avocado) WPL 327872 Contact Us For Availability
1
Main Chassis (Coffee) WPL 327873 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 327874 Contact Us For Availability
1
main chassis (almond) WPL 327875 Contact Us For Availability
2
Screw, 8A x 5/8 (4) WPL 307831 Contact Us For Availability
2
Control Bracket WPL 311237 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
3
Seal, Fiberglass WPL 310876 Contact Us For Availability
3
Thermostat WPL 310019 Contact Us For Availability
3
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
4
Selector Switch (5 Position) WPL 310008 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
5
Nut, 3/8 x 27 Hex WPL 255912 Contact Us For Availability
5
Switch, Oven Light WPL 308829 Contact Us For Availability
5
Window Package WPL 309844 Contact Us For Availability
5
Unit, Broil (Screw, 10-32 x 5/8 (2)) WPL 246127 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Switch, Infinite (Use W/8`` Surface Unit (2)) WPL 311846 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
7
Angle, Timer Mounting (2) WPL 311240 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Palnut, Timer 10-32 (4) WPL 308846 Contact Us For Availability
8
Timer, Digital (Includes Illus. 9) WPL 310325 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Motor, Timer WPL 308594 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
10
Oven Clean Light (Includes Lens) WPL 310393 Contact Us For Availability
10
Light, Indicator (Lock & Bake) WPL 310962 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability
11
Surface Unit Indicator Light (Includes Lens) WPL 310327 Contact Us For Availability
11
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Channel, Rubber (2) WPL 255859 Contact Us For Availability
12
Clip, Glass (8) WPL 310706 Contact Us For Availability
12
Pan, Broiler WPL 310973 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
13
Control Panel, Glass WPL 311241 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
13
Rack, Broiler WPL 308674 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
14
Cooktop Trim L.H. WPL 328871 Contact Us For Availability
14
End Cap (R.H.) WPL 311234 Contact Us For Availability
14
End Cap (L.H.) WPL 311236 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Support, Trim WPL 311862 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
WPL 261810 WPL 261810 Contact Us For Availability
15
WPL 261886 WPL 261886 Contact Us For Availability
15
WPL 261888 WPL 261888 Contact Us For Availability
15
WPL 261890 WPL 261890 Contact Us For Availability
15
WPL 308172 WPL 308172 Contact Us For Availability
15
WPL 308494 WPL 308494 Contact Us For Availability
15
WPL 308500 WPL 308500 Contact Us For Availability
15
WPL 310609 WPL 310609 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 799351 WPL 799351 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 980575 WPL 980575 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Trim, Top WPL 311243 Contact Us For Availability
16
Handle, Oven Door WPL 311573 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
17
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
17
Trim, Bottom WPL 311244 Contact Us For Availability
17
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
17
Switch, Broil WPL 310643 Contact Us For Availability
18
Bezel, Switch WPL 308784 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Switch, Bake WPL 310644 Contact Us For Availability
19
Knob, Timer (3) WPL 255853 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 327892 Contact Us For Availability
20
Bezel, Control Knob (4) WPL 307456 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Barrier Strip WPL 309232 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
21
Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Bezel (4) WPL 307828 Contact Us For Availability
22
Handle, Drawer WPL 310399 Contact Us For Availability
23
Knob, Thermostat WPL 328709 Contact Us For Availability
24
Knob, Selector WPL 328707 Contact Us For Availability
24
Support, Channel (R.H.) WPL 308131 Contact Us For Availability
24
Support, Channel (L.H.) WPL 308132 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Tube Clip WPL 309211 Contact Us For Availability
26
Cover, Rear WPL 308157 Contact Us For Availability
27
Plate, Timer Mounting WPL 311239 Contact Us For Availability
28
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
28
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
29
Resistor & Terminal Assembly WPL 328923 Contact Us For Availability
× ![]()
