Model Whirlpool RF390PXVN0 – Common Parts & Diagrams

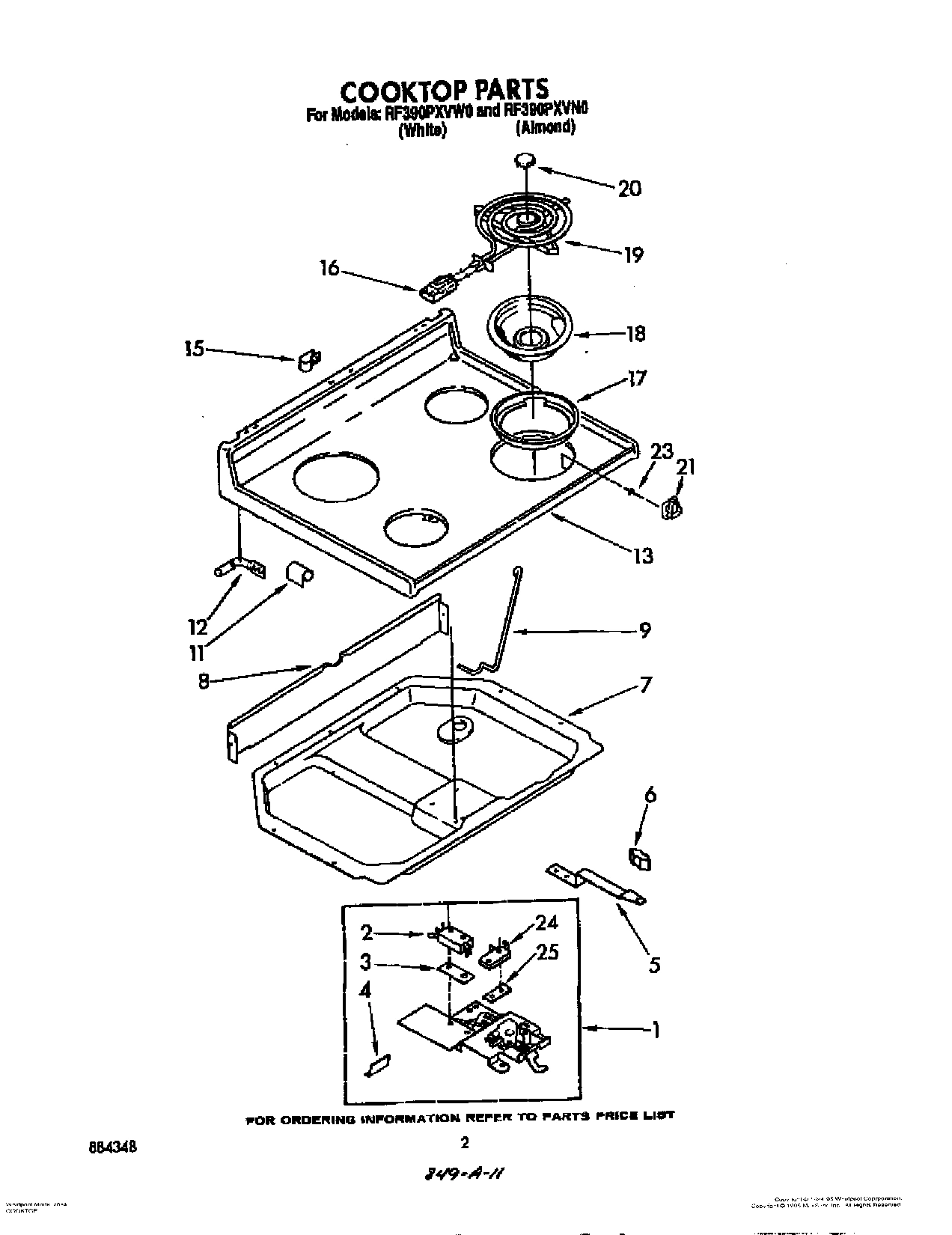

02 - COOKTOP, LIT/OPTIONAL

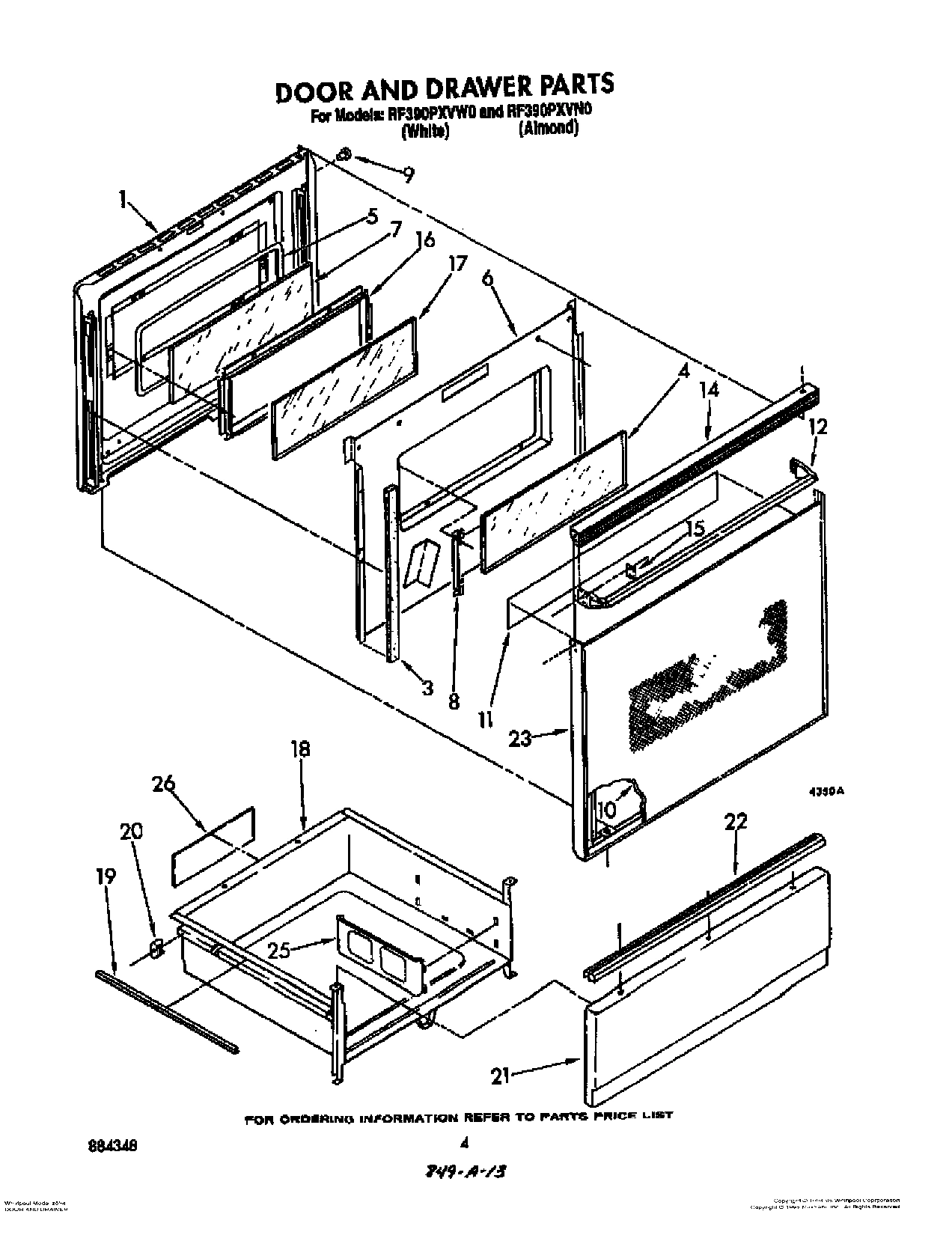

03 - DOOR AND DRAWER

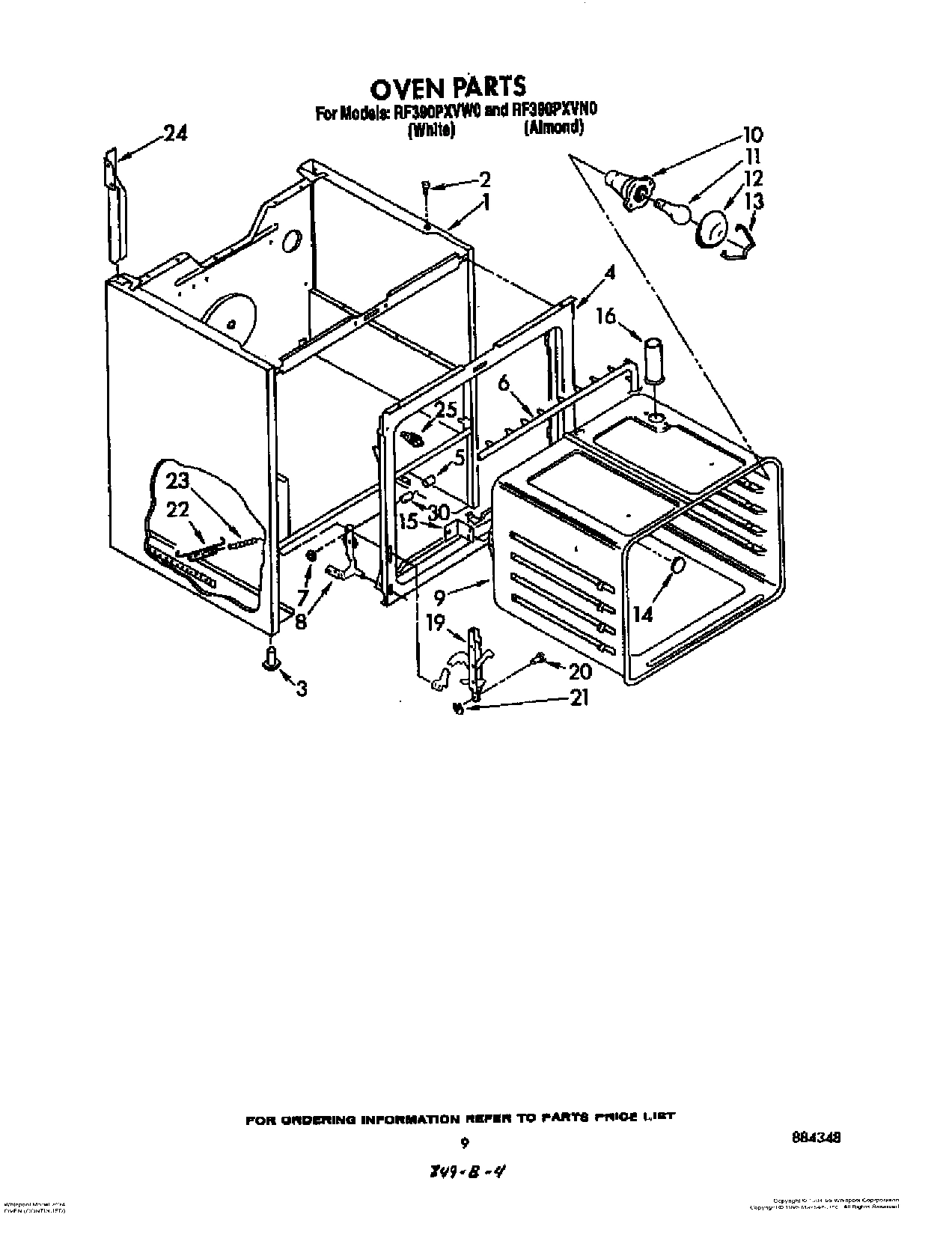

06 - OVEN (CONTINUED)

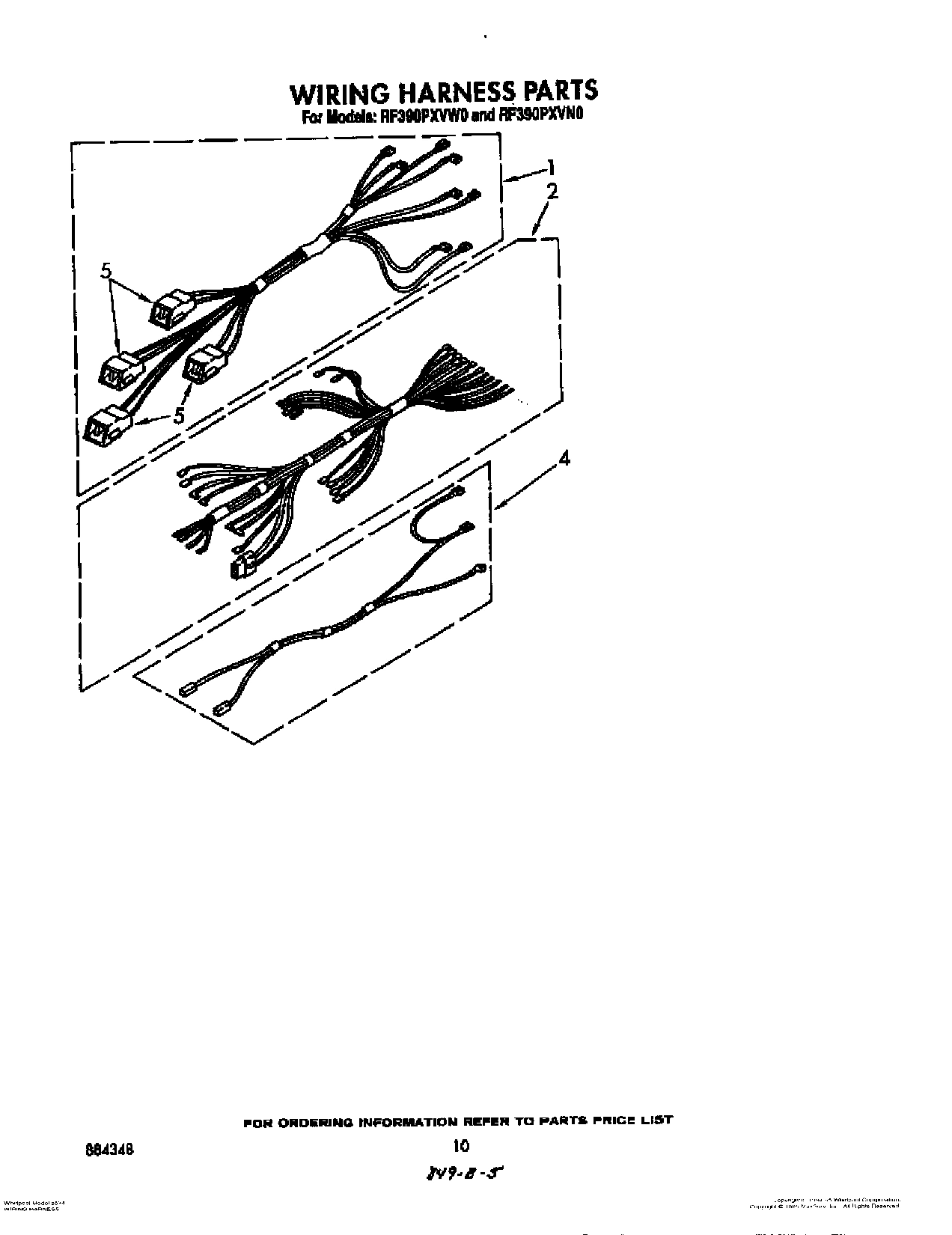

07 - WIRING HARNESS

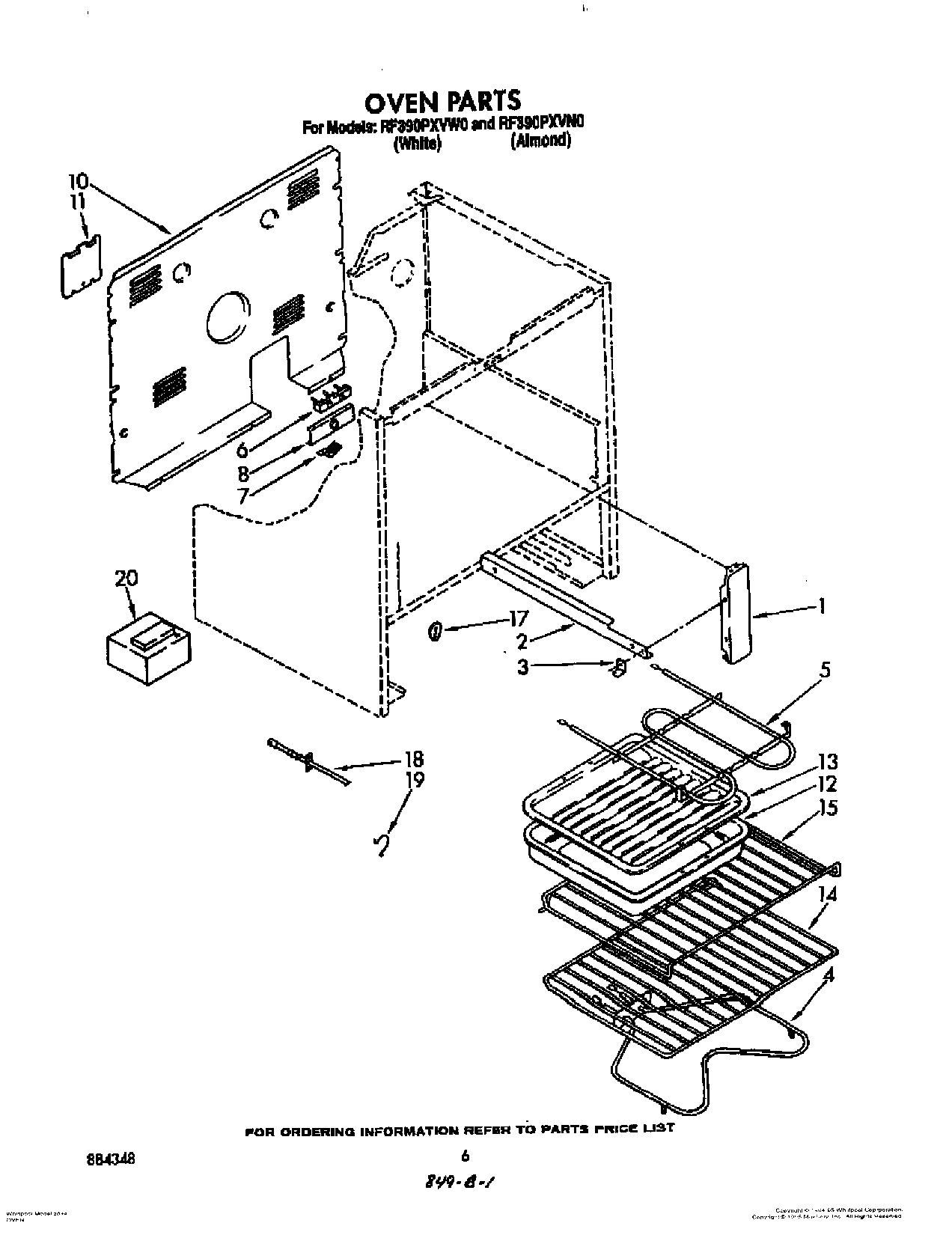

04 - OVEN, OPTIONAL

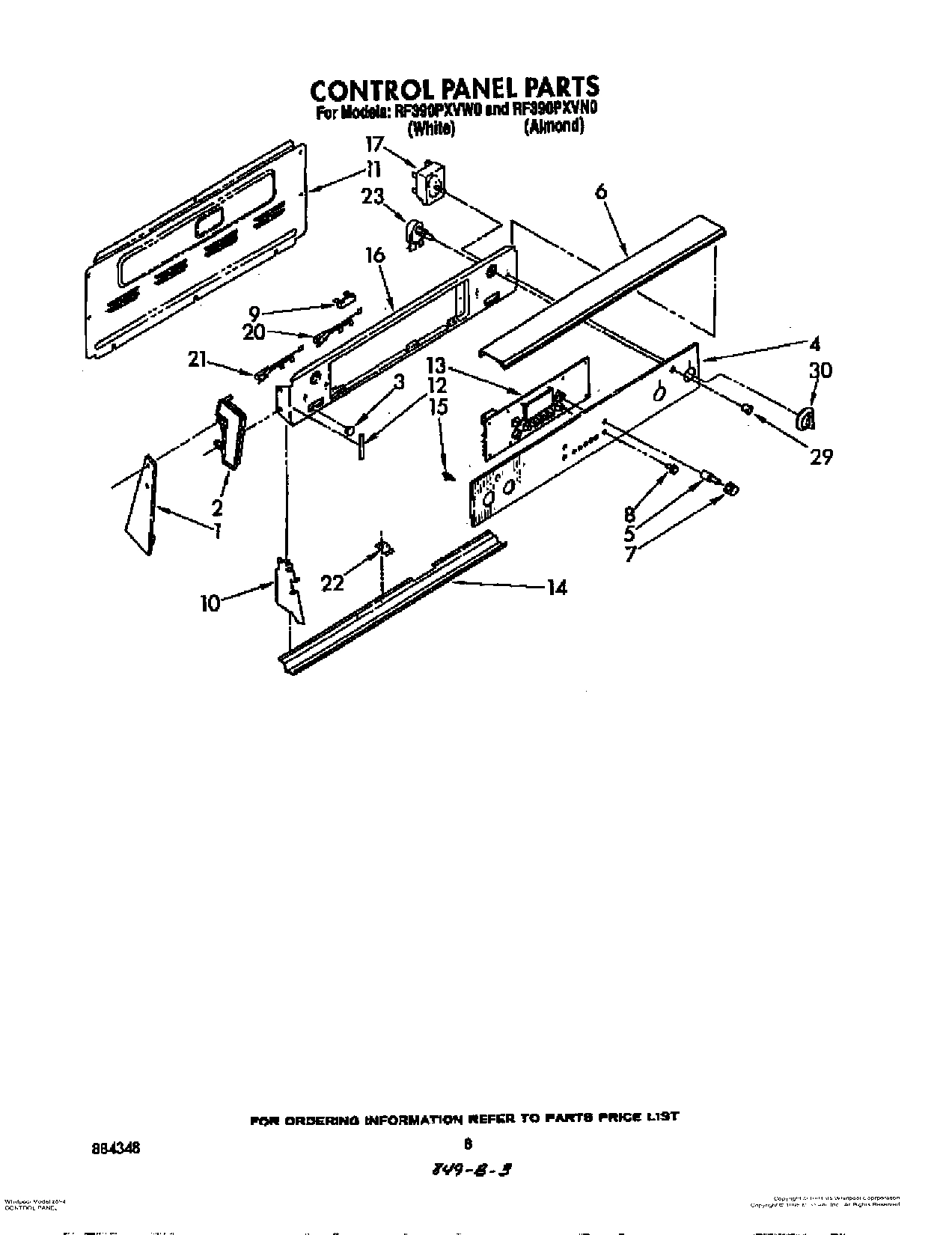

05 - CONTROL PANEL
Common parts from model Whirlpool RF390PXVN0
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
WPL 246127 WPL 246127 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
1
End Trim L.H. WPL 313188 Contact Us For Availability
1
End Trim R.H. WPL 313189 Contact Us For Availability
2
Harness, Wire (Electronic) WPL 3148722 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
End Cap R.H. WPL 313232 Contact Us For Availability
2
End Cap L.H. WPL 313233 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Lens, Light (3) WPL 311688 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Frame, Front WPL 3170856 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Harness, Wire (Lock Switch) WPL 3148700 Contact Us For Availability
4
Glass, Panel WPL 3148915 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Shaft, Bit Generator WPL 3149319 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Trim, Top WPL 313234 Contact Us For Availability
7
Knob, Bit Generator WPL 313523 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Button, Set (8) WPL 313958 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
9
Screw WPL 309258 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Shield, Glass (2) WPL 313609 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Cover, Rear WPL 313195 Contact Us For Availability
12
Handle, Door WPL 3148229 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Seal, Foam WPL 3147603 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
Timer, Clock WPL 3148560 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
14
Trim, Bottom WPL 313424 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Support (9) WPL 313087 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
16
Bracket, Control Mounting WPL 3148430 Contact Us For Availability
17
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Sensor, Temperature WPL 3148440 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Y WPL 242832 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261887 WPL 261887 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261889 WPL 261889 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 285367 WPL 285367 Contact Us For Availability
20
WPL 285368 WPL 285368 Contact Us For Availability
20
WPL 312804 WPL 312804 Contact Us For Availability
20
WPL 3149635 WPL 3149635 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Light, Indicator WPL 3148718 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Light, Indicator (2) (Includes Amber Lens No. WPL 313106 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
Support, Wedge WPL 313482 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
23
Nut WPL 255912 Contact Us For Availability
23
Switch, Light WPL 312581 Contact Us For Availability
23
Washer WPL 312796 Contact Us For Availability
24
Switch, Lock WPL 3148669 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
25
Insulator, Switch WPL 3147864 Contact Us For Availability
25
Rack, Literature WPL 357645 Contact Us For Availability
26
Pad, Sound WPL 302340 Contact Us For Availability
29
Bezel Switch (1) WPL 313030 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Knob, Control (4) WPL 330171 Contact Us For Availability
× ![]()
