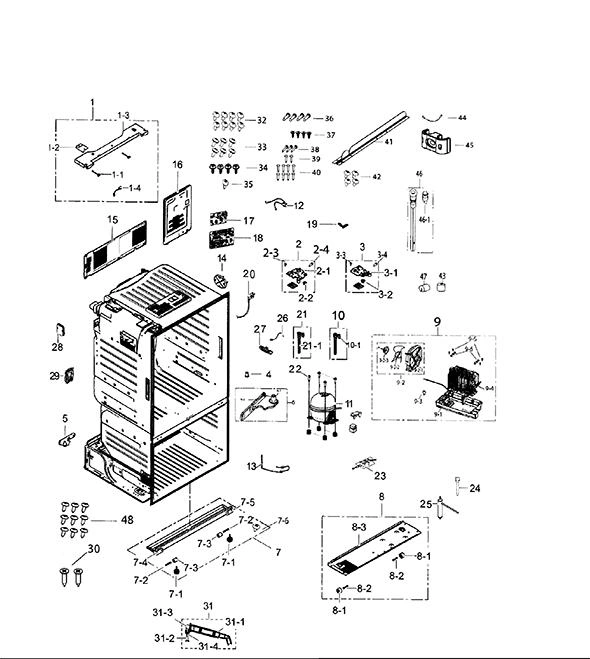

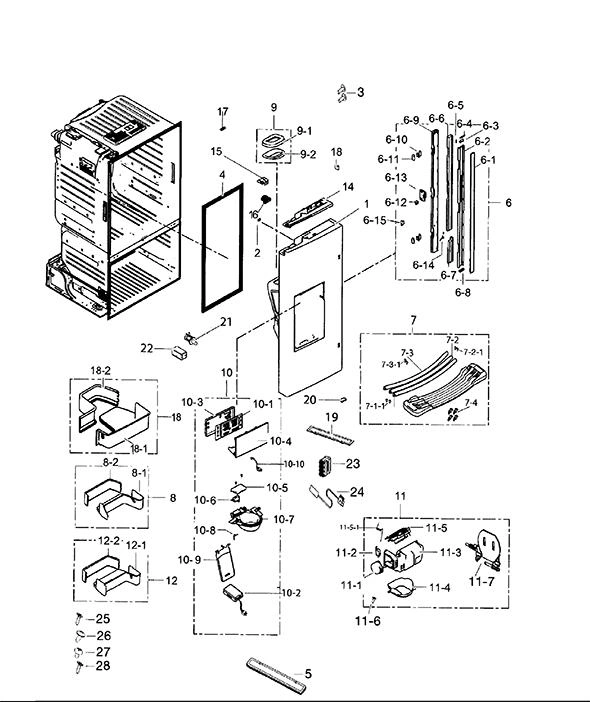

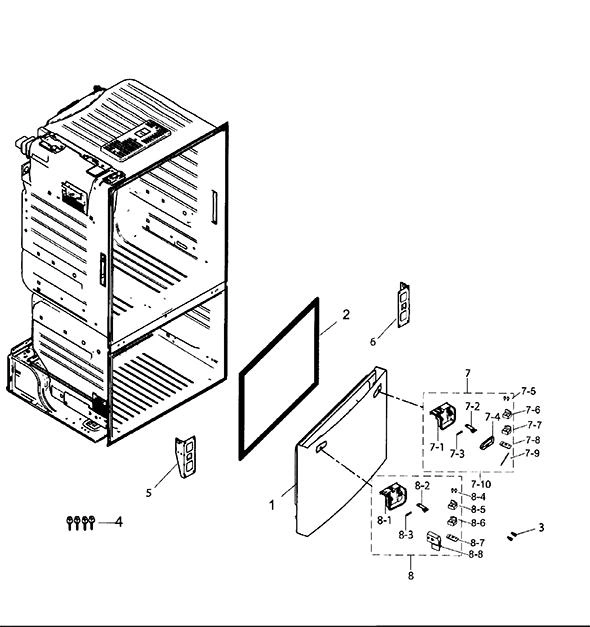

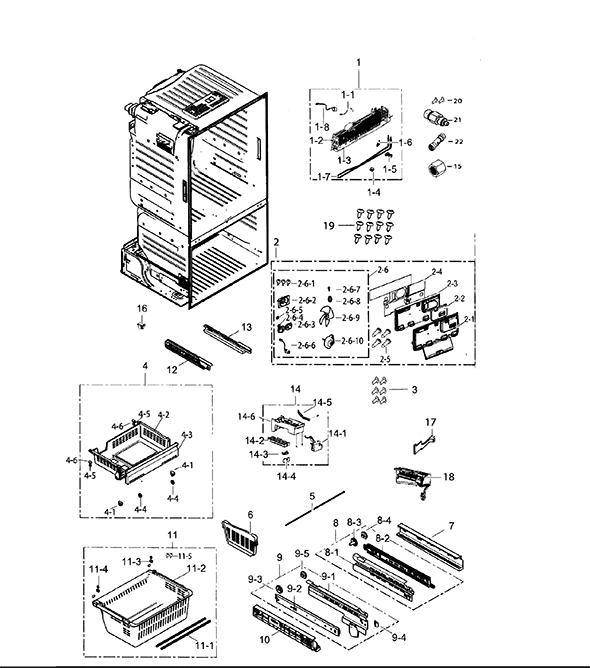

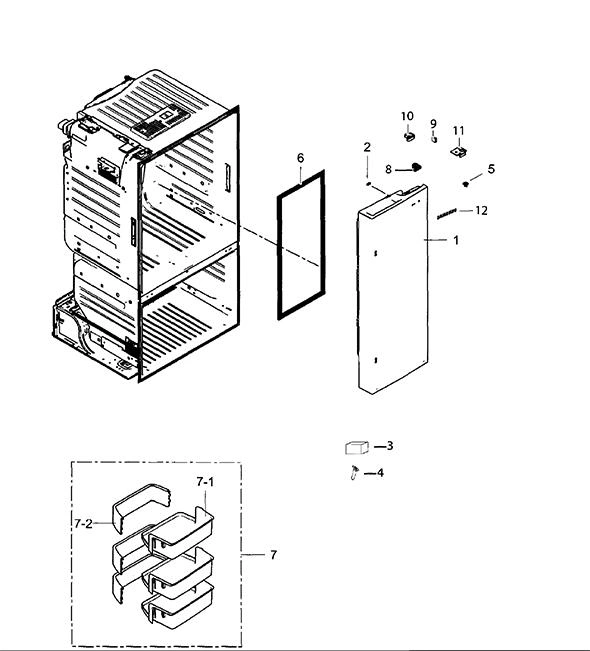

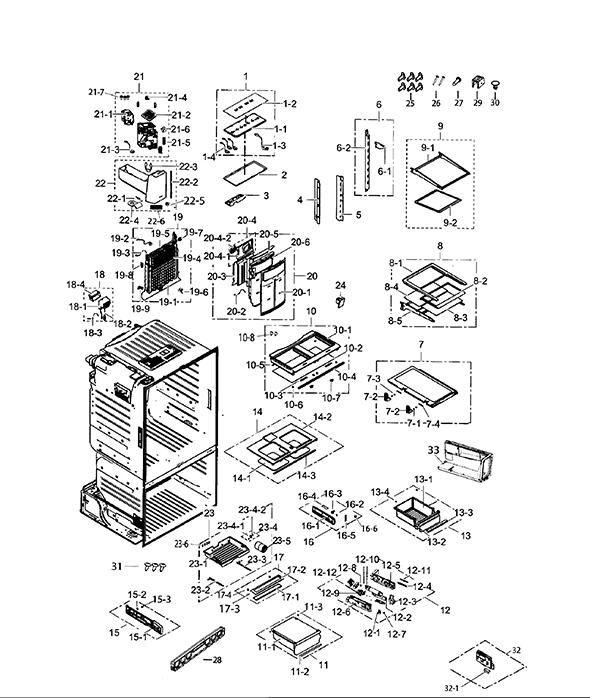

Model Samsung RF263TEAESG-AA-00 – Common Parts &amp; Diagrams

1

DA91-03908M Samsung Refrigerator Door Foam As Backorder SMG DA91-03908M $372.05

1

DA96-00460L Samsung Refrigerator Evaporator A Backorder SMG DA96-00460L $279.00

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $258.43

1-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

1-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

1-2

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $54.38

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

1-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $20.52

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $2.59

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $84.79

1-8

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $51.44

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $6.05

2

DA63-06541E Samsung Refrigerator Door Gasket In Stock SMG DA63-06541E $163.46

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.56

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

2

Refrigerator Wire Harness SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl In Stock SMG DA66-00950A $5.93

2-6

DA96-00959D Samsung Refrigerator 12V DC Fan M Backorder SMG DA96-00959D $191.89

2-61

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

2-62

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $14.04

2-64

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

2-66

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

2-68

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $1.69

2-69

Refrigerator Folding Shelf Assembly SMG DA96-00504A Contact Us For Availability

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $11.88

3

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $71.20

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

4

DA63-06542B Samsung Refrigerator Rh/FF Door S In Stock SMG DA63-06542B $148.35

4

DA97-12641D Samsung Refrigerator Assembly Tra Backorder SMG DA97-12641D $297.03

4-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $3.89

4-2

DA61-05358A Samsung Refrigerator Ice Cube Cas In Stock SMG DA61-05358A $37.59

4-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.93

4-7

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $24.62

5

DA61-07771C Samsung Refrigerator Left Middle Backorder SMG DA61-07771C $154.31

5

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $42.76

6

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $53.34

6

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $81.46

6

DA97-12659C Samsung Refrigerator Right Middle Backorder SMG DA97-12659C $154.47

6

DA97-12683B Samsung Refrigerator Flipper Asse In Stock SMG DA97-12683B $181.38

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $91.50

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $9.72

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.93

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $16.21

7

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $93.64

7

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $144.30

7

Refrigerator Defrost Heater SMG DA97-12728A Contact Us For Availability

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $149.02

7-1

DA97-12712D Samsung Refrigerator Black Freeze Backorder SMG DA97-12712D $160.20

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

7-2

DA61-06014B Samsung Refrigerator Handle Assem Backorder SMG DA61-06014B $6.47

7-2

DA97-12714E Samsung Refrigerator Right Door H Backorder SMG DA97-12714E $179.87

7-3

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.70

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

7-3

Refrigerator Freezer Basket Slide Rail Assemb SMG DA97-12715F Contact Us For Availability

7-6

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.69

7-7

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.16

7-8

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.79

7-9

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $7.55

8

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $202.42

8

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $168.95

8

Fixer Fuse SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

8-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $209.51

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

8-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $7.55

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $66.65

9

Refrigerator Fixer Cover SMG DA97-10594B Contact Us For Availability

9

Refrigerator Humidity Sensor SMG DA97-05043L Contact Us For Availability

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $75.36

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $12.96

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $186.43

9-2

Refrigerator Drawer Shelf Roller Wheel SMG DA61-09087A Contact Us For Availability

9-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $6.47

9-22

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

9-23

DA31-00278C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00278C $196.83

9-41

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $151.09

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $7.77

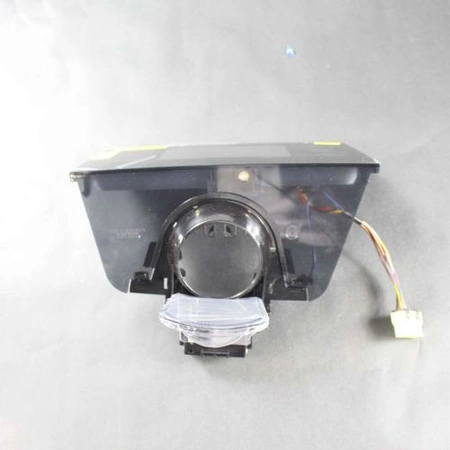

DA97-12675L Samsung Refrigerator Dispenser As Backorder SMG DA97-12675L $304.02

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $232.57

10-1

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $10.26

10-1

DA92-00368A Samsung Refrigerator Assembly Pri Backorder SMG DA92-00368A $215.89

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.47

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

10-6

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $6.46

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $4.87

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $31.23

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $184.08

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $219.99

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $256.76

MKV190CL2J/SM1 Samsung Refrigerator Compresso In Stock SMG MKV190CL2J/SM1 $440.54

11-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

11-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $19.57

11-6

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

11-7

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $20.52

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $219.01

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $164.39

DA97-12662A Samsung Refrigerator Filter Tank Backorder SMG DA97-12662A $317.75

12-1

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $116.92

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $64.66

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $43.25

12-7

DA60-00258C Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258C $33.63

12-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

13

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $231.73

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $185.09

14

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $30.23

14

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $244.04

14

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $204.54

14-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $215.89

14-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $49.01

14-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $32.15

14-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

14-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $39.51

DA61-15273A Samsung Refrigerator Door Close S In Stock SMG DA61-15273A $10.26

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $146.37

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $65.85

15-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21

16

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

16

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

16

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $50.45

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $277.50

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $179.49

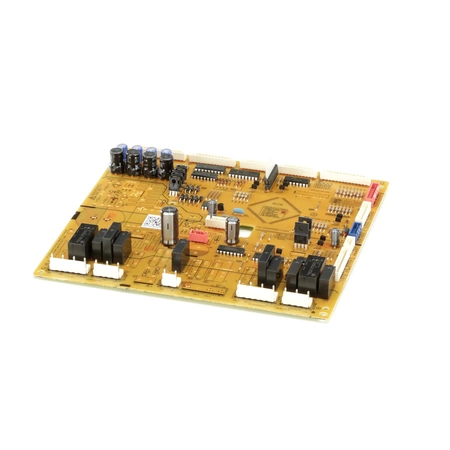

DA92-00384K Samsung Refrigerator Main PCB Ass In Stock SMG DA92-00384K $78.23

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $181.12

DA97-12651A Samsung Refrigerator Dispenser Sh In Stock SMG DA97-12651A $158.13

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $118.12

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $183.59

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

19

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

19

DA96-00660E Samsung Refrigerator Evaporator A In Stock SMG DA96-00660E $177.67

19-5

DA47-00244W Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244W $95.97

19-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.69

19-9

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.47

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

20

DA97-12609C Samsung Refrigerator Evaporator C In Stock SMG DA97-12609C $294.54

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $33.35

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $23.02

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $21.66

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $289.90

21-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $216.29

21-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $4.87

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $88.43

22

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

22

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $156.14

23

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

24

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

25

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $97.33

26

DA32-00029U Samsung Refrigerator Temperature In Stock SMG DA32-00029U $37.63

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.33

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

31

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $95.28

31-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $63.62

31-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $59.52

32

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.69

34

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.69

45

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $27.55

1010

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $54.77

1151

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $3.79

2610

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77
