Model Maytag NTW4750BQ1 WASHER – Common Parts & Diagrams

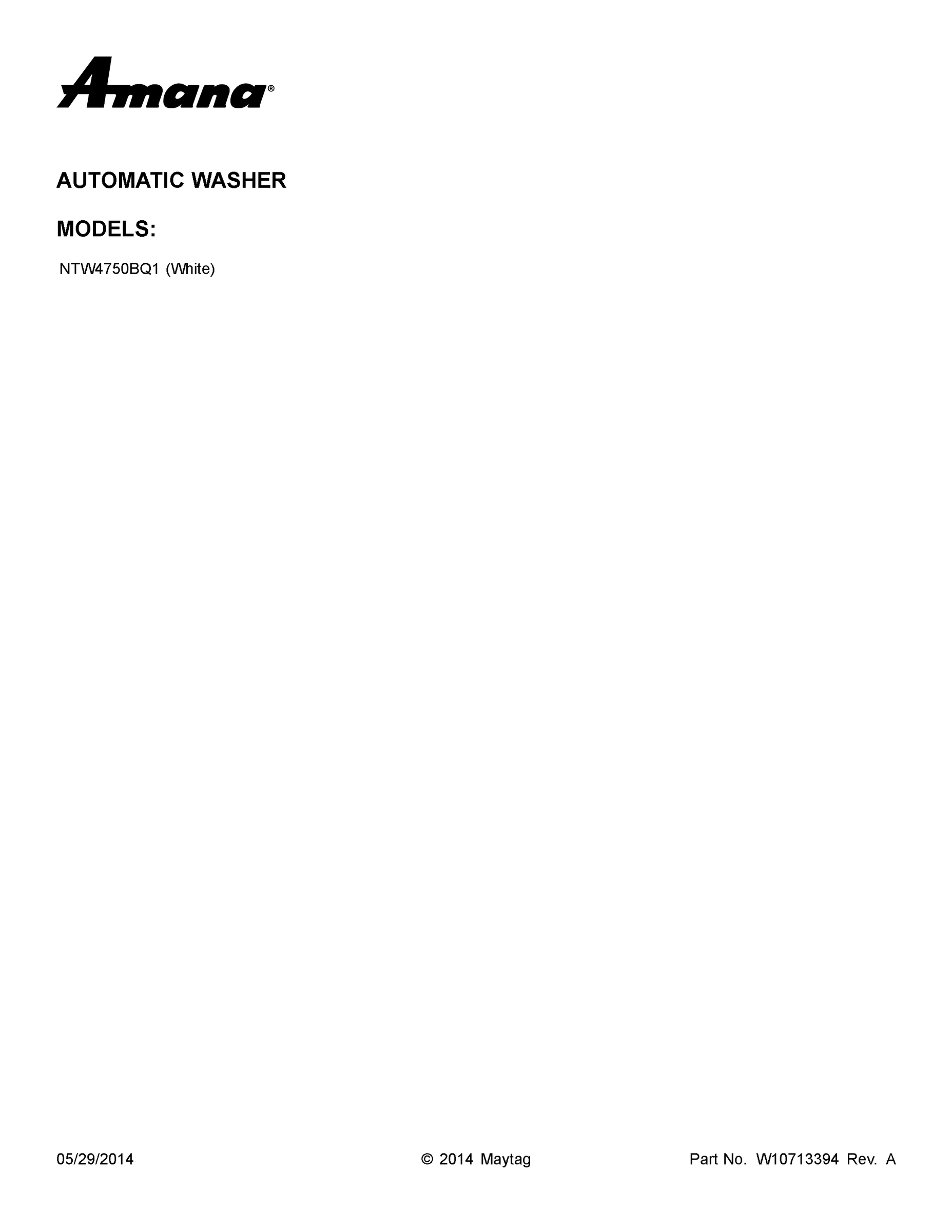

01 - COVER SHEET

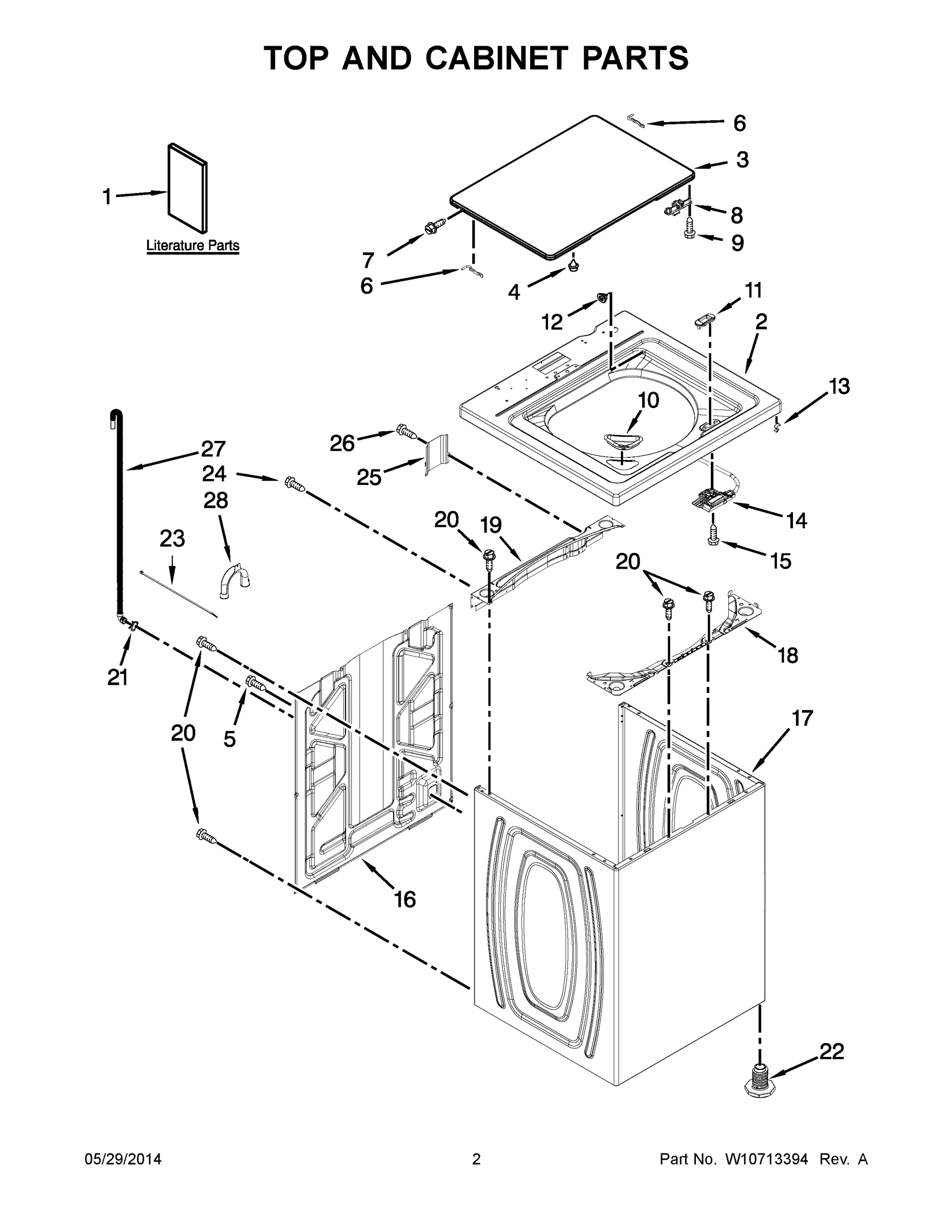

02 - TOP AND CABINET PARTS

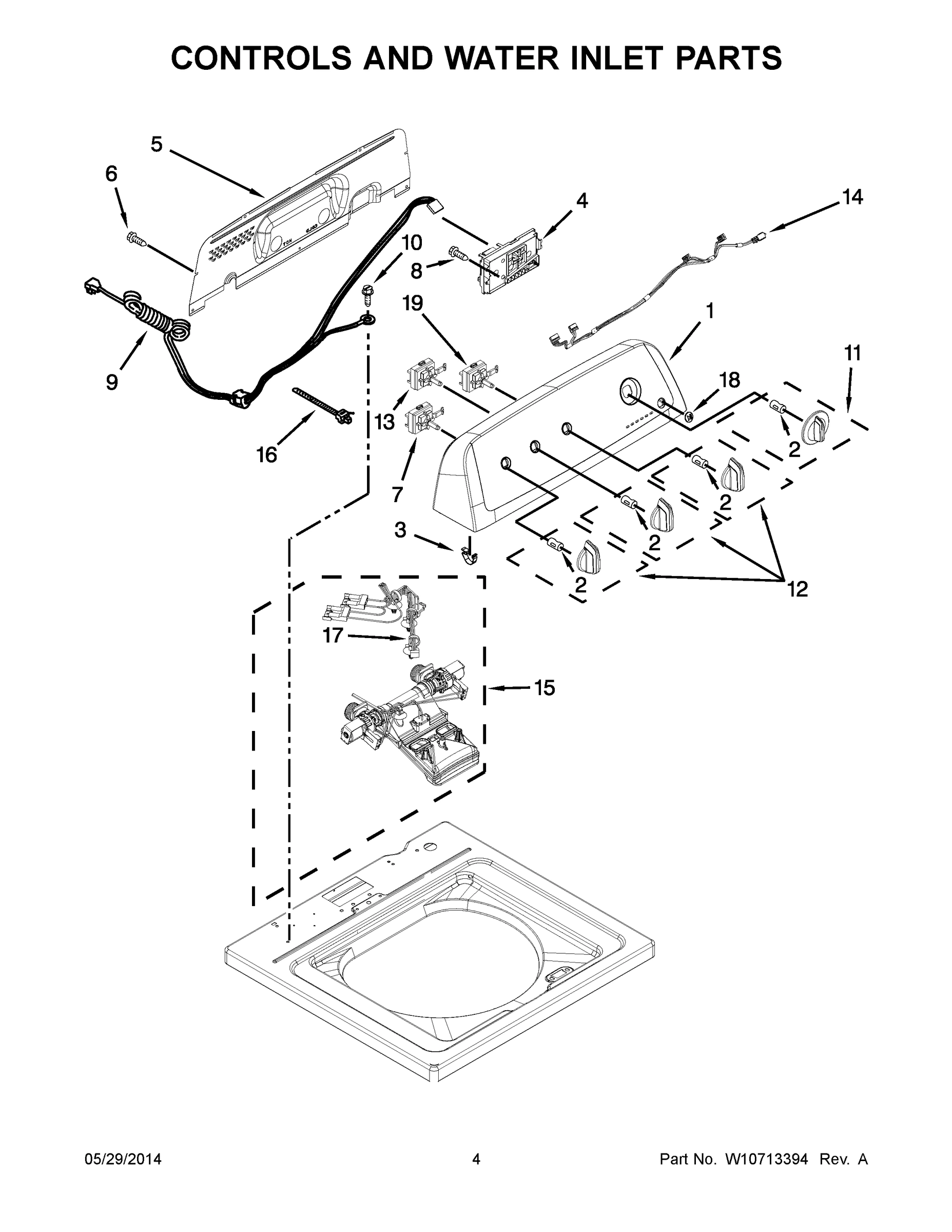

03 - CONTROLS AND WATER INLET PARTS

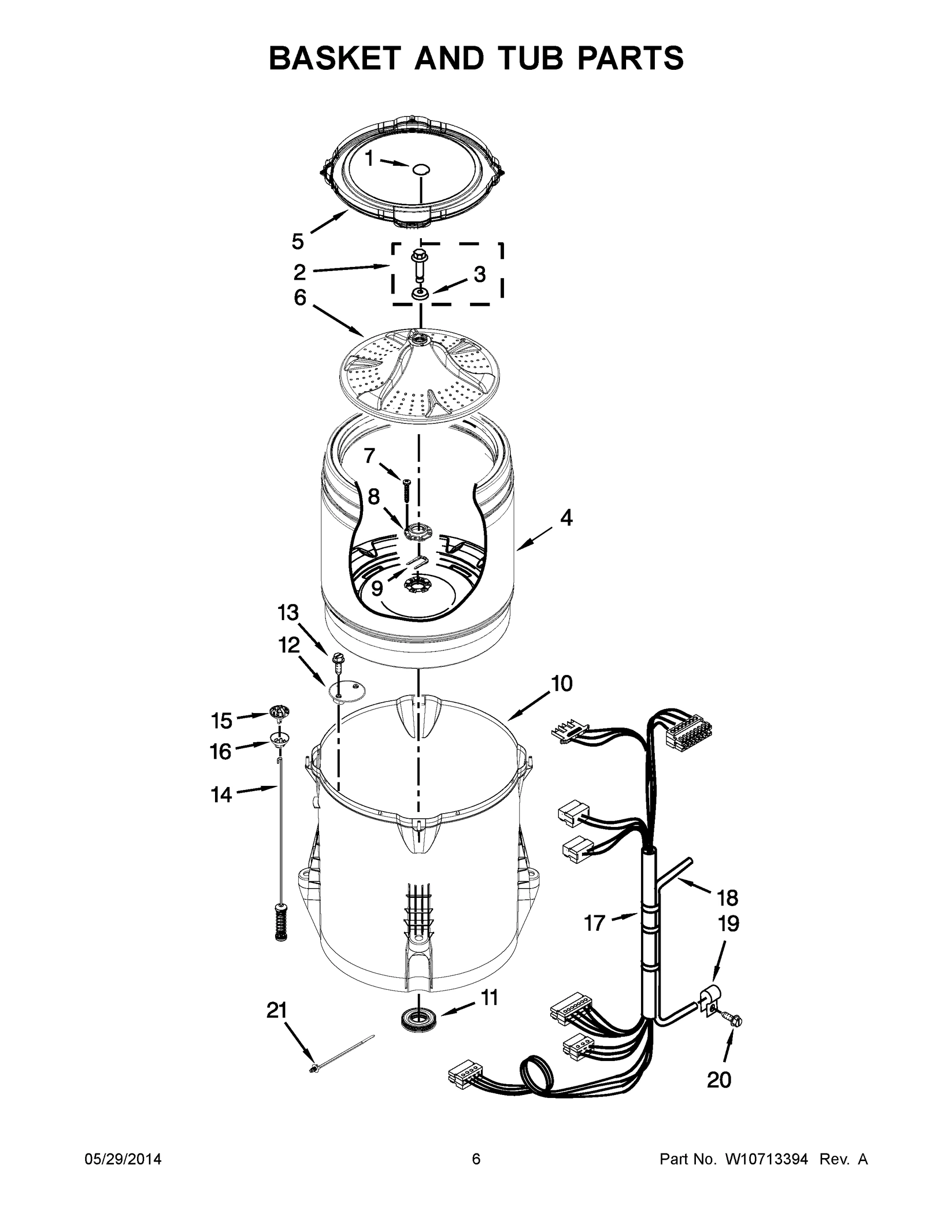

04 - BASKET AND TUB PARTS

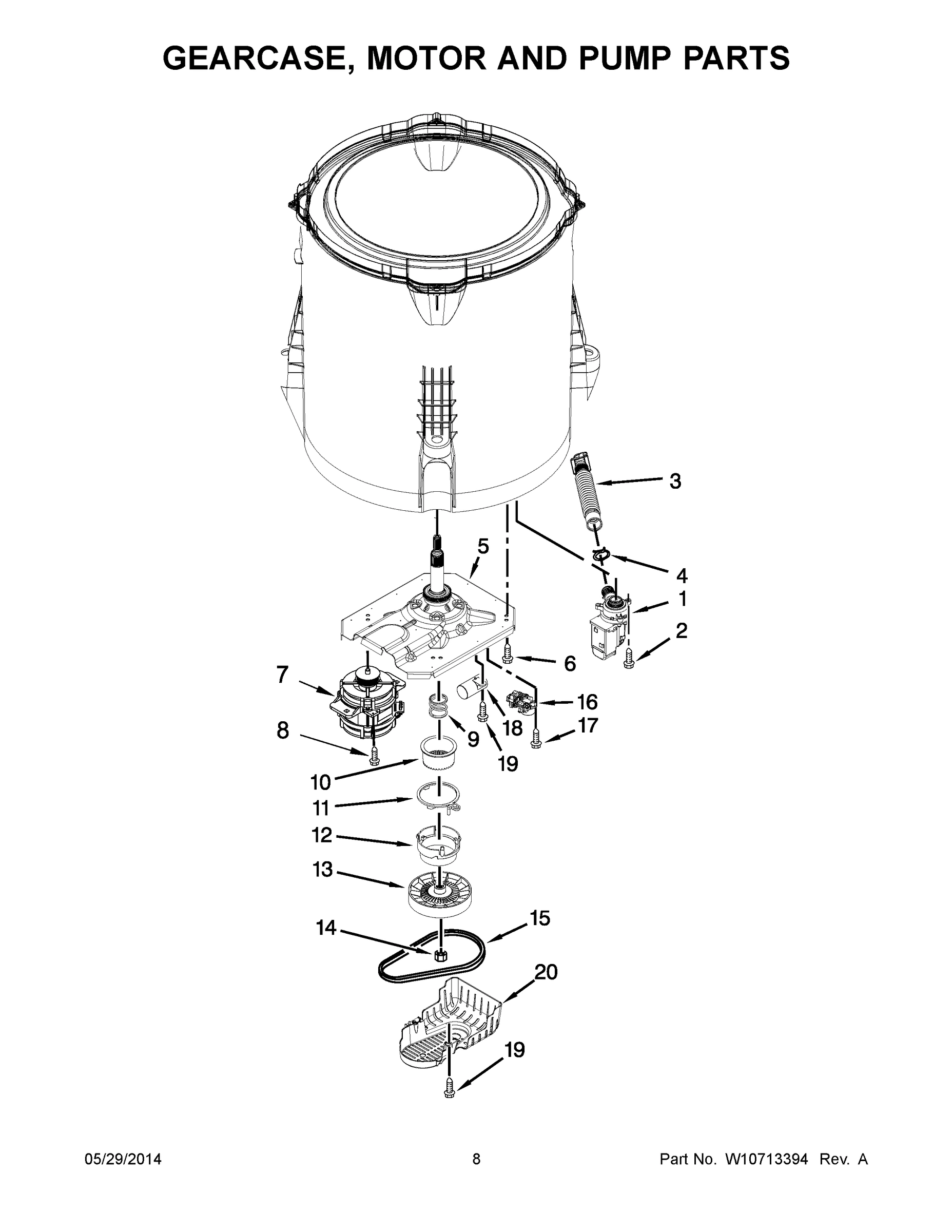

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NTW4750BQ1 WASHER
1
MAY W10063009 MAY W10063009 Contact Us For Availability
1
MAY W10240509 MAY W10240509 Contact Us For Availability
1
MAY W10420474 MAY W10420474 Contact Us For Availability
1
MAY W10677676 MAY W10677676 Contact Us For Availability
1
MAY W10420446 MAY W10420446 Contact Us For Availability
1
MAY W10305259 MAY W10305259 Contact Us For Availability
1
MAY W10614033 MAY W10614033 Contact Us For Availability
2
MAY W10251319 MAY W10251319 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID (WHITE) MAY W10027624 Contact Us For Availability
3
MAY 8312709 MAY 8312709 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10671339 MAY W10671339 Contact Us For Availability
4
MAY W10521298 MAY W10521298 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY W10409320 MAY W10409320 Contact Us For Availability
5
MAY W10556325 MAY W10556325 Contact Us For Availability
5
MAY W10469845 MAY W10469845 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY 1157158 MAY 1157158 Contact Us For Availability
6
MAY W10215115 MAY W10215115 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10414411 MAY W10414411 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10416660 MAY W10416660 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
8
MAY W10396887 MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10525192 MAY W10525192 Contact Us For Availability
9
MAY W10402178 MAY W10402178 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10006382 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 3400076 Contact Us For Availability
10
TUB MAY W10238301 Contact Us For Availability
10
MAY W10239971 MAY W10239971 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
MAY W10453946 MAY W10453946 Contact Us For Availability
11
MAY W10006371 MAY W10006371 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
KNOB, CONTROL (WHITE) MAY W10453947 Contact Us For Availability
12
MAY W10215093 MAY W10215093 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10414398 MAY W10414398 Contact Us For Availability
13
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
13
MAY W10239973 MAY W10239973 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
MAY W10491753 MAY W10491753 Contact Us For Availability
14
MAY W10555290 MAY W10555290 Contact Us For Availability
14
MAY W10604214 MAY W10604214 Contact Us For Availability
15
MAY W10683680 MAY W10683680 Contact Us For Availability
15
BALL, SUSPENSION (SET OF4 - INCLUDES SUSPENSI MAY W10560146 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
16
MAY W10597177 MAY W10597177 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10684972 MAY W10684972 Contact Us For Availability
17
MAY W10610079 MAY W10610079 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10251309 MAY W10251309 Contact Us For Availability
18
MAY W10520039 MAY W10520039 Contact Us For Availability
18
MAY W10390446 MAY W10390446 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10414381 MAY W10414381 Contact Us For Availability
19
CLAMP, CABLE MAY W10005430 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
SCREW MAY 8533943 Contact Us For Availability
20
MAY W10607146 MAY W10607146 Contact Us For Availability
21
MAY 356138 MAY 356138 Contact Us For Availability
21
MAY W10298887 MAY W10298887 Contact Us For Availability
22
MAY W10556332 MAY W10556332 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
25
MAY W10676061 MAY W10676061 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSE MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
