Model Maytag NTW4516FW3 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams

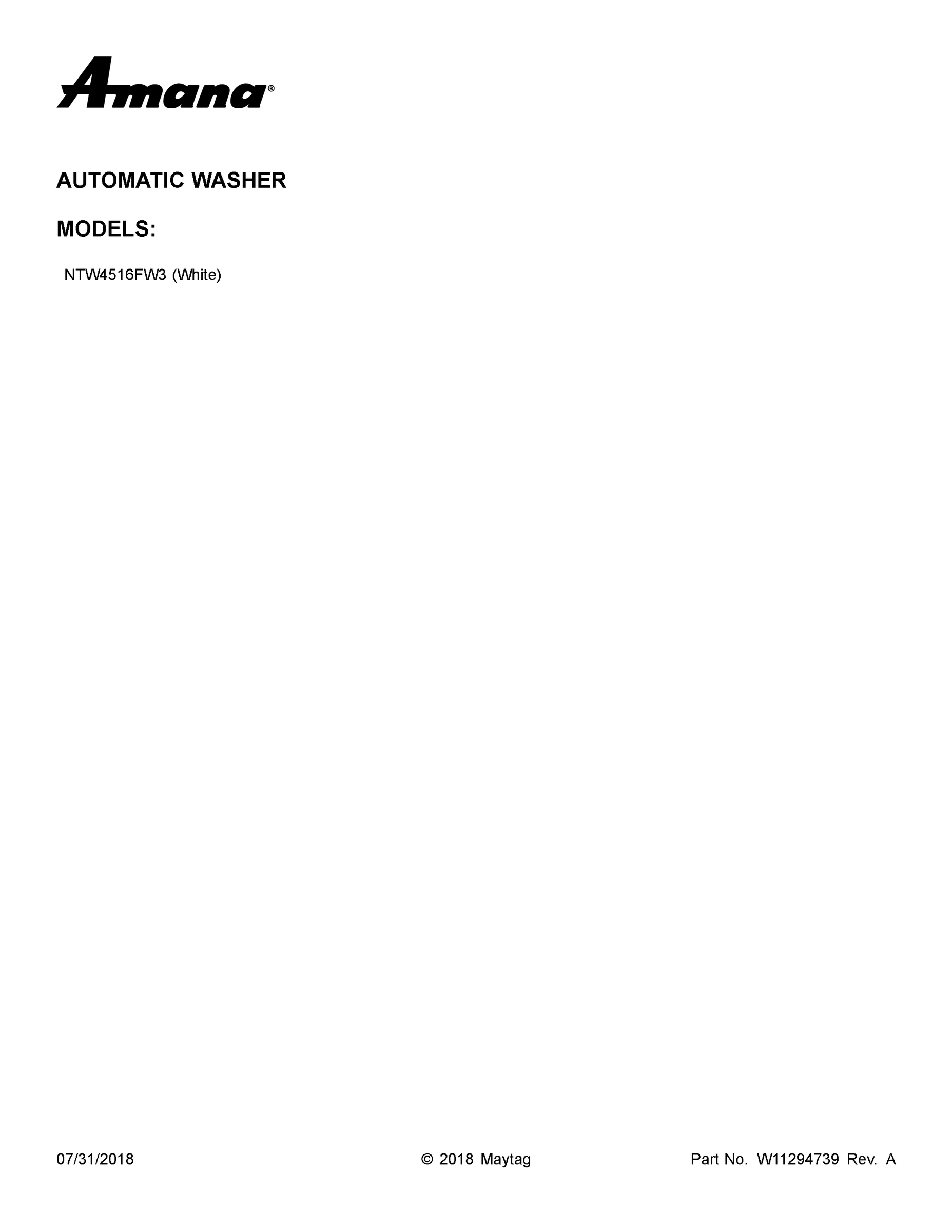

01 - COVER SHEET

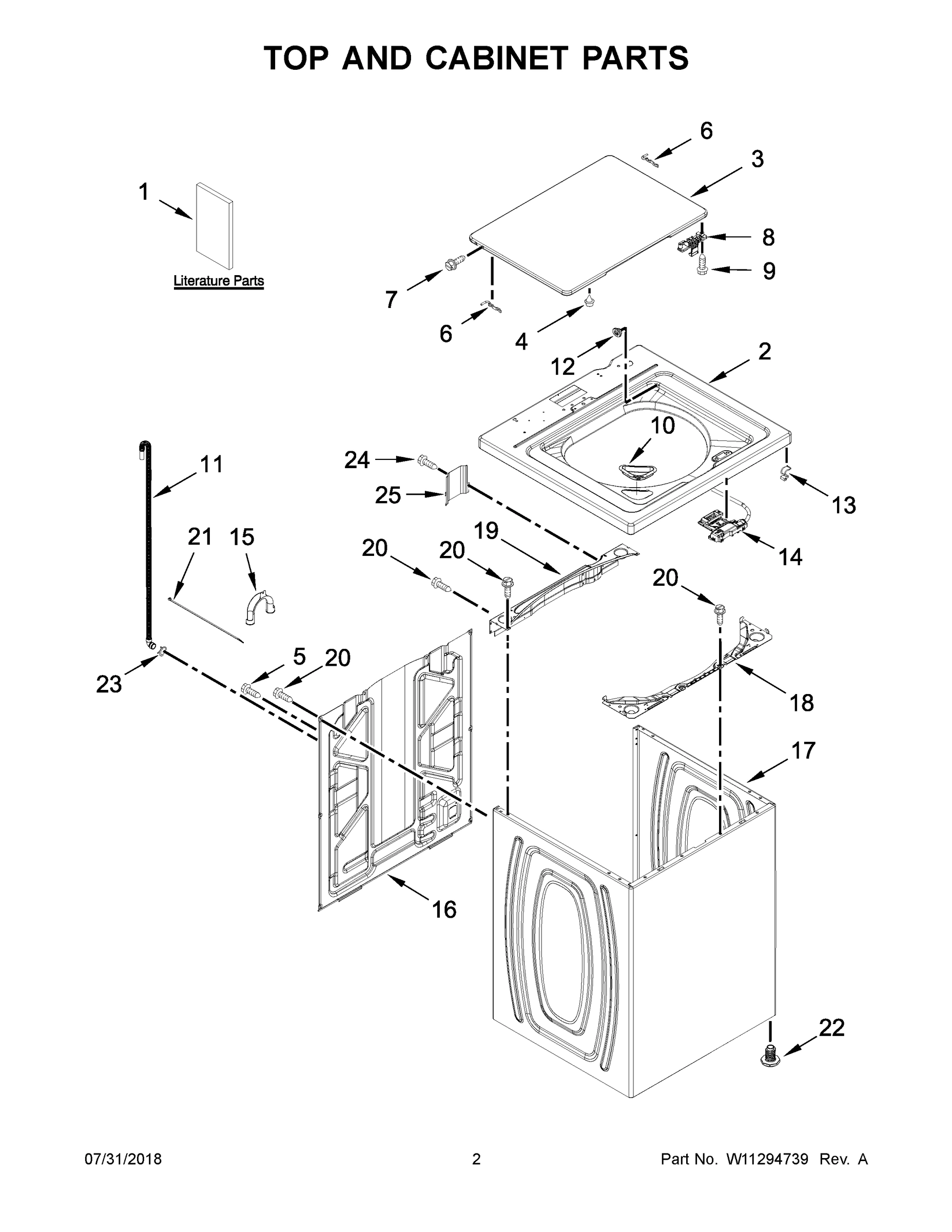

02 - TOP AND CABINET PARTS

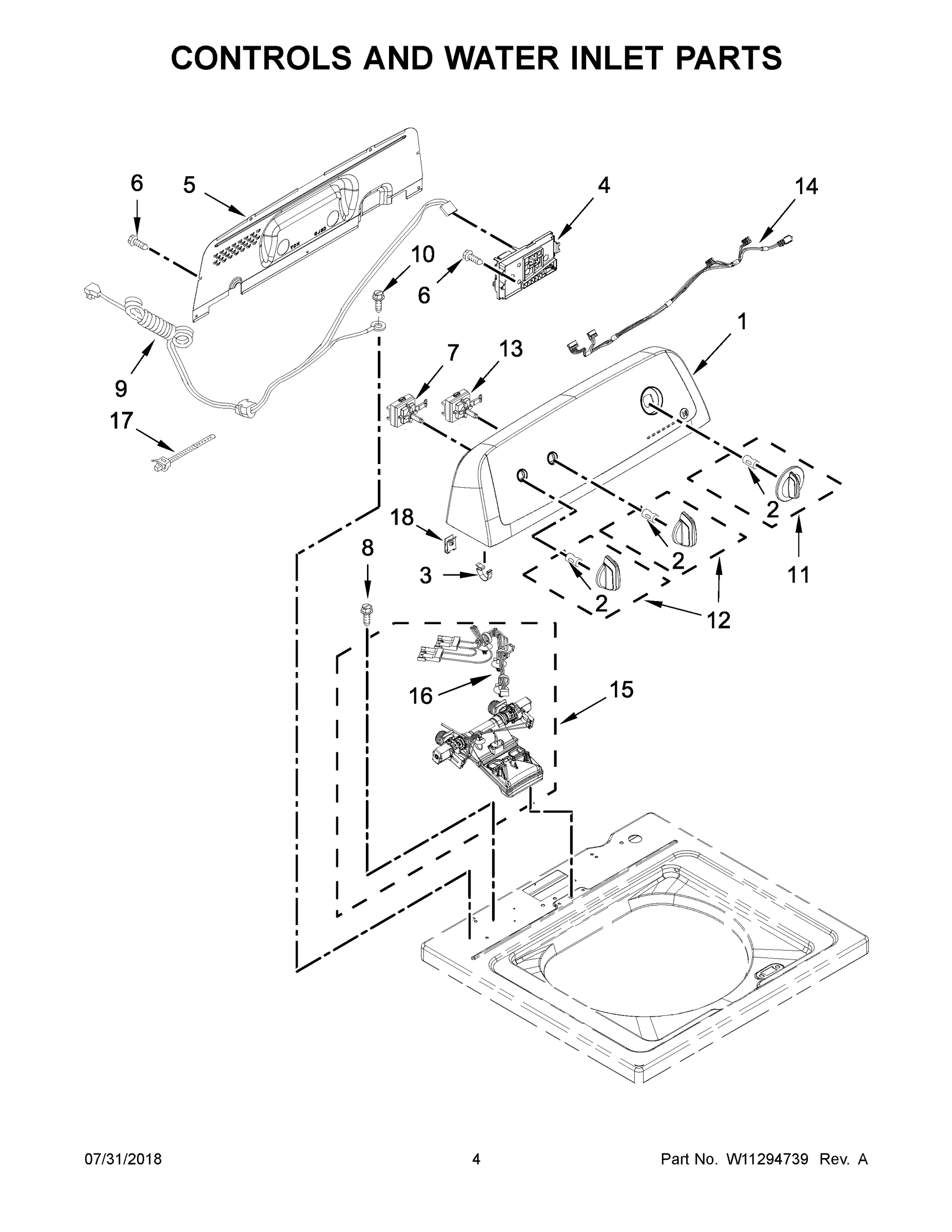

03 - CONTROLS AND WATER INLET PARTS

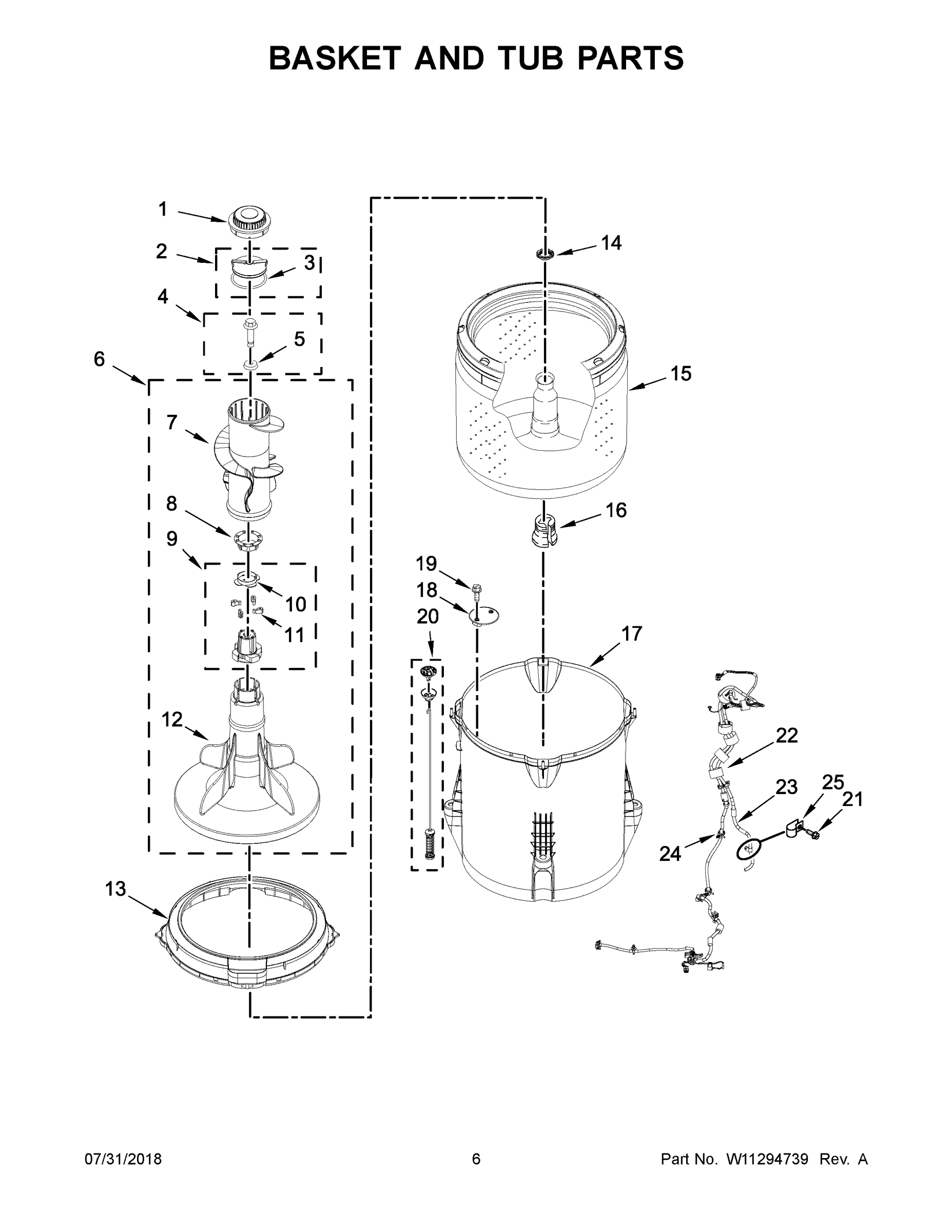

04 - BASKET AND TUB PARTS

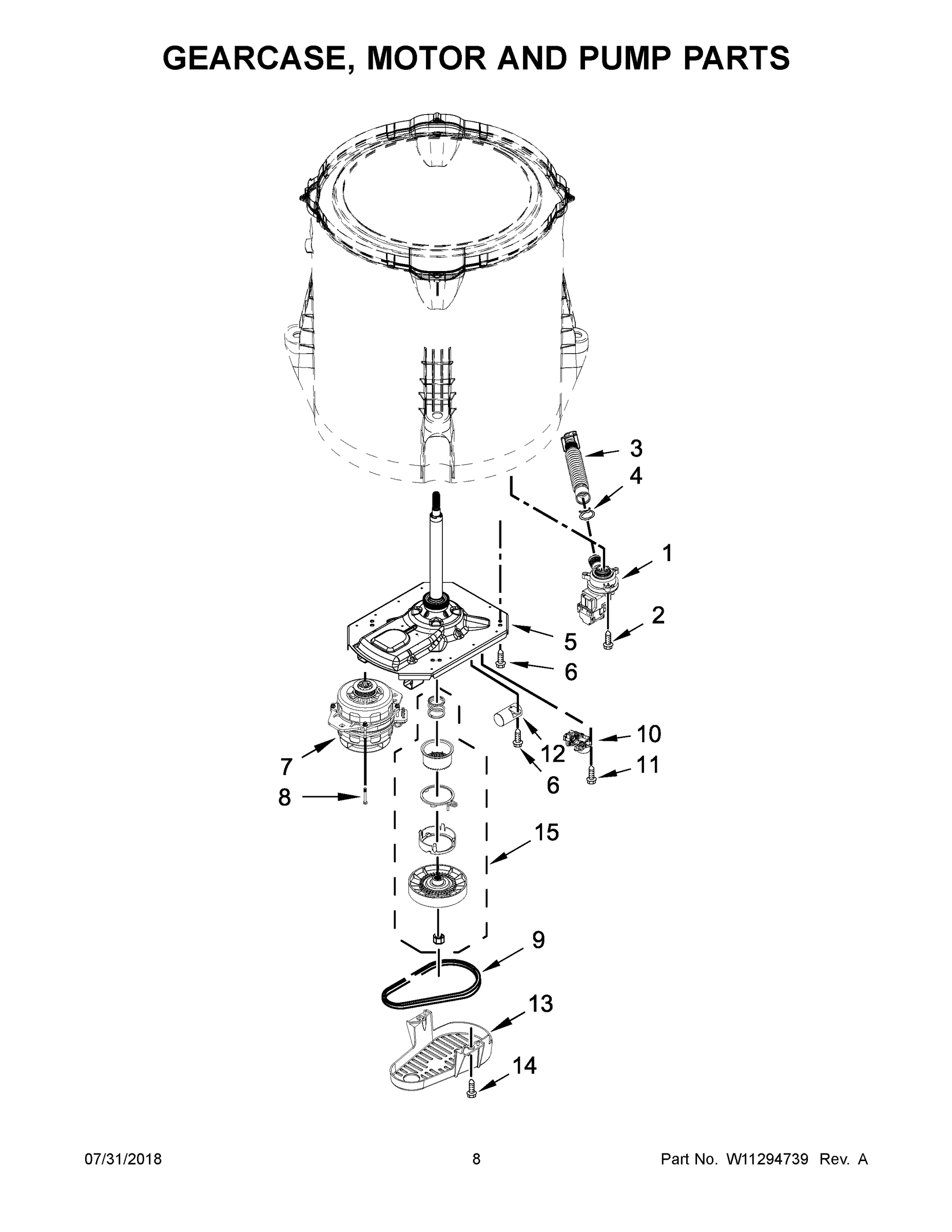

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NTW4516FW3 LAUNDRY, RESIDENTIAL, WASHER
1
INSTALLATION INSTRUCTIONS MAY W10240509 Contact Us For Availability
1
PANEL, CONSOLE MAY W10866219 Contact Us For Availability
1
CAP, AGITATOR MAY 3355758 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10775446 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11158492 Contact Us For Availability
1B
TECH SHEET MAY W10740573 Contact Us For Availability
1C
MAY W11258512 MAY W11258512 Contact Us For Availability
1D
QUICK START GUIDE MAY W11101067 Contact Us For Availability
2
TOP (WHITE) MAY W10686433 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
CAP, BARRIER MAY 3354733 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID (WHITE) MAY W10251302 Contact Us For Availability
3
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
3
SEAL, INNER CAP MAY W10072840 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR MAY W11101098 Contact Us For Availability
4
SCREW AND WASHER MAY W10003790 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
PANEL, CONSOLE REAR COVER MAY W10409320 Contact Us For Availability
5
WASHER MAY 3949550 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10870910 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
SCREW MAY W10660565 Contact Us For Availability
6
AGITATOR (COMPLETE) MAY 3348117 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10414398 Contact Us For Availability
7
MOVER, CLOTHES MAY 3348752 Contact Us For Availability
7
MOTOR, DRIVE MAY W10623547 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
SCREW MAY W10213953 Contact Us For Availability
8
SPACER, THRUST MAY 3350389 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
CORD, POWER MAY W10711784 Contact Us For Availability
9
CAM, DRIVEN MAY 3948431 Contact Us For Availability
9
BELT, DRIVE MAY W10808317 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
SCREW MAY 3400076 Contact Us For Availability
10
BEARING, CAM MAY 3363661 Contact Us For Availability
10
ACTUATOR- SHIFT MAY W10815026 Contact Us For Availability
11
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
11
ASSEMBLY, TIMER KNOB (WHITE) MAY W10711289 Contact Us For Availability
11
DOG, AGITATOR CLUTCH MAY 3366877 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
ASSEMBLY, CONTROL KNOB (WHITE) MAY W10453947 Contact Us For Availability
12
AGITATOR MAY 3347288 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10866238 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10414411 Contact Us For Availability
13
RING, TUB MAY W10531289 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W10427633 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10682535 Contact Us For Availability
14
HARNESS, UPPER MAY W10694679 Contact Us For Availability
14
NUT, SPANNER MAY 21366 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
15
MAY W11101906 MAY W11101906 Contact Us For Availability
15
BASKET ASSEMBLY MAY W10554251 Contact Us For Availability
15
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
HARNESS, VALVE MAY W10701401 Contact Us For Availability
16
BLOCK, BASKET DRIVE MAY 389140 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
CABLE TIE MAY W10339680 Contact Us For Availability
17
TUB MAY W10238320 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT MAY W10215098 Contact Us For Availability
18
NUT, "U" MAY W10298336 Contact Us For Availability
18
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
SCREW MAY 8533928 Contact Us For Availability
20
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10821951 Contact Us For Availability
21
TIE, CABLE MAY W10339879 Contact Us For Availability
21
SCREW MAY 8533943 Contact Us For Availability
22
FOOT, LEVELING MAY W10397994 Contact Us For Availability
22
MAY W10903246 MAY W10903246 Contact Us For Availability
23
CLAMP, HOSE MAY 356138 Contact Us For Availability
23
HOSE, PRESSURE SWITCH MAY W10520039 Contact Us For Availability
24
CABLE TIE MAY W10267532 Contact Us For Availability
25
COVER, HARNESS MAY W10676061 Contact Us For Availability
25
CLAMP, CABLE MAY W10005430 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
× ![]()
