Model Whirlpool MZD2667HES REFRIGERATOR – Common Parts &amp; Diagrams

1

67007028 Whirlpool Refrigerator Hand Card Backorder WPL 67007028 $6.93

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

1

WP67006006 Whirlpool Refrigerator Ice Bucket Backorder WPL WP67006006 $149.16

1

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

1

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

1

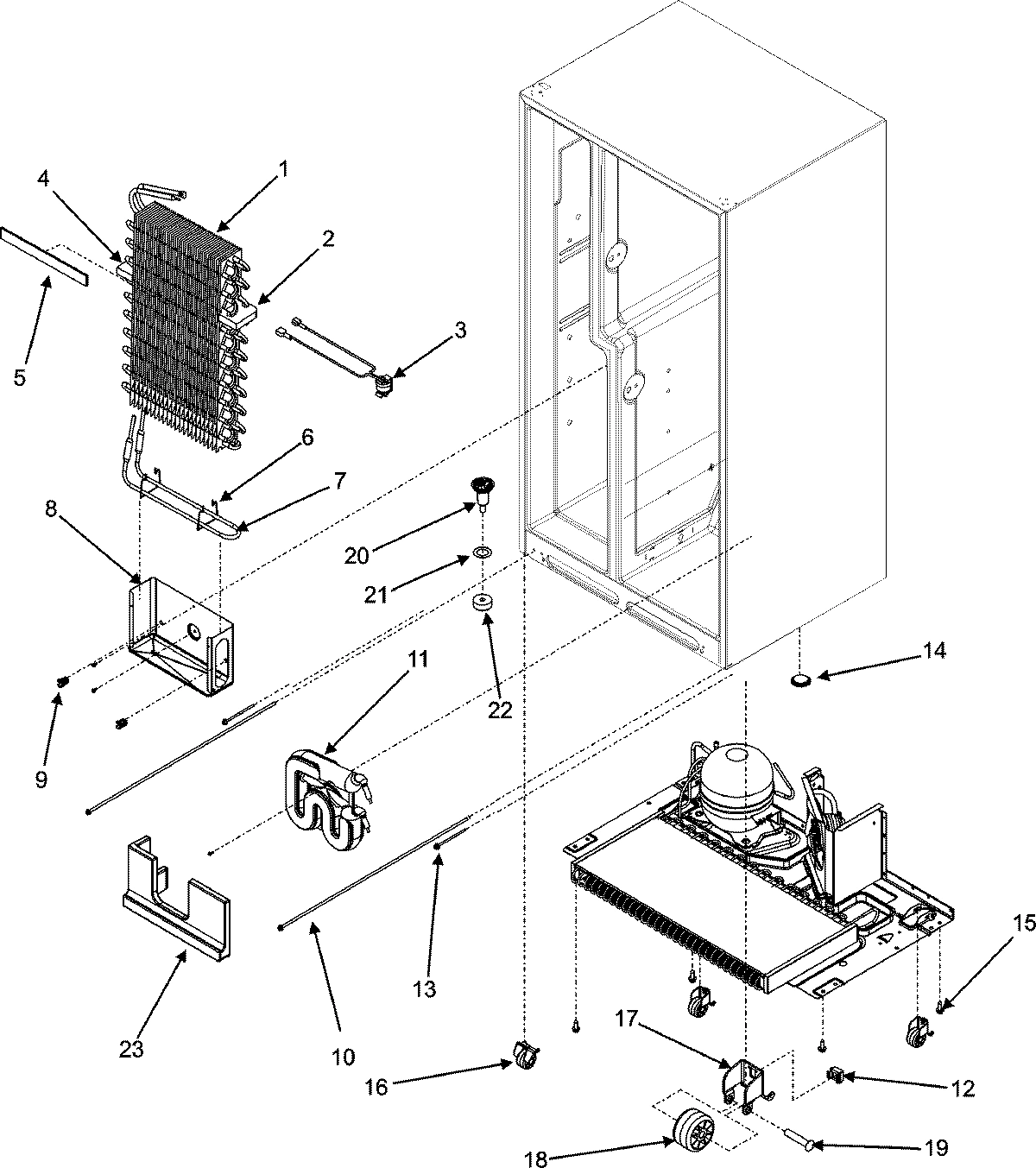

EVAP KIT (SXS) WPL 12001940 Contact Us For Availability

1

GASKET, DAMPER WPL 67004031 Contact Us For Availability

1

SHELF, GLIDE OUT WPL 67003887 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (STNLS) WPL 67004024 Contact Us For Availability

1

SHELF, UPR FZ WPL 67004178 Contact Us For Availability

1

GRILLE, RETURN AIR WPL 12634801 Contact Us For Availability

1

SCREW, SHLDR WPL M0221523 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12842103 Contact Us For Availability

1

HANDLE ASSY., DOOR WPL 67003929 Contact Us For Availability

1

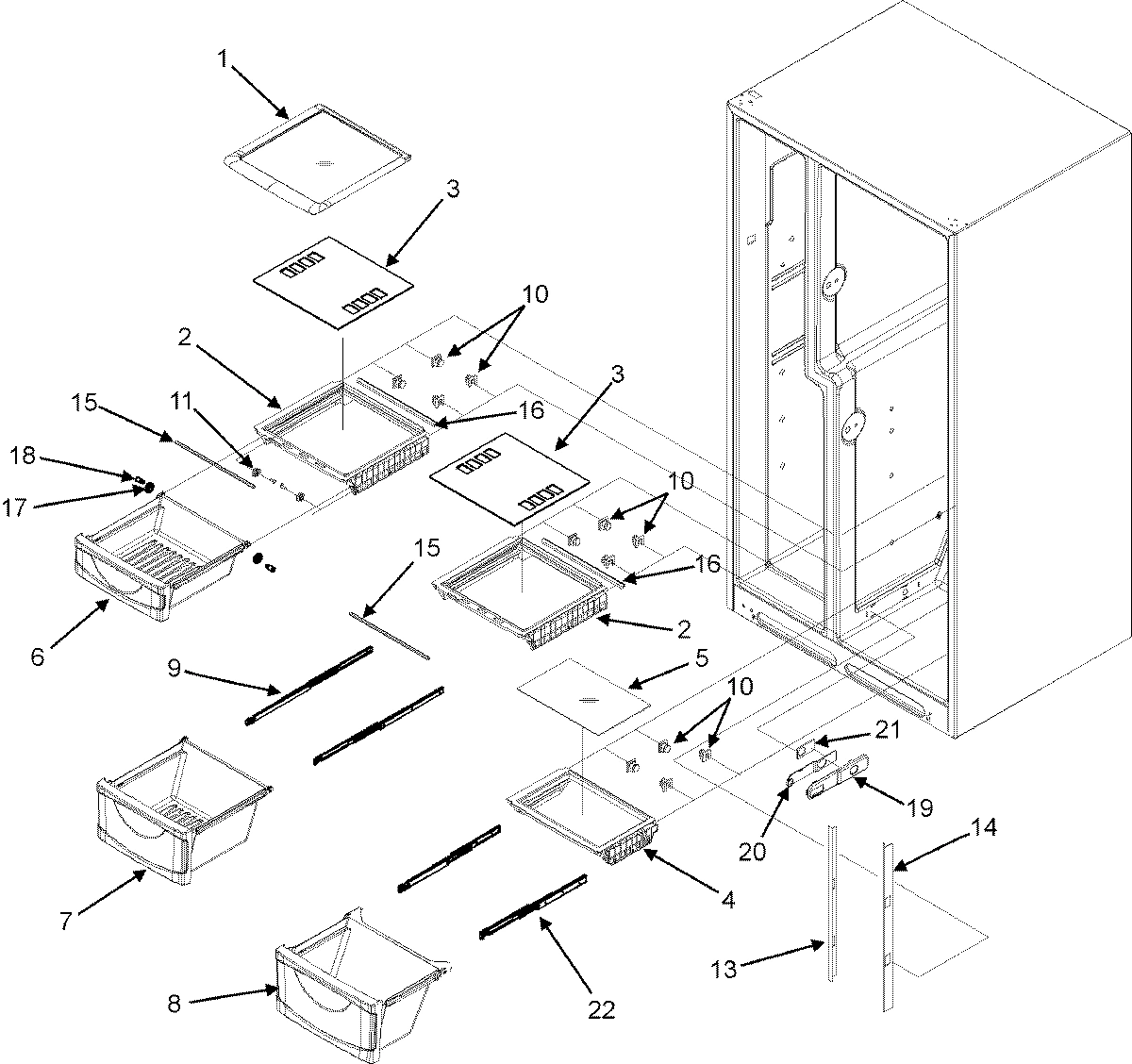

SHELF, CRISPER TOPx WPL 67004162 Contact Us For Availability

1

DOOR ASSY., REF. FOAM (STNLS) WPL 67004025 Contact Us For Availability

2

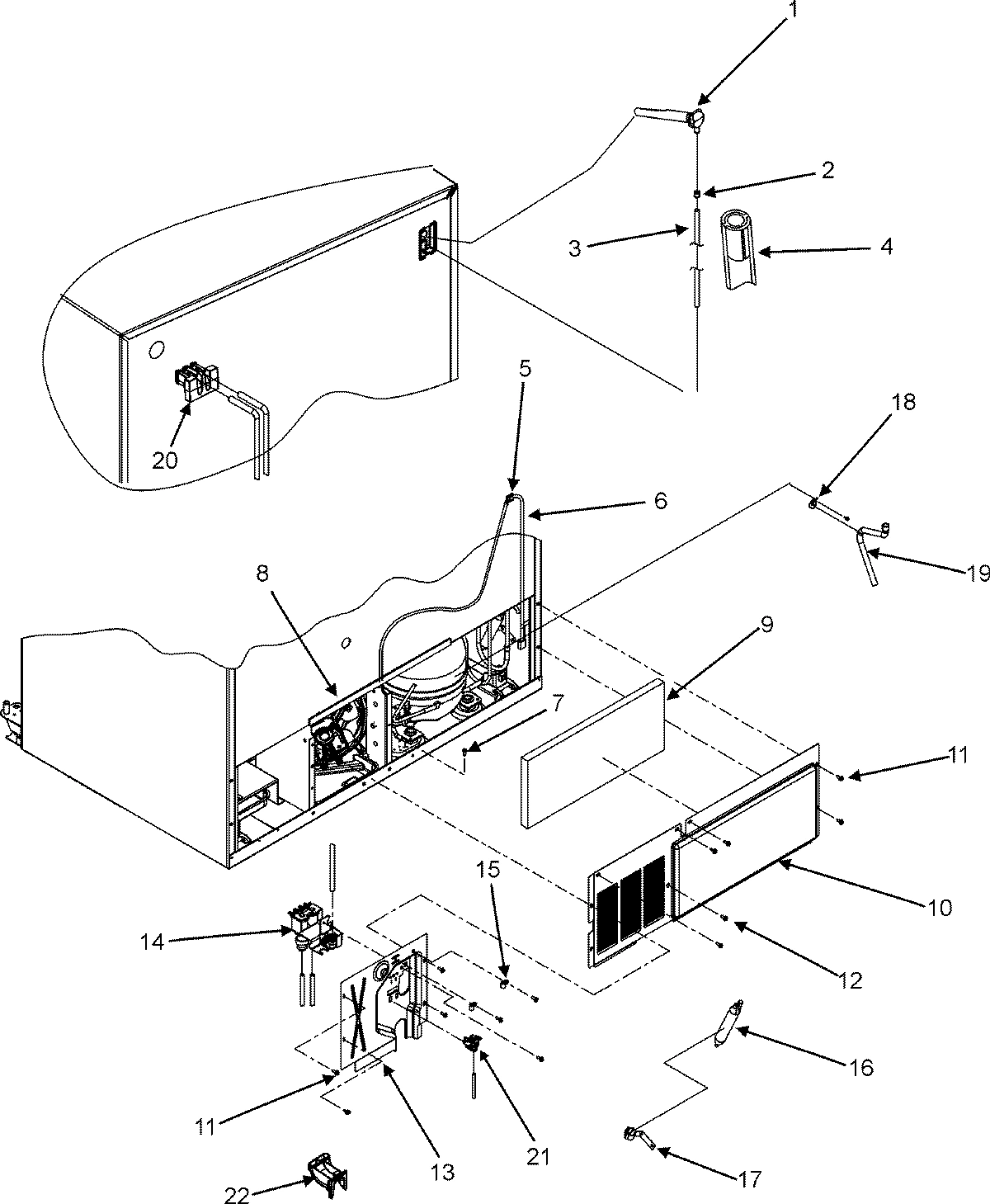

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

2

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

2

WP67006852 Whirlpool Clip Backorder WPL WP67006852 $15.24

2

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

2

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

2

WPD7749401 Whirlpool Drive Gear In Stock WPL WPD7749401 $17.67

2

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

2

GROMMET, SCREW WPL M0580205 Contact Us For Availability

2

SHELF, ELEVATOR WPL 67004159 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 12571301B Contact Us For Availability

2

SUPPORT, FRZ SHELF WPL C8973801 Contact Us For Availability

2

BLOCK, AIR COIL (RT) WPL 12590102 Contact Us For Availability

2

PLUG, AIR TUNNEL WPL 67003018 Contact Us For Availability

2

ACTR PAD FRAME ASSY. (BLK) WPL 12598902B Contact Us For Availability

2

COVER, TOP HINGE (LT-BLK) WPL 67003912 Contact Us For Availability

2

TECH SHT, SXS WPL 16023094 Contact Us For Availability

2

TECH SHT, SXS WPL 16026172 Contact Us For Availability

2

ASSY, IM ARM/WIRE WPL 12671401 Contact Us For Availability

2

FRAME, CRISPER SHELF WPL 67004576 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 12113204 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

3

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $49.78

3

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $25.73

3

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

3

WP67004757 Whirlpool Refrigerator Thermostat In Stock WPL WP67004757 $66.62

3

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

3

AGITATOR, ICE WPL 10114401 Contact Us For Availability

3

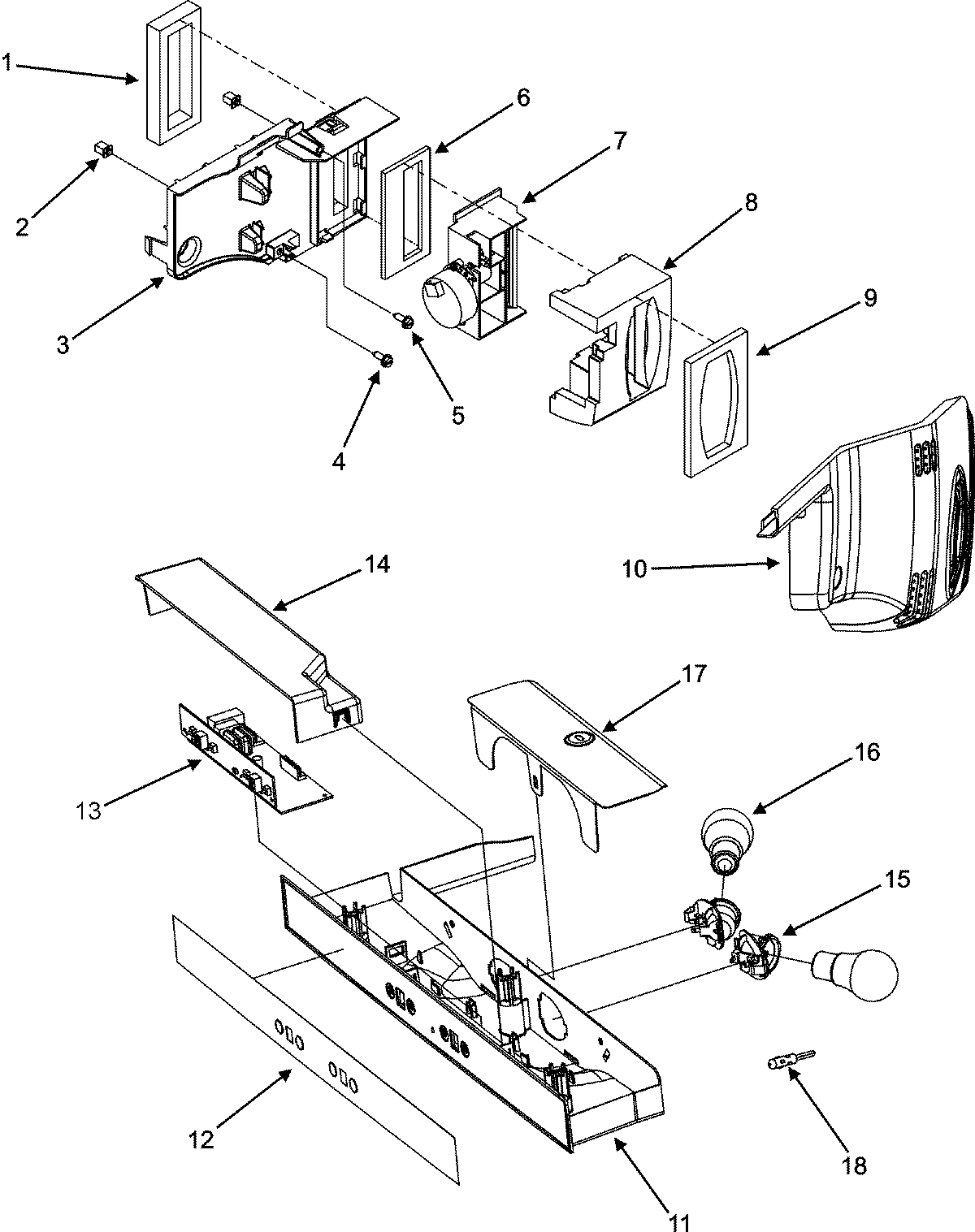

BRACKET, ELEC CONTROL WPL 67004447 Contact Us For Availability

3

FRAME ASSY., ELEVATOR SHELF WPL 67004160 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability

3

RAIL, BASKET (RT) WPL 67004179 Contact Us For Availability

3

CLIP, CORD WPL M0104102 Contact Us For Availability

3

SCREW SHOULDER WPL M0238833 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

ENERGY, GUIDE WPL 67004583 Contact Us For Availability

3

BARRIER, CRISPER SHELF WPL 67004577 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 10961002 Contact Us For Availability

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

4

W11214483 Whirlpool Refrigerator Screw Backorder WPL W11214483 $8.89

4

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

4

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

4

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

4

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

4

STOP, DOOR (BLK) WPL 12636401B Contact Us For Availability

4

SHELF, LEDGE GLIDE WPL 67004161 Contact Us For Availability

4

TRIM, UPR SHELF WPL 67004184 Contact Us For Availability

4

BLOCK, AIR COIL (LT) WPL 12590101 Contact Us For Availability

4

BAR, CRSH ICE BUCKET WPL 10113801 Contact Us For Availability

4

SEAL, ICE CHUTE WPL 12665101 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SVC MAN, SXS WPL 16022689 Contact Us For Availability

4

FRAME, MEAT SHELF WPL 67004163 Contact Us For Availability

5

67005375 Whirlpool Refrigerator Glide, Freeze Backorder WPL 67005375 $218.74

5

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $207.03

5

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

5

SCREW WPL M0216539 Contact Us For Availability

5

LADDER, SIDE WPL 67004198 Contact Us For Availability

5

PLUG, BUTTON (GRY) WPL M0311607 Contact Us For Availability

5

SHELF, LWR FZ WPL 67004180 Contact Us For Availability

5

GASKET, FOAM WPL 67002226 Contact Us For Availability

5

SCREW, HEX HEAD WPL 59001208 Contact Us For Availability

5

INSUL, CHUTE DOORxx WPL 12563401 Contact Us For Availability

5

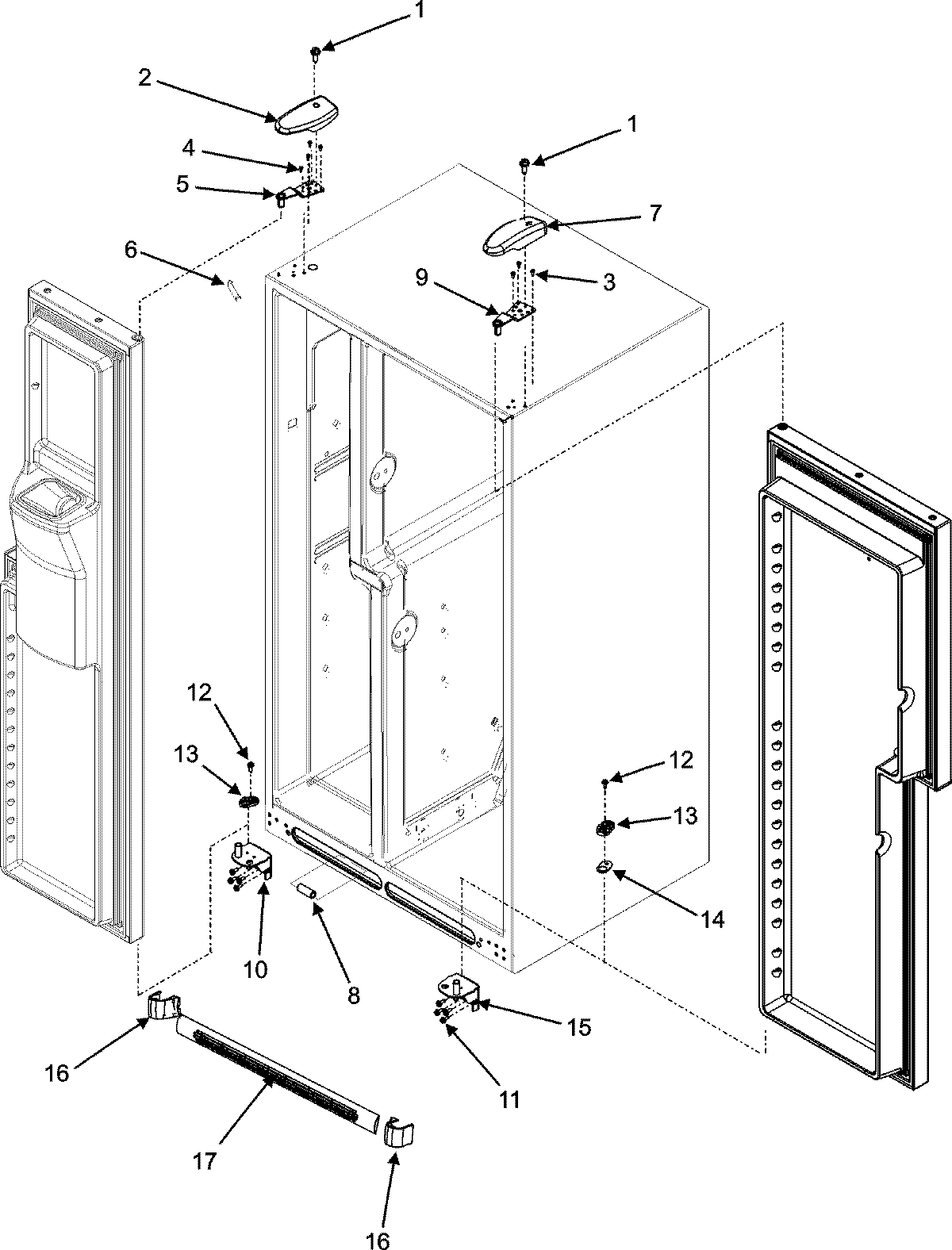

HINGE, TOP (LT-BLK) WPL 67004126 Contact Us For Availability

5

INLET, WATER WPL 951001 Contact Us For Availability

5

GLASS, MEAT SHELF WPL 67004164 Contact Us For Availability

6

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

6

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $8.89

6

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

6

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

6

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

6

GASKET, DAMPER WPL 12582801 Contact Us For Availability

6

PLUG, BUTTON (BLK) WPL A3080001 Contact Us For Availability

6

BASKET, SM FRZ WPL 67004581 Contact Us For Availability

6

IM ARM/WIRE ASSY WPL 12671401Q Contact Us For Availability

6

PAN ASSY., SM CRISPER WPL 67004578 Contact Us For Availability

7

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

7

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $116.26

7

WP67004188 Whirlpool Heater Defrost Assembly In Stock WPL WP67004188 $86.65

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

WPW10146386 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10146386 $95.20

7

GASKET, FRZ. DOOR (BLK) WPL 67003971 Contact Us For Availability

7

TRIM, FRZ SHELF WPL 67004181 Contact Us For Availability

7

COVER, BLADE WPL 67002271 Contact Us For Availability

7

SHROUD, EVAP WPL 67004187 Contact Us For Availability

7

HINGE, ICE CHUTE WPL 67004119 Contact Us For Availability

7

COVER, TOP HINGE (RT-BLK) WPL 67003913 Contact Us For Availability

7

GLIDE, FRZ. (RT) WPL 67003870 Contact Us For Availability

7

PAN, LG CRISPER WPL 67004579 Contact Us For Availability

7

PAN, LG CRISPER WPL 67005812 Contact Us For Availability

7

GASKET, REF. DOOR (BLK) WPL 67003969 Contact Us For Availability

8

WP12565502 Whirlpool Refrigerator Spring Backorder WPL WP12565502 $5.99

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

8

WP67003576 Whirlpool Refrigerator Fill Tube E Backorder WPL WP67003576 $41.48

8

INSUL, DAMPER WPL 67003828 Contact Us For Availability

8

BUCKET, UPR FZ DR WPL 67004113 Contact Us For Availability

8

RAIL, BASKET (LT) WPL 67004182 Contact Us For Availability

8

TRAY, EVAP DRIP WPL 12558101WD Contact Us For Availability

8

FRONT, ICE CRUSHER WPL 10115001 Contact Us For Availability

8

GASKET WPL 67001508 Contact Us For Availability

8

GASKET, MC BACK WPL B5759649 Contact Us For Availability

8

BACK, INNER FZ WPL 67004190 Contact Us For Availability

8

PAN, MEAT WPL 67004580 Contact Us For Availability

8

PAN, MEAT WPL 67005814 Contact Us For Availability

8

DOOR, DAIRY WPL 67003973 Contact Us For Availability

9

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

9

WP67006534 Whirlpool Refrigerator Ice Cube Ch Backorder WPL WP67006534 $87.30

9

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

9

GASKET, CONTROL COVER WPL 12582901 Contact Us For Availability

9

BUCKET, LWR FZ DR WPL 67004114 Contact Us For Availability

9

BASKET, LWR FRZ WPL 67004183 Contact Us For Availability

9

CLIP, EVAPORATOR WPL 10623003 Contact Us For Availability

9

PIN, ROLL WPL M1200108 Contact Us For Availability

9

HINGE, TOP (RT-BLK) WPL 67004083 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

COVER, SUPPLY AIR WPL 12583101 Contact Us For Availability

9

GROMMET, SCREW WPL M0580007 Contact Us For Availability

9

GLIDE, CRISPER FRAME WPL 67004489 Contact Us For Availability

9

TRAY, DAIRY WPL 67003974 Contact Us For Availability

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $7.14

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

COVER, ELEC CONTROL WPL 67004027 Contact Us For Availability

BASKET, TILT WPL 67004565 Contact Us For Availability

TRIM, FZ BASKET WPL 67003874 Contact Us For Availability

SCREW, ADJUSTING WPL 10093313 Contact Us For Availability

ANCHOR, BLADE WPL 10114101 Contact Us For Availability

SOLENOID WPL 12575401 Contact Us For Availability

HINGE, BOTTOM (LT-BLK) WPL 12636901ED Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

BACK, MACH COMP WPL 12575101ED Contact Us For Availability

TUBE, DISCHARGE WPL 67002236 Contact Us For Availability

DUCT, QUICK ICE 26 WPL 67003578 Contact Us For Availability

BUCKET ASSY., REF. DOOR WPL 67003922 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

HOUSING, CONTROL WPL 67004573 Contact Us For Availability

SCREW-SM WPL M0238636 Contact Us For Availability

FRAME, TILT BASKET WPL 67004566 Contact Us For Availability

TANK, WATER WPL 67003504 Contact Us For Availability

SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability

ROLLER, CRISPER WPL 67004169 Contact Us For Availability

BUCKET ASSY., REF. DOOR WPL 67003923 Contact Us For Availability

67006692 Whirlpool Refrigerator Screw Backorder WPL 67006692 $6.84

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

WP67003226 Whirlpool Motor Auger Backorder WPL WP67003226 $244.40

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

OVERLAY WPL 67004575 Contact Us For Availability

SPACER, COVER WPL 10113901 Contact Us For Availability

SHIELD, CRISPER LIGHT WPL 67001507 Contact Us For Availability

SOCKET, LIGHT WPL 12617501 Contact Us For Availability

SCREW, TC WPL M0220431 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

PAN, BASE WPL 67001512 Contact Us For Availability

TRAY, BUTTER WPL 67004404 Contact Us For Availability

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

R0181181 Whirlpool Refrigerator Door Closer C In Stock WPL R0181181 $4.60

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $209.77

DAMPER, ICE WPL 10275201 Contact Us For Availability

FACADE, 5 BUTTON (BLK) WPL 67004284 Contact Us For Availability

COVER, WATER VALVE WPL 67004098 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

COVER, AUGER MOTOR WPL 67004191 Contact Us For Availability

PILLAR (LT) WPL 67004170 Contact Us For Availability

TRAY, EGG WPL 10436506 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $36.01

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

WP67004151 Whirlpool Overlay In Stock WPL WP67004151 $47.22

WP67005154 Whirlpool Water Valve In Stock WPL WP67005154 $79.33

WP67005716 Whirlpool Refrigerator Shim Backorder WPL WP67005716 $4.82

BLOCK-EPS COND WPL 67002235 Contact Us For Availability

COVER, CONTROL BOARD WPL 67004574 Contact Us For Availability

BLADE, STATIC WPL 10114601 Contact Us For Availability

PLUG, BYPASS WPL 67003146 Contact Us For Availability

PILLAR (RT) WPL 67004171 Contact Us For Availability

BUCKET, TILT OUT WPL 67004561 Contact Us For Availability

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $65.34

R9800670 Whirlpool Refrigerator Screw Kit In Stock WPL R9800670 $4.81

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $240.21

SCREW WPL 67001510 Contact Us For Availability

BLADE, ROTATING WPL 10114501 Contact Us For Availability

HINGE, BOTTOM (RT-BLK) WPL 12636902ED Contact Us For Availability

SEAL, CRISPER FRAME (FRT) WPL 67004172 Contact Us For Availability

BRACKET, TILT OUT BUCKET WPL 67004562 Contact Us For Availability

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $63.55

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

WPM0223101 Whirlpool Refrigerator Nut Backorder WPL WPM0223101 $4.82

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

WASHER, WAVED WPL 10275101 Contact Us For Availability

COVER, LWR HINGE (BLK) WPL 12630301B Contact Us For Availability

SEAL, CRISPER FRAME (REAR) WPL 67004173 Contact Us For Availability

LID, BUTTER TRAY WPL 67004405 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $89.06

WP67004106 Whirlpool Water Filter Housing In Stock WPL WP67004106 $99.94

REFLECTOR, LIGHT WPL 67004157 Contact Us For Availability

WASHER STEPPED WPL 10114301 Contact Us For Availability

BOARD, CONTROL WPL 67003817 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

SHIELD, FZ LIGHT WPL 67003588 Contact Us For Availability

ROLLER, PAN WPL 67004133 Contact Us For Availability

BIN, UTILITY WPL 10423131 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $5.02

BRKT, ECM COND MOTOR WPL 67003644 Contact Us For Availability

PLATE, FILTER BACKING WPL 12688503 Contact Us For Availability

CLAMP WPL M0102303 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

PIN, ROLLER WPL 67004174 Contact Us For Availability

LID, UTILITY WPL 10436404 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

WP12740302 Whirlpool Refrigerator Crusher Mec In Stock WPL WP12740302 $402.22

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

PLUG, BUTTON WPL 67002417 Contact Us For Availability

RIVET WPL M1205302 Contact Us For Availability

LABEL, DISPENSER WPL 67003351 Contact Us For Availability

TUBE, DRAIN WPL 12580401 Contact Us For Availability

COVER, EVAP WPL 67004192 Contact Us For Availability

HOUSING, TEMP. CONTROL WPL 67004175 Contact Us For Availability

RETAINER, TALL BOTTLE WPL 67004563 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $47.06

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

MOTOR, CONDENSER FAN (ECM) WPL 12628701 Contact Us For Availability

HARNESS, CONTROL WPL 67004461 Contact Us For Availability

FUNNEL, DRAIN WPL 12456901 Contact Us For Availability

COVER, ICE BUCKET WPL 67004194 Contact Us For Availability

SLIDE, TEMP. CONTROL WPL 67004176 Contact Us For Availability

SNUGGER, DOOR SHELF WPL 67004564 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

STRAP, BALE WPL 12576801 Contact Us For Availability

DOOR, ICE BUCKET WPL 67004195 Contact Us For Availability

CLIP, WATERLINE WPL 67004100 Contact Us For Availability

GASKET, TEMP. CONTROL WPL 67004177 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $8.23

67004955 Whirlpool Refrigerator MC Harness Backorder WPL 67004955 $96.51

67005620 Whirlpool Refrigerator Glide CRI Backorder WPL 67005620 $227.37

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

HARNESS, MC WPL 67004097 Contact Us For Availability

SHIELD, FZ LIGHT WPL 67003829 Contact Us For Availability

SCREW WPL M0213129 Contact Us For Availability

GLIDE, MEAT FRAME (W/BUMPER) WPL 67005898 Contact Us For Availability

23

BLOCK, WATER TANK WPL 67004309 Contact Us For Availability

23

TRACK, WATERLINE WPL 67004102 Contact Us For Availability

24

HEATER/HARNESS, FRZ WPL 67004189 Contact Us For Availability

NI

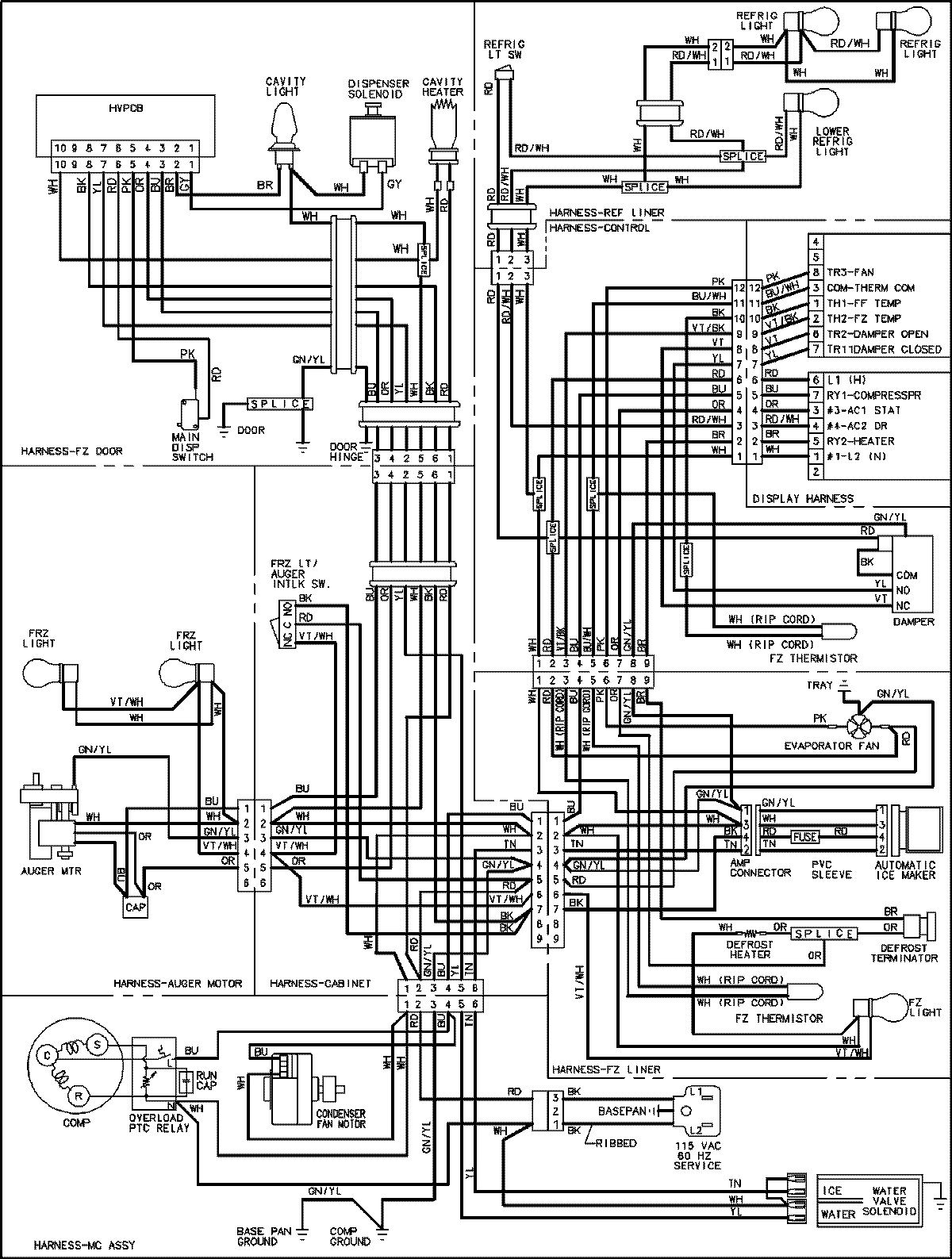

WIRING INFORMATION WPL 15003549 Contact Us For Availability
