Model Maytag MHW6630HC2 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams

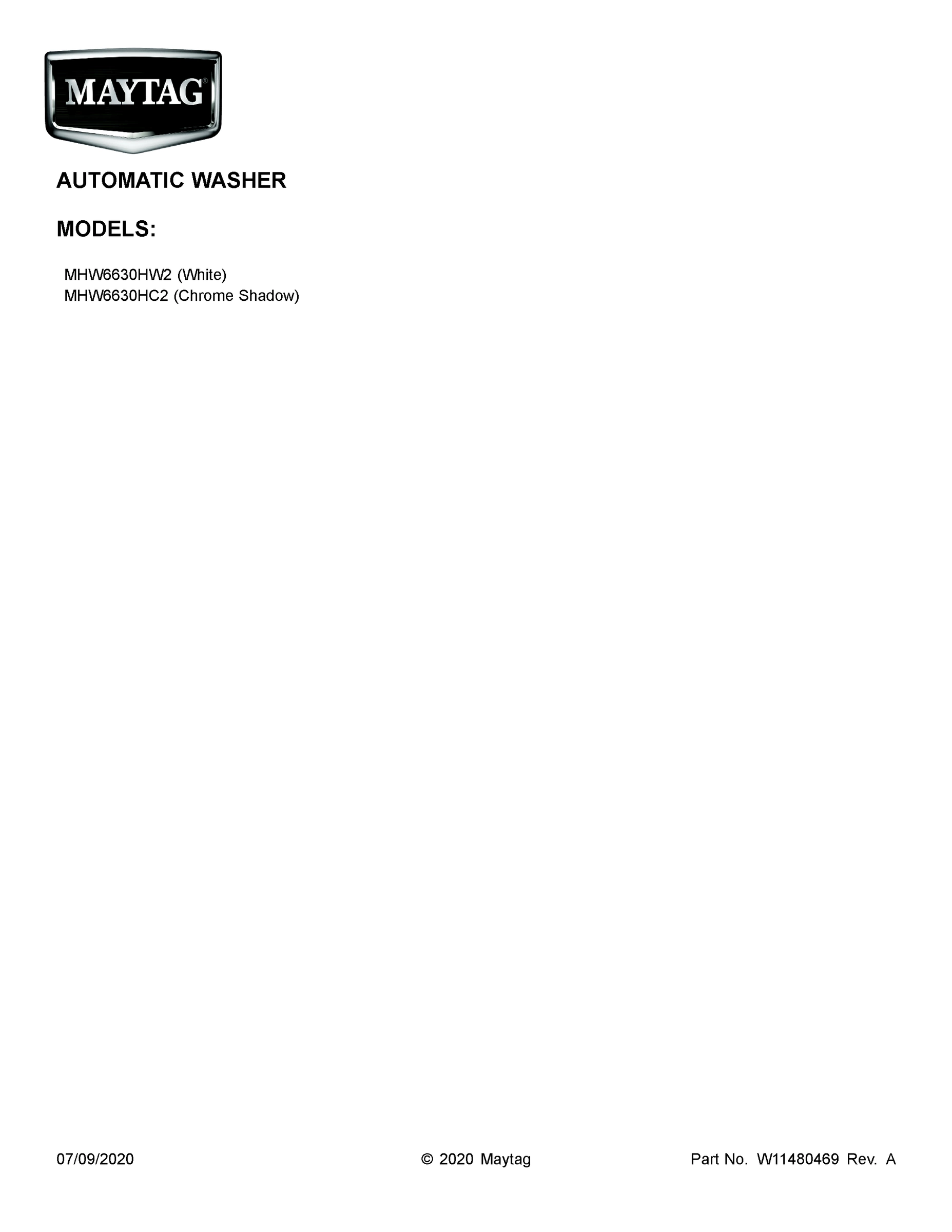

01 - COVER SHEET

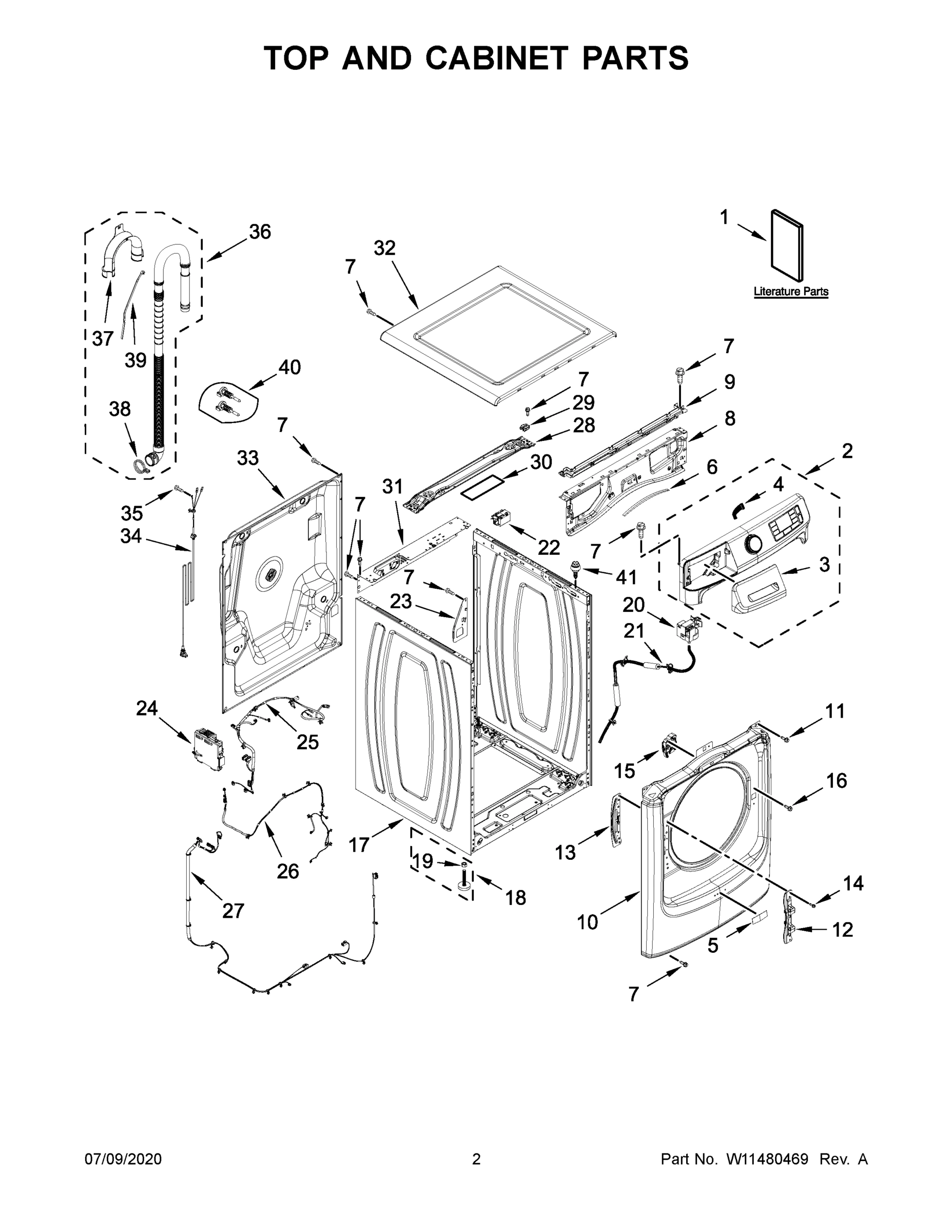

02 - TOP AND CABINET PARTS

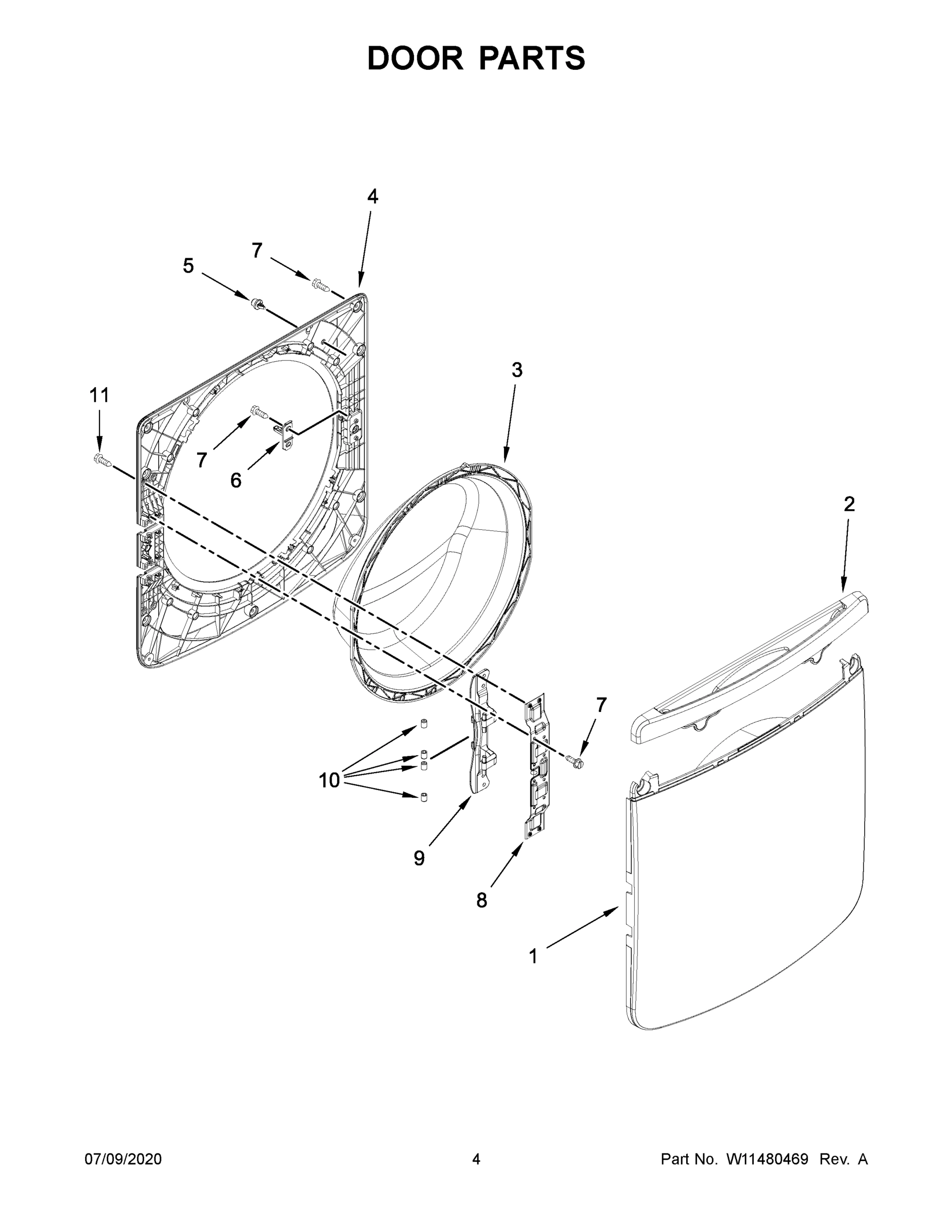

03 - DOOR PARTS

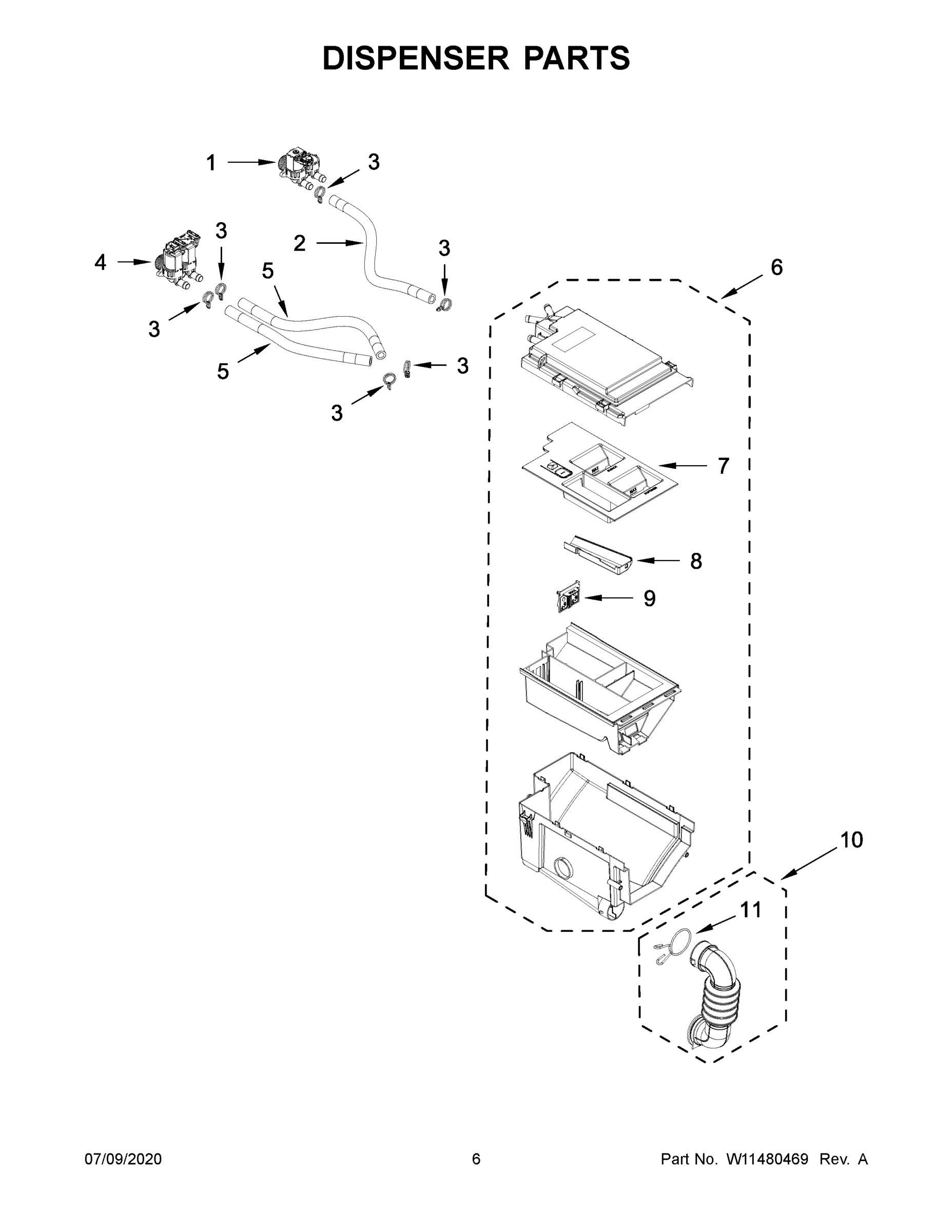

04 - DISPENSER PARTS

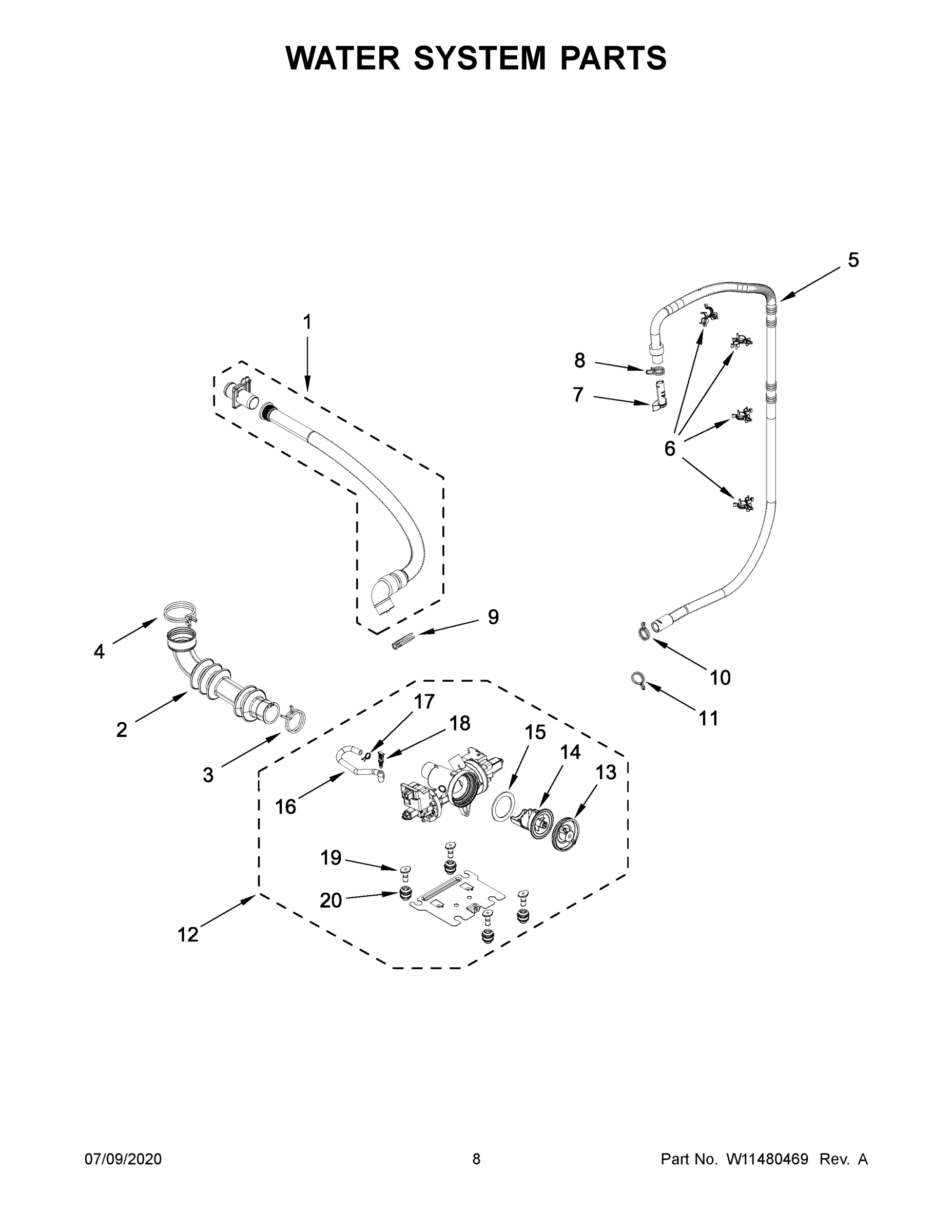

05 - WATER SYSTEM PARTS

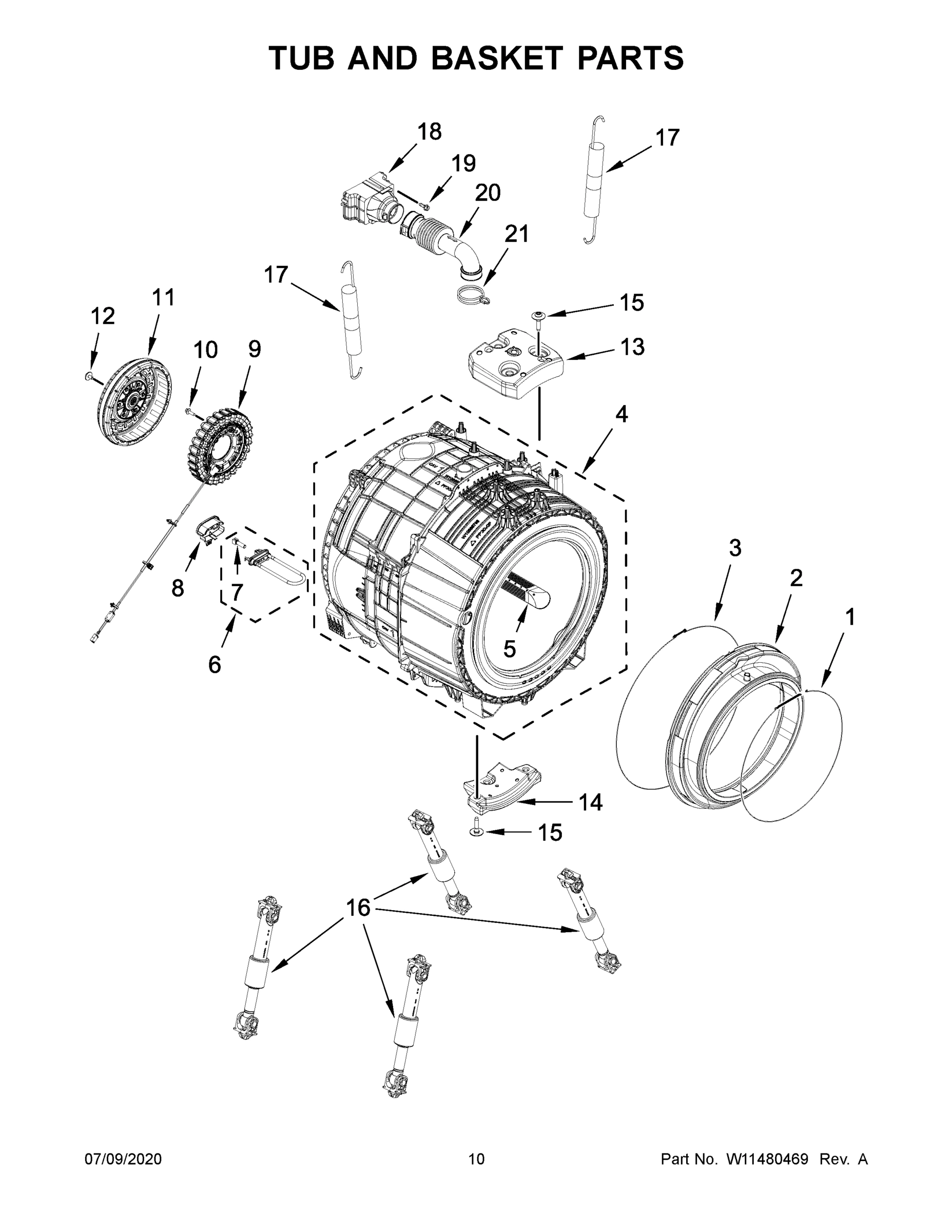

06 - TUB AND BASKET PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHW6630HC2 LAUNDRY, RESIDENTIAL, WASHER
1
OWNER'S MANUAL MAY W11355369 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (GRAY) MAY W11196016 Contact Us For Availability
1
VALVE, INLET (SINGLE) MAY W11036928 Contact Us For Availability
1
ASSEMBLY, DRAIN HOSE MAY W10921958 Contact Us For Availability
1
RETAINER, FRONT PANEL TO BELLOW MAY W10818945 Contact Us For Availability
1A
QUICK START GUIDE MAY W11355237 Contact Us For Availability
1B
ENERGY GUIDE MAY W11356843 Contact Us For Availability
1C
CYCLE GUIDE MAY W11366244 Contact Us For Availability
2
ASSEMBLY, CONSOLE (WHITE) MAY W11294860 Contact Us For Availability
2
HANDLE, DOOR (BLACK) MAY W10626041 Contact Us For Availability
2
HOSE, INLET (HOT) MAY W10920135 Contact Us For Availability
2
HOSE, TUB TO PUMP MAY W10921959 Contact Us For Availability
2
BELLOW MAY W10897390 Contact Us For Availability
2A
ASSEMBLY, CONSOLE (CHROME SHADOW) MAY W11294859 Contact Us For Availability
3
HANDLE, DRAWER (WHITE) MAY W11169065 Contact Us For Availability
3
DOOR, CLEAR INSERT MAY W11171606 Contact Us For Availability
3
CLAMP, HOSE MAY W10096851 Contact Us For Availability
3
CLAMP, HOSE MAY 370448 Contact Us For Availability
3
RETAINER, BELLOW TO TUB MAY W11048199 Contact Us For Availability
3A
HANDLE, DRAWER (CHROME SHADOW) MAY W11169072 Contact Us For Availability
4
JUMPER, HARNESS HMI (BOARD TO BOARD) MAY W10920818 Contact Us For Availability
4
DOOR, INNER MAY W11178958 Contact Us For Availability
4
VALVE, INLET (DOUBLE) MAY W11036930 Contact Us For Availability
4
CLAMP, VENT HOSE MAY W10273034 Contact Us For Availability
4
ASSEMBLY, TUB AND DRUM MAY W10921993 Contact Us For Availability
5
BADGE, MAYTAG MAY W10639171 Contact Us For Availability
5
BUMPER, DOOR MAY W11178950 Contact Us For Availability
5
HOSE, INLET (COLD) MAY W10920133 Contact Us For Availability
5
HOSE, PUMP TO BELLOW MAY W11170933 Contact Us For Availability
5
BAFFLE, DRUM MAY W11198668 Contact Us For Availability
6
EDGE GUARD MAY W10407376 Contact Us For Availability
6
STRIKE, DOOR MAY W10921697 Contact Us For Availability
6
ASSEMBLY, DISPENSER MAY W11437244 Contact Us For Availability
6
CLIP, HOSE MAY W11050231 Contact Us For Availability
6
ASSEMBLY, HEATER MAY W10918779 Contact Us For Availability
7
SCREW MAY W10567155 Contact Us For Availability
7
SCREW MAY 8534022 Contact Us For Availability
7
SIPHON, BLEACH/SOFTENER MAY W11173269 Contact Us For Availability
7
NOZZLE, WATER MAY W10796538 Contact Us For Availability
7
SENSOR, NTC MAY W10919909 Contact Us For Availability
8
BRACKET, CONSOLE MAY W10915381 Contact Us For Availability
8
PLATE, HINGE RETAINER MAY W10312805 Contact Us For Availability
8
COVER, DETERGENT DRAWER MAY W11106522 Contact Us For Availability
8
CLAMP, HOSE MAY 371503 Contact Us For Availability
8
SHIELD, HEATER MAY W10909418 Contact Us For Availability
9
CHANNEL, WATER MAY W10796898 Contact Us For Availability
9
HINGE, BASE MAY W10208415 Contact Us For Availability
9
CLAMP, HOSE MAY 356138 Contact Us For Availability
9
SEPARATOR, SIPHON MAY W10918519 Contact Us For Availability
9
STATOR, MOTOR MAY W11261210 Contact Us For Availability
10
PANEL, FRONT (WHITE) MAY W11047831 Contact Us For Availability
10
CAP, HINGE MAY W10208398 Contact Us For Availability
10
ASSEMBLY, DISPENSER HOSE MAY W10920132 Contact Us For Availability
10
CLAMP, HOSE MAY 8533888 Contact Us For Availability
10
SCREW, STATOR MAY W11035597 Contact Us For Availability
10A
PANEL, FRONT (CHROME SHADOW) MAY W11047832 Contact Us For Availability
11
SCREW MAY 357640 Contact Us For Availability
11
SCREW MAY W10288126 Contact Us For Availability
11
CLAMP, HOSE MAY W10239910 Contact Us For Availability
11
CLAMP, HOSE MAY 9724996 Contact Us For Availability
11
ROTOR, MOTOR MAY W10916241 Contact Us For Availability
12
ASSEMBLY, PUMP MAY W11319789 Contact Us For Availability
12
SCREW, ROTOR MAY W10797525 Contact Us For Availability
13
BRACKET, HINGE MAY W10299097 Contact Us For Availability
13
CAP, FILTER MAY W10921834 Contact Us For Availability
13
COUNTERWEIGHT, TOP MAY W11209371 Contact Us For Availability
14
FILTER, PUMP MAY W11319788 Contact Us For Availability
14
MAY W11209373 MAY W11209373 Contact Us For Availability
15
LOCK, DOOR MAY W10804741 Contact Us For Availability
15
SEAL, FILTER CAP MAY W10921839 Contact Us For Availability
15
SCREW, COUNTERWEIGHT MAY W11235083 Contact Us For Availability
16
SCREW MAY 8540282 Contact Us For Availability
16
HOSE, DRAIN (PUMP) MAY W10782741 Contact Us For Availability
16
DAMPER ASSEMBLY MAY W11117022 Contact Us For Availability
17
CABINET (WHITE) MAY W11352995 Contact Us For Availability
17
CLAMP, HOSE MAY W10834076 Contact Us For Availability
17
SPRING, SUSPENSION MAY W10896675 Contact Us For Availability
17A
CABINET (CHROME SHADOW) MAY W11352996 Contact Us For Availability
18
LEVELING LEG ASSEMBLY MAY W10073890 Contact Us For Availability
18
PLUG, DRAIN (PUMP) MAY W10834077 Contact Us For Availability
18
ENCLOSURE, VENT/FAN MAY W10919156 Contact Us For Availability
19
NUT, HEX MAY 3359452 Contact Us For Availability
19
GROMMET, PIN (PUMP) MAY W11133160 Contact Us For Availability
19
SCREW MAY 8540513 Contact Us For Availability
20
PRESSURE SWITCH MAY W11125159 Contact Us For Availability
20
GROMMET (PUMP) MAY W11126910 Contact Us For Availability
20
HOSE, VENTILATION MAY W10919155 Contact Us For Availability
21
HOSE, PRESSURE SWITCH MAY W11319791 Contact Us For Availability
21
CLAMP, HOSE MAY 371507 Contact Us For Availability
22
RFI FILTER MAY W11219530 Contact Us For Availability
23
BRACKET, DRAIN HOSE MAY W11091443 Contact Us For Availability
24
APPLIANCE CONTROL UNIT (ACU) MAY W11329039 Contact Us For Availability
25
HARNESS, UPPER MAY W11133142 Contact Us For Availability
26
HARNESS, NTC MAY W11038118 Contact Us For Availability
27
HARNESS, MAIN LOWER MAY W10919940 Contact Us For Availability
28
BRACE, TOP MAY W10467484 Contact Us For Availability
29
RETAINER, SPRING MAY W10245452 Contact Us For Availability
30
FOAM PAD MAY W10331064 Contact Us For Availability
31
BRACKET, REAR MAY W11353016 Contact Us For Availability
32
TOP (WHITE) MAY W10208373 Contact Us For Availability
32A
TOP (CHROME SHADOW) MAY W10460693 Contact Us For Availability
33
PANEL, REAR MAY W11046440 Contact Us For Availability
34
CORD, POWER MAY W10919946 Contact Us For Availability
35
SCREW MAY W10773242 Contact Us For Availability
36
HOSE, DRAIN (EXTERNAL) MAY W11392677 Contact Us For Availability
37
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
39
CABLE TIE MAY W10267532 Contact Us For Availability
40
BOLT, TRANSPORT (SHORT) MAY W11041011 Contact Us For Availability
41
SCREW AND BUSHING ASSEMBLY MAY W10208380 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
ACCESSORY PARTS, XHP1000XW WHITE 10" PEDE MAY N/P Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355053 MAY W10355053 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
NI
MAY W10501250 MAY W10501250 Contact Us For Availability
NI
MAY W10869845 MAY W10869845 Contact Us For Availability
NI
MAY W11087952 MAY W11087952 Contact Us For Availability
NI
MAY W11087953 MAY W11087953 Contact Us For Availability
NI
MAY W11234073 MAY W11234073 Contact Us For Availability
NI
MAY W11378999 MAY W11378999 Contact Us For Availability
NI
MAY W11379000 MAY W11379000 Contact Us For Availability
× ![]()
