Model Whirlpool MHE14XMD1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

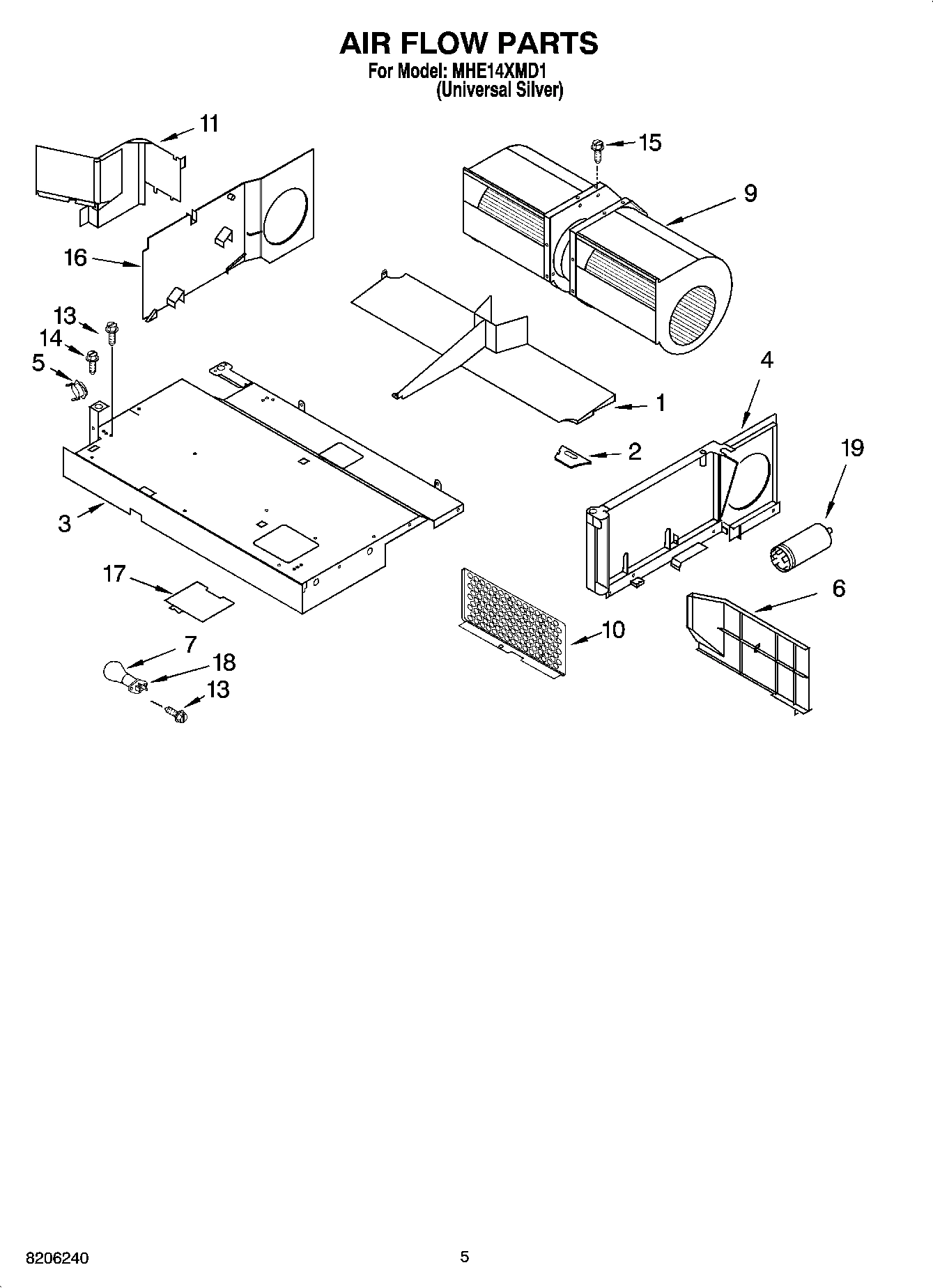

04 - AIR FLOW PARTS

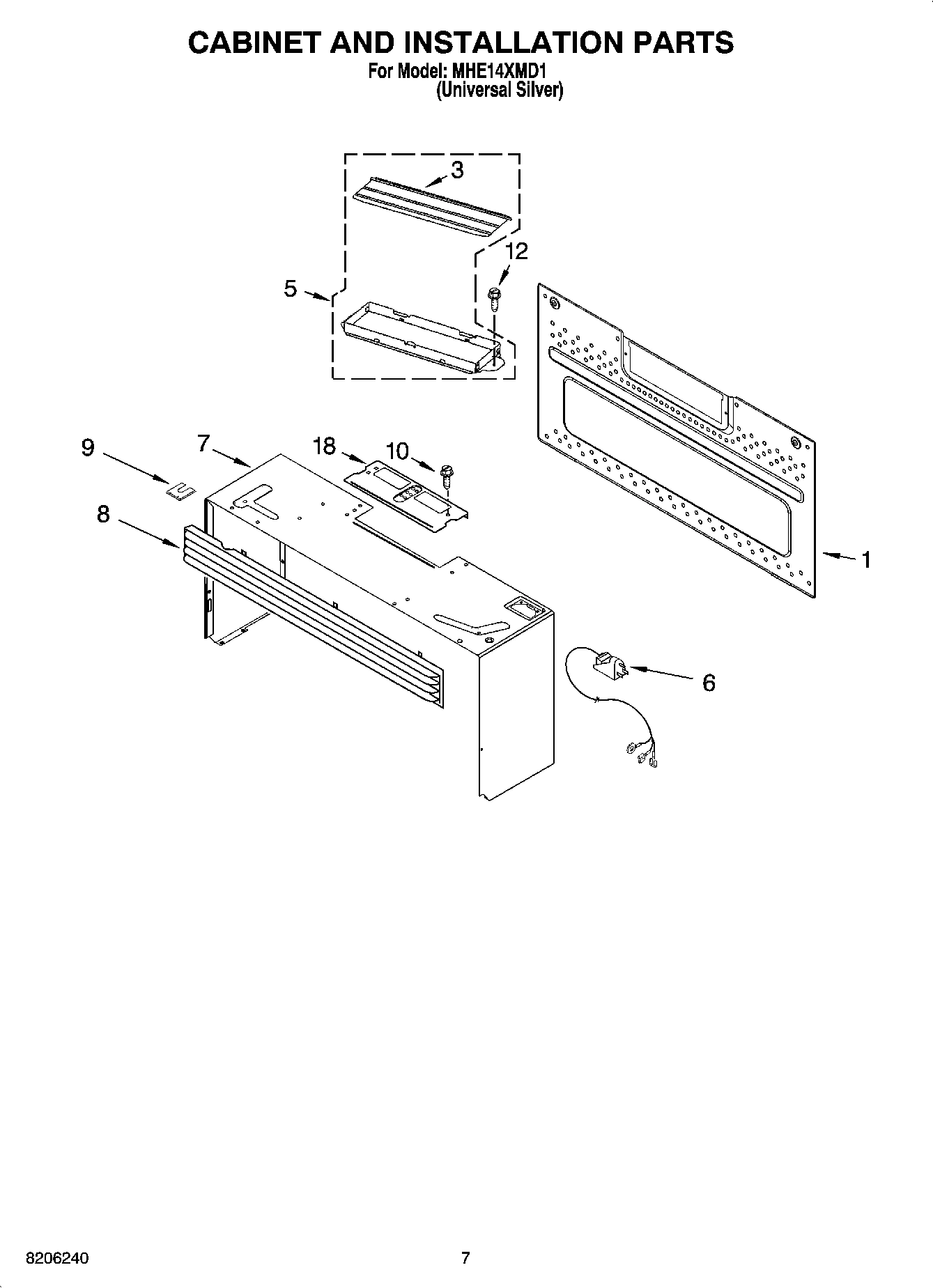

06 - CABINET AND INSTALLATION PARTS

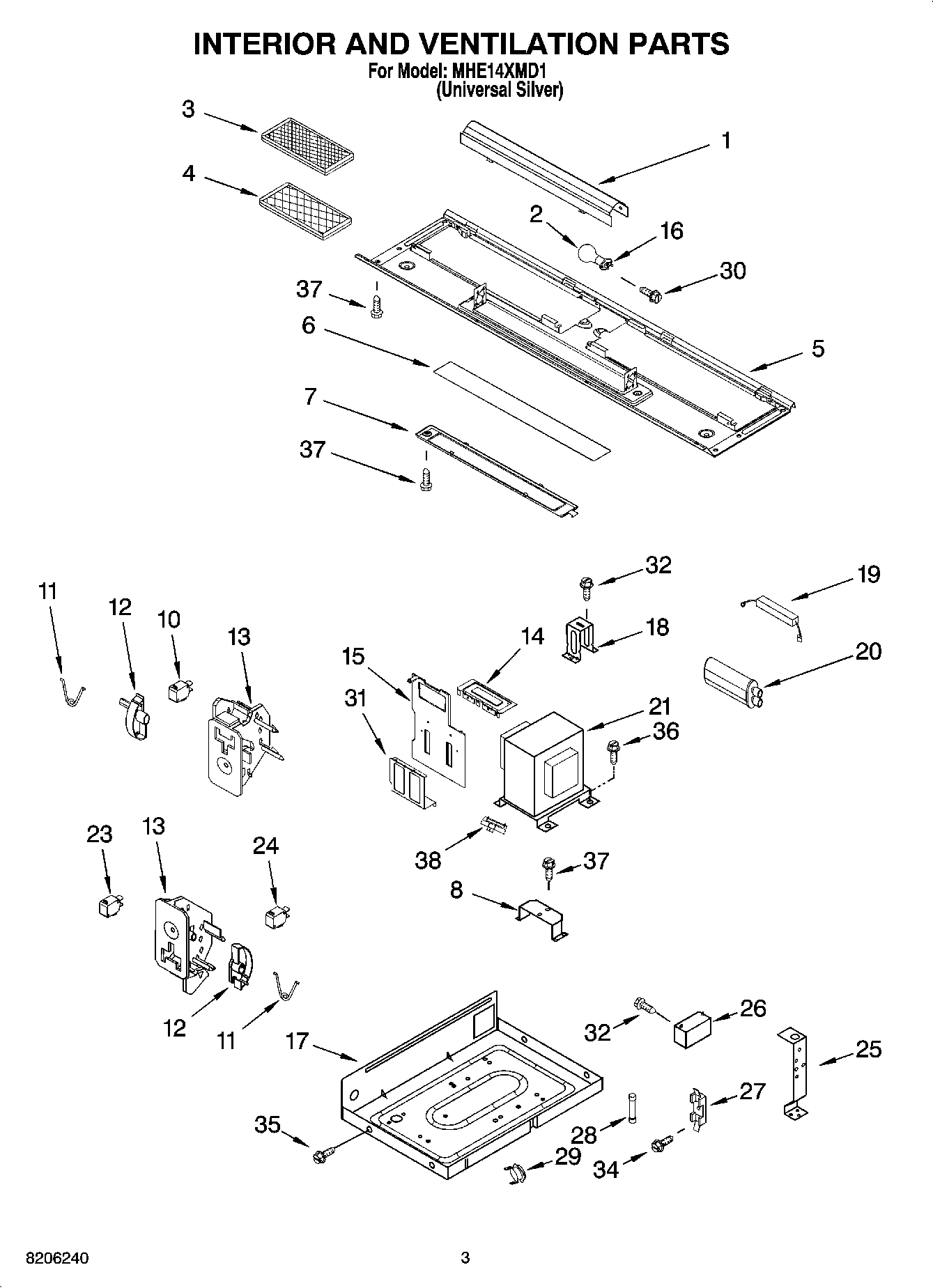

03 - INTERIOR AND VENTILATION PARTS

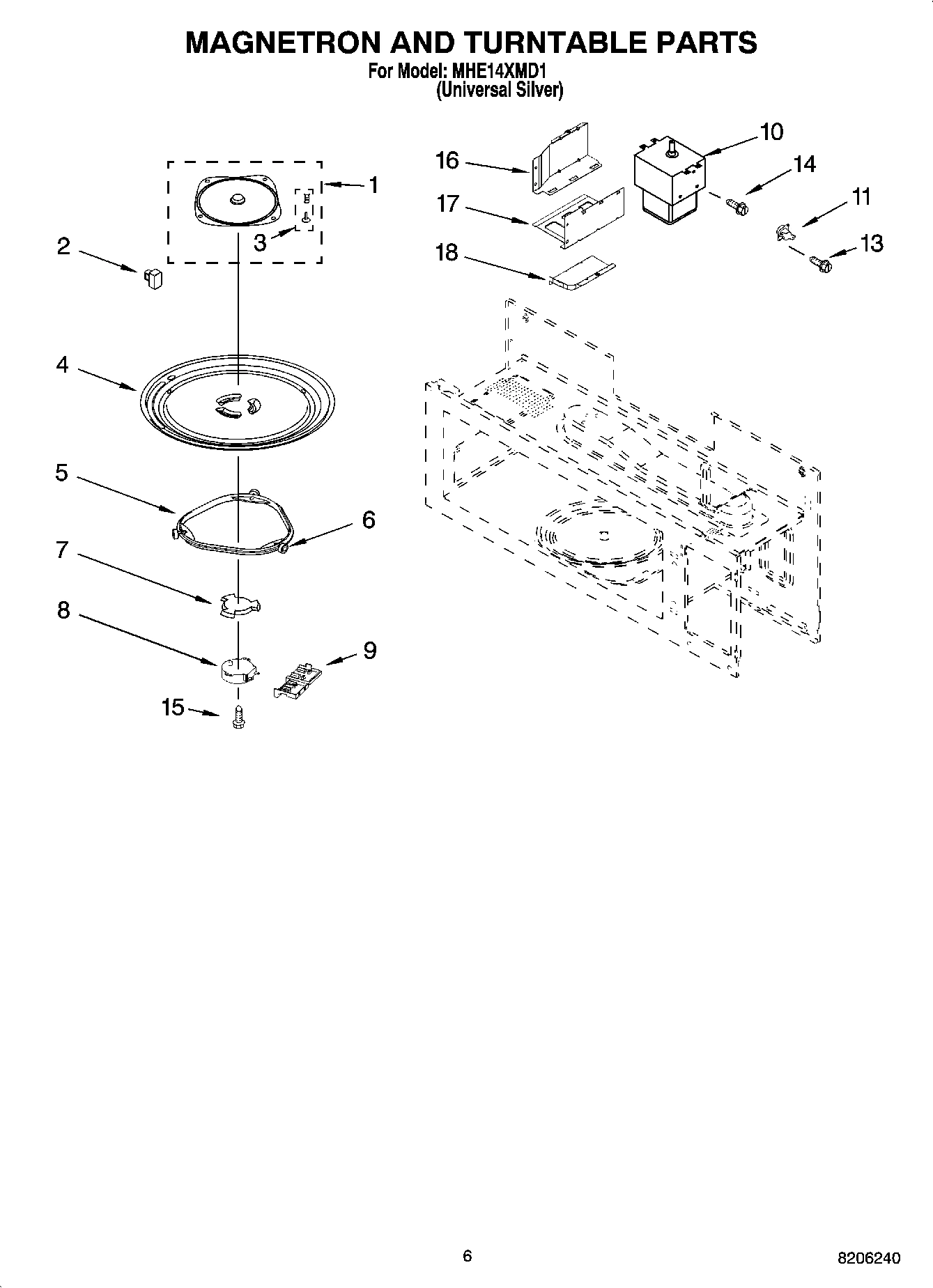

05 - MAGNETRON AND TURNTABLE PARTS

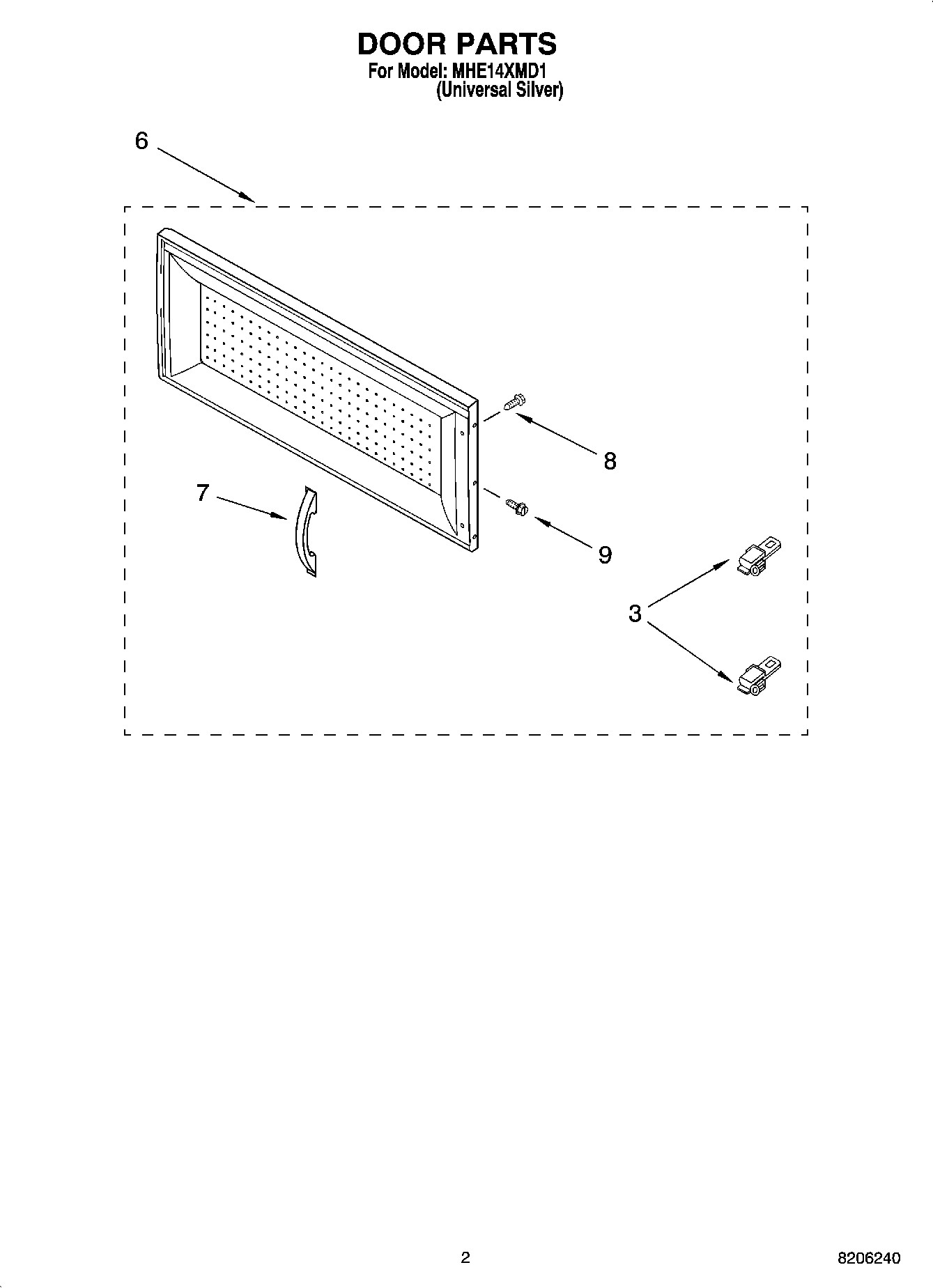

02 - DOOR PARTS

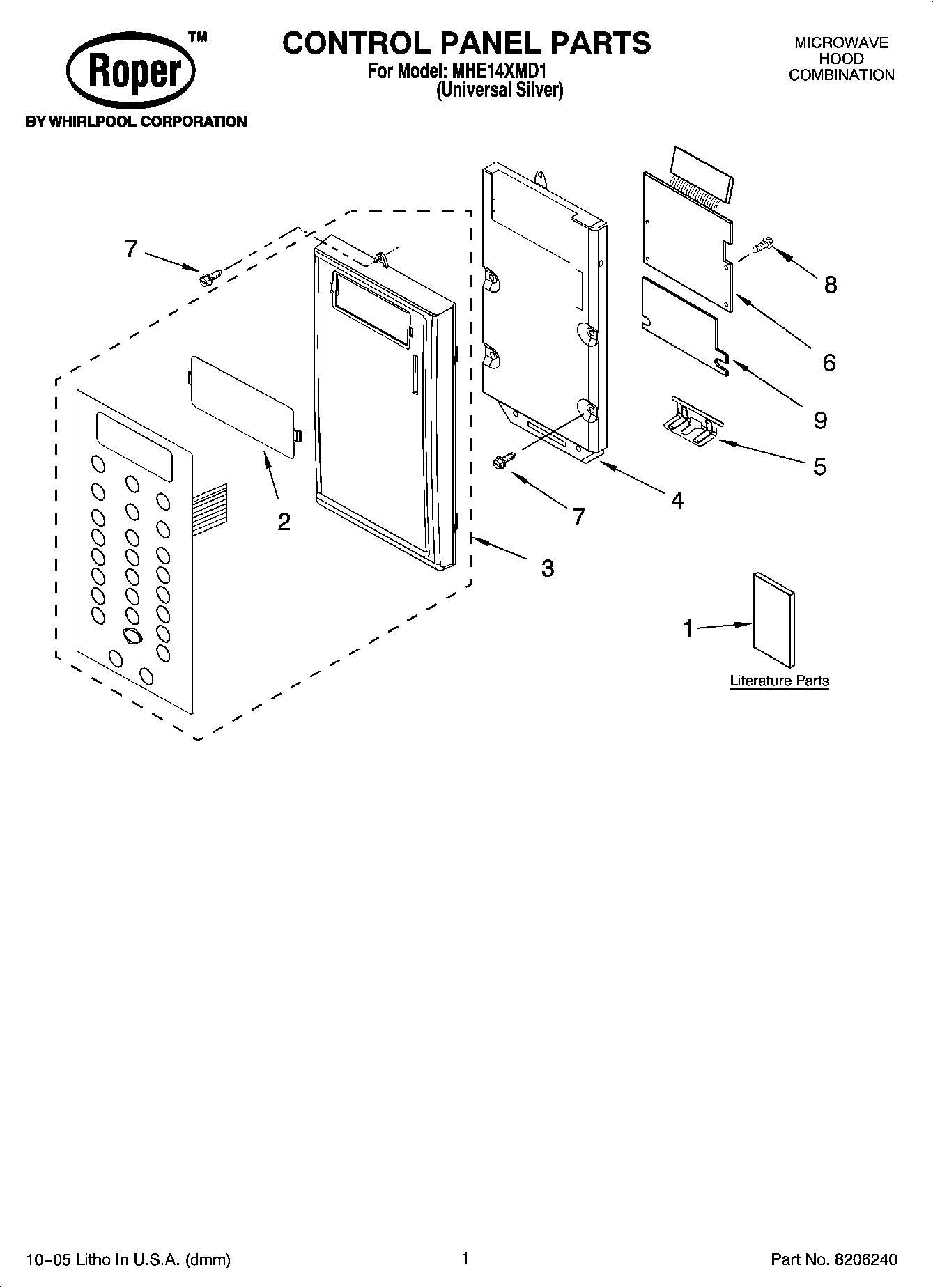

01 - CONTROL PANEL PARTS
Common parts from model Whirlpool MHE14XMD1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Cover, Inlet WPL 8185255 Contact Us For Availability
1
Cook Guide Label WPL 8184993 Contact Us For Availability
1
Use & Care Guide WPL 8185383 Contact Us For Availability
1
Tech Sheet WPL 8205126 Contact Us For Availability
1
Installation Instructions WPL 8205141 Contact Us For Availability
2
Cover, Hole WPL 8169448 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
3
Panel, Control WPL 8205795 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
6
Complete Door WPL 8205793 Contact Us For Availability
6
PCB Assembly WPL 8204874 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8205578 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
9
Cover, Terminal WPL 4393756 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Thermostat WPL 8183698 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Screw WPL 4393838 Contact Us For Availability
14
Block, Transformer WPL 8205579 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Air Guide, Cooling WPL 8205580 Contact Us For Availability
16
Left Block, Magnetron WPL 8205583 Contact Us For Availability
17
Chassis WPL 8205582 Contact Us For Availability
17
Middle Block, Magnetron WPL 8205584 Contact Us For Availability
18
Holder, Lamp WPL 8169539 Contact Us For Availability
18
Upper Template WPL 8184731 Contact Us For Availability
18
Cover, Motor WPL 8185090 Contact Us For Availability
18
Main Harness WPL 8205632 Contact Us For Availability
18
Lamp Wire Assy. WPL 8205633 Contact Us For Availability
18
H.V. Wire Assy. WPL 8205634 Contact Us For Availability
18
Ground Wire Assy. WPL 8205635 Contact Us For Availability
18
Miscellaneous WPL ARI118371A Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
18
Right Block, Magnetron WPL 8205585 Contact Us For Availability
21
Transformer, H.V. WPL 8205560 Contact Us For Availability
25
Bracket, Right WPL 8205559 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
31
Air guide, Magnetron WPL 8205581 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
38
Resistor WPL 8205152 Contact Us For Availability
× ![]()
