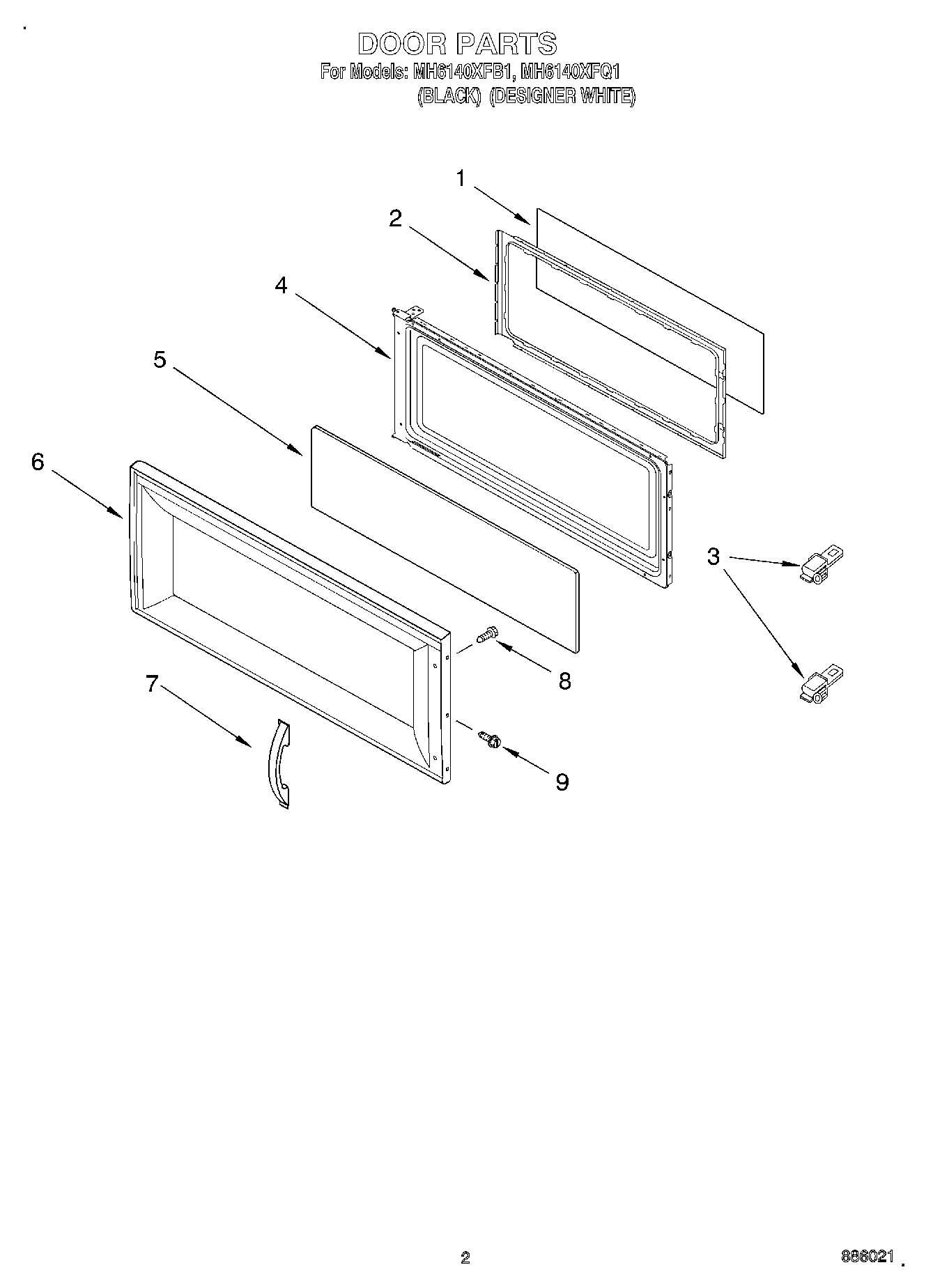

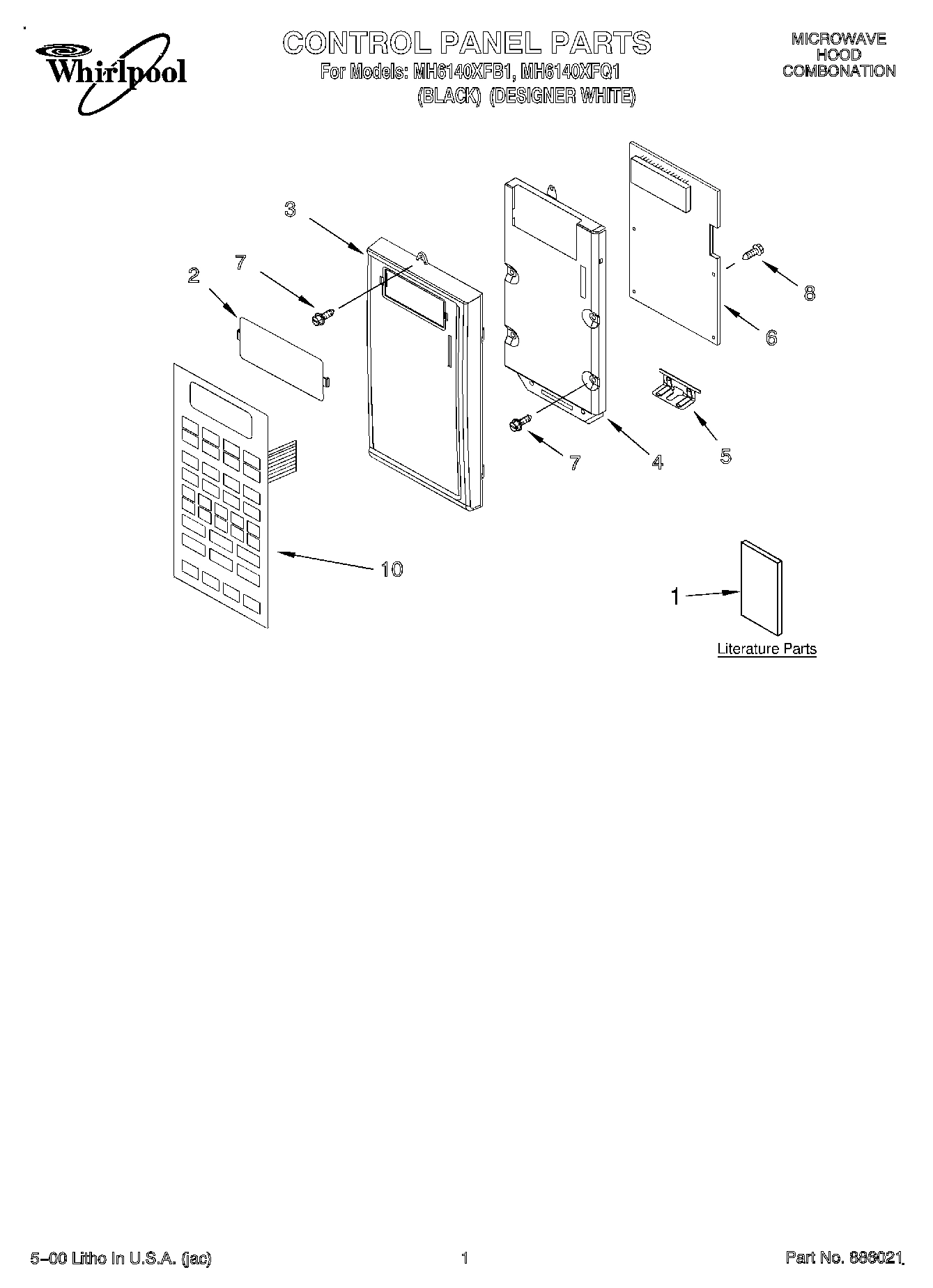

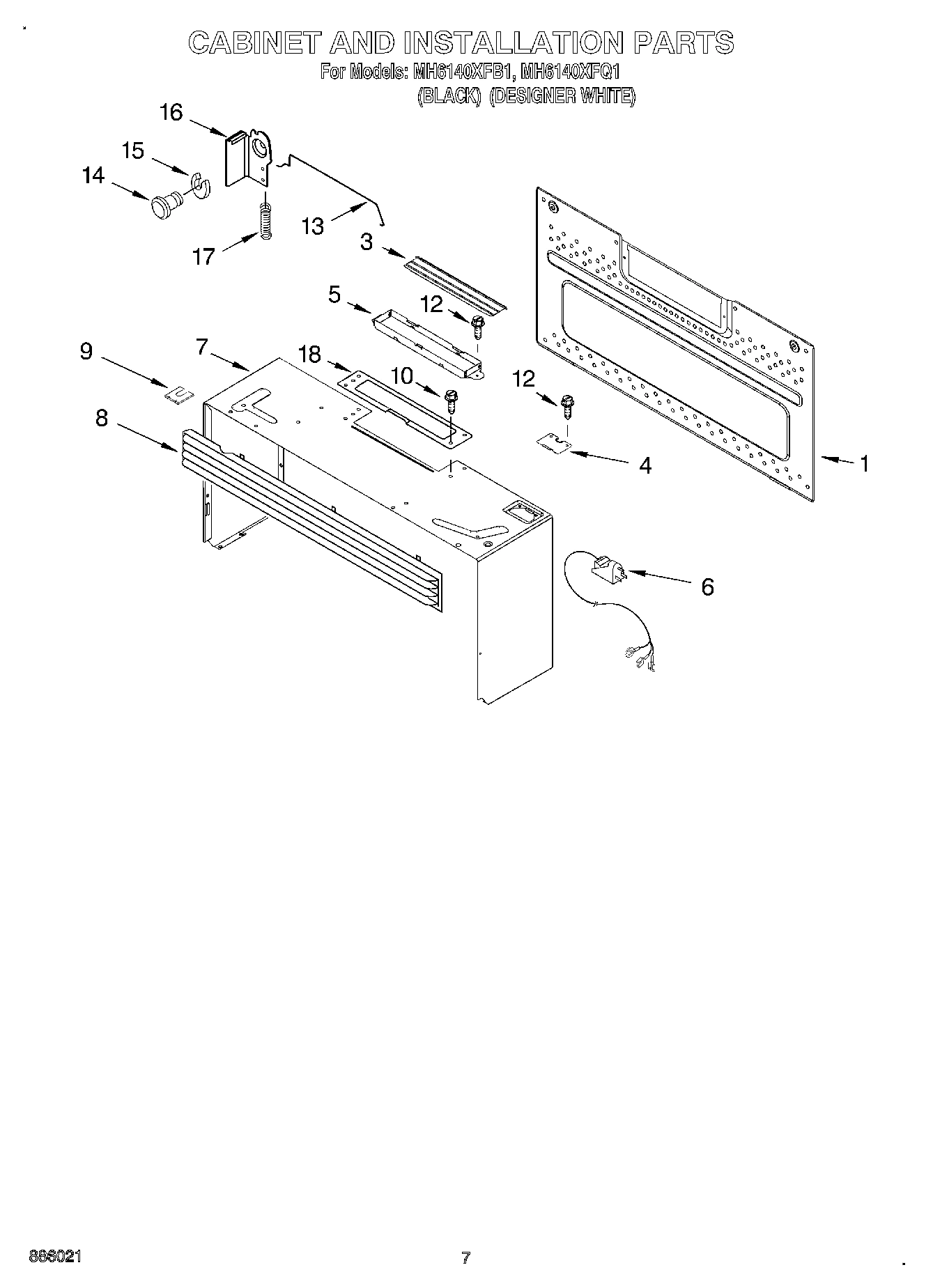

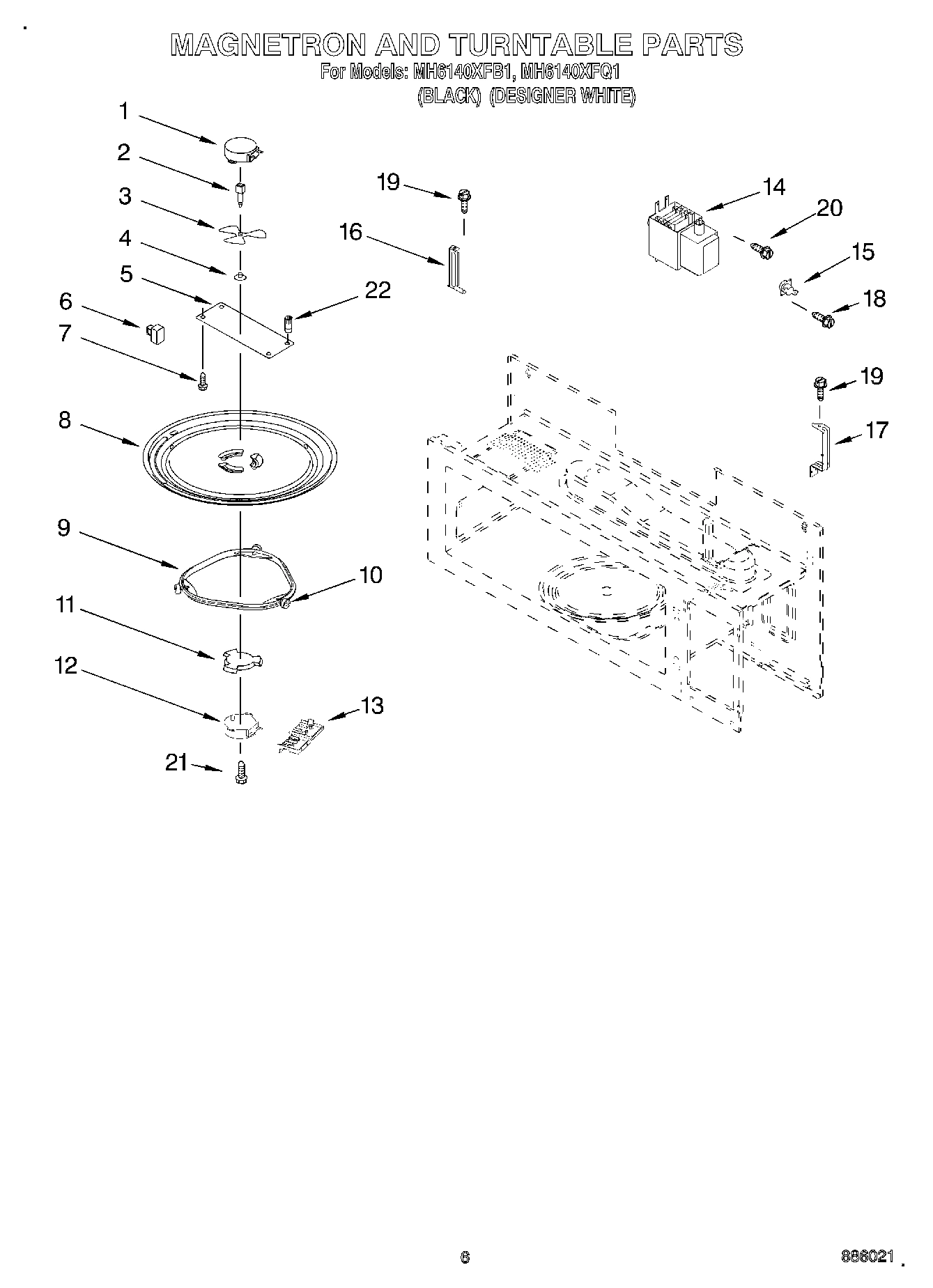

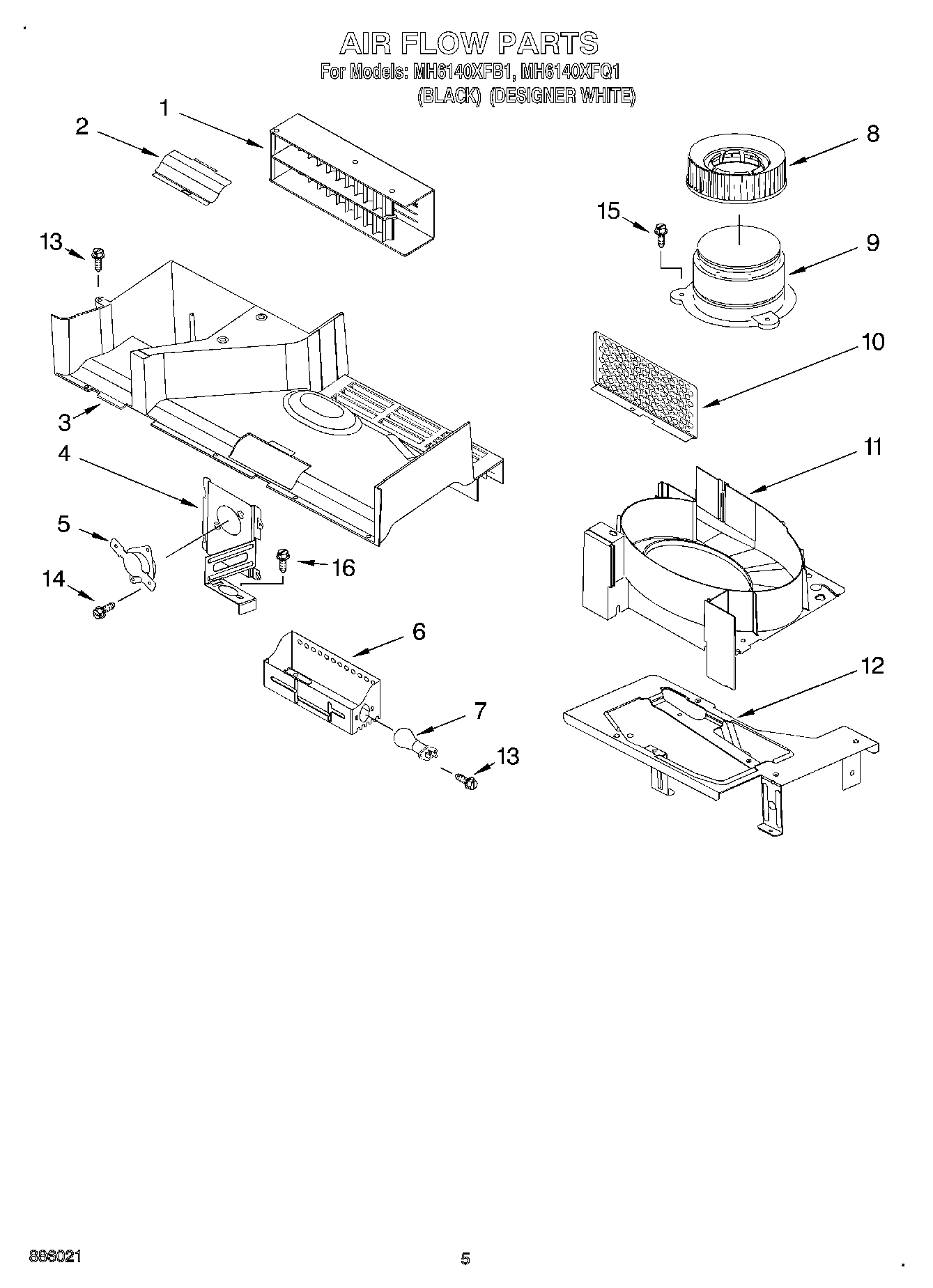

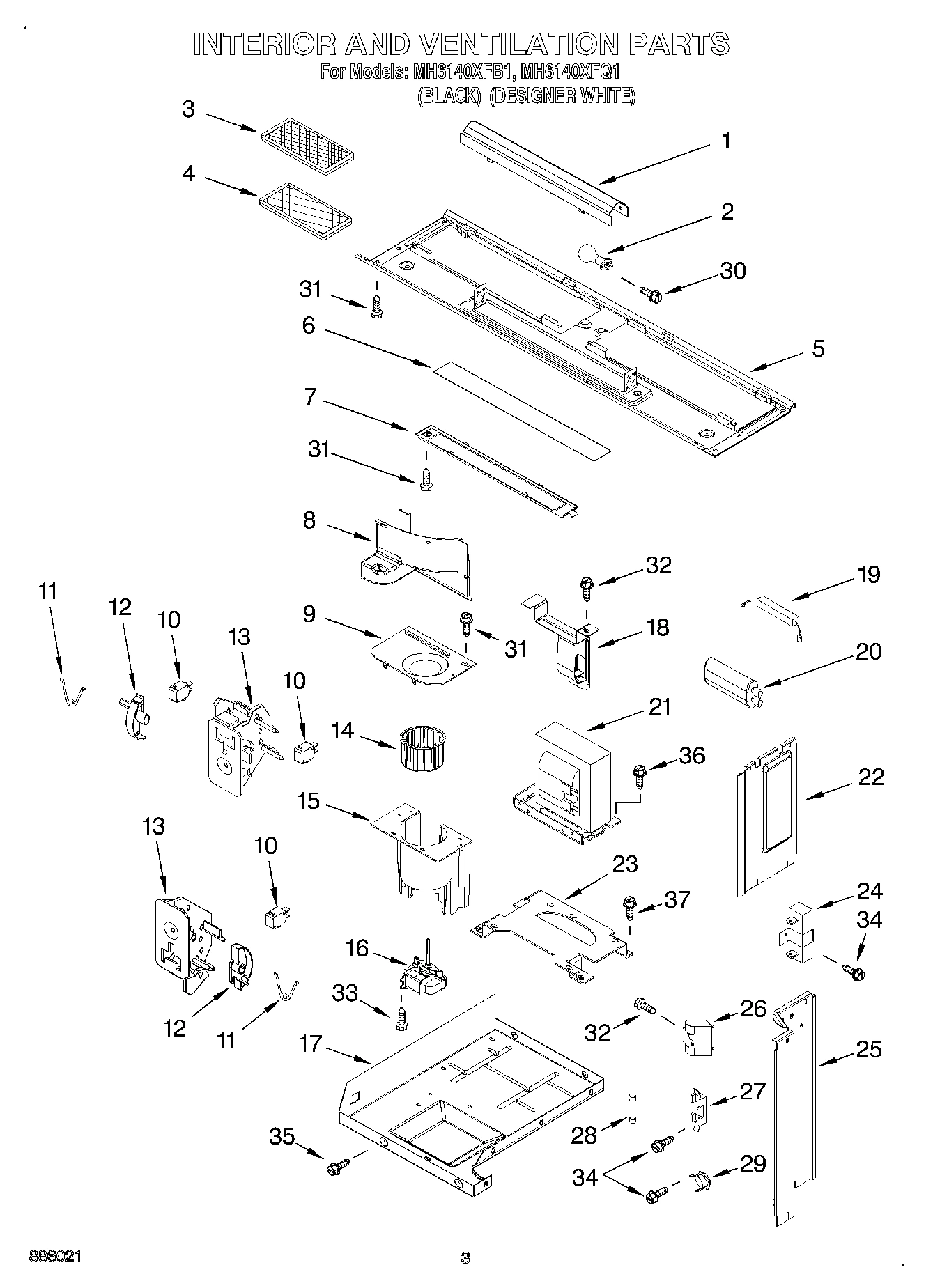

Model Whirlpool MH6140XFQ1 MICROWAVE – Common Parts &amp; Diagrams

1

Literature Parts (Guide, U & C) WPL LIT4393451 Contact Us For Availability

1

Literature Parts (Guide, Cooking (Label)) WPL LIT4393452 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4393911 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8169769 Contact Us For Availability

1

Reflector, Lamp WPL 4393810 Contact Us For Availability

1

Film, Back WPL 4393870 Contact Us For Availability

1

Motor, Stirrer WPL 4393746 Contact Us For Availability

2

8206232A Whirlpool Microwave 40W 125V Incande In Stock WPL 8206232A $3.39

2

Lens WPL 4393905 Contact Us For Availability

2

Frame, Inner WPL 4393721 Contact Us For Availability

2

Shaft, Stirrer WPL 4393794 Contact Us For Availability

3

6800 Whirlpool Charcoal Filter Kit In Stock WPL 6800 $14.68

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $50.07

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Panel, Control (White) WPL 4393772 Contact Us For Availability

3

Panel, Control (Black) WPL 4393784 Contact Us For Availability

3

Stirrer WPL 4393748 Contact Us For Availability

4

6802A Whirlpool Grease Filter In Stock WPL 6802A $15.28

4

Bracket, Control WPL 4393906 Contact Us For Availability

4

Body, Door (White) WPL 4393722 Contact Us For Availability

4

Body, Door (Black) WPL 4393723 Contact Us For Availability

4

Guide, Stirrer WPL 4393749 Contact Us For Availability

4

Lid, Power Cord WPL 4393714 Contact Us For Availability

5

Glass, Outer (Black) WPL 4393725 Contact Us For Availability

5

Plate, Hinge WPL 4393744 Contact Us For Availability

5

Plate, Bottom WPL 4393776 Contact Us For Availability

5

Glass, Outer (White) WPL 4393770 Contact Us For Availability

5

Cover, Inlet WPL 4393750 Contact Us For Availability

6

8169464 Whirlpool Microwave Door Panel Backorder WPL 8169464 $133.52

6

W10116518 Whirlpool Microwave Door Panel Backorder WPL W10116518 $108.72

6

PCB Assembly WPL 4393908 Contact Us For Availability

6

Glass, Lamp WPL 4393693 Contact Us For Availability

6

Cover, Hole (4) WPL 4393798 Contact Us For Availability

6

Cord, Power WPL 4393793 Contact Us For Availability

7

4393777 Whirlpool Microwave Door Handle - Whi In Stock WPL 4393777 $65.76

7

4393782 Whirlpool Microwave Door Handle In Stock WPL 4393782 $79.01

7

Holder, Glass WPL 4393694 Contact Us For Availability

7

Nail, Plastic WPL 4393291 Contact Us For Availability

7

Case, Outer (White) WPL 8169660 Contact Us For Availability

7

Case, Outer (Black) WPL 8169661 Contact Us For Availability

8

Turntable WPL 4393799 No Longer Available

8

8183851 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183851 $30.78

8

8183948 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183948 $29.01

8

Screw WPL 4393833 Contact Us For Availability

8

Guide, Air (Magnetron) WPL 4393695 Contact Us For Availability

9

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $3.22

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $2.83

9

W11252182 Whirlpool Glass Tray Support In Stock WPL W11252182 $23.22

9

Cover, Fan WPL 4393696 Contact Us For Availability

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.32

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $4.77

Wheel, Plastic WPL 4393861 Contact Us For Availability

Switch, Membrane (White) WPL 4393903 Contact Us For Availability

Switch, Membrane (Black) WPL 4393904 Contact Us For Availability

11

W10435116 Whirlpool Microwave Turntable Rolle Backorder WPL W10435116 $16.57

11

Spring, Interlock (2) WPL 4393914 Contact Us For Availability

12

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.39

12

Screw WPL 4393828 Contact Us For Availability

12

Plate, Cam (2) WPL 4393597 Contact Us For Availability

13

8205572 Whirlpool Microwave Interlock Backorder WPL 8205572 $4.19

13

Cover, Terminal WPL 4393756 Contact Us For Availability

13

Rod WPL 8169318 Contact Us For Availability

14

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $178.22

14

Wheel, Fan WPL 4393698 Contact Us For Availability

14

Latch, Pivot WPL 8169319 Contact Us For Availability

Screw WPL 4393830 Contact Us For Availability

Housing, Fan WPL 4393699 Contact Us For Availability

Thermostat Open temp: 257~ Fahrenheit Close t WPL 4393325 Contact Us For Availability

E-Ring WPL 8169320 Contact Us For Availability

16

Motor, Fan WPL 4393700 Contact Us For Availability

16

Holder, Connector (L) WPL 4393797 Contact Us For Availability

16

Catch WPL 8169321 Contact Us For Availability

17

Chassis WPL 4393701 Contact Us For Availability

17

Holder, Connector (R) WPL 4393686 Contact Us For Availability

17

Spring WPL 8169374 Contact Us For Availability

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $3.50

Holder, Capacitor WPL 4393702 Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

Filler Kit (Black) WPL 4158311 Contact Us For Availability

Filler Kit (White) WPL 4158439 Contact Us For Availability

Filler Kit (Almond) WPL 4378403 Contact Us For Availability

Upper Template WPL 8169298 Contact Us For Availability

Wall Template WPL 8169487 Contact Us For Availability

Plate, Damper WPL 8169697 Contact Us For Availability

Hardware, Installation WPL 8169768 Contact Us For Availability

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $15.24

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $143.73

20

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $3.22

21

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $14.93

21

Transformer, H.V. WPL 4393809 Contact Us For Availability

22

Plate, Side (R) WPL 4393705 Contact Us For Availability

22

Bushing, Nail WPL 4393290 Contact Us For Availability

23

Bracket, Transformer WPL 4393706 Contact Us For Availability

24

Resistor, Ceramic WPL 4393707 Contact Us For Availability

25

Plate, Side (L) WPL 4393708 Contact Us For Availability

26

Capacitor WPL 4393709 Contact Us For Availability

27

Holder, Fuse WPL 4393538 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $23.48

29

Thermostat Open temp: 113~ Fahrenheit Close t WPL 4393710 Contact Us For Availability

30

Screw WPL 4393827 Contact Us For Availability

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $10.17

34

Screw WPL 4393346 Contact Us For Availability

35

Screw WPL 4393448 Contact Us For Availability

36

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $6.22

37

Screw WPL 4393839 Contact Us For Availability
