Model Whirlpool MH1150XMB1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
04 - AIR FLOW PARTS

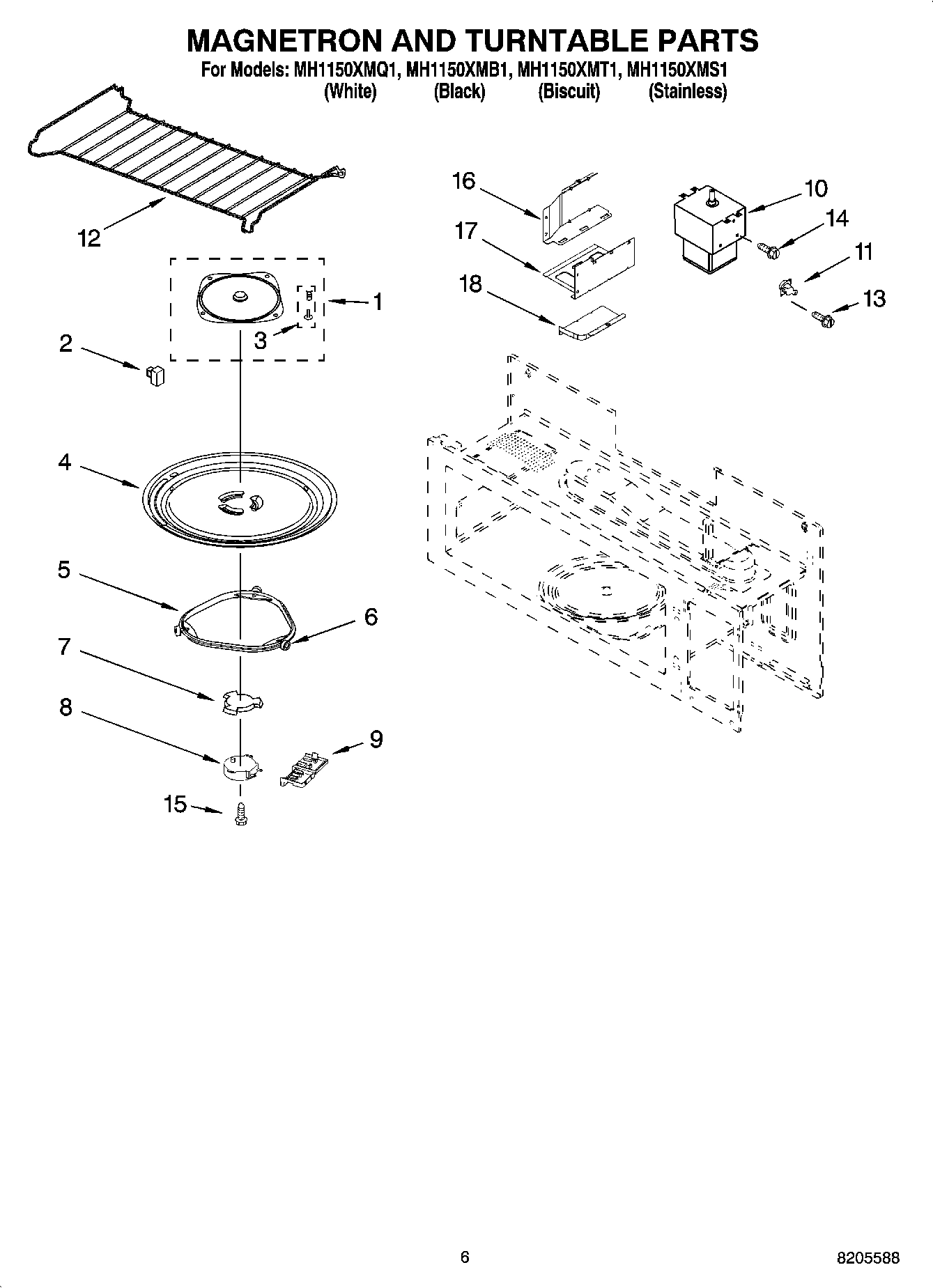

05 - MAGNETRON AND TURNTABLE PARTS

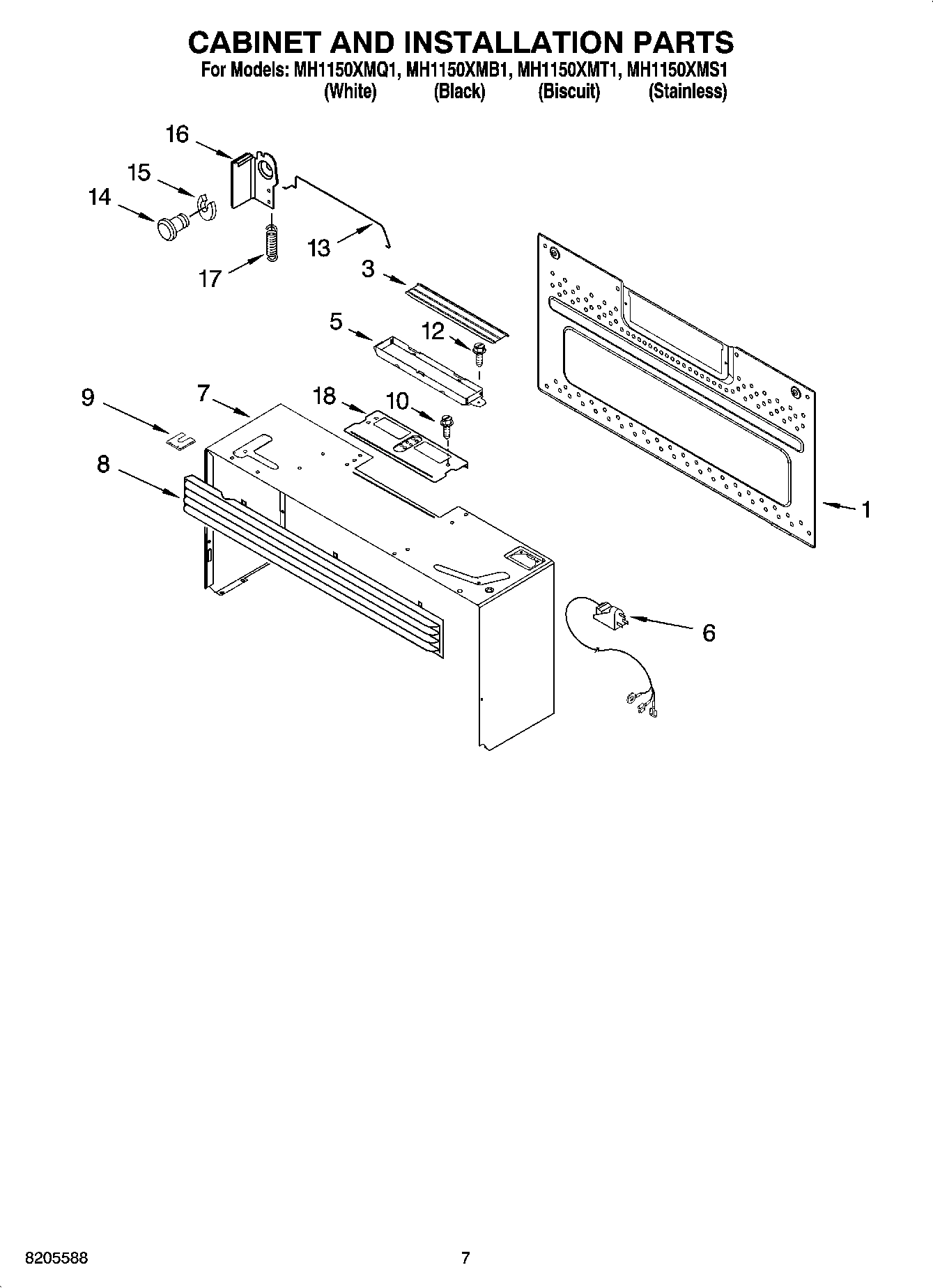

06 - CABINET AND INSTALLATION PARTS

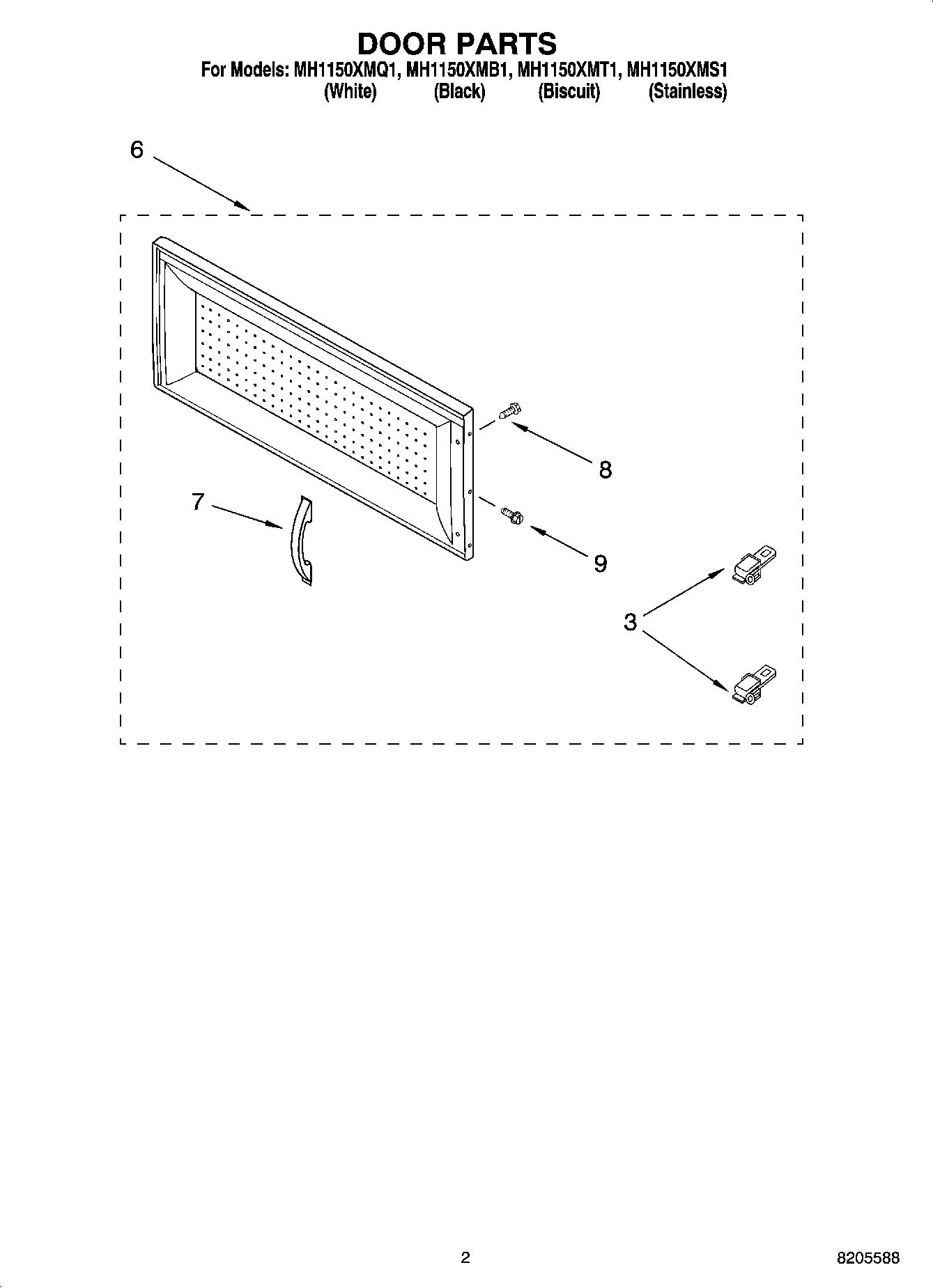

02 - DOOR PARTS

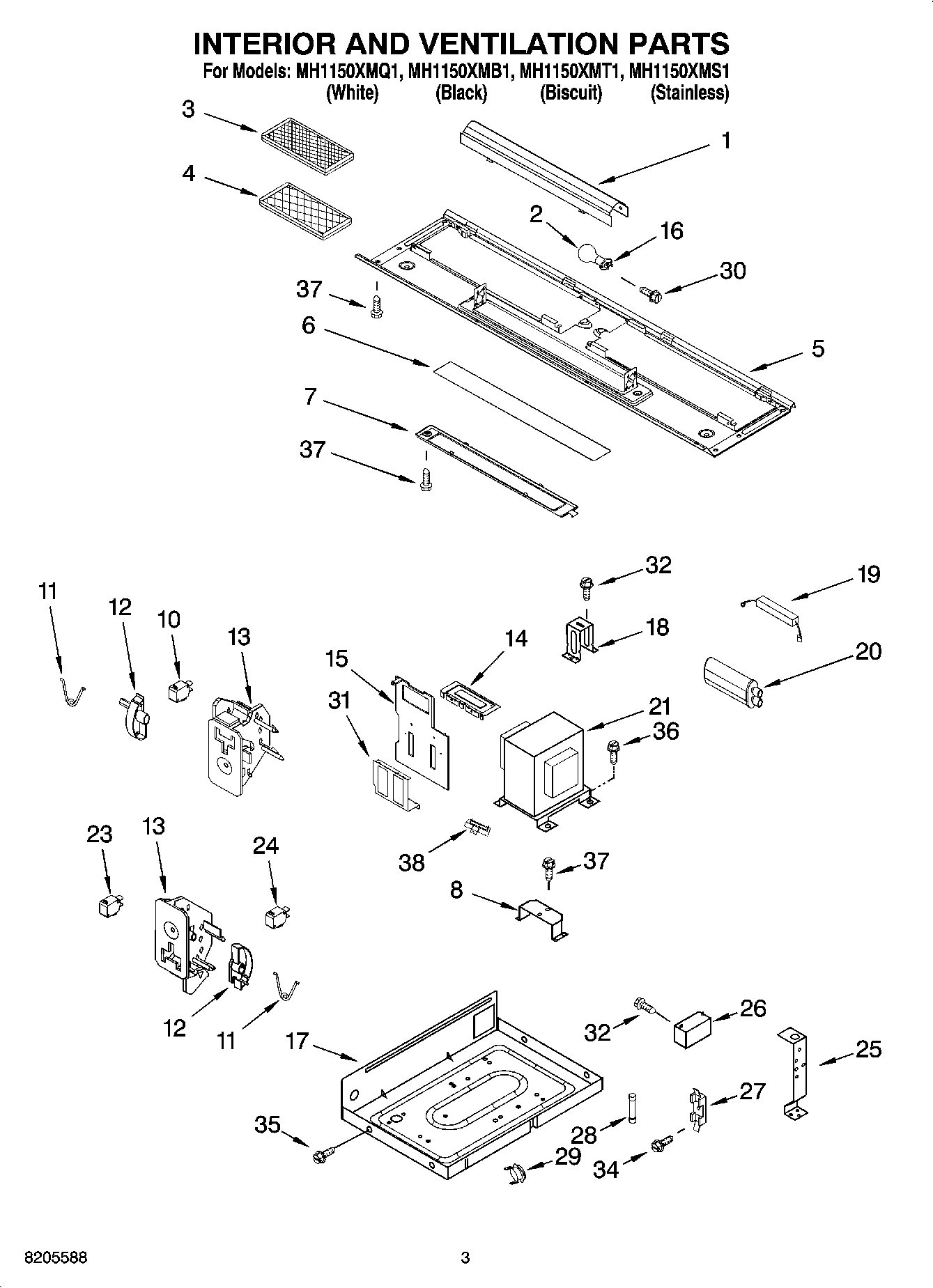

03 - INTERIOR AND VENTILATION PARTS

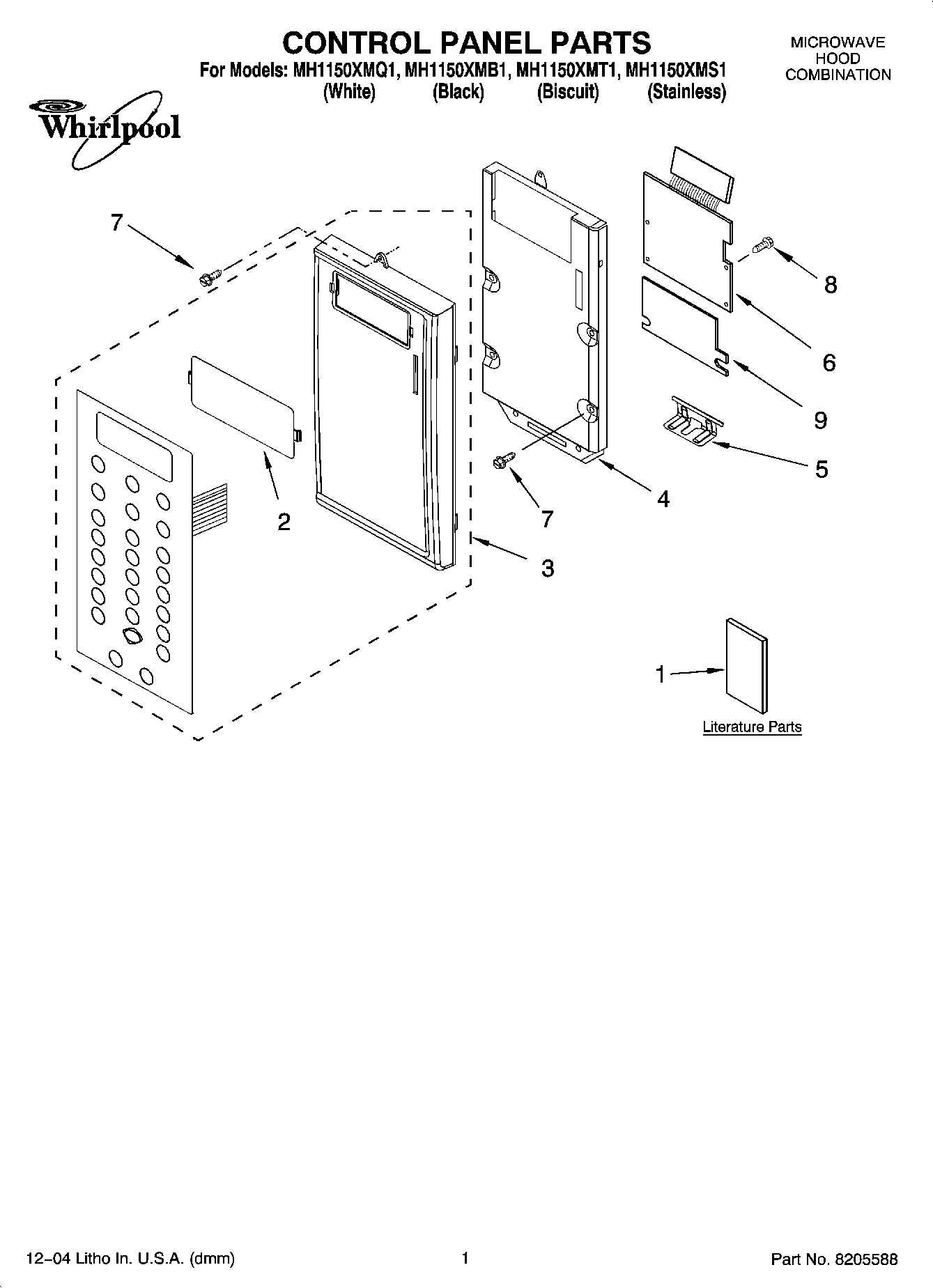

01 - CONTROL PANEL PARTS
Common parts from model Whirlpool MH1150XMB1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Installation Instructions WPL 8184732 Contact Us For Availability
1
Cook Guide Label WPL 8184989 Contact Us For Availability
1
Use & Care Guide WPL 8185379 Contact Us For Availability
1
Tech Sheet WPL 8205130 Contact Us For Availability
2
Hook, Rack (4) WPL 8204662 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8185286 Contact Us For Availability
3
Panel, Control (Black) WPL 8185287 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8185288 Contact Us For Availability
3
Panel, Control (Stainless (Inlcudes 10)) WPL 8204739 Contact Us For Availability
4
Turntable WPL 4393799 No Longer Available
4
Bracket, Control WPL 8183821 Contact Us For Availability
5
Plate, Bottom WPL 8185105 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Complete, Door (Black) WPL 8185239 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
Complete Door (White) WPL 8185238 Contact Us For Availability
6
Complete Door (Stainless) WPL 8204741 Contact Us For Availability
6
Complete Door (Biscuit) WPL 8204788 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
6
PCB Assembly WPL 8204740 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Case, Outer (White) WPL 8185091 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8185092 Contact Us For Availability
7
Case, Outer (Stainless) WPL 8185093 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8205578 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Thermostat WPL 8183698 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Block, Transformer WPL 8205579 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Air Guide, Cooling WPL 8205580 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Chassis (Includes 29) WPL 8205582 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Wall Template WPL 8183743 Contact Us For Availability
18
Upper Template WPL 8184731 Contact Us For Availability
18
Cover, Motor WPL 8185090 Contact Us For Availability
18
Miscellaneous WPL ARI117996A Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
21
Transformer, H.V. WPL 8205560 Contact Us For Availability
25
Bracket, Right WPL 8205559 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
31
Block, Air Guide Magnetron WPL 8205581 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
38
Resistor WPL 8205152 Contact Us For Availability
× ![]()
