Model Maytag MFI2569VEB10 REFRIGERATOR – Common Parts & Diagrams

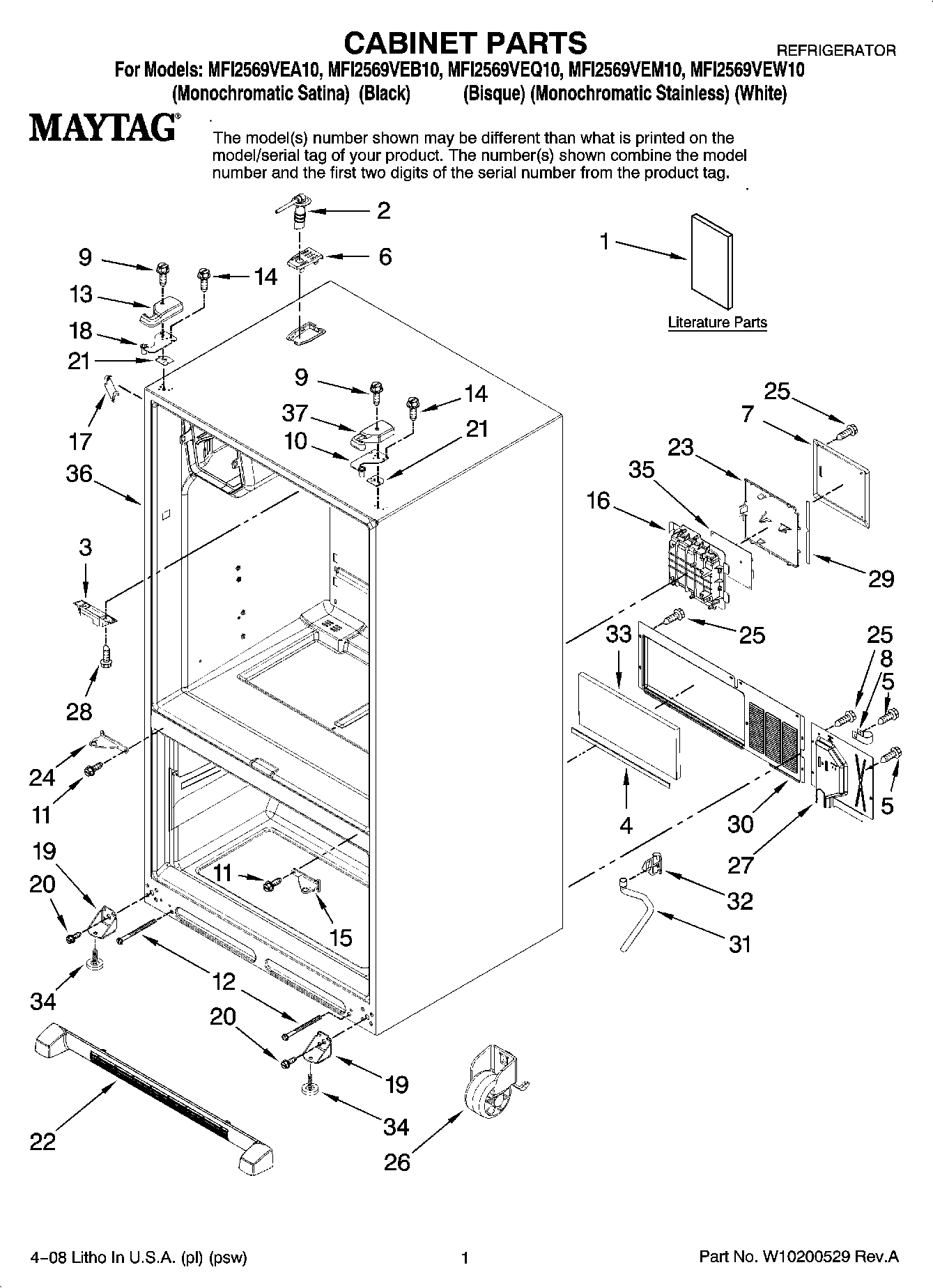

01 - CABINET PARTS

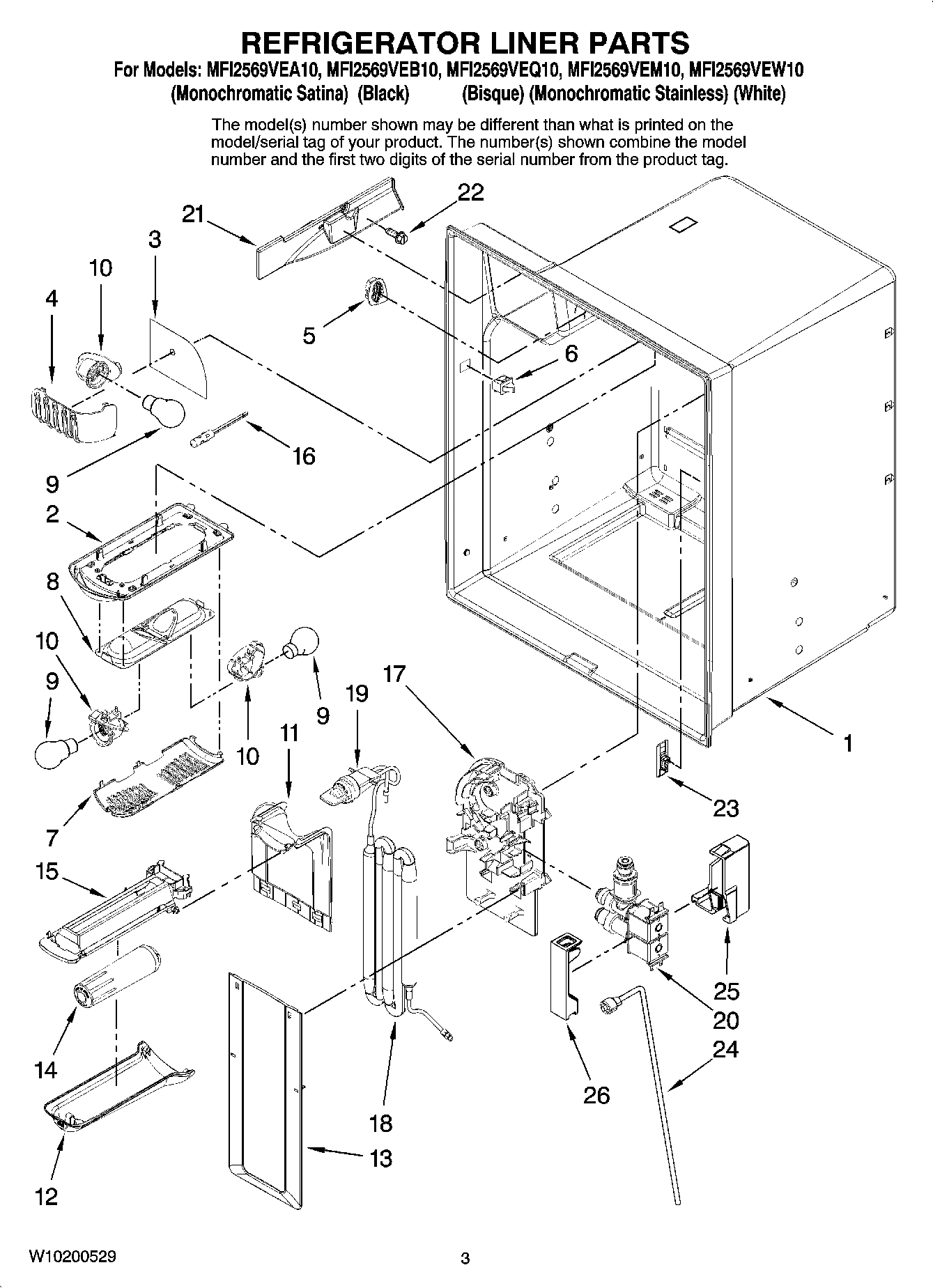

02 - REFRIGERATOR LINER PARTS

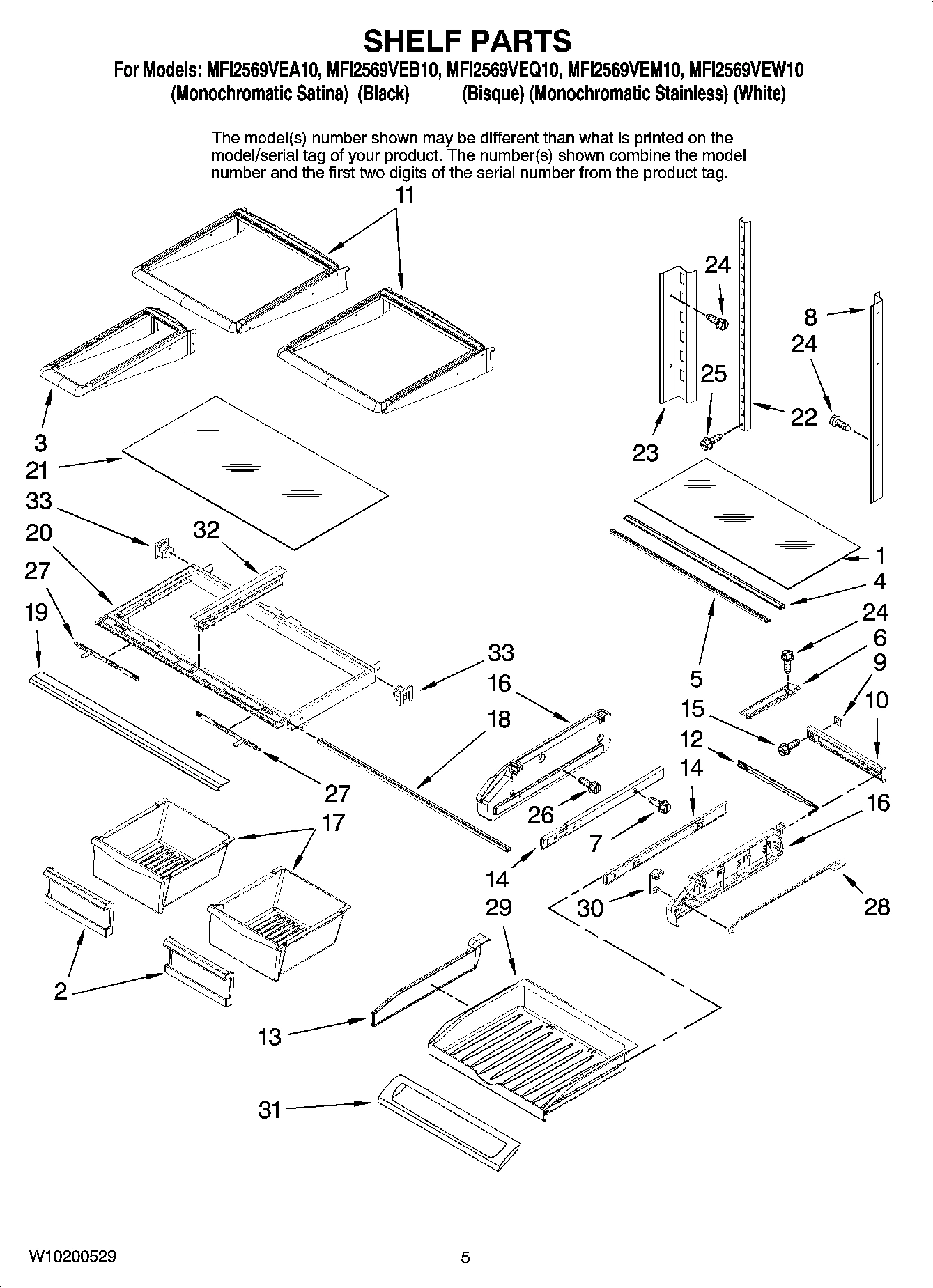

03 - SHELF PARTS

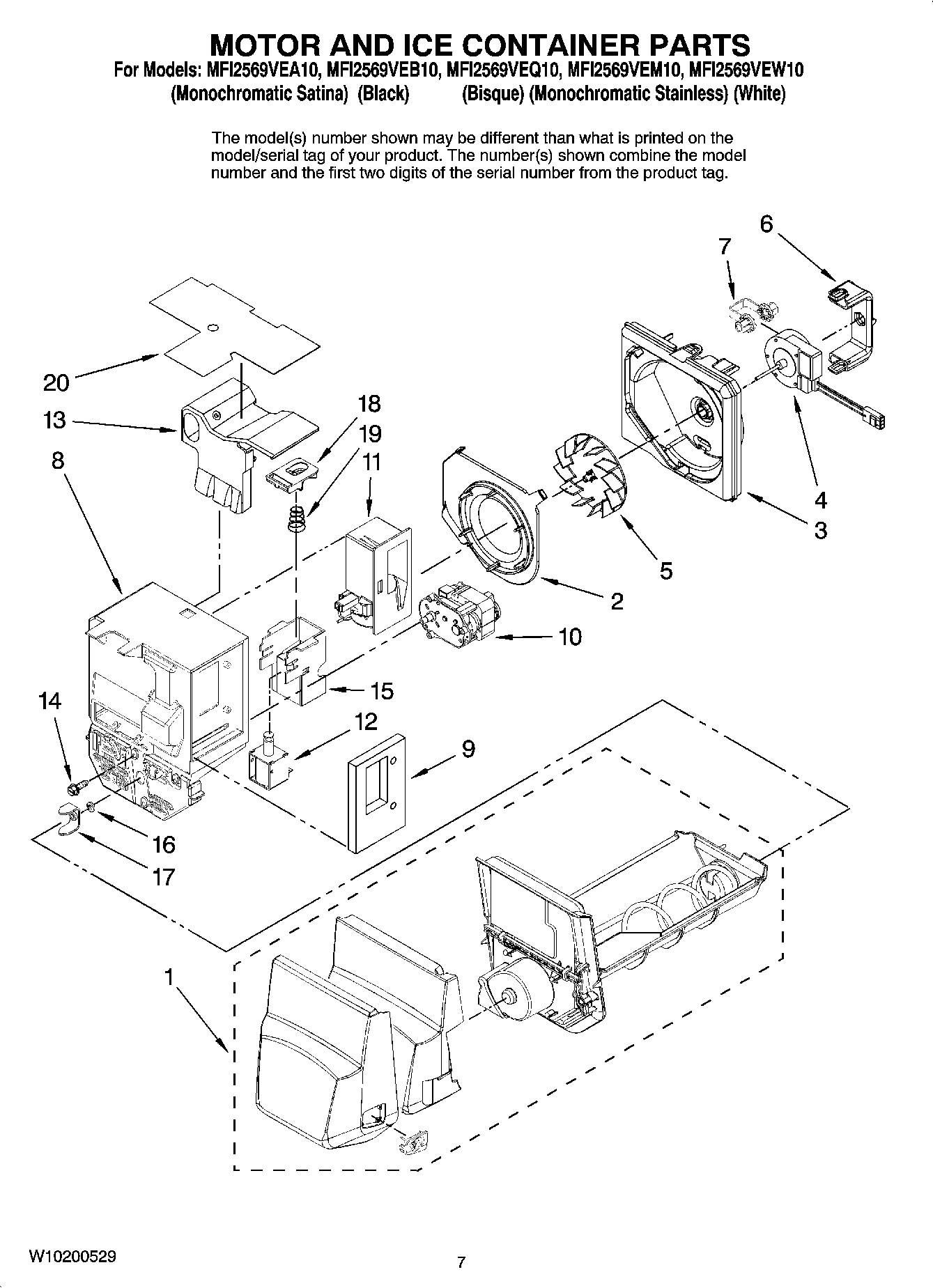

04 - MOTOR AND ICE CONTAINER PARTS

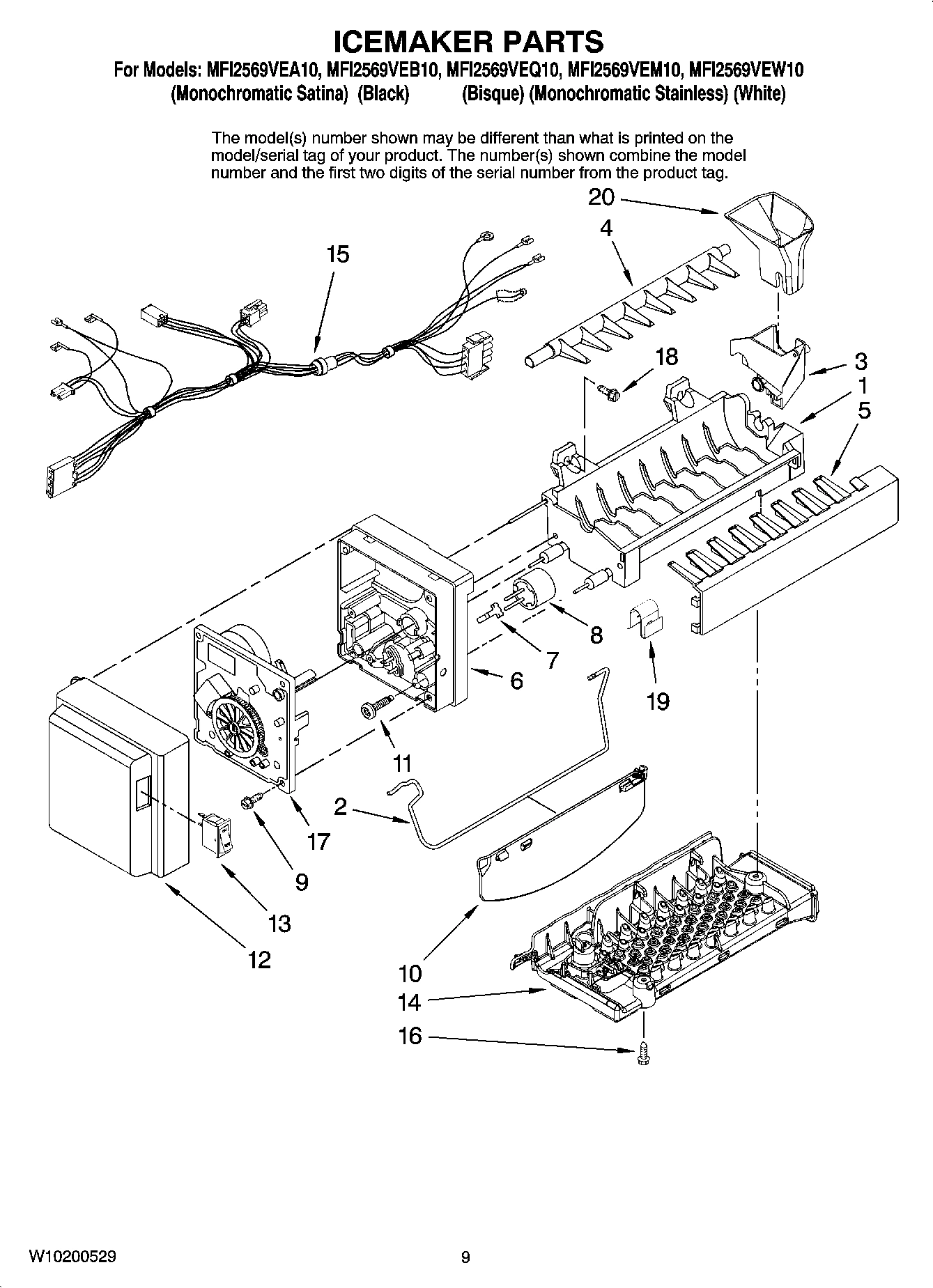

05 - ICEMAKER PARTS

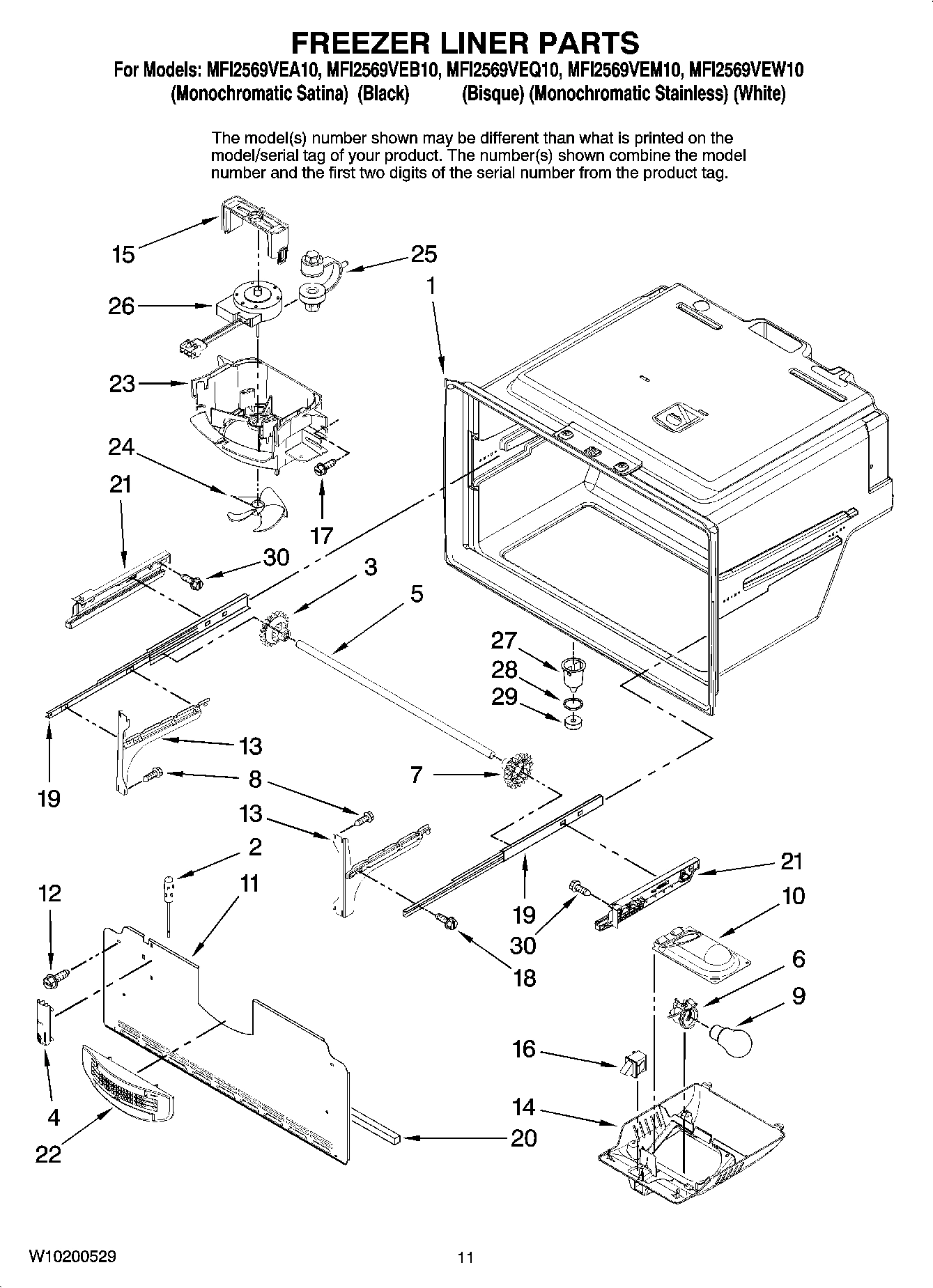

06 - FREEZER LINER PARTS

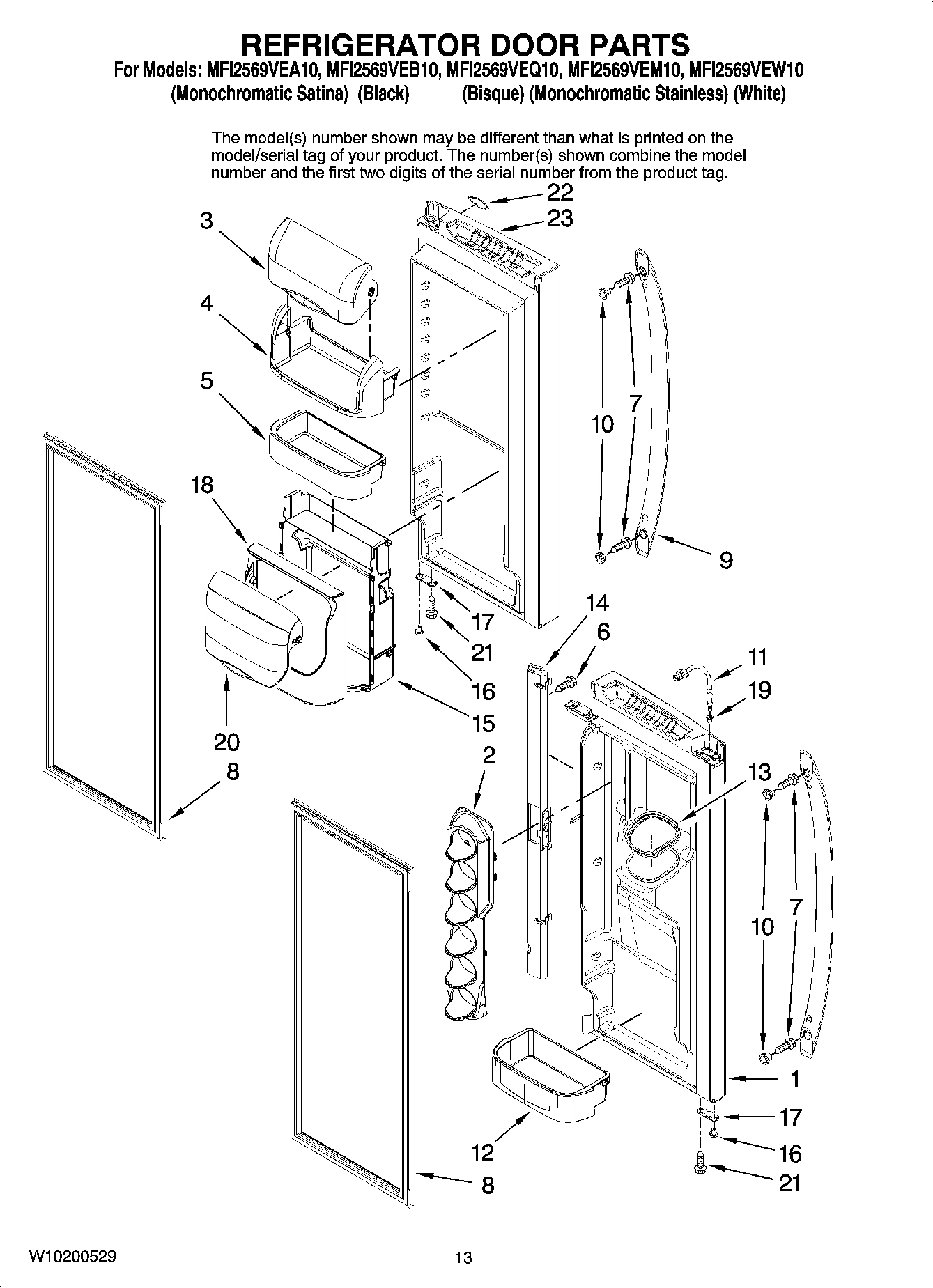

07 - REFRIGERATOR DOOR PARTS

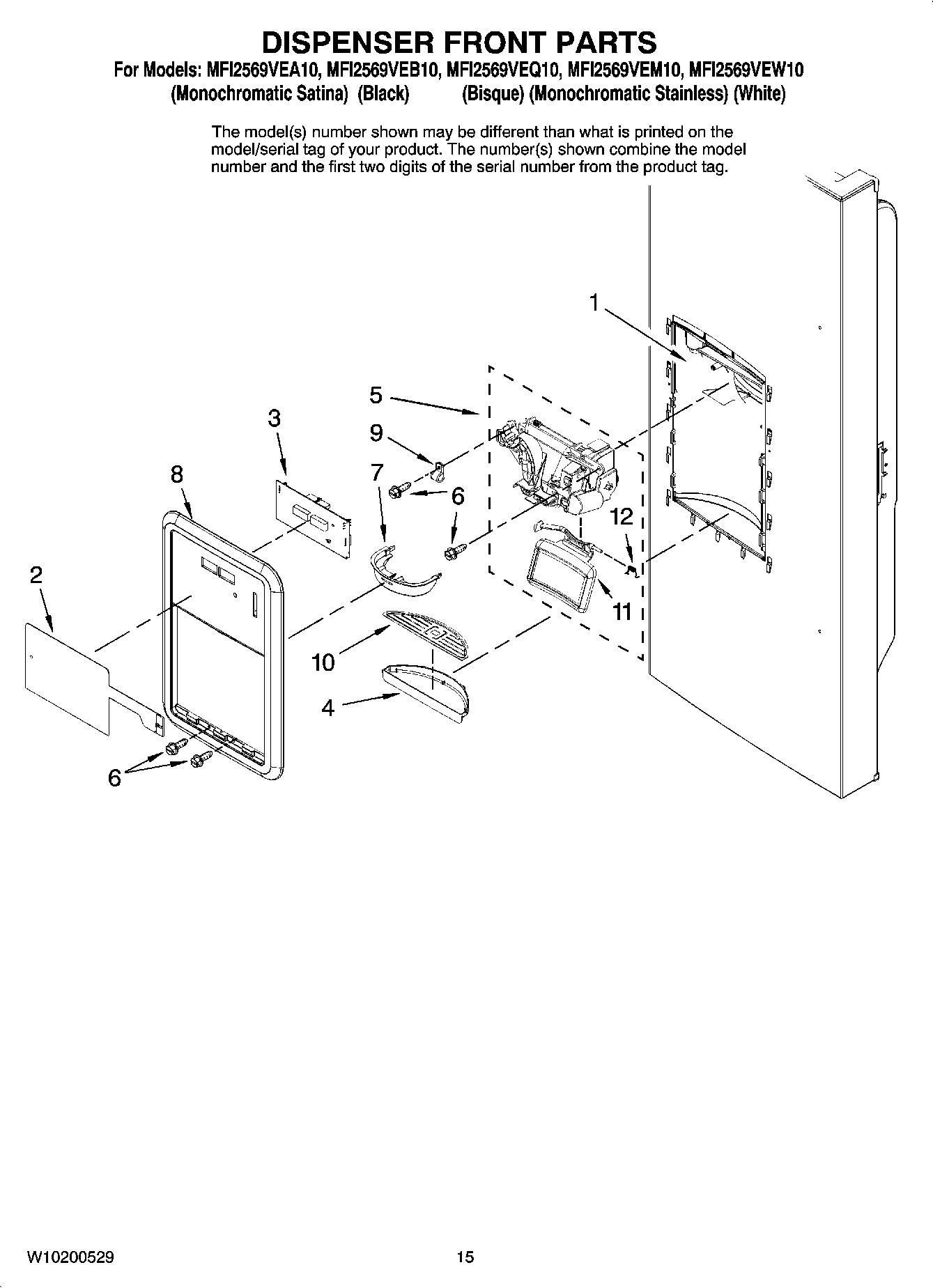

08 - DISPENSER FRONT PARTS

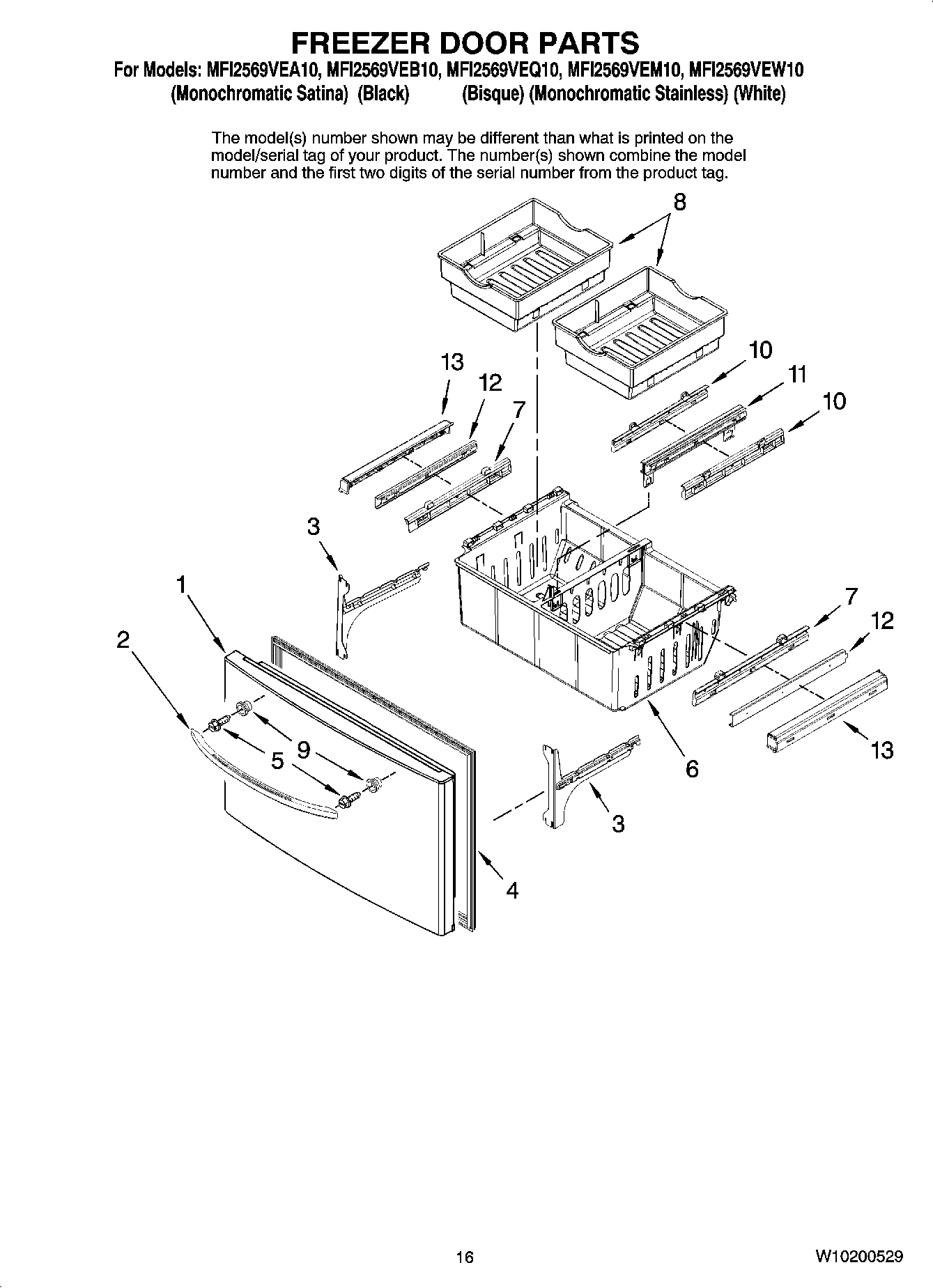

09 - FREEZER DOOR PARTS

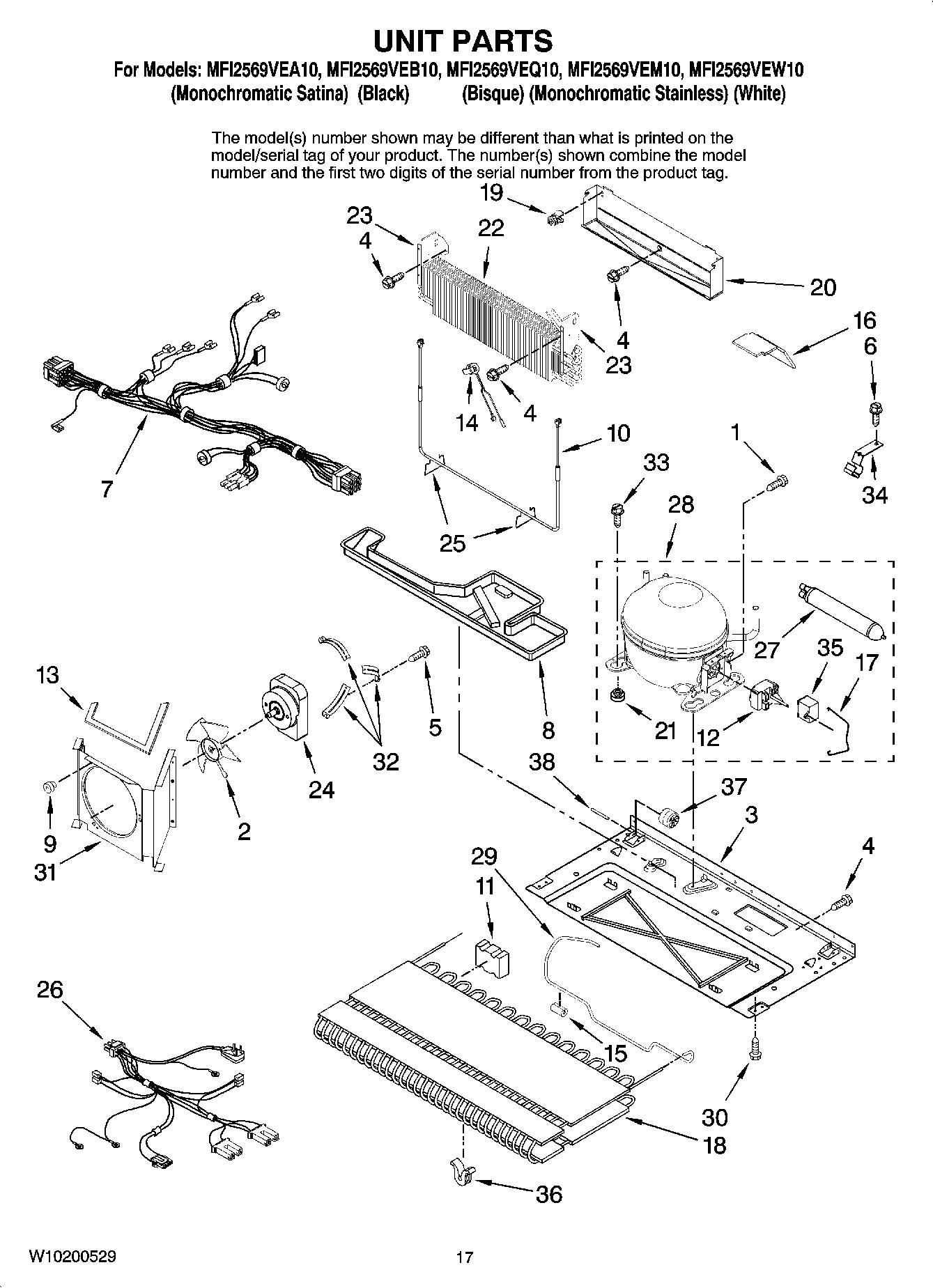

10 - UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFI2569VEB10 REFRIGERATOR
1
MAY 67002761 MAY 67002761 Contact Us For Availability
1
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability
1
MAY W10173928 MAY W10173928 Contact Us For Availability
1
MAY W10174149 MAY W10174149 Contact Us For Availability
1
MAY W10174213 MAY W10174213 Contact Us For Availability
1
MAY W10191136 MAY W10191136 Contact Us For Availability
1
MAY W10191138 MAY W10191138 Contact Us For Availability
1
MAY W10173929 MAY W10173929 Contact Us For Availability
1
MAY W10174150 MAY W10174150 Contact Us For Availability
1
MAY W10174214 MAY W10174214 Contact Us For Availability
1
MAY W10191120 MAY W10191120 Contact Us For Availability
1
MAY W10191131 MAY W10191131 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
2
Handle, Door (White) MAY 67007107 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
MAY 67006311 MAY 67006311 Contact Us For Availability
2
Dispenser Keyboard (White) MAY W10159999 Contact Us For Availability
2
Dispenser Keyboard (Bisque) MAY W10164468 Contact Us For Availability
2
Dispenser Keyboard (Black) MAY W10164469 Contact Us For Availability
2
Dispenser Keyboard (Satina) MAY W10164470 Contact Us For Availability
2
Dispenser Keyboard (Stainless) MAY W10164471 Contact Us For Availability
2
MAY 67007106 MAY 67007106 Contact Us For Availability
2
MAY W10138763 MAY W10138763 Contact Us For Availability
2
Handle, Door (Antique Pewter) MAY W10191147 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
3
MAY W10122147 MAY W10122147 Contact Us For Availability
3
MAY 67005889 MAY 67005889 Contact Us For Availability
3A
MAY W10122148 MAY W10122148 Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
4
MAY W10142274 MAY W10142274 Contact Us For Availability
4
MAY W10164979 MAY W10164979 Contact Us For Availability
4
MAY W10164980 MAY W10164980 Contact Us For Availability
4
MAY W10164981 MAY W10164981 Contact Us For Availability
4
Sump, Dispenser (Midnight Grey (Dark)) MAY W10185235 Contact Us For Availability
4
MAY W10162895 MAY W10162895 Contact Us For Availability
4
MAY W10162897 MAY W10162897 Contact Us For Availability
4
MAY W10191103 MAY W10191103 Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
5
MAY W10191149 MAY W10191149 Contact Us For Availability
5
MAY W10191151 MAY W10191151 Contact Us For Availability
5
MAY W10191153 MAY W10191153 Contact Us For Availability
5
MAY W10191155 MAY W10191155 Contact Us For Availability
5
MAY W10192824 MAY W10192824 Contact Us For Availability
6
MAY 67006400 MAY 67006400 Contact Us For Availability
6
MAY W10165970 MAY W10165970 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
MAY Y12570701 MAY Y12570701 Contact Us For Availability
6
MAY 67006786 MAY 67006786 Contact Us For Availability
6
MAY 67006366 MAY 67006366 Contact Us For Availability
6
MAY 67006737 MAY 67006737 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
MAY W10166742 MAY W10166742 Contact Us For Availability
7
Harness, Evap Heater MAY W10119239 Contact Us For Availability
8
MAY W10187860 MAY W10187860 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 627985 Contact Us For Availability
8
Gasket, Door (Black) MAY W10165978 Contact Us For Availability
8
Gasket, Door (White) MAY W10165979 Contact Us For Availability
8
MAY W10191105 MAY W10191105 Contact Us For Availability
8
MAY W10142272 MAY W10142272 Contact Us For Availability
8
Facade, Dispenser (Apollo Grey W/Stainless In MAY W10142273 Contact Us For Availability
8
MAY W10164982 MAY W10164982 Contact Us For Availability
8
MAY W10164983 MAY W10164983 Contact Us For Availability
8
Facade, Dispenser (Apollo Grey W/Satina Inser MAY W10172895 Contact Us For Availability
8
MAY W10166237 MAY W10166237 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
MAY 67006341 MAY 67006341 Contact Us For Availability
9
Screw (3) MAY 489464 Contact Us For Availability
9
Handle, Door (Black) MAY 67006115 Contact Us For Availability
9
MAY 67006982 MAY 67006982 Contact Us For Availability
9
Handle, Door (Stainless) MAY W10136871 Contact Us For Availability
9
MAY W10191144 MAY W10191144 Contact Us For Availability
9
MAY M0108106 MAY M0108106 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
MAY W10121440 MAY W10121440 Contact Us For Availability
10
MAY W10142275 MAY W10142275 Contact Us For Availability
10
MAY W10163002 MAY W10163002 Contact Us For Availability
10
MAY W10162932 MAY W10162932 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
MAY 67006383 MAY 67006383 Contact Us For Availability
11
MAY W10164977 MAY W10164977 Contact Us For Availability
11
MAY W10170831 MAY W10170831 Contact Us For Availability
11
MAY W10170832 MAY W10170832 Contact Us For Availability
11
Yoke/Pad Assy. (Bisque) MAY W10170833 Contact Us For Availability
11
Yoke/Pad Assy. (Midnight Grey (Dark)) MAY W10185233 Contact Us For Availability
11
MAY 67005491 MAY 67005491 Contact Us For Availability
12
MAY W10121444 MAY W10121444 Contact Us For Availability
12
MAY W10187434 MAY W10187434 Contact Us For Availability
12
MAY 67006369 MAY 67006369 Contact Us For Availability
12
MAY W10128791 MAY W10128791 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
MAY 2313326 MAY 2313326 Contact Us For Availability
13
MAY 67006368 MAY 67006368 Contact Us For Availability
13A
MAY 67006367 MAY 67006367 Contact Us For Availability
14
Glide, Drawer(2) MAY 67007026 Contact Us For Availability
14
MAY W10121269 MAY W10121269 Contact Us For Availability
14
MAY 67006423 MAY 67006423 Contact Us For Availability
14
MAY W10164404 MAY W10164404 Contact Us For Availability
14
MAY W10164405 MAY W10164405 Contact Us For Availability
14
MAY W10164406 MAY W10164406 Contact Us For Availability
14
MAY W10191104 MAY W10191104 Contact Us For Availability
14
MAY 67006387 MAY 67006387 Contact Us For Availability
15
MAY 67007111 MAY 67007111 Contact Us For Availability
15
MAY W10117806 MAY W10117806 Contact Us For Availability
16
MAY 67006346 MAY 67006346 Contact Us For Availability
16
MAY W10191100 MAY W10191100 Contact Us For Availability
16
PAD-ACOUSTIC MAY 12820504 Contact Us For Availability
17
MAY 63052-1 MAY 63052-1 Contact Us For Availability
17
MAY 626678 MAY 626678 Contact Us For Availability
17
Stop, Door (Bisque) MAY 12968202Q Contact Us For Availability
17
MAY 12968202W MAY 12968202W Contact Us For Availability
17
MAY W10191119 MAY W10191119 Contact Us For Availability
17
MAY 2255199 MAY 2255199 Contact Us For Availability
18
MAY 67006347 MAY 67006347 Contact Us For Availability
18
Screw (3) MAY 489276 Contact Us For Availability
18
MAY 67006769 MAY 67006769 Contact Us For Availability
19
MAY 12664501 MAY 12664501 Contact Us For Availability
19
MAY 67006348 MAY 67006348 Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY 10623002 MAY 10623002 Contact Us For Availability
20
MAY W10142628 MAY W10142628 Contact Us For Availability
20
MAY W10121434 MAY W10121434 Contact Us For Availability
20
MAY 67003731 MAY 67003731 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
21
Screw MAY 67006473 Contact Us For Availability
21
MAY W10120017 MAY W10120017 Contact Us For Availability
21
MAY W10169124 MAY W10169124 Contact Us For Availability
21A
MAY W10120083 MAY W10120083 Contact Us For Availability
22
MAY 67006358 MAY 67006358 Contact Us For Availability
22
MAY W10184230 MAY W10184230 Contact Us For Availability
23
MAY 67006354 MAY 67006354 Contact Us For Availability
23
MAY 67006424 MAY 67006424 Contact Us For Availability
23
MAY W10160123 MAY W10160123 Contact Us For Availability
23
MAY W10160126 MAY W10160126 Contact Us For Availability
23
MAY W10160132 MAY W10160132 Contact Us For Availability
23
MAY W10191132 MAY W10191132 Contact Us For Availability
23
MAY W10191134 MAY W10191134 Contact Us For Availability
23
MAY W10162951 MAY W10162951 Contact Us For Availability
23A
MAY W10162962 MAY W10162962 Contact Us For Availability
24
MAY 12962204 MAY 12962204 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
MAY 67006415 MAY 67006415 Contact Us For Availability
26
MAY W10162809 MAY W10162809 Contact Us For Availability
26
MAY 13060202 MAY 13060202 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY 2317845 Contact Us For Availability
28
SEAL, O RING MAY M0500703 Contact Us For Availability
28
Compressor (Includes Items 12,17,21,27,35) MAY W10134623 Contact Us For Availability
29
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
29
MAY W10134293 MAY W10134293 Contact Us For Availability
30
MAY 67006406 MAY 67006406 Contact Us For Availability
30
MAY 67006573 MAY 67006573 Contact Us For Availability
31
MAY W10158508 MAY W10158508 Contact Us For Availability
32
MAY 67004953 MAY 67004953 Contact Us For Availability
33
MAY 67006432 MAY 67006432 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
MAY 2264017 MAY 2264017 Contact Us For Availability
36
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
100
MAY W10122533 MAY W10122533 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Enamel, White (13 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
MAY 350939 MAY 350939 Contact Us For Availability
NI
Primer, White (13 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
