Model Maytag MFI2269VEM10 REFRIGERATOR – Common Parts & Diagrams

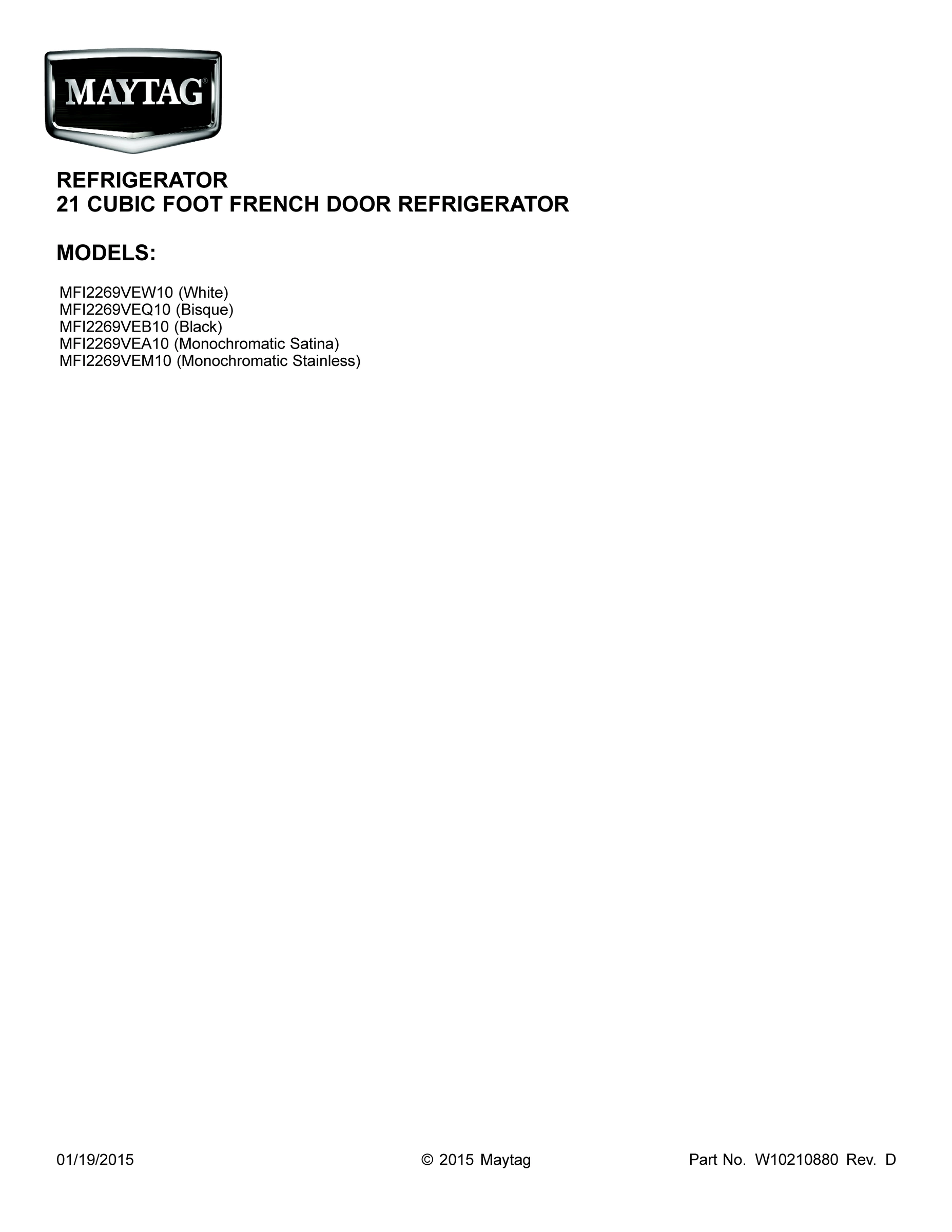

01 - COVER SHEET

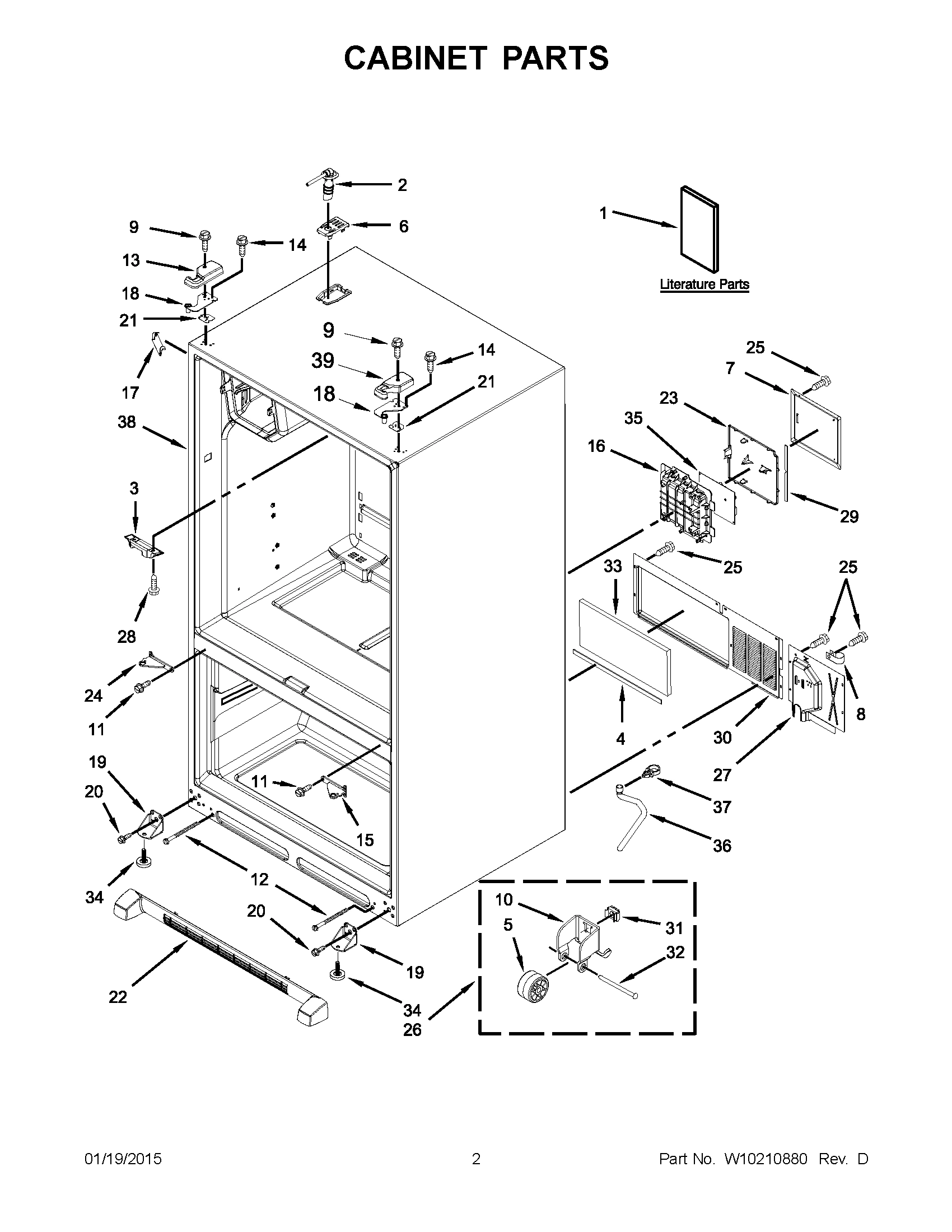

02 - CABINET PARTS

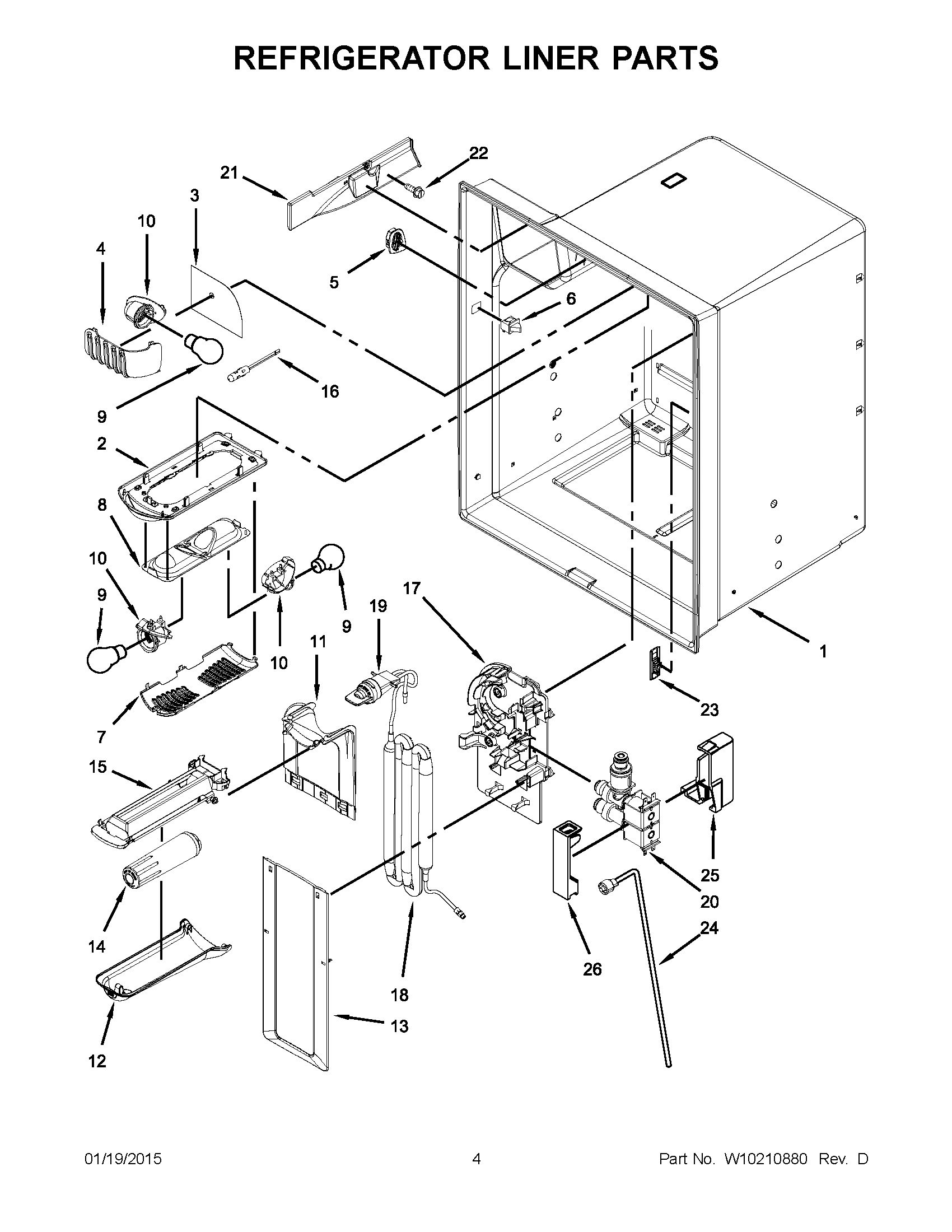

03 - REFRIGERATOR LINER PARTS

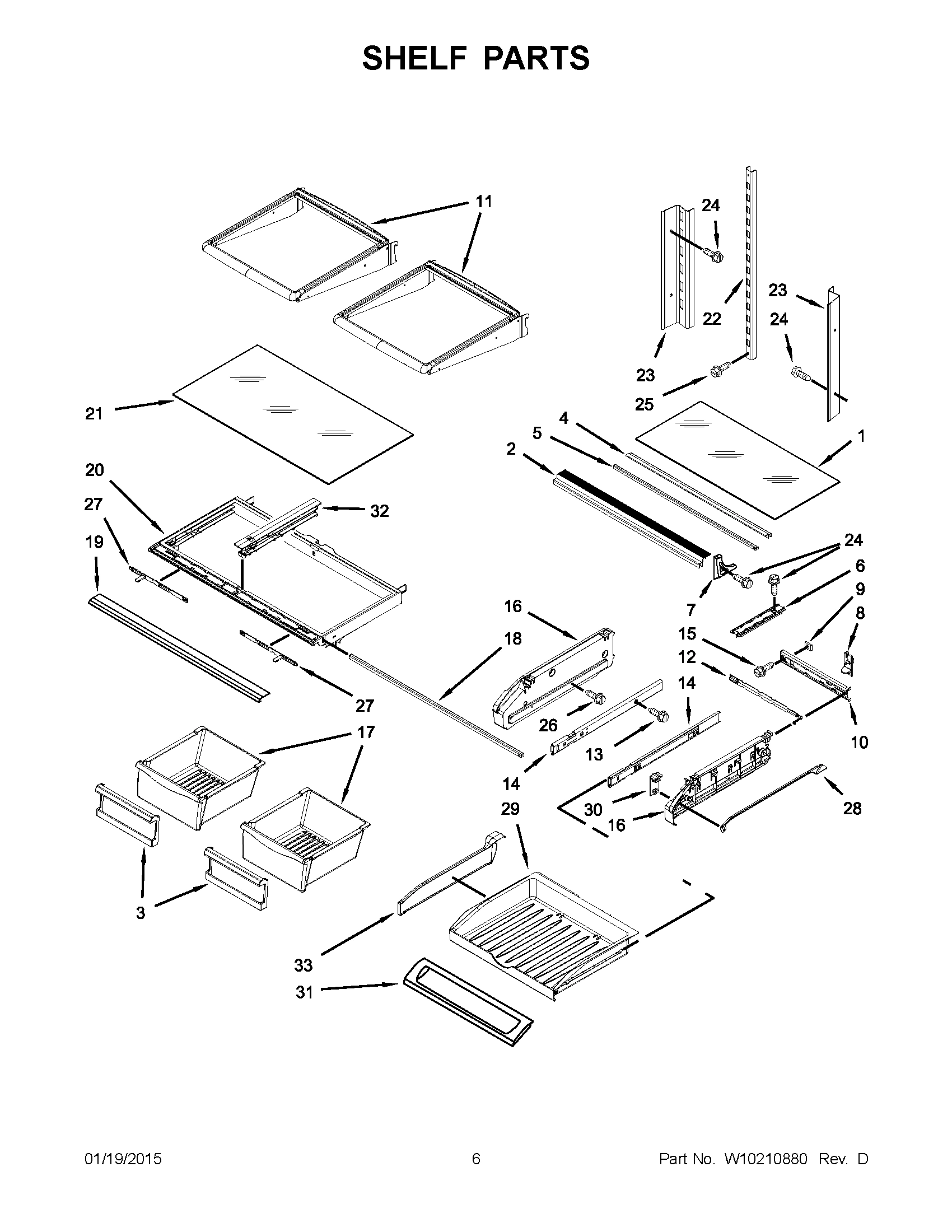

04 - SHELF PARTS

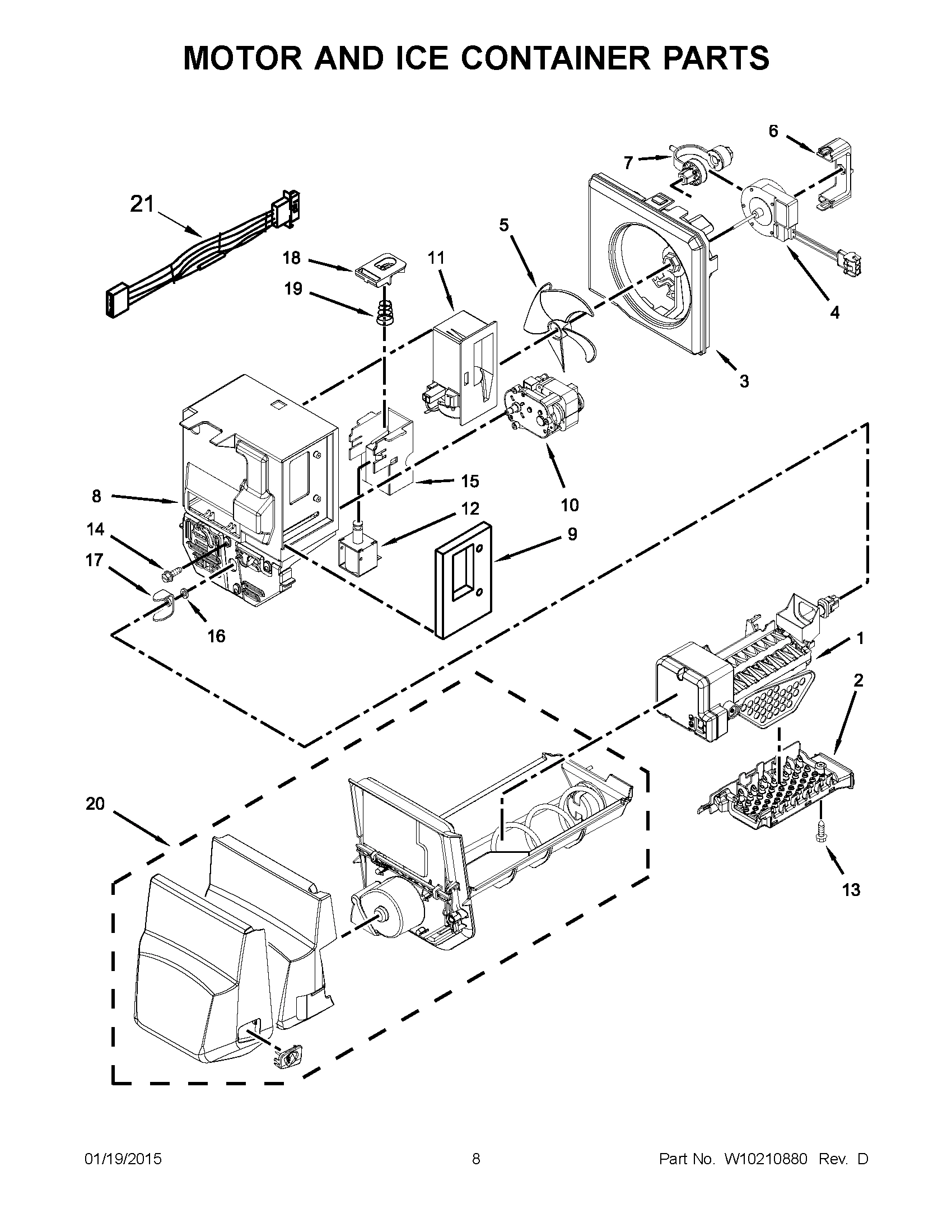

05 - MOTOR AND ICE CONTAINER PARTS

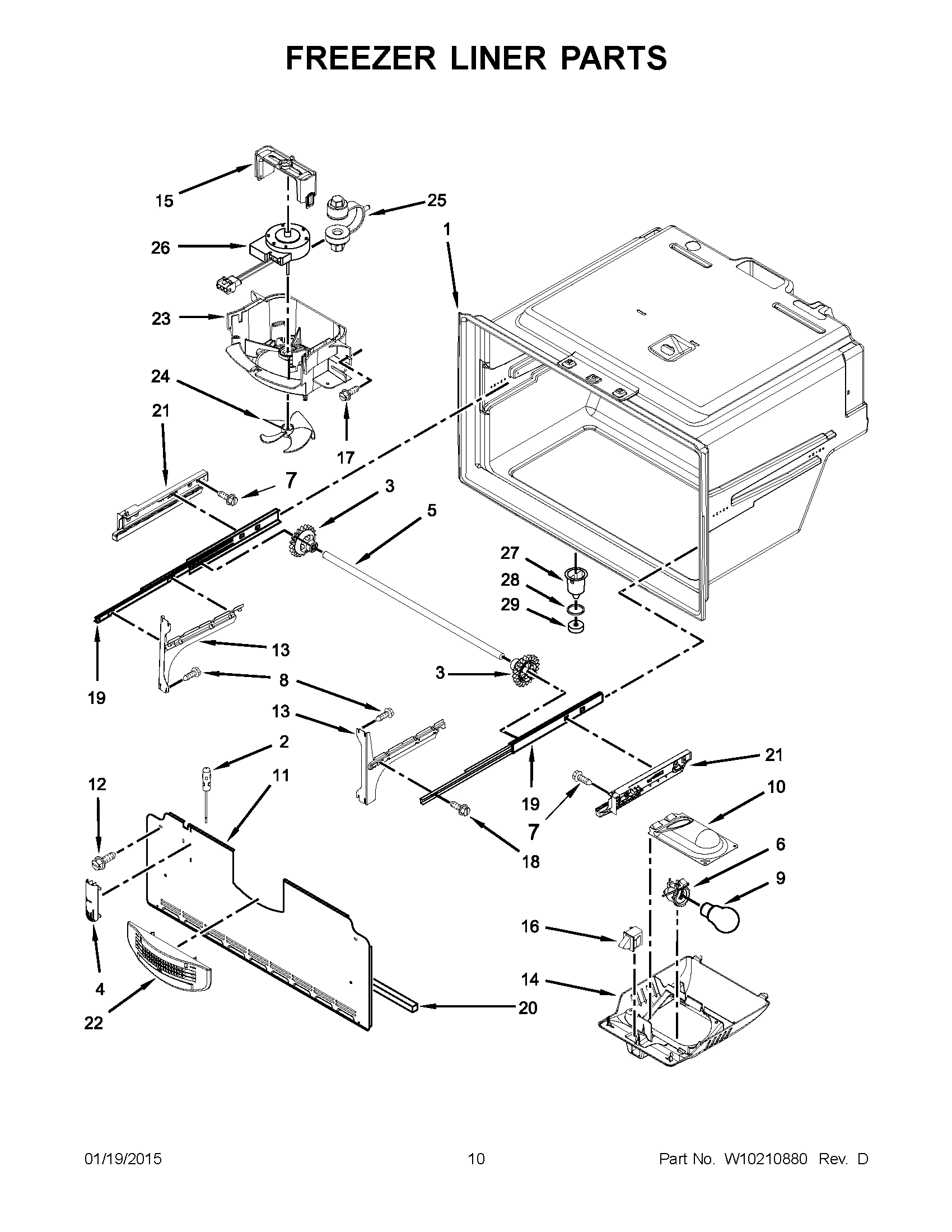

06 - FREEZER LINER PARTS

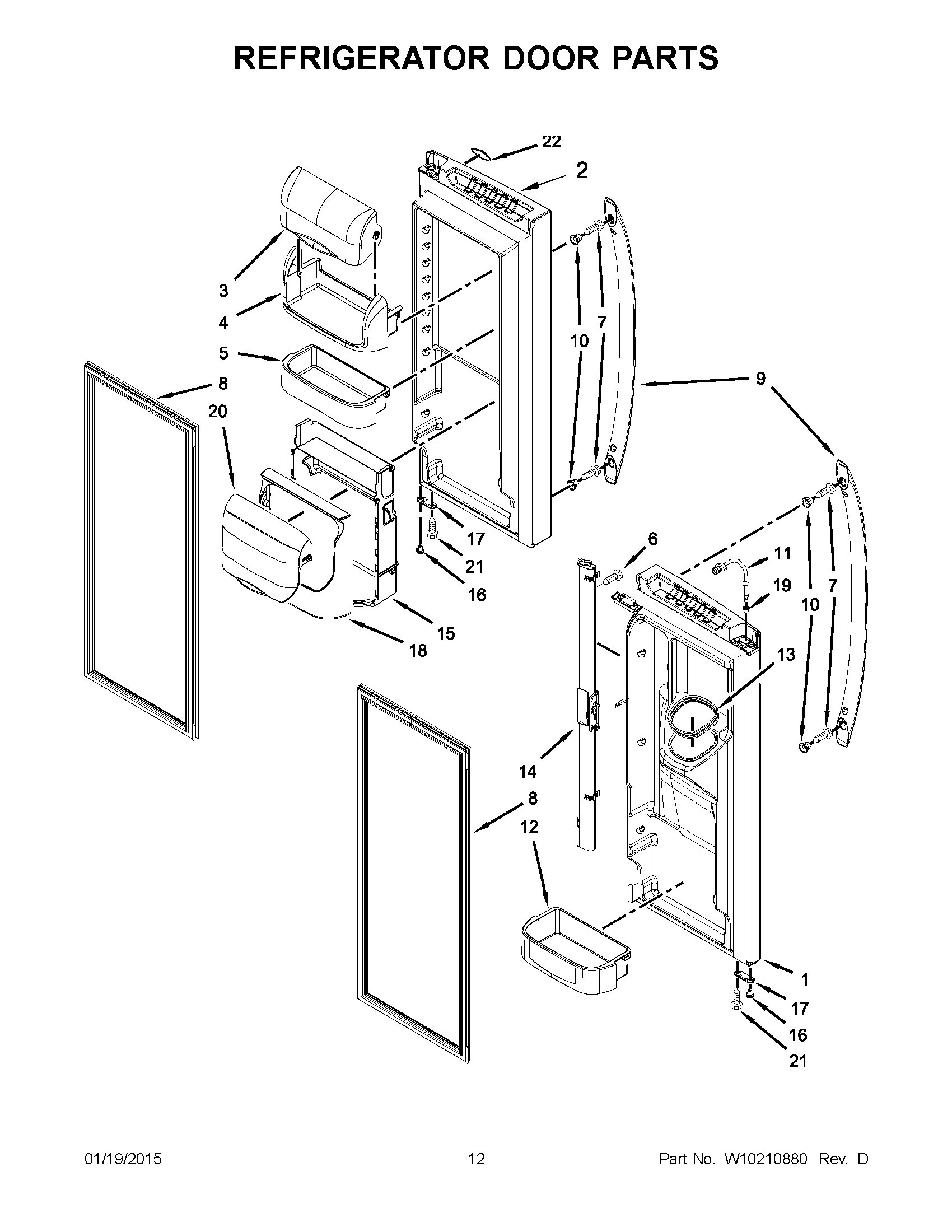

07 - REFRIGERATOR DOOR PARTS

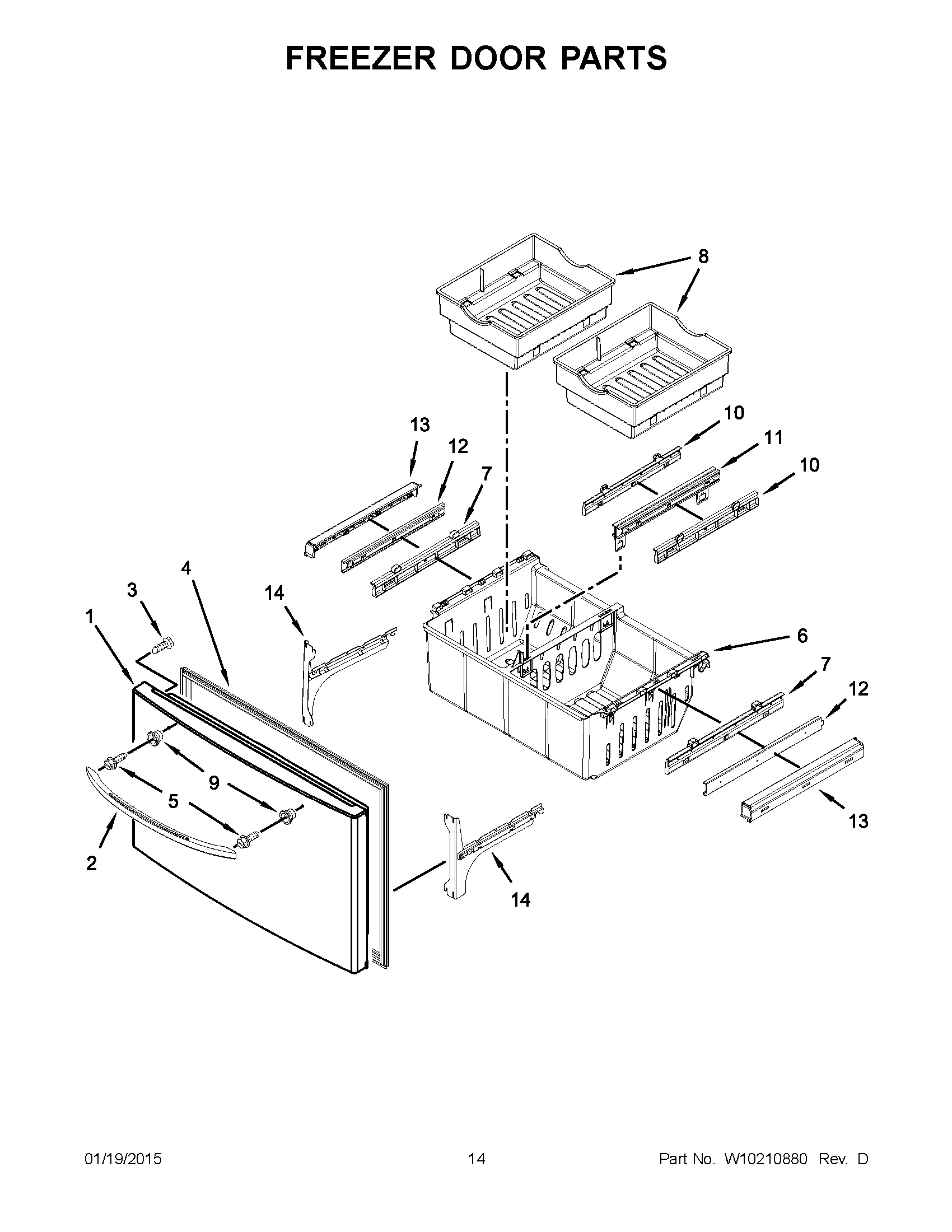

08 - FREEZER DOOR PARTS

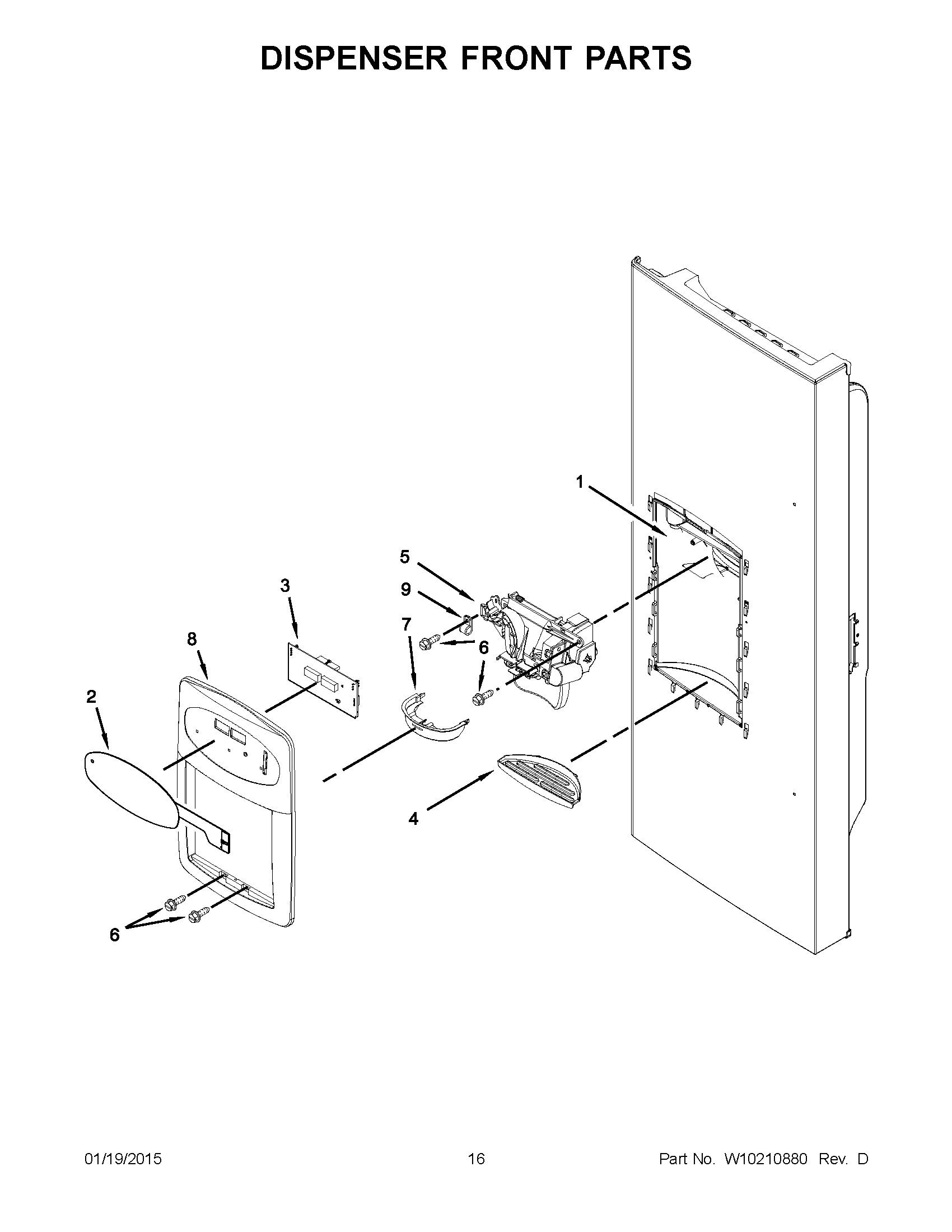

09 - DISPENSER FRONT PARTS

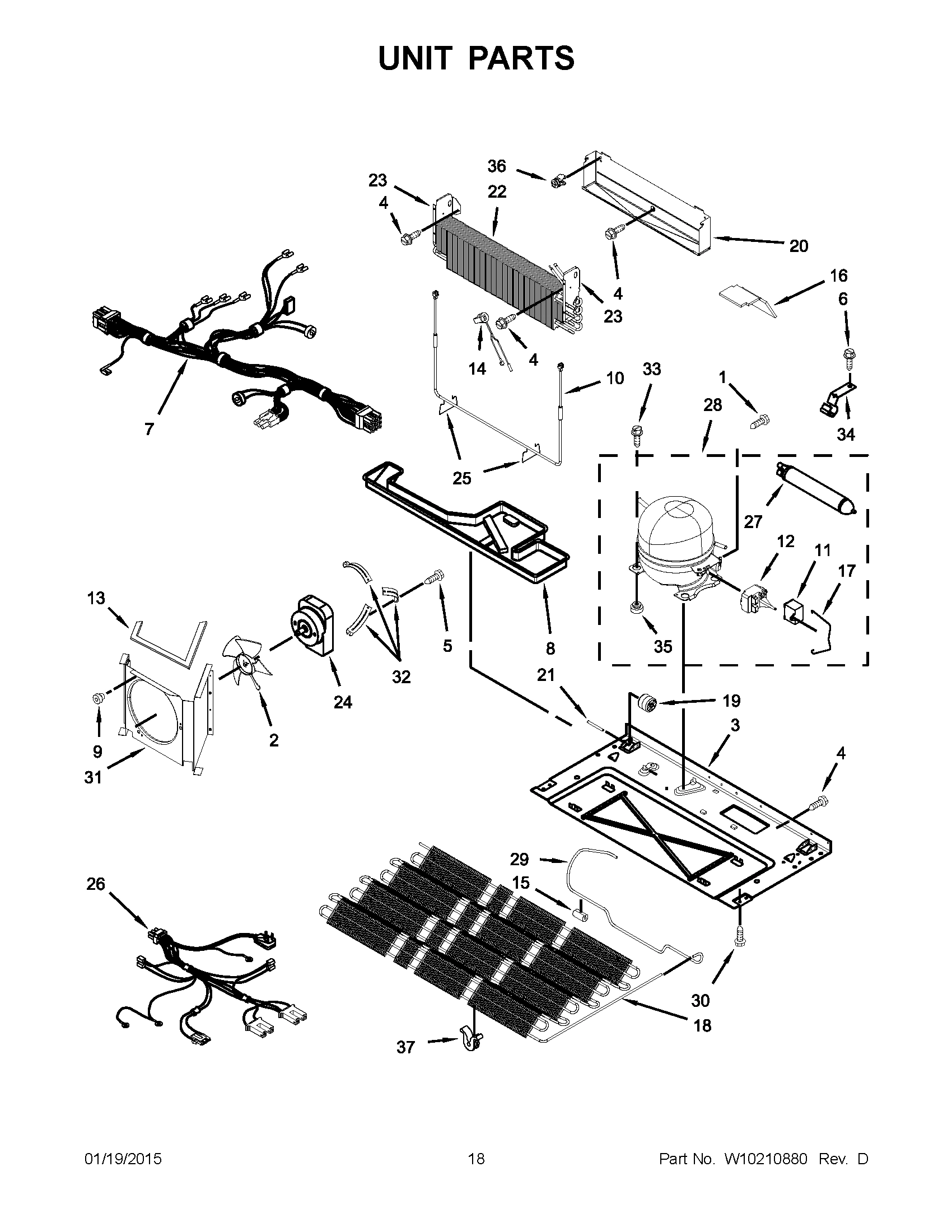

10 - UNIT PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag MFI2269VEM10 REFRIGERATOR
1
MAY W10165870 MAY W10165870 Contact Us For Availability
1
ASSEMBLY, ICEMAKER MAY W10377151 Contact Us For Availability
1
MAY W10160133 MAY W10160133 Contact Us For Availability
1
MAY W10160134 MAY W10160134 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1A
MAY W10160124 MAY W10160124 Contact Us For Availability
1A
MAY W10160125 MAY W10160125 Contact Us For Availability
1B
MAY W10160127 MAY W10160127 Contact Us For Availability
1B
MAY W10160128 MAY W10160128 Contact Us For Availability
1C
MAY 13107882S MAY 13107882S Contact Us For Availability
1C
MAY 12977868S MAY 12977868S Contact Us For Availability
1D
DOOR, LEFT (MONOCHROMATIC SATINA) MAY 12978036LQ Contact Us For Availability
1D
FREEZER DOOR (MONOCHROMATIC SATINA) MAY 12977819LQ Contact Us For Availability
2
EXTRA, GLASS SUPPORT MAY W10165872 Contact Us For Availability
2
ASSEMBLY, IMPINGER MAY W10121269 Contact Us For Availability
2
MAY W10160132 MAY W10160132 Contact Us For Availability
2
MAY W10123792 MAY W10123792 Contact Us For Availability
2
MAY W10159999 MAY W10159999 Contact Us For Availability
2
MAY W10156818 MAY W10156818 Contact Us For Availability
2A
MAY W10160123 MAY W10160123 Contact Us For Availability
2A
MAY W10123794 MAY W10123794 Contact Us For Availability
2A
MAY W10164469 MAY W10164469 Contact Us For Availability
2B
MAY W10160126 MAY W10160126 Contact Us For Availability
2B
HANDLE, DOOR (BISCUIT/BISQUE) MAY W10123793 Contact Us For Availability
2B
MAY W10164468 MAY W10164468 Contact Us For Availability
2C
MAY 13107853S MAY 13107853S Contact Us For Availability
2C
MAY W10123795 MAY W10123795 Contact Us For Availability
2C
MAY W10164470 MAY W10164470 Contact Us For Availability
2D
DOOR, RIGHT (MONOCHROMATIC SATINA) MAY W10191132 Contact Us For Availability
2D
MAY W10164471 MAY W10164471 Contact Us For Availability
3
FRONT, CRISPER PAN MAY 67005920 Contact Us For Availability
3
MAY 12591404 MAY 12591404 Contact Us For Availability
4
MAY W10166785 MAY W10166785 Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
SCREW MAY 67006425 Contact Us For Availability
4
MAY W10164046 MAY W10164046 Contact Us For Availability
4
MAY W10142274 MAY W10142274 Contact Us For Availability
4A
MAY W10164047 MAY W10164047 Contact Us For Availability
4A
MAY W10164979 MAY W10164979 Contact Us For Availability
4B
GASKET, DOOR (STAINLESS) MAY W10180624 Contact Us For Availability
4B
MAY W10164981 MAY W10164981 Contact Us For Availability
4C
MAY W10185235 MAY W10185235 Contact Us For Availability
5
MAY 12227301WD MAY 12227301WD Contact Us For Availability
5
SHAFT, RACK MAY 67004261 Contact Us For Availability
5
MAY W10191155 MAY W10191155 Contact Us For Availability
5A
MAY W10191151 MAY W10191151 Contact Us For Availability
5B
MAY W10191153 MAY W10191153 Contact Us For Availability
5C
CHUTE, EXT/YOKE (INCLUDES SWITCH) (MIDNIGHT G MAY W10192824 Contact Us For Availability
6
MAY Y12570701 MAY Y12570701 Contact Us For Availability
6
MAY 67006400 MAY 67006400 Contact Us For Availability
6
MAY W10165970 MAY W10165970 Contact Us For Availability
6
MAY W10166235 MAY W10166235 Contact Us For Availability
6
SCREW MAY 67006737 Contact Us For Availability
7
SCREW MAY 67006406 Contact Us For Availability
7
MAY W10166742 MAY W10166742 Contact Us For Availability
7
MAY W10119239 MAY W10119239 Contact Us For Availability
8
HOOK, LADDER (LEFT HAND) MAY W10166660 Contact Us For Availability
8
MAY 12958408 MAY 12958408 Contact Us For Availability
8
GASKET, DOOR (WHITE (LEFT HAND)) MAY W10163993 Contact Us For Availability
8
BIN, UPPER (LEFT HAND) MAY W10166237 Contact Us For Availability
8
MAY W10142272 MAY W10142272 Contact Us For Availability
8
MAY 67004713 MAY 67004713 Contact Us For Availability
8A
HOOK, LADDER (RIGHT HAND) MAY W10166668 Contact Us For Availability
8A
GASKET, DOOR (BLACK (LEFT HAND)) MAY W10163994 Contact Us For Availability
8A
BIN, UPPER (RIGHT HAND) MAY W10166236 Contact Us For Availability
8A
MAY W10164982 MAY W10164982 Contact Us For Availability
8B
GASKET, DOOR (GREY (LEFT HAND)) MAY W10179334 Contact Us For Availability
8B
FACADE, DISPENSER (BISCUIT/BISQUE) MAY W10164983 Contact Us For Availability
8C
GASKET, DOOR (WHITE (RIGHT HAND)) MAY W10163896 Contact Us For Availability
8C
MAY W10172895 MAY W10172895 Contact Us For Availability
8D
GASKET, DOOR (BLACK (RIGHT HAND)) MAY W10163898 Contact Us For Availability
8D
FACADE, DISPENSER (STAINLESS) MAY W10142273 Contact Us For Availability
8E
GASKET, DOOR (GREY (RIGHT HAND)) MAY W10163991 Contact Us For Availability
9
GROMMET, BRACKET MAY 61004743 Contact Us For Availability
9
MAY W10165873 MAY W10165873 Contact Us For Availability
9
MAY 67006341 MAY 67006341 Contact Us For Availability
9
MAY M0108106 MAY M0108106 Contact Us For Availability
9A
DOOR HANDLE (BLACK) MAY 67006115 Contact Us For Availability
9B
DOOR HANDLE (BISQUE) MAY 67006982 Contact Us For Availability
9C
MAY W10197295 MAY W10197295 Contact Us For Availability
10
HOUSING, FREEZER LIGHT MAY 67001035 Contact Us For Availability
10
MAY W10165876 MAY W10165876 Contact Us For Availability
10
MAY W10163002 MAY W10163002 Contact Us For Availability
10
MAY W10166768 MAY W10166768 Contact Us For Availability
11
MAY 67006330 MAY 67006330 Contact Us For Availability
11
MAY 13029504 MAY 13029504 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
MAY W10165973 MAY W10165973 Contact Us For Availability
11
MAY 2264017 MAY 2264017 Contact Us For Availability
12
SLIDE, TEMPERATURE CONTROL MAY W10165882 Contact Us For Availability
12
BIN, SHELF (GALLON) MAY W10166007 Contact Us For Availability
12
MAY 67006369 MAY 67006369 Contact Us For Availability
12
RELAY, START MAY W10128791 Contact Us For Availability
13
MAY 67007110 MAY 67007110 Contact Us For Availability
13
RETAINER, GLIDE (LEFT HAND) MAY 67006367 Contact Us For Availability
13A
RETAINER, GLIDE (RIGHT HAND) MAY 67006368 Contact Us For Availability
14
MAY UKF8001 MAY UKF8001 Contact Us For Availability
14
GLIDE, DRAWER MAY 67007026 Contact Us For Availability
14
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10122147 Contact Us For Availability
14
MAY 67006423 MAY 67006423 Contact Us For Availability
14
MAY W10164404 MAY W10164404 Contact Us For Availability
14
MAY 67006387 MAY 67006387 Contact Us For Availability
14A
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10122148 Contact Us For Availability
14A
MAY W10164405 MAY W10164405 Contact Us For Availability
14B
MAY W10164406 MAY W10164406 Contact Us For Availability
14C
MULLION, DOOR (GREY) MAY W10191104 Contact Us For Availability
15
MAY 67006325 MAY 67006325 Contact Us For Availability
15
MAY 67007111 MAY 67007111 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT HAND) MAY W10165883 Contact Us For Availability
16
MAY 67006346 MAY 67006346 Contact Us For Availability
16
MAY 12820504 MAY 12820504 Contact Us For Availability
16A
ENDCAP, PANTRY (RIGHT HAND) MAY W10166677 Contact Us For Availability
16B
MAY 12028505AP MAY 12028505AP Contact Us For Availability
17
MAY 67006324 MAY 67006324 Contact Us For Availability
17
MAY 63052-1 MAY 63052-1 Contact Us For Availability
17
MAY 12968202W MAY 12968202W Contact Us For Availability
17
STRAP, BALE MAY 2255199 Contact Us For Availability
17B
MAY 12968202Q MAY 12968202Q Contact Us For Availability
17C
STOP, DOOR (GREY) MAY W10191119 Contact Us For Availability
18
ASSEMBLY, WATER TANK AND HEAD MAY 12956202 Contact Us For Availability
18
MAY 67006347 MAY 67006347 Contact Us For Availability
18
MAY 67006769 MAY 67006769 Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
19
MAY 12664501 MAY 12664501 Contact Us For Availability
19
MAY 67006348 MAY 67006348 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
20
ASSEMBLY, ICE BIN MAY W10165971 Contact Us For Availability
20
MAY 67003731 MAY 67003731 Contact Us For Availability
20
MAY 67001080 MAY 67001080 Contact Us For Availability
21
MAY W10165861 MAY W10165861 Contact Us For Availability
21
HARNESS, ICE MAKER MAY W10404019 Contact Us For Availability
21
SCREW MAY 67006473 Contact Us For Availability
21
ADAPTER (LEFT SIDE) MAY W10159938 Contact Us For Availability
21A
ADAPTER (RIGHT SIDE) MAY W10159939 Contact Us For Availability
22
SCREW, COVER MAY M0238642 Contact Us For Availability
22
MAY 67006358 MAY 67006358 Contact Us For Availability
22
MAY W10170766 MAY W10170766 Contact Us For Availability
22
MAY W10166256 MAY W10166256 Contact Us For Availability
23
LADDER, SIDE (LEFT HAND) MAY W10165968 Contact Us For Availability
23
SHROUD, EVAPORATOR MAY 67006424 Contact Us For Availability
23
DAM (RIGHT HAND) MAY W10162951 Contact Us For Availability
23A
LADDER, SIDE (RIGHT HAND) MAY W10165909 Contact Us For Availability
23A
DAM (LEFT HAND) MAY W10162962 Contact Us For Availability
24
MAY W10165864 MAY W10165864 Contact Us For Availability
24
MOTOR, CONDENSER MAY 67004432 Contact Us For Availability
25
MAY W10118193 MAY W10118193 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
MAY 67006415 MAY 67006415 Contact Us For Availability
26
MAY W10162809 MAY W10162809 Contact Us For Availability
26
HARNESS, UNIT MAY 13060202 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
DRIER MAY 2317845 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY W10165910 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10134623 Contact Us For Availability
29
MAY W10165911 MAY W10165911 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY W10183709 MAY W10183709 Contact Us For Availability
30
MAY 67006573 MAY 67006573 Contact Us For Availability
31
DOOR, PANTRY DRAWER MAY W10165964 Contact Us For Availability
31
SHROUD, CONDENSER MAY 12575309 Contact Us For Availability
32
BRACKET, EVAPORATOR MOTOR MAY 67004953 Contact Us For Availability
33
DIVIDER, PANTRY DRAWER MAY W10165967 Contact Us For Availability
33
SCREW MAY 67006432 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
GROMMET MAY W10169124 Contact Us For Availability
36
MAY W10137529 MAY W10137529 Contact Us For Availability
37
GROMMET, CONDENSER MAY W10117502 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
