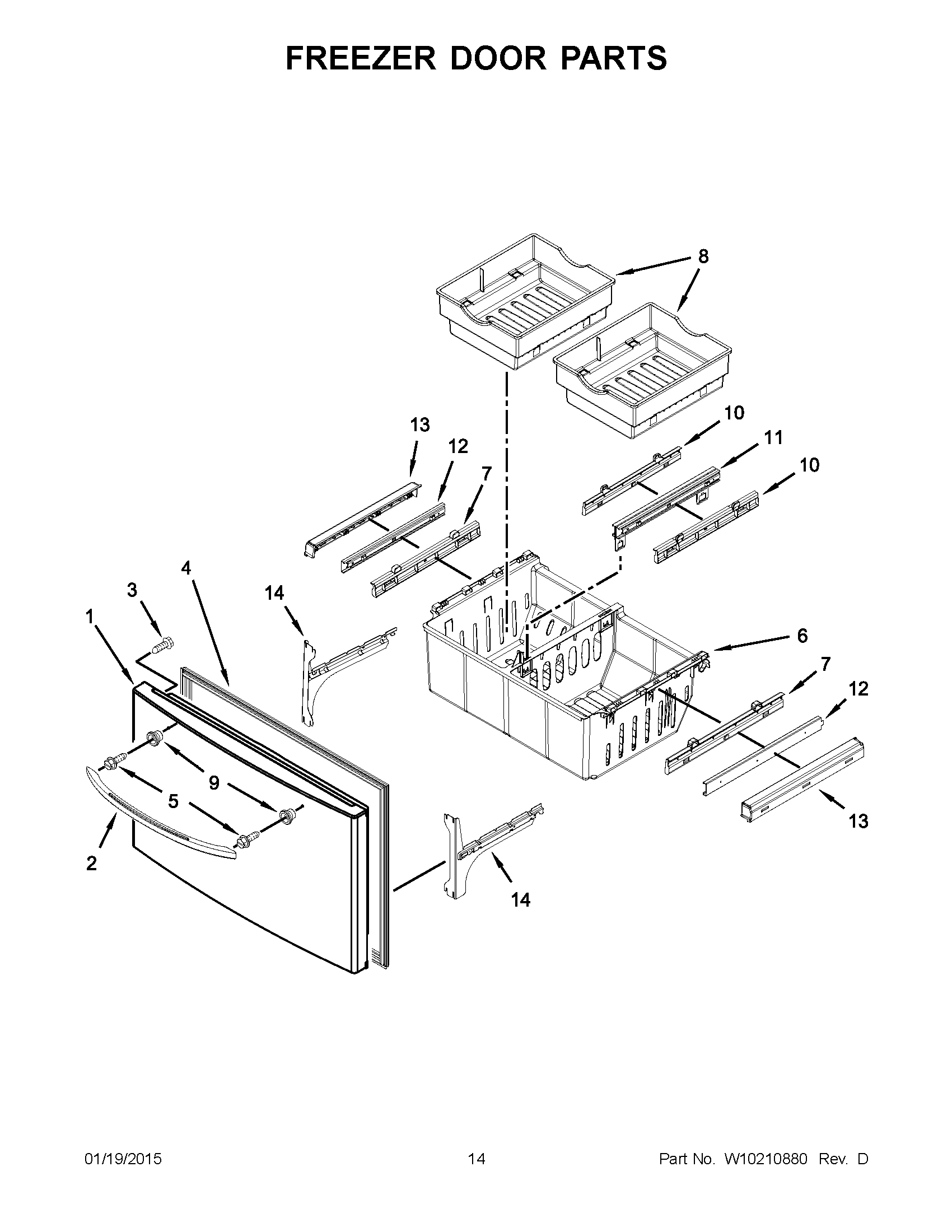

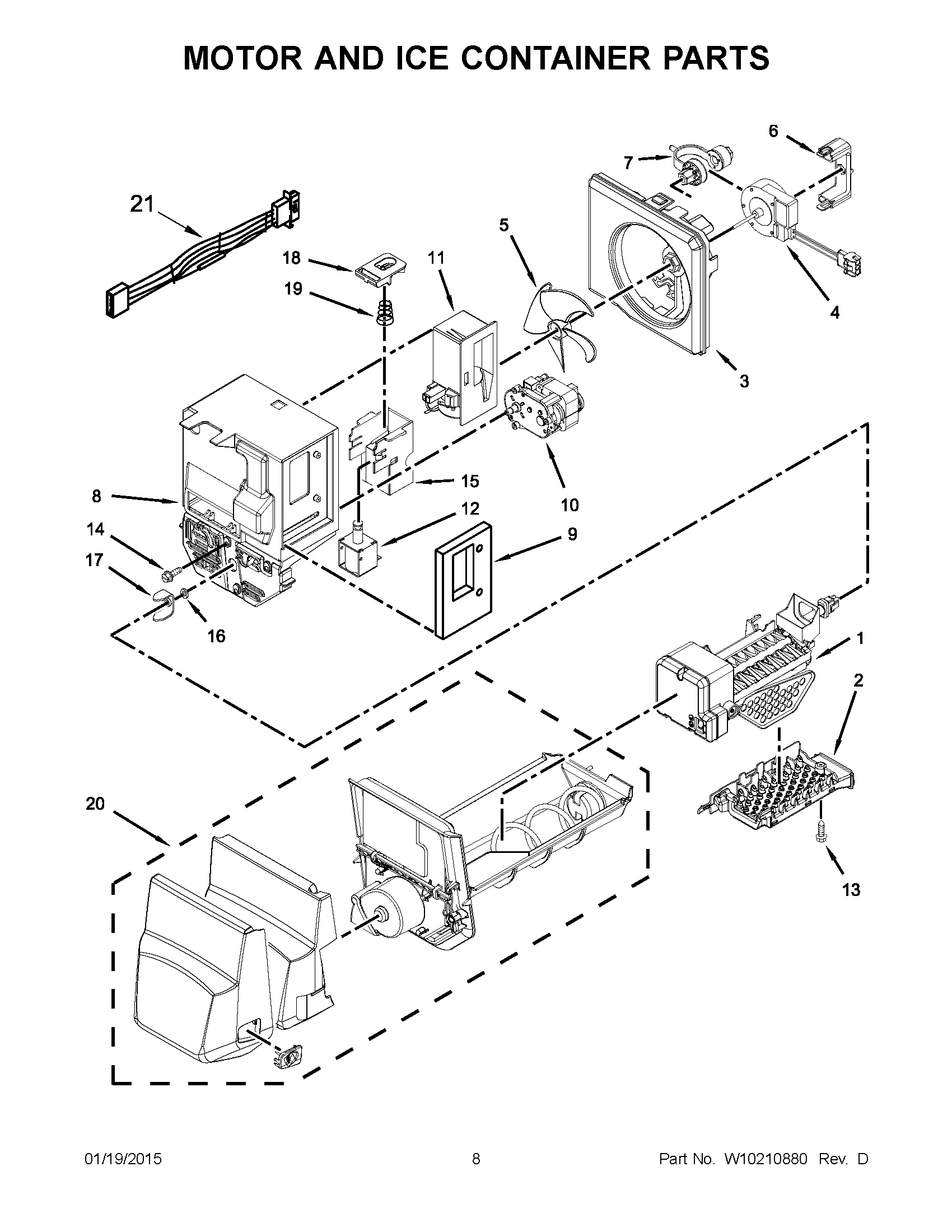

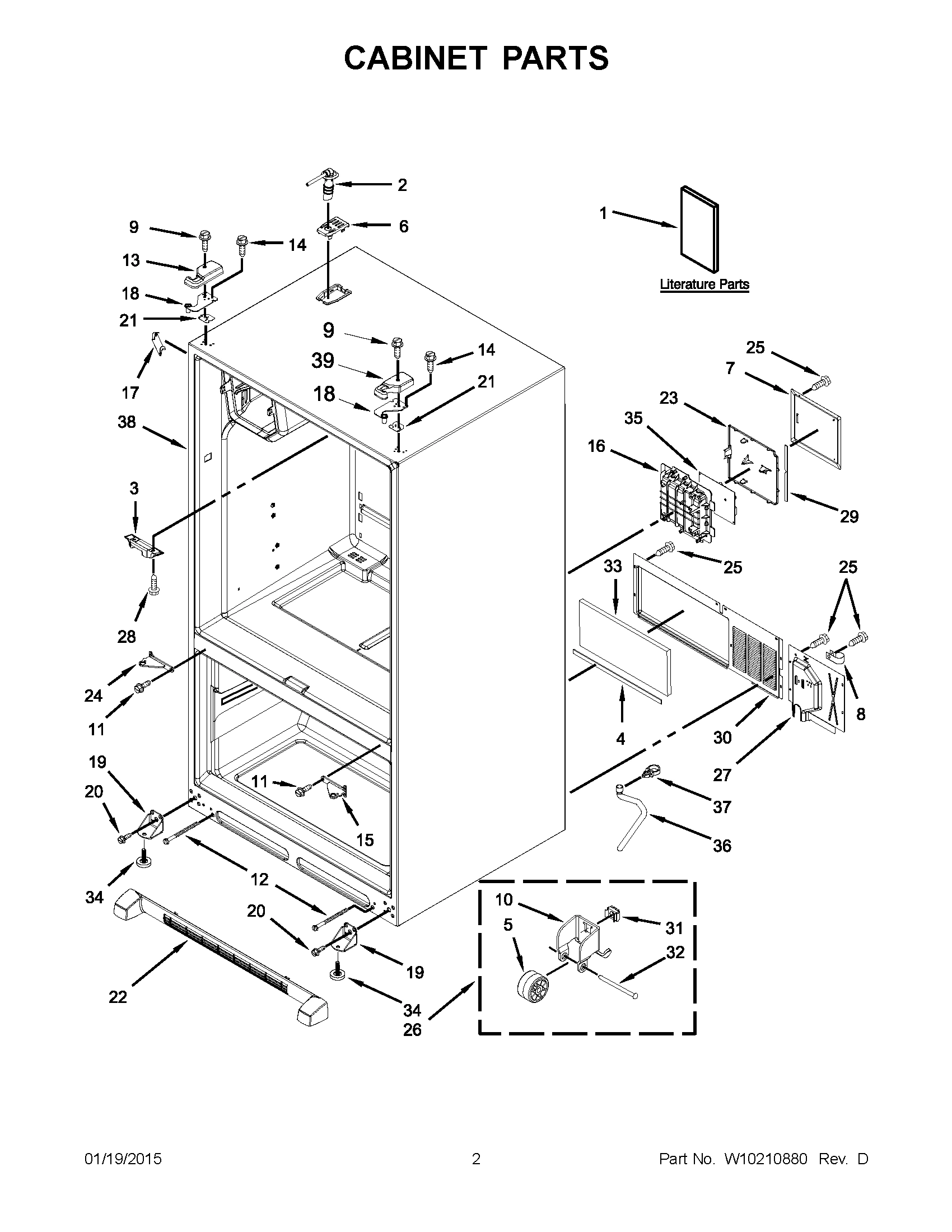

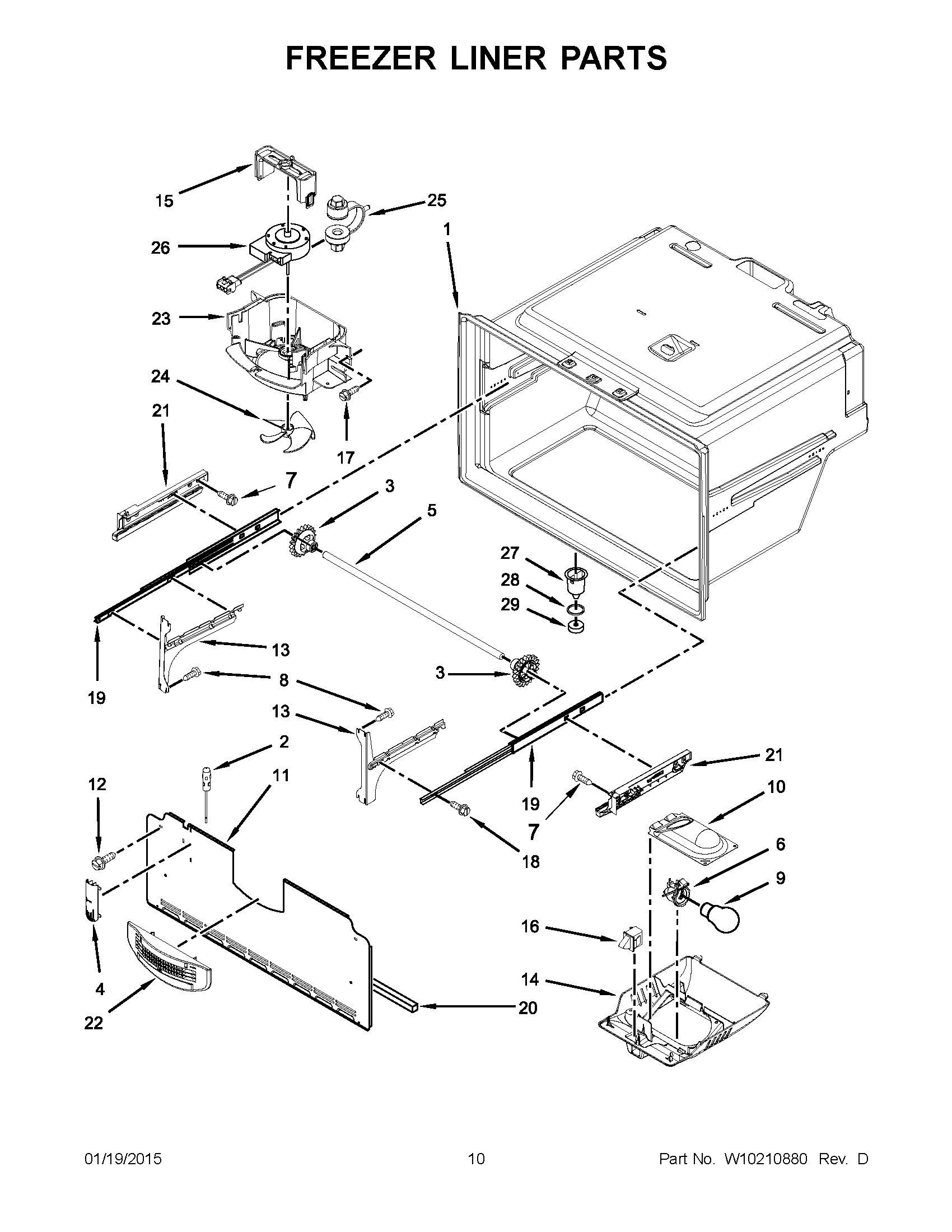

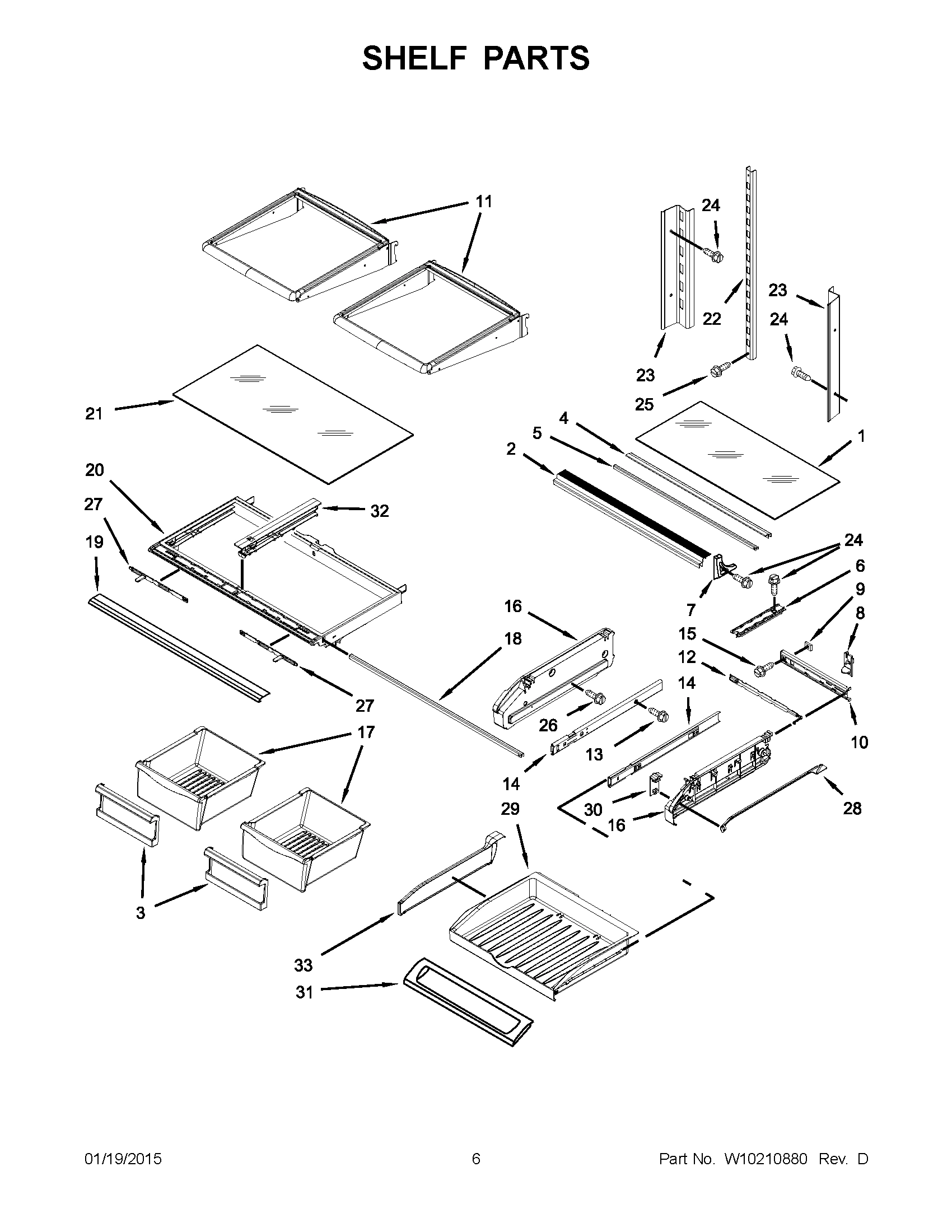

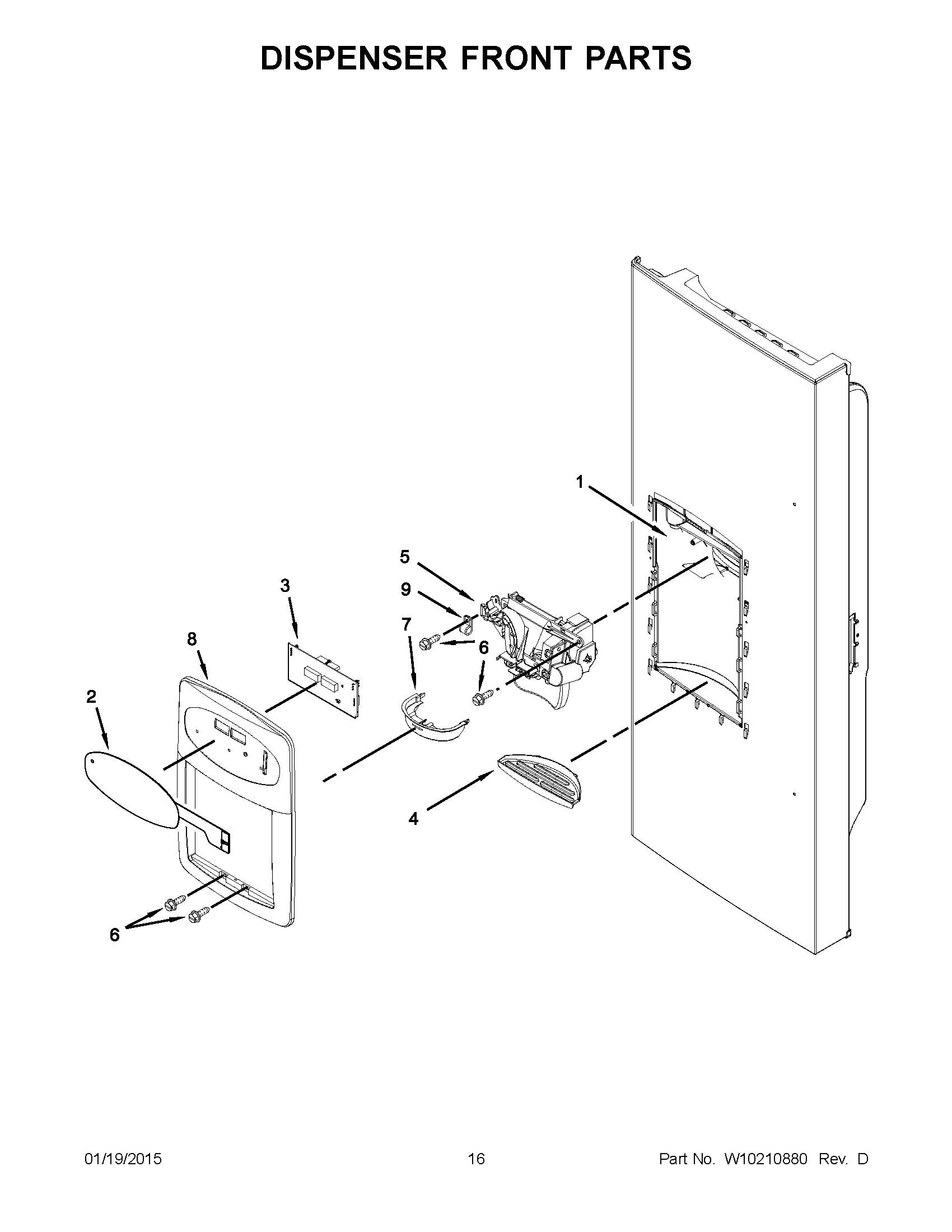

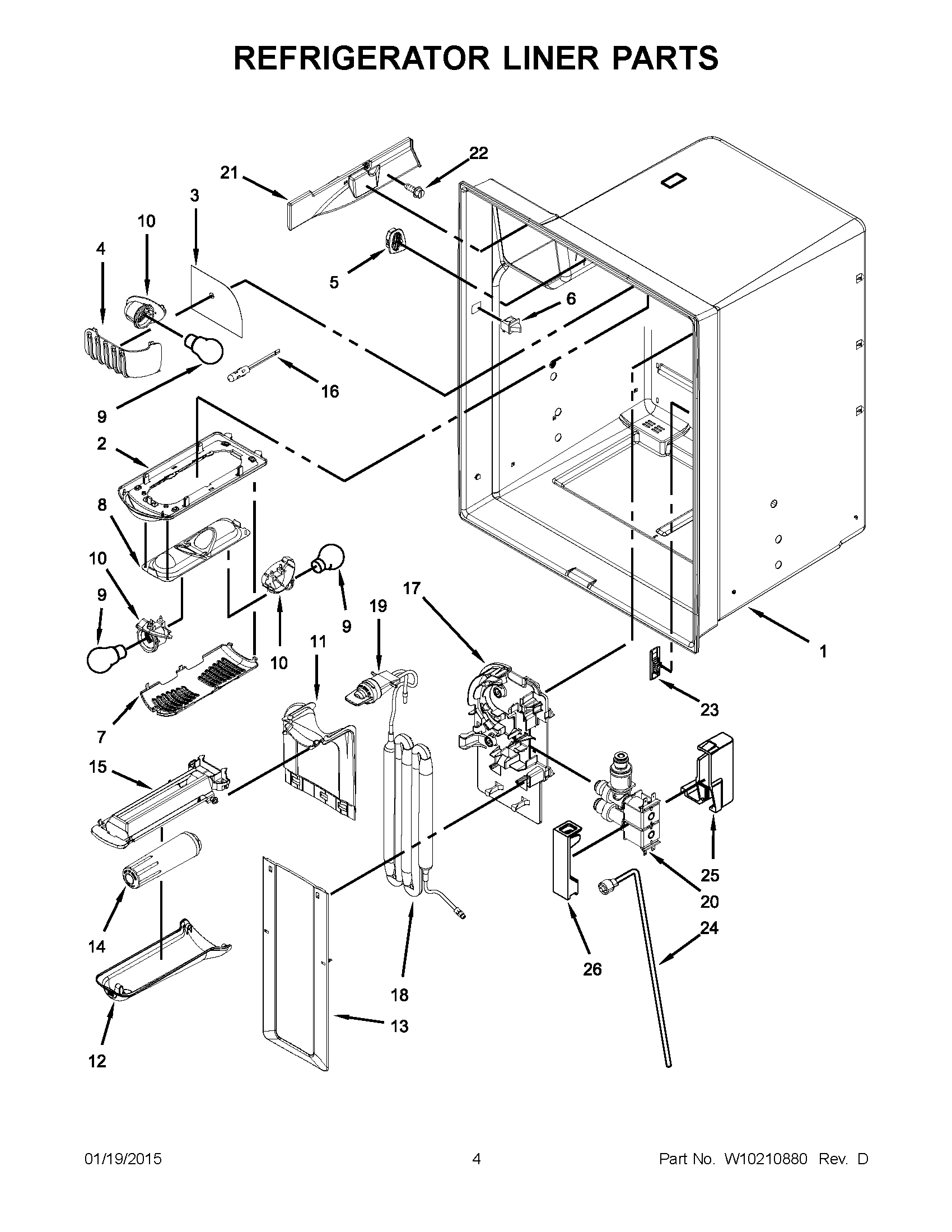

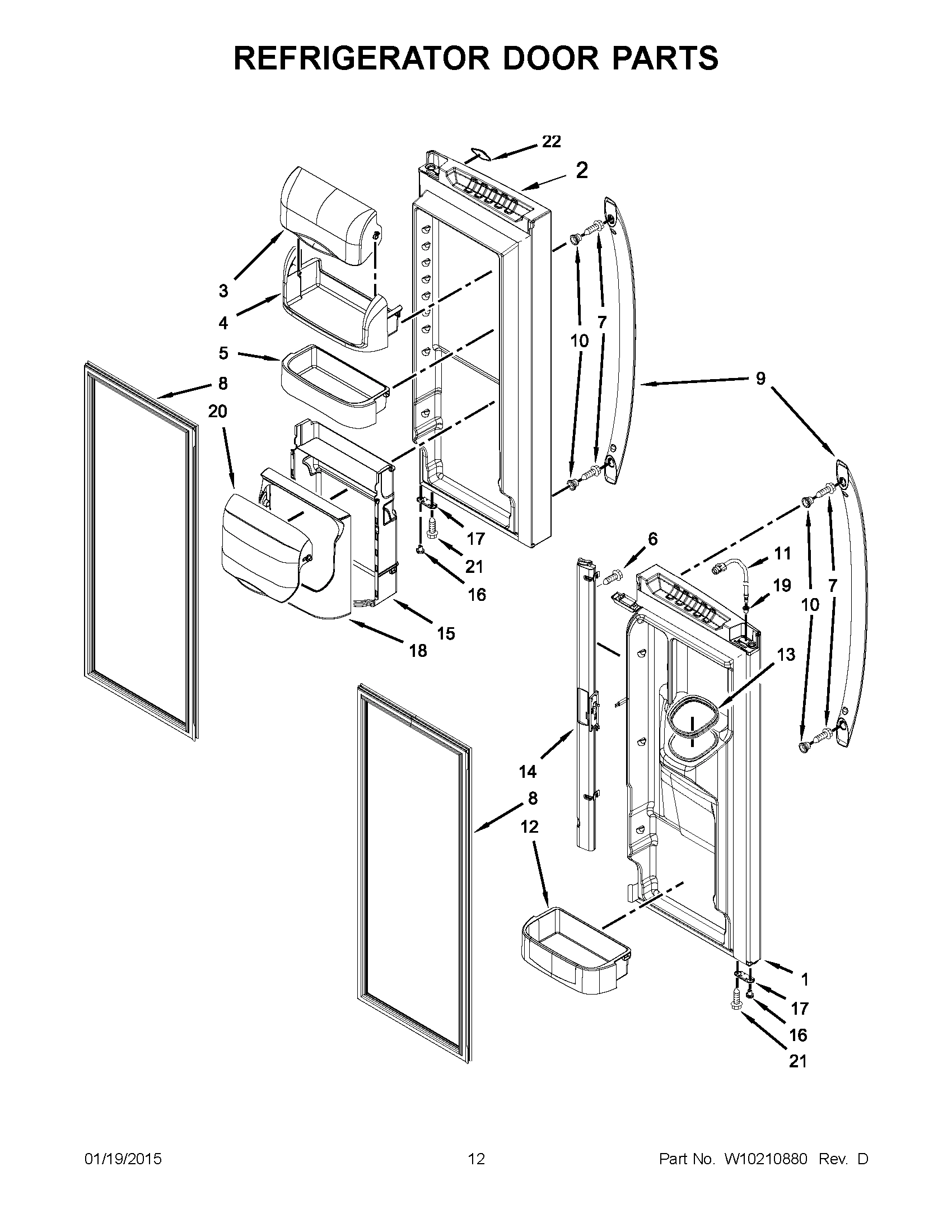

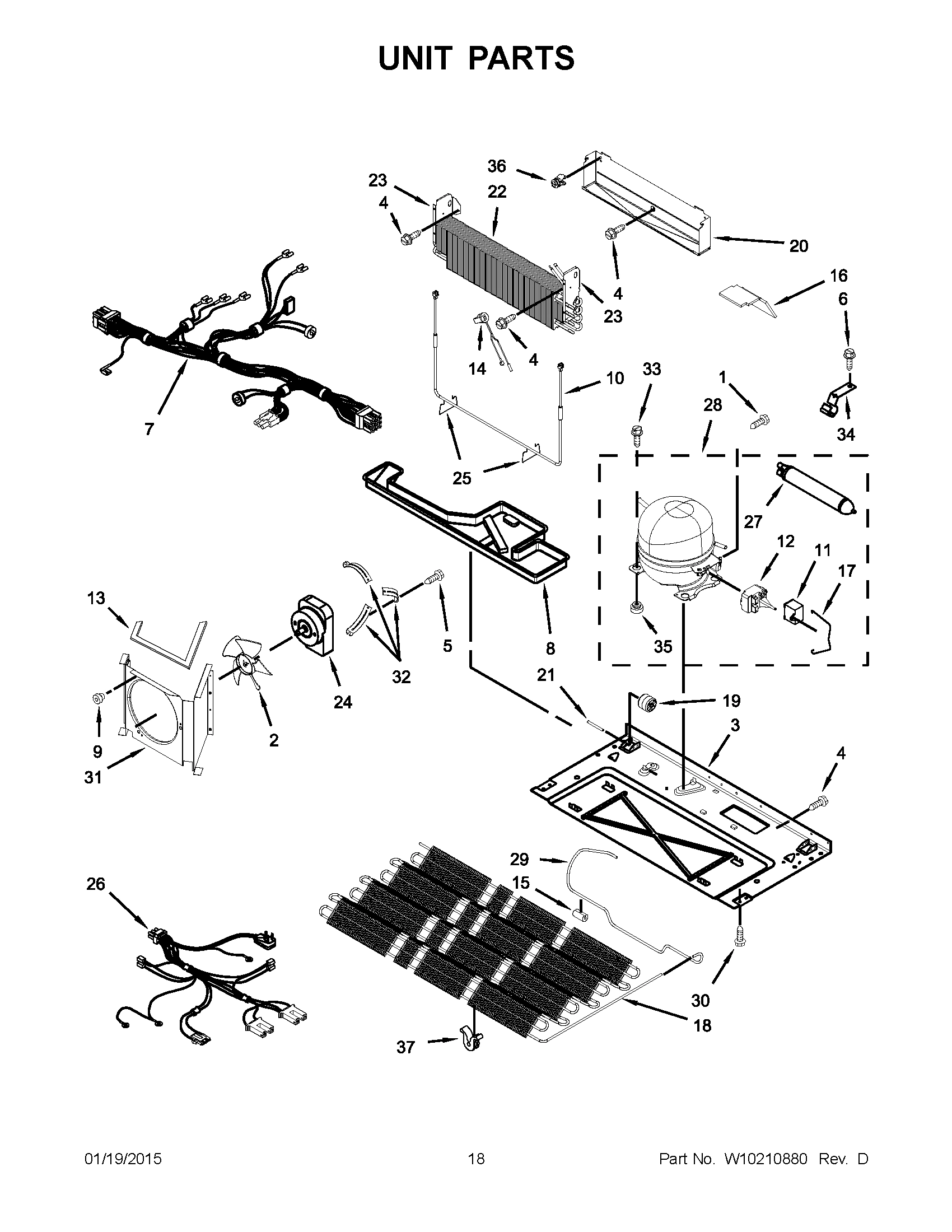

Model Whirlpool MFI2269VEA10 REFRIGERATOR – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

1

W10882923 Whirlpool Refrigerator Ice Maker As In Stock WPL W10882923 $142.15

1

WPW10165870 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10165870 $152.59

1

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

1A

FREEZER DOOR (BLACK) WPL W10160125 Contact Us For Availability

1B

FREEZER DOOR (BISQUE) WPL W10160128 Contact Us For Availability

1C

12977868SQ Whirlpool Refrigerator DOR-FIP MS Backorder WPL 12977868SQ $561.65

1D

FREEZER DOOR (MONOCHROMATIC SATINA) WPL 12977819LQ Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

2

W10776982 Whirlpool Refrigerator Electronic C Backorder WPL W10776982 $221.52

2

W11551552 Whirlpool Refrigerator Water Tube Backorder WPL W11551552 $11.35

2

WPW10121269 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10121269 $62.64

2

WPW10123792 Whirlpool Refrigerator Handle Backorder WPL WPW10123792 $146.46

2

EXTRA, GLASS SUPPORT WPL W10165872 Contact Us For Availability

2

MODULE, LIGHT WPL 67006328 Contact Us For Availability

2A

W10776981 Whirlpool Control Board Backorder WPL W10776981 $221.52

2A

HANDLE, DOOR (BLACK) WPL W10123794 Contact Us For Availability

2B

W10123793 Whirlpool Refrigerator Handle Backorder WPL W10123793 $147.45

2B

KEYBOARD (BISQUE) WPL W10164468 Contact Us For Availability

2C

WPW10123795 Whirlpool Refrigerator Handle Backorder WPL WPW10123795 $172.39

2C

KEYBOARD (SILVER) WPL W10164470 Contact Us For Availability

2D

W10740217 Whirlpool Dispenser Control Board In Stock WPL W10740217 $165.36

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

3

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

3

67006294 Whirlpool Control Board Backorder WPL 67006294 $182.03

3

WP67005920 Whirlpool Refrigerator Crisper Dra Backorder WPL WP67005920 $51.02

3

FOIL, LIGHT WPL 67006326 Contact Us For Availability

3

BASEPAN WPL 12591404 Contact Us For Availability

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $14.02

4

W10166785 Whirlpool Refrigerator Trim Backorder WPL W10166785 $66.56

4

W10443323 Whirlpool Refrigerator Gasket FIP Backorder WPL W10443323 $225.98

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $231.82

4

SUMP, DISPENSER (WHITE) WPL W10142274 Contact Us For Availability

4A

W10436254 Whirlpool Refrigerator FIP Gasket Backorder WPL W10436254 $231.78

4A

SUMP, DISPENSER (BLACK) WPL W10164979 Contact Us For Availability

4B

W10164981 Whirlpool Refrigerator Drip Tray Backorder WPL W10164981 $46.84

4B

WPW10443324 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10443324 $153.55

4C

SUMP, DISPENSER (MIDNIGHT GREY) WPL W10185235 Contact Us For Availability

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $25.33

5

WP13005703W Whirlpool Refrigerator Chute Backorder WPL WP13005703W $209.67

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

5

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $52.59

5A

WP13005703B Whirlpool Refrigerator Chute Backorder WPL WP13005703B $210.09

5B

CHUTE, EXT/YOKE (INCLUDES SWITCH) (BISQUE) WPL W10191153 Contact Us For Availability

5C

WP13005705 Whirlpool Refrigerator Chute Backorder WPL WP13005705 $249.44

6

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $62.24

6

W10166235 Whirlpool Refrigerator Freezer Bin Backorder WPL W10166235 $119.78

6

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

6

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

6B

W10191141 Whirlpool Refrigerator Tube Cover Backorder WPL W10191141 $9.51

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $38.47

7

W10166742 Whirlpool Refrigerator Bracket Backorder WPL W10166742 $67.42

7

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $179.93

7

COVER, LIGHT WPL 67006318 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

8

W10142272 Whirlpool Refrigerator Cover Backorder WPL W10142272 $177.12

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $90.38

8

DIVIDER, ICE BOX WPL 12958408 Contact Us For Availability

8

PAN, DRAIN WPL 67004713 Contact Us For Availability

8A

W10166236 Whirlpool Refrigerator Freezer Bin Backorder WPL W10166236 $177.93

8A

W10851309 Whirlpool Shelf Support Backorder WPL W10851309 $4.82

8A

WPW10164982 Whirlpool Refrigerator Cover Backorder WPL WPW10164982 $159.23

8B

FACADE, DISPENSER (BISCUIT/BISQUE) WPL W10164983 Contact Us For Availability

8C

FACADE, DISPENSER (SATINA) WPL W10172895 Contact Us For Availability

8D

WPW10310688 Whirlpool Refrigerator Cover Backorder WPL WPW10310688 $145.80

9

M0108106 Whirlpool Refrigerator Clamp Backorder WPL M0108106 $48.89

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

9

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.15

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $6.02

9

GASKET, PANTRY WPL W10165873 Contact Us For Availability

9

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

67006342 Whirlpool Refrigerator Auger Motor Backorder WPL 67006342 $233.53

W10165876 Whirlpool Refrigerator Housing Backorder WPL W10165876 $56.25

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WPW10166768 Whirlpool Refrigerator Heater Backorder WPL WPW10166768 $118.73

ADAPTER, BIN (INNER) WPL W10163002 Contact Us For Availability

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $83.96

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $102.91

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $232.76

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $46.20

COVER, WATER TANK (UPPER) WPL 67006330 Contact Us For Availability

SHELF, GLASS WPL 13029504 Contact Us For Availability

67006344 Whirlpool Refrigerator Solenoid Backorder WPL 67006344 $145.96

W10165882 Whirlpool Refrigerator Slide Backorder WPL W10165882 $10.19

WP67006331 Whirlpool Refrigerator Water Filte In Stock WPL WP67006331 $56.28

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $69.69

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $237.32

BIN, SHELF (GALLON) WPL W10166007 Contact Us For Availability

67006329 Whirlpool Refrigerator Lower Water T Backorder WPL 67006329 $136.76

W10826788 Whirlpool Refrigerator Retainer Backorder WPL W10826788 $39.10

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

SCREW, IMPINGER WPL 67007110 Contact Us For Availability

13A

WP67006368 Whirlpool Refrigerator Retainer Backorder WPL WP67006368 $139.02

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $65.34

WP67006387 Whirlpool Refrigerator Thermostat In Stock WPL WP67006387 $58.77

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $215.16

WPW10330991 Whirlpool Refrigerator Bracket Backorder WPL WPW10330991 $102.22

14A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $103.73

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $59.09

67007111 Whirlpool Refrigerator Spring Bracke Backorder WPL 67007111 $14.02

W11712696 Whirlpool Clip Backorder WPL W11712696 $7.27

15A

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $52.22

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

12820504 Whirlpool Refrigerator Insulation Backorder WPL 12820504 $38.03

67006346 Whirlpool Refrigerator Washer Backorder WPL 67006346 $9.90

W11197396 Whirlpool Refrigerator Drawer Slide In Stock WPL W11197396 $31.07

16B

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $57.64

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

67006324 Whirlpool Refrigerator Bracket Backorder WPL 67006324 $16.36

STRAP, BALE WPL 2255199 Contact Us For Availability

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

17C

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $8.89

17C

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

W11592375 Whirlpool Door Hinge In Stock WPL W11592375 $16.65

WP12956202 Whirlpool Refrigerator Reservoir In Stock WPL WP12956202 $162.44

WPW10346420 Whirlpool Refrigerator Condenser Backorder WPL WPW10346420 $214.26

YOKE, SOLENOID WPL 67006347 Contact Us For Availability

18A

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $16.97

67006348 Whirlpool Refrigerator Spring Backorder WPL 67006348 $8.46

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $94.87

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

PLUG, BYPASS WPL 12664501 Contact Us For Availability

67006322 Whirlpool Refrigerator Dual Water Va In Stock WPL 67006322 $137.50

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $5.02

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $126.06

WPW10324089 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324089 $224.84

21

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

21

W10165861 Whirlpool Refrigerator Wire Cover Backorder WPL W10165861 $19.81

21

W11029429 Whirlpool Refrigerator Wire Harness Backorder WPL W11029429 $144.02

22

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

22

EVAPORATOR WPL W10166256 Contact Us For Availability

23

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $8.40

23

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $37.95

23

DAM (RIGHT HAND) WPL W10162951 Contact Us For Availability

23A

DAM (LEFT HAND) WPL W10162962 Contact Us For Availability

24

W10165864 Whirlpool Refrigerator Water Tube Backorder WPL W10165864 $59.24

24

MOTOR, CONDENSER WPL 67004432 Contact Us For Availability

24A

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $57.93

25

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $61.99

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

W11676465 Whirlpool Grommet Backorder WPL W11676465 $8.89

26

W10118194 Whirlpool Refrigerator Cover Backorder WPL W10118194 $62.44

26

ASSEMBLY, ROLLER BRACKET WPL 12580304 Contact Us For Availability

26

HARNESS, UNIT WPL 13060202 Contact Us For Availability

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

28

W10165910 Whirlpool Refrigerator Rod Backorder WPL W10165910 $9.74

29

W10306059 Whirlpool Refrigerator Tube Backorder WPL W10306059 $89.33

29

W11513151 Whirlpool Refrigerator Utility Pan Backorder WPL W11513151 $86.99

29

GASKET, HV CONTROL WPL 67006429 Contact Us For Availability

30

COVER, UNIT WPL 12575101WD Contact Us For Availability

30

SCREW WPL 67006573 Contact Us For Availability

31

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

31

W10827914 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827914 $129.44

31

SHROUD, CONDENSER WPL 12575309 Contact Us For Availability

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

33

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $8.39

33

WPW10165967 Whirlpool Divider Assembly Backorder WPL WPW10165967 $33.55

33

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

36

W10164397 Whirlpool Refrigerator Drain Tube In Stock WPL W10164397 $9.35

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

39B

67005958 Whirlpool Refrigerator Top Hinge Cov In Stock WPL 67005958 $13.53

39C

WPW10191117 Whirlpool Refrigerator Cover Backorder WPL WPW10191117 $13.73

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

MISCELLANEOUS, CLEANER, STAINLESS STEEL WPL 20000008 Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. WPL 542639 Contact Us For Availability

VALVE, ACCESS WPL 978028 Contact Us For Availability
