Model Whirlpool MDGT446AWW GAS DRYER – Common Parts &amp; Diagrams

1

WP3400888 Whirlpool Compactor Screw Backorder WPL WP3400888 $4.82

1

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

1

VALVE & PIPE ASSY WPL 37001127 Contact Us For Availability

1

HARNESS, WIRE - LOWER GAS WPL 37001231 Contact Us For Availability

1

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

2

PAD, FELT-COIN WPL 500121 Contact Us For Availability

2

LP TO NATURAL CONVERSION KIT WPL 650P3 Contact Us For Availability

2

ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability

2

SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability

2

GROMMET, CORD WPL 33002053 Contact Us For Availability

3

DUCT, EXHAUST WPL 505518 Contact Us For Availability

3

FACIA WPL 37001176 Contact Us For Availability

3

MANUAL, USE & CARE WPL 2202687 Contact Us For Availability

3

MANUAL, USE & CARE WPL 2206672 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

4

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

4

ENCODER, ROTARY 32 POSITION WPL 37001266 Contact Us For Availability

4

LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability

5

WP37001308 Whirlpool Igniter In Stock WPL WP37001308 $33.72

5

ENCODER, ROTARY 3 POSITION WPL 21002198 Contact Us For Availability

5

SOUNDFOIL WPL 37001147 Contact Us For Availability

6

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

6

HINGE, TOP WPL 500003 Contact Us For Availability

6

CLIP, WIRE WPL 504034 Contact Us For Availability

6

ENCODER, ROTARY 4 POSITION WPL 37001263 Contact Us For Availability

6

SOUND FOAM WPL 37001113 Contact Us For Availability

7

ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability

7

CORD, POWER (AS WRAP) WPL 33002494 Contact Us For Availability

8

DUCT, COMBUSTION WPL 37001041 Contact Us For Availability

8

HOLDER, LAMP WPL 504458 Contact Us For Availability

8

SUPPORT, SWITCH -WHT (CONSOLE) WPL 37001166 Contact Us For Availability

8

SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability

9

SHROUD, HEAT DUCT WPL 500122 Contact Us For Availability

9

LENS, LIGHT WPL 40094301 Contact Us For Availability

9

COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability

LPK1 Whirlpool Gas Dryer Natural to LP Propan In Stock WPL LPK1 $63.02

W10756689 Whirlpool Electronic Control Board Backorder WPL W10756689 $226.27

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

THERMOSTAT, LIMIT WPL Y61886 Contact Us For Availability

WP528P3 Whirlpool Vent Kit Backorder WPL WP528P3 $83.99

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $49.42

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

KNOB ASSEMBLY - ROTARY ENCODER WPL 37001185 Contact Us For Availability

12

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

12

ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability

12

RACK,DRYING WPL Y504105 Contact Us For Availability

WP21002070 Whirlpool Selector Knob Backorder WPL WP21002070 $14.02

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

14

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

14

BRACE, TOP WPL 56486 Contact Us For Availability

15

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

15

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

15

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

16

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

16

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

16

SENSOR, MOISTURE WPL 503625 Contact Us For Availability

17

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

17

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

18

WASHER, WAVE WPL Y504082 Contact Us For Availability

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

19

WP37001287 Whirlpool Dryer Idler Lever Shaft In Stock WPL WP37001287 $30.33

19

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

20

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

20

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

20

ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability

21

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

21

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

21

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

22

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

23

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

24

MOUNT, MOTOR WPL 503613 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

25

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

25

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

25

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

26

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

26

FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability

26

HOUSING, BLOWER WPL 56020 Contact Us For Availability

27

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

27

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

28

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

28

CLIP, RETAINING HARNESS WPL 40012001 Contact Us For Availability

29

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

29

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

30

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

31

WP31001590 Whirlpool Thermistor Backorder WPL WP31001590 $74.47

32

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

34

DRYER BASE WPL 37001156 Contact Us For Availability

35

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

NI

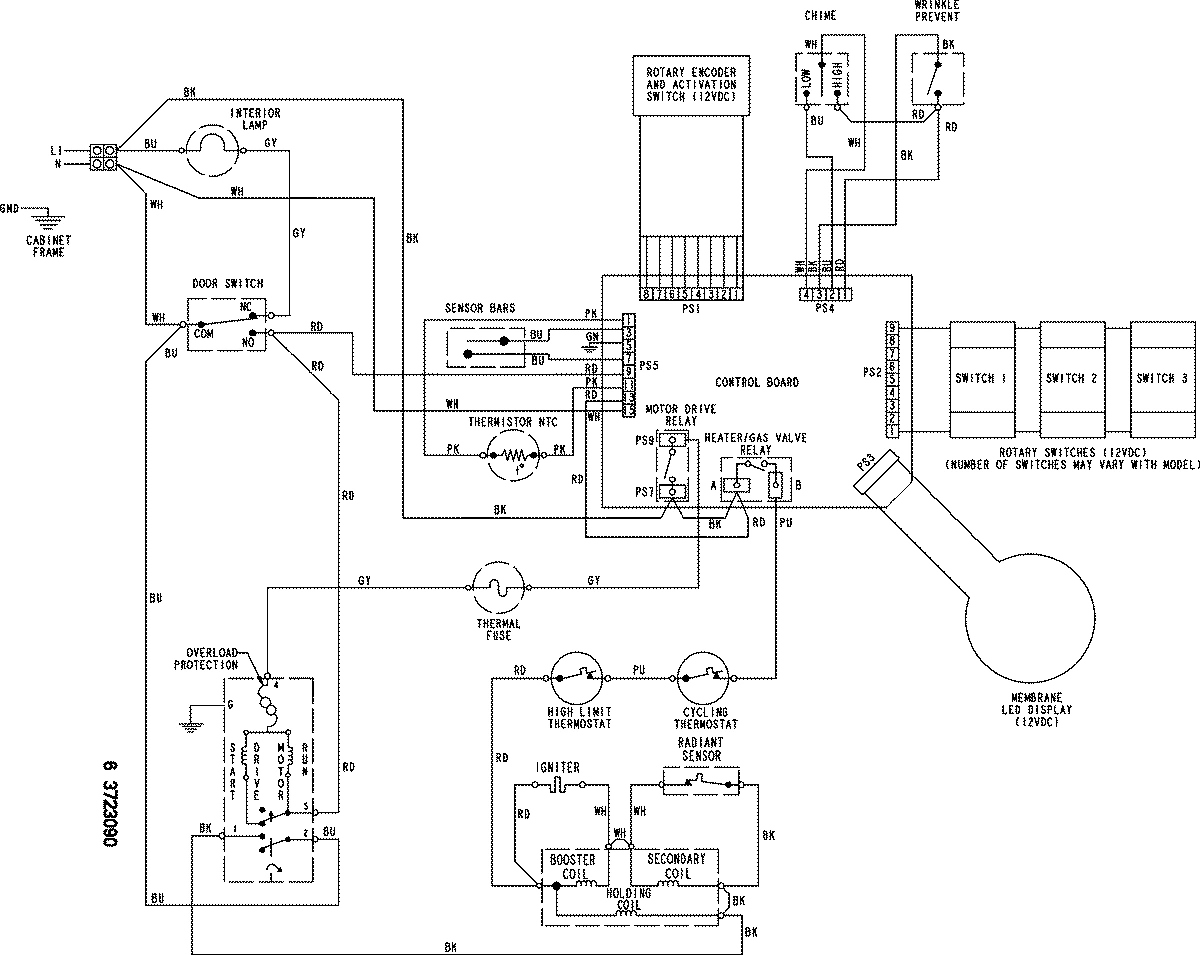

WIRING INFORMATION WPL 15003776 Contact Us For Availability
