Model Whirlpool LIT3187470 Range – Common Parts & Diagrams

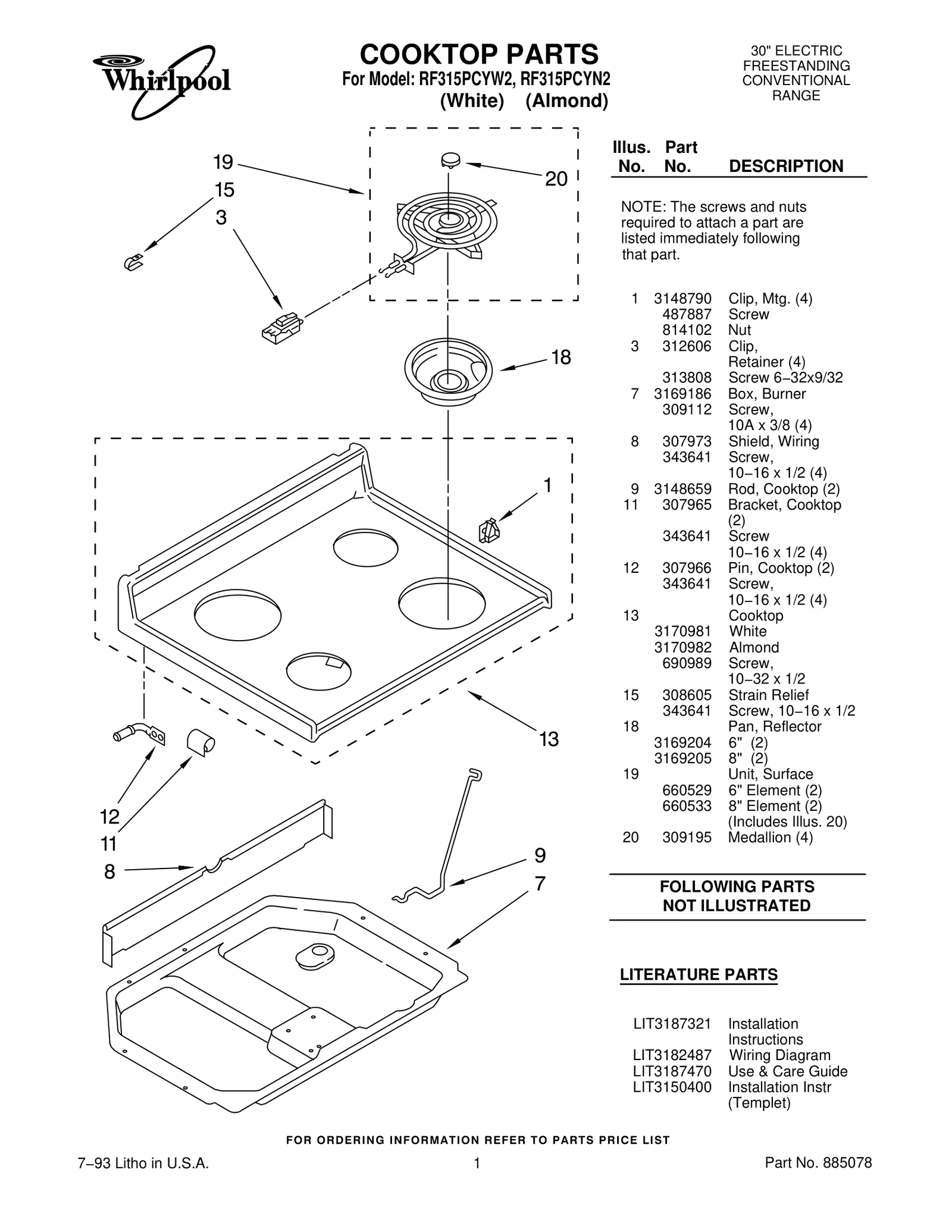

COVER
CONTROL PANEL PARTS
UNIT PARTS
DOOR AND DRAWER PARTS
OVEN PARTS
WIRING HARNESS PARTS
OPTIONAL PARTS NOT INCLUDED
Common parts from model Whirlpool LIT3187470 Range
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Main Chassis — White WPL 330086 Contact Us For Availability
1
Main Chassis — Almond WPL 330090 Contact Us For Availability
1
Wiring Harness WPL 3149881 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Wiring Harness WPL 3169155 Contact Us For Availability
3
Glass, Inner WPL 3169202 Contact Us For Availability
4
Screw (6) WPL 3148443 Contact Us For Availability
4
Retainer WPL 3148287 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Wiring Harness WPL 313154 Contact Us For Availability
5
Screw, 10−32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Glass Panel, Outer — White WPL 3149049 Contact Us For Availability
5
Glass Panel, Outer — Almond WPL 3149050 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Clip (2) WPL 3148282 Contact Us For Availability
6
Screw, 10−16 x 1 (2) WPL 98884 Contact Us For Availability
7
NOTE: The screws and nuts required to attach WPL N/S Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Handle, Door WPL 3148228 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Top, Door Frame WPL 3148223 Contact Us For Availability
9
Oven (30" Conv) WPL 3176611 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glide, Rear WPL 307980 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
12
Rail, Drawer — L.H. WPL 3149256 Contact Us For Availability
12
Rail, Drawer — R.H. WPL 3149255 Contact Us For Availability
12
Panel, Drawer — White WPL 307935 Contact Us For Availability
12
Panel, Drawer — Almond WPL 307939 Contact Us For Availability
13
Indicator Light — Oven Unit On WPL 314031 Contact Us For Availability
13
Handle, Drawer WPL 3169105 Contact Us For Availability
13
Glide, Drawer (2) WPL 3149257 Contact Us For Availability
14
Knob, Control (4) WPL 3183118 Contact Us For Availability
14
Rack, Oven WPL 308173 Contact Us For Availability
14
Protector, Drawer (2) WPL 309329 Contact Us For Availability
15
Rack, Offset WPL 308172 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
18
Block, Balance WPL 3149258 Contact Us For Availability
18
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
20
Knob, Control WPL 3183112 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, Channel — L.H. WPL 313196 Contact Us For Availability
24
Support, Channel — R.H. WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 3169283 Contact Us For Availability
32
Plug, Button (2) WPL 3169107 Contact Us For Availability
OPT-1
LENGTH WPL 242828 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Black WPL 242821 Contact Us For Availability
OPT-4
Wire, Blue WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Brown WPL 242823 Contact Us For Availability
OPT-7
Wire, Green WPL 242824 Contact Us For Availability
OPT-8
Wire, Orange WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, Red WPL 242826 Contact Us For Availability
OPT-12
Wire, White WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
New Avocado WPL 72108 Contact Us For Availability
OPT-19
Harvest Gold WPL 72112 Contact Us For Availability
OPT-24
Almond WPL 261888 Contact Us For Availability
OPT-25
New Avocado WPL 261886 Contact Us For Availability
OPT-26
Coffee WPL 261890 Contact Us For Availability
OPT-27
Harvest Gold WPL 285365 Contact Us For Availability
OPT-28
Toast WPL 285366 Contact Us For Availability
OPT-31
Primer (White) WPL 206925 Contact Us For Availability
OPT-32
PAINT, BULK (1 qt.) WPL 799344 Contact Us For Availability
OPT-33
White (Uncut) WPL 978883 Contact Us For Availability
OPT-34
Almond (Uncut) WPL 261891 Contact Us For Availability
OPT-35
(Uncut) WPL 285367 Contact Us For Availability
OPT-36
Toast (Uncut) WPL 285368 Contact Us For Availability
OPT-37
REFINISHING MATERIAL WPL 799832 Contact Us For Availability
OPT-39
Self−Clean (1/2 Pt.) WPL 261582 Contact Us For Availability
OPT-42
x 22" x 120" WPL 241430 Contact Us For Availability
× ![]()
