Model Whirlpool KTRS25KDBL00 – Common Parts & Diagrams
06 - REFRIGERATOR DOOR

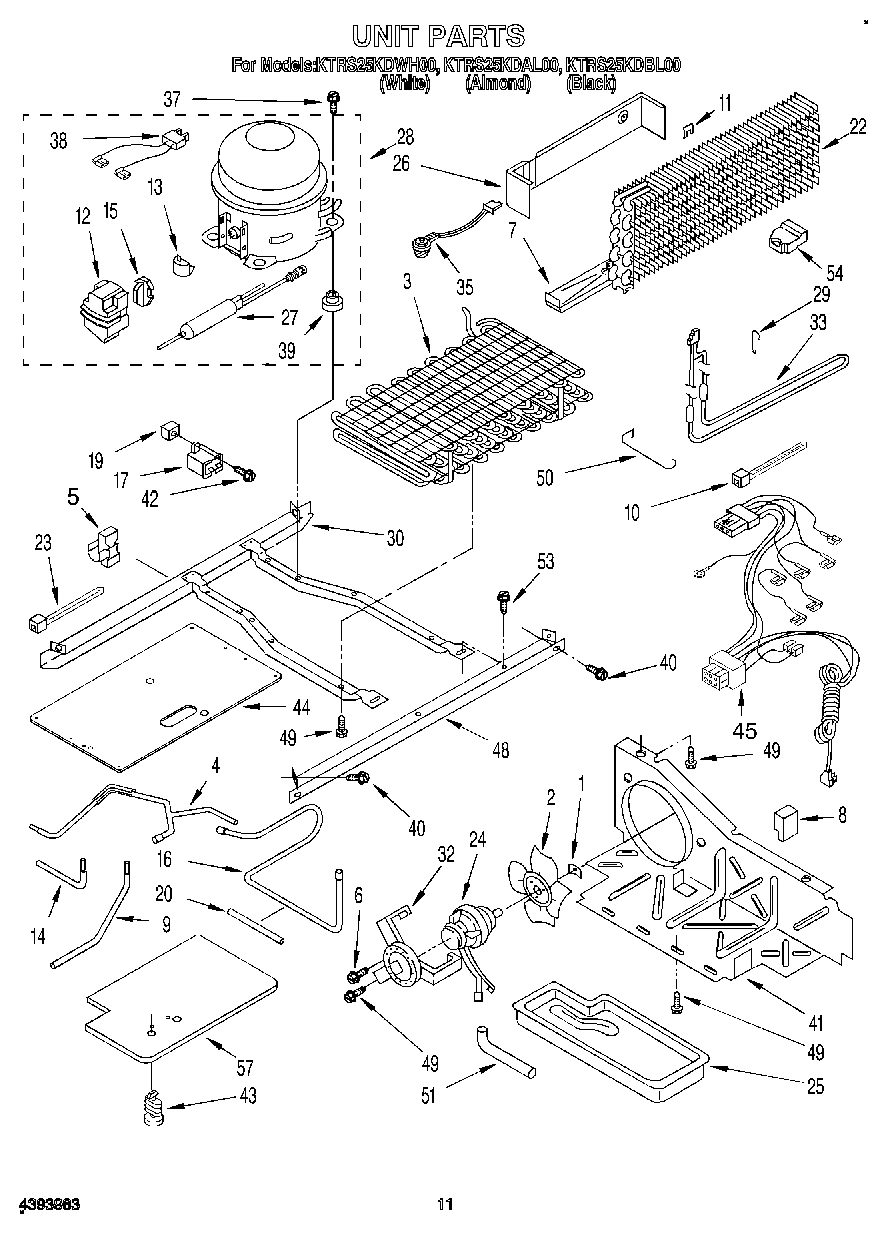

07 - UNIT, LIT/OPTIONAL

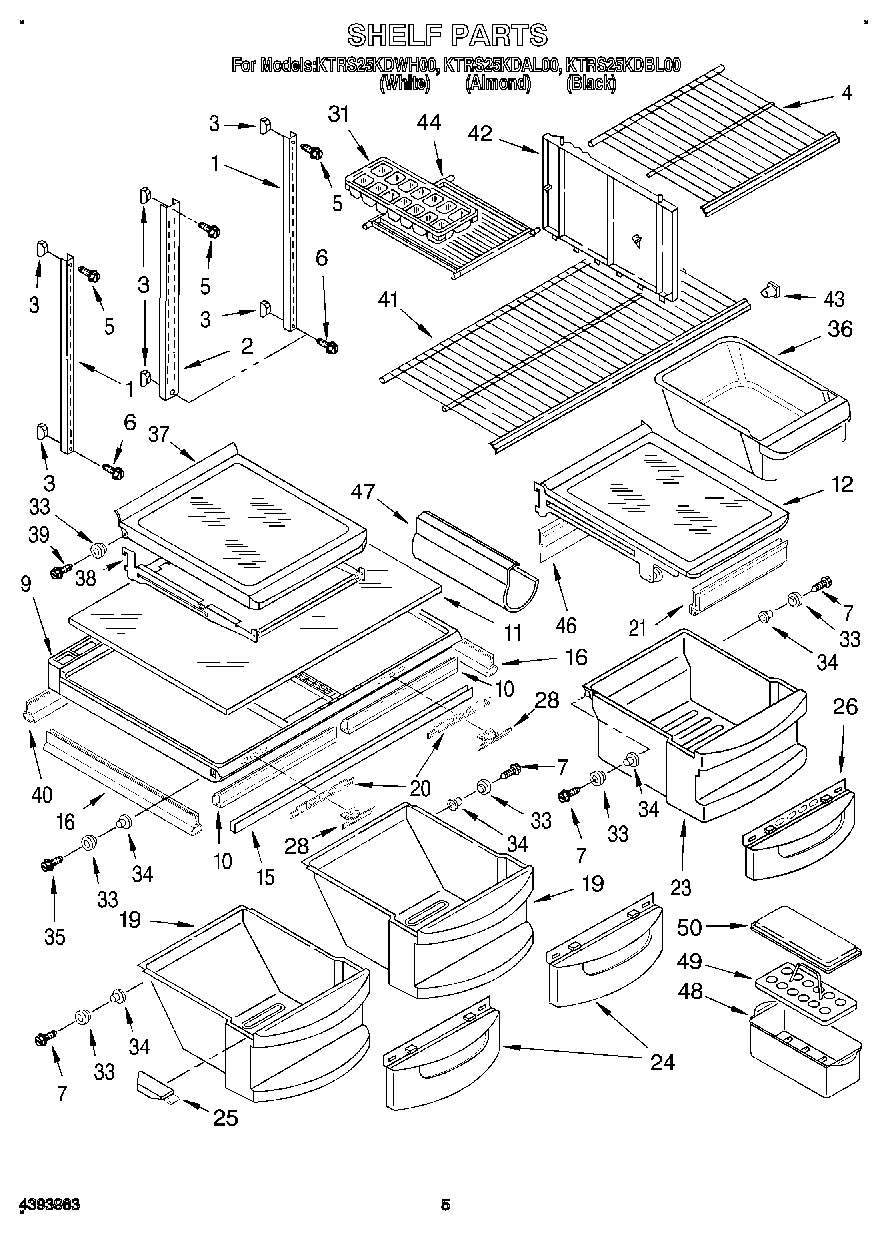

03 - SHELF

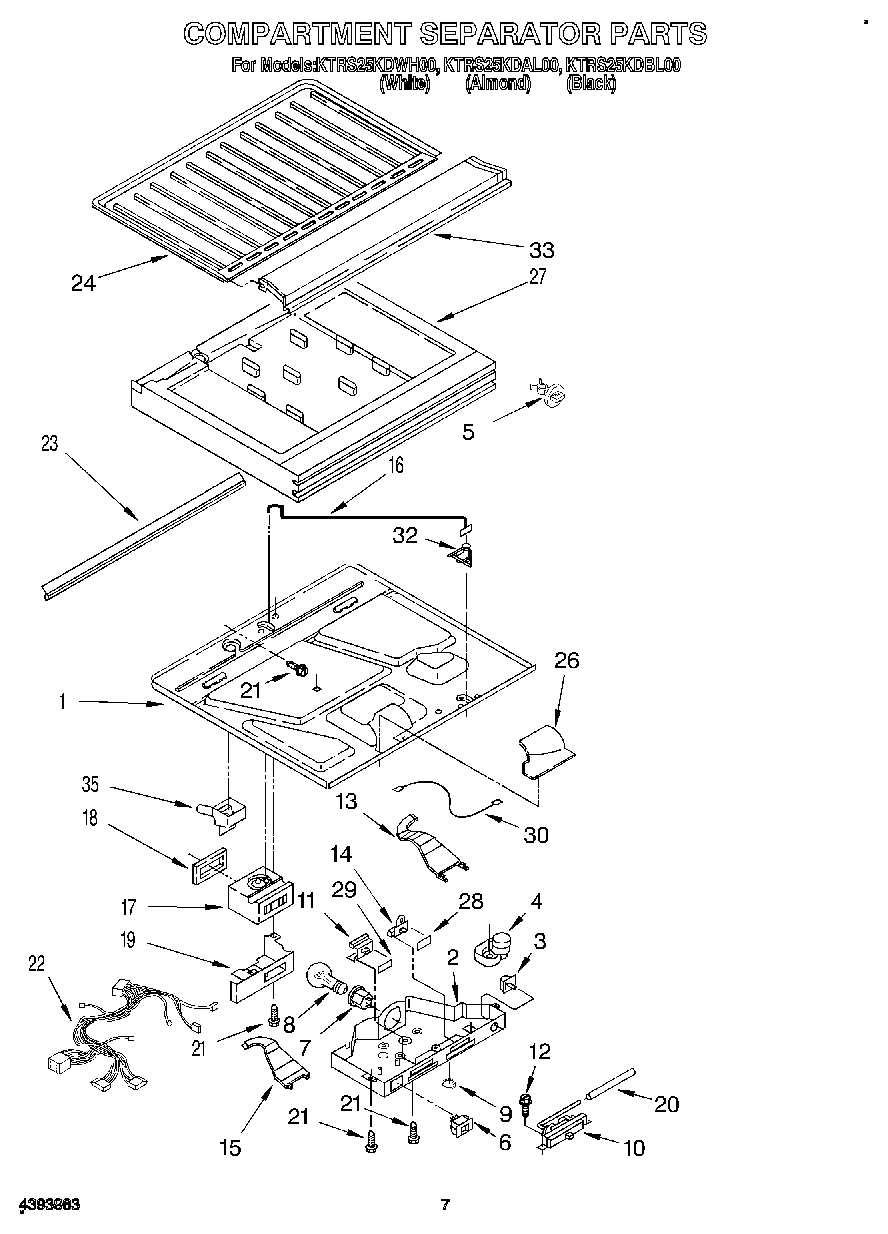

04 - COMPARTMENT SEPARATOR

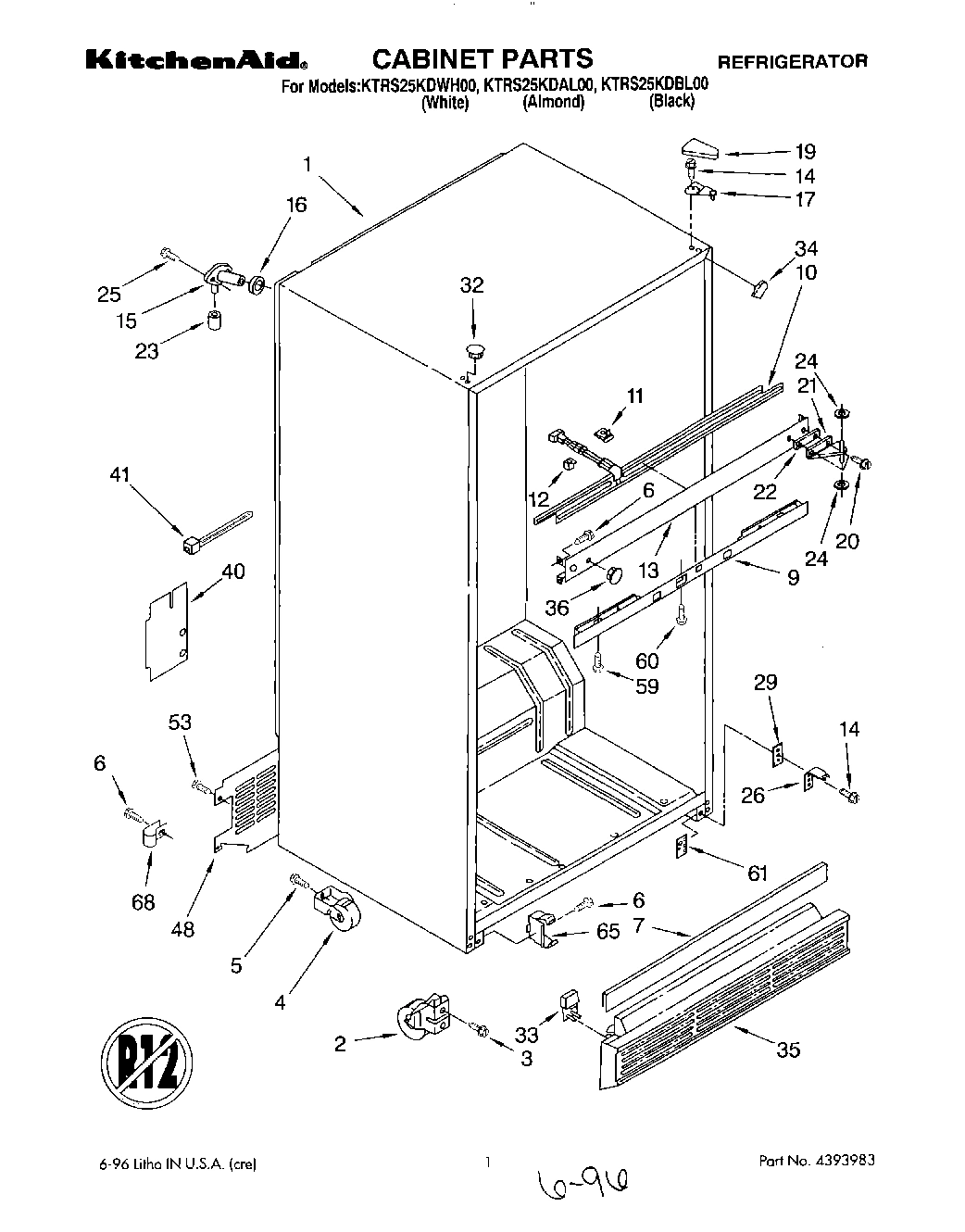

01 - CABINET

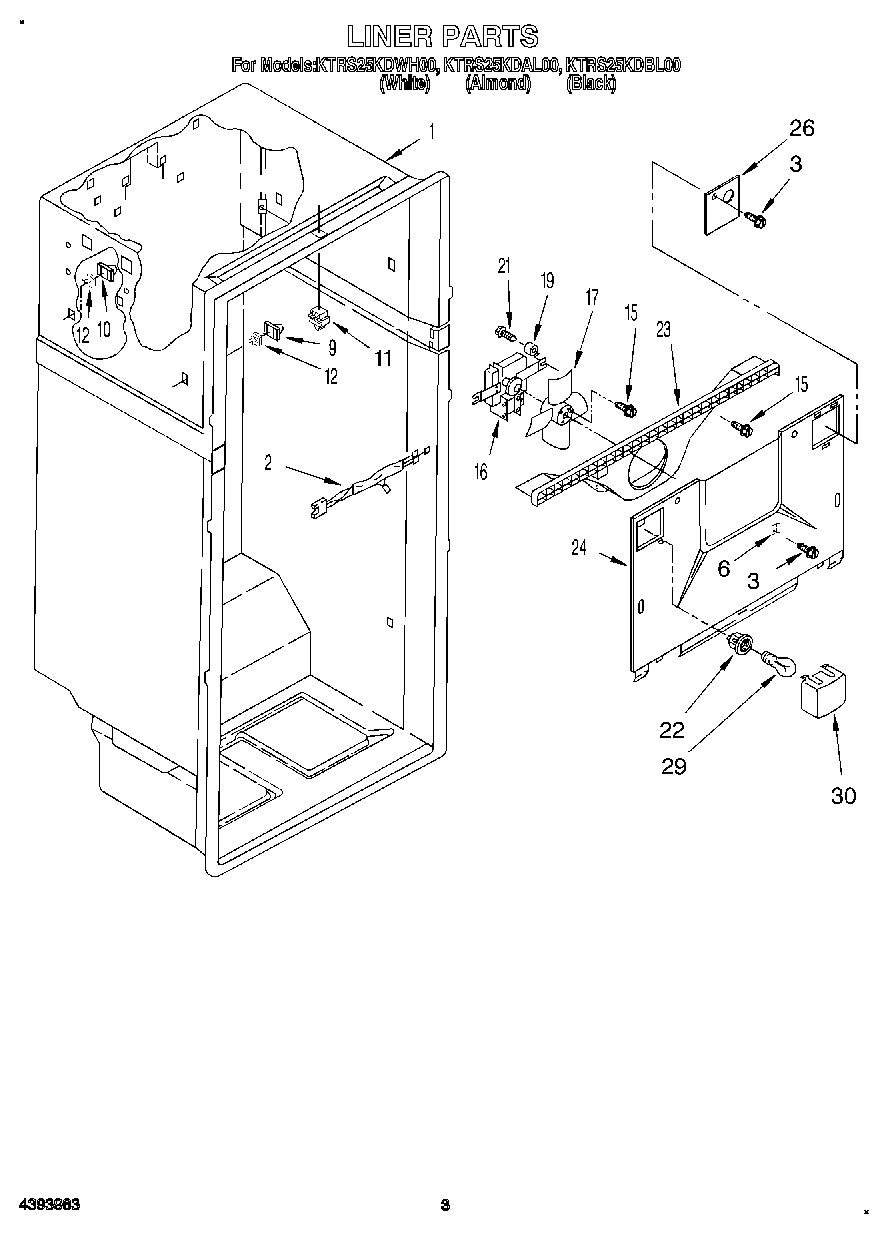

02 - LINER

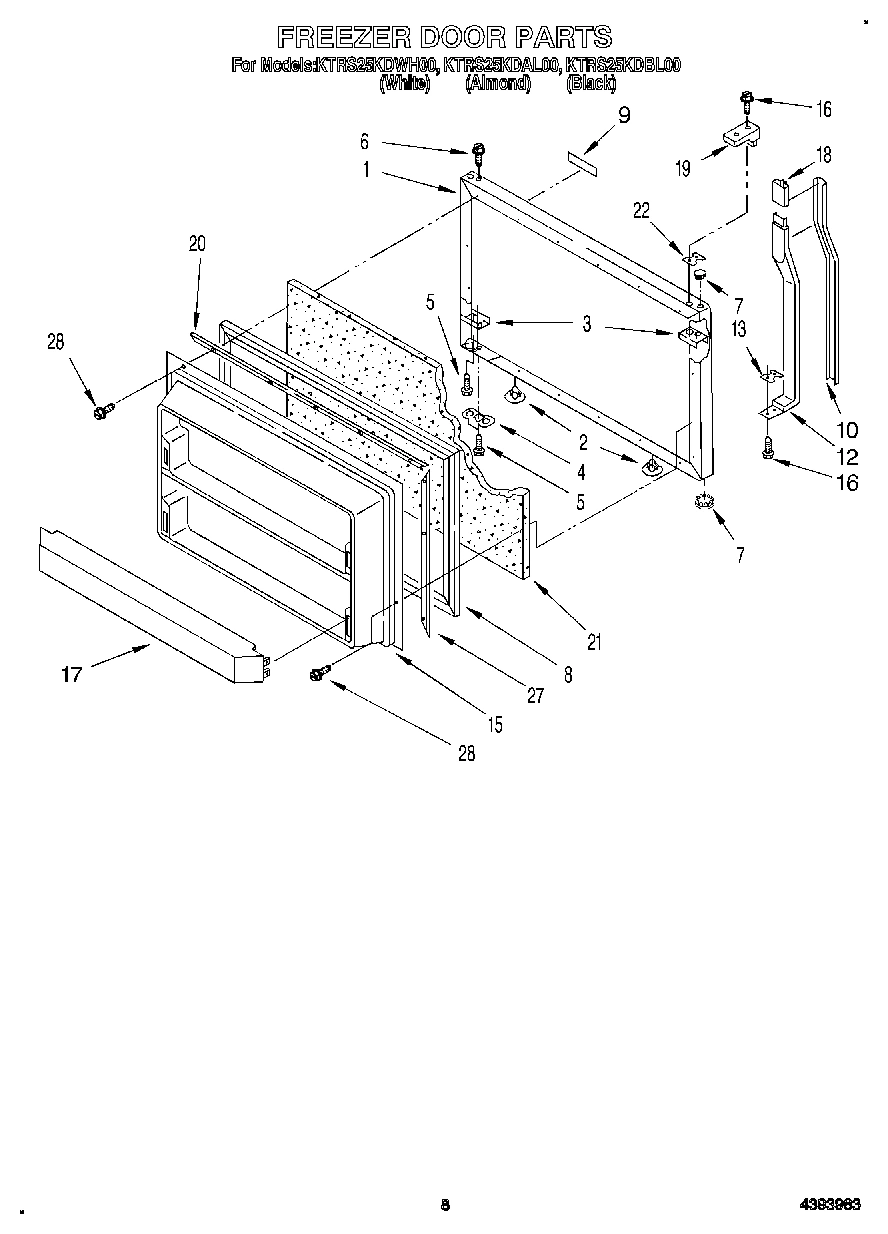

05 - FREEZER DOOR
Common parts from model Whirlpool KTRS25KDBL00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174813 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112891A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112892A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Box, Control WPL 2174829 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Shelf, Freezer (Top) WPL 2179447 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Door Gasket Magnetic WPL 2177229 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2174132 Contact Us For Availability
9
Control, Front Cover WPL 2179546 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Nameplate (White Model) WPL 2168800 Contact Us For Availability
9
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
9
Nameplate (Black) WPL 2168992 Contact Us For Availability
10
Thermostat WPL 2161831 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Insert, Handle (White) WPL 2161568 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161569 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161853 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174145 Contact Us For Availability
11
Slide, Thermostat WPL 1125513 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2174386 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Handle, Center WPL 2161509 Contact Us For Availability
13
Light, Bar Left WPL 2160640 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Center Rail (Black) WPL 2183821 Contact Us For Availability
13
Spacer WPL 1107192 Contact Us For Availability
14
Slide, Air Control WPL 1125578 Contact Us For Availability
15
Relay (See Overload) WPL ARI112893A Contact Us For Availability
15
Crisper Support WPL 2179449 Contact Us For Availability
15
Light, Bar Right WPL 2160641 Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
16
Tube, Suction WPL 2162473 Contact Us For Availability
16
Gasket, Pan Cover (Side) Container WPL 2179252 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Trivet, Door WPL 2171357 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Retainer, Insert WPL 2161570 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174072 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
End Cap WPL 1125788 Contact Us For Availability
20
Slide, Humidity WPL 2174257 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Door Utility WPL 2183037 Contact Us For Availability
21
Gasket-Front WPL 2174400 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2174831 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Spacer, Handle WPL 1125789 Contact Us For Availability
23
Meat Pan WPL 2174087 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
24
Window, Crisper Pan WPL 2174073 Contact Us For Availability
24
Separator, Compartment (Rear) WPL 2162455 Contact Us For Availability
24
Evaporator Cover WPL 1123399 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
26
Heat Shield WPL 1116511 Contact Us For Availability
26
Window, Meat Pan WPL 2174088 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174818 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
28
Button, Humidity Control WPL 2174253 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
29
Spacer, Bottom WPL 2172744 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Roller WPL 2174388 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125714 Contact Us For Availability
35
Grille (Almond) WPL 1125716 Contact Us For Availability
35
Grille (Black) WPL 1129002 Contact Us For Availability
36
Pan, Ice Cube WPL 2174124 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Shelf, Spillguard WPL 2174018 Contact Us For Availability
38
Frame & Roller Assembly WPL 2174020 Contact Us For Availability
39
Screw WPL 489439 Contact Us For Availability
40
Gasket, Pan Cover-Rear WPL 2179250 Contact Us For Availability
40
Cover, Water Valve WPL 2183114 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Shelf, Freezer WPL 1125745 Contact Us For Availability
42
Divider WPL 2179446 Contact Us For Availability
44
Bottom Plate WPL 2157364 Contact Us For Availability
44
Shelf, Ice Compartment WPL 1125543 Contact Us For Availability
45
Wire Assembly WPL 2176857 Contact Us For Availability
46
Gasket-Rear WPL 2179565 Contact Us For Availability
48
Cover, Unit WPL 2183134 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
50
Cover, Egg Bin WPL 2169935 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
57
WPL 978029 WPL 978029 Contact Us For Availability
57
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
57
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
57
Door Removal Instructions WPL 2168575 Contact Us For Availability
57
WPL 542639 WPL 542639 Contact Us For Availability
57
WPL 799833 WPL 799833 Contact Us For Availability
57
WPL 978028 WPL 978028 Contact Us For Availability
57
WPL 978883 WPL 978883 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
