Model Whirlpool KTRS25KAAL00 – Common Parts & Diagrams
04 - SHELF, LIT/OPTIONAL

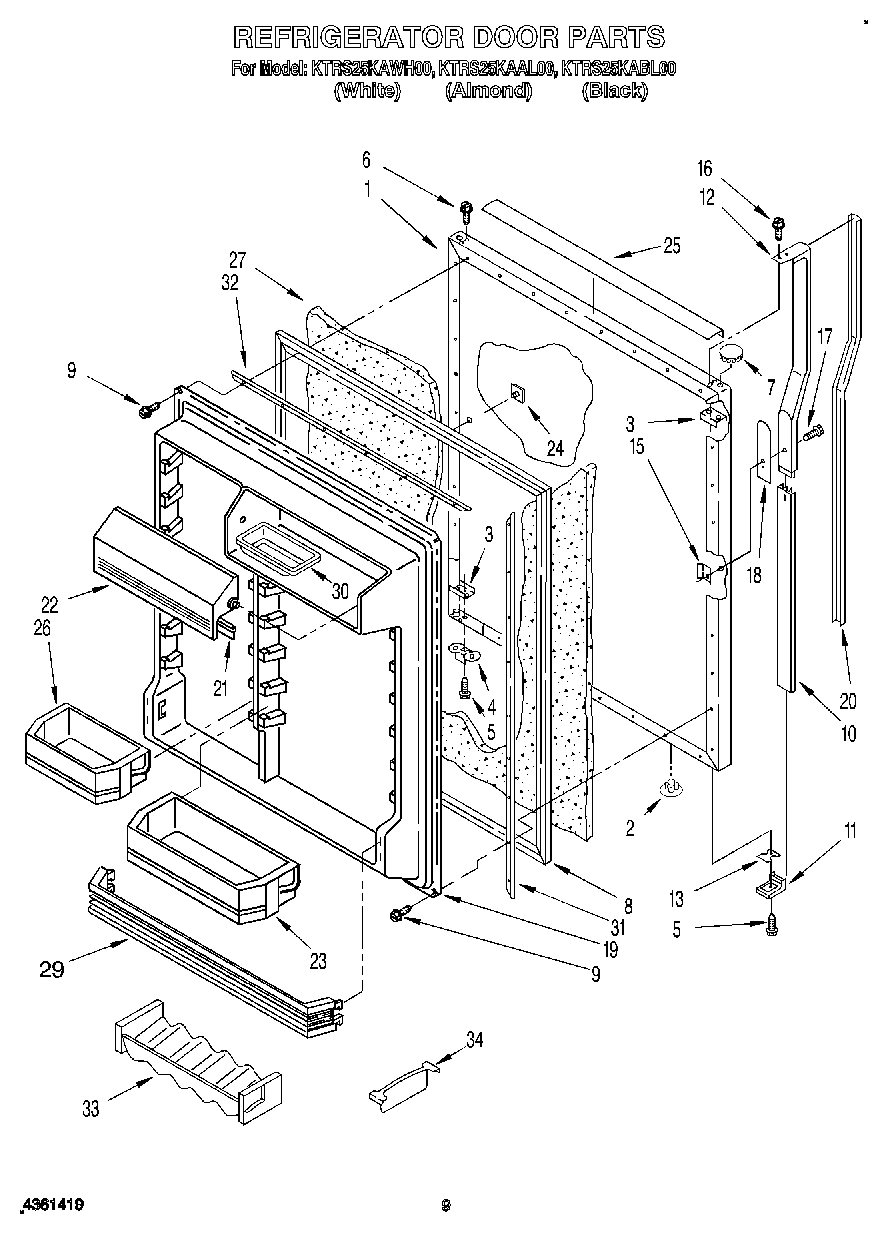

06 - REFRIGERATOR DOOR

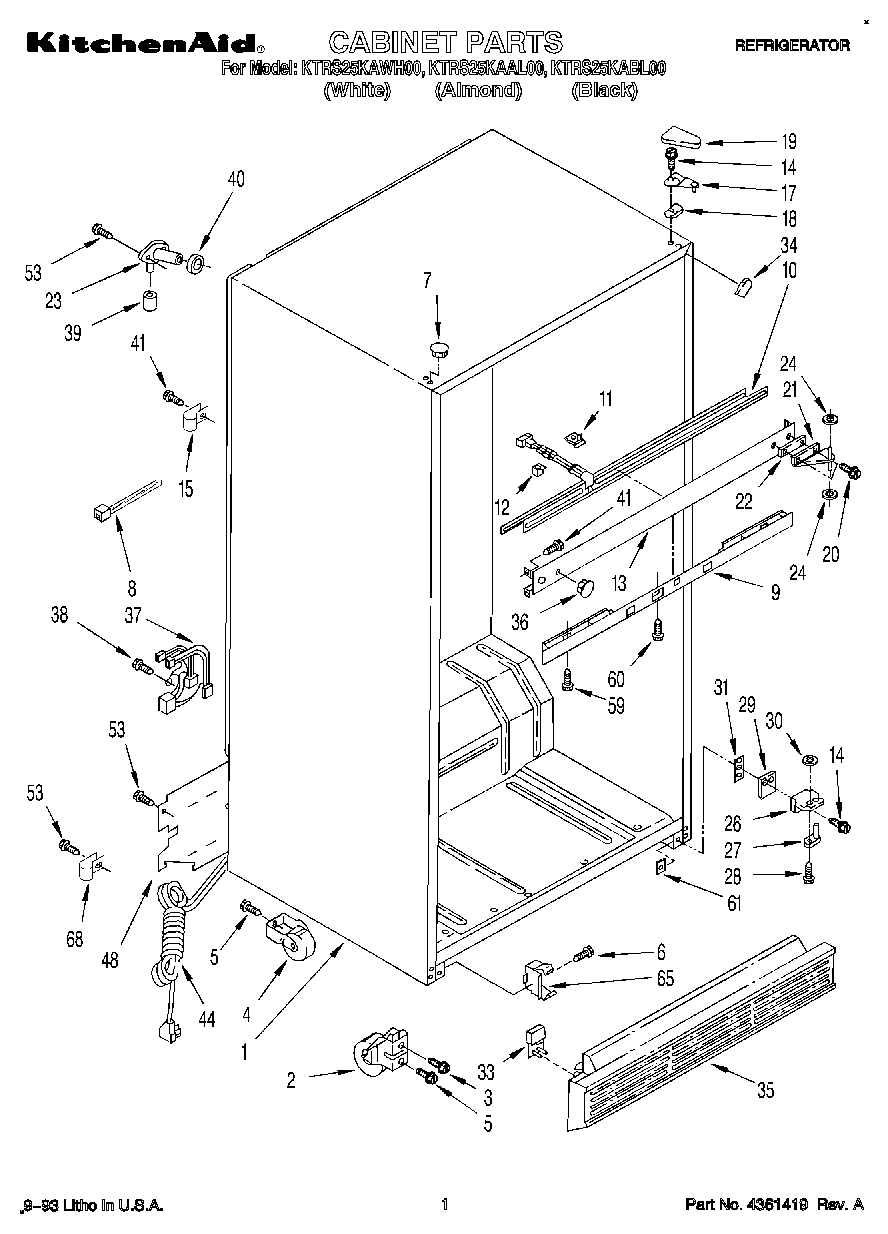

01 - CABINET

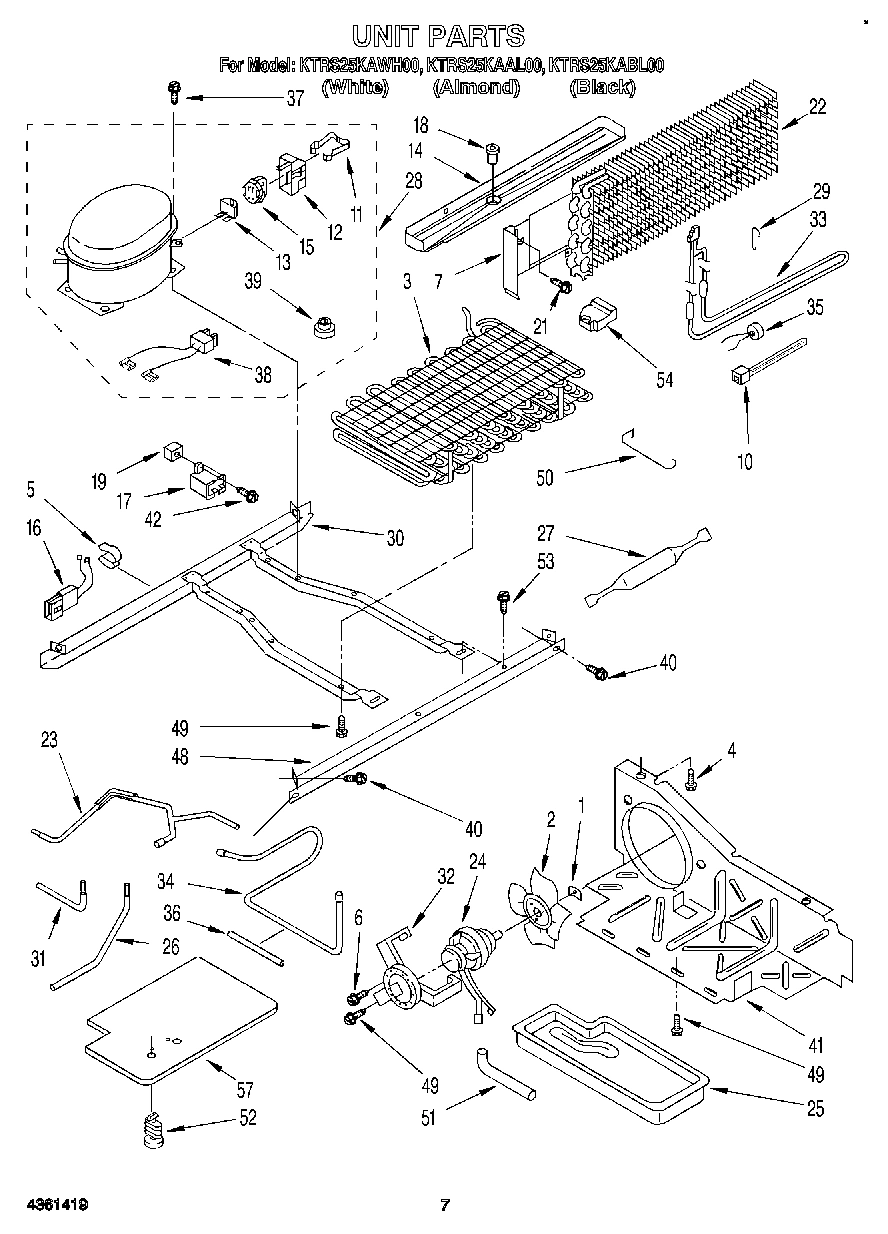

05 - UNIT

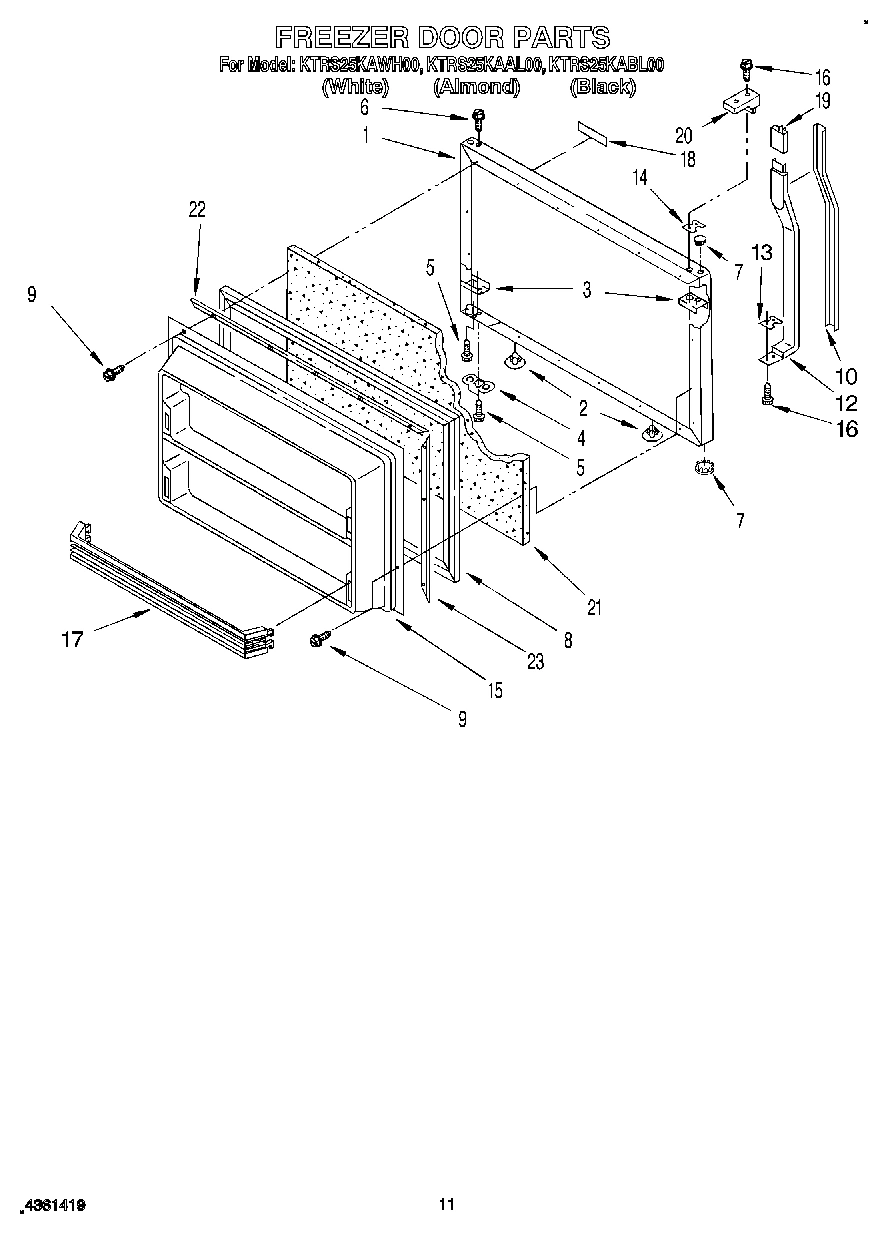

07 - FREEZER DOOR

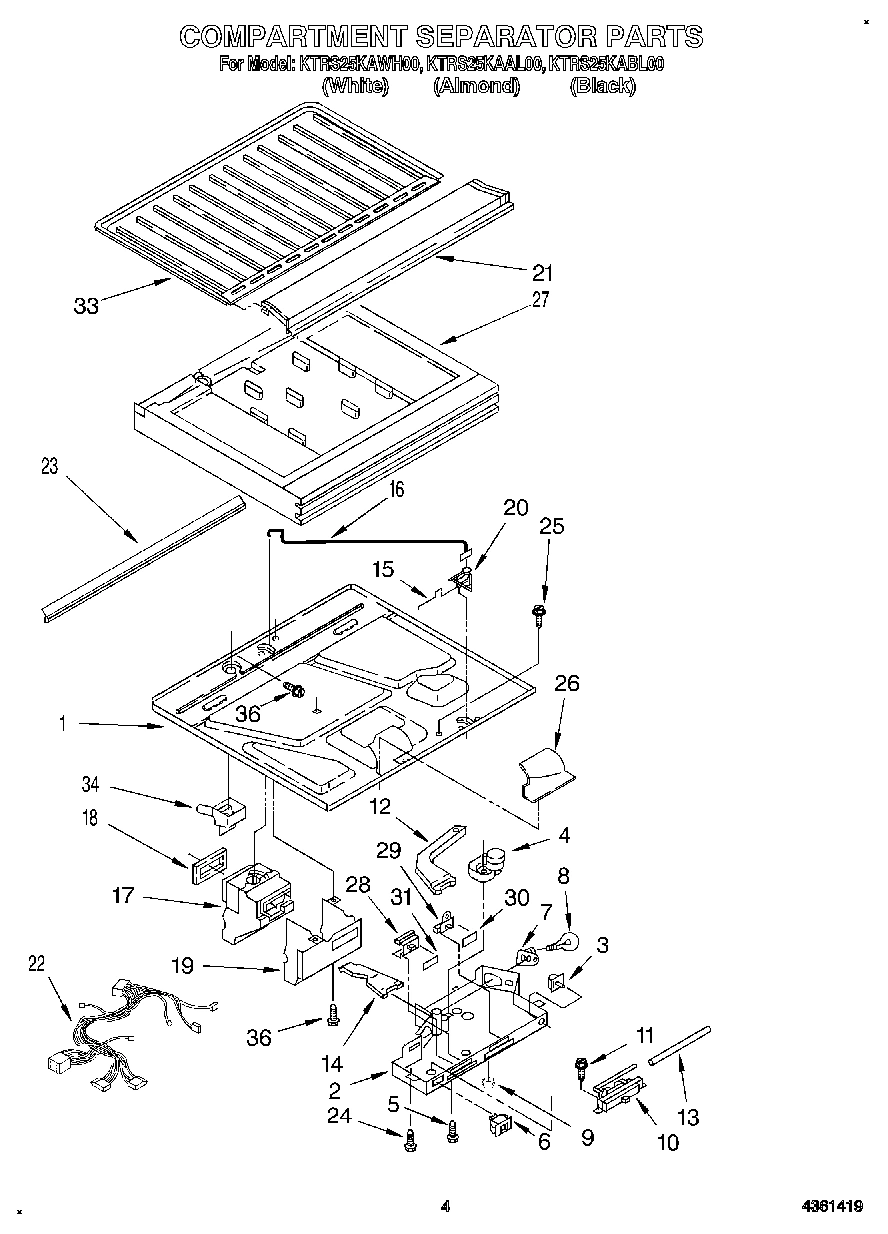

03 - COMPARTMENT SEPARATOR

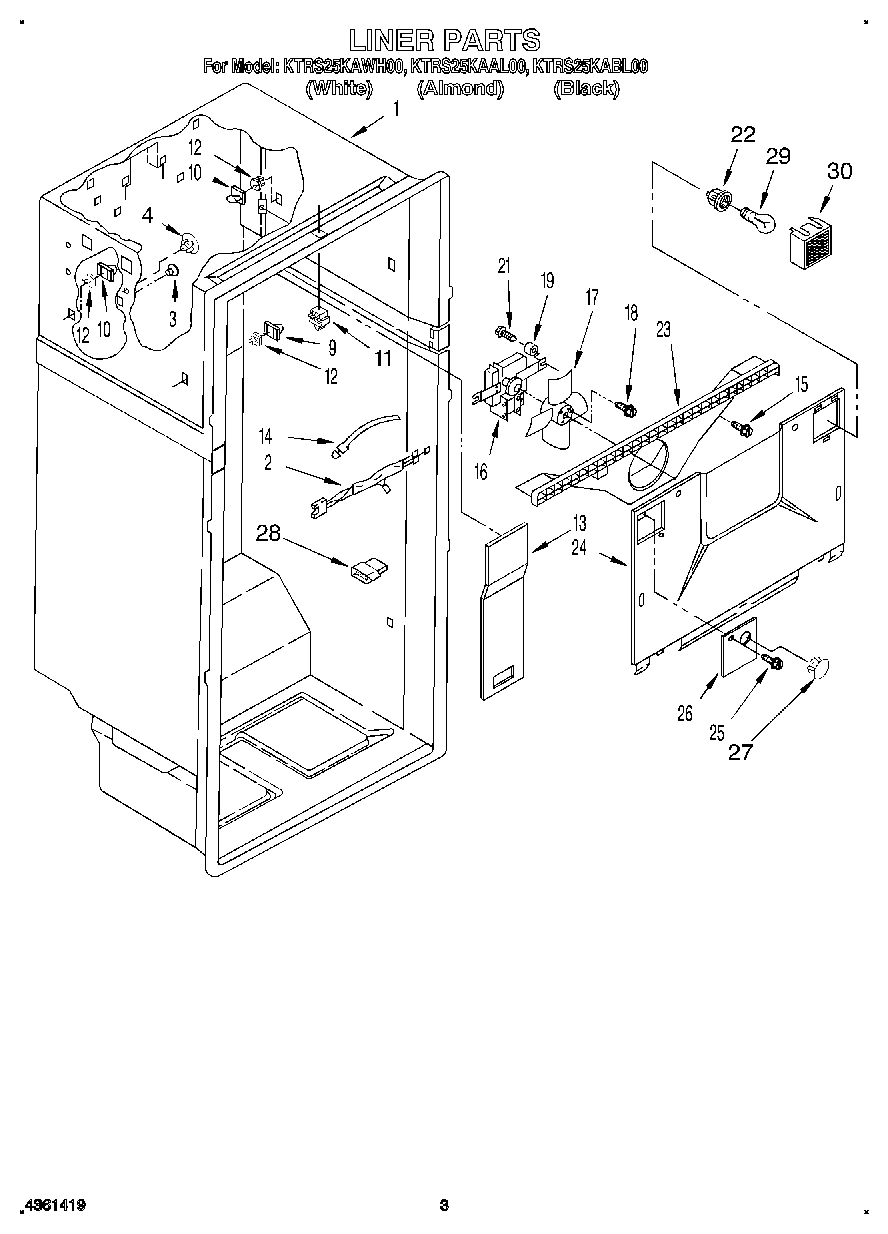

02 - LINER
Common parts from model Whirlpool KTRS25KAAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112843A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1125871 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112844A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Box, Control WPL 1125510 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
7
Heat Shield WPL 1116511 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125923 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125922 Contact Us For Availability
9
Control, Front Cover WPL 1117939 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Insert, Handle (White) WPL 2161568 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161569 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161853 Contact Us For Availability
10
Thermostat Assembly WPL 2161831 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
13
Shim, End Cap WPL 2151813 Contact Us For Availability
13
Center Rail (White) WPL 2154187 Contact Us For Availability
13
Spacer WPL 1107192 Contact Us For Availability
13
Cover, Air Duct WPL 2159578 Contact Us For Availability
14
Drain Pan WPL 1114597 Contact Us For Availability
14
Spacer, Handle WPL 1125789 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
15
Relay (See Overload) WPL ARI112845A Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
17
Shelf Bin (2) WPL 1125743 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Nameplate (White) WPL 1125818 Contact Us For Availability
18
Nameplate (Almond) WPL 1125819 Contact Us For Availability
18
Nameplate (Black) WPL 2161715 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Interior Door Panel WPL 1125742 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Retainer, Insert WPL 2161570 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
20
End Cap WPL 1125788 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
22
Retainer, Gasket WPL 1121119 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2153980 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
23
Tube, Discharge WPL 2162475 Contact Us For Availability
23
Retainer, Gasket WPL 1121120 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 1123399 Contact Us For Availability
25
Trim, Door WPL 1118063 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Shelf Bin (3) WPL 1125744 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1114561 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Retainer, Gasket WPL 1123245 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Separator,(Rear) Compartment (Top) WPL 1114562 Contact Us For Availability
34
Load Lock WPL 1117999 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Tube, Suction WPL 2162473 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125714 Contact Us For Availability
35
Grille (Almond) WPL 1125716 Contact Us For Availability
35
Grille (Black) WPL 1129002 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
