Model Whirlpool KTRS22KDWH01 – Common Parts & Diagrams

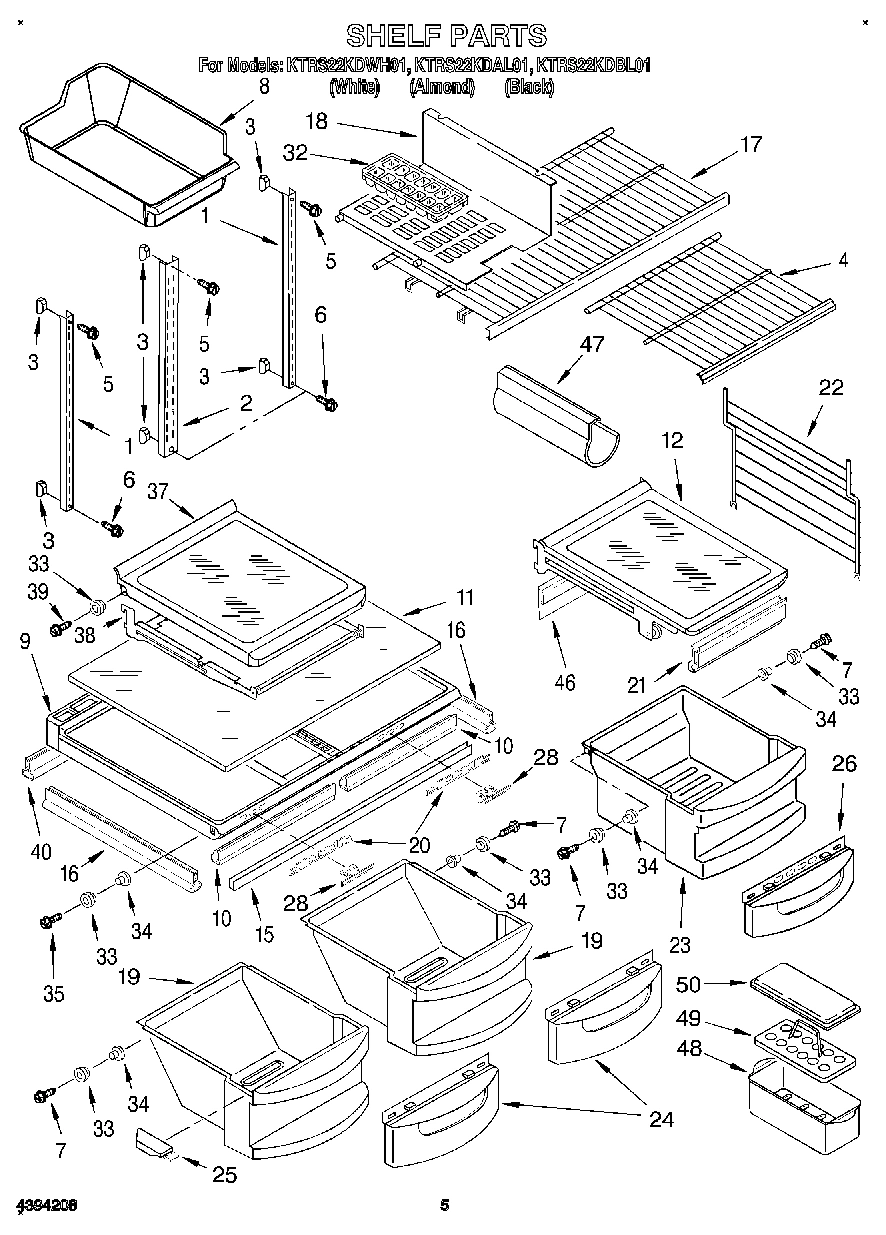

04 - SHELF, LIT/OPTIONAL

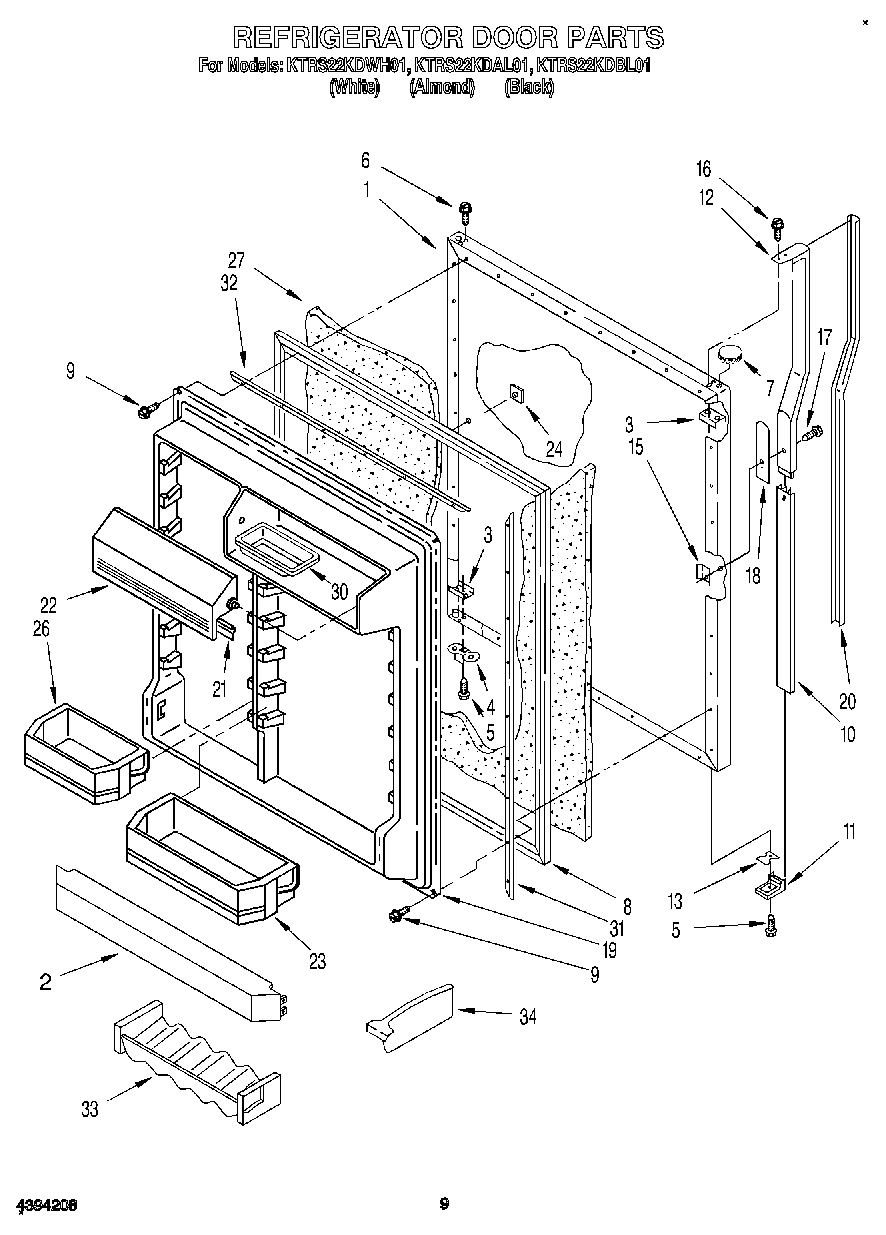

06 - REFRIGERATOR DOOR

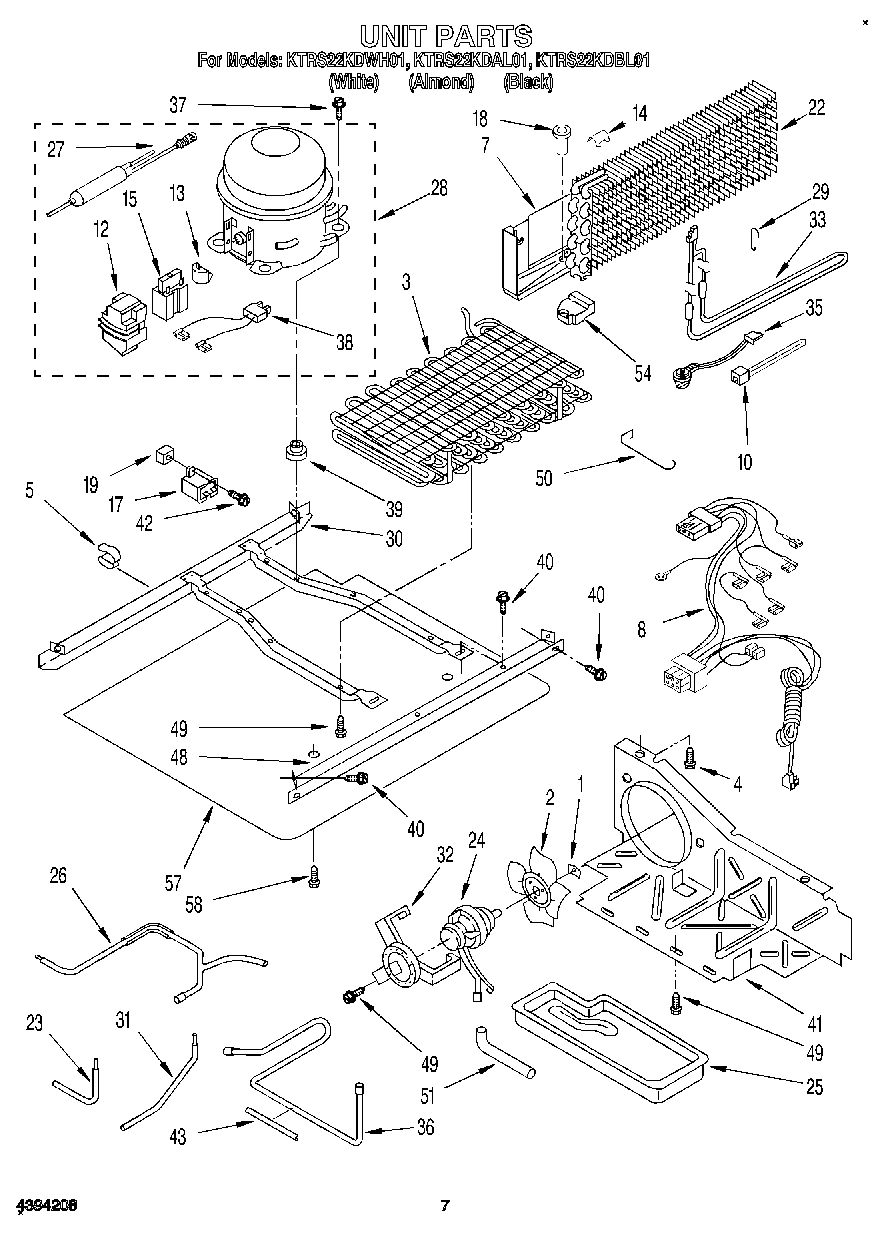

05 - UNIT

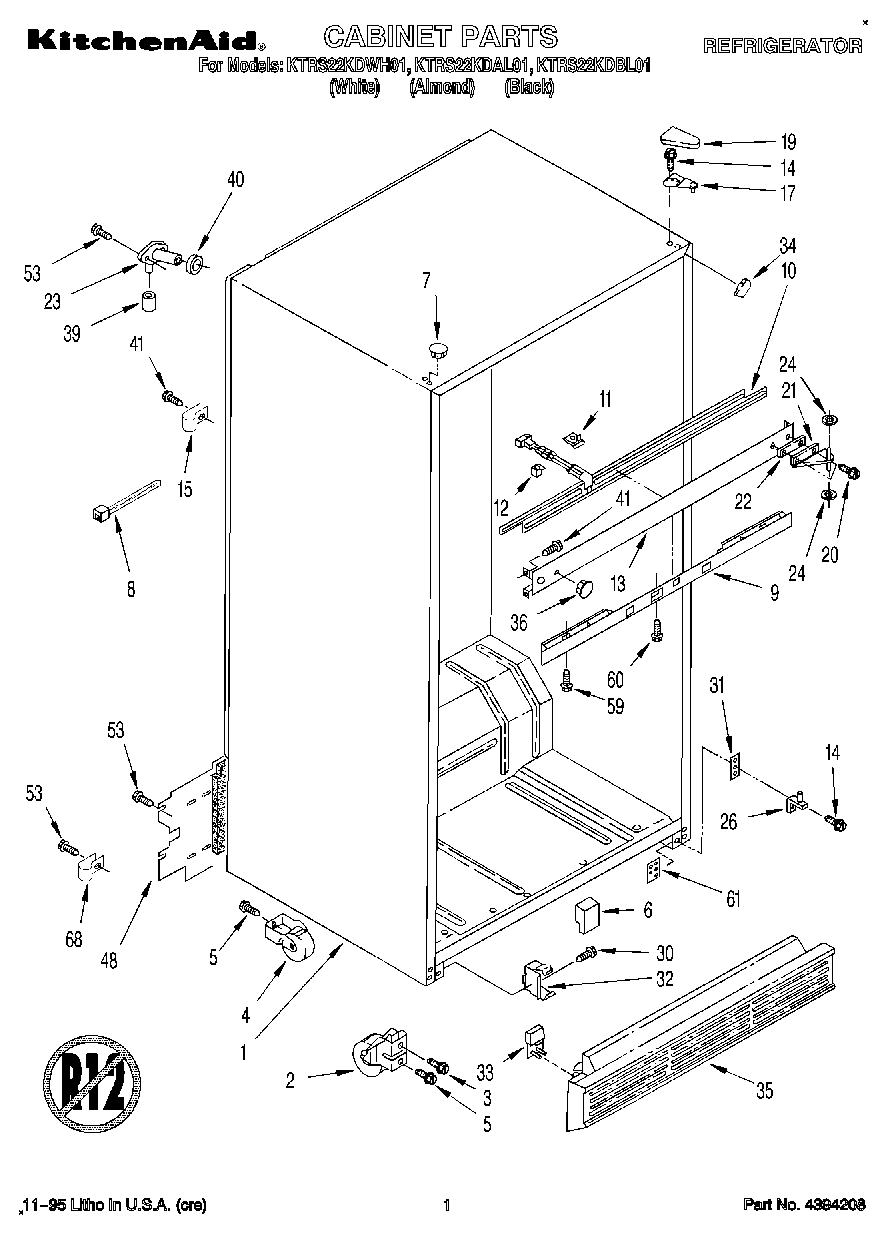

01 - CABINET

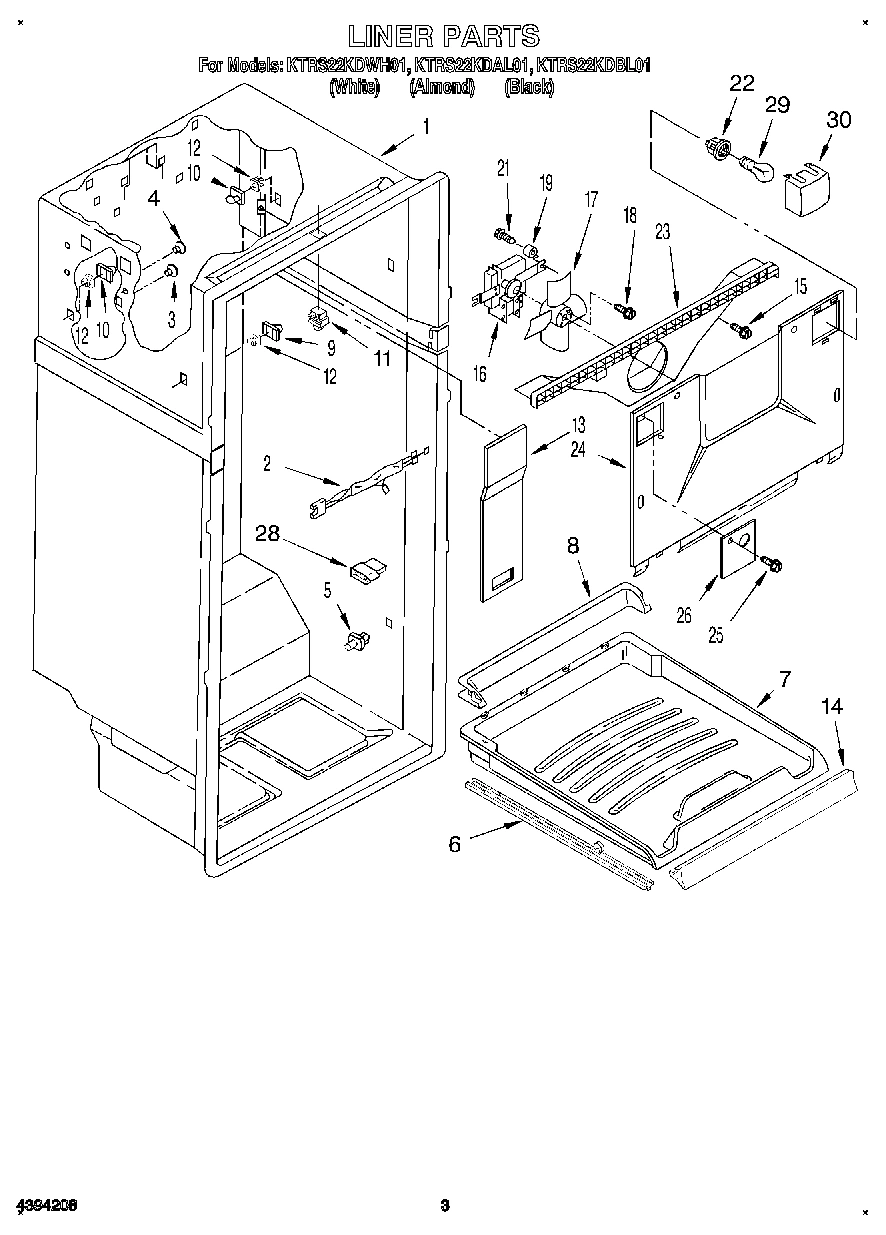

02 - LINER

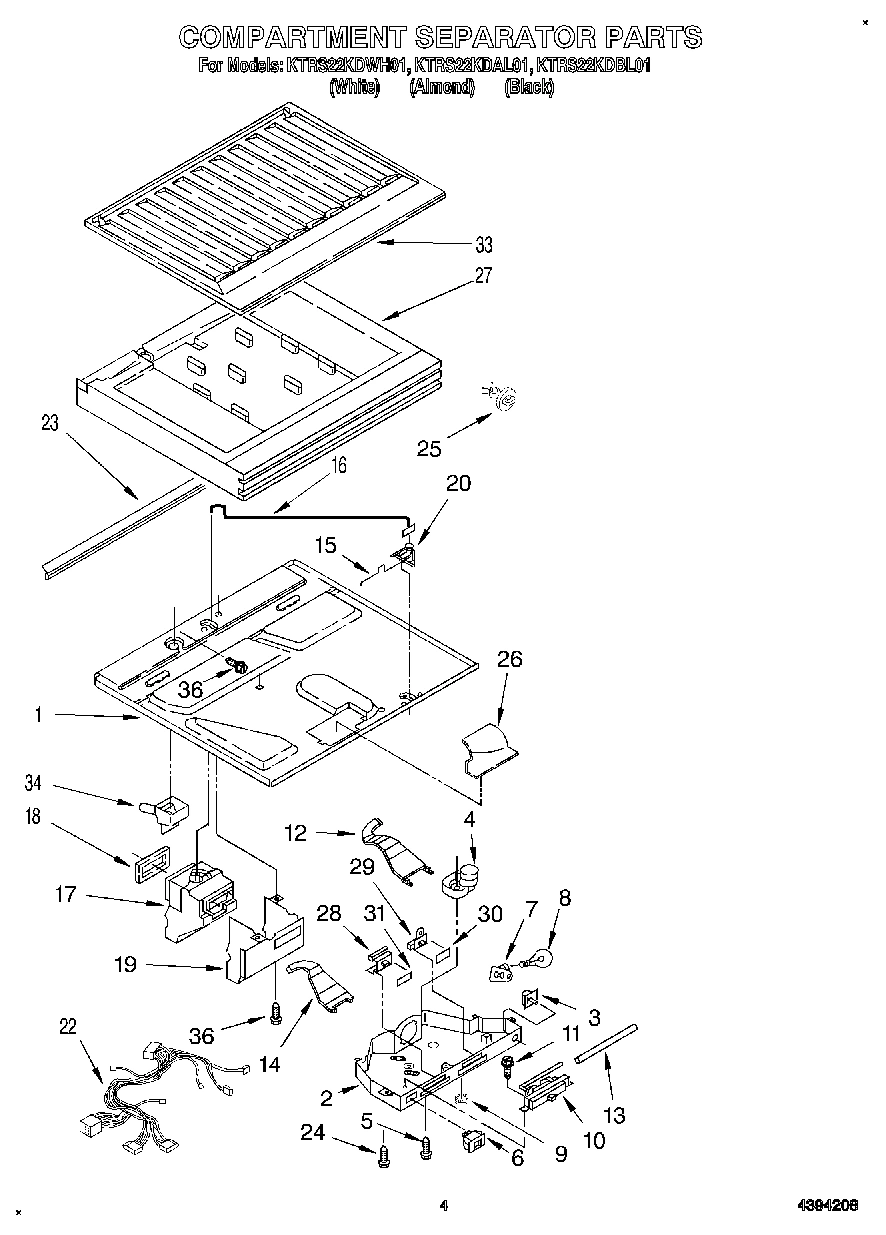

03 - COMPARTMENT SEPARATOR

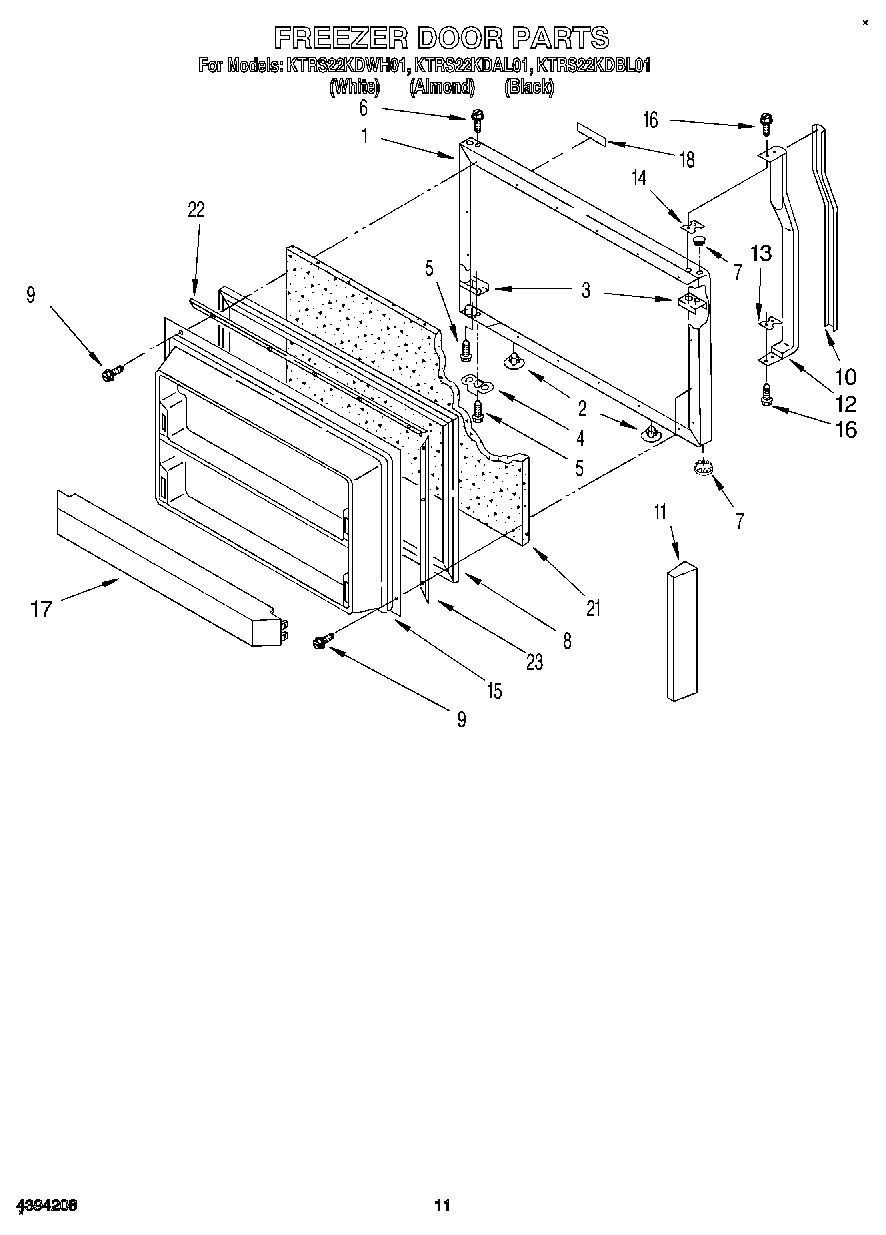

07 - FREEZER DOOR
Common parts from model Whirlpool KTRS22KDWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112592A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112593A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174811 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Box, Control WPL 2174829 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Clip, Wire (2) WPL 2155658 Contact Us For Availability
6
Insert WPL 2176796 Contact Us For Availability
6
Track, Freezer Floor (2) WPL 2174370 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
7
Floor, Pull-Out Freezer WPL 2179543 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Wire Assy WPL 2176987 Contact Us For Availability
8
Fence, Freezer Floor WPL 2174378 Contact Us For Availability
9
Control, Front Cover WPL 2179541 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Thermostat WPL 2159753 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Dike, Door (2) WPL 1125577 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Light Pipe (R.S.) WPL 2160641 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
13
Shim WPL 2151813 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Trim, Freezer Floor WPL 2174323 Contact Us For Availability
14
Light Pipe (L.S.) WPL 2160640 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Relay (See Overload) WPL ARI112594A Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Rod, Connecting WPL 1125514 Contact Us For Availability
17
Capacitor WPL 2154565 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Trivet, Door (2) WPL 2171358 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168801 Contact Us For Availability
18
Nameplate (Black Model) WPL 2168804 Contact Us For Availability
19
Interior Door Panel WPL 2177347 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (4) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
21
Gasket, Utility Door WPL 2183037 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 2183043 Contact Us For Availability
22
Retainer, Gasket WPL 1122552 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160799 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Shelf Bin (Wide) WPL 2171063 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2174325 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Clip WPL 2172812 Contact Us For Availability
26
Shelf Bin (3) WPL 2171066 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174366 Contact Us For Availability
28
Housing Plug WPL 2154491 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174367 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Divider (2) WPL 2171283 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2183166 Contact Us For Availability
50
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
50
WPL 799344 WPL 799344 Contact Us For Availability
51
Drain Extension WPL 2183033 Contact Us For Availability
54
Support-Evaporator (R.S.) WPL 2174769 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2174770 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
