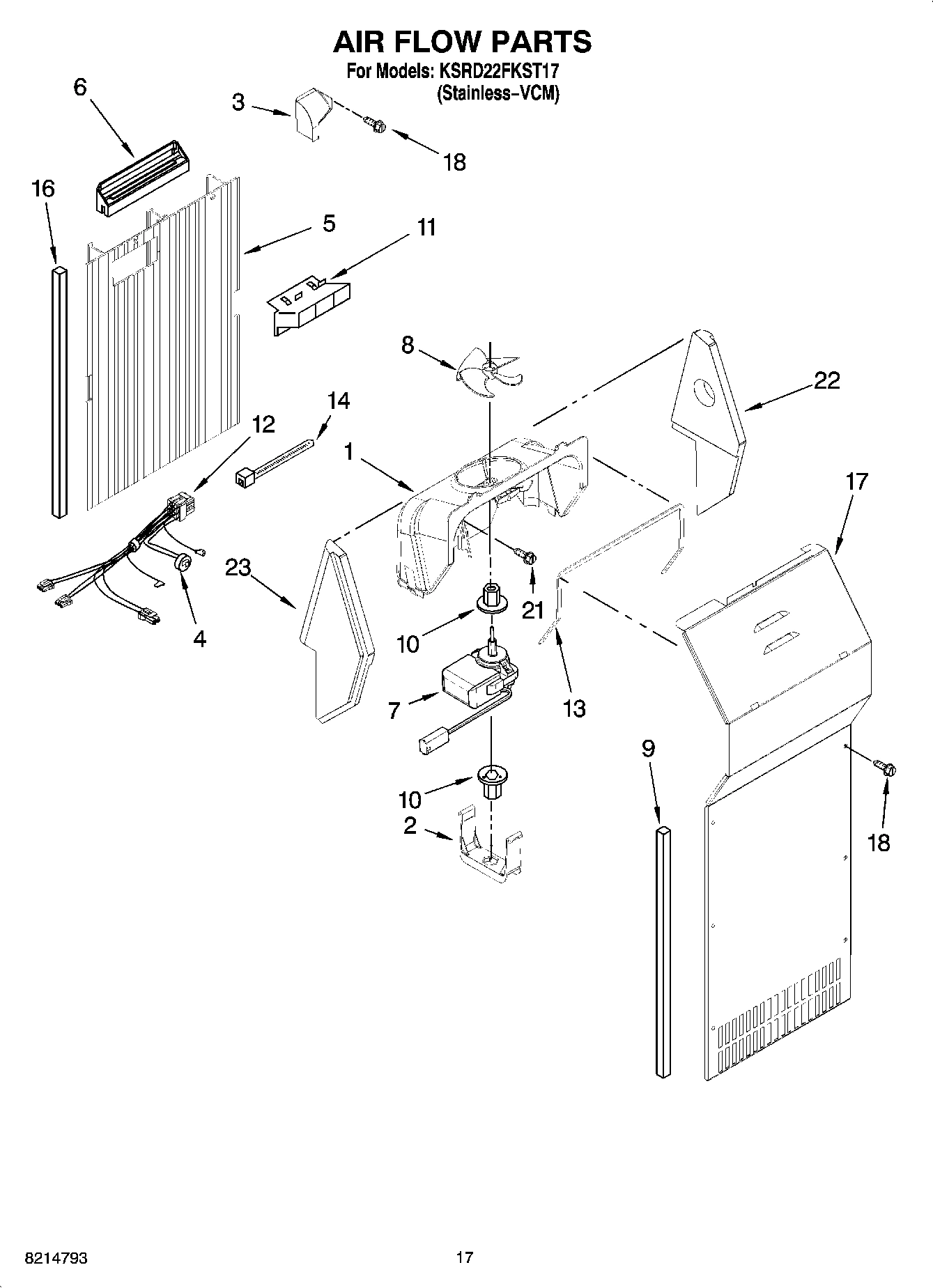

Model Whirlpool KSRD22FKST17 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

Liner (Not A Seviceable Part) WPL ARI95579A9 Contact Us For Availability

1

Control Box WPL 8201785 Contact Us For Availability

1

Service & Wiring Sheet WPL 2255384 Contact Us For Availability

1

Energy Guide WPL 2308419 Contact Us For Availability

1

Use & Care Guide WPL 2315214 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.55

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Shelf Bin (4) WPL 2171063K Contact Us For Availability

4

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

4

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $280.46

6

Spillguard, Slide Out (2) WPL 2216102 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $129.49

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Cabinet, (Not A Serviceable Part) WPL ARI95577A7 Contact Us For Availability

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

Shim WPL 2209697 Contact Us For Availability

9

Frame, Shelf (2) WPL 2195975 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

Basket, Sloped WPL 2301193 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

13

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

13

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $134.99

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $80.78

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2188831 Whirlpool Refrigerator Start Device In Stock WPL WP2188831 $122.48

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Slide, Freezer Bin (Left Side) WPL 2261448 Contact Us For Availability

Slide, Freezer Bin (Right Side) WPL 2261449 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Stud, Rear WPL 2196207 Contact Us For Availability

Shelf, Snack Bin WPL 2206346 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $126.86

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

Front Cover, Housing (Not Available Order 23 WPL ARI95583A7 Contact Us For Availability

Basket, Square WPL 2301192 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Front, Basket WPL 2171768K Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $118.15

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $89.30

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2206801B Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Fastener, Push-On WPL 489391 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

Escutcheon, Control Box WPL 2211959 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

NLA:SCREW Backorder WPL WPW10141645 $4.82

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

27

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

27

Window WPL 2175513 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

29

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

30

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $86.14

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
