Model Whirlpool KSRC22KXWH00 – Common Parts & Diagrams
01 - CABINET

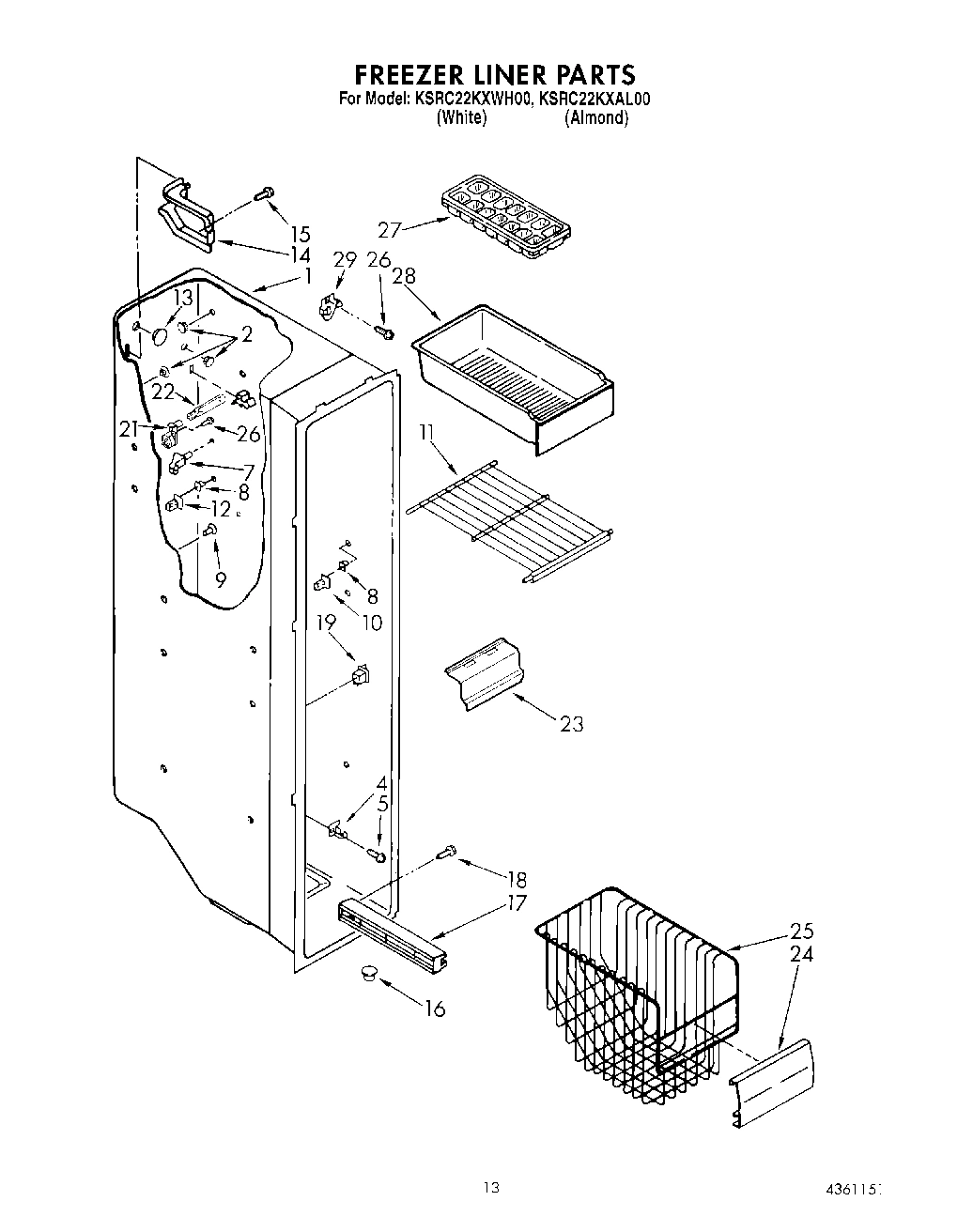

08 - FREEZER LINER

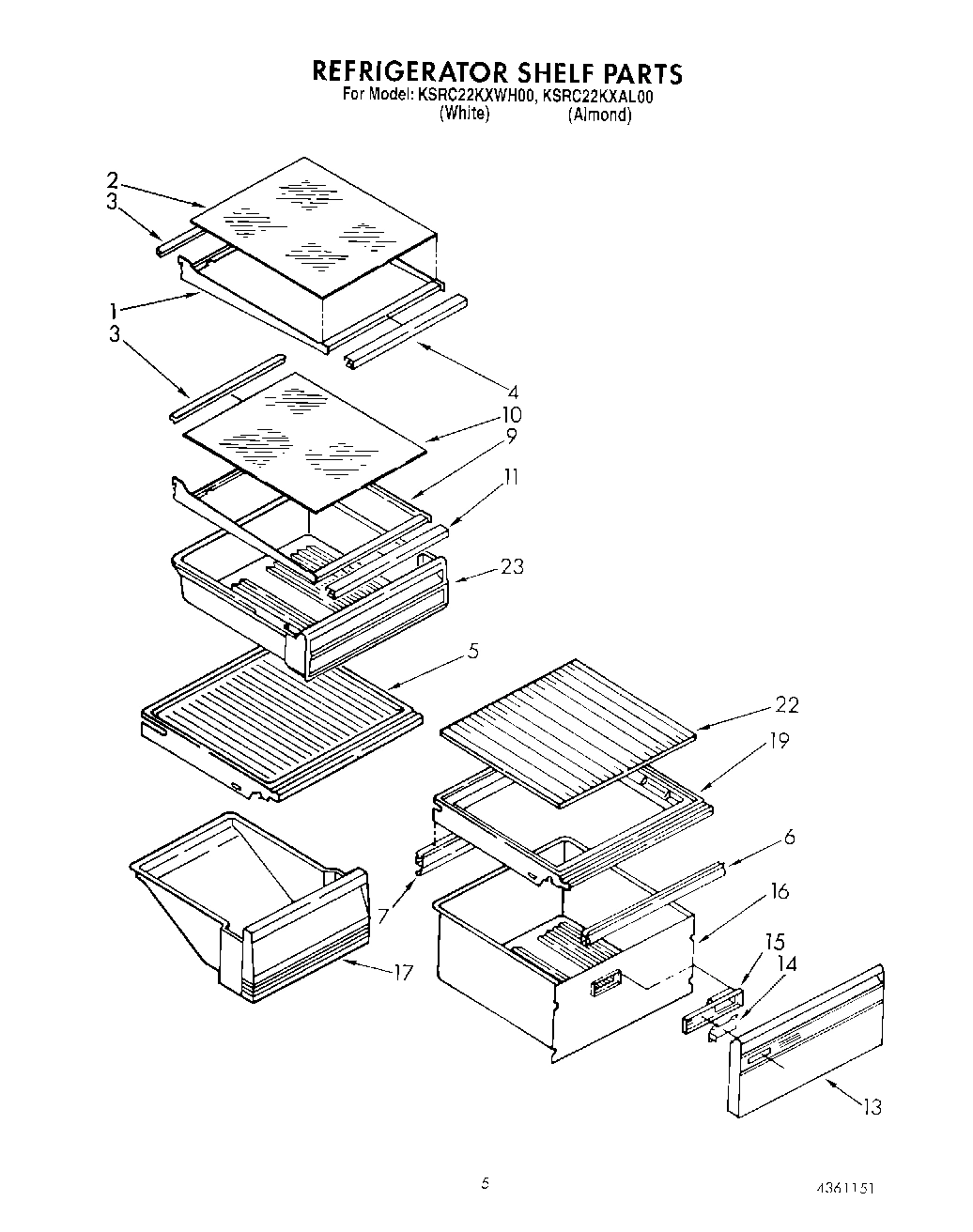

03 - REFRIGERATOR SHELF

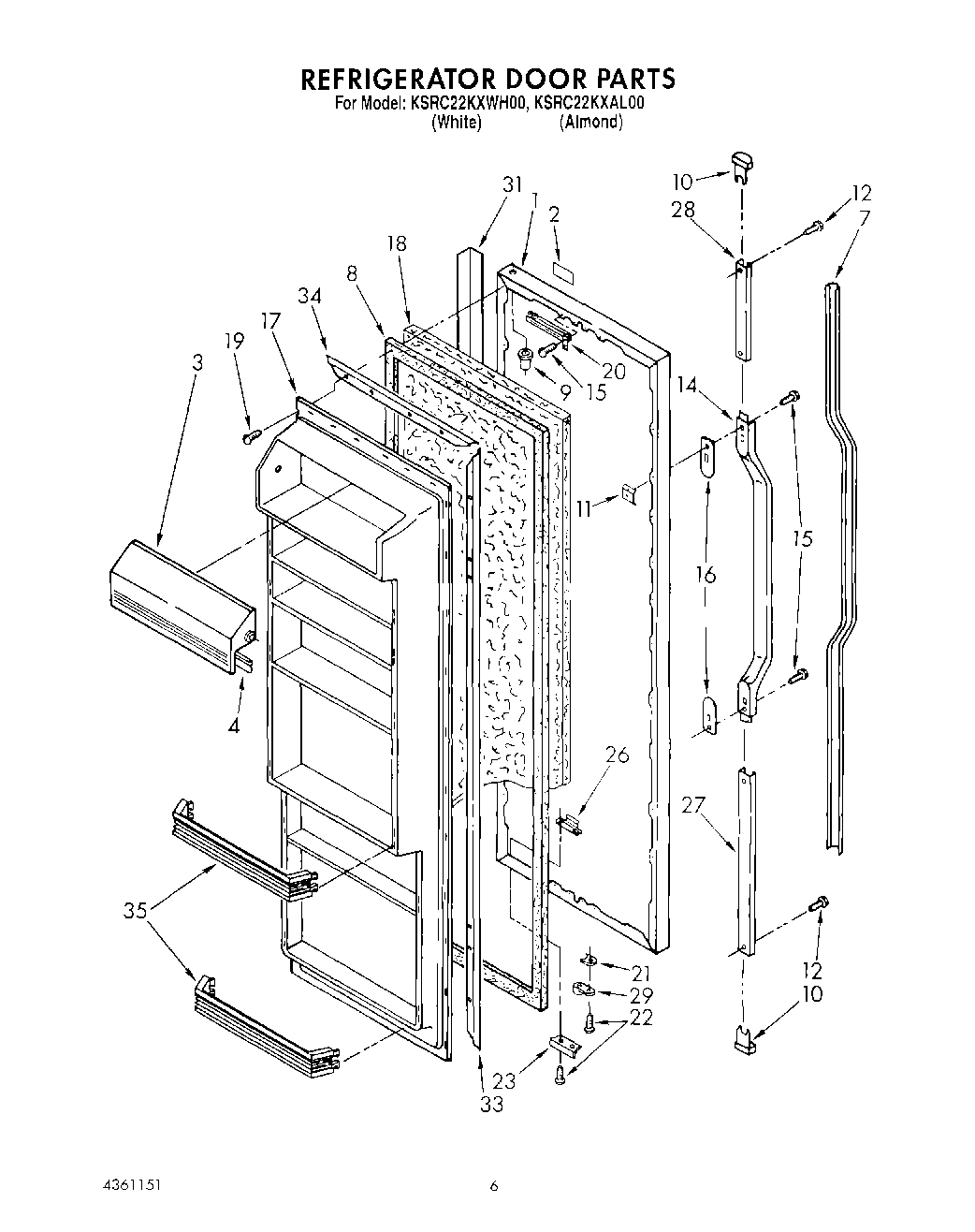

04 - REFRIGERATOR DOOR

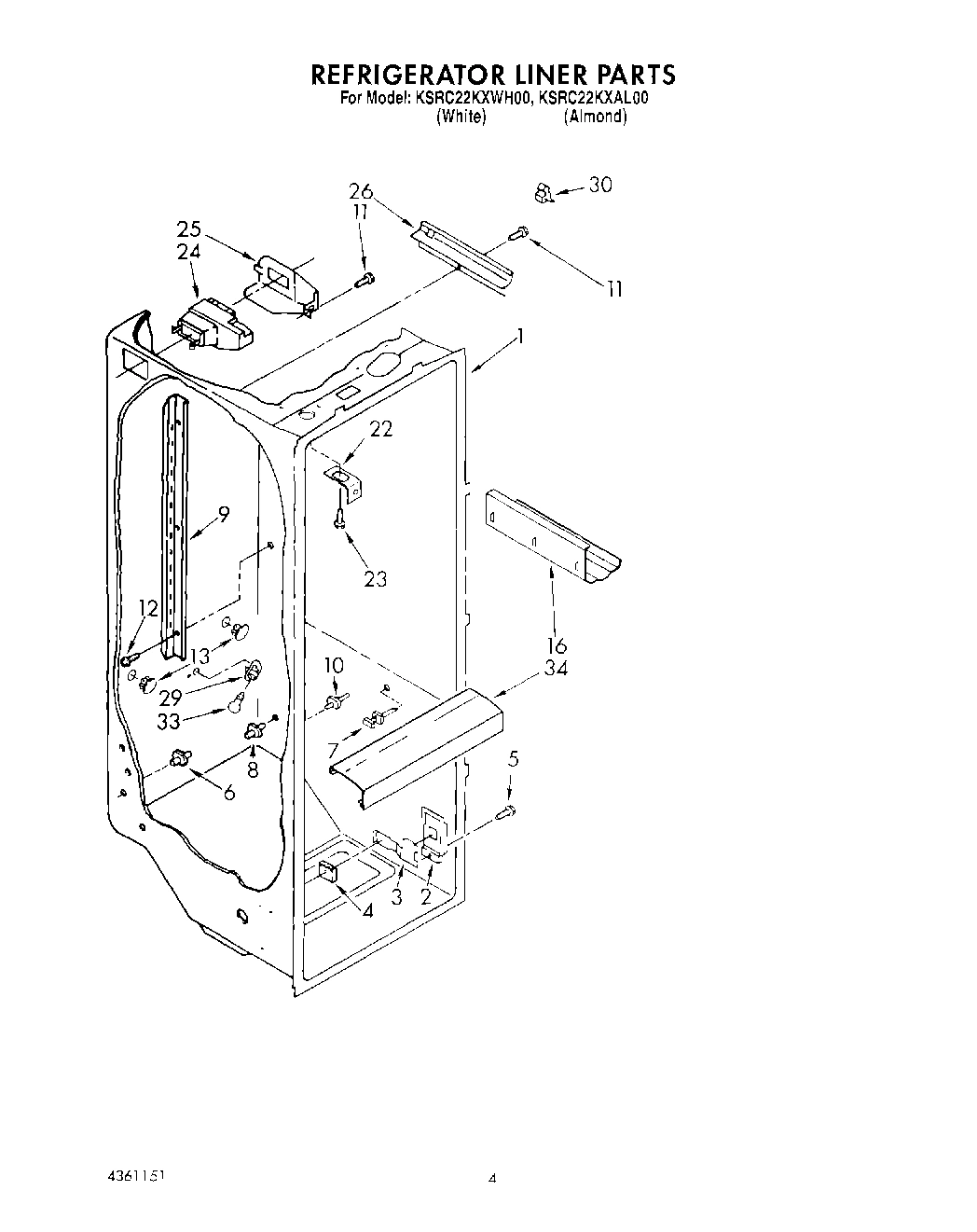

02 - REFRIGERATOR LINER

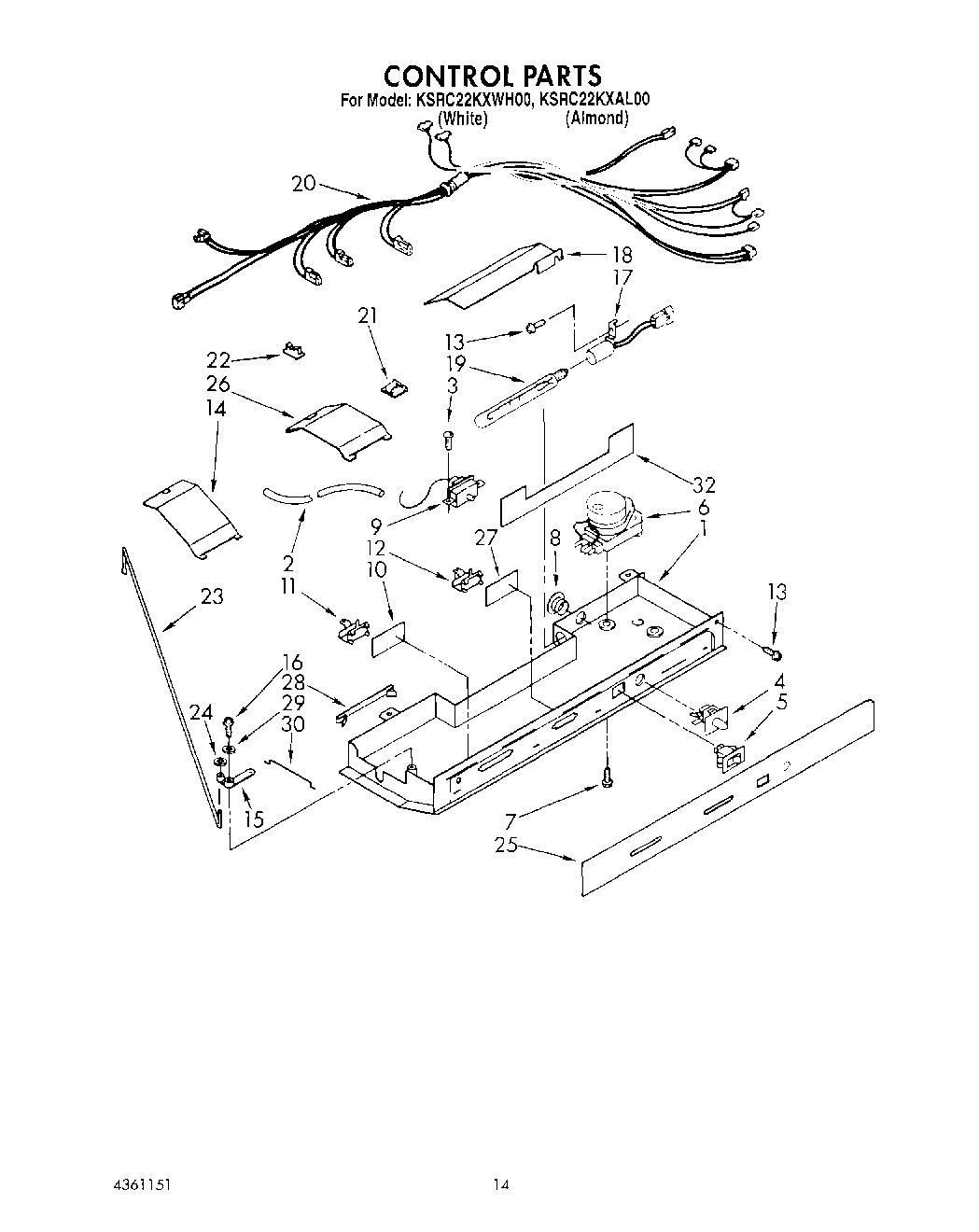

09 - CONTROL, LIT/OPTIONAL

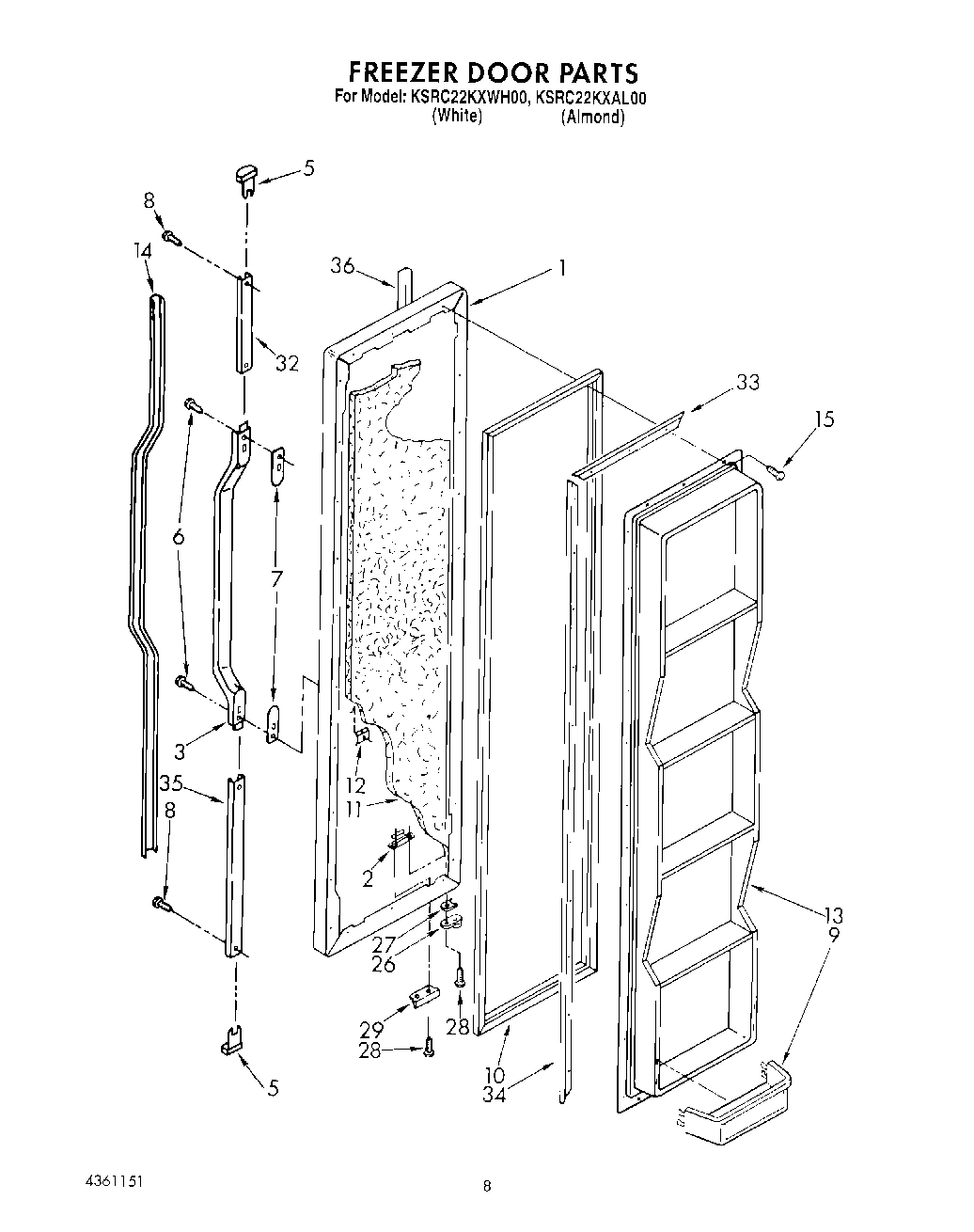

05 - FREEZER DOOR

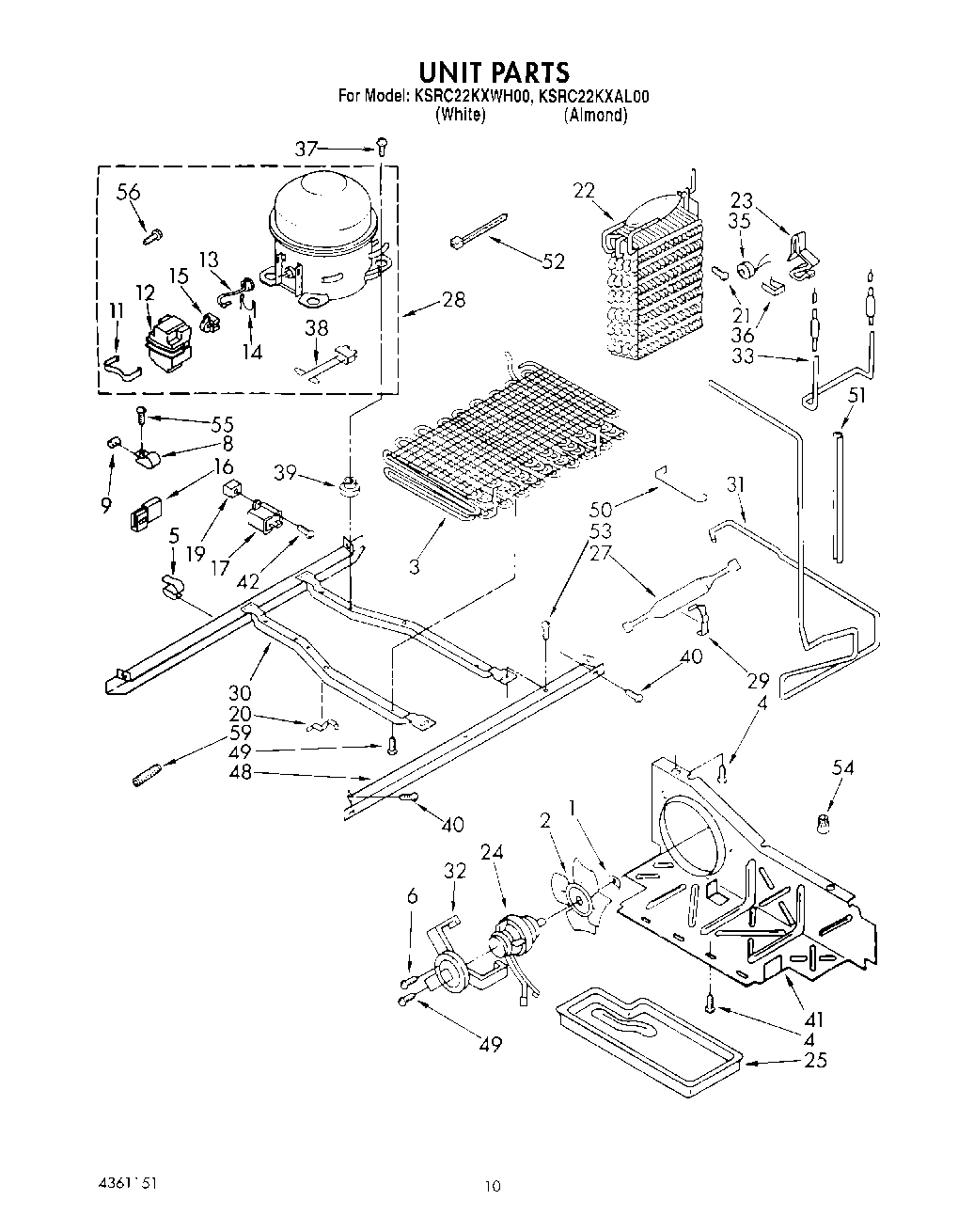

06 - UNIT

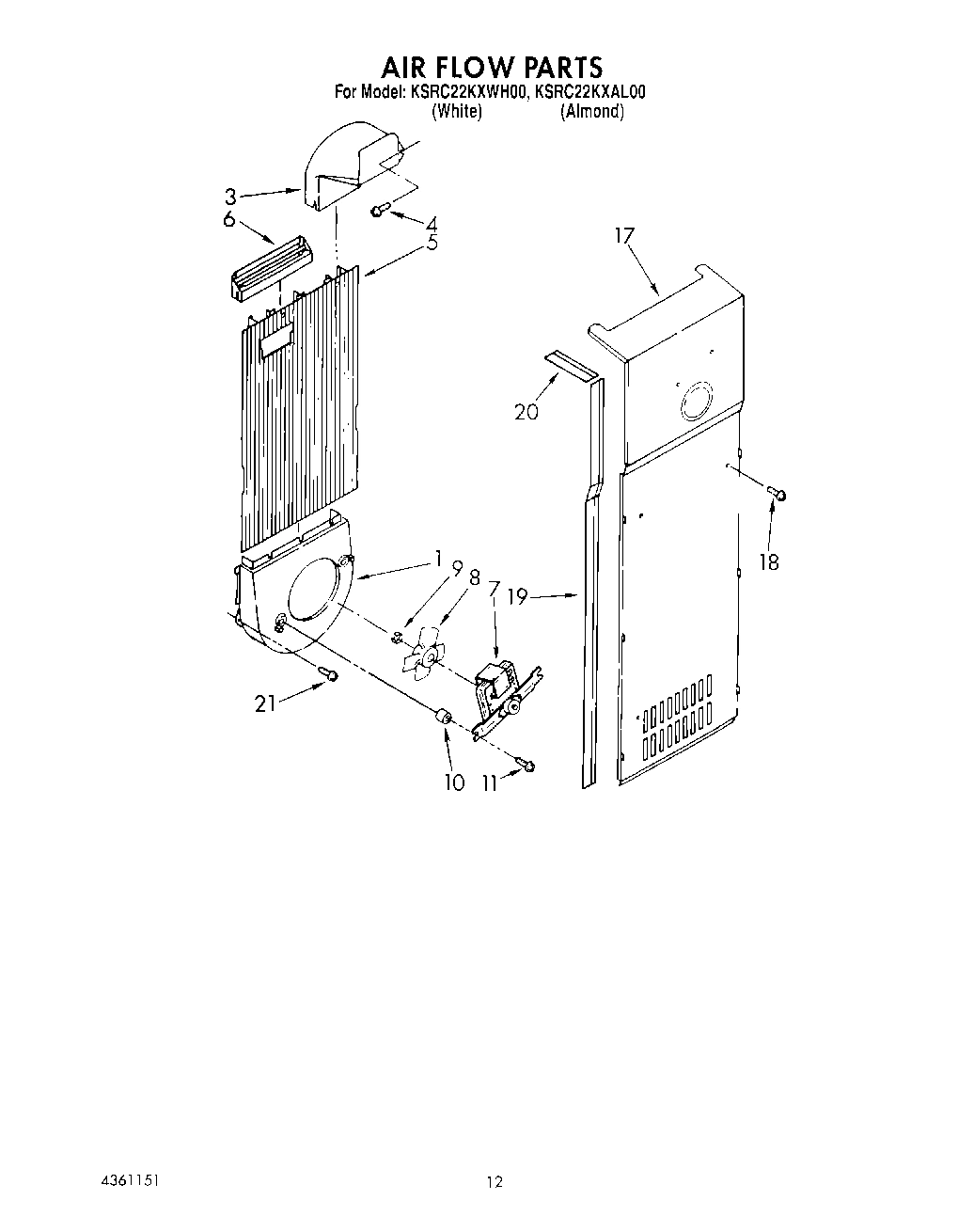

07 - AIR FLOW
Common parts from model Whirlpool KSRC22KXWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1126365 WPL LIT1126365 Contact Us For Availability
WPL LIT1126372 WPL LIT1126372 Contact Us For Availability
WPL LIT2154814 WPL LIT2154814 Contact Us For Availability
WPL LIT4361151 WPL LIT4361151 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95245A8 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 1117848 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1117852 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95242A2 Contact Us For Availability
1
Control Box WPL 1125614 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1126278 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1126341 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Nameplate (White) WPL 1126363 Contact Us For Availability
2
Nameplate (Almond) WPL 1126364 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Handle Assembly WPL 1107215 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
End Cap (2) WPL 1107341 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
5
Air Duct Freezer WPL 2157545 Contact Us For Availability
6
Stud, R.S. Rear WPL 1115290 No Longer Available
6
Gasket, Cover (Front) WPL 1115291 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1121385 Contact Us For Availability
7
Spacer, Handle WPL 1107651 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Screw WPL 489075 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1126272 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
9
Shelf Bin (4) WPL 1117928 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Glass, Shelf WPL 1126279 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Shelf (2) WPL 1126297 Contact Us For Availability
11
Shelf (3) WPL 1126350 Contact Us For Availability
11
Gasket (Front) WPL 1126281 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Hole Plug WPL 655411 Contact Us For Availability
13
Front, Crisper WPL 1126290 Contact Us For Availability
13
Panel, Interior Door WPL 1129244 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 945586 Contact Us For Availability
14
Cover, Wiring WPL 1129915 Contact Us For Availability
14
Slide, Humidity WPL 1124819 Contact Us For Availability
14
Insert, Handle (White) WPL 1117950 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
15
Housing, Slide WPL 1124820 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
15
Relay (See Overload) WPL ARI95243A3 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Meat Pan WPL 1126288 Contact Us For Availability
17
Panel, Interior Door WPL 1126204 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 2157554 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Control Box Harness WPL 2149752 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Socket Assembly WPL 1108630 Contact Us For Availability
22
Glass, Crisper WPL 1126293 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
23
Lens, Light WPL 1108445 Contact Us For Availability
23
Utility Bin WPL 1126274 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Front, Basket WPL 1126352 Contact Us For Availability
25
Basket, Lower WPL 1126356 Contact Us For Availability
25
Escutcheon, Control Box WPL 1126277 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2149957 Contact Us For Availability
29
Clip WPL 2155021 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 QT.) (WHITE (UNCUT WPL 799344 Contact Us For Availability
32
Retainer, Insert WPL 1107241 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Retainer, Insert WPL 1117953 Contact Us For Availability
35
Shelf Bin (4) WPL 1126206 Contact Us For Availability
36
Trim, Door WPL 1119061 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Screw WPL ARI95244A8 Contact Us For Availability
59
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
× ![]()
