Model Whirlpool KHMS1850SBL1 MICROWAVE HOOD COMBINATION 1.8 CU. FT. – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION PARTS

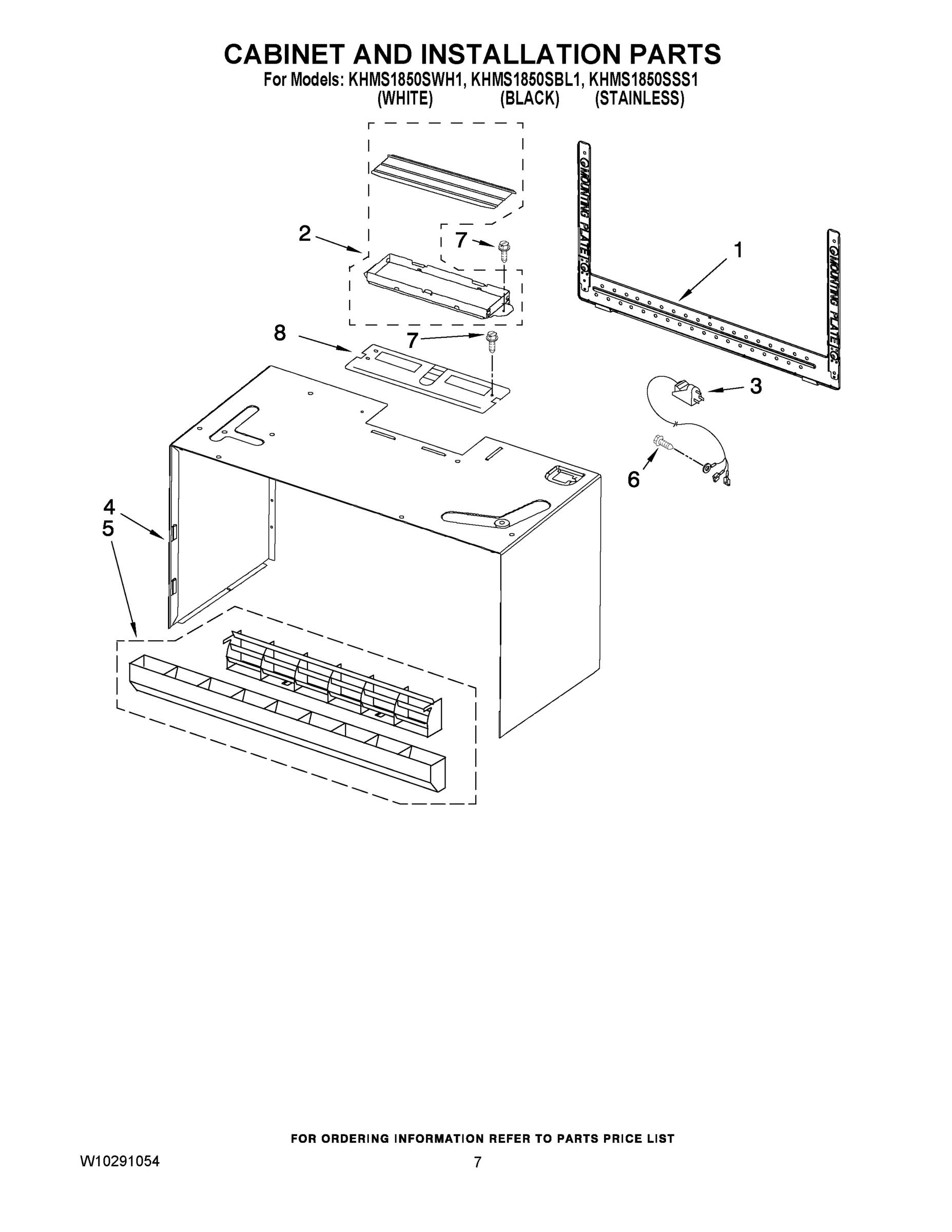

06 - CABINET AND INSTALLATION PARTS

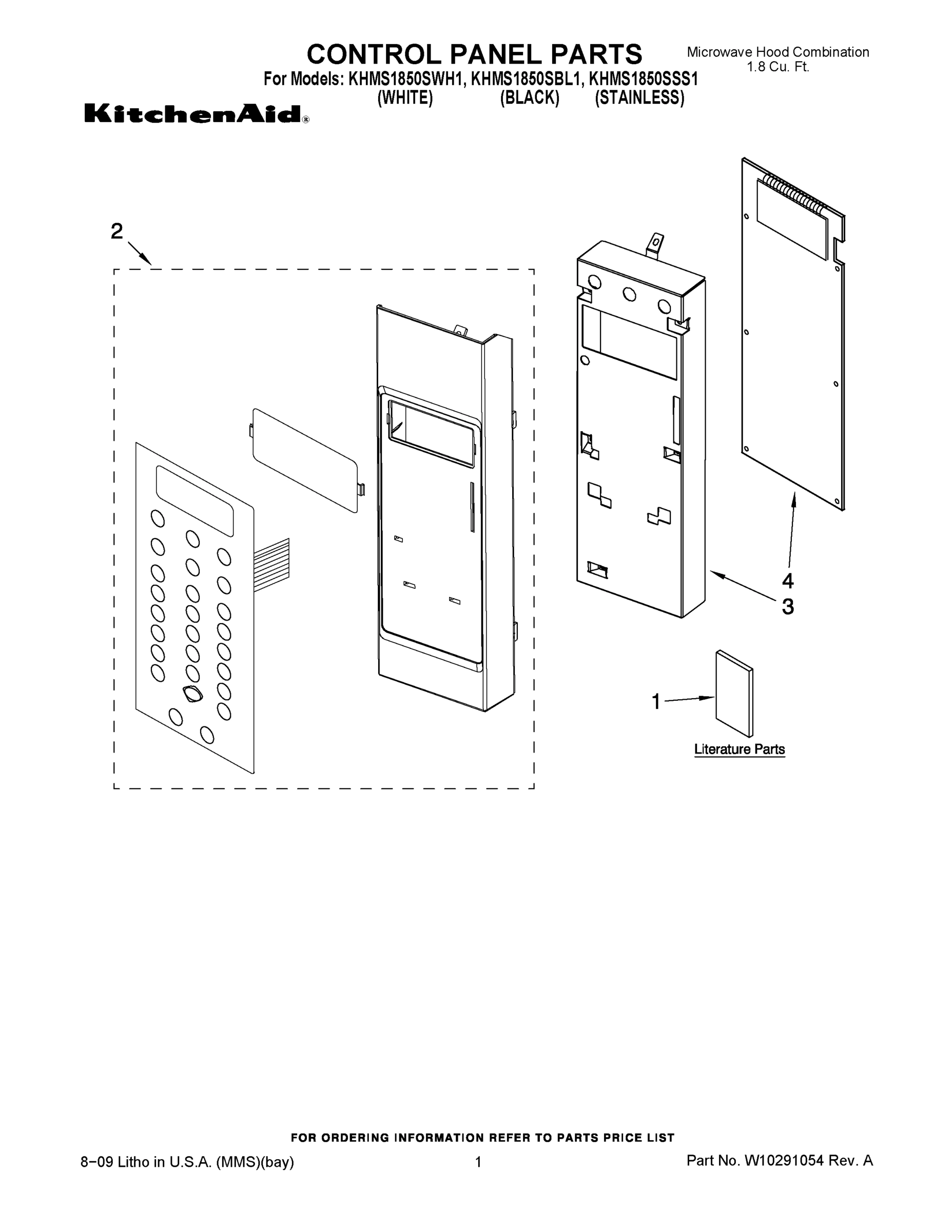

01 - CONTROL PANEL PARTS

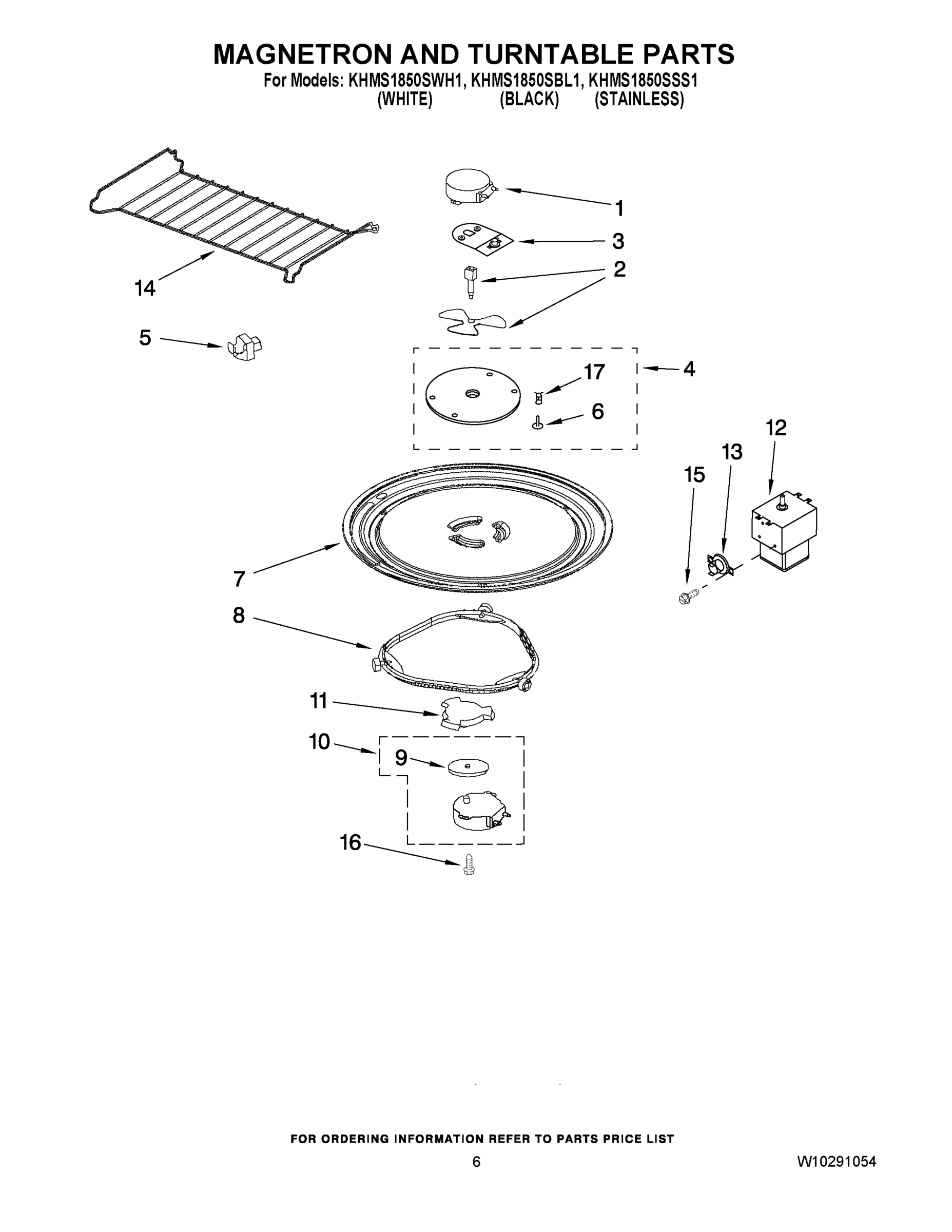

05 - MAGNETRON AND TURNTABLE PARTS

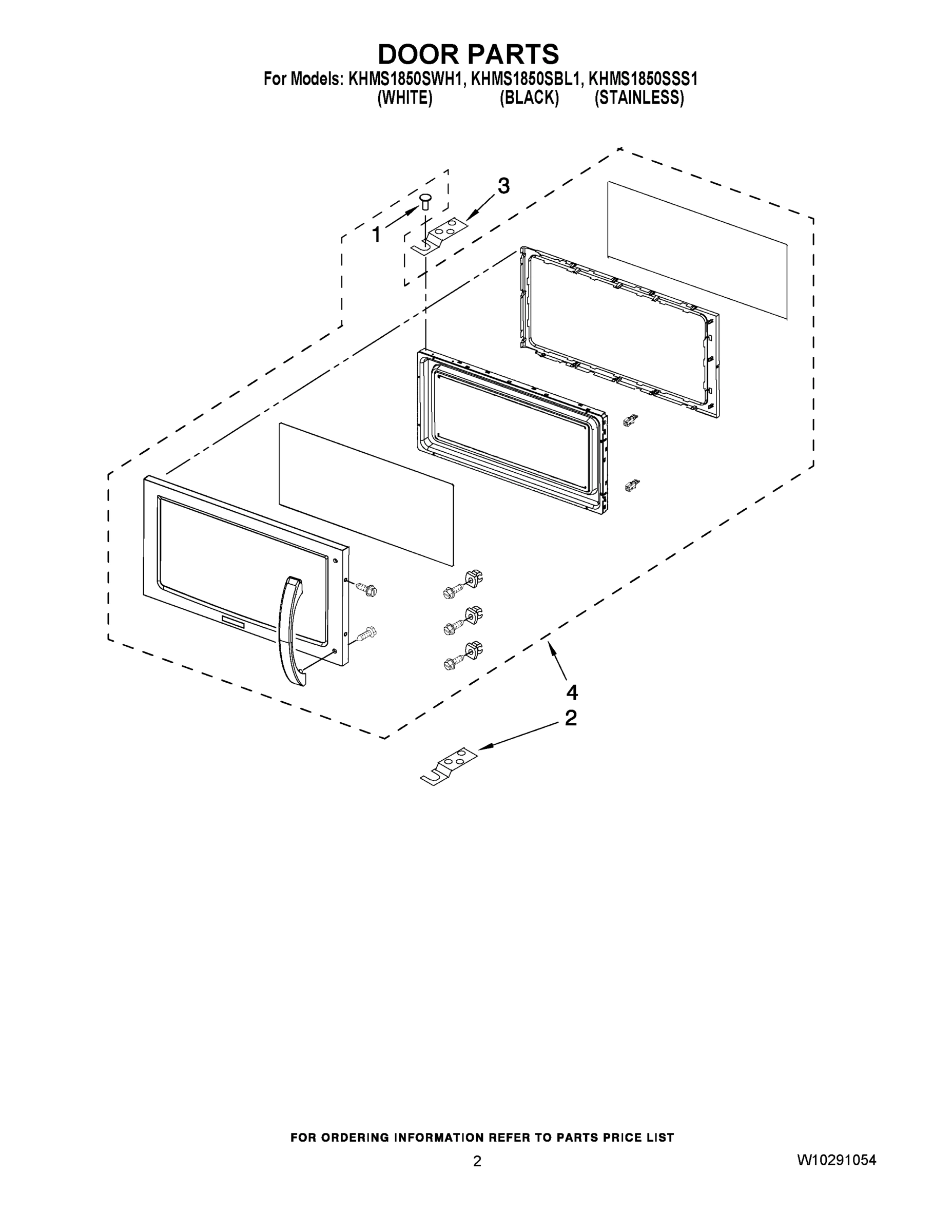

02 - DOOR PARTS

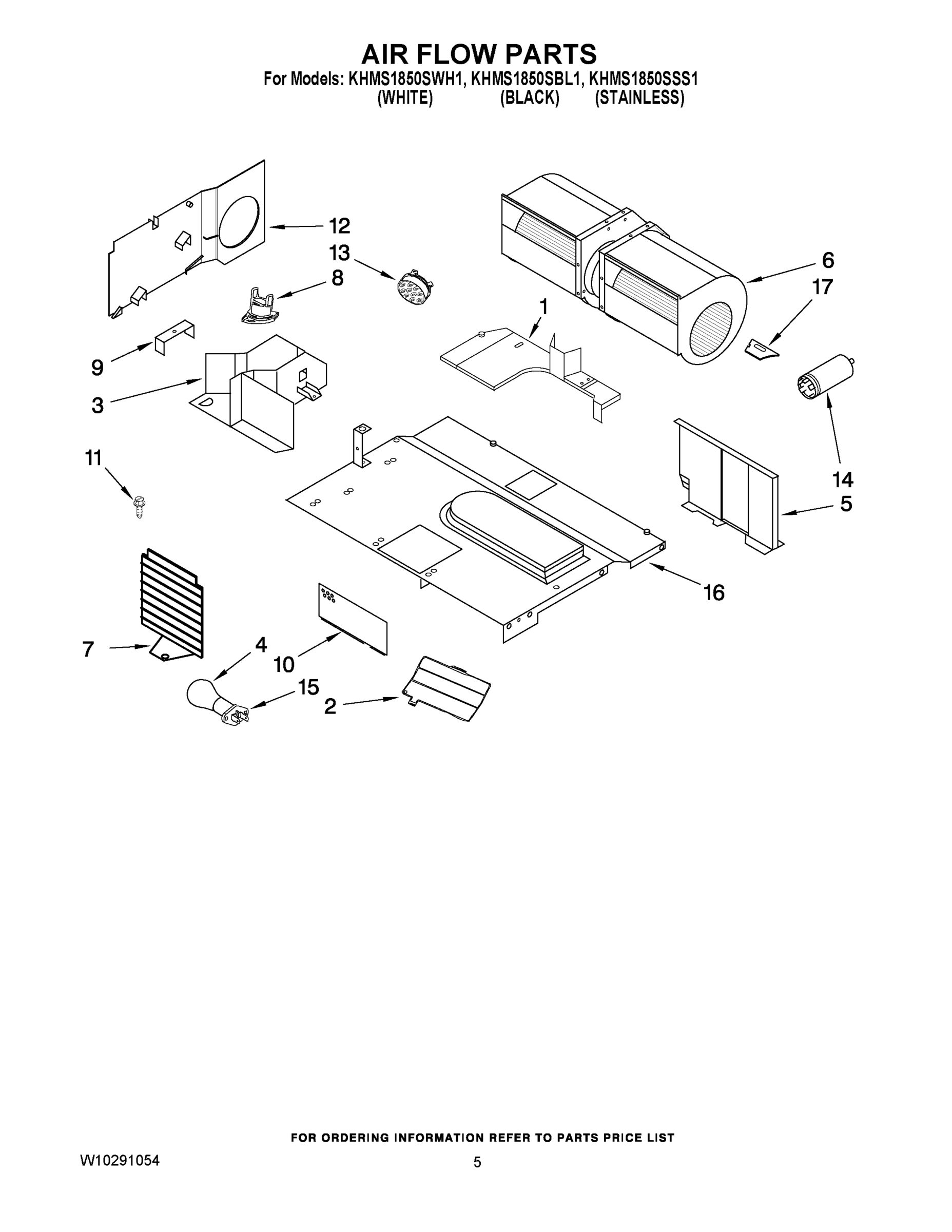

04 - AIR FLOW PARTS
Common parts from model Whirlpool KHMS1850SBL1 MICROWAVE HOOD COMBINATION 1.8 CU. FT.
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
Cook Guide Label WPL 8206649 Contact Us For Availability
1
Tech Sheet WPL W10132021 Contact Us For Availability
1
INST. INSTRUCTIONS WPL W10217689 Contact Us For Availability
1
U & C GUIDE WPL W10223916 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
DEFLECTOR, AIR WPL W10280381 Contact Us For Availability
2
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10155342 Contact Us For Availability
2
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10155343 Contact Us For Availability
2
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10246507 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
2
Lower Hinge WPL W10114254 Contact Us For Availability
2
Cover, Lamp WPL W10117848 Contact Us For Availability
3
Bracket, Control WPL W10155345 Contact Us For Availability
3
Thermostat/Bracket WPL 8206454 Contact Us For Availability
3
Upper Hinge WPL W10114255 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
4
MICROCOMPUTER WPL W10216701 Contact Us For Availability
4
Cover, Inlet Includes Nails and Bushings WPL 8184476 Contact Us For Availability
4
Complete Door (White) WPL W10117920 Contact Us For Availability
4
Complete Door (Stainless) WPL W10117921 Contact Us For Availability
4
Complete Door (Black) WPL W10117922 Contact Us For Availability
5
GRILLE, VENT (STAINLESS STEEL) WPL W10250593 Contact Us For Availability
5
Grille, Vent (Black) WPL W10250596 Contact Us For Availability
5
Grille, Vent (White) WPL W10246506 Contact Us For Availability
5
Air Guide, Back WPL 8205354 Contact Us For Availability
6
NAILS WPL 8204660 Contact Us For Availability
6
Motor, Fan Assy WPL W10117942 Contact Us For Availability
7
Turntable WPL 4393799 Contact Us For Availability
7
Shield (Left) WPL 8206460 Contact Us For Availability
8
THRMST, CAVITY WPL W10280846 Contact Us For Availability
9
CLAPBOARD, METAL WPL W10280388 Contact Us For Availability
10
Shield (Right) WPL W10117916 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Screw WPL 8169474 Contact Us For Availability
11
DRIVER,TURNTABLE WPL W10155348 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Air Guide (Right) WPL 8205352 Contact Us For Availability
12
Air Guide (Left) WPL 8205367 Contact Us For Availability
13
Humidity, Sensor WPL 8206446 Contact Us For Availability
13
Thermostat WPL 8184951 Contact Us For Availability
14
Filter WPL 8206624 Contact Us For Availability
14
Rack WPL 8205549 Contact Us For Availability
15
Screw WPL 4393838 Contact Us For Availability
16
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
17
BUSHING WPL 8204659 Contact Us For Availability
17
Socket, Motor Wire WPL W10139750 Contact Us For Availability
20
Spring, Interlock WPL W10117911 Contact Us For Availability
26
Holder, Fuse WPL W10117908 Contact Us For Availability
33
Transformer, H.V. WPL 8206456 Contact Us For Availability
NI
TEMPLATE, UPPER WPL 8205924 Contact Us For Availability
NI
LAMP/TT WIRE ASSY. WPL W10280845 Contact Us For Availability
NI
Wire-Grnd, AC Line WPL W10117934 Contact Us For Availability
NI
H.V. WIRE ASSEMBLY WPL W10280392 Contact Us For Availability
NI
MAIN WIRE ASSY WPL W10280844 Contact Us For Availability
× ![]()
