Model Whirlpool KHMS155LWH1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

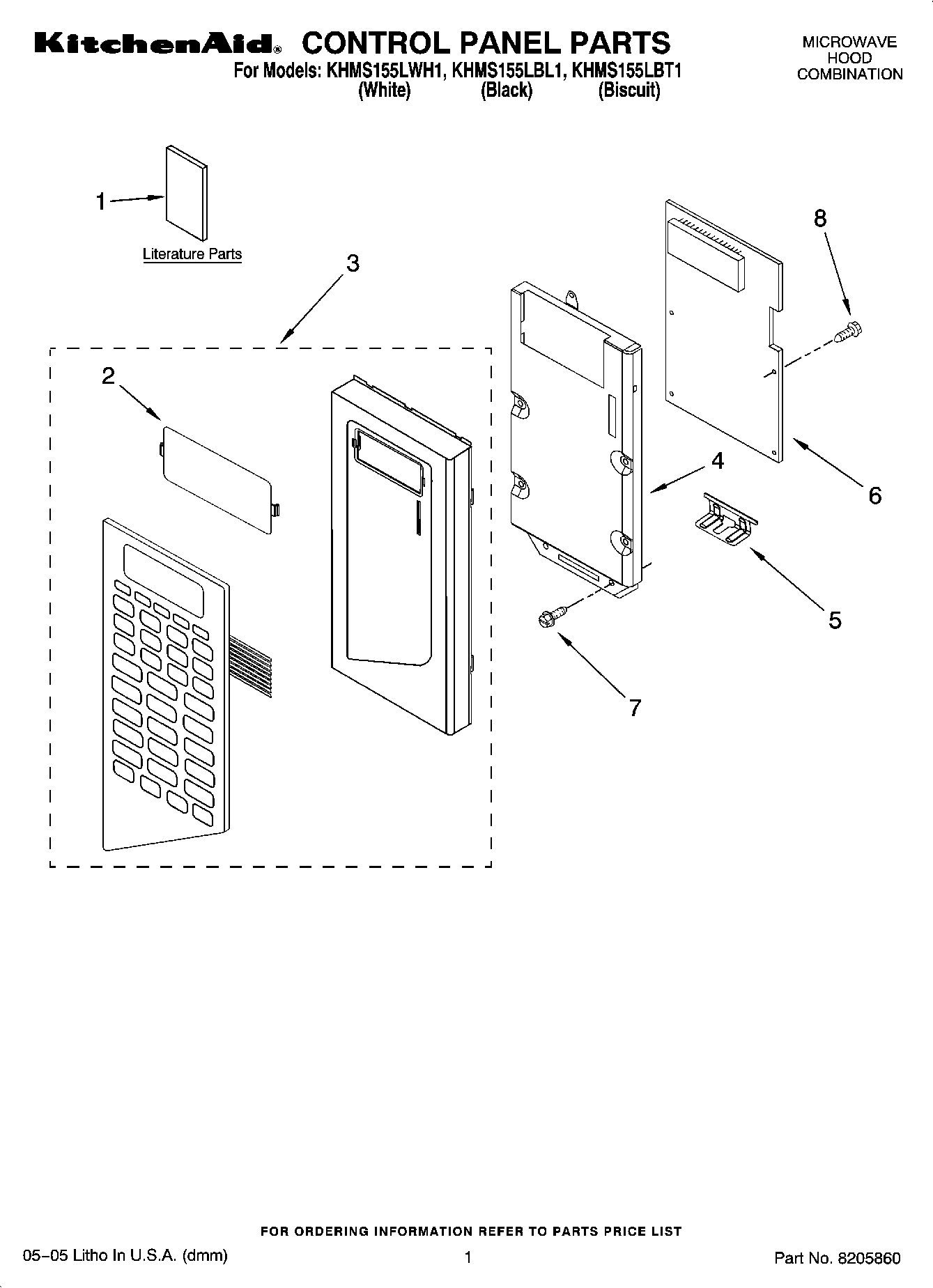

01 - CONTROL PANEL PARTS

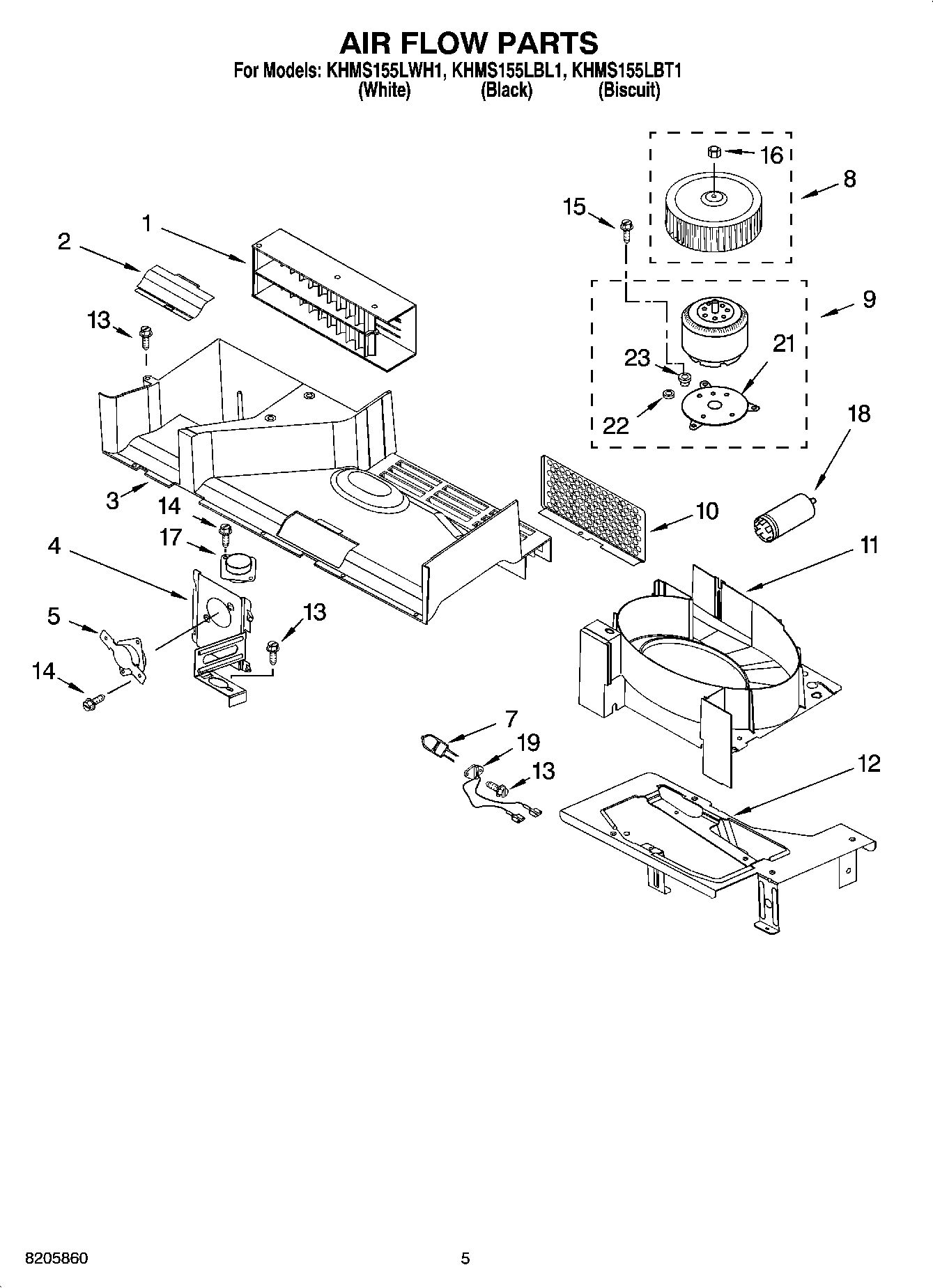

04 - AIR FLOW PARTS

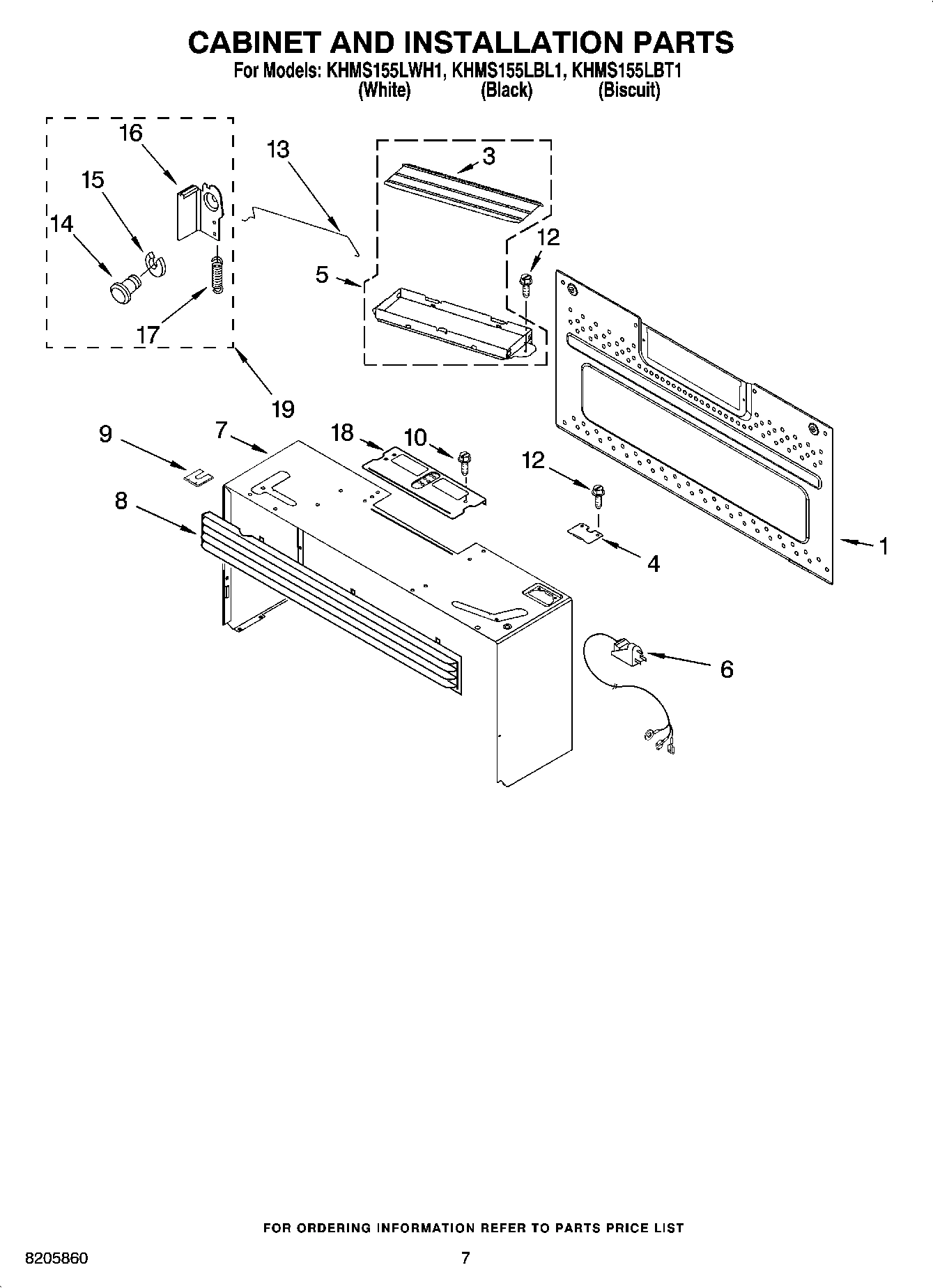

06 - CABINET AND INSTALLATION PARTS

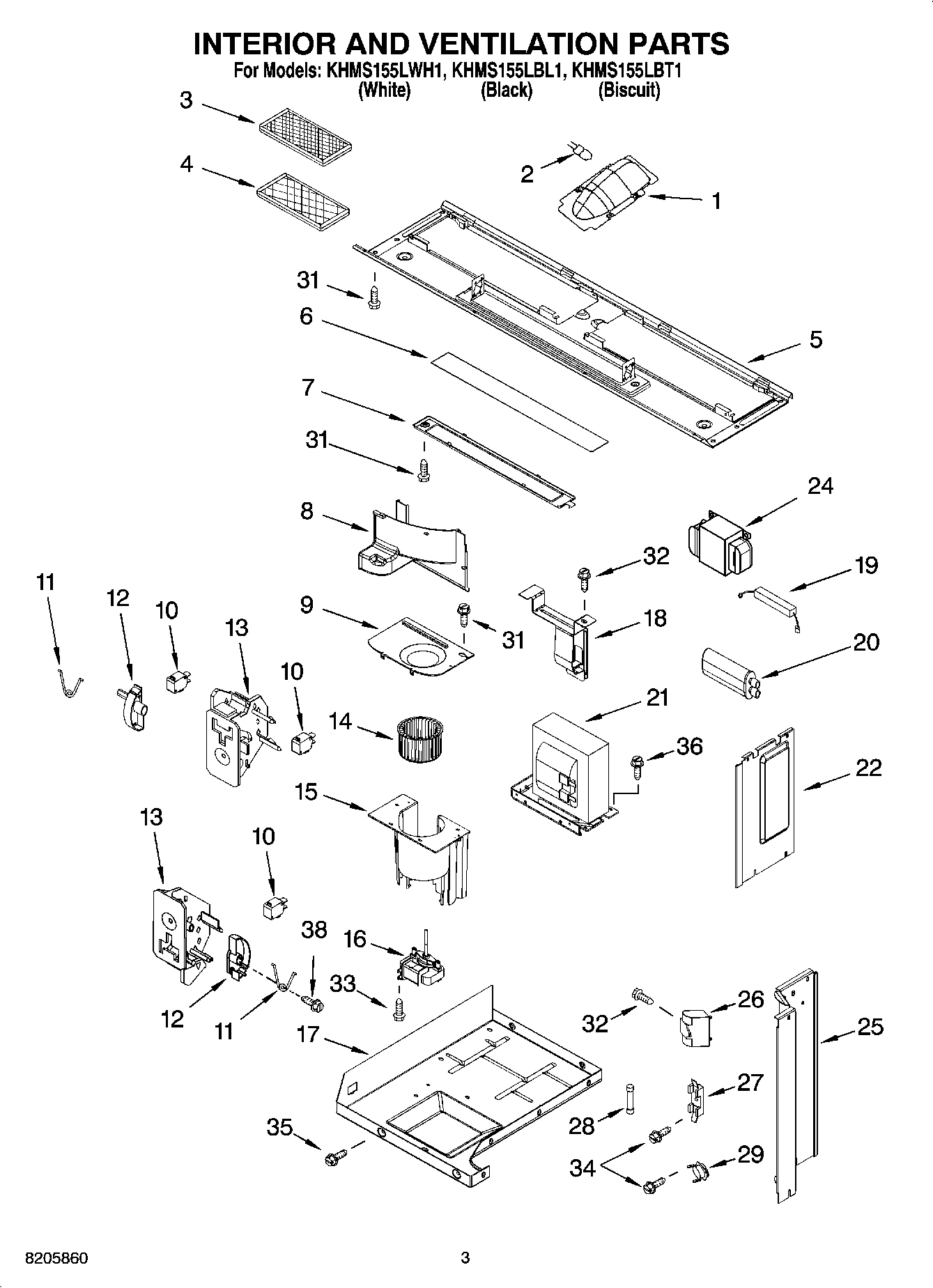

03 - INTERIOR AND VENTILATION PARTS

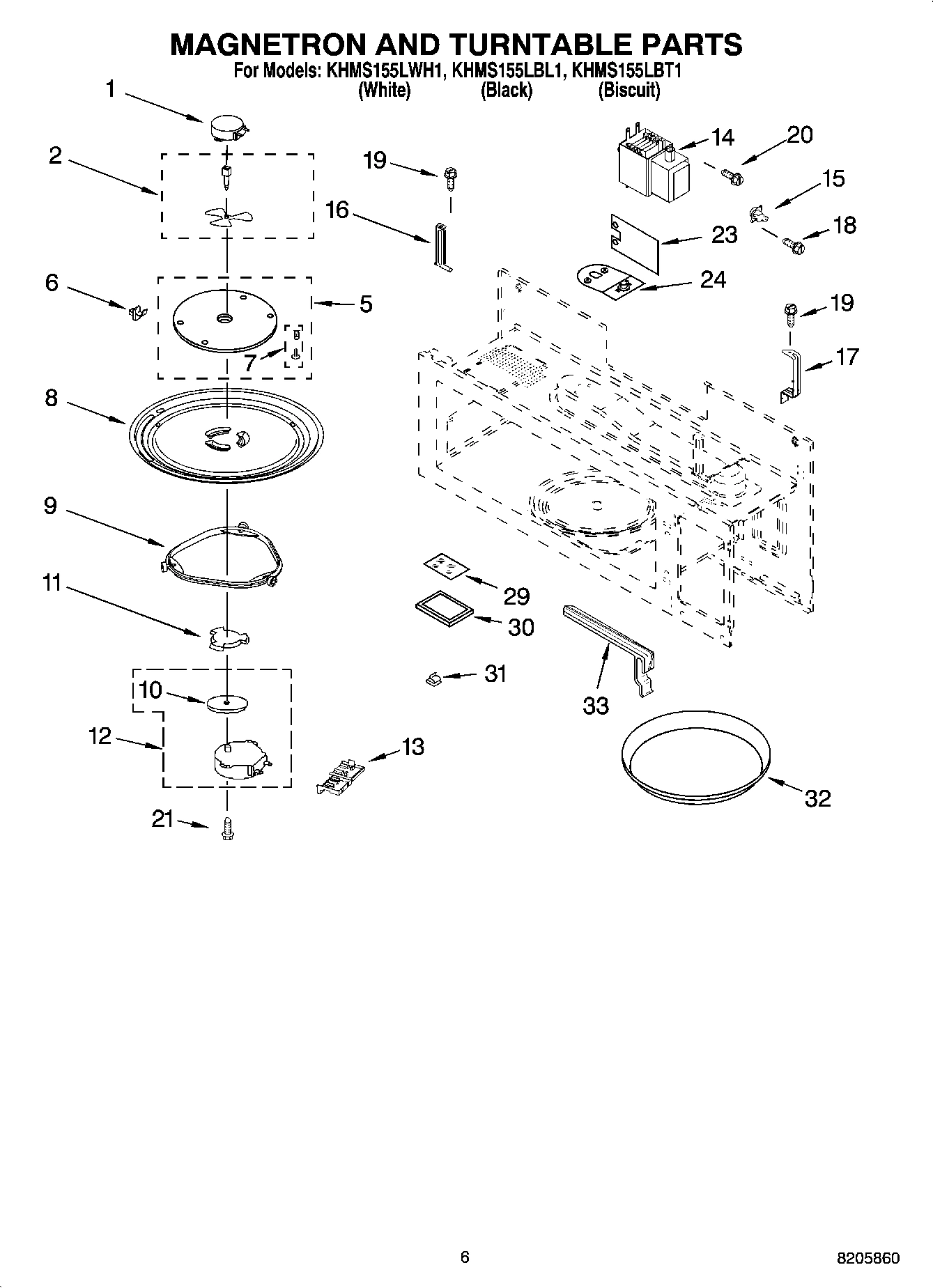

05 - MAGNETRON AND TURNTABLE PARTS

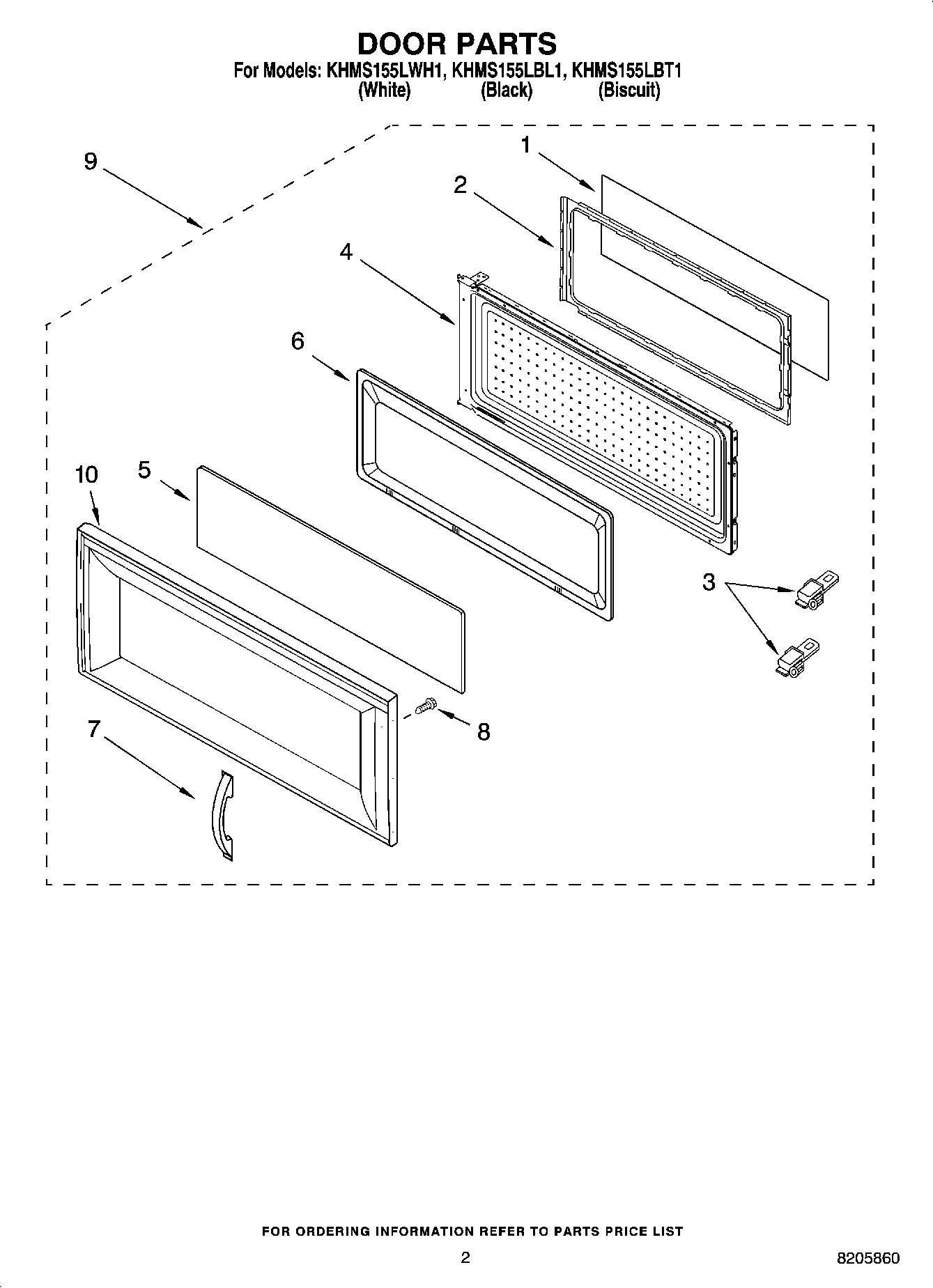

02 - DOOR PARTS
Common parts from model Whirlpool KHMS155LWH1 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp WPL 8169652 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Stirrer Assembly WPL 8205315 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
5
Glass, Outer WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
PCB Assembly WPL 8169733 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
6
Panel, Door (White) WPL 8169734 Contact Us For Availability
6
Panel, Door (Black) WPL 8169735 Contact Us For Availability
6
Panel, Door (Biscuit) WPL 8169736 Contact Us For Availability
7
Handle, Door (S.Steel) WPL 8184264 No Longer Available
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Handle, Door (White) WPL 8169737 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169739 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8184148 Contact Us For Availability
8
Screw WPL 4393833 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184146 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
9
Complete Door (Biscuit) WPL 8183736 Contact Us For Availability
9
Complete Door (White) WPL 8183737 Contact Us For Availability
9
Complete Door (Black) WPL 8183738 Contact Us For Availability
10
Frame, Outer (Black) WPL 8184592 Contact Us For Availability
10
Frame, Outer (White) WPL 8184149 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8184744 Contact Us For Availability
10
Frame, Outer (Stainless) WPL 8184319 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 4393943 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Motor, Fan WPL 8183826 Contact Us For Availability
16
Holder, Connector (L) WPL 8205792 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Chassis WPL 8183827 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Screw WPL 4393828 Contact Us For Availability
19
Catch Assembly WPL 8185033 Contact Us For Availability
19
Installation, Hardware WPL 8169659 Contact Us For Availability
19
Wall Template WPL 8183743 Contact Us For Availability
19
Upper Cab Template WPL 8183985 Contact Us For Availability
19
Rack WPL 8205393 Contact Us For Availability
19
Ground Wire Assy. WPL 8205635 Contact Us For Availability
19
H.V. Wire Assy WPL 8205847 Contact Us For Availability
19
Miscellaneous WPL ARI88569A8 Contact Us For Availability
21
Transformer, H.V. WPL 8185086 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
24
Transformer, L.V. WPL 8185003 Contact Us For Availability
24
Thermostat/Bracket WPL 8184585 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
31
Clip WPL 8169647 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
35
