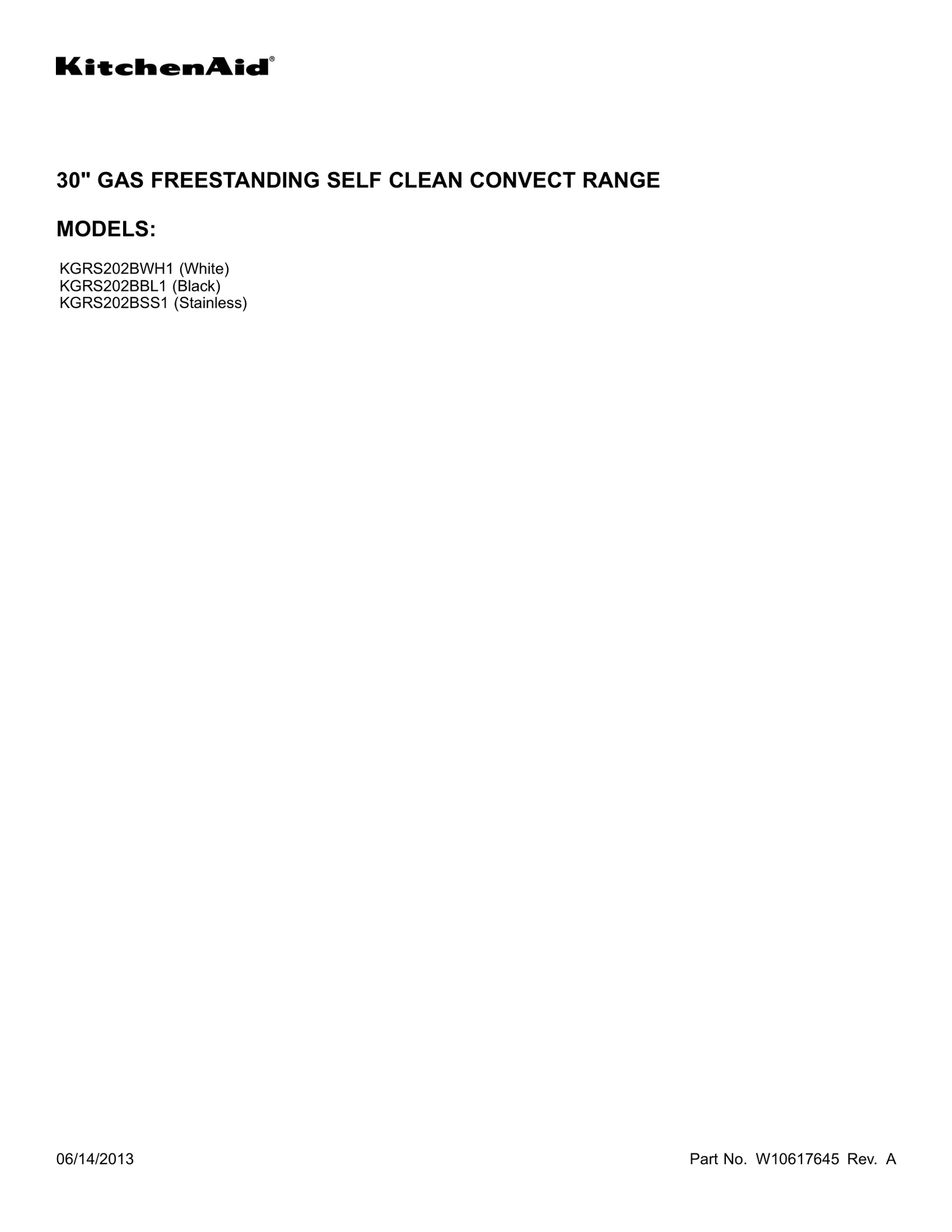

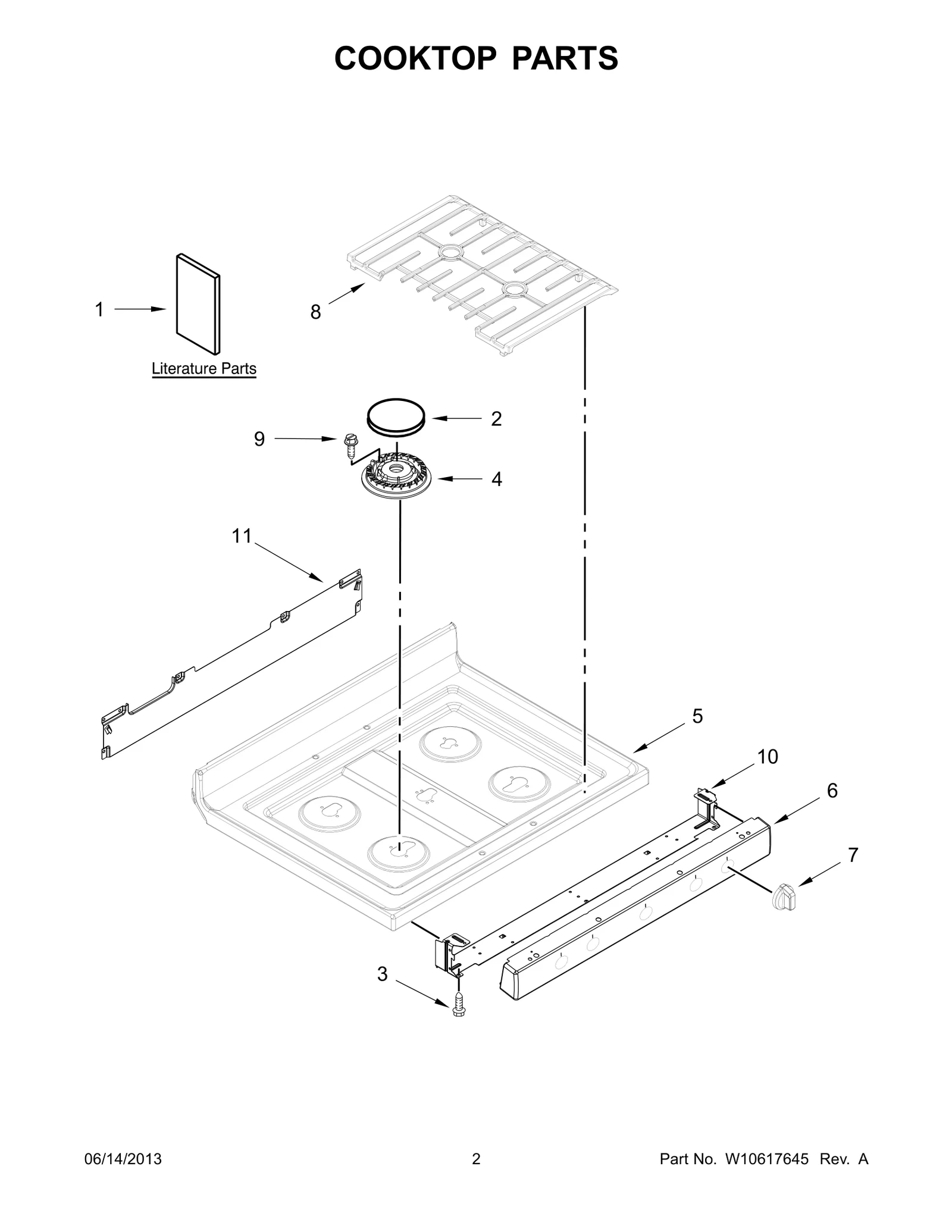

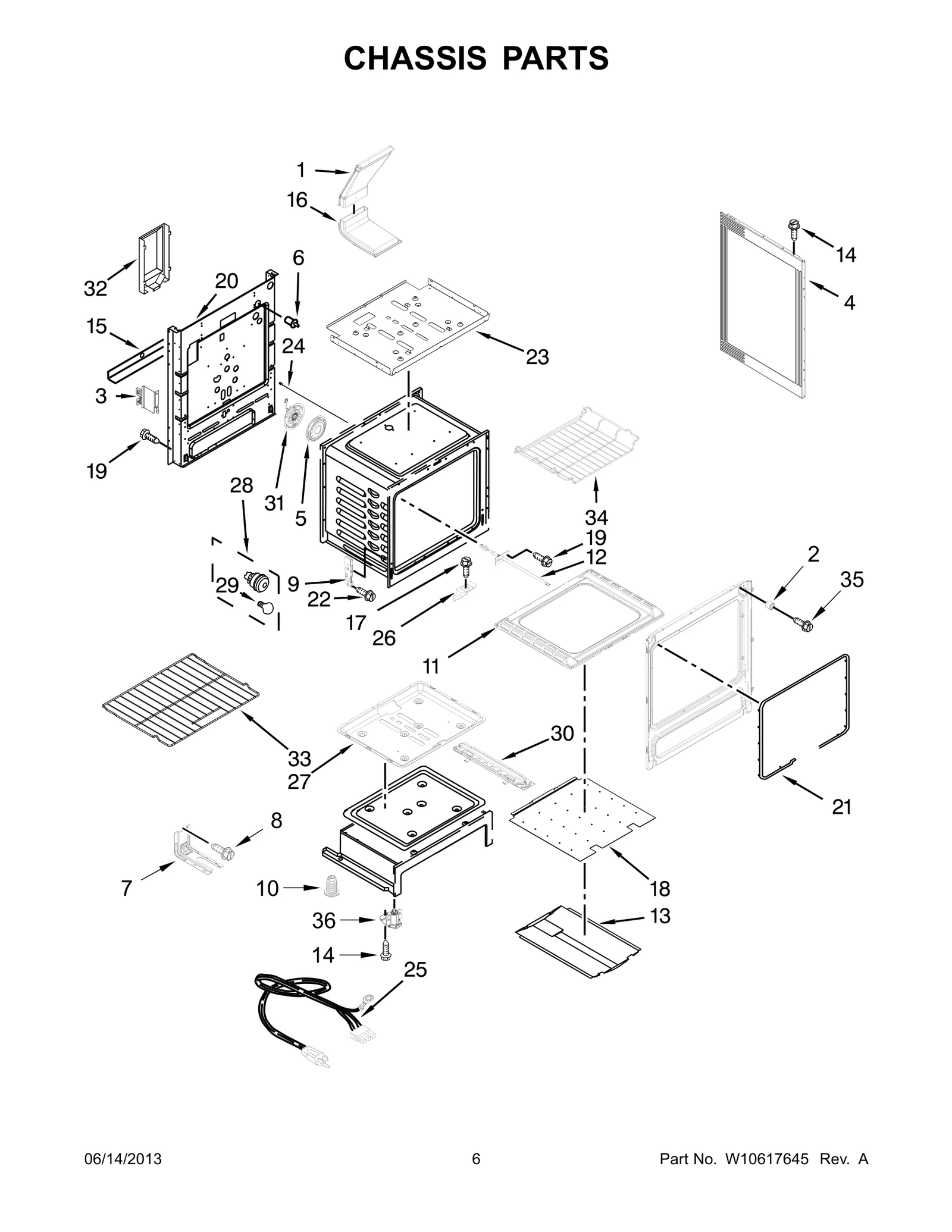

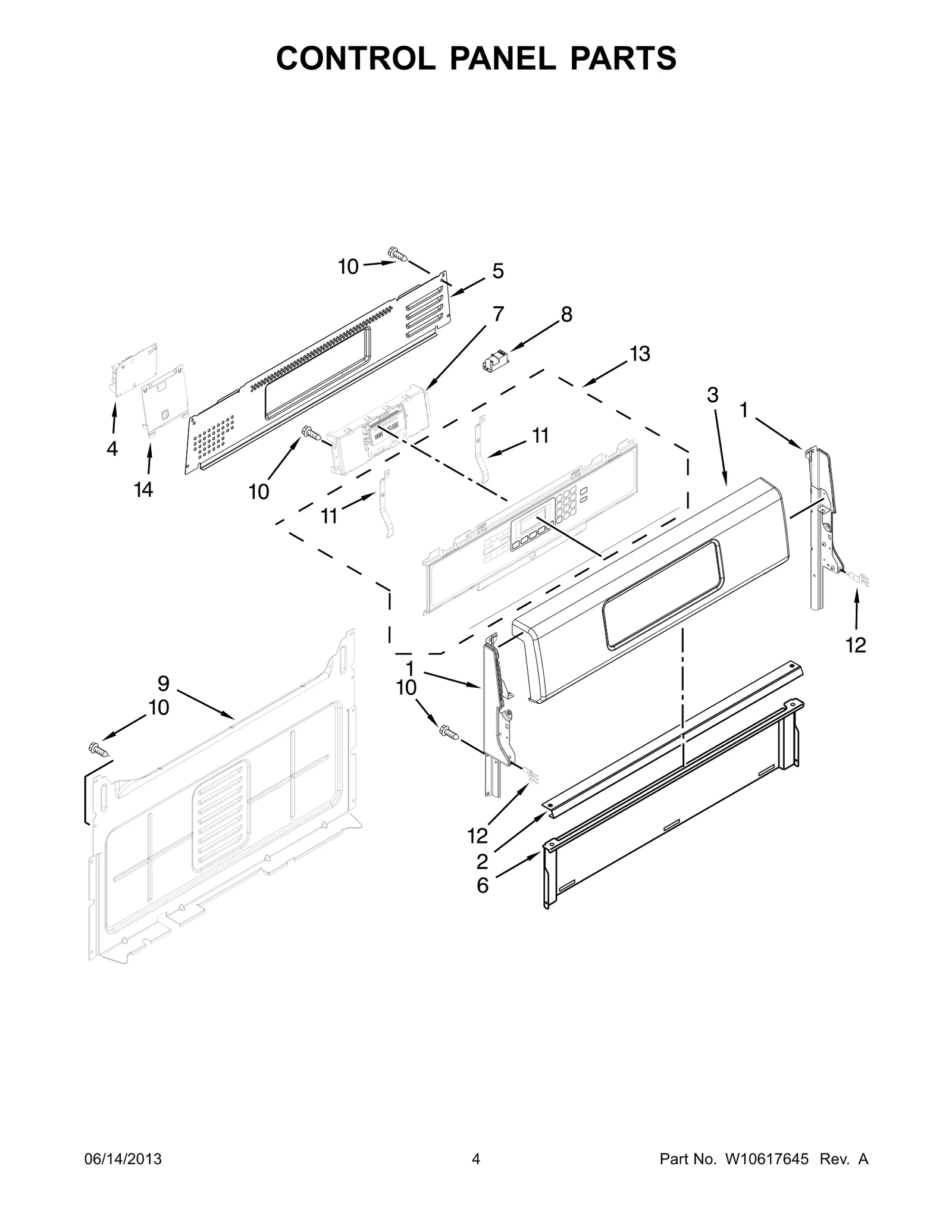

Model Whirlpool KGRS202BSS1 30&quot; Gas Freestanding Self Clean Convect Range – Common Parts &amp; Diagrams

1

W10295997 Whirlpool Screw Backorder WPL W10295997 $4.67

1

W10314347 Whirlpool Range Flue Assembly Backorder WPL W10314347 $207.64

1

W11219365 Whirlpool Panel Endcap Backorder WPL W11219365 $22.68

1

W11219370 Whirlpool Endcap Panel Backorder WPL W11219370 $38.94

1

W11219664 Whirlpool Endcap Panel In Stock WPL W11219664 $135.83

1

W11219665 Whirlpool Panel Endcap Backorder WPL W11219665 $22.68

1

WPW10335331 Whirlpool Trim Vent In Stock WPL WPW10335331 $85.96

1

Trim, Vent — Black WPL W10339814 Contact Us For Availability

2

W10473935 Whirlpool Orifice Holder Backorder WPL W10473935 $72.09

2

W10474170 Whirlpool Orifice Holder Backorder WPL W10474170 $52.26

2

W10516123 Whirlpool Mounting Bracket Backorder WPL W10516123 $56.43

2

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $37.66

2

W11234417 Whirlpool Surface Burner Orifice Ho Backorder WPL W11234417 $70.42

2

W11700294 Whirlpool Range Orifice Holder Backorder WPL W11700294 $53.72

2

W11700304 Whirlpool Orifice Holder Backorder WPL W11700304 $53.72

2

WPW10183374 Whirlpool Burner Cap In Stock WPL WPW10183374 $110.93

2

WPW10317886 Whirlpool Screw In Stock WPL WPW10317886 $5.02

2

WPW10318026 Whirlpool Mounting Bracket Backorder WPL WPW10318026 $23.70

3

W10273002 Whirlpool Support Bracket Backorder WPL W10273002 $53.24

3

W10510125 Whirlpool Gas Tubing Backorder WPL W10510125 $150.99

3

W10949105 Whirlpool Mounting Bracket Backorder WPL W10949105 $13.91

3

WPW10289076 Whirlpool Door Handle Backorder WPL WPW10289076 $218.81

3

WPW10441804 Whirlpool Drawer Slide Backorder WPL WPW10441804 $70.92

3

WPW10441805 Whirlpool Slide Drawer Backorder WPL WPW10441805 $70.88

3

Console — Black WPL W10347959 Contact Us For Availability

4

WPW10297318 Whirlpool Door Liner Backorder WPL WPW10297318 $212.71

4

WPW10511278 Whirlpool Spark Module In Stock WPL WPW10511278 $151.81

4

WPW10515453 Whirlpool Burner Head In Stock WPL WPW10515453 $64.64

4

WPW10515454 Whirlpool Burner Head In Stock WPL WPW10515454 $56.85

4

WPW10515455 Whirlpool Burner Head In Stock WPL WPW10515455 $66.88

5

W10198745 Whirlpool Rear Cover Backorder WPL W10198745 $90.90

5

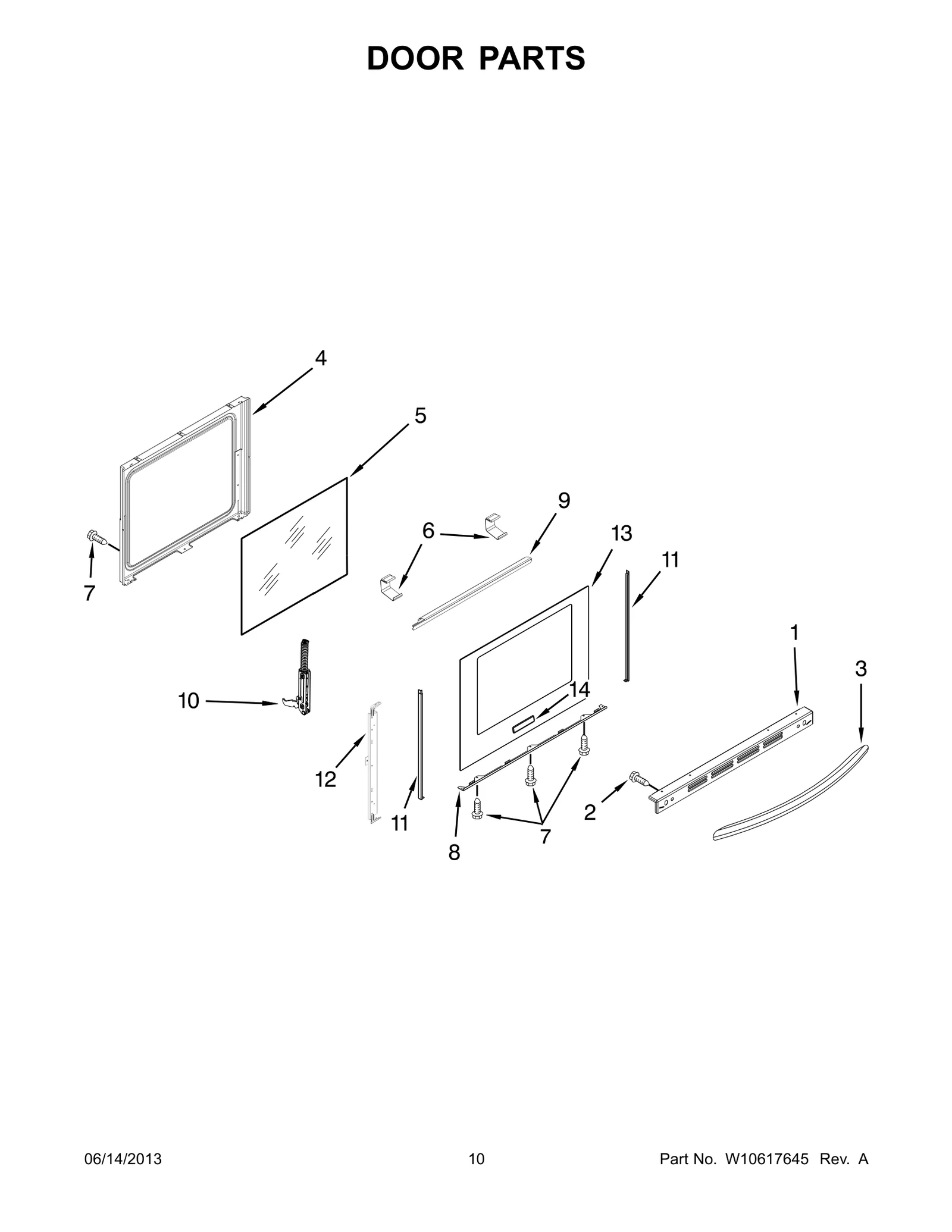

WPW10300487 Whirlpool Door Glass Backorder WPL WPW10300487 $190.98

5

WPW10413868 Whirlpool Wire Harness Backorder WPL WPW10413868 $133.14

6

W10137382 Whirlpool Clip Backorder WPL W10137382 $33.85

6

W10192841 Whirlpool Heat Shield Backorder WPL W10192841 $73.02

6

WP9757262 Whirlpool Light Switch In Stock WPL WP9757262 $81.22

6

WPW10515459 Whirlpool Surface Igniter In Stock WPL WPW10515459 $31.70

7

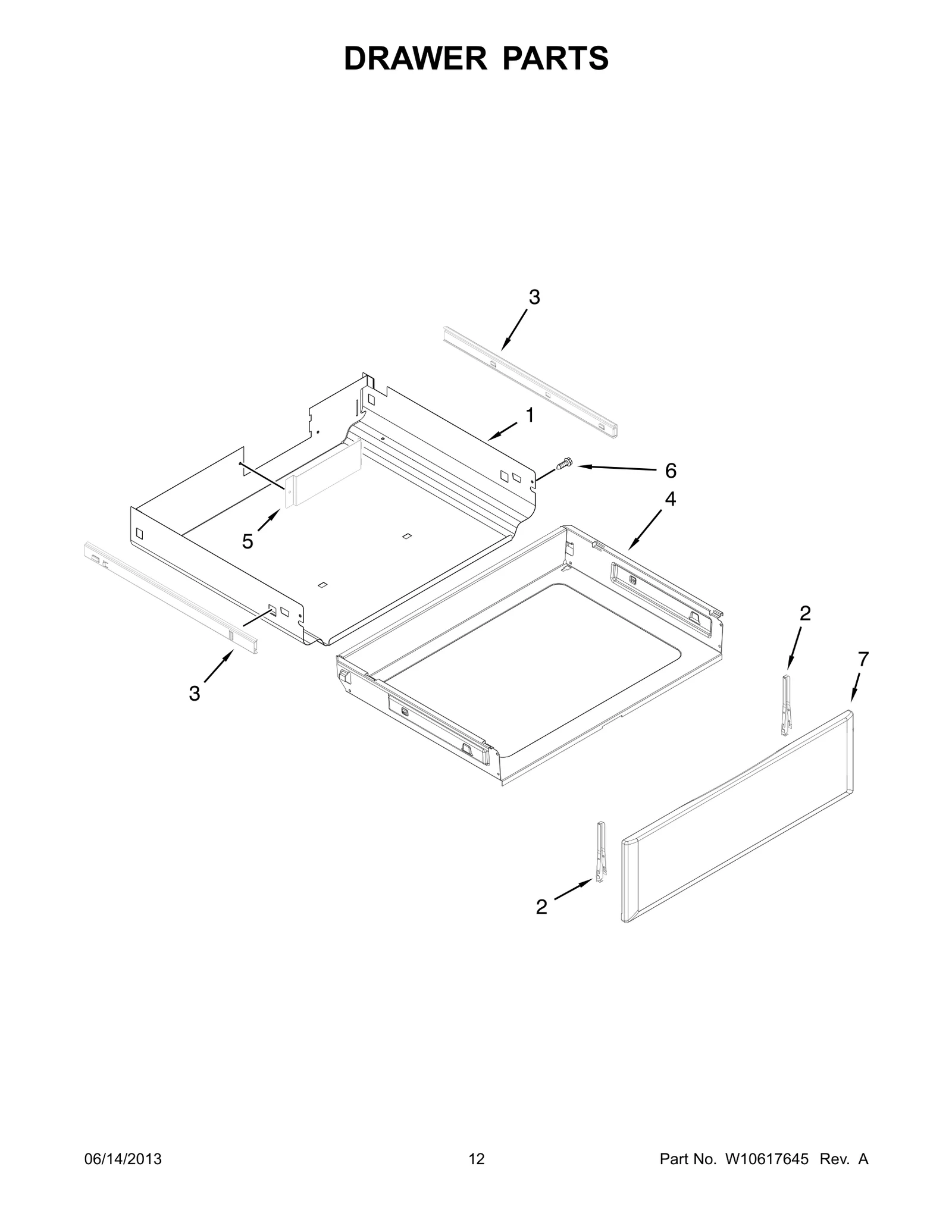

W10330041 Whirlpool Drawer Panel Backorder WPL W10330041 $129.61

7

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $19.74

7

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $5.02

7

WPW10324398 Whirlpool Knob Backorder WPL WPW10324398 $158.31

7

WPW10340699 Whirlpool Electronic Control Boar Backorder WPL WPW10340699 $231.47

7

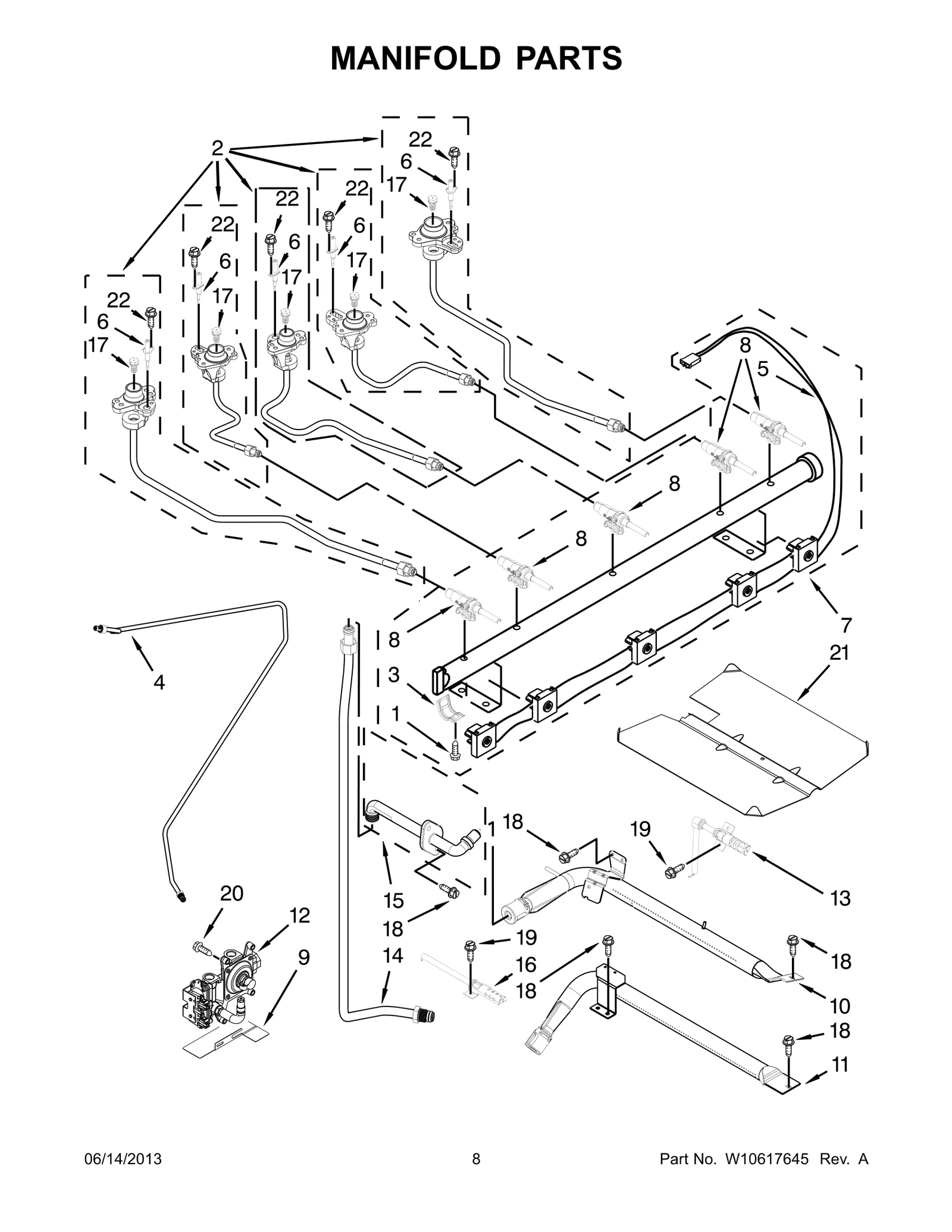

WPW10413870 Whirlpool Manifold Assembly Backorder WPL WPW10413870 $229.38

7

Knob, Control — Black WPL W10524669 Contact Us For Availability

7

Panel, Drawer Front — Black WPL W10330042 Contact Us For Availability

8

W10334031 Whirlpool Glass Bracket Backorder WPL W10334031 $51.81

8

WPW10247744 Whirlpool Burner Valve Backorder WPL WPW10247744 $197.00

8

WPW10279614 Whirlpool Burner Valve Backorder WPL WPW10279614 $217.09

8

WPW10279615 Whirlpool Burner Valve In Stock WPL WPW10279615 $200.81

8

WPW10333990 Whirlpool Glass Bracket Backorder WPL WPW10333990 $51.82

8

WPW10475149 Whirlpool Spark Module In Stock WPL WPW10475149 $140.71

8

Grate, Set — Black WPL W10509552 Contact Us For Availability

9

W10224921 Whirlpool Bracket Mounting Backorder WPL W10224921 $53.24

9

W10294853 Whirlpool Mounting Bracket Backorder WPL W10294853 $159.29

9

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $5.30

W10534174 Whirlpool Support Bracket Backorder WPL W10534174 $112.64

W11676566 Whirlpool Range Burner Broiler Backorder WPL W11676566 $58.22

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.56

WPW10440013 Whirlpool Door Hinge In Stock WPL WPW10440013 $32.32

11

W10334003 Whirlpool Door Trim In Stock WPL W10334003 $77.95

11

W10334004 Whirlpool Door Trim Backorder WPL W10334004 $154.67

11

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $259.60

12

W11116956 Whirlpool Support Bracket In Stock WPL W11116956 $88.38

12

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $80.94

12

WPW10602004 Whirlpool Regulator Backorder WPL WPW10602004 $283.49

W10324433 Whirlpool Membrane Switch Backorder WPL W10324433 $230.30

WPW10324262 Whirlpool Range Igniter In Stock WPL WPW10324262 $80.19

WPW10490829 Whirlpool Door Liner Backorder WPL WPW10490829 $266.98

WPW10495962 Whirlpool Door Panel Backorder WPL WPW10495962 $253.01

WPW10495963 Whirlpool Door Panel Backorder WPL WPW10495963 $105.75

W10306050 Whirlpool Gas Tubing Backorder WPL W10306050 $137.32

W10516577 Whirlpool Bracket Mounting Backorder WPL W10516577 $55.77

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $42.44

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $53.64

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $50.95

15

W10435470 Whirlpool Brace Backorder WPL W10435470 $54.92

15

W10583216 Whirlpool Fitting Assembly Backorder WPL W10583216 $67.40

16

W11243157 Whirlpool Range Flue Backorder WPL W11243157 $235.84

16

WPW10333842 Whirlpool Range Igniter In Stock WPL WPW10333842 $62.17

WPW10170506 Whirlpool Orifice Spud Backorder WPL WPW10170506 $68.82

WPW10170507 Whirlpool Orifice Backorder WPL WPW10170507 $68.82

WPW10170508 Whirlpool Orifice Spud Backorder WPL WPW10170508 $70.60

WPW10347414 Whirlpool Orifice Spud Backorder WPL WPW10347414 $65.88

18

W10323077 Whirlpool Burner Baffle Backorder WPL W10323077 $187.52

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

19

W11684507 Whirlpool Screw In Stock WPL W11684507 $13.02

20

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.82

21

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $38.53

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $5.30

WPW10170516 Whirlpool Conversion Kit In Stock WPL WPW10170516 $42.77

WPW10400494 Whirlpool Orifice Assembly Backorder WPL WPW10400494 $76.28

Orifice, LP Broil WPL W10400497 Contact Us For Availability

24

W11370463 Whirlpool Door Rod Assembly Backorder WPL W11370463 $45.14

25

W11582239 Whirlpool Range Power Cord Backorder WPL W11582239 $9.90

26

W10035900 Whirlpool Support Bracket Backorder WPL W10035900 $9.17

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $61.44

31

WPW10389555 Whirlpool Convection Fan Backorder WPL WPW10389555 $209.75

32

W10158780 Whirlpool Rear Cover Backorder WPL W10158780 $81.65

33

Rack, Oven WPL W10460125 Contact Us For Availability

34

W11256463 Whirlpool Range Rack Backorder WPL W11256463 $75.47

35

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.82

36

4820F015-59 Whirlpool Strap Backorder WPL 4820F015-59 $5.79

36

W11688566 Whirlpool Insulation Backorder WPL W11688566 $81.75

36

WPW10341186 Whirlpool Range Front Levelling L In Stock WPL WPW10341186 $20.85

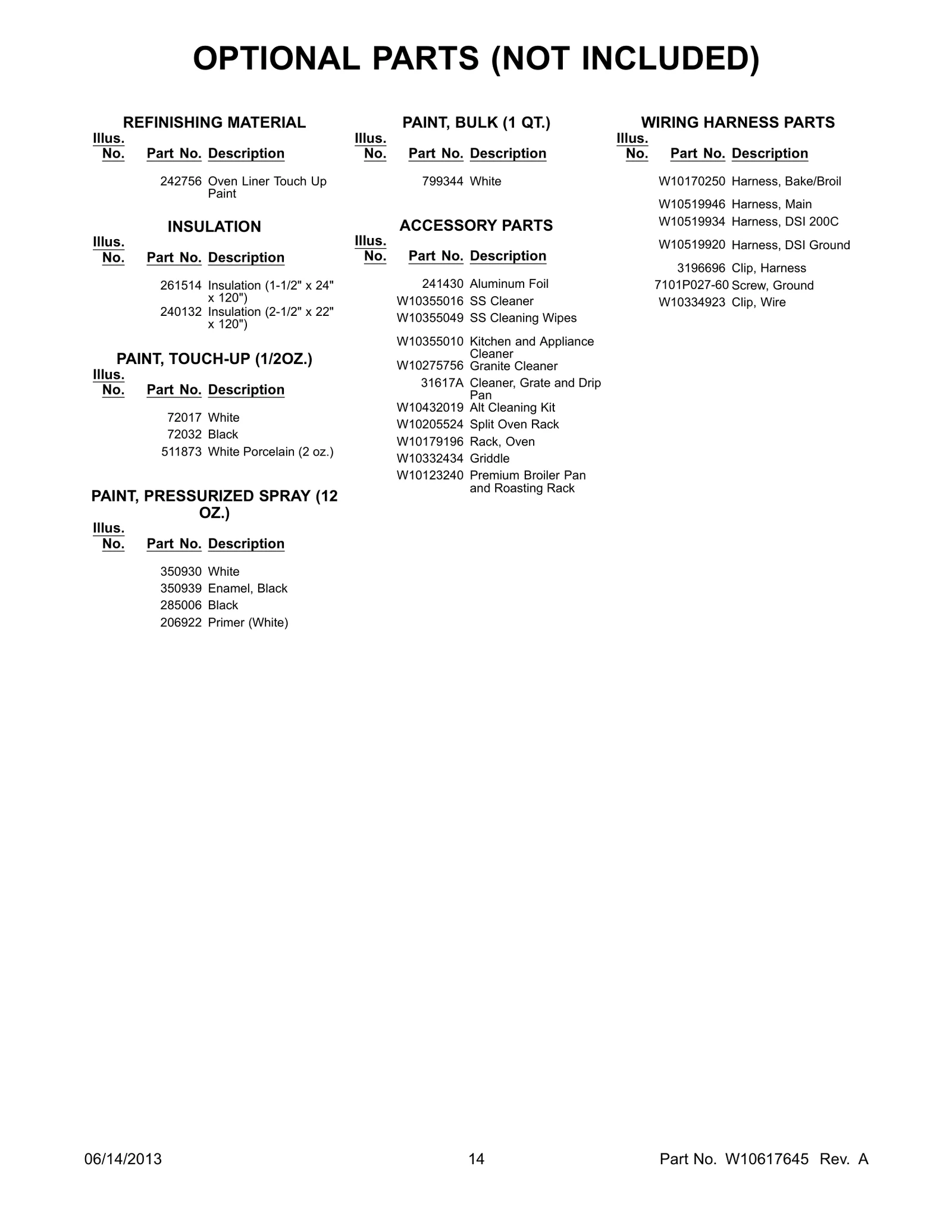

OPT-3

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

OPT-4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

OPT-5

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

OPT-6

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

OPT-7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

OPT-11

White WPL 799344 Contact Us For Availability

OPT-12

Aluminum Foil WPL 241430 Contact Us For Availability

OPT-13

SS Cleaner WPL W10355016 Contact Us For Availability

OPT-14

SS Cleaning Wipes WPL W10355049 Contact Us For Availability

OPT-15

Kitchen and Appliance WPL W10355010 Contact Us For Availability

OPT-16

Granite Cleaner WPL W10275756 Contact Us For Availability

OPT-17

Cleaner, Grate and Drip WPL 31617A Contact Us For Availability

OPT-19

WPW10205524 Whirlpool Range Rack Backorder WPL WPW10205524 $47.24

OPT-22

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.44

OPT-25

W10519934 Whirlpool Wire Harness Backorder WPL W10519934 $225.65

OPT-26

W10519920 Whirlpool Wire Harness Backorder WPL W10519920 $14.02

OPT-29

W10334923 Whirlpool Clip Backorder WPL W10334923 $7.28
