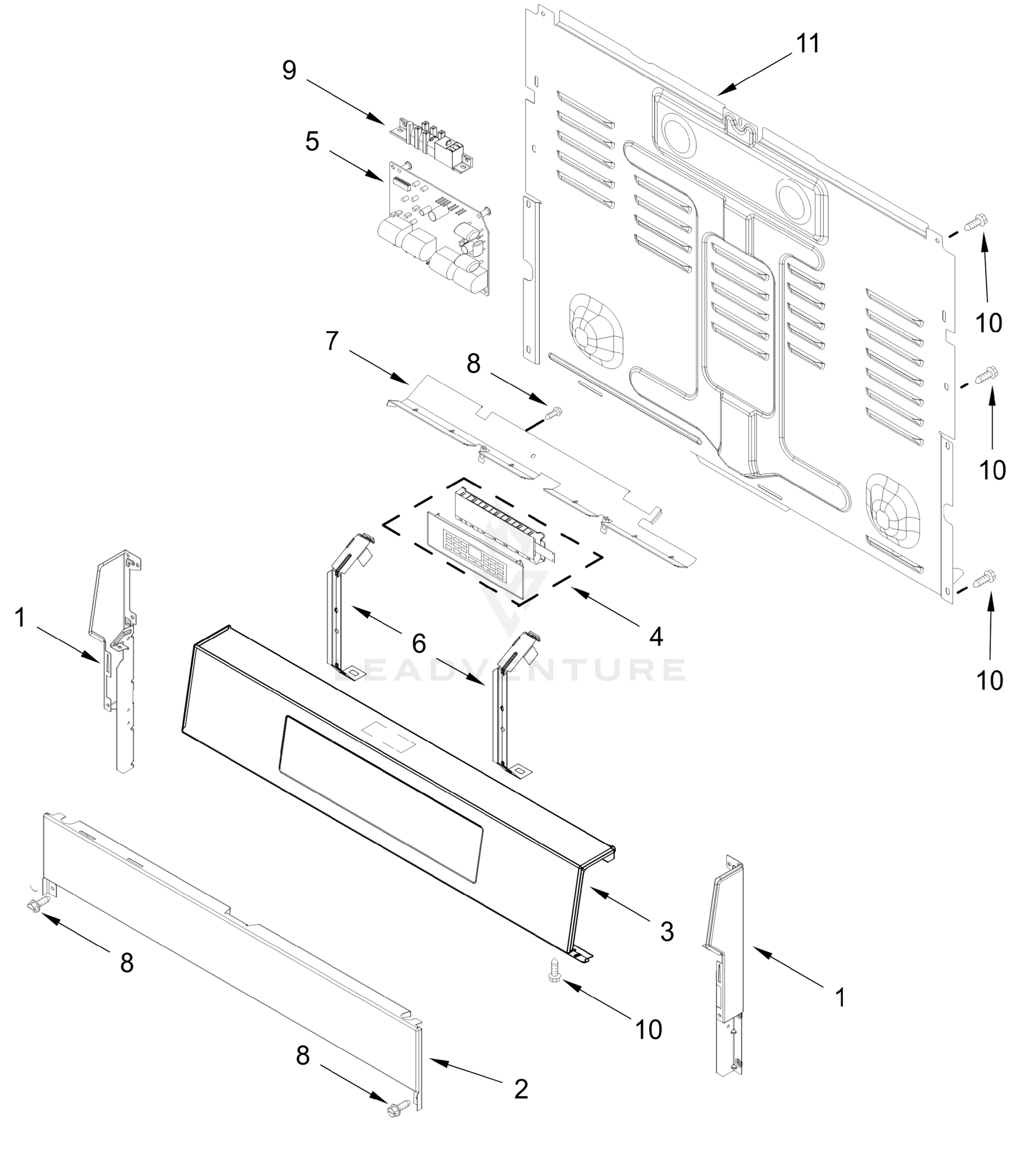

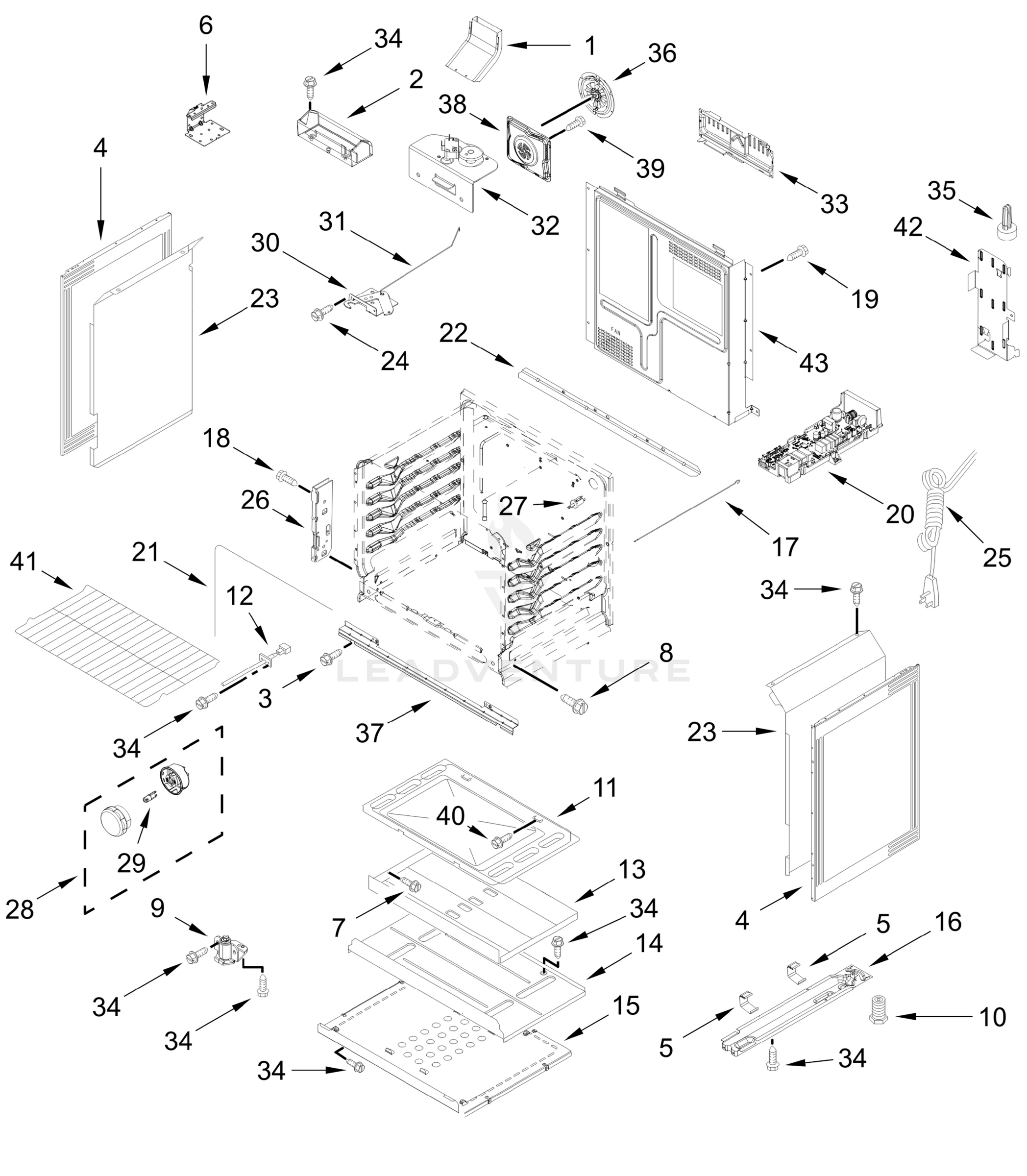

Model Whirlpool KFGS330TPS0 – Common Parts & Diagrams

Quick Start Guide
Quick Start Guide WPL W11794742 Contact Us For Availability
View on Model
Manifold, Endcap (Right)
Manifold, Endcap (Right) WPL W11608559 Contact Us For Availability
View on Model
Harness, Main
Harness, Main WPL W11334462 Contact Us For Availability
View on Model
Harness, Bake
Harness, Bake WPL W11454086 Contact Us For Availability
View on Model
Harness, Rear
Harness, Rear WPL W11385156 Contact Us For Availability
View on Model
Bracket, Handle Mount (Right)
Bracket, Handle Mount (Right) WPL W11157607 Contact Us For Availability
View on Model
Orifice Holder Assembly (10K)
Orifice Holder Assembly (10K) WPL W11796696 Contact Us For Availability
View on Model
Orifice Assembly (18K)
Orifice Assembly (18K) WPL W11663419 Contact Us For Availability
View on Model
Orifice Holder Assembly (5K)
Orifice Holder Assembly (5K) WPL W11796695 Contact Us For Availability
View on Model
Orifice Assembly (12K)
Orifice Assembly (12K) WPL W11794979 Contact Us For Availability
View on Model
Valve, Single
Valve, Single WPL W11714953 Contact Us For Availability
View on Model
Valve, Single
Valve, Single WPL W11714960 Contact Us For Availability
View on Model
Valve, Single
Valve, Single WPL W11714958 Contact Us For Availability
View on Model
Kit, LP Conversion (Orifice, Set of 5)
Kit, LP Conversion (Orifice, Set of 5) WPL W11368273 Contact Us For Availability
View on Model
1
Handle (Stainless)
Handle (Stainless) WPL W11680261 Contact Us For Availability
View on Model
1
Screw
Screw WPL W11402213 Contact Us For Availability
View on Model
3
Badge
Badge WPL W11688412 Contact Us For Availability
View on Model
3
Orifice Holder Assembly (18K)
Orifice Holder Assembly (18K) WPL W11663423 Contact Us For Availability
View on Model
4

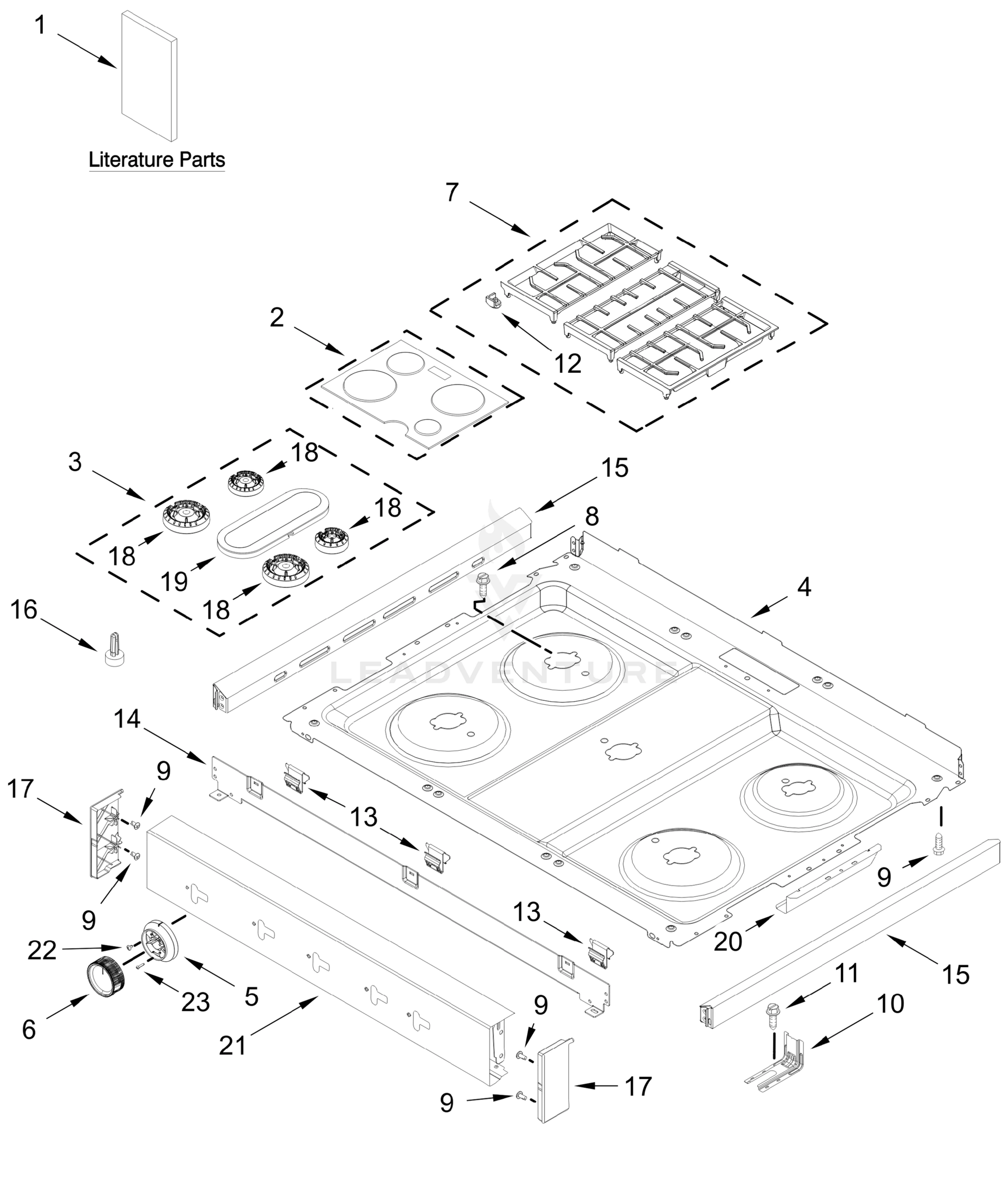

Cooktop (Black)
Cooktop (Black) WPL W11279788 Contact Us For Availability
View on Model
4

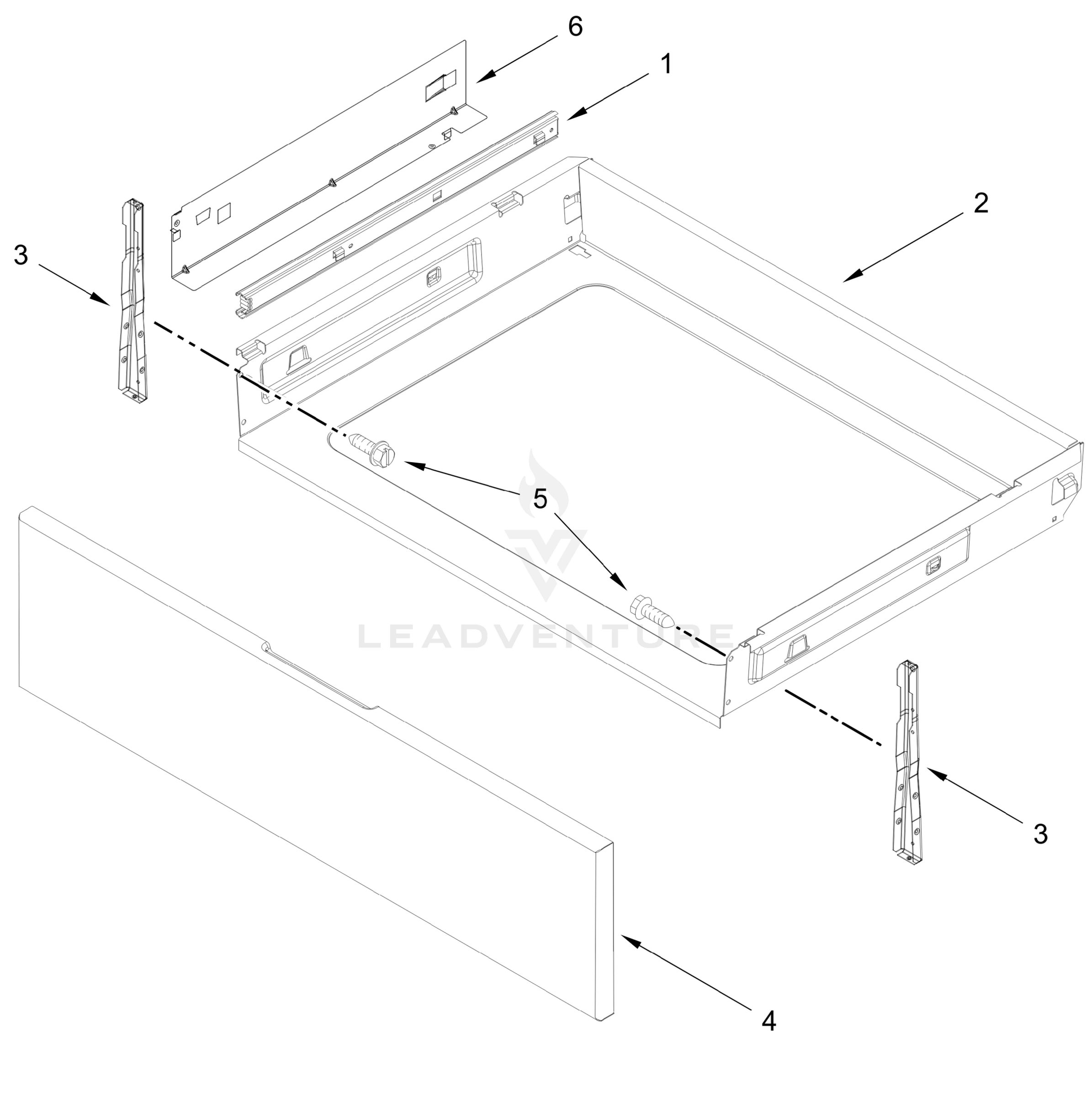

Drawer Panel, Front (Stainless)
Drawer Panel, Front (Stainless) WPL W11680975 Contact Us For Availability
View on Model
4
Tubing (Manifold to Regulator)
Tubing (Manifold to Regulator) WPL W11665012 Contact Us For Availability
View on Model
5
Bezel (Stainless)
Bezel (Stainless) WPL W11365062 Contact Us For Availability
View on Model
6
Knob (Stainless)
Knob (Stainless) WPL W11594133 Contact Us For Availability
View on Model
7
Grate, Kit (Black)
Grate, Kit (Black) WPL W11720128 Contact Us For Availability
View on Model
7

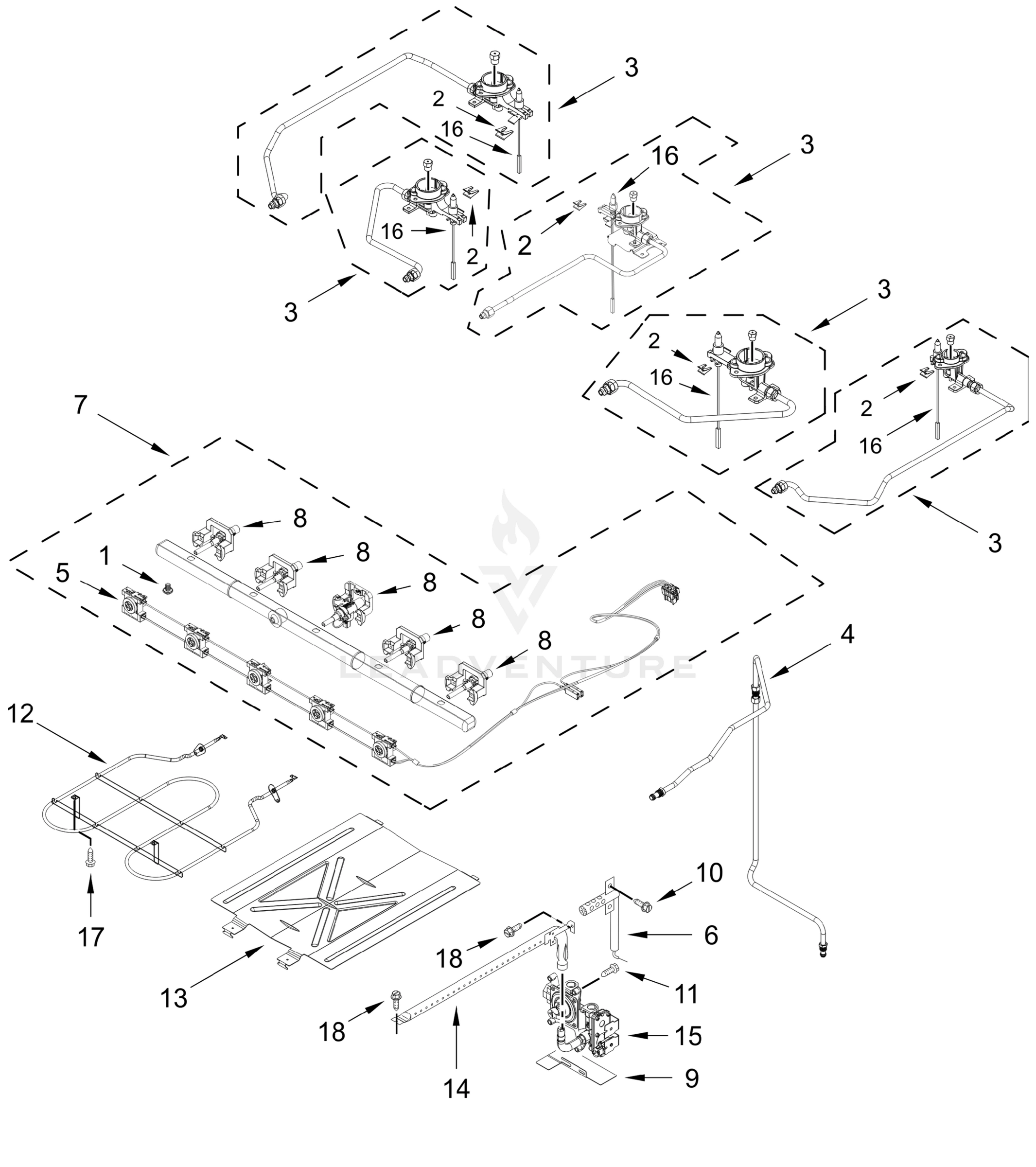

Manifold Assembly
Manifold Assembly WPL W11663920 Contact Us For Availability
View on Model
8
Valve, Single
Valve, Single WPL W11714959 Contact Us For Availability
View on Model
9
Retainer, Insulation
Retainer, Insulation WPL W11788182 Contact Us For Availability
View on Model
11

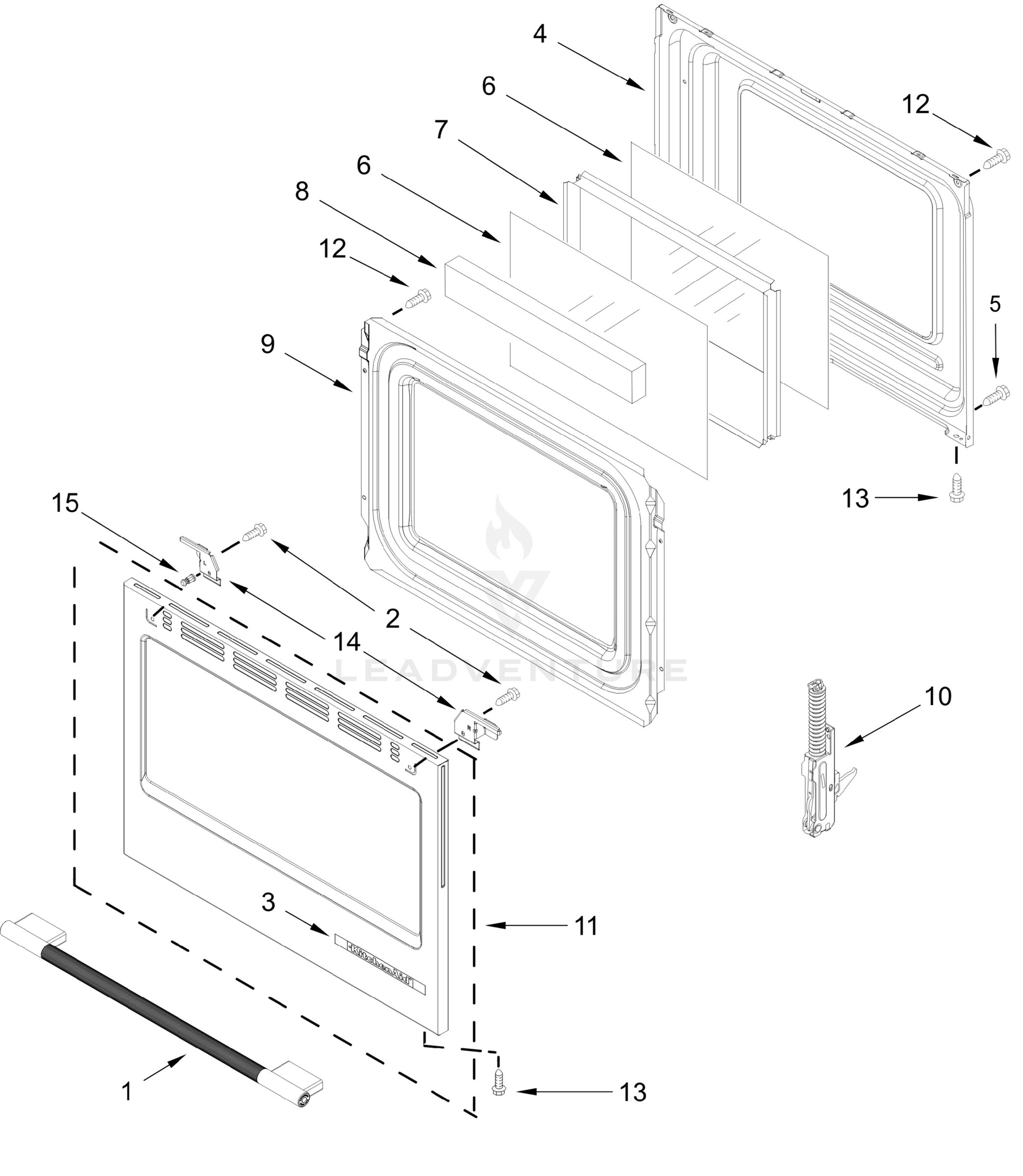

Door Assembly (Stailess)
Door Assembly (Stailess) WPL W11756893 Contact Us For Availability
View on Model
12
Grate, Bumper
Grate, Bumper WPL W11672010 Contact Us For Availability
View on Model
12
Screw
Screw WPL W11706901 Contact Us For Availability
View on Model
13
Spring, Clip
Spring, Clip WPL W11637551 Contact Us For Availability
View on Model
14
Bracket, Handle Mount (Left)
Bracket, Handle Mount (Left) WPL W11417442 Contact Us For Availability
View on Model
15
Cooktop, Frame Bracket (Black)
Cooktop, Frame Bracket (Black) WPL W11367962 Contact Us For Availability
View on Model
15
Stud
Stud WPL W11687274 Contact Us For Availability
View on Model
17
Manifold, Endcap (Left)
Manifold, Endcap (Left) WPL W11608558 Contact Us For Availability
View on Model
19
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
20
Bracket, Spark Module
Bracket, Spark Module WPL W11366598 Contact Us For Availability
View on Model
21
Panel, Manifold (Stainless)
Panel, Manifold (Stainless) WPL W11694078 Contact Us For Availability
View on Model
