Model Whirlpool KEDS200YWH1 – Common Parts & Diagrams
03 - CONTROL PANEL, OPTIONAL

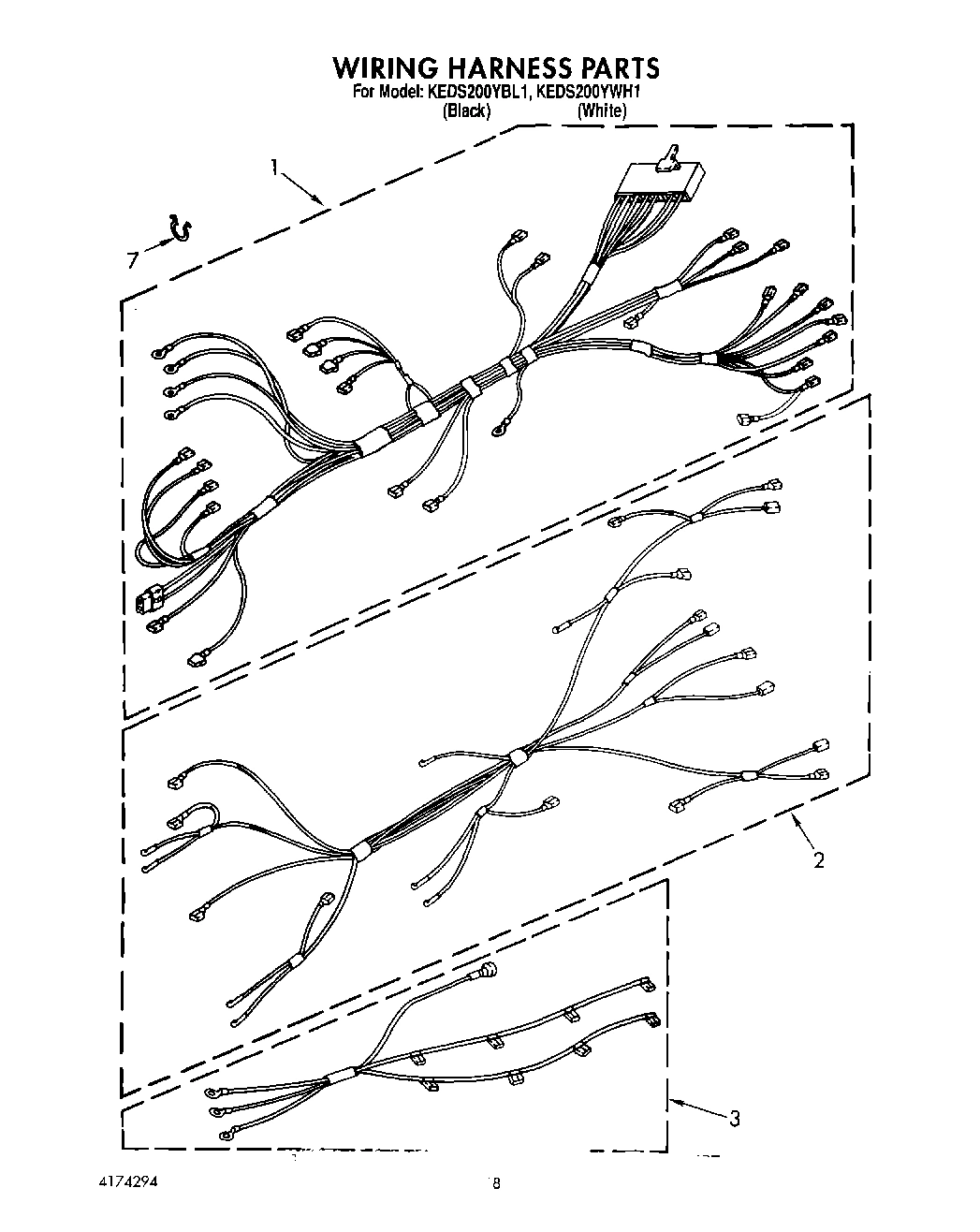

06 - WIRING HARNESS

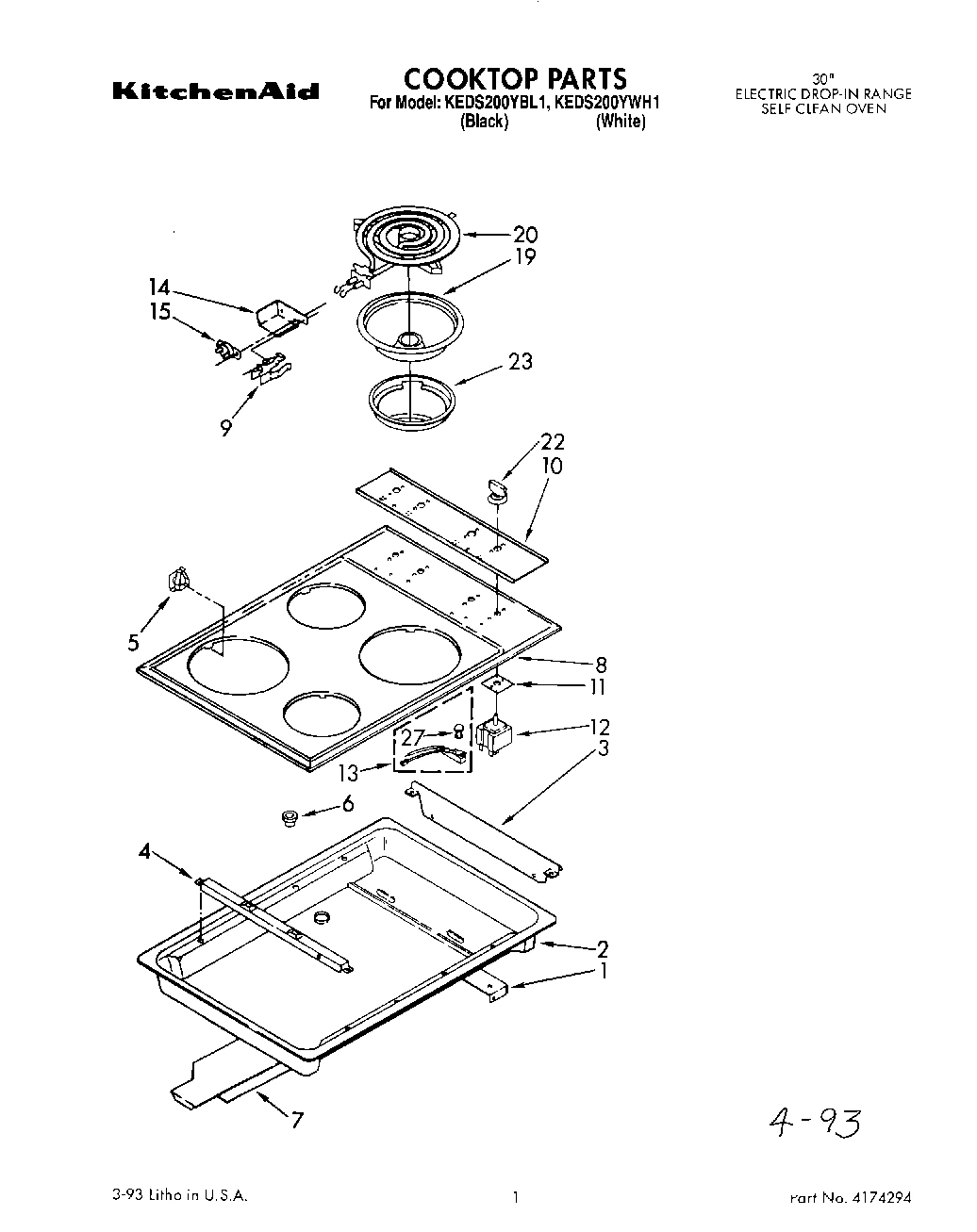

01 - COOKTOP

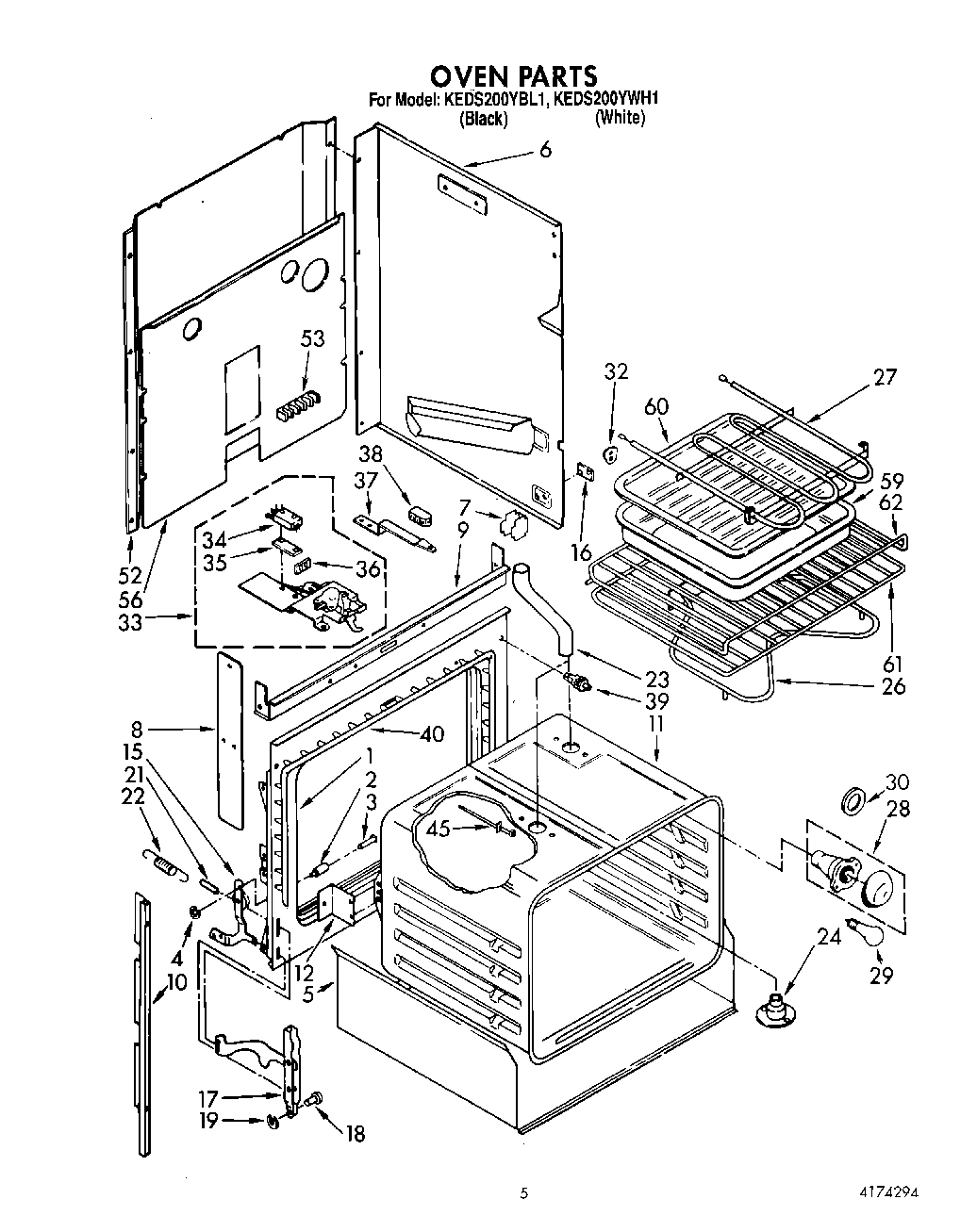

04 - OVEN

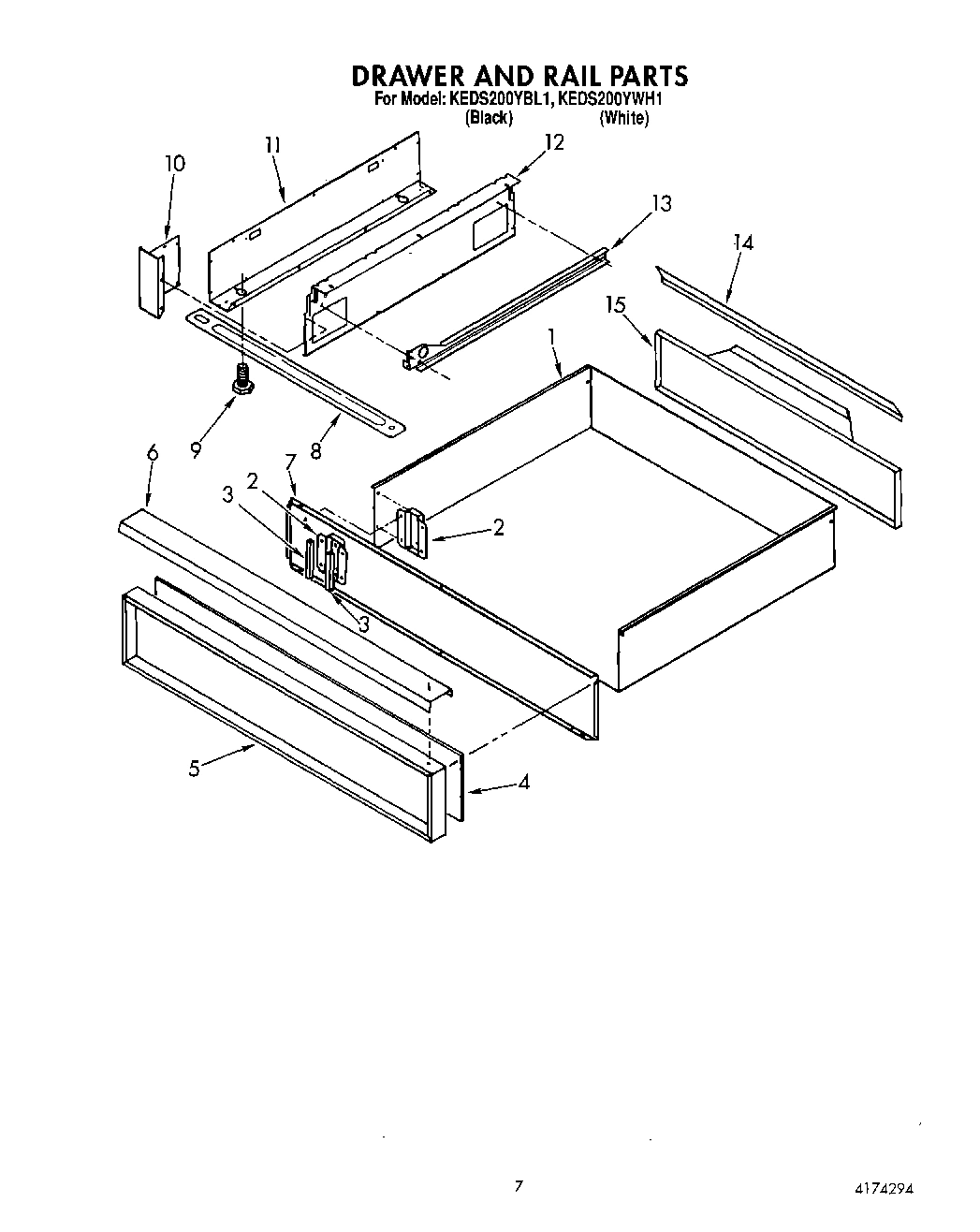

05 - DRAWER & RAIL

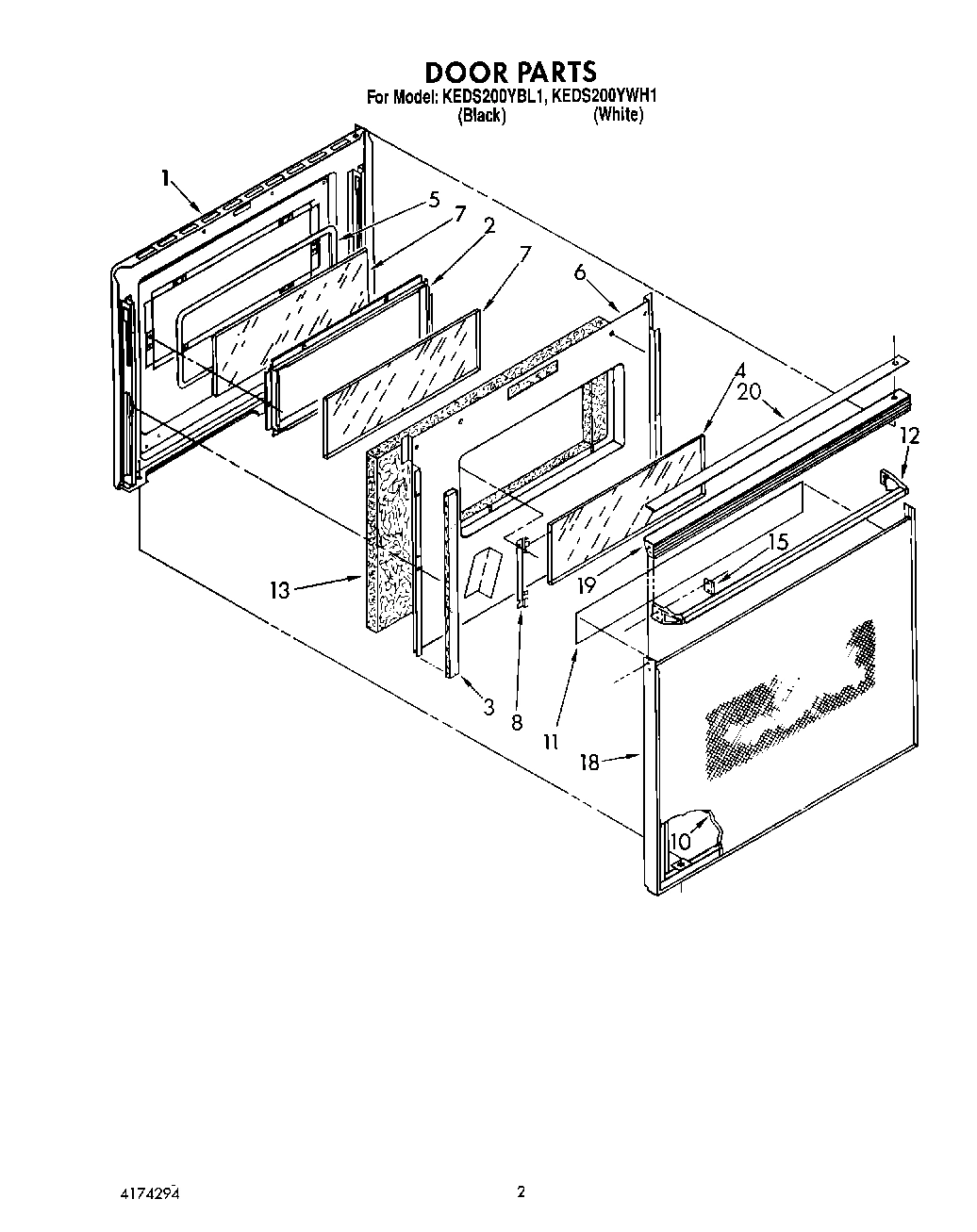

02 - DOOR
Common parts from model Whirlpool KEDS200YWH1
WPL LIT3184873 WPL LIT3184873 Contact Us For Availability
WPL LIT3185258 WPL LIT3185258 Contact Us For Availability
WPL LIT3185645 WPL LIT3185645 Contact Us For Availability
WPL LIT4174294 WPL LIT4174294 Contact Us For Availability
1
Harness, Wire (Main) WPL 3185257 Contact Us For Availability
1
Support, Box WPL 310718 Contact Us For Availability
1
Frame, Front WPL 3176698 Contact Us For Availability
1
Drawer, Utility WPL 3183571 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Screw WPL 166681 Contact Us For Availability
2
Harness, Wire (suface Unit) WPL 3147828 Contact Us For Availability
2
Box, Burner WPL 311021 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
3
screw (6) WPL 3148443 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 3185146 Contact Us For Availability
5
Fastener WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
6
Handle, Drawer (Screw, Black (3)) WPL 308504 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Panel, Back WPL 3185162 Contact Us For Availability
8
Cooktop (Screw (6)) WPL 312318 Contact Us For Availability
8
Cooktop (White) WPL 3148754 Contact Us For Availability
8
Cooktop (Black) WPL 3183618 Contact Us For Availability
8
Insulation Baffle (2) WPL 311256 Contact Us For Availability
8
Screw, No.6-20x1 1/4 (2) WPL 3148442 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
10
Control Panel (Black) WPL 3147680 Contact Us For Availability
10
Control Panel (White) WPL 3147681 Contact Us For Availability
10
Control Panel (Tape, Foam) WPL 3147928 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3150347 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
11
Foil WPL 3148184 Contact Us For Availability
12
Switch, Infinite (6`` Element (2)) WPL 3148967 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
12
Handle, Oven Door (Black) WPL 3183402 Contact Us For Availability
12
Handle, Oven Door (White) WPL 3183403 Contact Us For Availability
13
Indicator Light (Lens, No.313602) WPL 313461 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
13
Insulation WPL 3147951 Contact Us For Availability
14
Bracket, Sensor WPL 3147830 Contact Us For Availability
14
Baffle, Drip WPL 3185225 Contact Us For Availability
15
Thermostat WPL 3147833 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Panel, Back WPL 3185154 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
18
Frame WPL 3148235 Contact Us For Availability
19
Reflector Pan (6`` (2)) WPL 3150198 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Top, Door (Black) WPL 3148223 Contact Us For Availability
19
Door Top (Panoramic Grey) WPL 3149355 Contact Us For Availability
20
Cap, Top WPL 3181363 Contact Us For Availability
21
Bezel, Switch (White) WPL 3149170 Contact Us For Availability
22
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
22
Knob, Control (4) (White) WPL 3150096 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
26
Knob, Timer (1) (Black) WPL 3149784 Contact Us For Availability
26
Knob, Timer (1) (White) WPL 3149785 Contact Us For Availability
27
Lens, Light WPL 313602 Contact Us For Availability
27
Screw, 10-32 x 1/2 (2) WPL 3150532 Contact Us For Availability
31
Brace, Control Bracket WPL 3148102 Contact Us For Availability
32
Button, Push (8) (Black) WPL 3183243 Contact Us For Availability
32
Button, Push (8) (White) WPL 3183244 Contact Us For Availability
32
Coverplate WPL 3183005 Contact Us For Availability
33
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
33
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3184230 Contact Us For Availability
34
Shield, Ai WPL 3149142 Contact Us For Availability
34
Safety Switch WPL 3183001 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
WPL 98520 WPL 98520 Contact Us For Availability
35
WPL 3149419 WPL 3149419 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
WPL 3150352 WPL 3150352 Contact Us For Availability
36
Screw No.6 x 3/8 WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
WPL 242820 WPL 242820 Contact Us For Availability
37
WPL 242821 WPL 242821 Contact Us For Availability
37
WPL 242822 WPL 242822 Contact Us For Availability
37
WPL 242823 WPL 242823 Contact Us For Availability
37
WPL 242824 WPL 242824 Contact Us For Availability
37
WPL 242825 WPL 242825 Contact Us For Availability
37
WPL 242826 WPL 242826 Contact Us For Availability
37
WPL 242827 WPL 242827 Contact Us For Availability
37
WPL 242828 WPL 242828 Contact Us For Availability
37
WPL 242829 WPL 242829 Contact Us For Availability
37
WPL 242830 WPL 242830 Contact Us For Availability
37
WPL 242832 WPL 242832 Contact Us For Availability
37
WPL 261890 WPL 261890 Contact Us For Availability
37
WPL 261891 WPL 261891 Contact Us For Availability
37
WPL 285365 WPL 285365 Contact Us For Availability
37
WPL 285366 WPL 285366 Contact Us For Availability
37
WPL 285367 WPL 285367 Contact Us For Availability
37
WPL 285368 WPL 285368 Contact Us For Availability
37
WPL 3183242 WPL 3183242 Contact Us For Availability
37
WPL 3185260 WPL 3185260 Contact Us For Availability
37
WPL 350806 WPL 350806 Contact Us For Availability
37
WPL 350941 WPL 350941 Contact Us For Availability
37
WPL 591014 WPL 591014 Contact Us For Availability
37
WPL 72112 WPL 72112 Contact Us For Availability
37
WPL 799832 WPL 799832 Contact Us For Availability
37
WPL 814128 WPL 814128 Contact Us For Availability
37
WPL 832985 WPL 832985 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob, Latch Handl WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 3185197 WPL 3185197 Contact Us For Availability
45
WPL 3148440 WPL 3148440 Contact Us For Availability
45
WPL 3179117 WPL 3179117 Contact Us For Availability
52
WPL 3182052 WPL 3182052 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 3185440 WPL 3185440 Contact Us For Availability
62
WPL 310433 WPL 310433 Contact Us For Availability
62
WPL 310435 WPL 310435 Contact Us For Availability
62
WPL 3149328 WPL 3149328 Contact Us For Availability
62
WPL 3185222 WPL 3185222 Contact Us For Availability
62
WPL 3185441 WPL 3185441 Contact Us For Availability
× ![]()
