Model Whirlpool KEDS200BBL0 – Common Parts & Diagrams
01 - COOKTOP

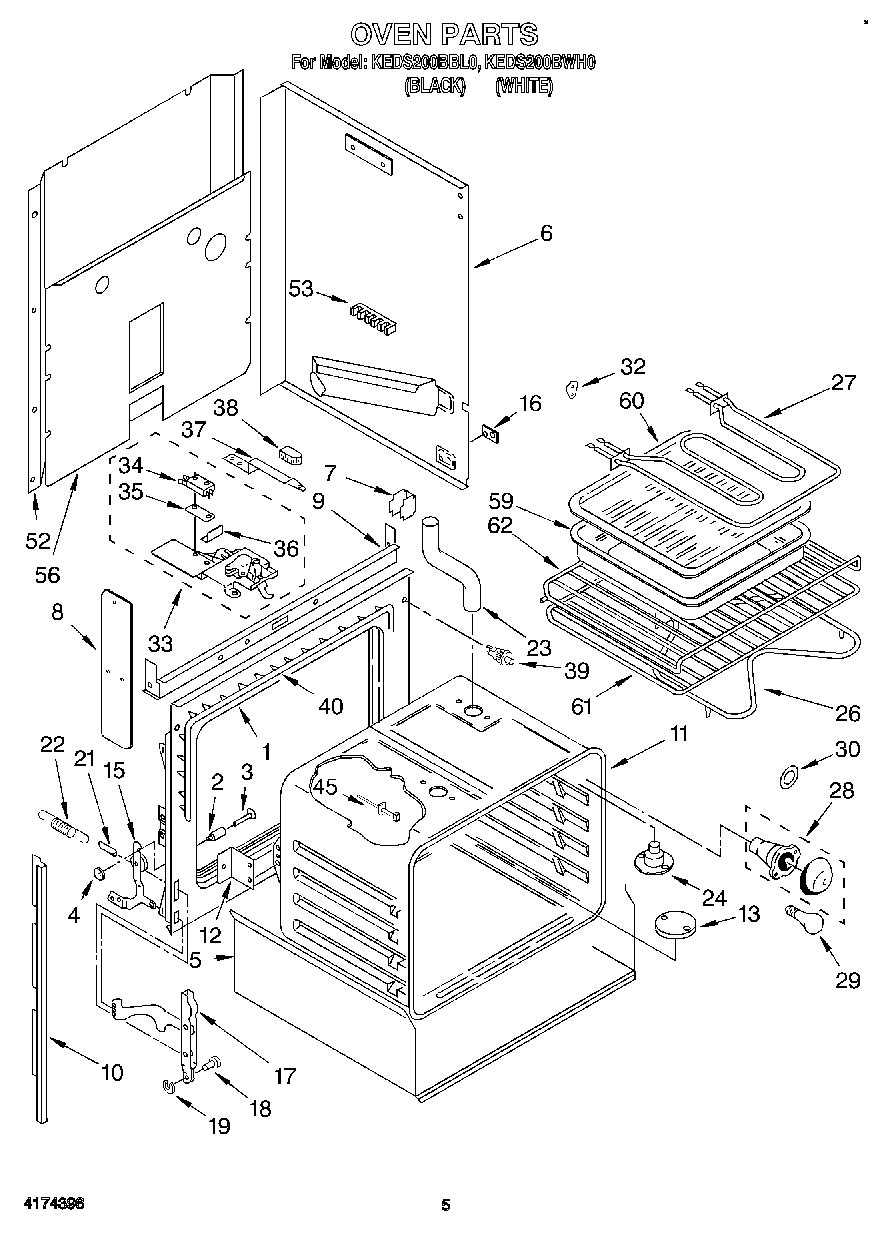

04 - OVEN, LITERATURE

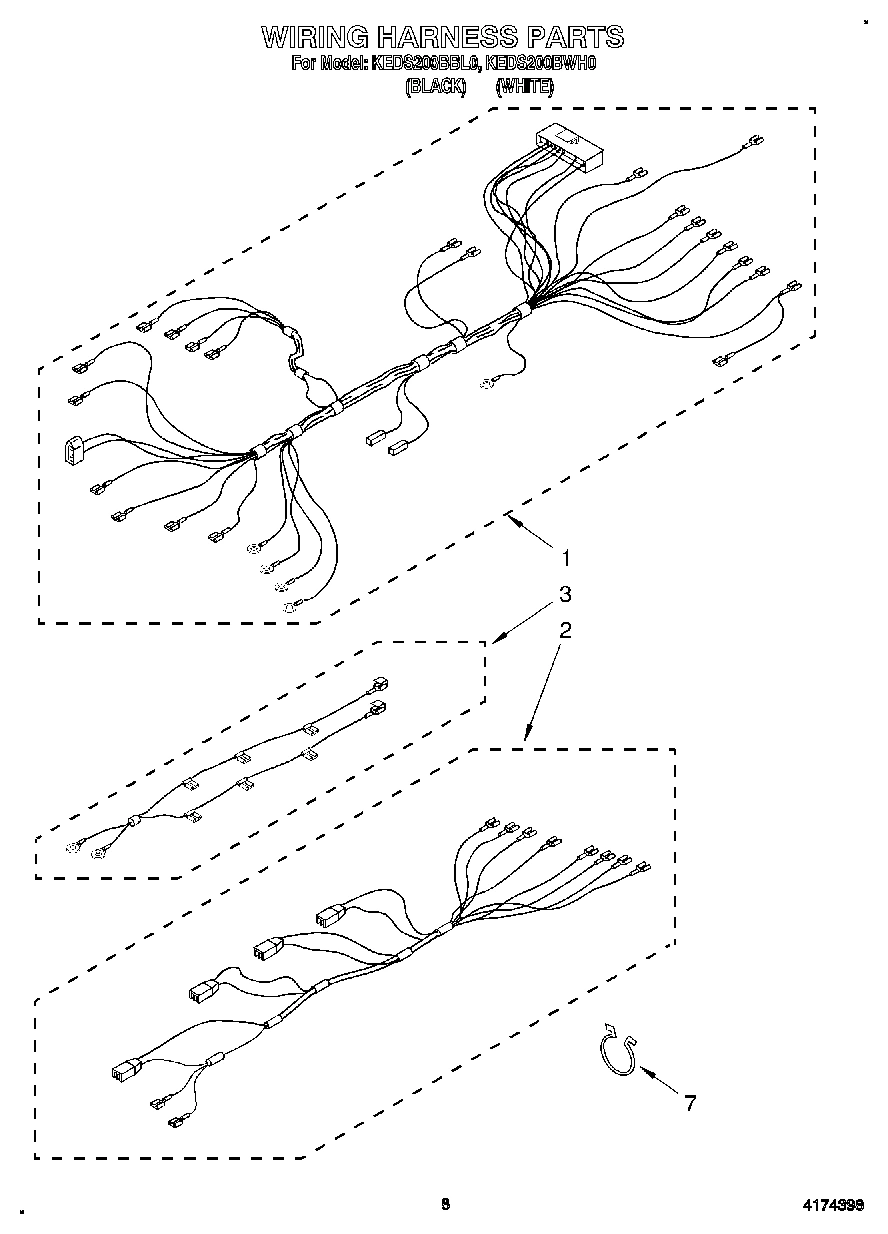

06 - WIRING HARNESS

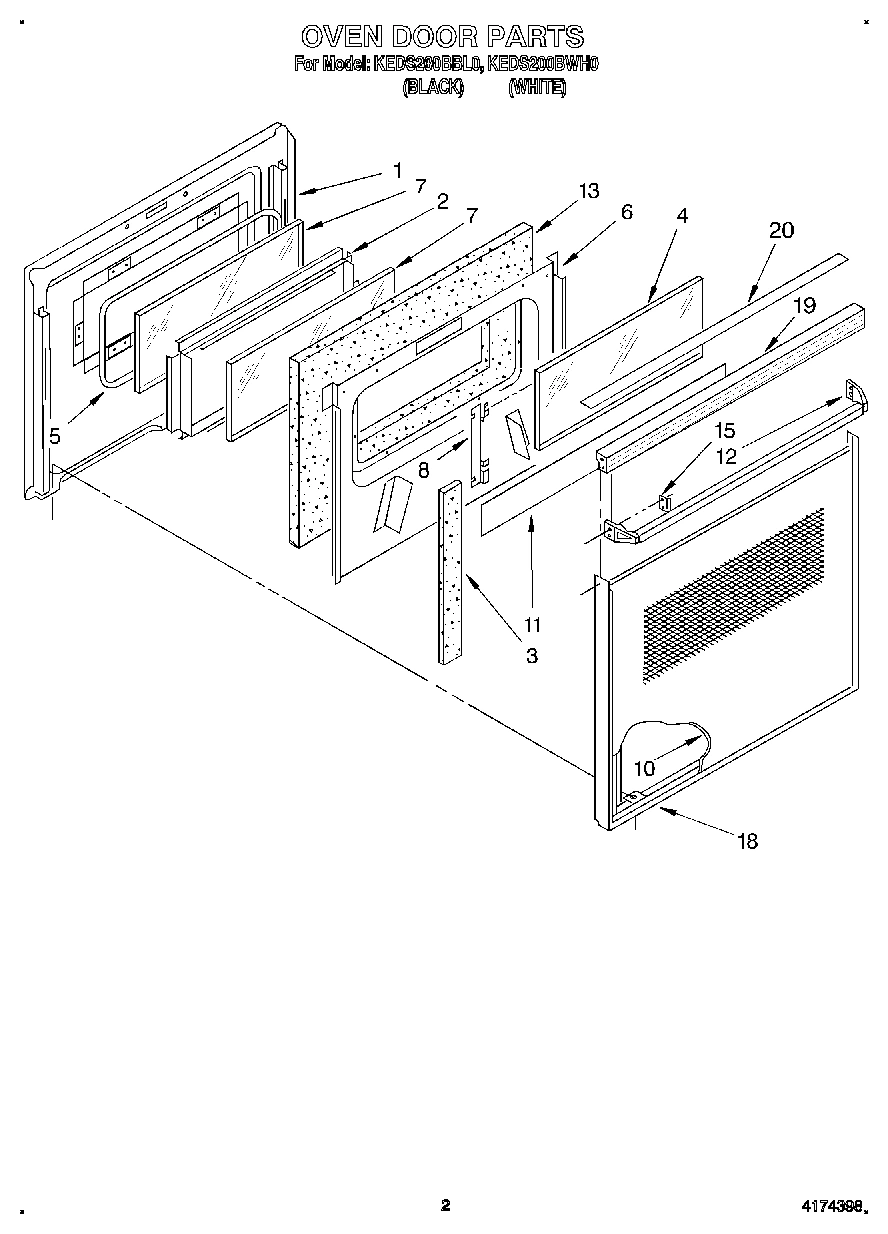

02 - OVEN DOOR

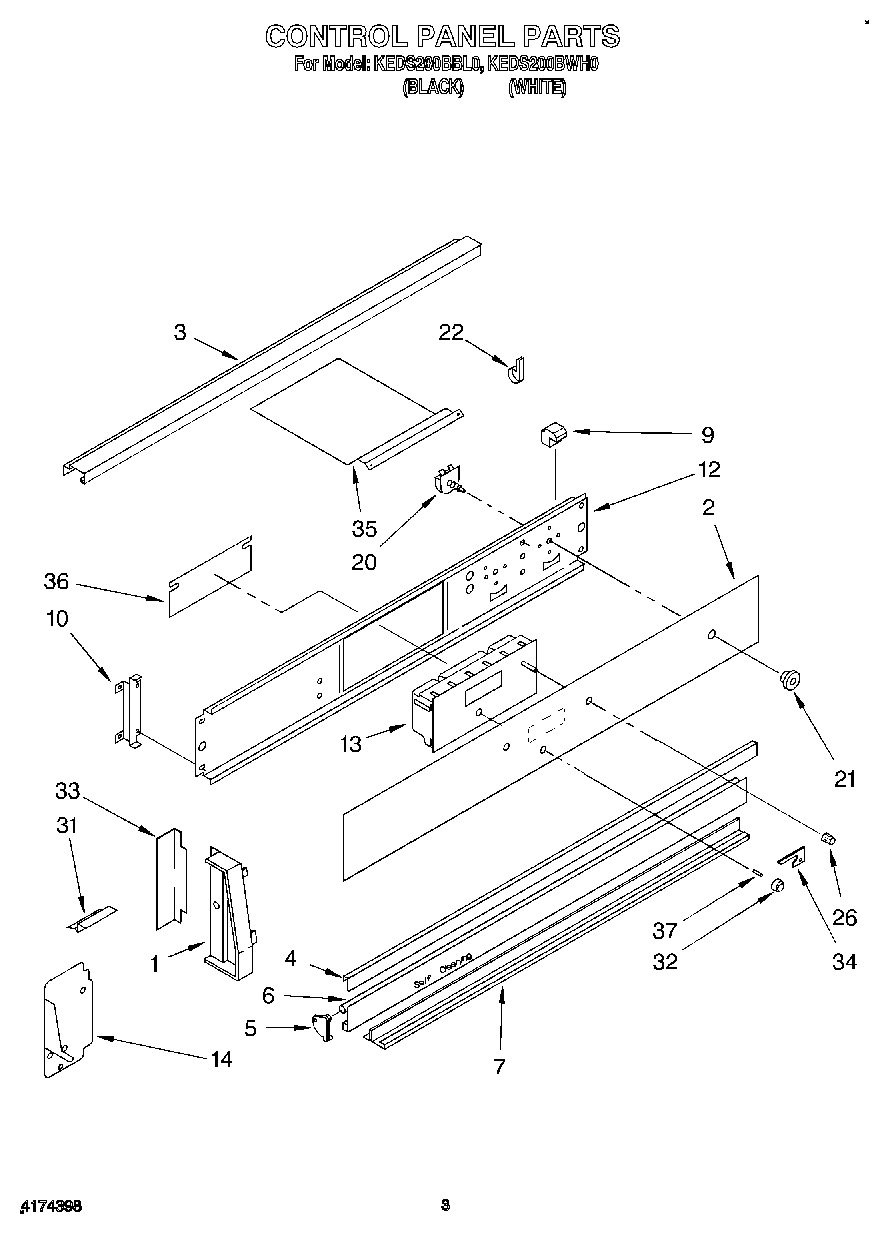

03 - CONTROL PANEL, OPTIONAL

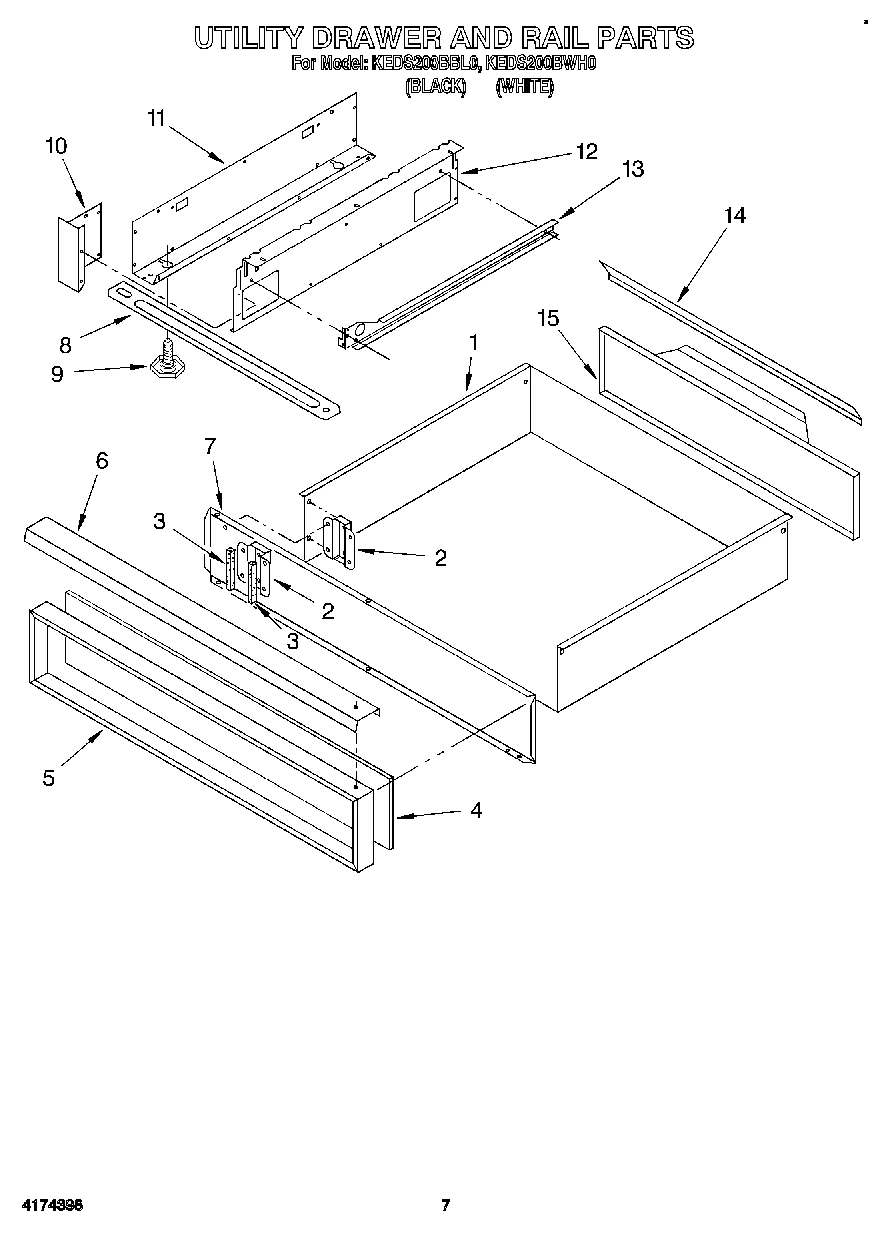

05 - UTILITY DRAWER AND RAIL
Common parts from model Whirlpool KEDS200BBL0
1
Harness, Wire (Main) WPL 3188444 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
End Cap (Washer, Silicone) WPL 3148905 Contact Us For Availability
1
End Cap (Black, LH) WPL 3150728 Contact Us For Availability
1
End Cap (Black, RH) WPL 3150729 Contact Us For Availability
1
End Cap (White, LH) WPL 3150730 Contact Us For Availability
1
End Cap (White, RH) WPL 3150731 Contact Us For Availability
1
Drawer, Utility WPL 3183571 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
2
Glass, Control Panel (Black) WPL 3183251 Contact Us For Availability
2
Glass, Control Panel (White) WPL 3183252 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Rail, Top (Black) WPL 3183329 Contact Us For Availability
3
Rail, Top (Bright Aluminum) WPL 3183341 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
4
Screw WPL 3185647 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Trim, Center (Black) WPL 3183366 Contact Us For Availability
4
Trim, Center (Bright Aluminum) WPL 3183367 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
End Trim, Vent Door (Rosemont Grey, L.H.) WPL 3148471 Contact Us For Availability
5
End Trim, Vent Door (Rosemont Grey, R.H.) WPL 3148472 Contact Us For Availability
5
End Trim, Vent Door (Black, LH) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (Black, RH) WPL 3148698 Contact Us For Availability
5
Fastener WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Handle, Drawer (Screw) WPL 309133 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw WPL 4173601 Contact Us For Availability
6
Vent Door (Black) WPL 314190 Contact Us For Availability
6
Vent Door (Brushed Chrome) WPL 3149676 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Screw (6) WPL 342043 Contact Us For Availability
7
Panel, Back WPL 3186695 Contact Us For Availability
8
Insulation Baffle (2) WPL 311256 Contact Us For Availability
8
Screw, No.6-20x1 1/4 (2) WPL 3148442 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188553 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188050 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3188052 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Foil WPL 3188706 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Oven Door (Black) WPL 3186524 Contact Us For Availability
12
Handle, Oven Door (White) WPL 3186525 Contact Us For Availability
12
Bracket, Control WPL 3148647 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
13
Plate, Cover WPL 310662 Contact Us For Availability
13
Insulation WPL 3147951 Contact Us For Availability
13
Screw No.6-32 (4) WPL 313806 Contact Us For Availability
13
Oven Control WPL 3149459 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
14
Cover, Side (Right Hand) WPL 3149027 Contact Us For Availability
14
Cover, Side (Left Hand) WPL 3149028 Contact Us For Availability
14
Baffle, Drip WPL 3185225 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Screw WPL 3185918 Contact Us For Availability
15
Panel, Back WPL 3185154 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
18
Frame WPL 3148235 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Top, Door (Black) WPL 3148223 Contact Us For Availability
19
Door Top (Panoramic Grey) WPL 3149355 Contact Us For Availability
20
Cap, Top WPL 3181363 Contact Us For Availability
20
Switch, Oven Light (Black) WPL 312581 Contact Us For Availability
20
Switch, Oven Light (Washer) WPL 312796 Contact Us For Availability
20
Switch, Oven Light (Bright Chrome) WPL 3148465 Contact Us For Availability
21
Bezel, Switch (Black) WPL 313030 Contact Us For Availability
21
Bezel, Switch (White) WPL 3149170 Contact Us For Availability
22
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
26
Knob, Timer (1) (Black) WPL 3149784 Contact Us For Availability
26
Knob, Timer (1) (White) WPL 3149785 Contact Us For Availability
27
Screw, 10-32 x 1/2 (2) WPL 3150532 Contact Us For Availability
31
Brace, Control Bracket WPL 3148102 Contact Us For Availability
32
Coverplate WPL 3183005 Contact Us For Availability
32
Button, Push (8) (Black) WPL 3183243 Contact Us For Availability
32
Button, Push (8) (White) WPL 3183244 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3184230 Contact Us For Availability
33
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
33
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
34
Safety Switch WPL 3183001 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
34
Shield, Air WPL 3149142 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
35
Screw WPL 98520 Contact Us For Availability
35
Shield, Heat WPL 3188534 Contact Us For Availability
36
Screw No.6 x 3/8 WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
36
Shield, Control WPL 3150352 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
37
Wire (14 Ga. 1 WPL 242820 Contact Us For Availability
37
WPL 242821 WPL 242821 Contact Us For Availability
37
WPL 242822 WPL 242822 Contact Us For Availability
37
WPL 242823 WPL 242823 Contact Us For Availability
37
WPL 242824 WPL 242824 Contact Us For Availability
37
WPL 242825 WPL 242825 Contact Us For Availability
37
WPL 242826 WPL 242826 Contact Us For Availability
37
WPL 242827 WPL 242827 Contact Us For Availability
37
WPL 242828 WPL 242828 Contact Us For Availability
37
WPL 242829 WPL 242829 Contact Us For Availability
37
WPL 242830 WPL 242830 Contact Us For Availability
37
WPL 242832 WPL 242832 Contact Us For Availability
37
WPL 261890 WPL 261890 Contact Us For Availability
37
WPL 261891 WPL 261891 Contact Us For Availability
37
WPL 285365 WPL 285365 Contact Us For Availability
37
WPL 285366 WPL 285366 Contact Us For Availability
37
WPL 285367 WPL 285367 Contact Us For Availability
37
WPL 285368 WPL 285368 Contact Us For Availability
37
WPL 3183242 WPL 3183242 Contact Us For Availability
37
WPL 3185260 WPL 3185260 Contact Us For Availability
37
WPL 350806 WPL 350806 Contact Us For Availability
37
WPL 350941 WPL 350941 Contact Us For Availability
37
WPL 591014 WPL 591014 Contact Us For Availability
37
WPL 72112 WPL 72112 Contact Us For Availability
37
WPL 799832 WPL 799832 Contact Us For Availability
37
WPL 814128 WPL 814128 Contact Us For Availability
37
WPL 832985 WPL 832985 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob, Latch Handle WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 3185197 WPL 3185197 Contact Us For Availability
45
WPL 3148440 WPL 3148440 Contact Us For Availability
45
WPL 3179117 WPL 3179117 Contact Us For Availability
52
WPL 3182052 WPL 3182052 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
56
WPL 3185960 WPL 3185960 Contact Us For Availability
61
WPL 3185641 WPL 3185641 Contact Us For Availability
62
WPL 310433 WPL 310433 Contact Us For Availability
62
WPL 310435 WPL 310435 Contact Us For Availability
62
WPL 3149328 WPL 3149328 Contact Us For Availability
62
WPL 3185640 WPL 3185640 Contact Us For Availability
62
WPL 3188439 WPL 3188439 Contact Us For Availability
× ![]()
