Model Whirlpool KBRS21KDWH00 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $116.71

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT2169006 WPL LIT2169006 Contact Us For Availability

WPL LIT2169204 WPL LIT2169204 Contact Us For Availability

WPL LIT2180117 WPL LIT2180117 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

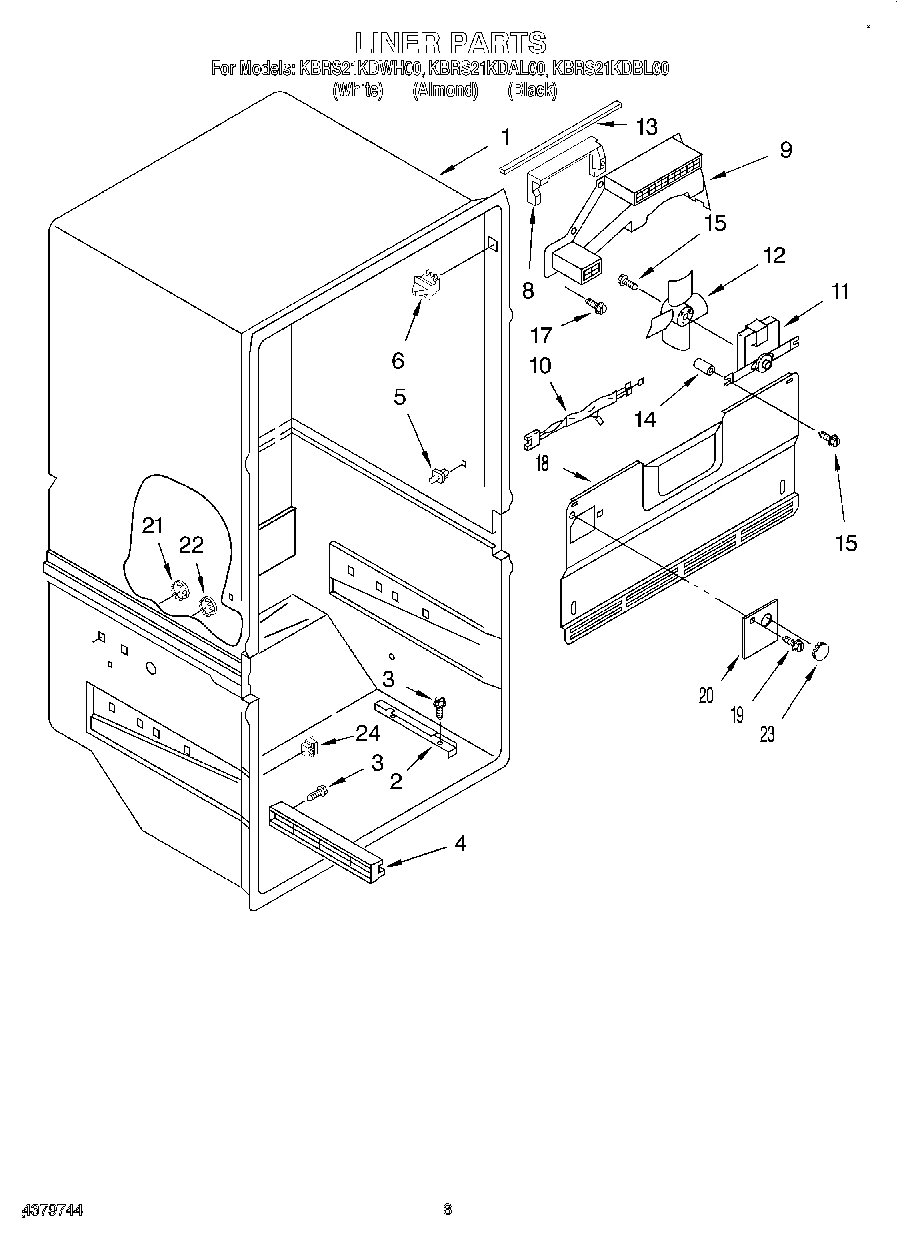

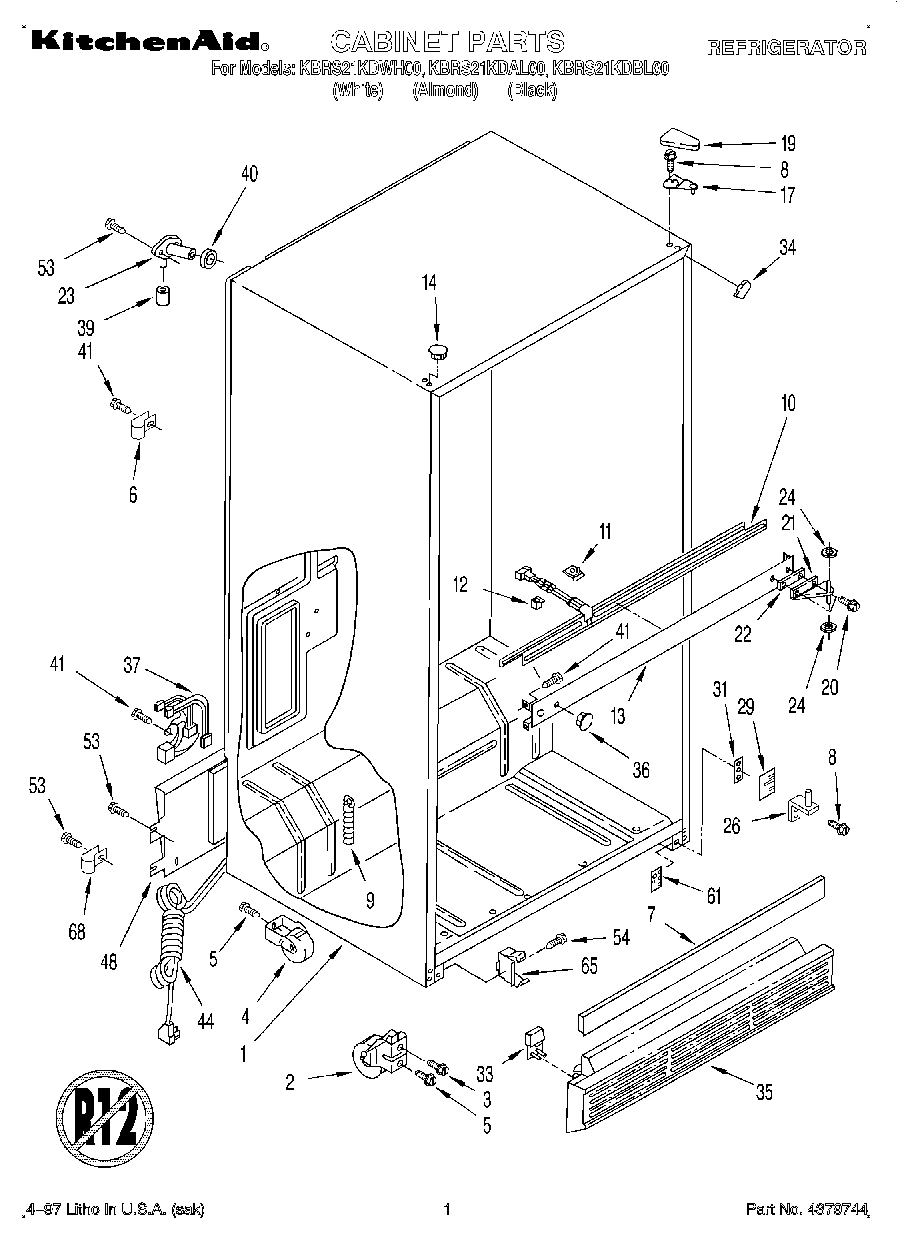

Cabinet (Not A Serviceable Part) WPL ARI79861A7 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI79862A4 Contact Us For Availability

1

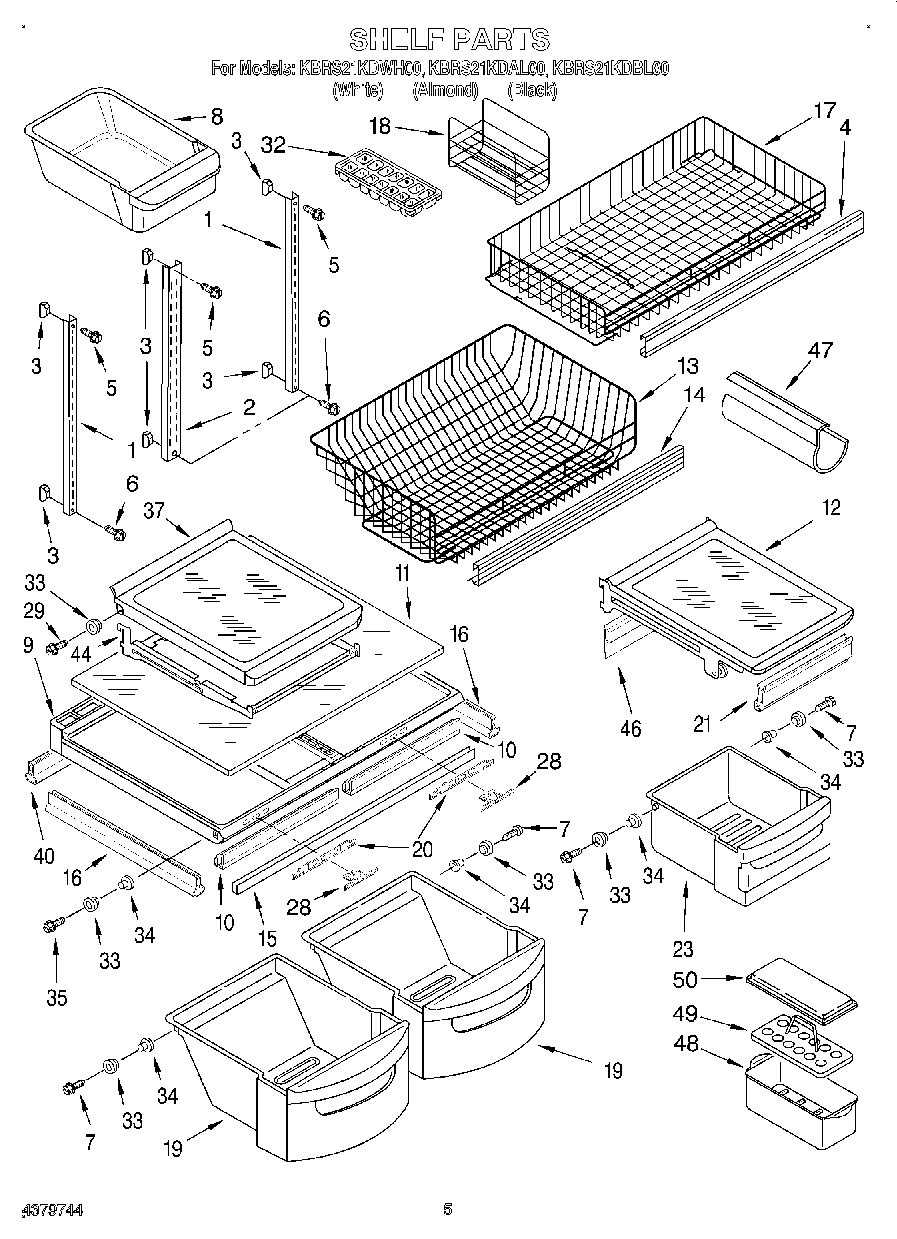

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

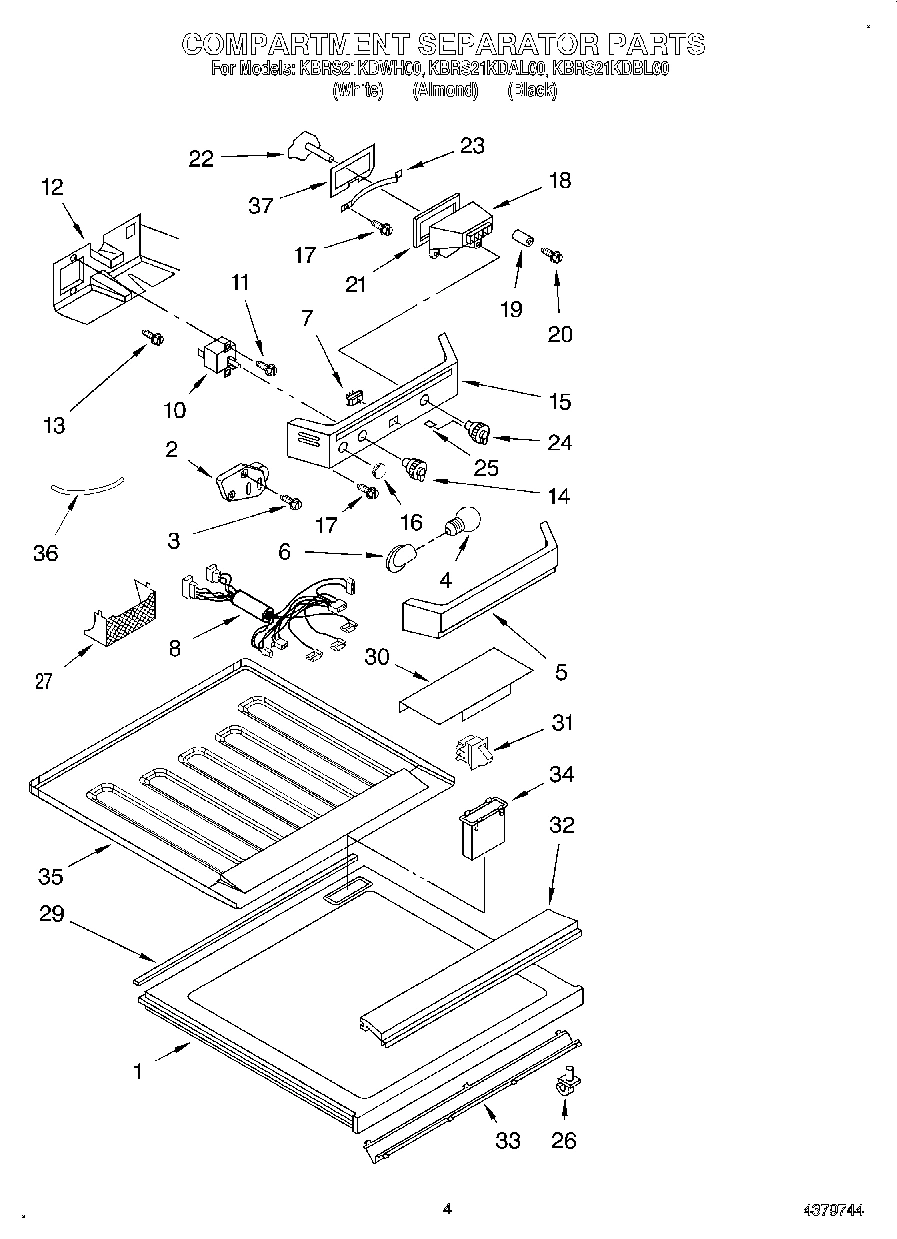

Compartment (White Separator Assembly (Includ WPL 2152764 Contact Us For Availability

2

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $64.97

2

Roller, Front WPL 2174748 Contact Us For Availability

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

3

Condenser Assembly WPL 2164513 Contact Us For Availability

3

Screw WPL 489386 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Shelf, Track (L.S.) WPL 2149174 Contact Us For Availability

4

Shelf, Track (R.S.) WPL 2149175 Contact Us For Availability

4

Trim, Basket WPL 2179513 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw WPL 489432 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

7

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

7

Switch, Light WPL 938213 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Deck Rail Cover WPL 2172708 Contact Us For Availability

7

Heat Shield & Drain Pan WPL 2152771 Contact Us For Availability

8

Door Gasket (Black) WPL 2160440 Contact Us For Availability

8

Door Gasket (Gray) WPL 2177232 Contact Us For Availability

8

Insert, Air Baffle WPL 2176796 Contact Us For Availability

8

Insert, Scroll WPL 2160525 Contact Us For Availability

8

Pan, Ice Cube WPL 2174124 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2152849 Contact Us For Availability

9

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

9

Scroll, Fan WPL 2152779 Contact Us For Availability

9

Pan Cover & Roller Assembly WPL 2174130 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP4317800 Whirlpool Refrigerator Thermostat In Stock WPL WP4317800 $183.16

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

Shim WPL 989711 Contact Us For Availability

Heater, Mullion WPL 2157307 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

11

Clip, Center Rail WPL 2149060 Contact Us For Availability

11

Fan Motor WPL 2160412 Contact Us For Availability

11

Glass, Crisper Cover WPL 2174142 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

Handle WPL 657077 Contact Us For Availability

Spacer (3) WPL 1115105 Contact Us For Availability

Fan Blade WPL 2169141 Contact Us For Availability

Pan Shelf & Roller Assembly WPL 2174385 Contact Us For Availability

Bracket, Thermostat WPL 2152896 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $90.78

Trim, Door Shelf WPL 2171395 Contact Us For Availability

Center Rail WPL 2172707 Contact Us For Availability

Gasket WPL 2160533 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.61

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Grommet WPL 531933 Contact Us For Availability

Trim, Basket WPL 2179512 Contact Us For Availability

Knob, Temperature WPL 2179551 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Interior Door Panel WPL 2152814 Contact Us For Availability

Relay (See Overload) WPL ARI79863A5 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Control Panel WPL 2179547 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $6.49

Screw WPL 488933 Contact Us For Availability

Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $77.96

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Trim, Door WPL 2171394 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

Freezer Basket, (Upper) WPL 2179448 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

Drain Ferrule WPL 2155556 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $6.88

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.53

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2179229 Contact Us For Availability

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Hole Cover, Evaporator WPL 2152852 Contact Us For Availability

Slide, Humidity WPL 2174257 Contact Us For Availability

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Hinge, Center WPL 2174777 Contact Us For Availability

Gasket-Front WPL 2174398 Contact Us For Availability

Gasket WPL 2160428 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $13.82

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

Shim, Hinge Center WPL 836155 Contact Us For Availability

Evaporator WPL 2152776 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

Hole Plug WPL 1103725 Contact Us For Availability

Meat Pan Assy. WPL 2179232 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

24

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

24

Knob, Control WPL 2179549 Contact Us For Availability

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

25

Knob, Retainer WPL 837444 Contact Us For Availability

26

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

26

Stud WPL 2155555 Contact Us For Availability

26

Tube, Discharge WPL 2162475 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

27

Light Lens WPL 983359 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.72

28

Button, Humidity Control WPL 2174253 Contact Us For Availability

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

Shim, Bottom WPL 990521 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

30

Lens-Light WPL 2149068 Contact Us For Availability

31

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

31

Spacer WPL 2172744 Contact Us For Availability

31

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

32

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

32

Seperator Top-Front WPL 1121213 Contact Us For Availability

Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Heater, Defrost WPL 2162083 Contact Us For Availability

Roller WPL 2174388 Contact Us For Availability

Air Deflector WPL 2160531 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Grille (White) WPL 1125663 Contact Us For Availability

Grille (Almond) WPL 1125667 Contact Us For Availability

Grille (Black) WPL 1129001 Contact Us For Availability

Separator, Top-Rear WPL 2152789 Contact Us For Availability

36

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

36

Hole Plug WPL 1129062 Contact Us For Availability

36

Tube, Suction WPL 2162472 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

Shelf, Spillguard WPL 2174015 Contact Us For Availability

Gasket, Damper WPL 2160454 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

40

Gasket, Pan Cover-Rear WPL 2179216 Contact Us For Availability

41

Air Baffle WPL 2162457 Contact Us For Availability

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Cord, Service WPL 937360 Contact Us For Availability

44

Frame & Roller Assembly WPL 2174017 Contact Us For Availability

46

Gasket-Rear WPL 2179564 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

48

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

48

Cover, Unit WPL 2160534 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $10.72

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $27.86

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Cover, Egg Bin WPL 2164374 Contact Us For Availability

Door Reversal Instructions WPL 2180010 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

51

Extension, Drain Tube WPL 2152822 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

53

NLA:SCREW Backorder WPL WPW10141645 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Support (2) WPL 1115128 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91
