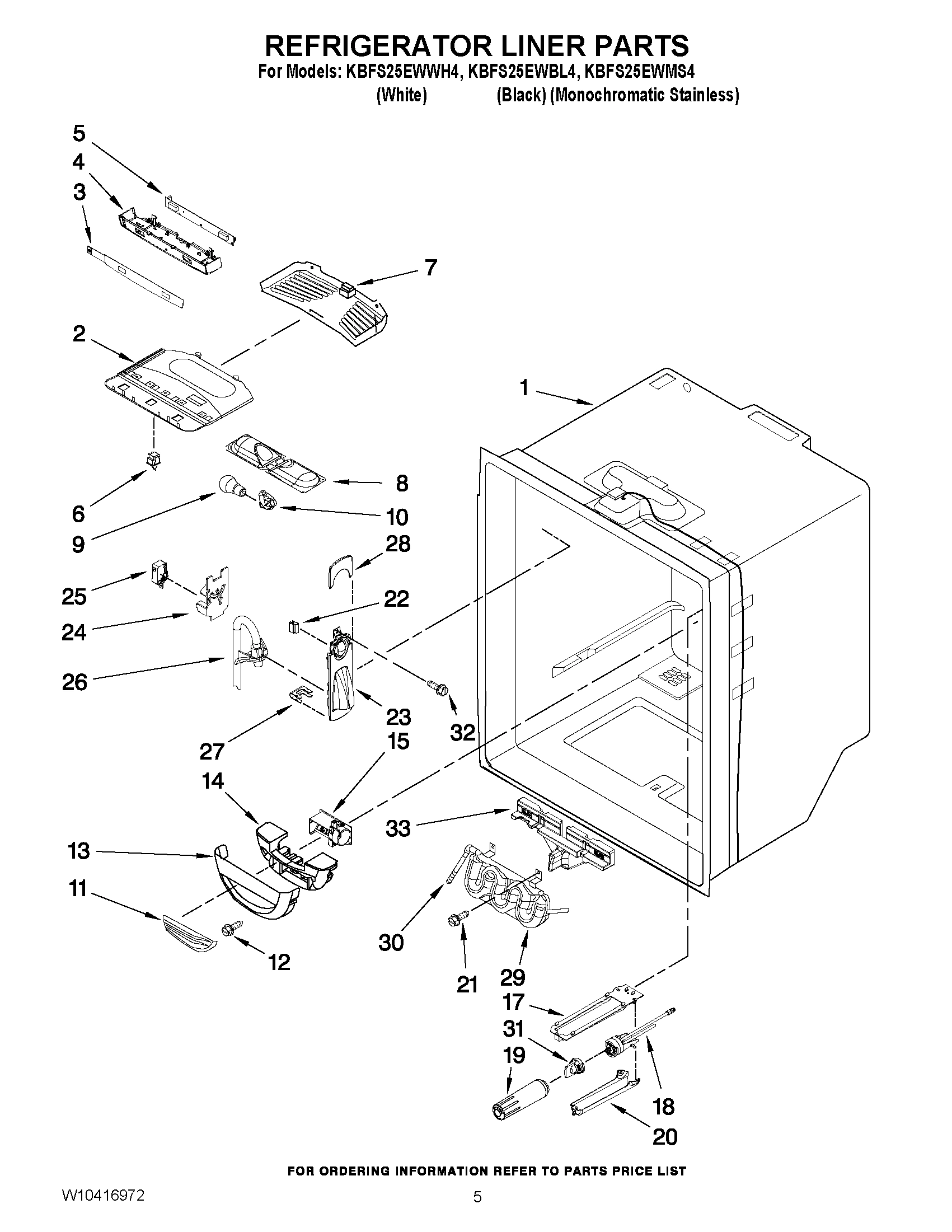

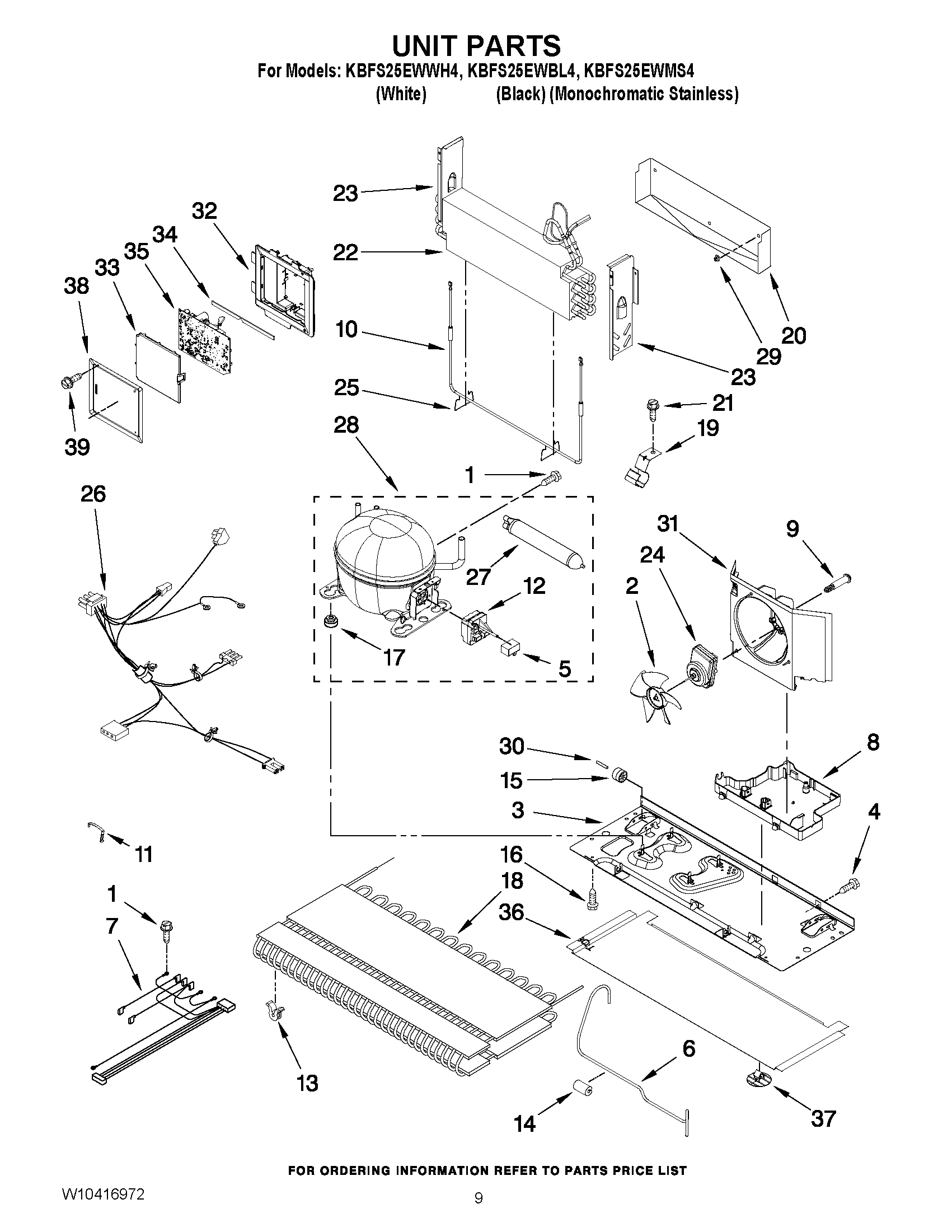

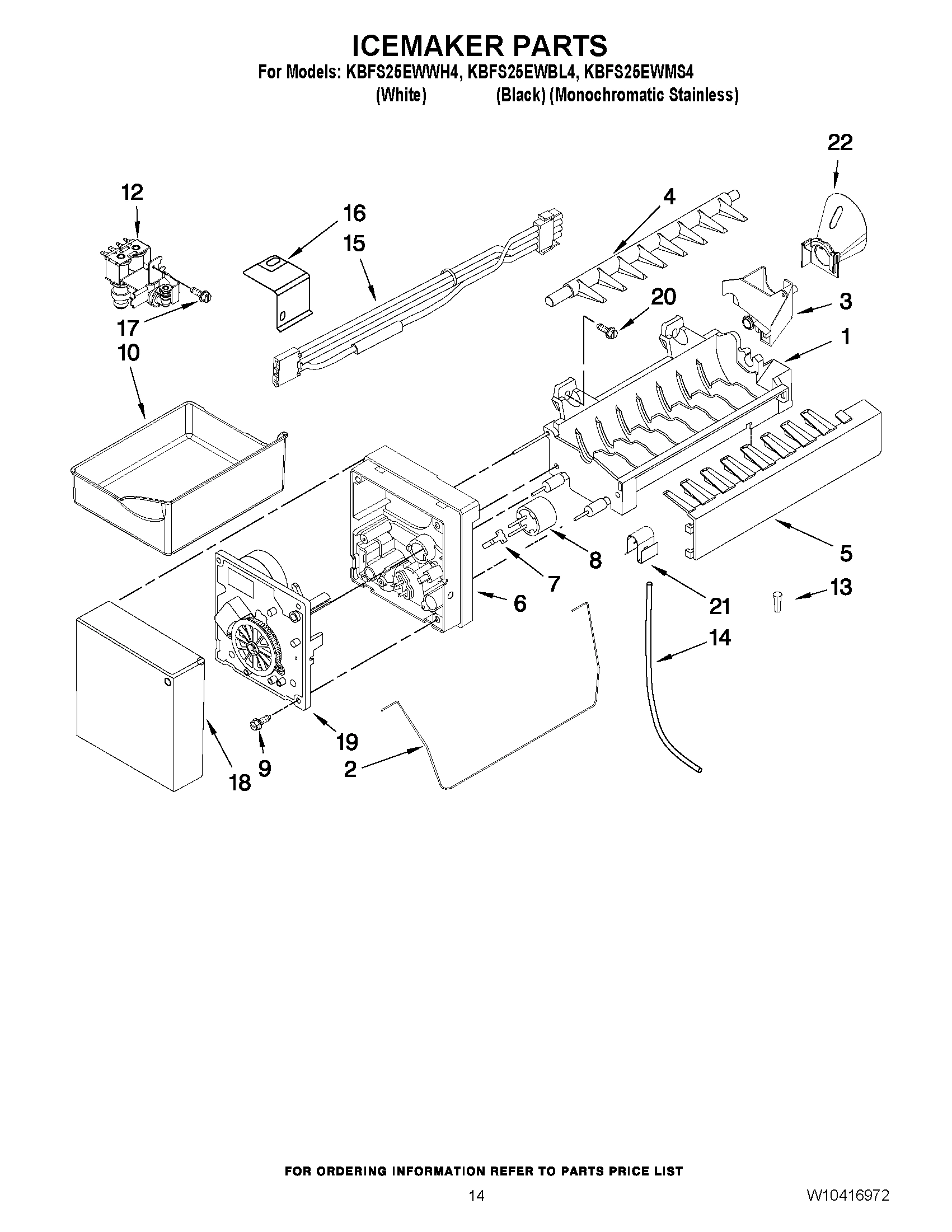

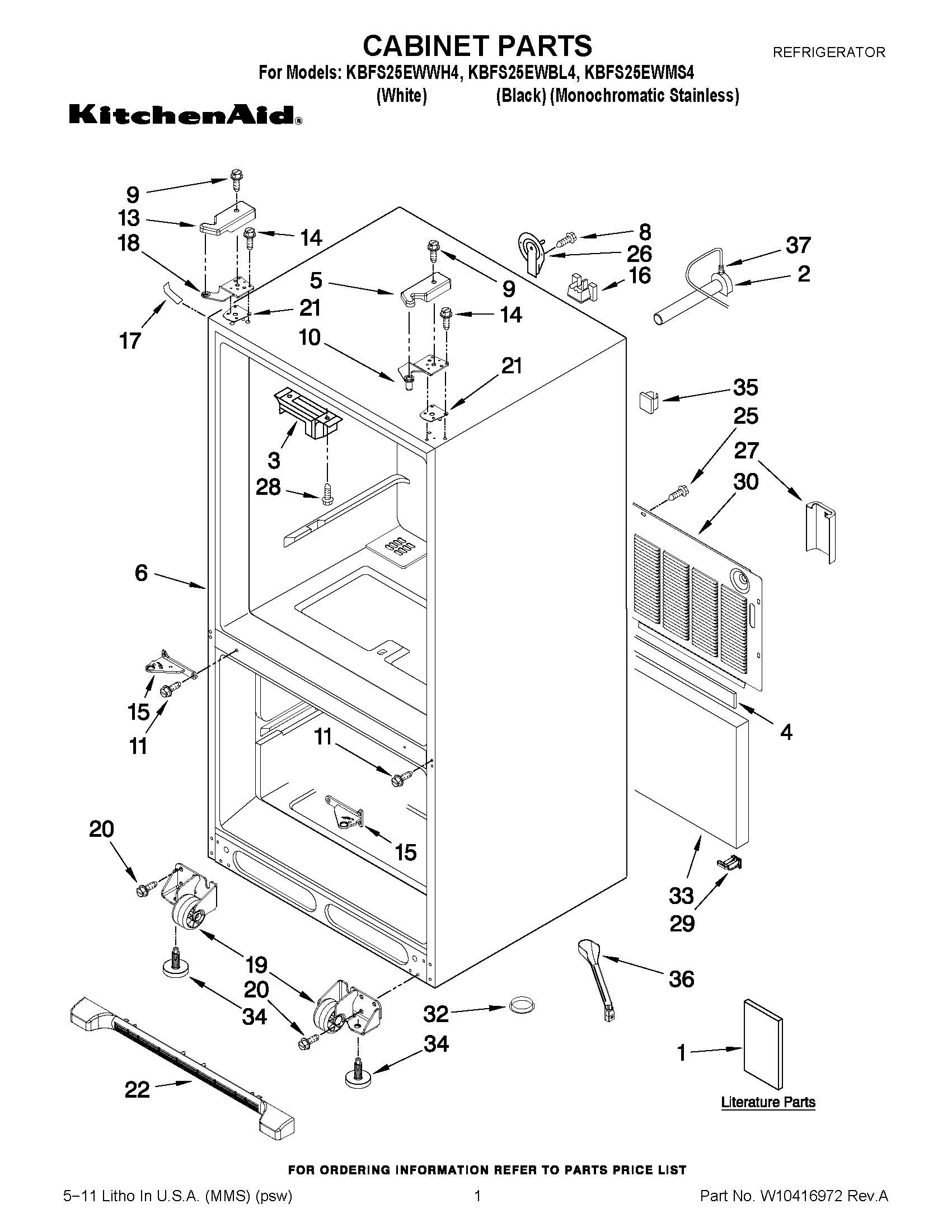

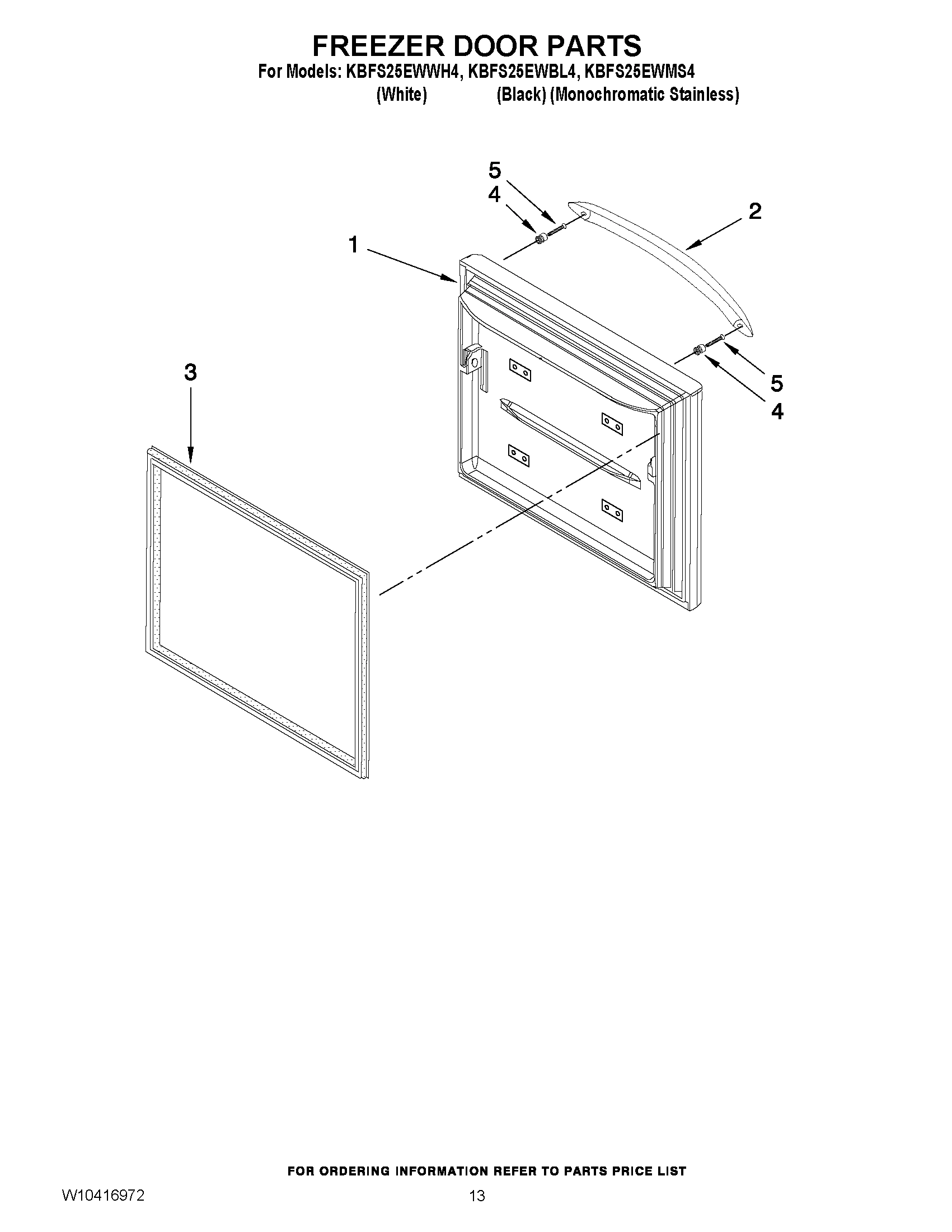

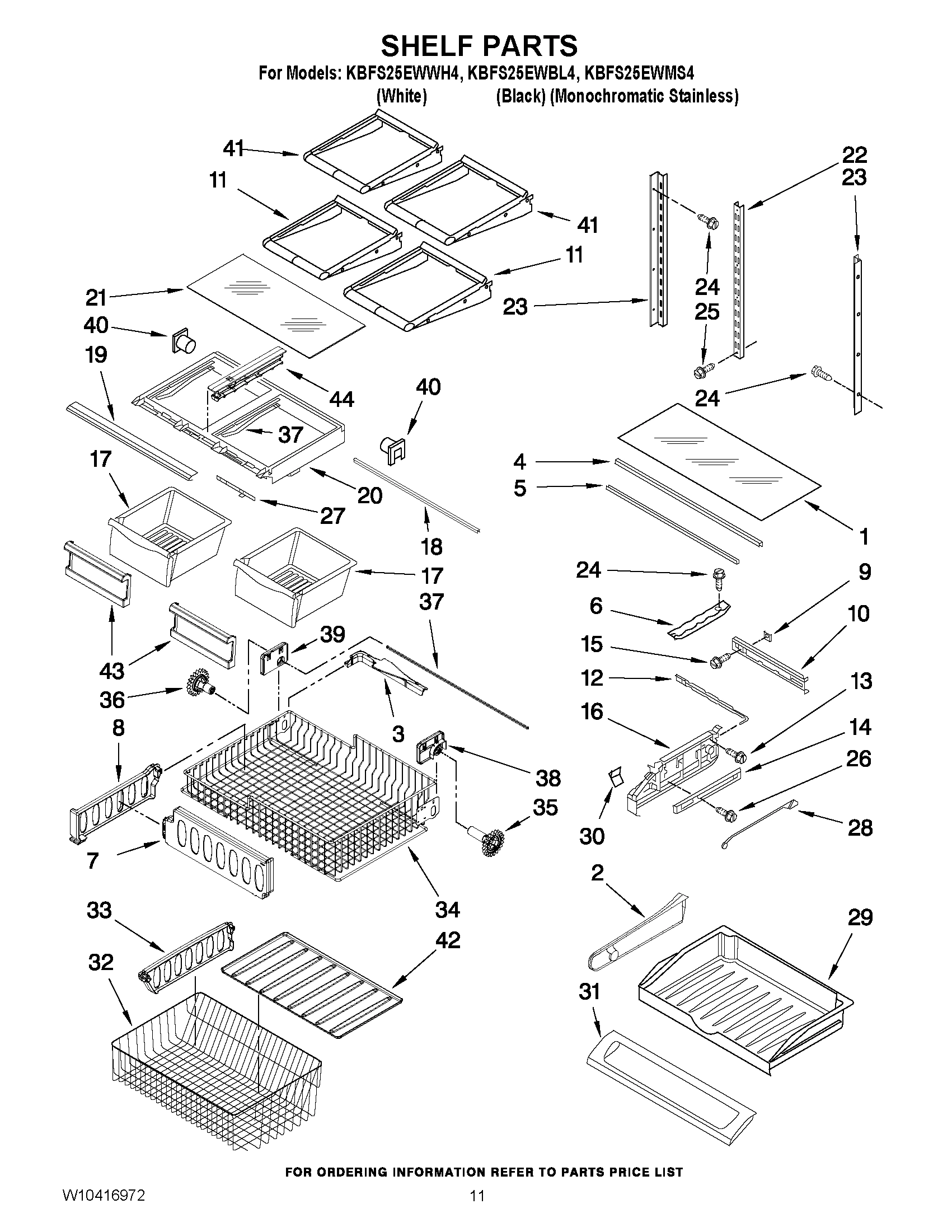

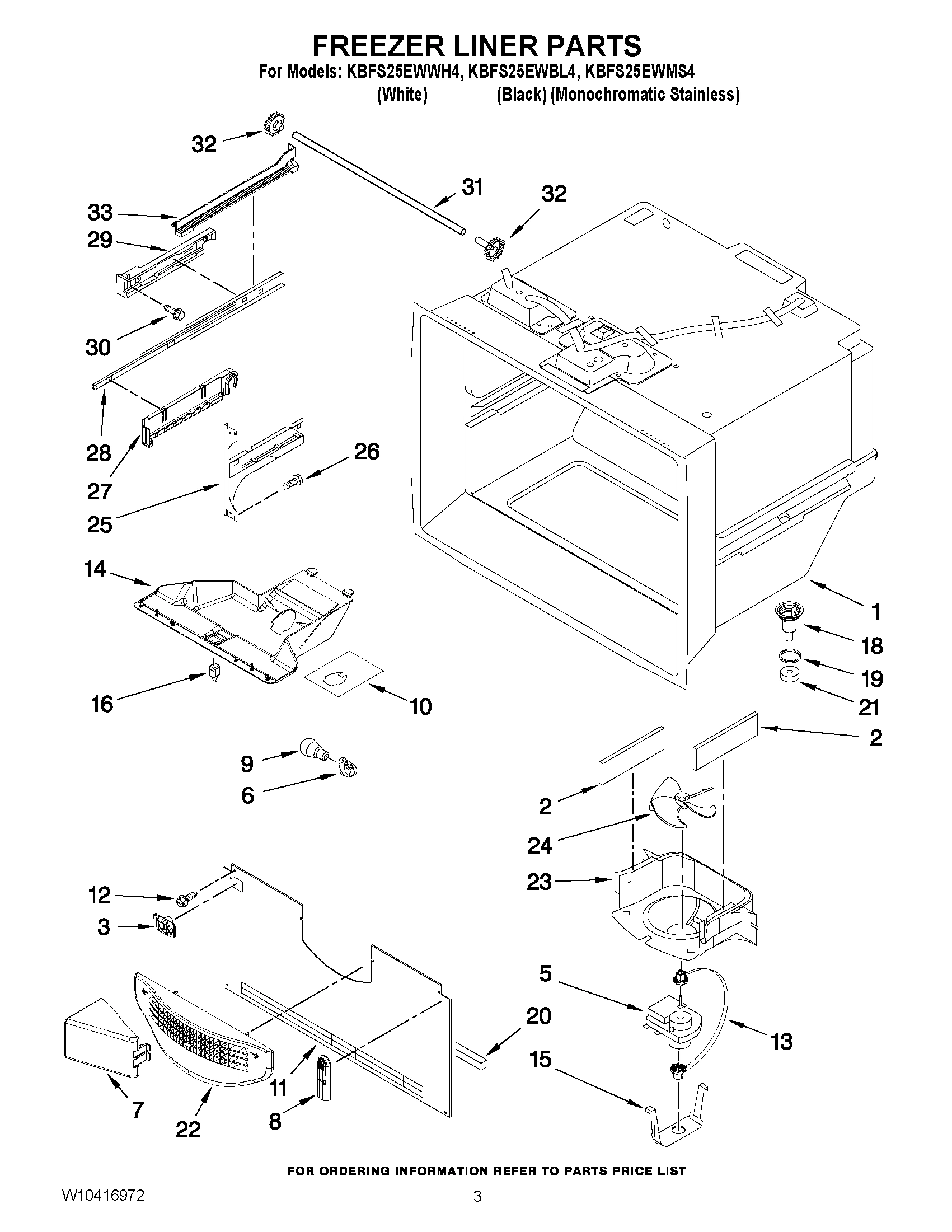

Model Whirlpool KBFS25EWBL4 REFRIGERATOR – Common Parts &amp; Diagrams

1

12977865BQ Whirlpool Refrigerator Black Foam Backorder WPL 12977865BQ $787.11

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $21.63

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $134.70

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

1

DOOR, FREEZER (STAINLESS) WPL 12977841S Contact Us For Availability

2

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $52.39

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $42.74

2

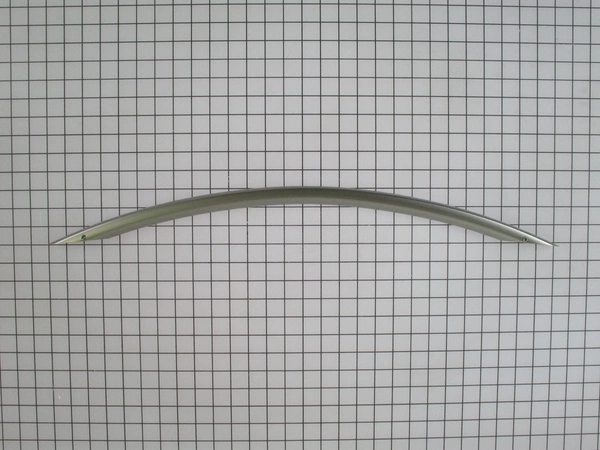

WPW10314520K Whirlpool Refrigerator Handle Backorder WPL WPW10314520K $194.37

2

WPW10314522K Whirlpool Refrigerator Handle Backorder WPL WPW10314522K $225.75

2

MODULE, LIGHT WPL 12806302 Contact Us For Availability

2

HANDLE, DOOR (BLACK) WPL W10314521 Contact Us For Availability

3

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $57.88

3

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $150.60

3

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $227.17

3

W10443320 Whirlpool Gray Outer Gasket In Stock WPL W10443320 $85.74

3

WPW10317125 Whirlpool Refrigerator Overlay Backorder WPL WPW10317125 $152.66

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $11.97

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $101.64

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

4

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.43

5

WPW10371193 Whirlpool Refrigerator Door Bin In Stock WPL WPW10371193 $46.54

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $52.10

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $51.03

7

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $43.18

7

W10292242 Whirlpool Refrigerator Wire Harness Backorder WPL W10292242 $85.79

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $43.81

7

SCREW, MOUNT WPL W10290759 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $70.32

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $15.92

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $121.03

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $6.43

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $4.33

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $84.64

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $87.91

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.85

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $16.76

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $59.18

11

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

11

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.89

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

W10361443 Whirlpool Refrigerator Start Device Backorder WPL W10361443 $70.75

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $127.86

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.58

BUCKET, GALLON WPL W10289496 Contact Us For Availability

13

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $29.16

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $45.66

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.50

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $56.56

Backorder WPL W11750607 $29.70

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $122.85

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $155.02

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $165.75

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $134.37

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $63.77

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $101.91

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $38.56

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $40.66

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $50.48

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $33.34

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $105.50

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $21.73

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.32

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $37.24

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $5.73

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $16.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.19

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.65

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.53

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $65.52

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $44.43

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $200.97

19

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $65.34

19

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $6.05

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $11.22

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $45.77

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $53.79

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $131.14

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $37.05

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $65.04

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $4.05

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.19

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $32.47

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $51.53

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $55.66

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.42

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.71

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $8.08

W11256565 Whirlpool Refrigerator Evaporator In Stock WPL W11256565 $196.32

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $34.95

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $44.34

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

23

FACADE, DISP. WPL 12706909 Contact Us For Availability

24

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $51.89

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $56.83

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $8.81

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $36.15

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $196.14

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $67.83

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $72.57

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $9.16

26

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.41

26

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $17.13

W10208593 Whirlpool Refrigerator Valve Cover Backorder WPL W10208593 $14.39

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.11

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $42.36

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $42.36

28

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.49

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $86.05

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $11.97

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $73.06

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $19.87

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $20.00

30

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $3.51

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $93.71

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.86

31

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $27.64

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $33.54

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

32

Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability

W10296541 Whirlpool Refrigerator Wire Cover Backorder WPL W10296541 $21.18

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $56.47

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $10.42

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $10.42

W11714300 Whirlpool Insulation In Stock WPL W11714300 $21.84

INSULATION, SOUND WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.15

37

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $14.98

38

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $42.79

38

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $36.65

39

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $36.65

39

W11686675 Whirlpool Screw Backorder WPL W11686675 $9.14

40

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $54.74

44

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $13.92

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $65.28

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
