Model Huebsch HFE107*C1702 Dryer – Common Parts & Diagrams

Control Panel and Controls

Control Panel and Controls - Coin Drop

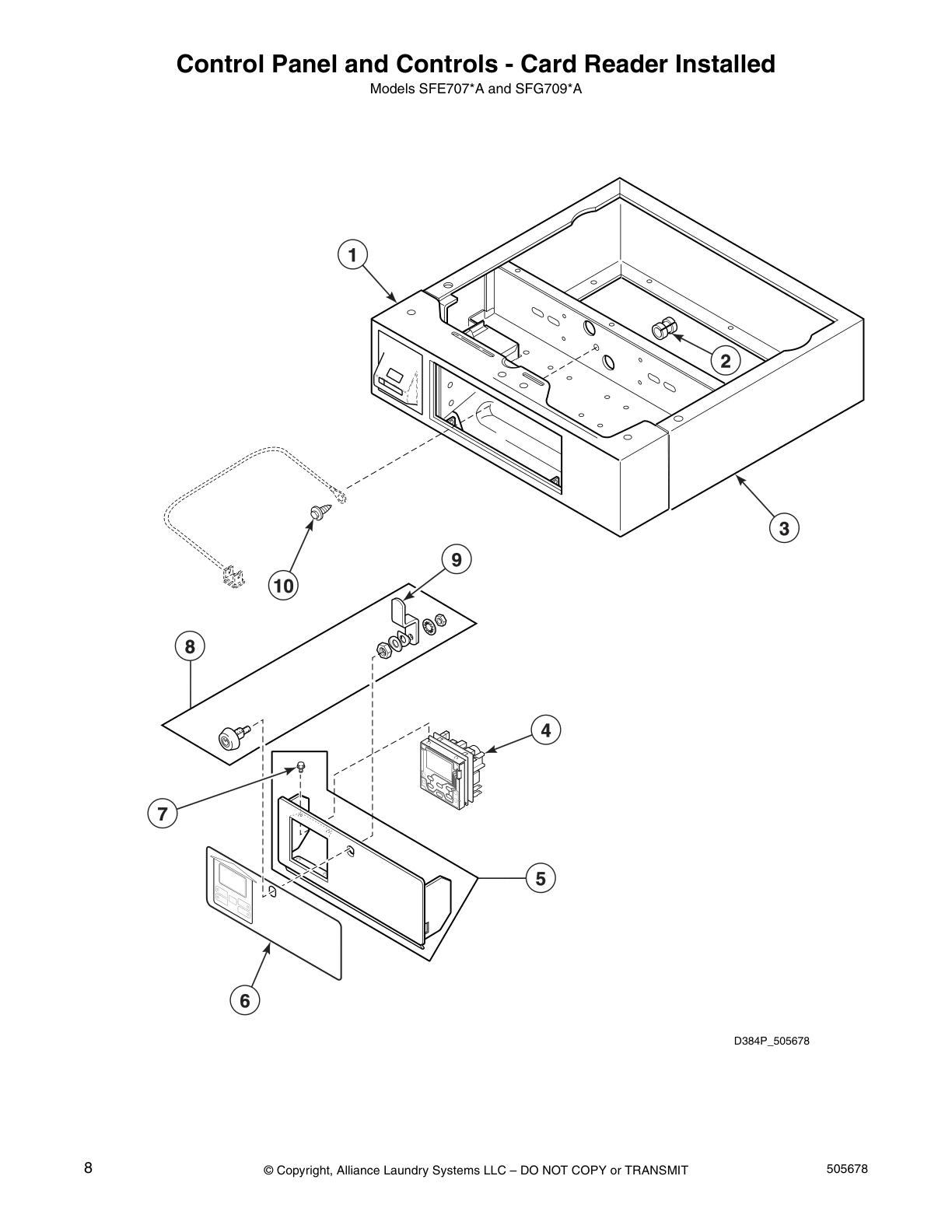

Control Panel and Controls - Card Reader Installed

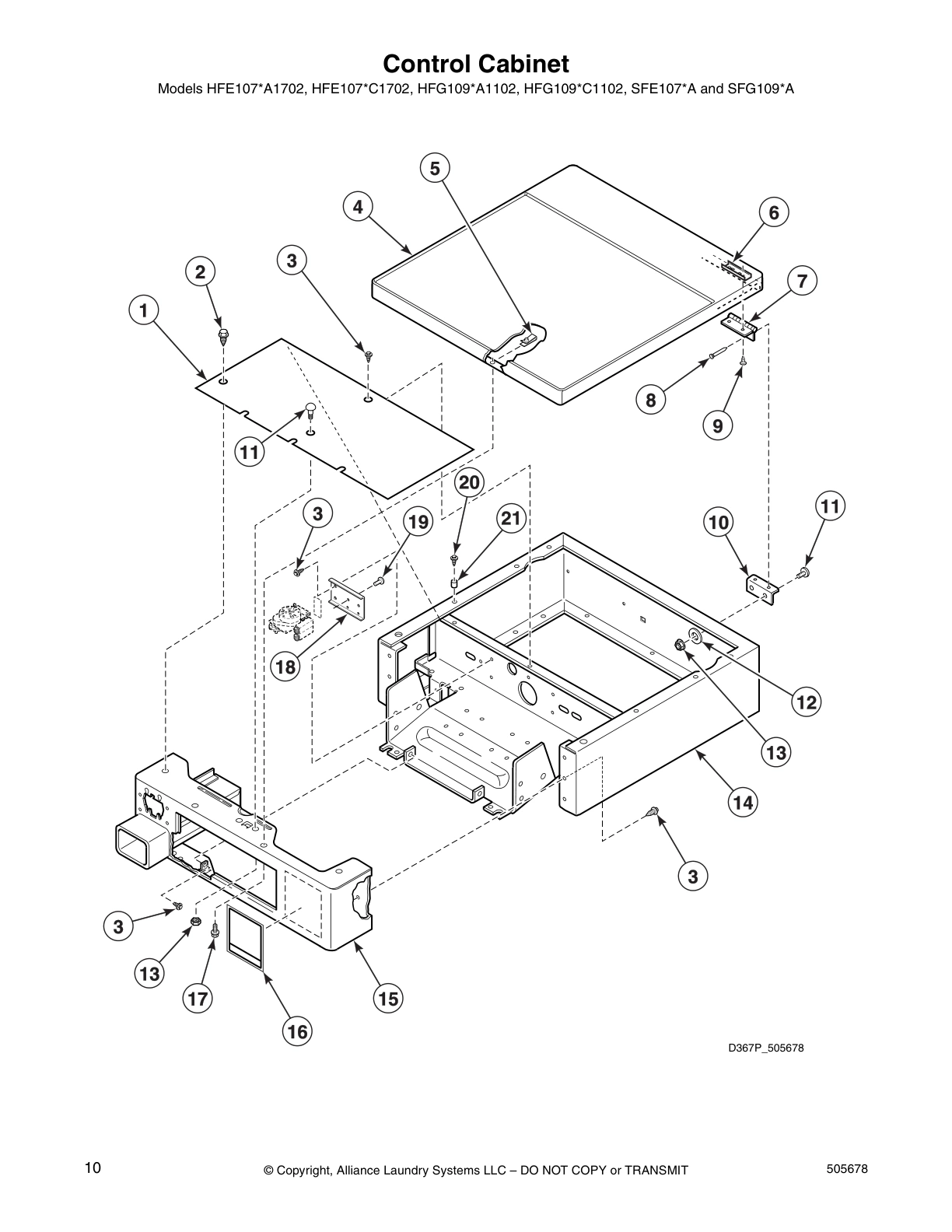

Control Cabinet

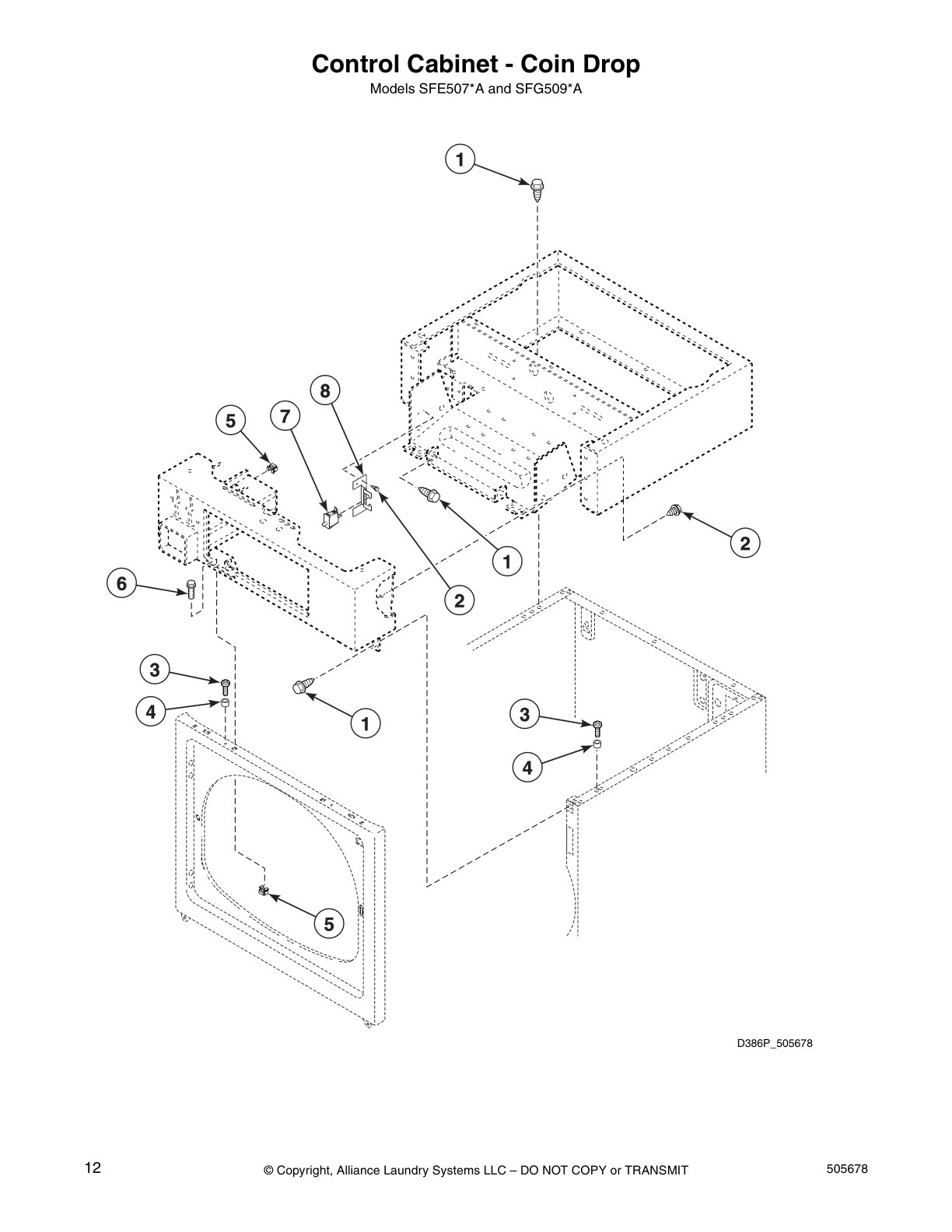

Control Cabinet - Coin Drop

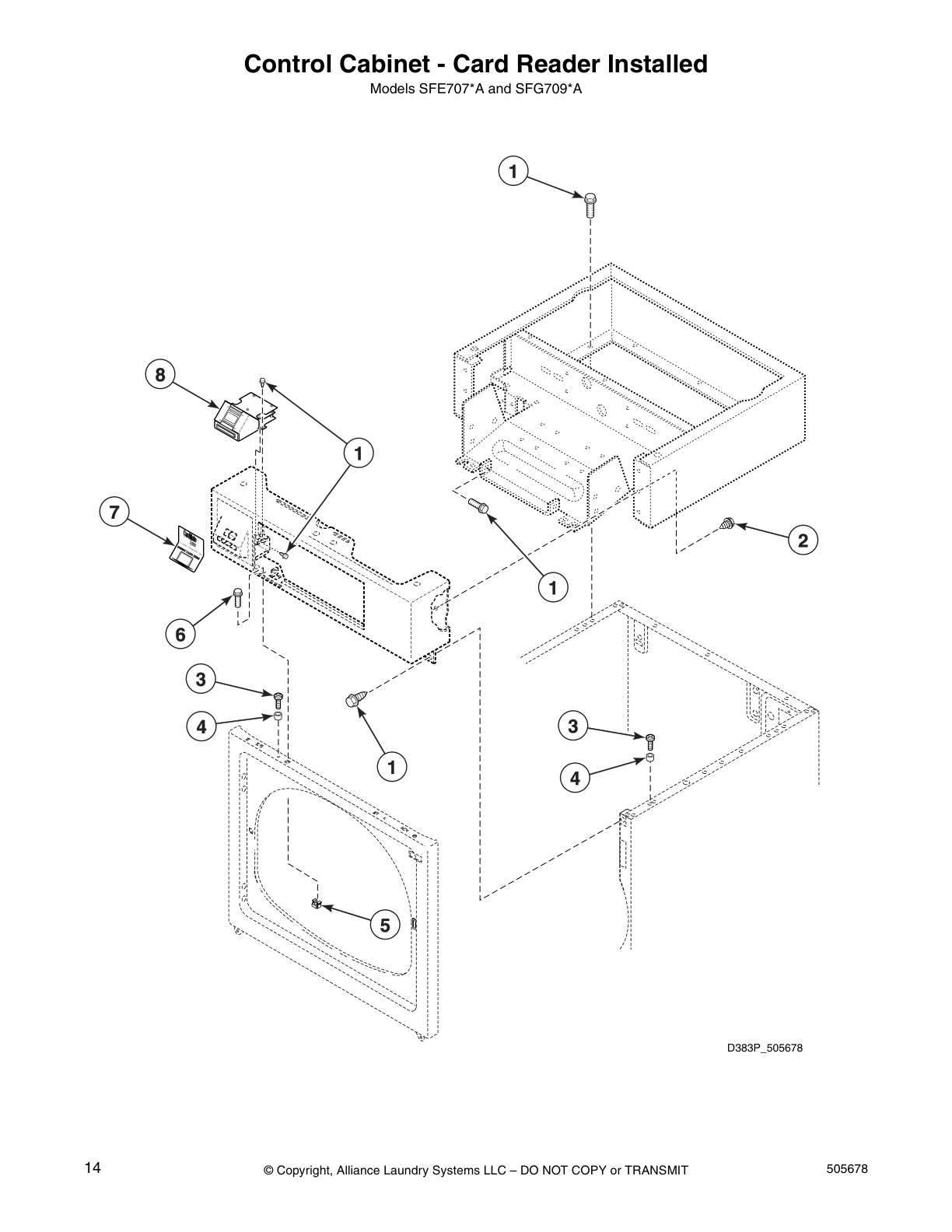

Control Cabinet - Card Reader Installed

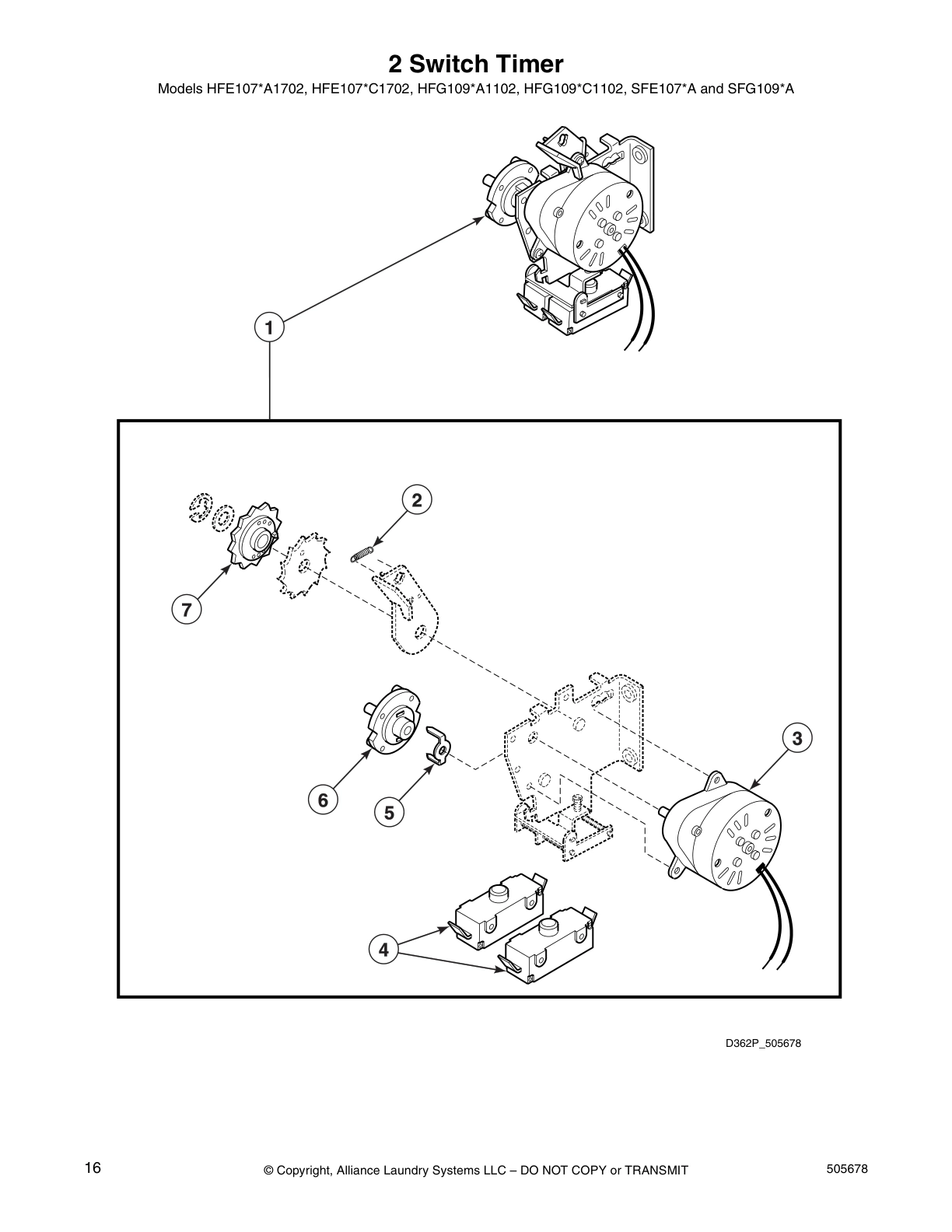

2 Switch Timer

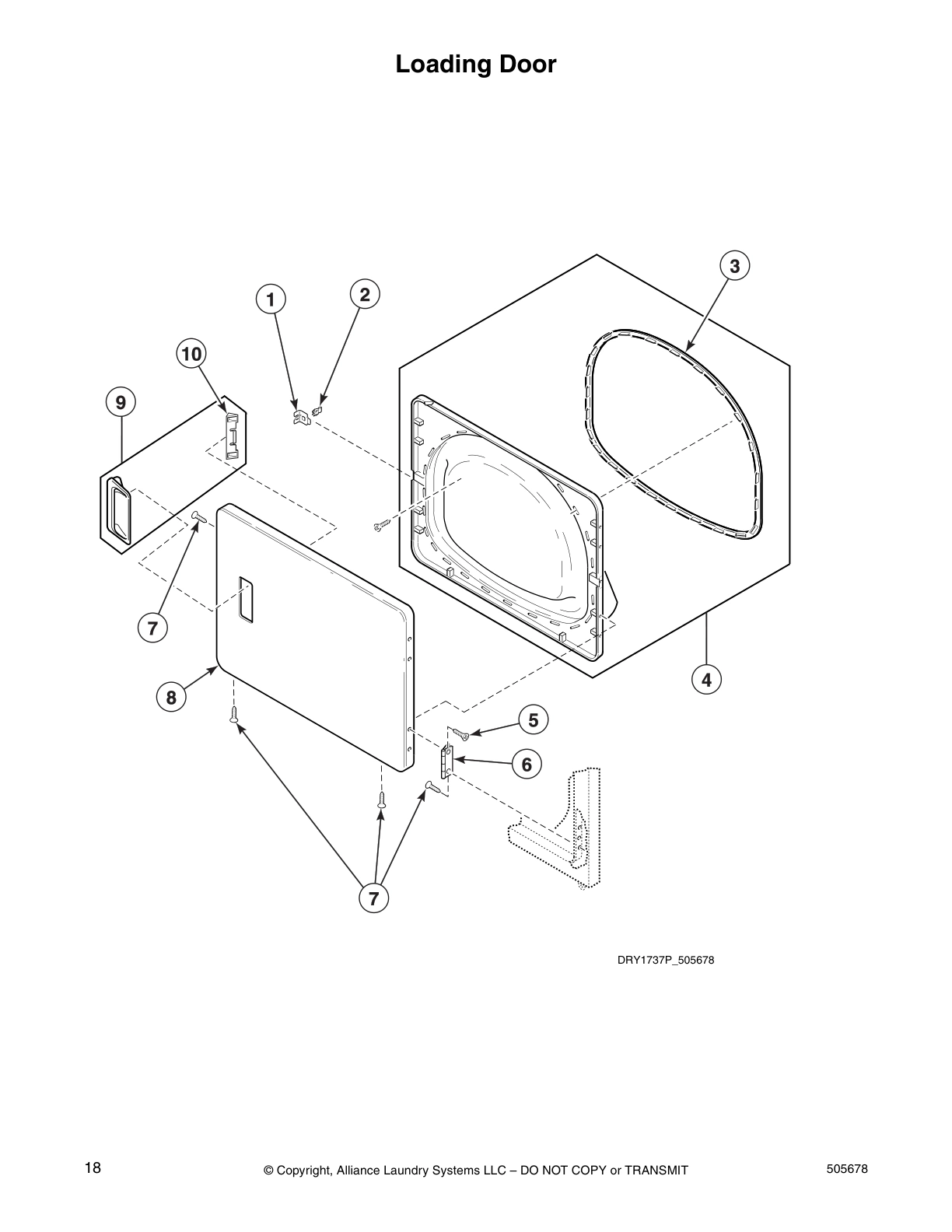

Loading Door

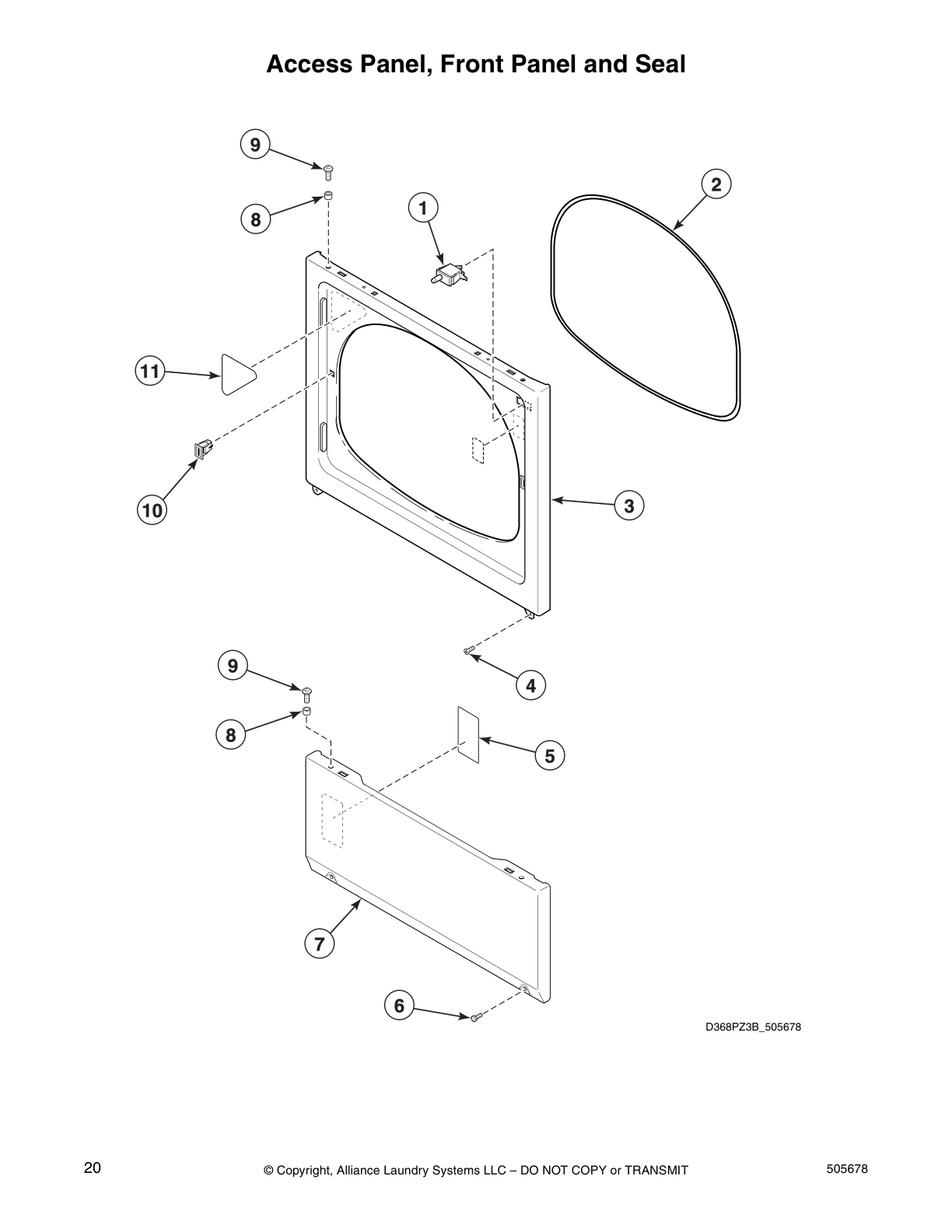

Access Panel, Front Panel and Seal

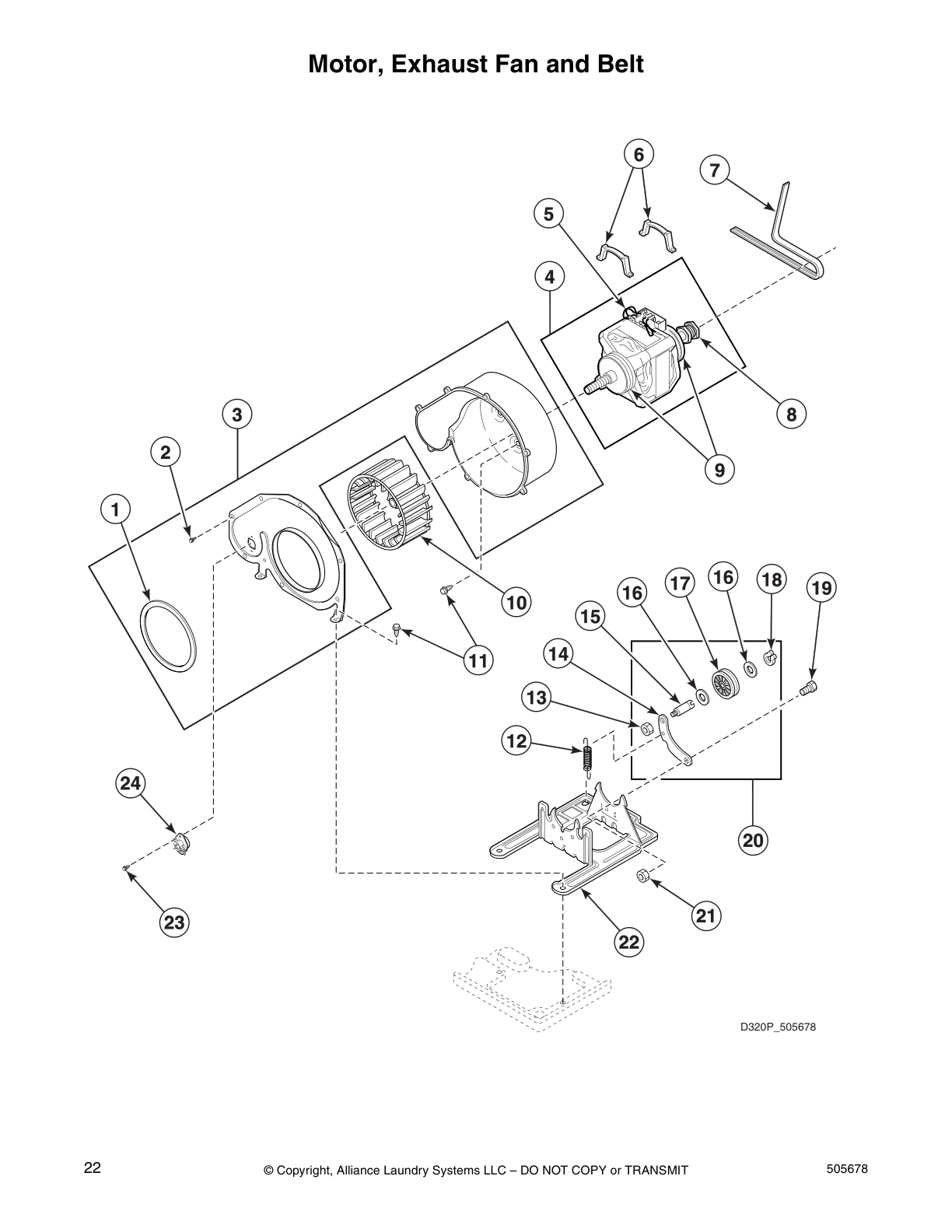

Motor, Exhaust Fan and Belt

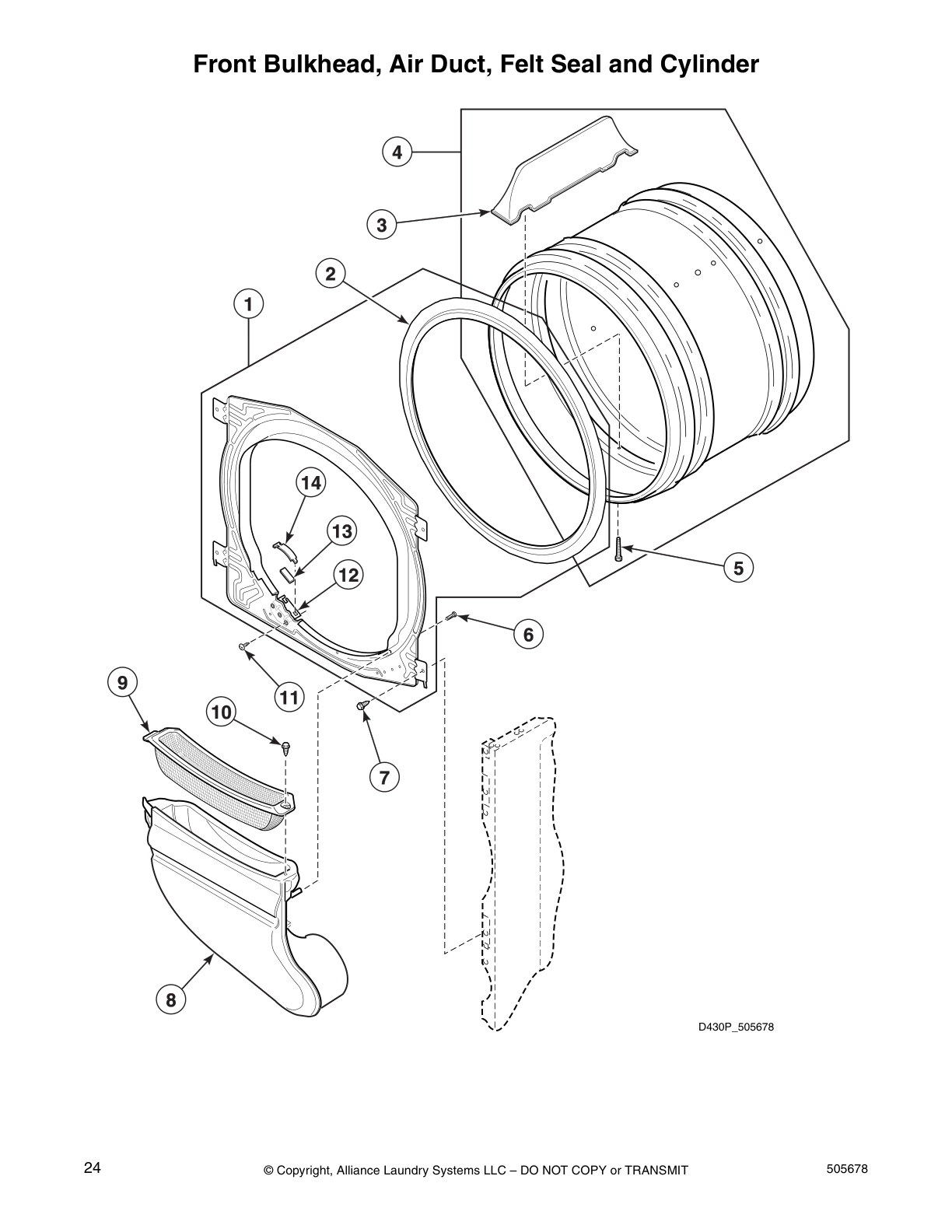

Front Bulkhead, Air Duct, Felt Seal and Cylinder

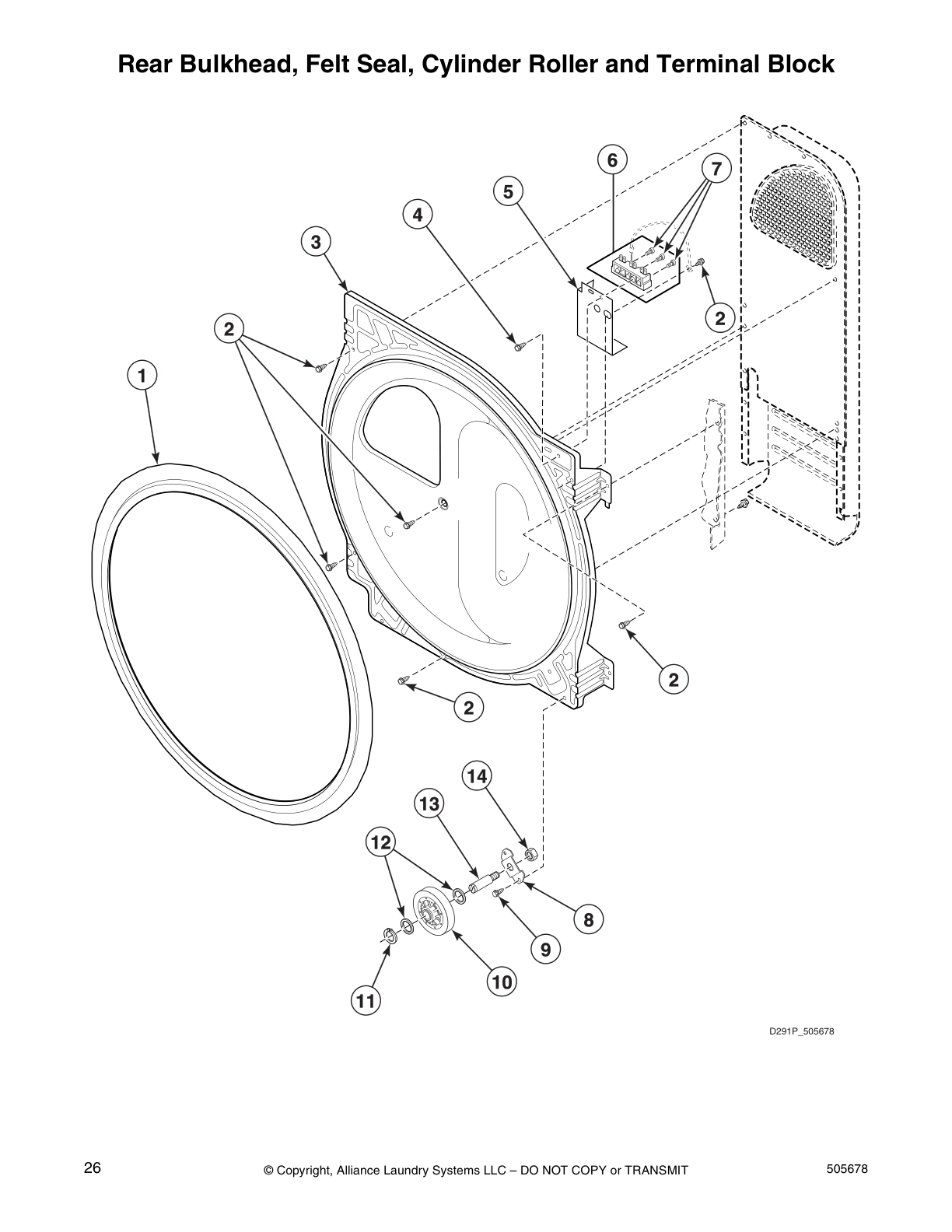

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

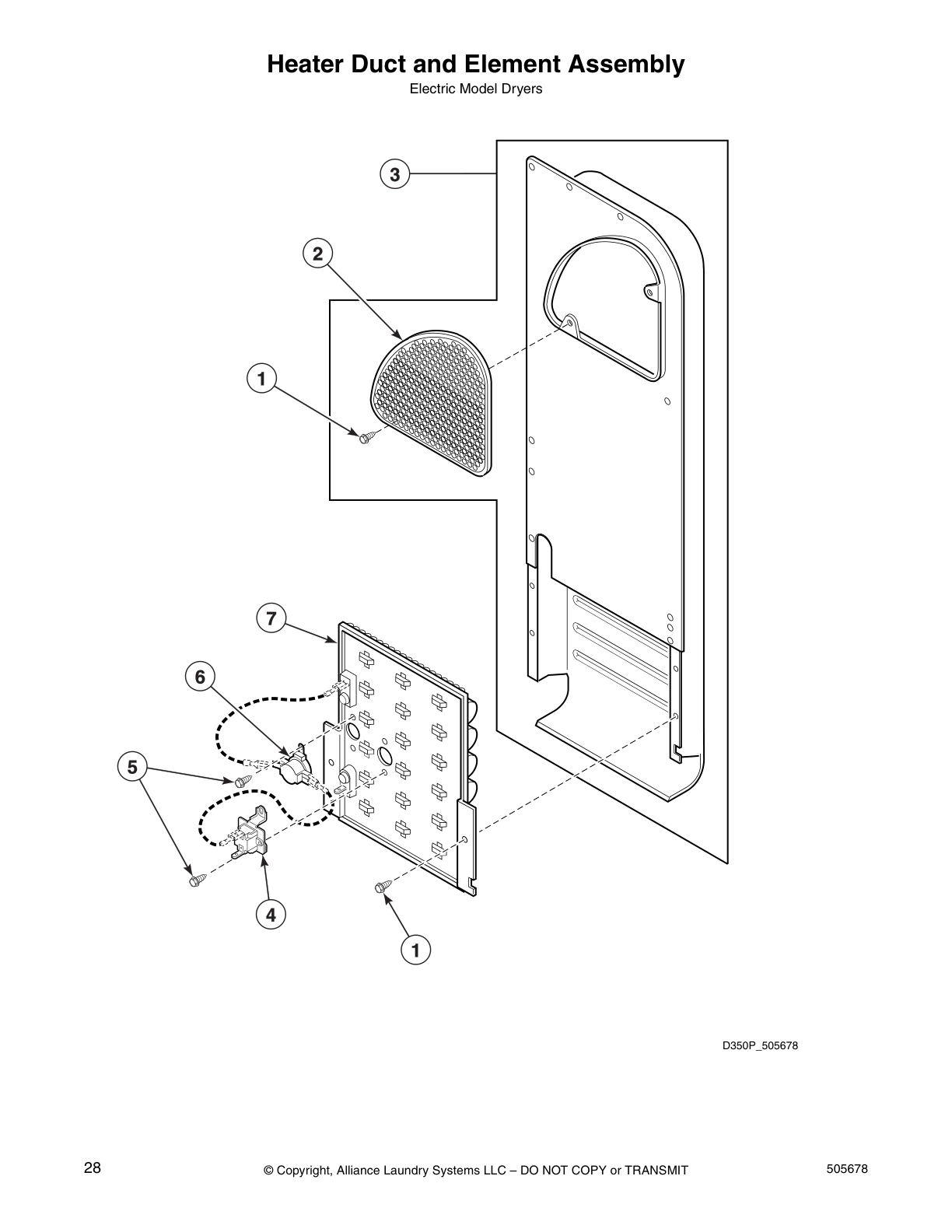

Heater Duct and Element Assembly

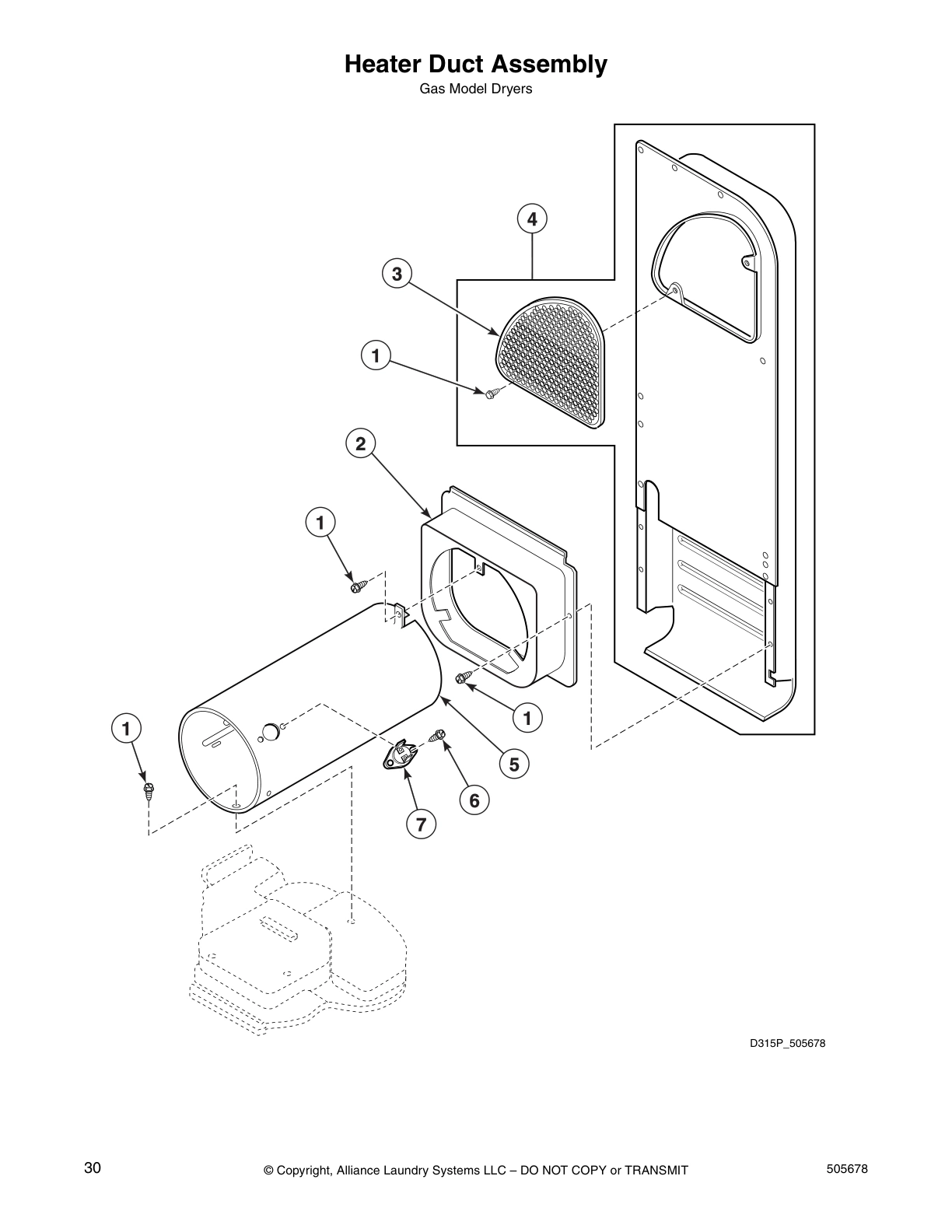

Heater Duct Assembly

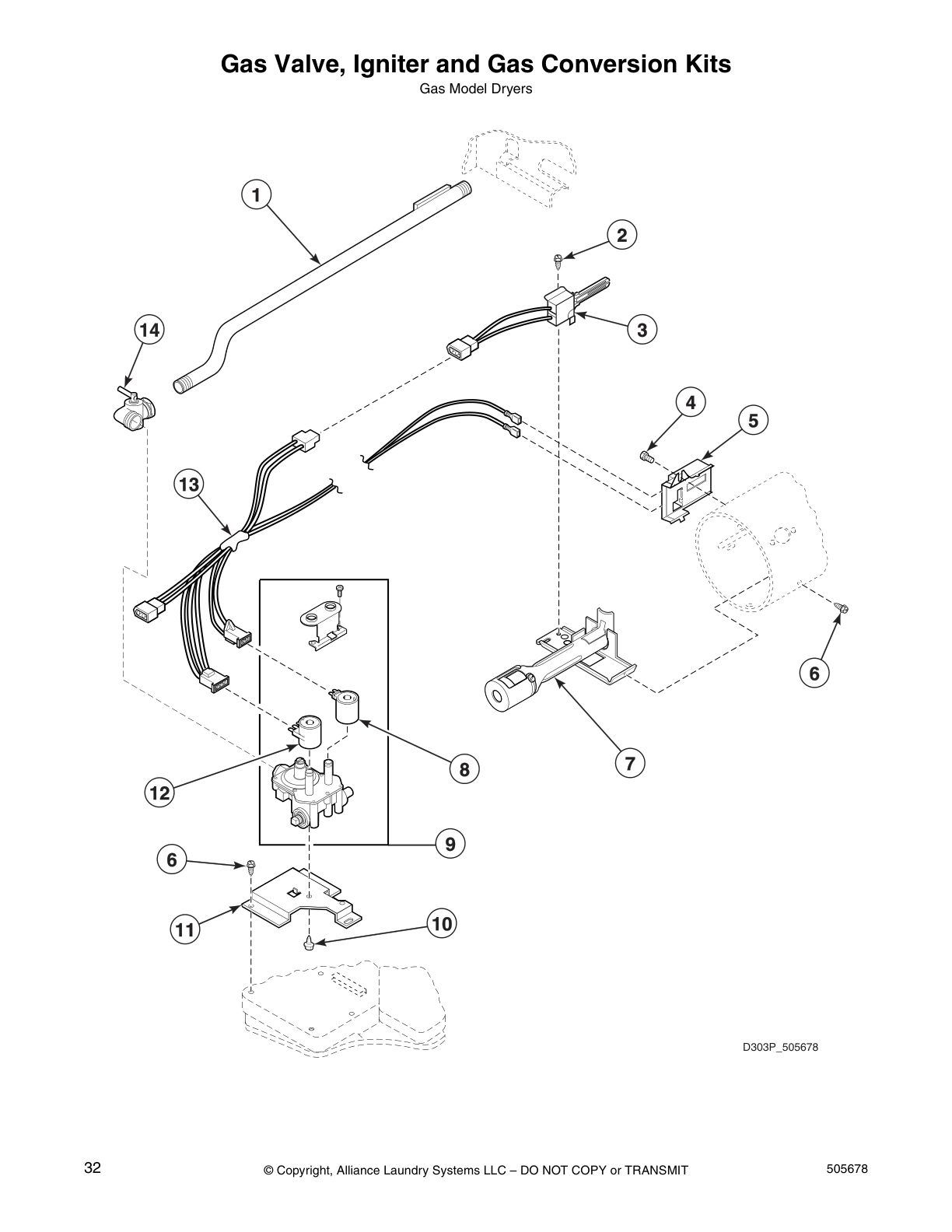

Gas Valve, Igniter and Gas Conversion Kits

Cabinet, Exhaust Duct and Base

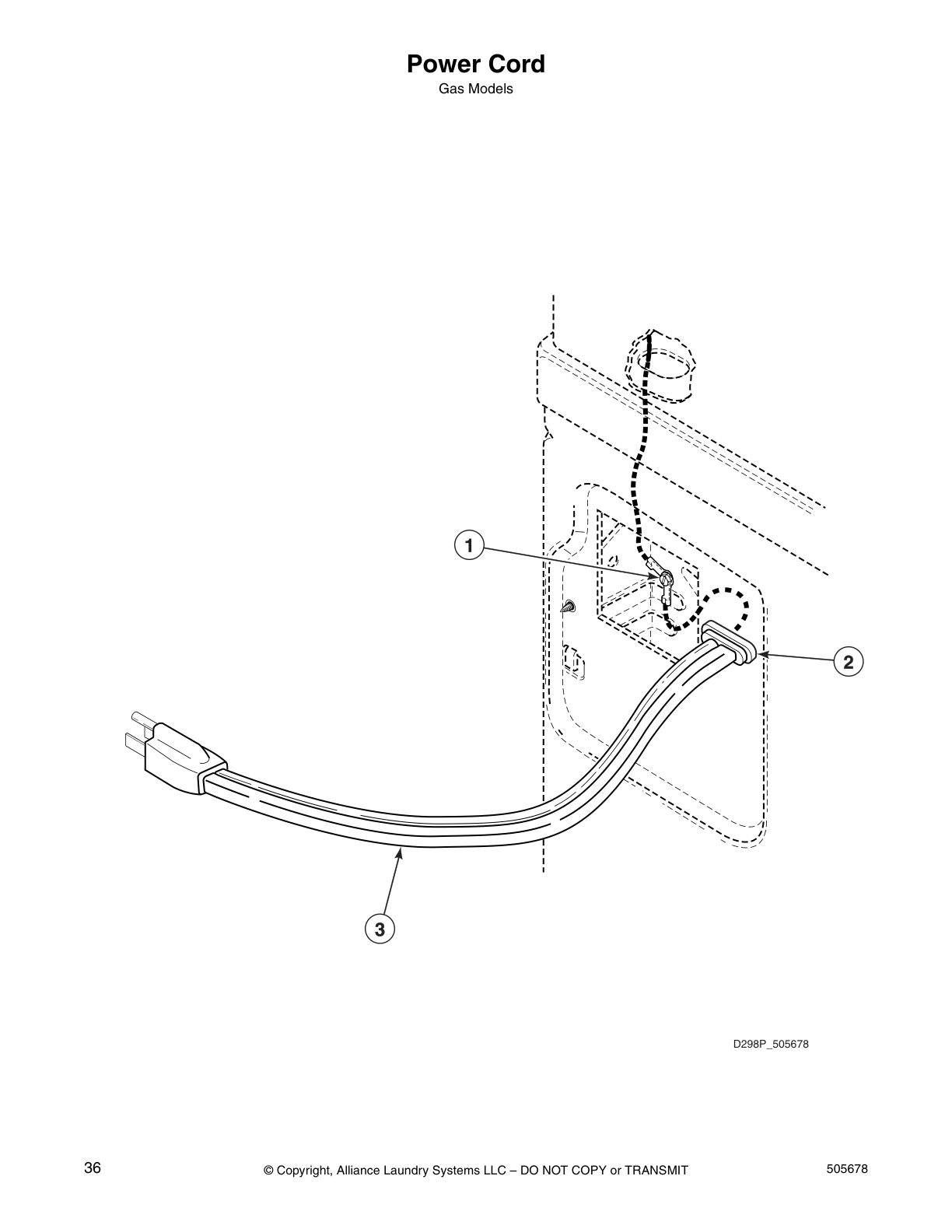

Power Cord

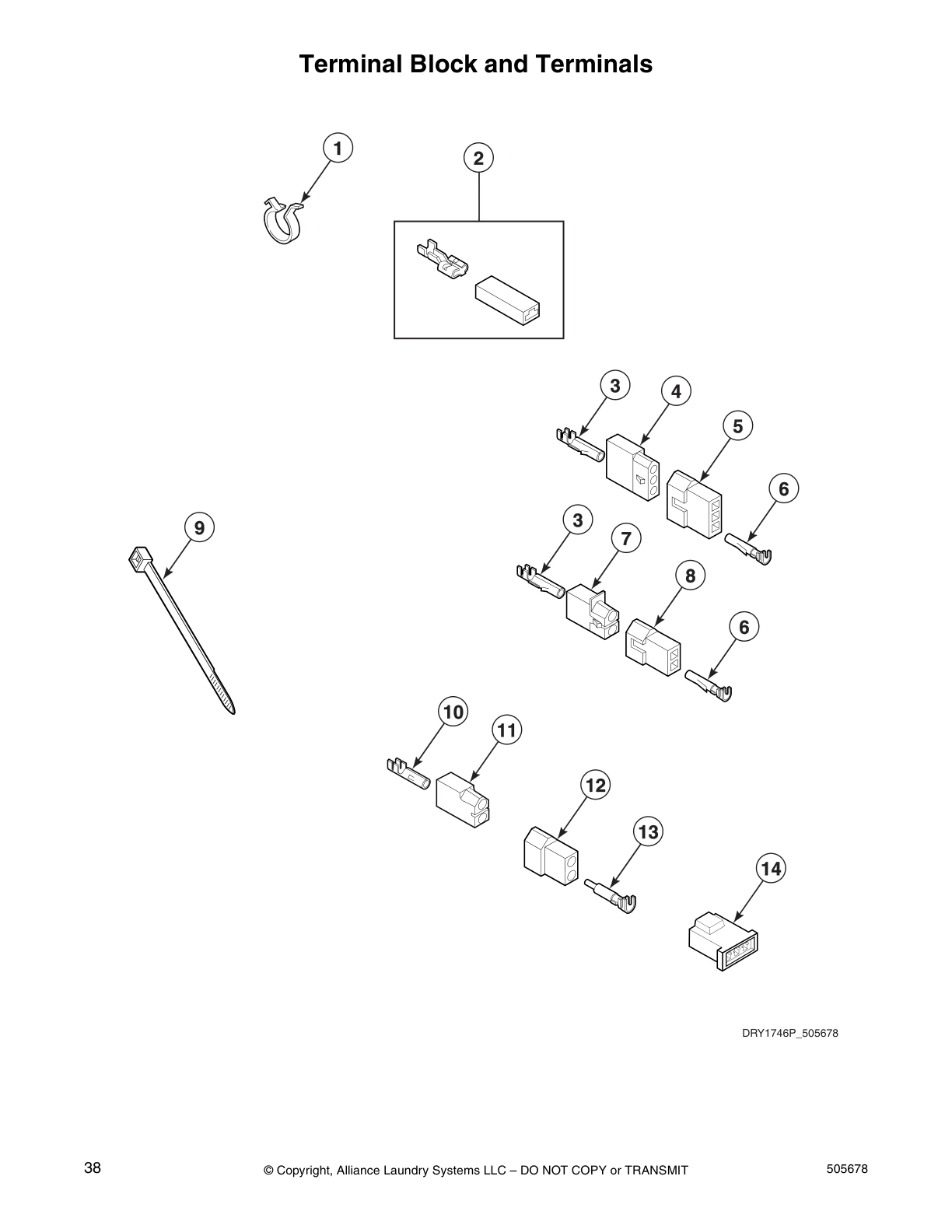

Terminal Block and Terminals

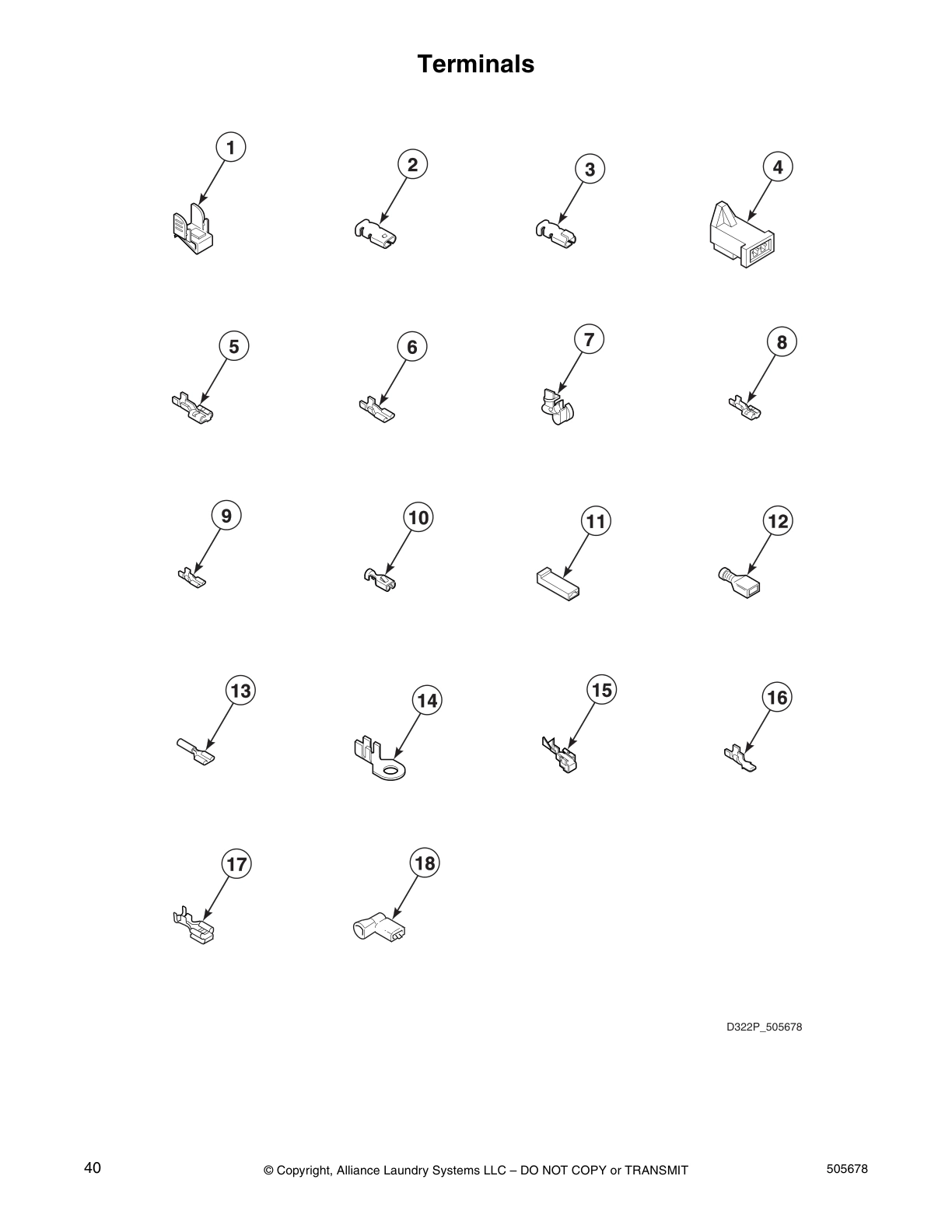

Terminals

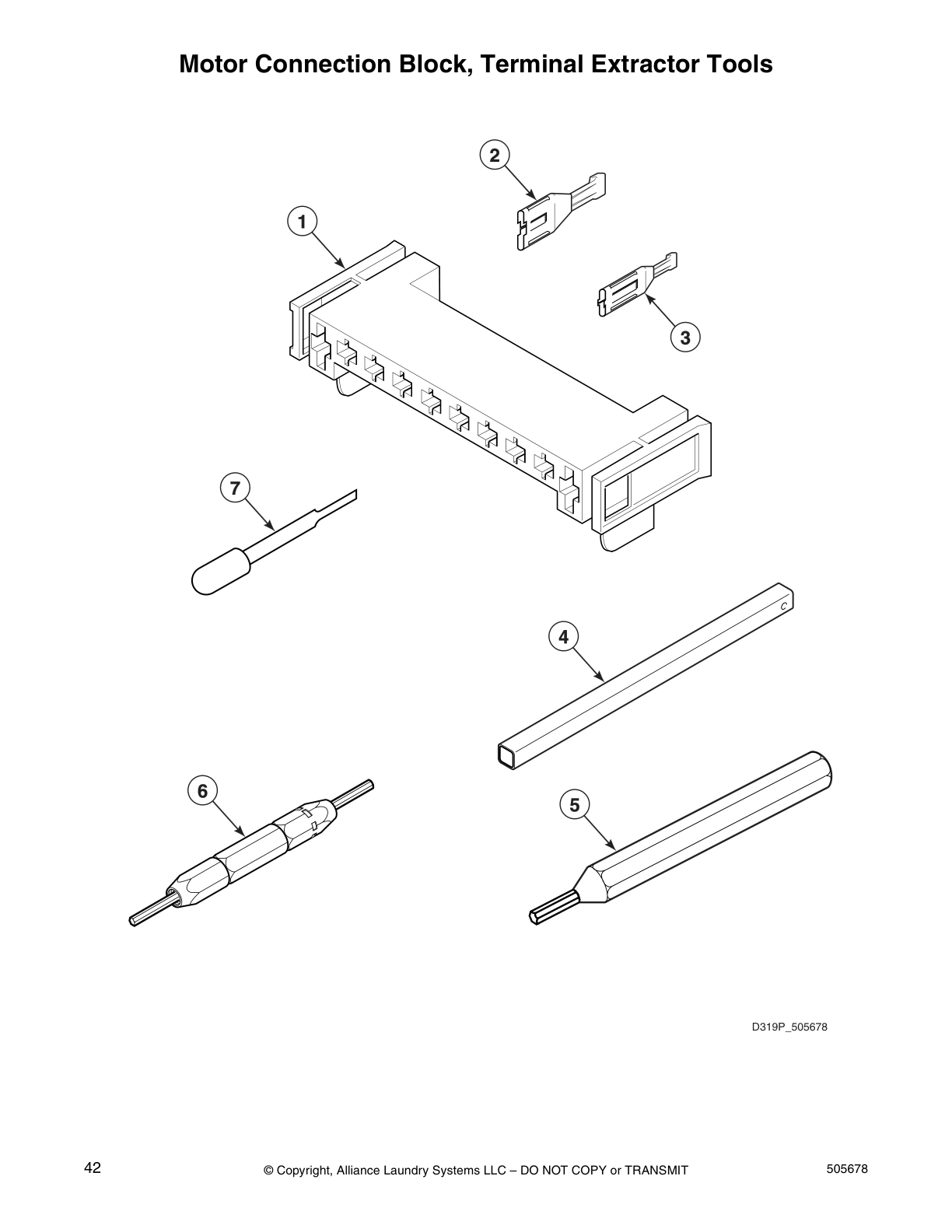

Motor Connection Block, Terminal Extractor Tools

Common parts from model Huebsch HFE107*C1702 Dryer

53242 Speed Queen 6-Pin Timing Cam 30-Minute Backorder SPQ 53242 $5.75

View on Model

D510127 Speed Queen Washer Dryer Door Strike In Stock SPQ D510127 $2.52

View on Model

D510628P Speed Queen Replacement Accumulator In Stock SPQ D510628P $424.18

View on Model

00360 Speed Queen 1/4" Female Insulated Termi Backorder SPQ 00360 $1.03

View on Model

D510181 Speed Queen Dryer Metal Door Strike In Stock SPQ D510181 $3.32

View on Model

D510207P Speed Queen Dryer Drum Felt Seal In Stock SPQ D510207P $37.97

View on Model

D511056 Speed Queen Washer Dryer Front Seal P In Stock SPQ D511056 $9.54

View on Model

D500820 Speed Queen Washer Dryer Perforated O In Stock SPQ D500820 $24.68

View on Model

D510903 Speed Queen Access Cover Plate - 3 Lo In Stock SPQ D510903 $4.16

View on Model

D512017P Speed Queen 115V 60Hz Motor Timer Backorder SPQ D512017P $97.07

View on Model

D510163WP Speed Queen Liner Seal and Grill As Backorder SPQ D510163WP $176.06

View on Model

D510705P Speed Queen Heater Duct Assembly Backorder SPQ D510705P $74.17

View on Model

D511629P Speed Queen Motor and Pulley Assembl In Stock SPQ D511629P $323.05

View on Model

D518649 Speed Queen Dryer Thermal Fuse In Stock SPQ D518649 $6.18

View on Model

36020 Speed Queen U-Type Nut #10-24 Backorder SPQ 36020 $5.23

View on Model

62588 Speed Queen Tapping Screw 10BT-12 X 1 Backorder SPQ 62588 $5.23

View on Model

D505295 Speed Queen Screw 8AB-16 X 3/4 PHIL In Stock SPQ D505295 $1.11

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $45.46

View on Model

53241 Speed Queen Timing Cam - 4 Pin - 45 Min In Stock SPQ 53241 $46.87

View on Model

D510190P Speed Queen Dryer Terminal Block Ass In Stock SPQ D510190P $6.62

View on Model

D515873 Speed Queen Green Limit Thermostat In Stock SPQ D515873 $22.85

View on Model

D516196 Speed Queen One-Piece Exhaust Duct Backorder SPQ D516196 $18.53

View on Model

190P4 Speed Queen Tool Extractor HT2066A Backorder SPQ 190P4 $193.97

View on Model

53240 Speed Queen Cam Timing 3 Pin 60 Minute In Stock SPQ 53240 $10.78

View on Model

61199 Speed Queen Mach-HXWAHD 10-32 ST Screw Backorder SPQ 61199 $5.54

View on Model

D511036 Speed Queen Door Hinge In Stock SPQ D511036 $4.81

View on Model

D510100 Speed Queen Cylinder Roller Bracket In Stock SPQ D510100 $5.45

View on Model

Torx Bit SPQ 62853 Contact Us For Availability

View on Model

27260P Speed Queen Lock Assembly In Stock SPQ 27260P $49.48

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.89

View on Model

55882 Speed Queen Switch Assembly In Stock SPQ 55882 $48.41

View on Model

590P3 Speed Queen Motor Hub Ring Kit Backorder SPQ 590P3 $51.29

View on Model

D510135 Speed Queen Leveling Leg Backorder SPQ D510135 $6.35

View on Model

52947 Speed Queen Hex Nut 15/32-32 Backorder SPQ 52947 $1.70

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx Backorder SPQ D501285 $2.08

View on Model

D510177 Speed Queen Dryer Door Catch Assembly In Stock SPQ D510177 $9.60

View on Model

D510708P Speed Queen Cylinder Roller with Ins In Stock SPQ D510708P $17.07

View on Model

Door Handle Wedge SPQ 510129 Contact Us For Availability

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $2.08

View on Model

D510145 Speed Queen Cylinder Glide Bracket In Stock SPQ D510145 $11.01

View on Model

D510185 Speed Queen Idler Spring In Stock SPQ D510185 $2.31

View on Model

D510189 Speed Queen Felt Pad In Stock SPQ D510189 $5.65

View on Model

33562 Speed Queen Screw Tap Socket Head 10B-1 Backorder SPQ 33562 $5.23

View on Model

39897 Speed Queen Switch Knob Backorder SPQ 39897 $9.10

View on Model

56156 Speed Queen Serrated Nut 3/8-16 In Stock SPQ 56156 $5.45

View on Model

Idler Lever SPQ 510133 Contact Us For Availability

View on Model

24205 Speed Queen Knurled Nut 3/8-24 In Stock SPQ 24205 $5.23

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $3.32

View on Model

23008 Speed Queen Screw,HEX WA HD SEMS 10-24 In Stock SPQ 23008 $5.45

View on Model

Light SPQ 91176 Contact Us For Availability

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $5.45

View on Model

61512 Speed Queen Fabric Selector Switch In Stock SPQ 61512 $30.29

View on Model

D500824 Speed Queen Screw Backorder SPQ D500824 $5.23

View on Model

Coin Slide Guard SPQ 32464 Contact Us For Availability

View on Model

D516792 Speed Queen Dryer Idler Lever Pulley In Stock SPQ D516792 $31.62

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $5.23

View on Model

56079 Speed Queen Locator Panel In Stock SPQ 56079 $5.45

View on Model

Motor Mount Clamp SPQ 510060 Contact Us For Availability

View on Model

D504515 Speed Queen Cycling Thermostat Green In Stock SPQ D504515 $37.13

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $65.34

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $2.02

View on Model

39733 Speed Queen Screw TAP 10BX5/8 #8PN HD In Stock SPQ 39733 $5.45

View on Model
