Model Whirlpool GH8155XMT0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
04 - AIR FLOW PARTS

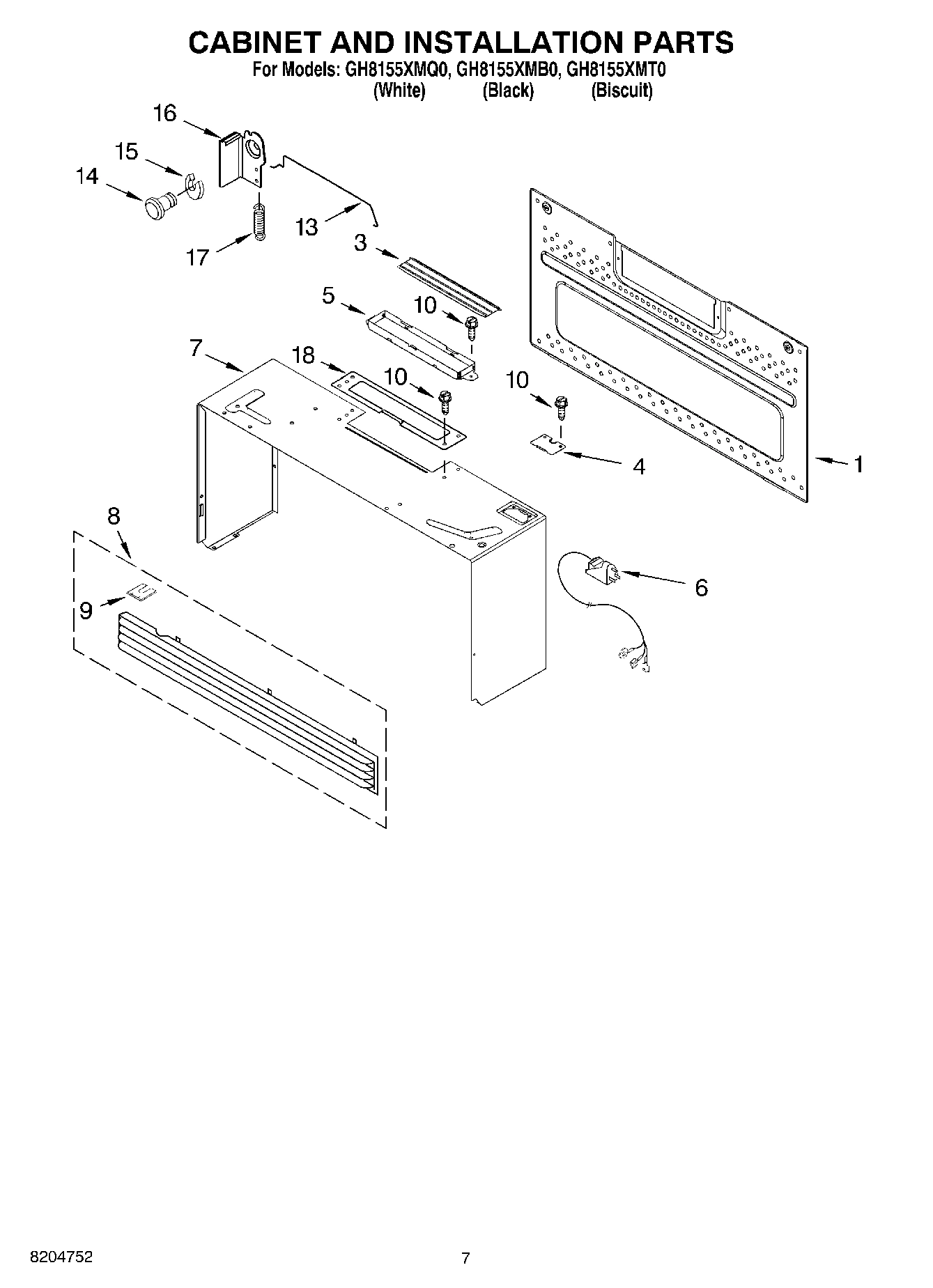

06 - CABINET AND INSTALLATION PARTS

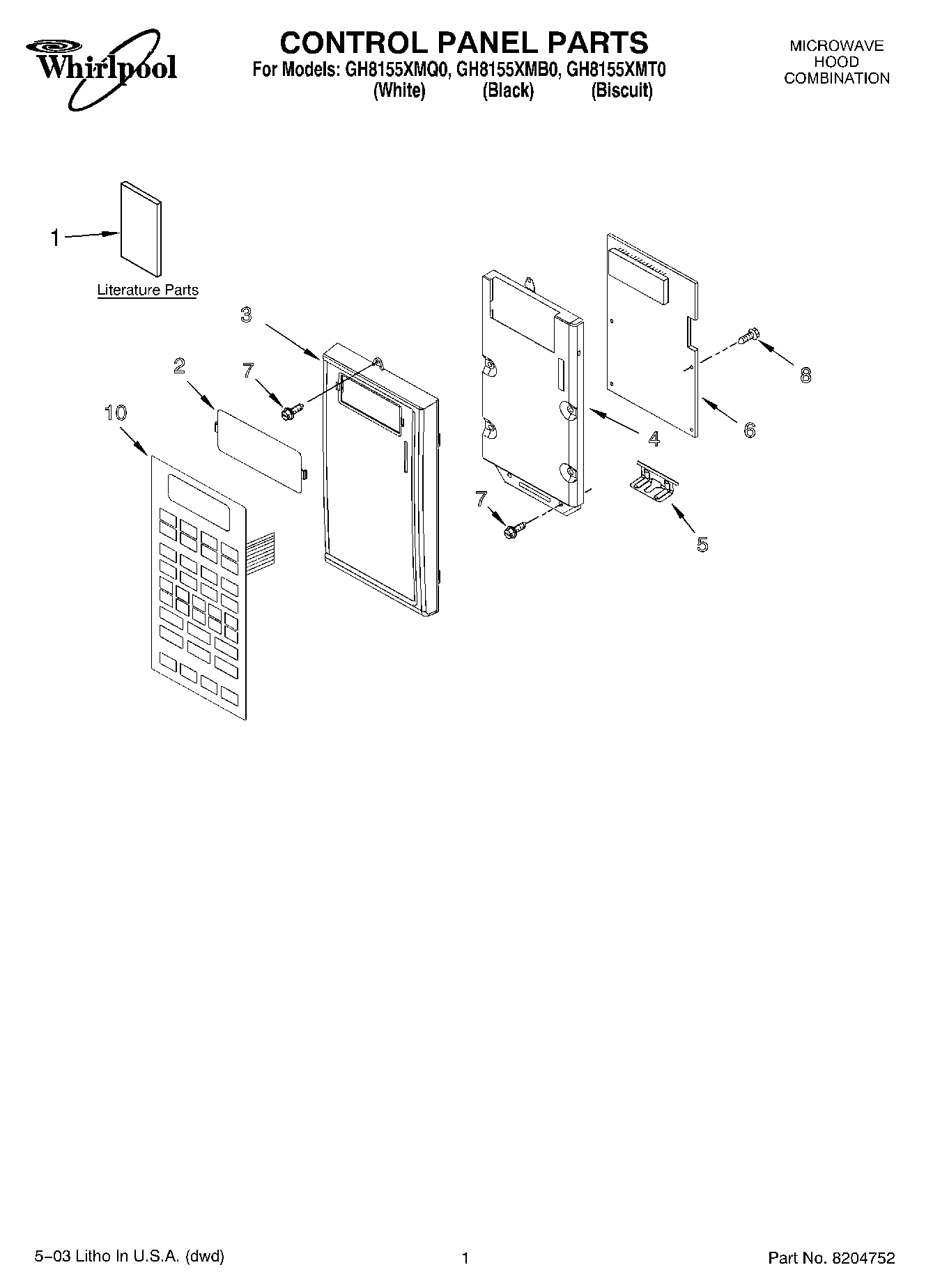

01 - CONTROL PANEL PARTS

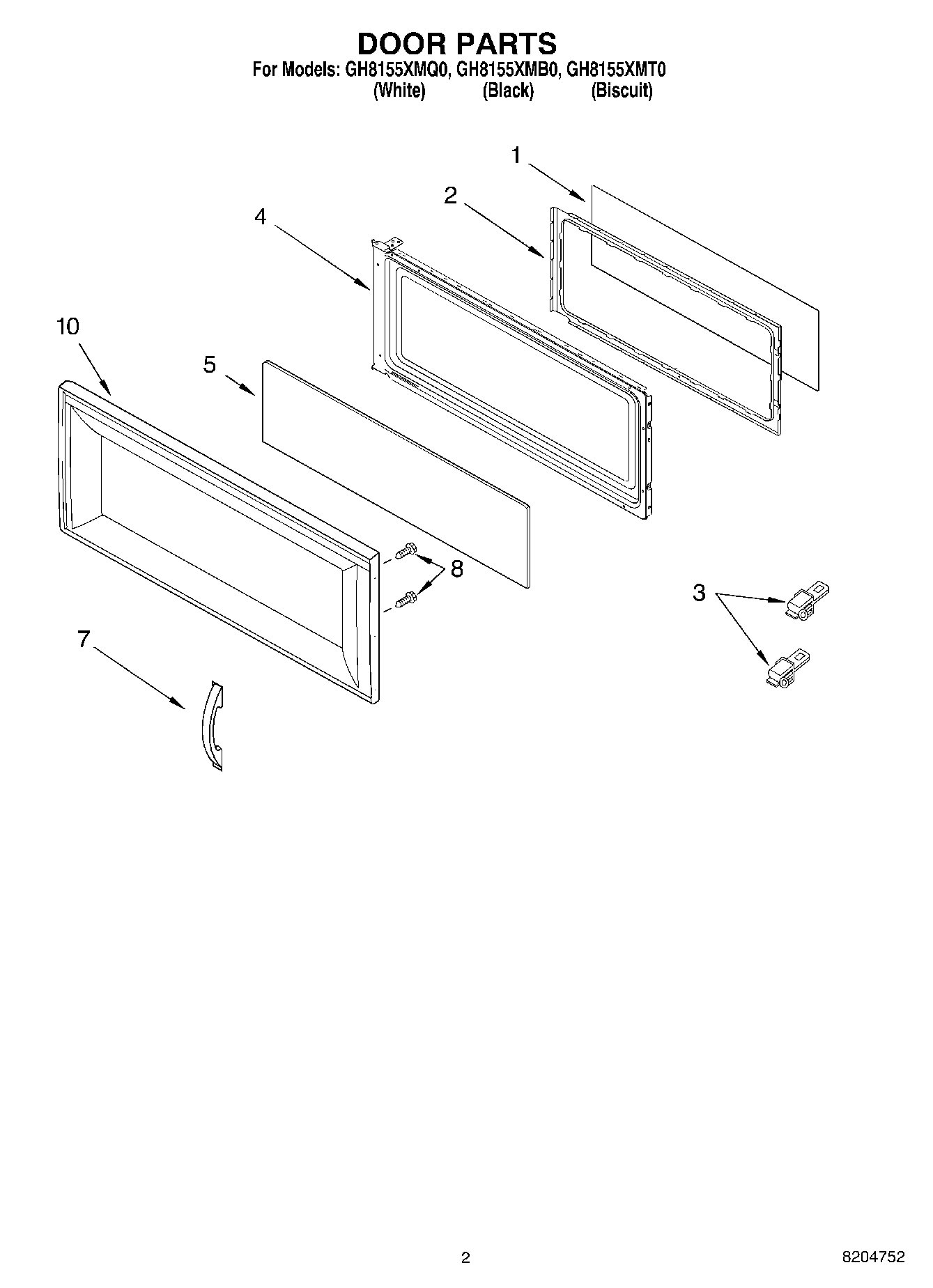

02 - DOOR PARTS

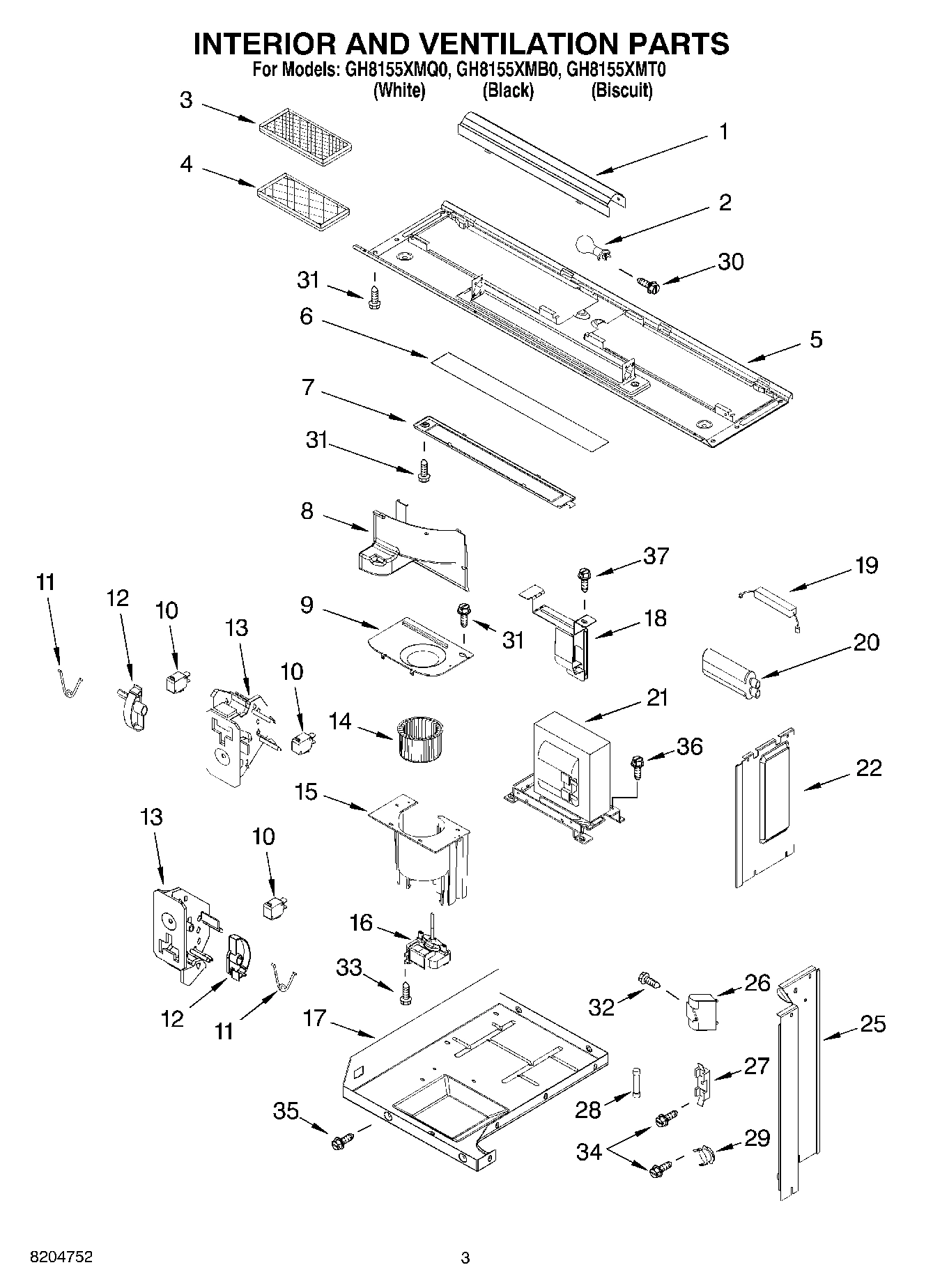

03 - INTERIOR AND VENTILATION PARTS

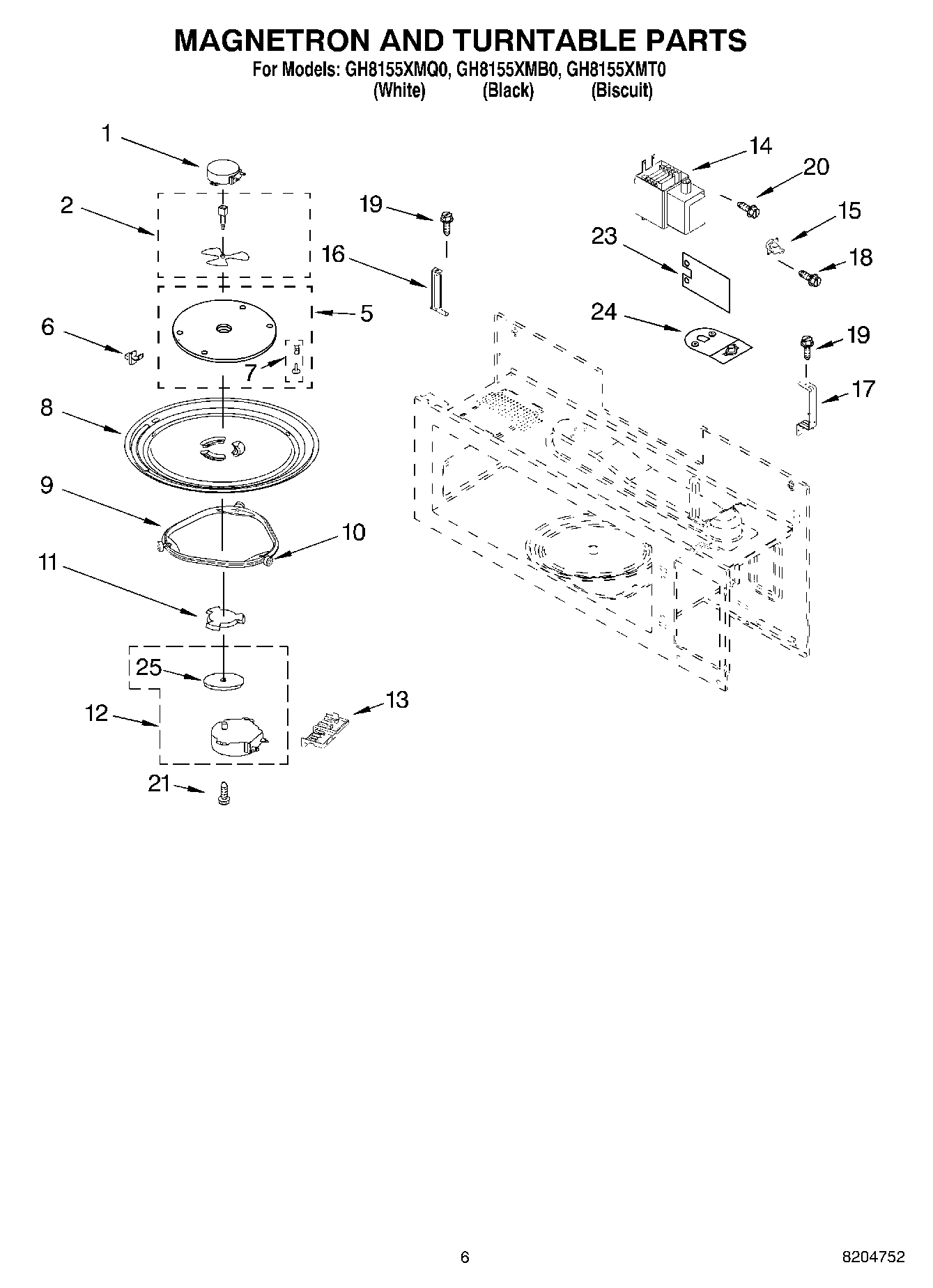

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool GH8155XMT0 MICROWAVE HOOD COMBINATION
1
Literature Parts (Installation Instructions) WPL LIT8183731 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8184984 Contact Us For Availability
1
Literature Parts (Guide, Cooking (Label)) WPL LIT8184992 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185000 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens (B/Q/Z Models) WPL 8183708 Contact Us For Availability
2
Lens (Biscuit Model) WPL 8183724 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184633 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8183710 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8183725 Contact Us For Availability
3
Panel, Control (Black) WPL 8185214 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Glass, Outer (White Model) WPL 8204780 Contact Us For Availability
5
Glass, Outer (Black Model) WPL 8204781 Contact Us For Availability
5
Glass, Outer (Biscuit Model) WPL 8204782 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Microcomputer WPL 8183726 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393346 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
10
Frame, Outer (White) WPL 8169471 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8169641 Contact Us For Availability
10
Switch, Membrane (White) WPL 8204777 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8204778 Contact Us For Availability
10
Switch, Membrane (Biscuit) WPL 8204779 Contact Us For Availability
10
Frame, Outer (Black) WPL 8184593 Contact Us For Availability
10
Switch, Micro (3) WPL 8204656 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Filler Kit (White) WPL 8171336 Contact Us For Availability
18
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
18
Filler Kit (Almond) WPL 8171570 Contact Us For Availability
18
Wall Template WPL 8183743 Contact Us For Availability
18
Upper Template WPL 8183985 Contact Us For Availability
18
Rack WPL 8204725 Contact Us For Availability
18
Miscellaneous WPL ARI65370A4 Contact Us For Availability
18
ACCESSORY PARTS WPL ARI65371A6 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
24
Thermostat And Bracket WPL 8184585 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
