Model Maytag GDE24CT ELECTRIC DRYER – Common Parts & Diagrams

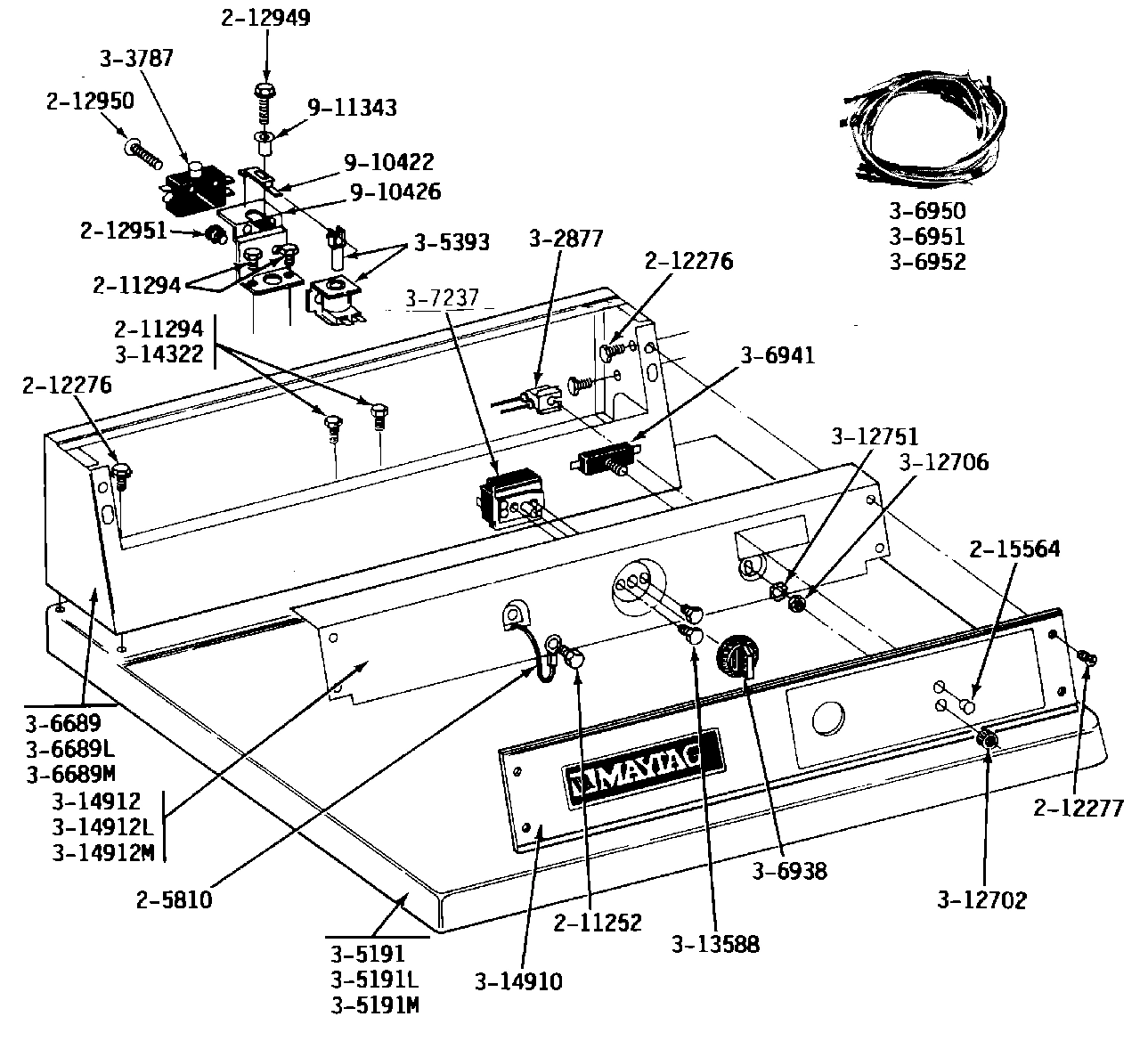

01 - CT CONTROL PANEL

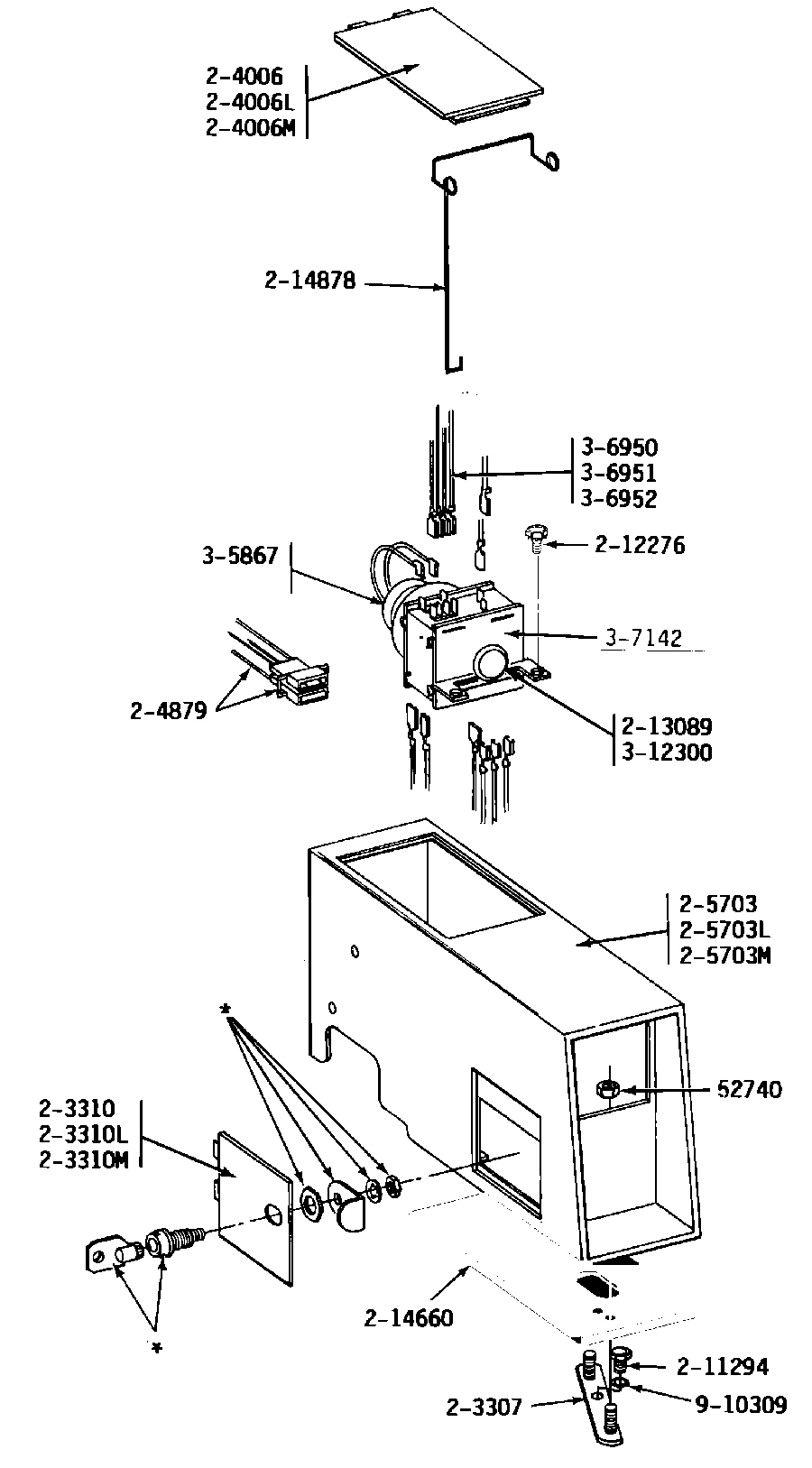

02 - CT CONTROL PANEL/TIMER

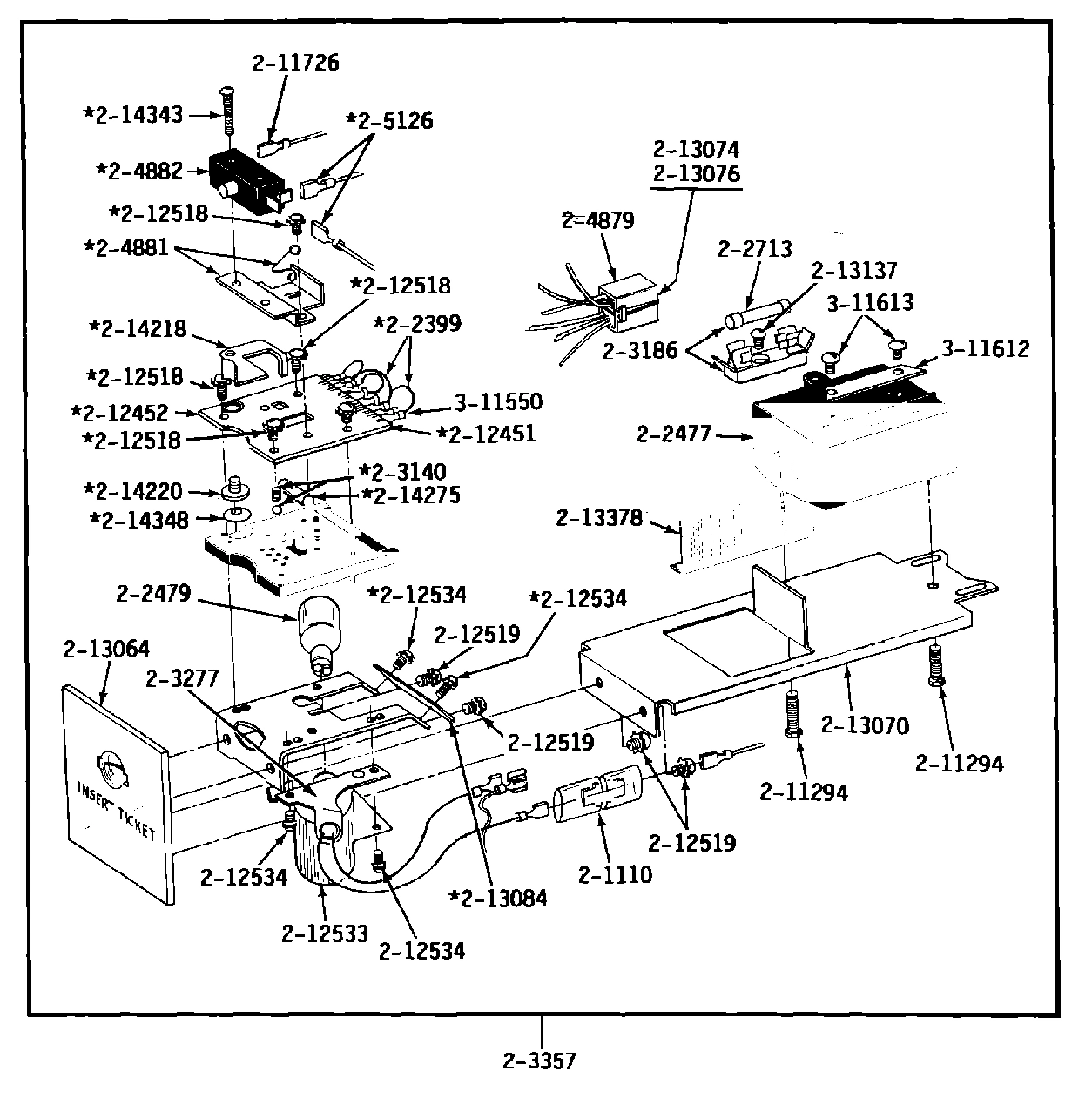

03 - CT CONTROL CENTER COMPONENTS

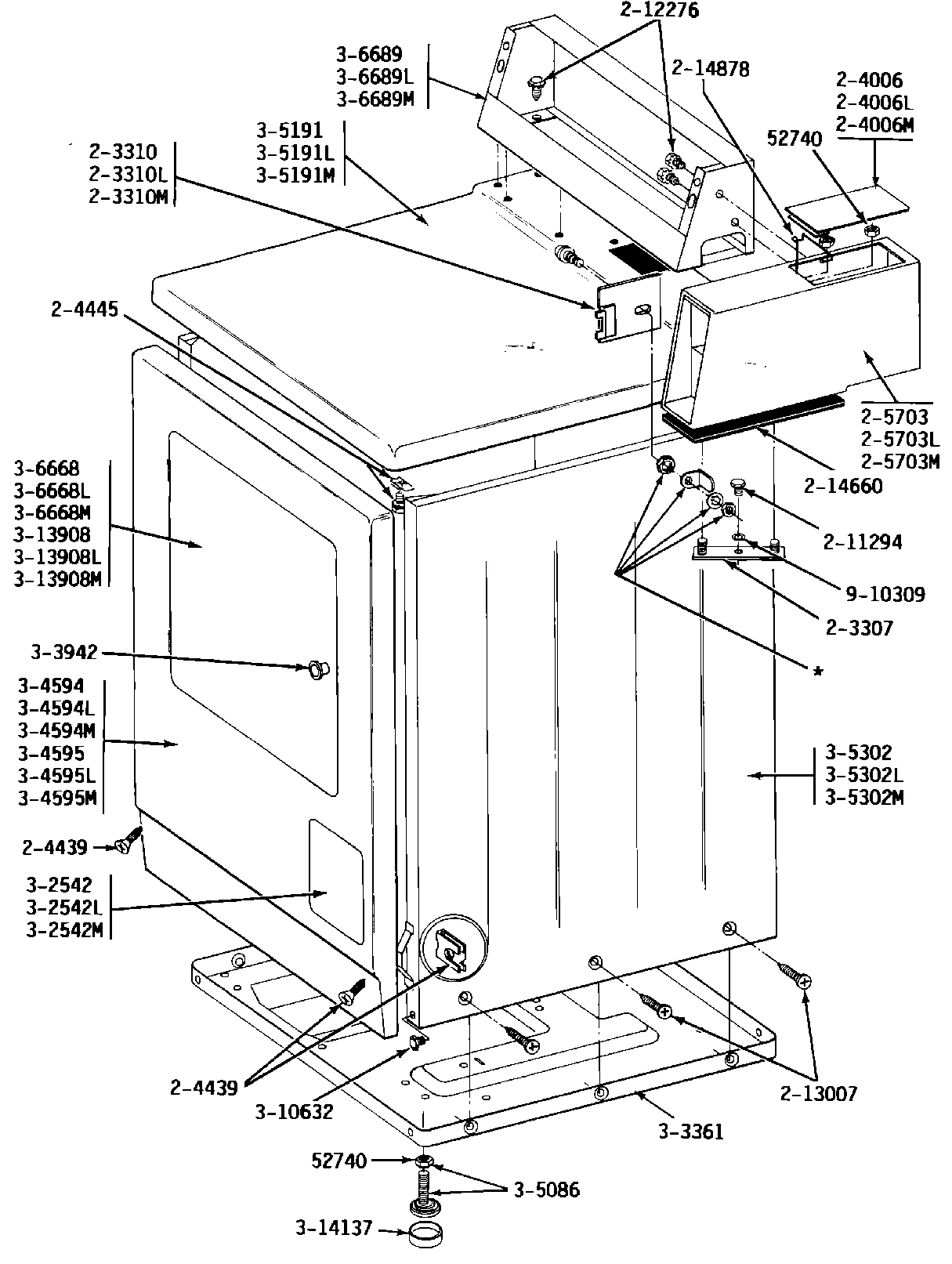

04 - FRONT VIEW

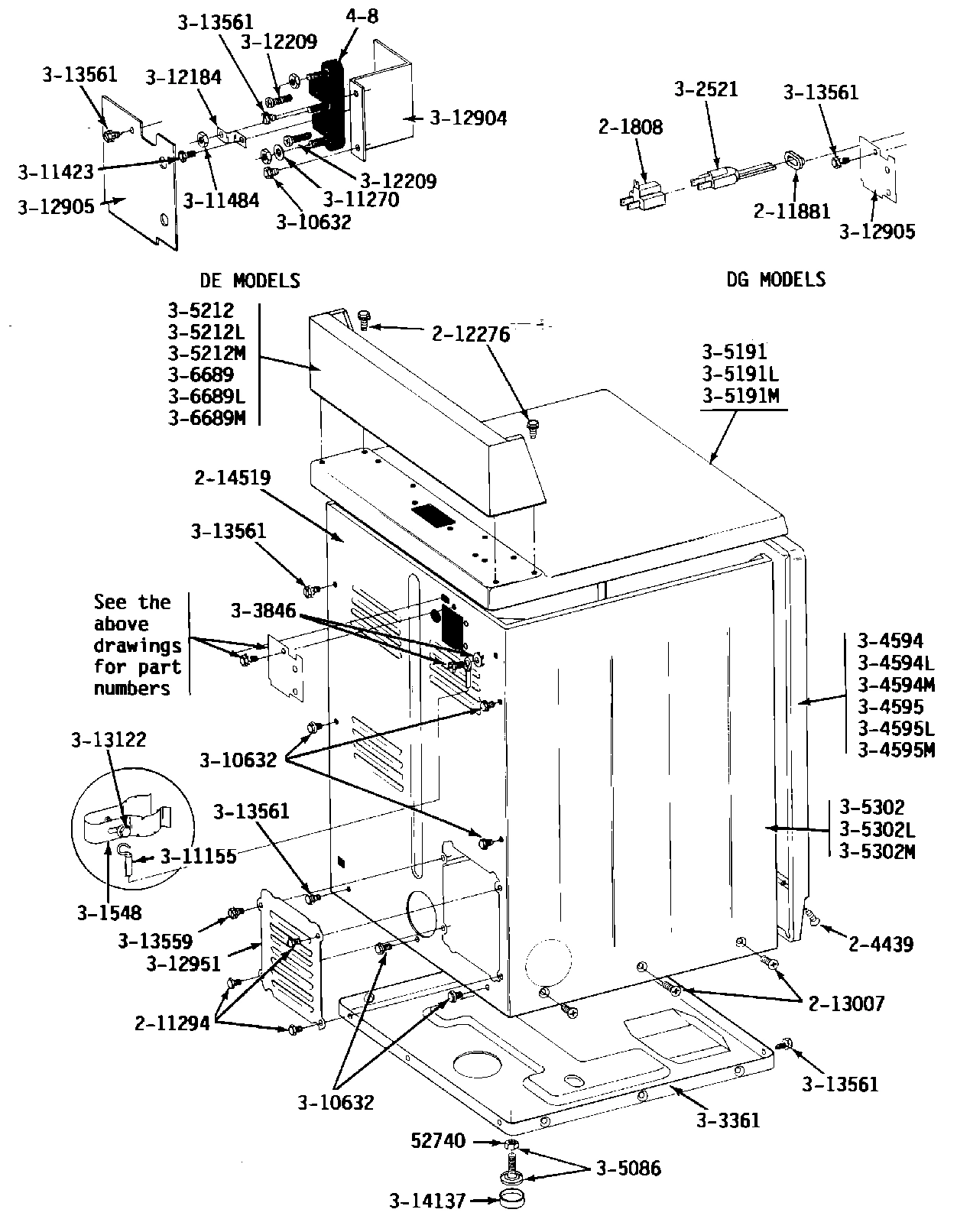

05 - REAR VIEW

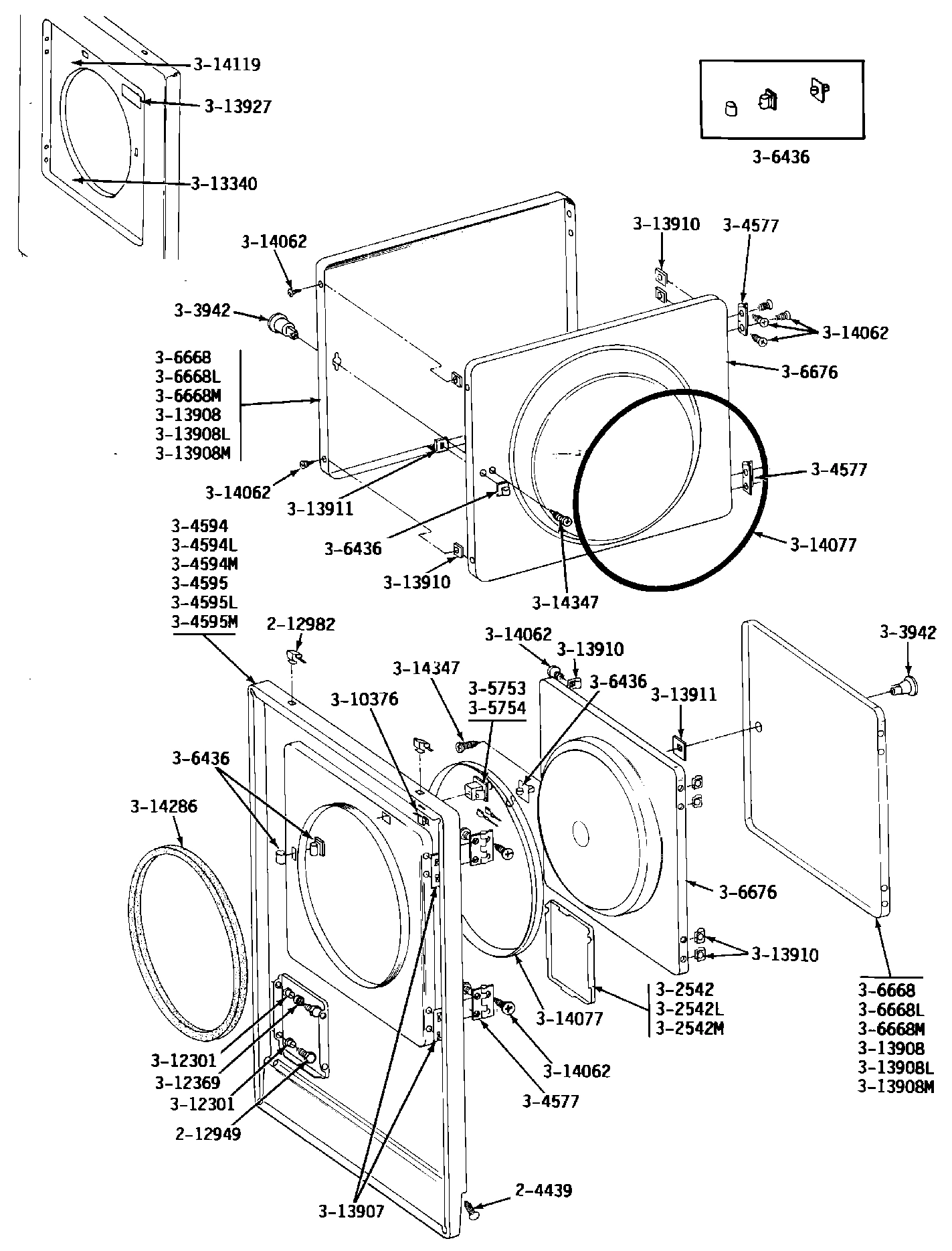

06 - FRONT PANEL & DOOR ASSEMBLY

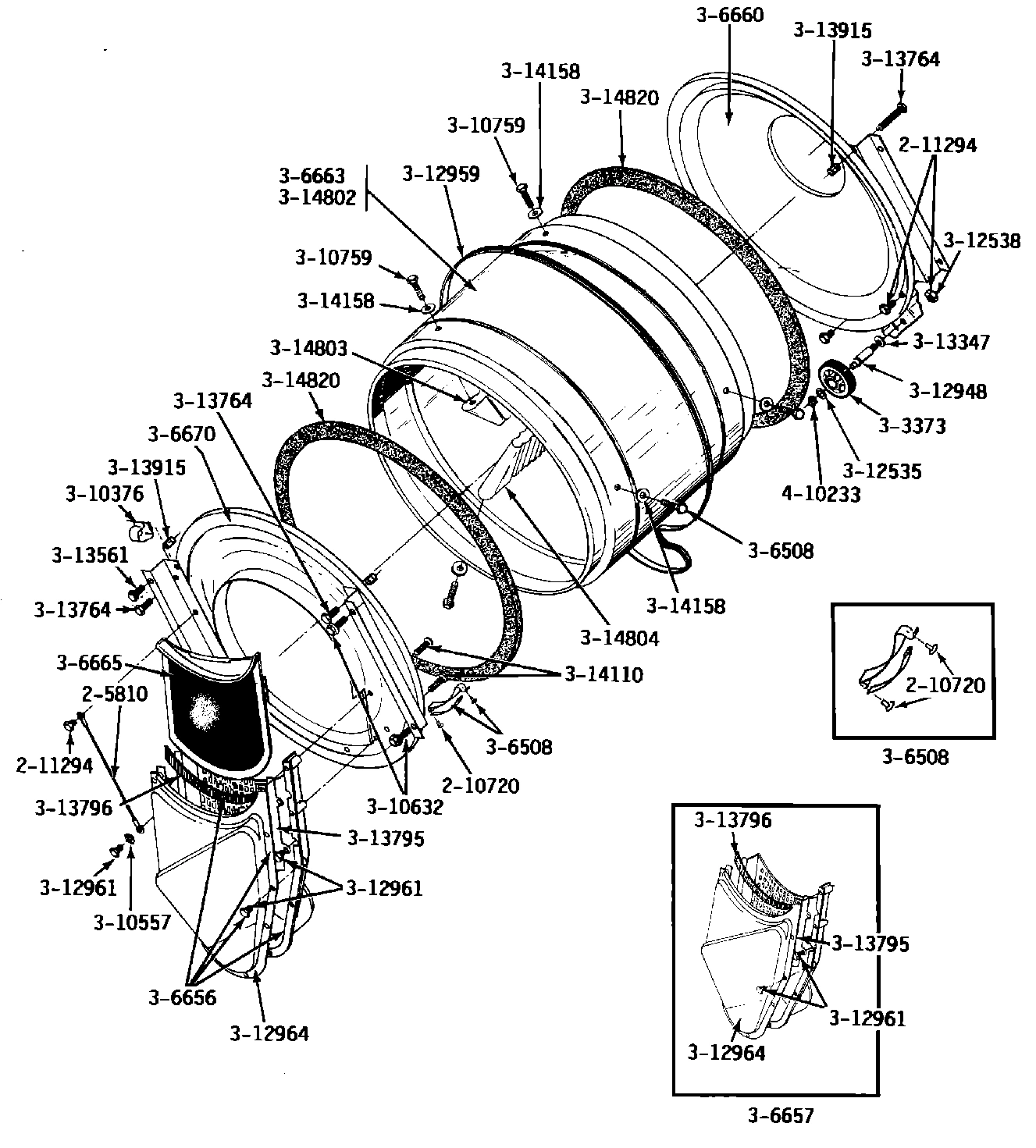

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

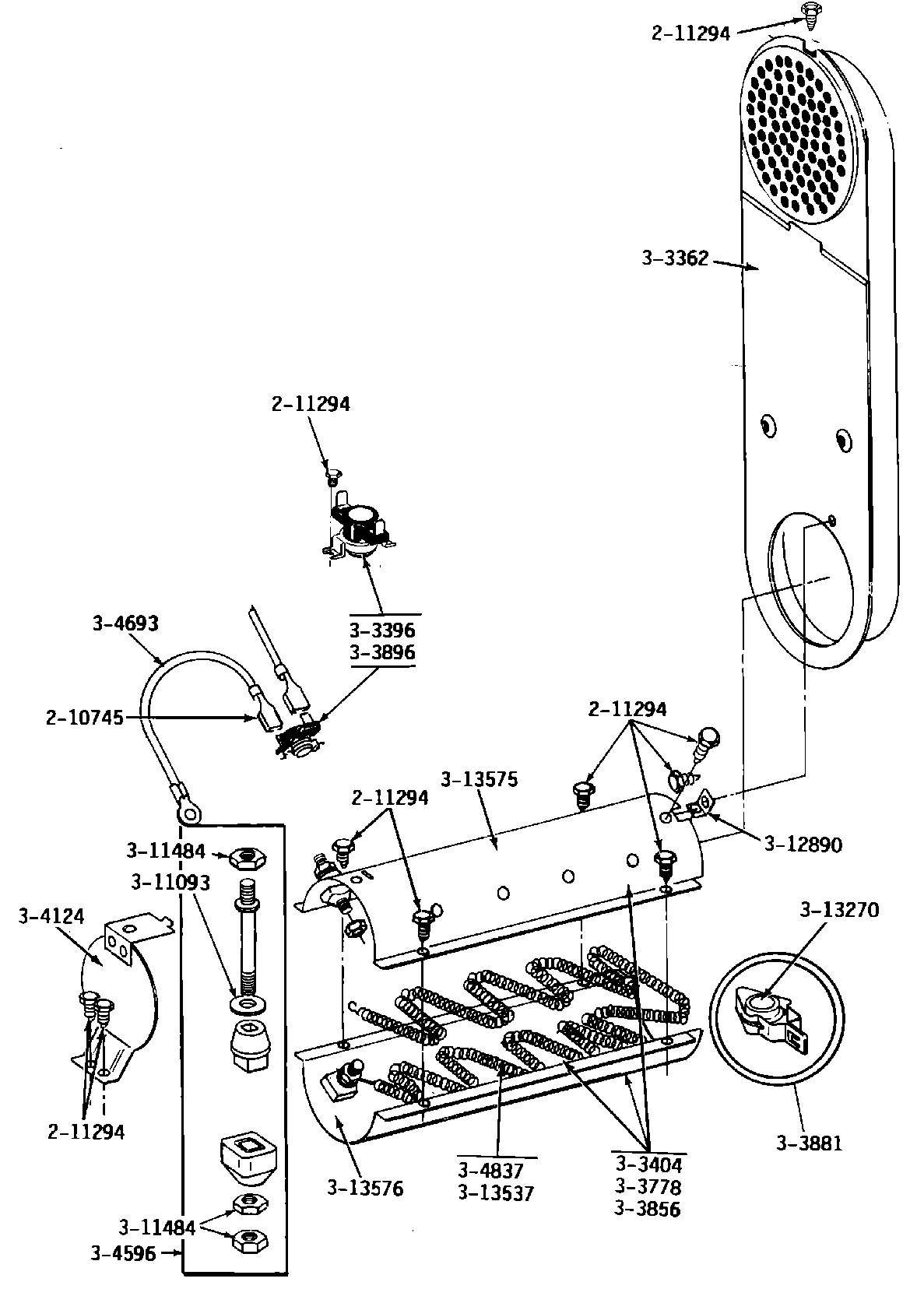

08 - INLET DUCT & HEATER ASSEMBLY

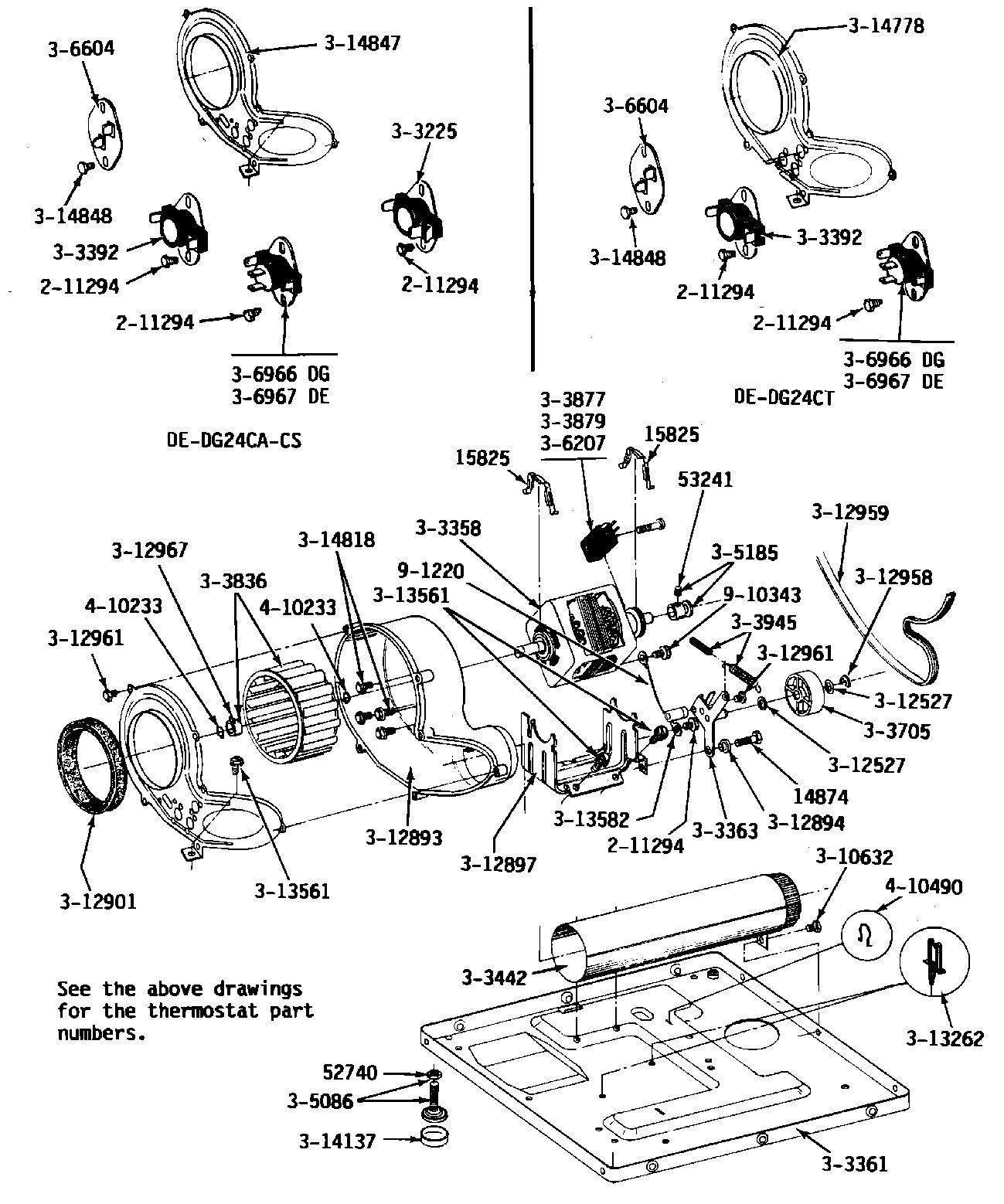

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
Common parts from model Maytag GDE24CT ELECTRIC DRYER
001
MAY 204439 MAY 204439 Contact Us For Availability
001
MAY 205810 MAY 205810 Contact Us For Availability
001
MAY 210745 MAY 210745 Contact Us For Availability
002
MAY Y201808 MAY Y201808 Contact Us For Availability
002
MAY 212949 MAY 212949 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY Y303362 MAY Y303362 Contact Us For Availability
004
MAY Y303373 MAY Y303373 Contact Us For Availability
004
MAY Y053241 MAY Y053241 Contact Us For Availability
006
MAY Y303778 MAY Y303778 Contact Us For Availability
006
MAY Y303225 MAY Y303225 Contact Us For Availability
006
MAY 212276 MAY 212276 Contact Us For Availability
006
MAY 306656 MAY 306656 Contact Us For Availability
007
MAY 306657 MAY 306657 Contact Us For Availability
007
MAY Y303856 MAY Y303856 Contact Us For Availability
008
MAY Y303361 MAY Y303361 Contact Us For Availability
008
MAY 214519 MAY 214519 Contact Us For Availability
008
MAY Y306660 MAY Y306660 Contact Us For Availability
009
MAY 301548 MAY 301548 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
010
MAY 204445 MAY 204445 Contact Us For Availability
010
MAY Y306665 MAY Y306665 Contact Us For Availability
010
MAY 304124 MAY 304124 Contact Us For Availability
011
MAY Y303442 MAY Y303442 Contact Us For Availability
012
MAY Y310376 MAY Y310376 Contact Us For Availability
013
MAY 310557 MAY 310557 Contact Us For Availability
014
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
014
MAY Y303877 MAY Y303877 Contact Us For Availability
015
MAY Y310759 MAY Y310759 Contact Us For Availability
015
MAY Y303879 MAY Y303879 Contact Us For Availability
016
MAY Y312890 MAY Y312890 Contact Us For Availability
016
MAY Y303945 MAY Y303945 Contact Us For Availability
017
MAY Y313270 MAY Y313270 Contact Us For Availability
017
MAY 214660 MAY 214660 Contact Us For Availability
017
MAY 312538 MAY 312538 Contact Us For Availability
018
MAY 212452 MAY 212452 Contact Us For Availability
018
MAY 214878 MAY 214878 Contact Us For Availability
018
DOOR MAY Y306668 Contact Us For Availability
018
MAY Y313537 MAY Y313537 Contact Us For Availability
018
MAY Y305185 MAY Y305185 Contact Us For Availability
019
MAY Y313575 MAY Y313575 Contact Us For Availability
020
MAY 212519 MAY 212519 Contact Us For Availability
020
MAY Y313576 MAY Y313576 Contact Us For Availability
021
SHIELD FOR HEAT LAMP MAY 212533 Contact Us For Availability
021
MAY Y305191 MAY Y305191 Contact Us For Availability
021
MAY Y312964 MAY Y312964 Contact Us For Availability
022
MAY 306966 MAY 306966 Contact Us For Availability
023
MAY 306967 MAY 306967 Contact Us For Availability
024
MAY Y310632 MAY Y310632 Contact Us For Availability
024
MAY 312369 MAY 312369 Contact Us For Availability
025
MAY 213074 MAY 213074 Contact Us For Availability
025
MAY Y313340 MAY Y313340 Contact Us For Availability
025
MAY Y313795 MAY Y313795 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
MAY Y313796 MAY Y313796 Contact Us For Availability
026
MAY Y313907 MAY Y313907 Contact Us For Availability
026
MAY Y312893 MAY Y312893 Contact Us For Availability
027
MAY Y313908 MAY Y313908 Contact Us For Availability
027
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
028
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
029
MAY 314158 MAY 314158 Contact Us For Availability
030
MAY Y305086 MAY Y305086 Contact Us For Availability
030
MAY 214218 MAY 214218 Contact Us For Availability
030
MAY Y313910 MAY Y313910 Contact Us For Availability
030
MAY 314802 MAY 314802 Contact Us For Availability
031
MAY 214220 MAY 214220 Contact Us For Availability
031
MAY Y313911 MAY Y313911 Contact Us For Availability
031
MAY 314803 MAY 314803 Contact Us For Availability
032
MAY 214275 MAY 214275 Contact Us For Availability
032
MAY Y313927 MAY Y313927 Contact Us For Availability
034
MAY 311155 MAY 311155 Contact Us For Availability
034
MAY 314077 MAY 314077 Contact Us For Availability
034
MAY Y313262 MAY Y313262 Contact Us For Availability
035
MAY Y311550 MAY Y311550 Contact Us For Availability
035
MAY Y311270 MAY Y311270 Contact Us For Availability
035
MAY Y313561 MAY Y313561 Contact Us For Availability
036
COVER FOR CIRCUIT BOARD MAY 311612 Contact Us For Availability
036
MAY Y311423 MAY Y311423 Contact Us For Availability
037
MAY 311613 MAY 311613 Contact Us For Availability
038
MAY Y312184 MAY Y312184 Contact Us For Availability
038
MAY 314778 MAY 314778 Contact Us For Availability
039
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
039
MAY 314818 MAY 314818 Contact Us For Availability
040
MAY Y312904 MAY Y312904 Contact Us For Availability
041
MAY Y312905 MAY Y312905 Contact Us For Availability
042
MAY Y312951 MAY Y312951 Contact Us For Availability
043
MAY 313122 MAY 313122 Contact Us For Availability
043
MAY 410490 MAY 410490 Contact Us For Availability
044
MAY Y313559 MAY Y313559 Contact Us For Availability
047
MAY Y314137 MAY Y314137 Contact Us For Availability
047
MAY 400008 MAY 400008 Contact Us For Availability
048
MAY 910309 MAY 910309 Contact Us For Availability
NI
MAY 202509 MAY 202509 Contact Us For Availability
NI
MAY 211737 MAY 211737 Contact Us For Availability
NI
SWITCH, MOTOR START-PROD. MAY NLA Contact Us For Availability
NI
MAY 305168 MAY 305168 Contact Us For Availability
NI
MAY 314847 MAY 314847 Contact Us For Availability
NI
MAY 901220 MAY 901220 Contact Us For Availability
NI
MAY 910343 MAY 910343 Contact Us For Availability
× ![]()
