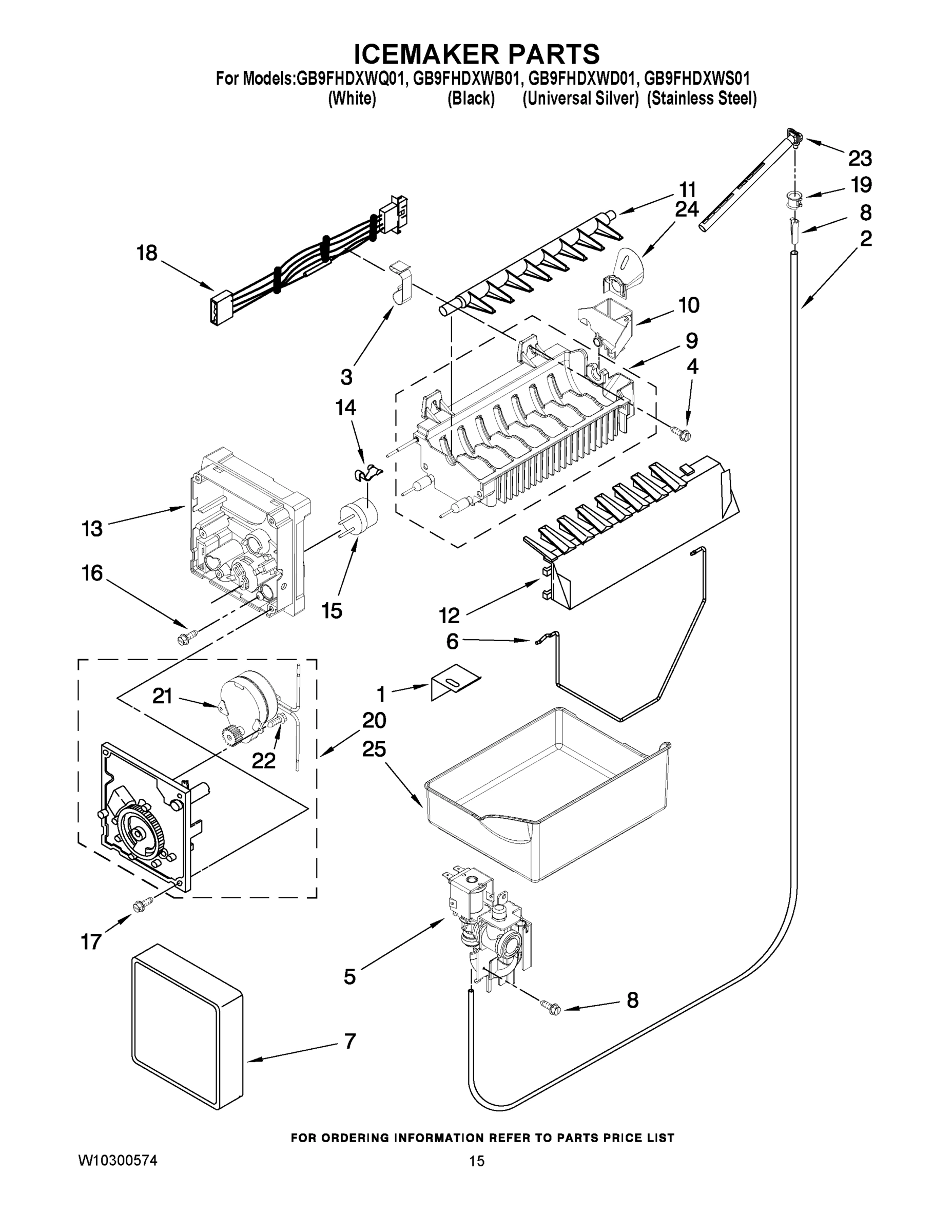

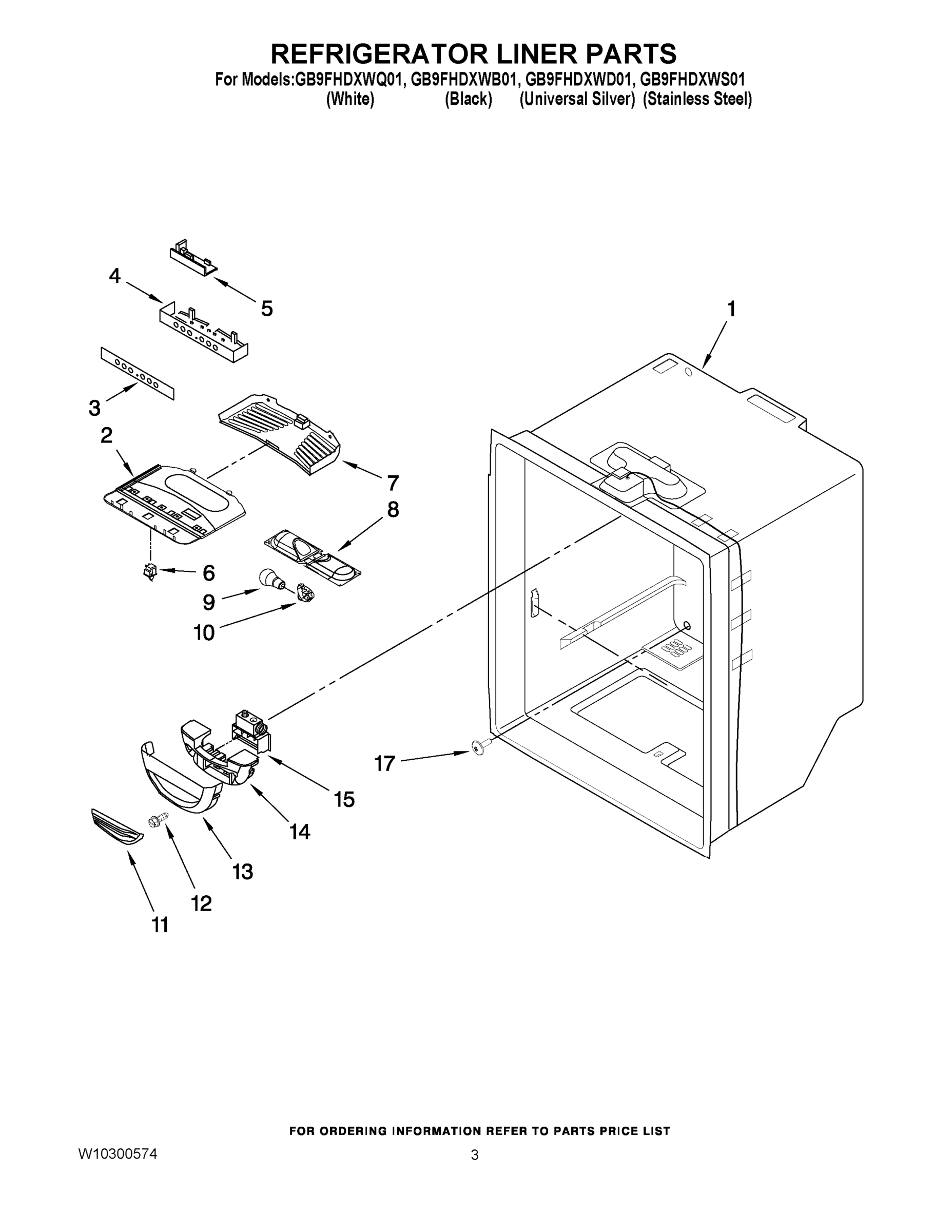

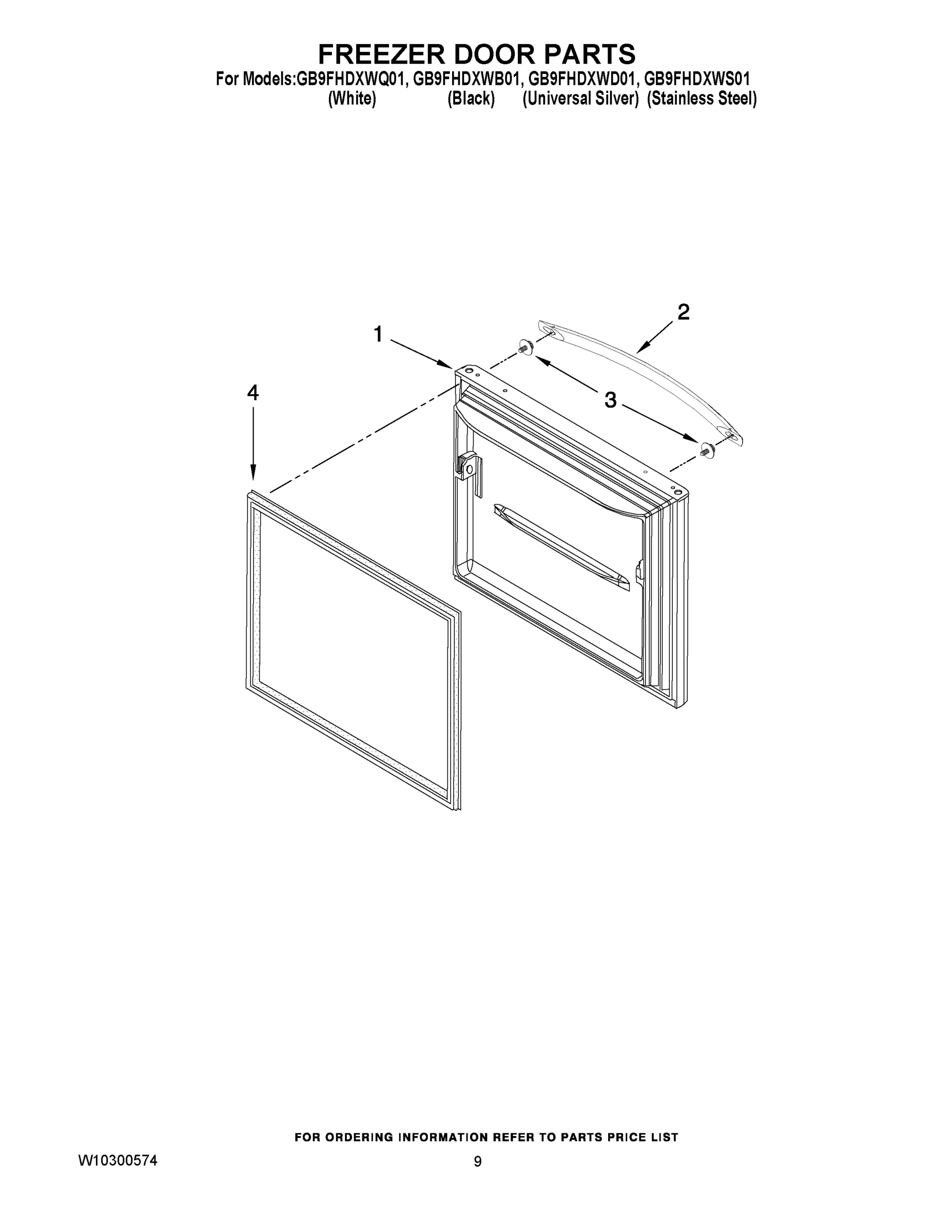

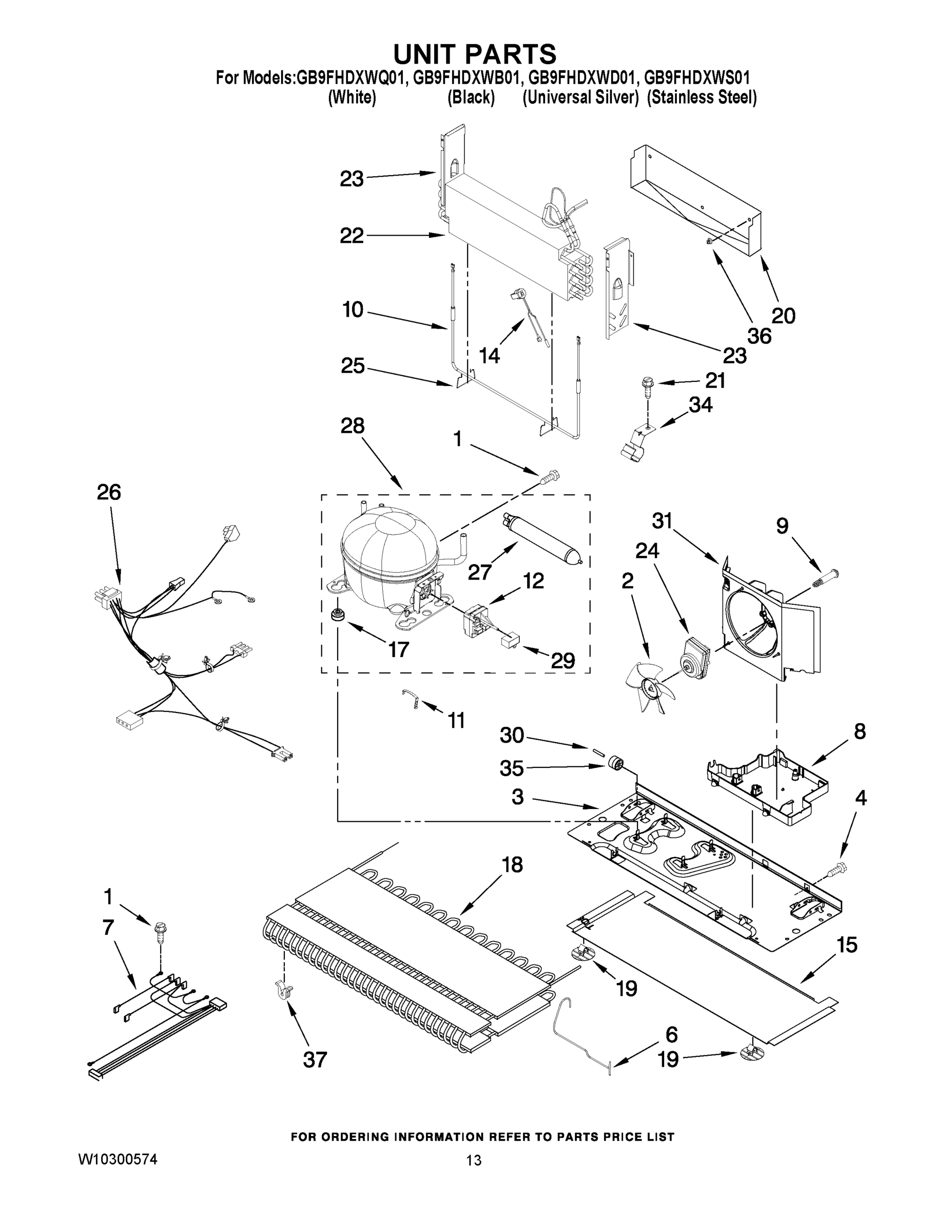

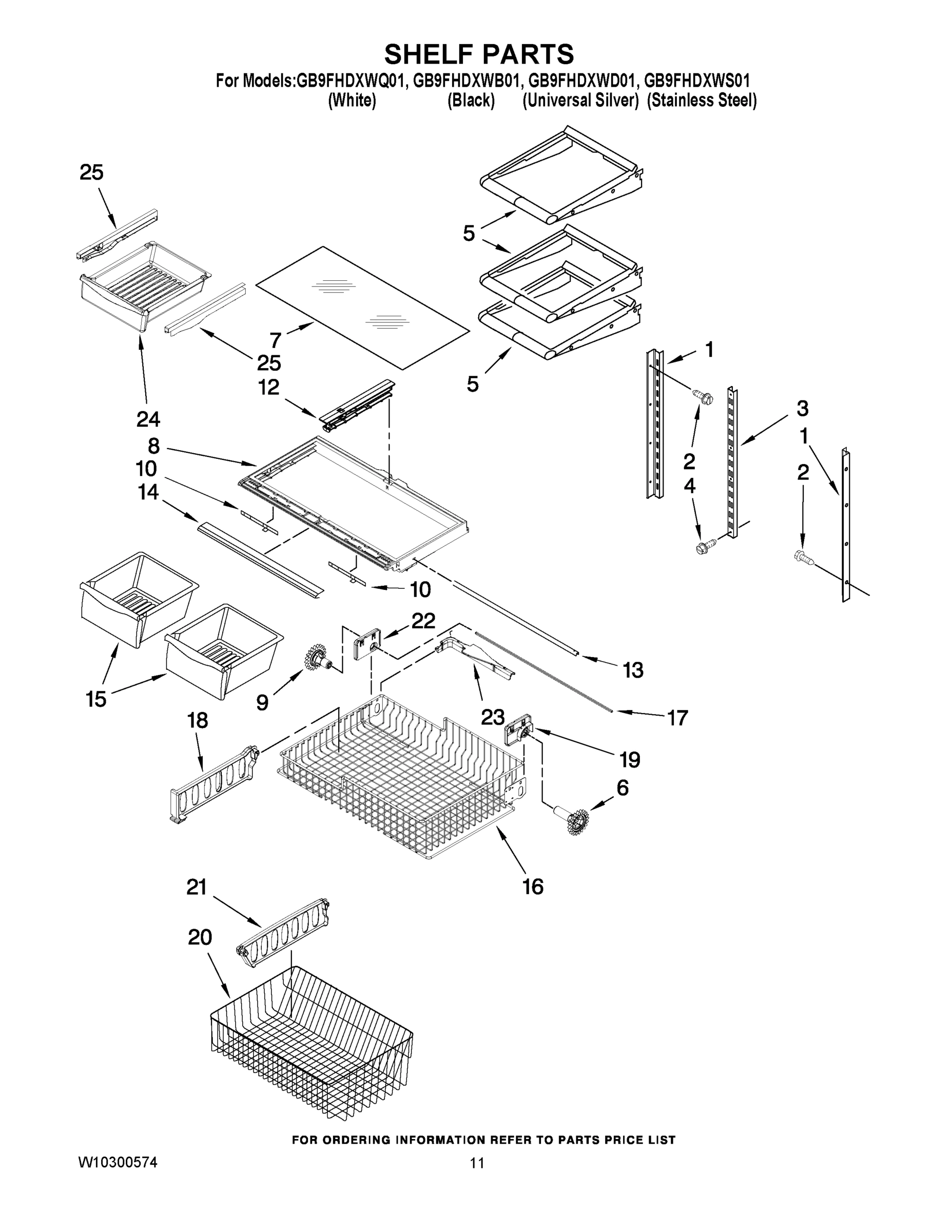

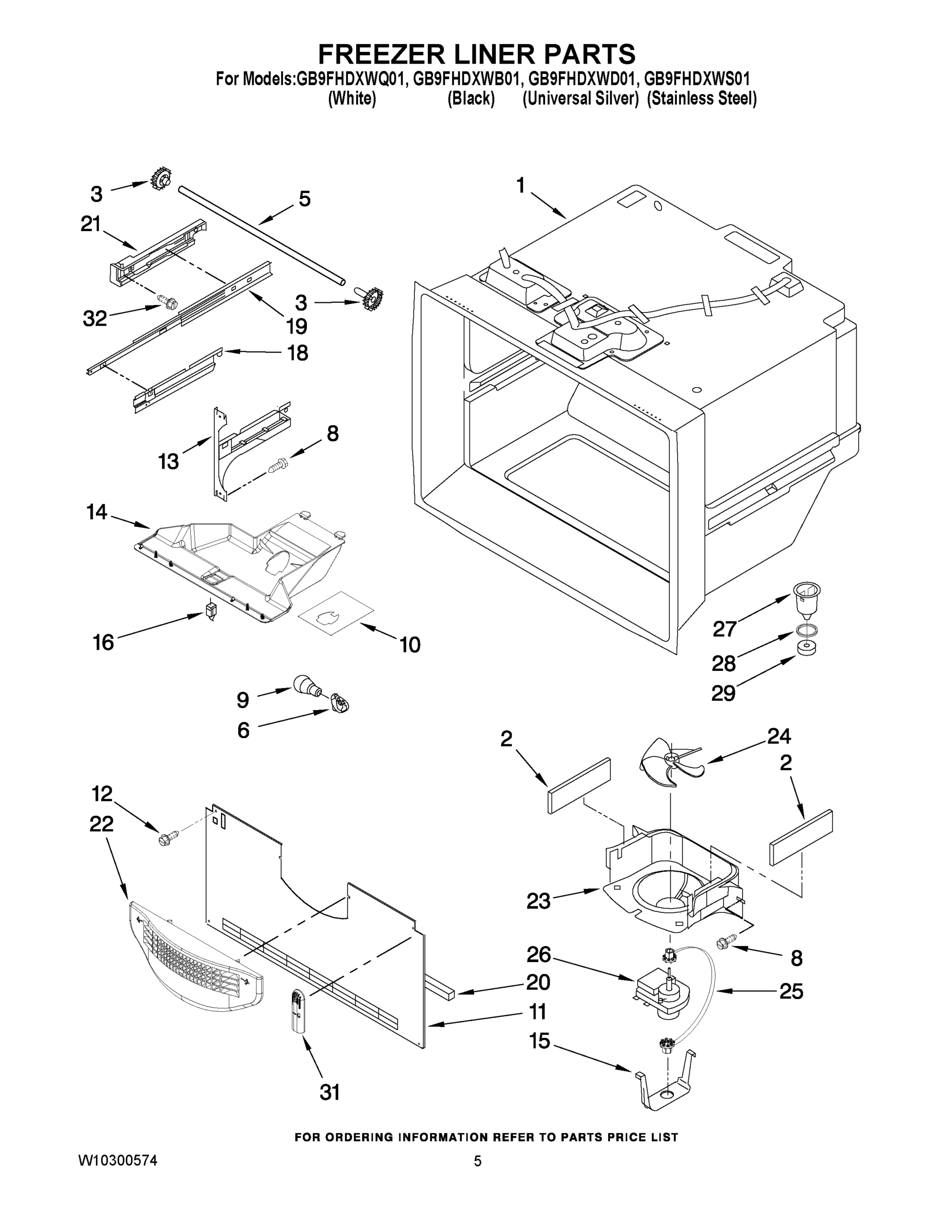

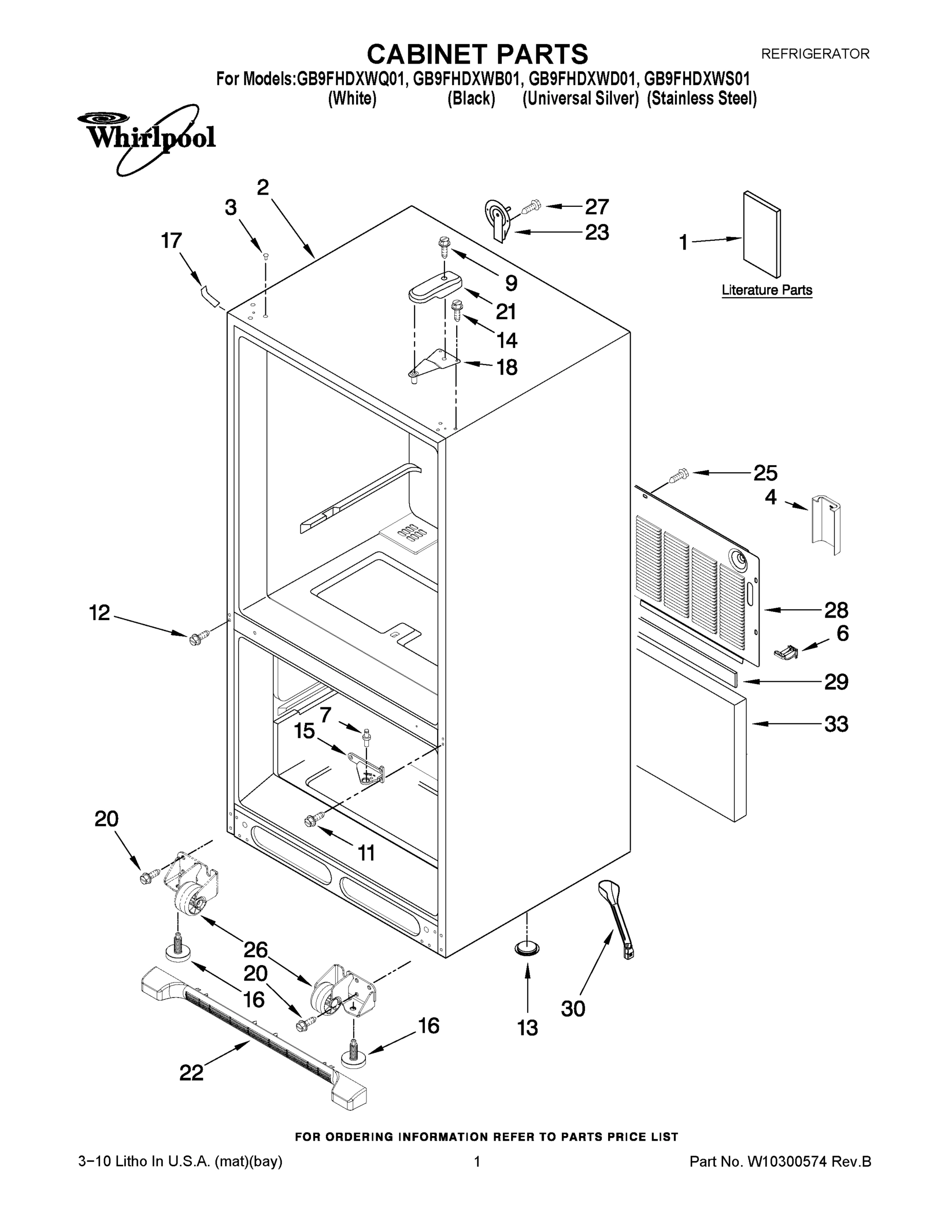

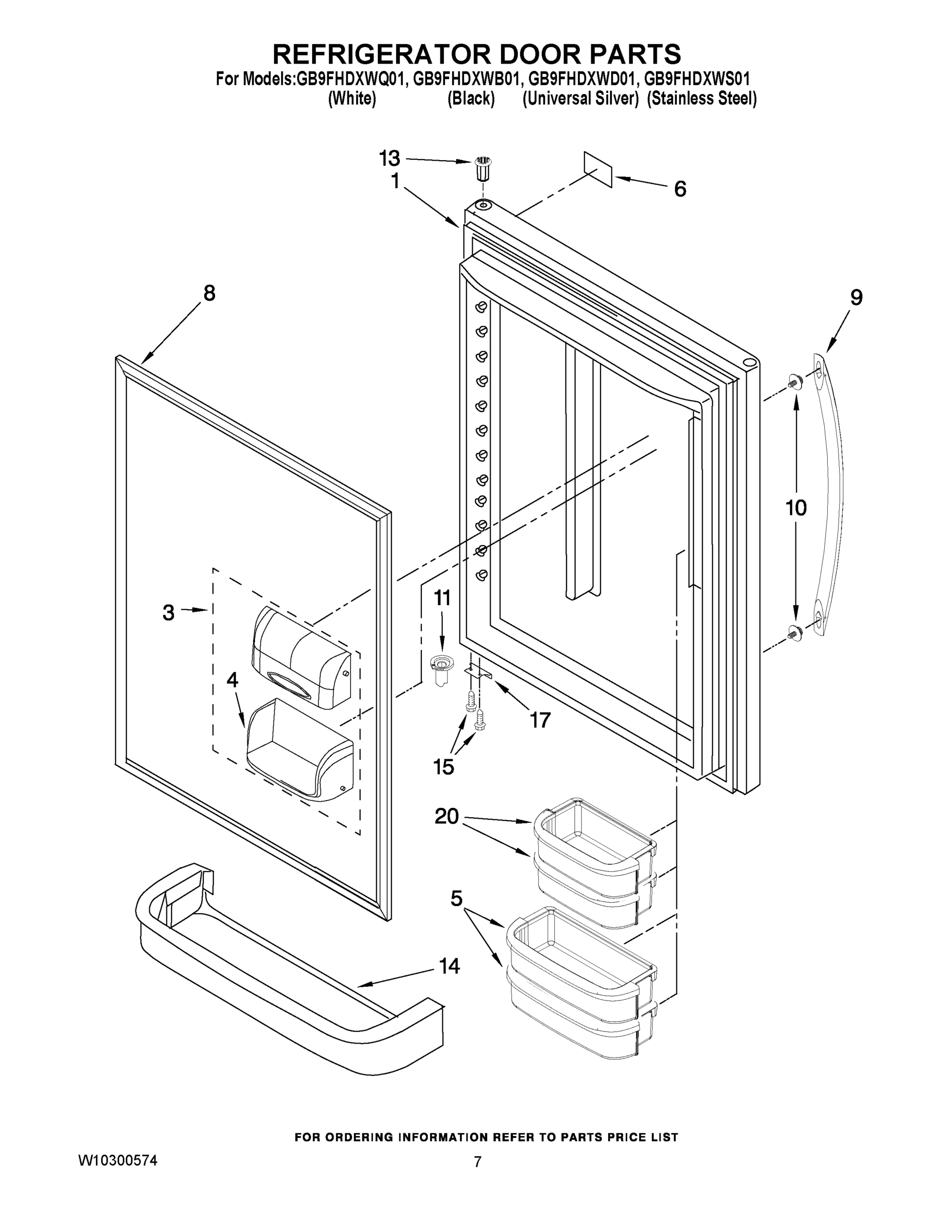

Model Whirlpool GB9FHDXWB01 REFRIGERATOR – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

1

13092229WQ Whirlpool Refrigerator Door Backorder WPL 13092229WQ $458.96

1

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $19.74

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

FREEZER DOOR (W/ INSULATION) (BLACK) WPL 13092229BQ Contact Us For Availability

1

FREEZER DOOR (W/ INSULATION) (UNIVERSAL SILVE WPL 13092248DQ Contact Us For Availability

1

FREEZER DOOR (W/ INSULATION) (STAINLESS) WPL 13092260SQ Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (BLACK) WPL 12658573BQ Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (UNIVERSAL WPL 13023873DQ Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (STAINLESS) WPL 13023885SQ Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

2

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $77.68

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.99

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.99

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $93.22

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $68.82

4

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $56.92

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.74

4

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $209.98

4

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $219.99

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $57.99

5

SHAFT WPL 12812906WD Contact Us For Availability

6

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $57.33

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $11.79

6

Nameplate WPL 2220214 Contact Us For Availability

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $212.35

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $217.71

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $119.22

9

W11351147 Whirlpool Refrigerator Handle Backorder WPL W11351147 $119.22

9

WPW10222984K Whirlpool Refrigerator Handle As Backorder WPL WPW10222984K $135.04

10

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

10

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $118.74

10

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $6.84

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.96

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $56.88

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $152.27

12

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

12

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

12

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $49.99

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $65.98

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $71.86

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $95.99

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $96.99

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $65.33

Backorder WPL W11750607 $29.99

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $75.73

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $77.18

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $81.80

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $49.60

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $42.00

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $94.95

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $108.45

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.77

16

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.86

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.50

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $157.28

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $28.86

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $56.63

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $56.63

19

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $110.99

20

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

20

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $50.33

20

TRAY, DRIP WPL 12225401WD Contact Us For Availability

21

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $56.94

21

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $19.99

21

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $20.45

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $50.99

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $71.19

EVAPORATOR WPL 12726401 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $58.43

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $63.26

Dam (Left Side) WPL 12225602 Contact Us For Availability

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $73.99

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $4.99

26

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $54.95

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $209.77

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.75

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $453.66

28

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $125.65

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

29

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

33

PAD-ACOUSTIC WPL 12820505 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

36

CLIP, EVAP (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
