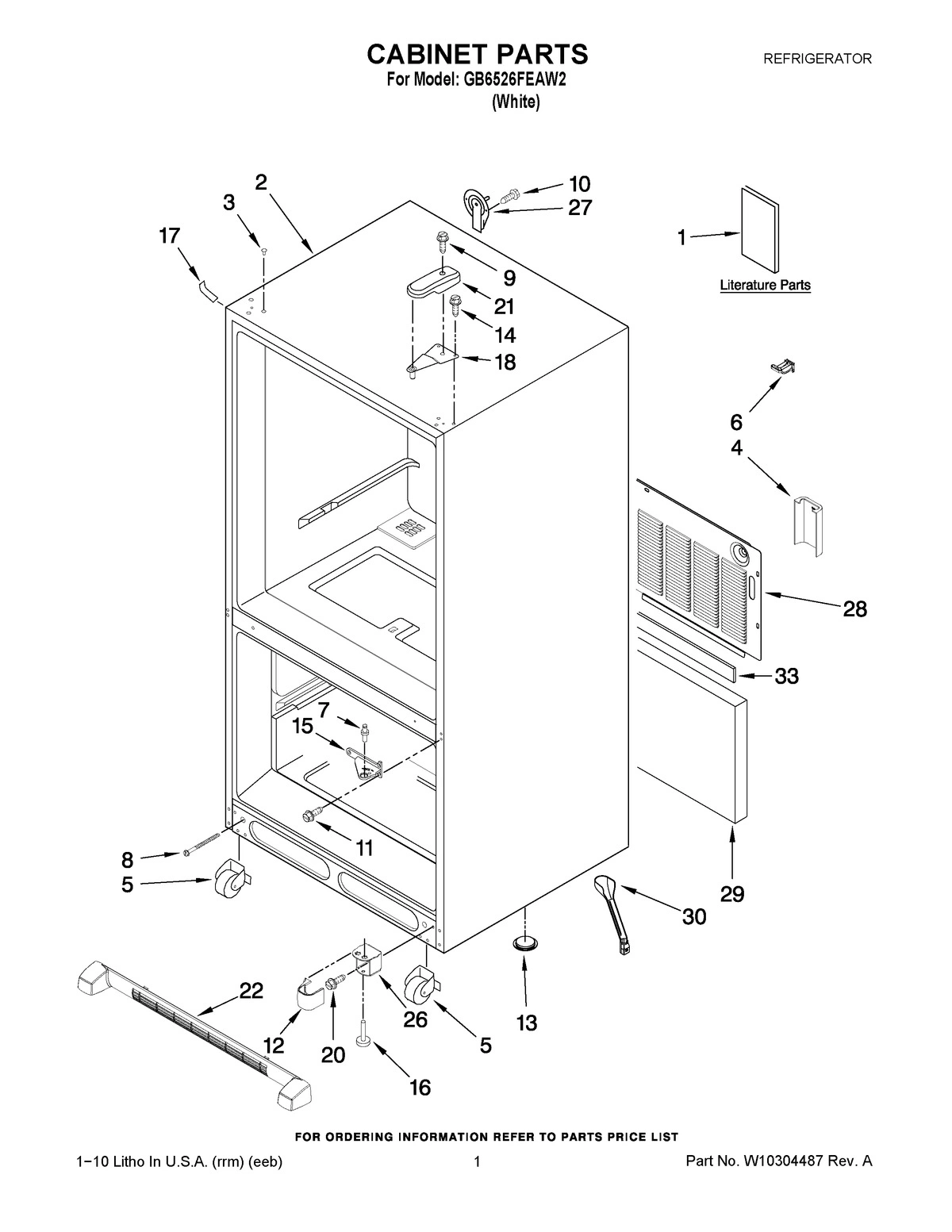

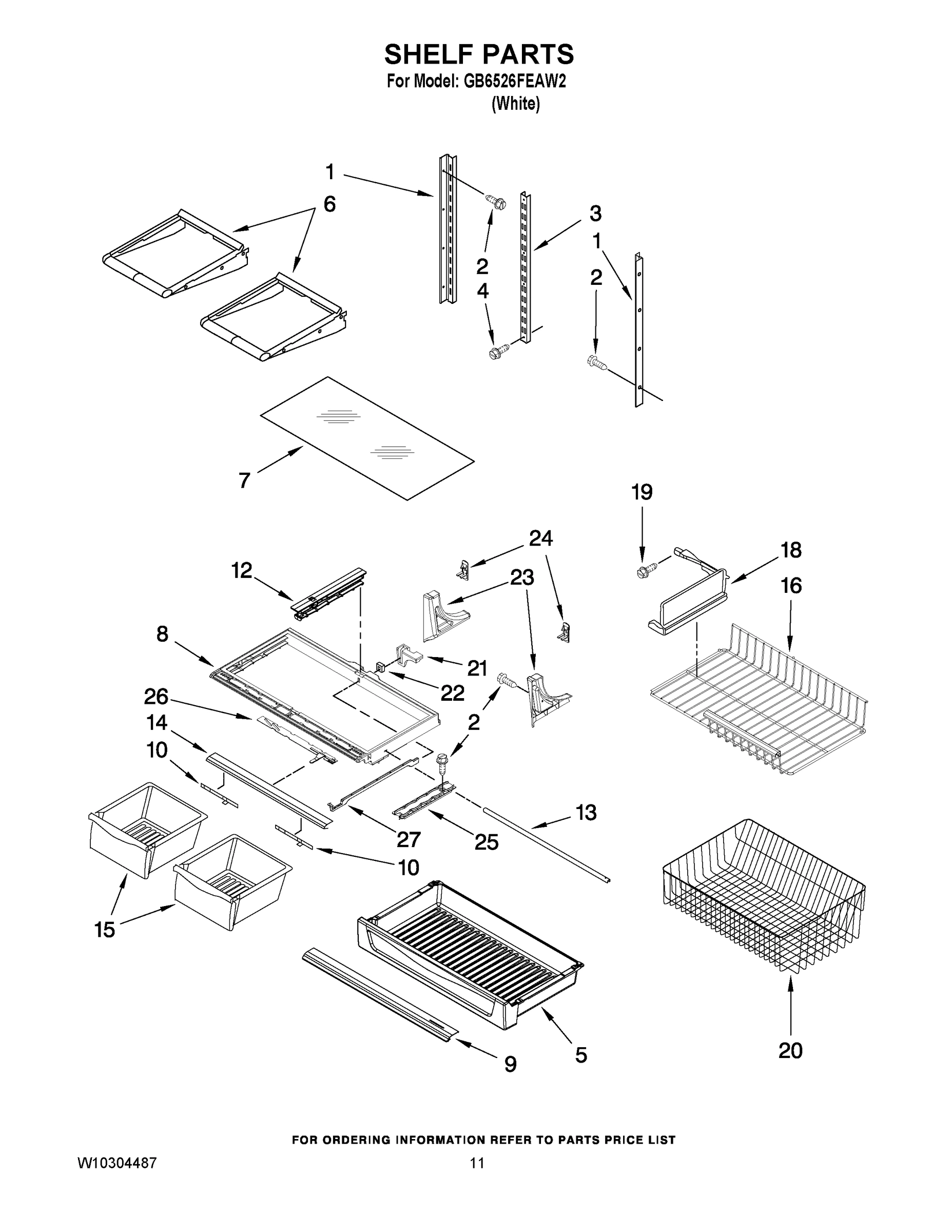

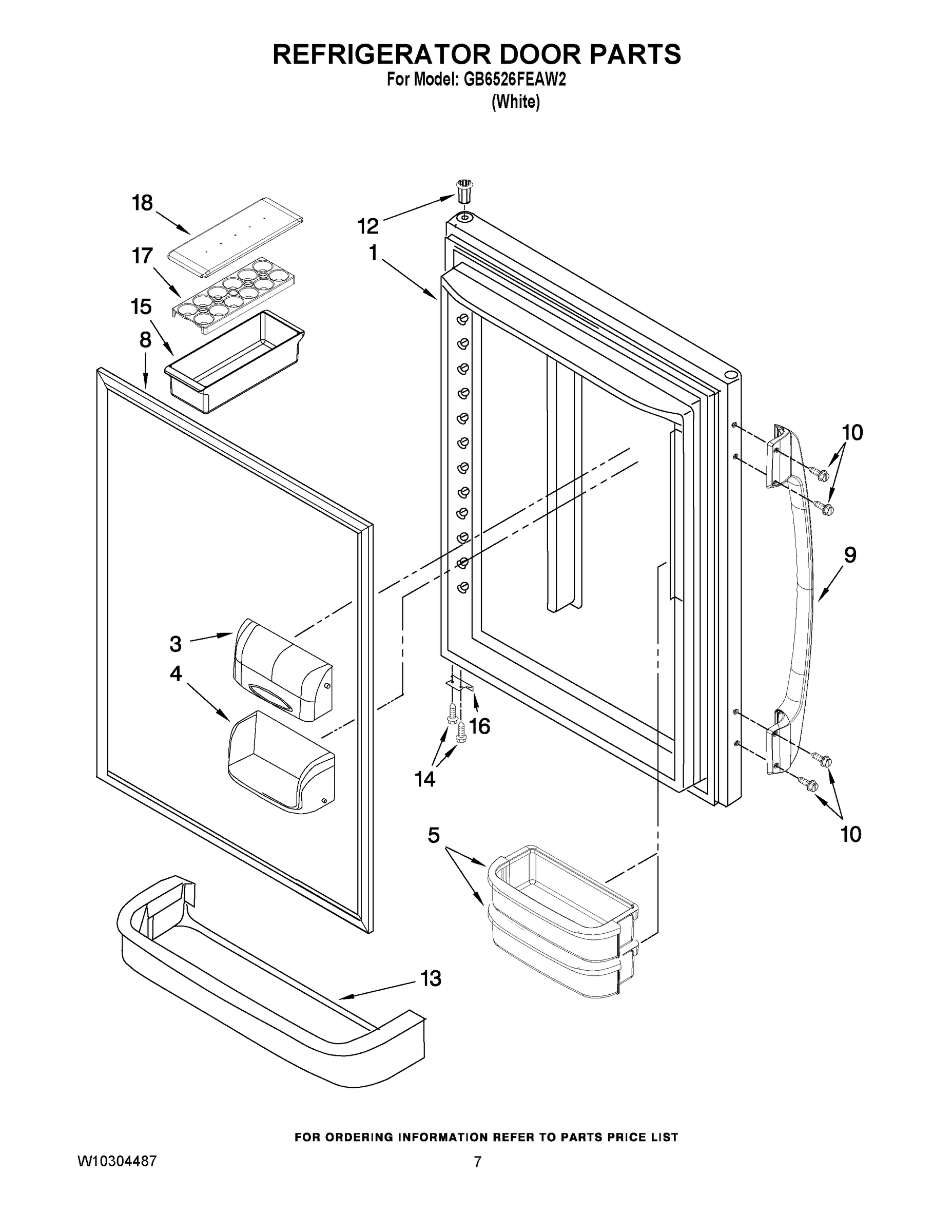

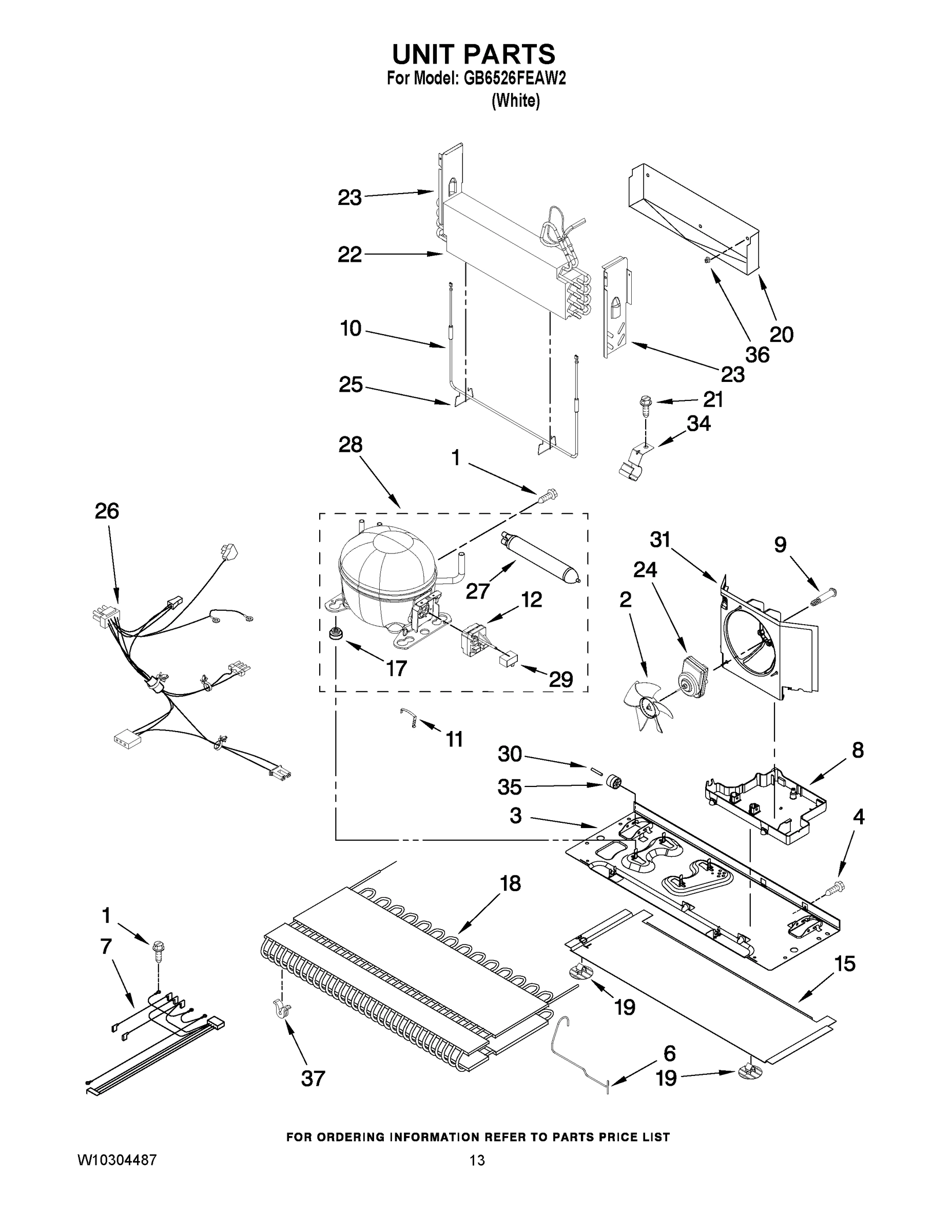

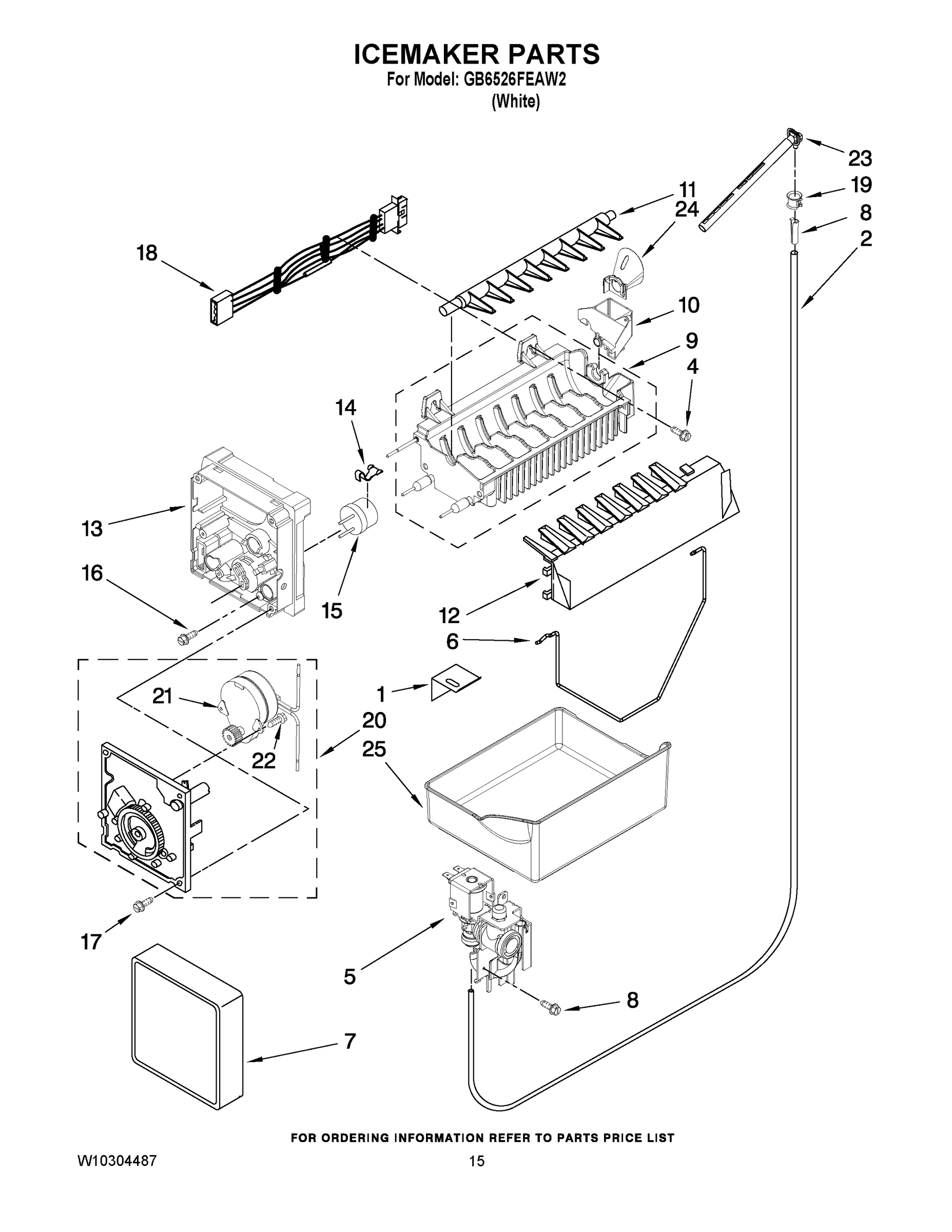

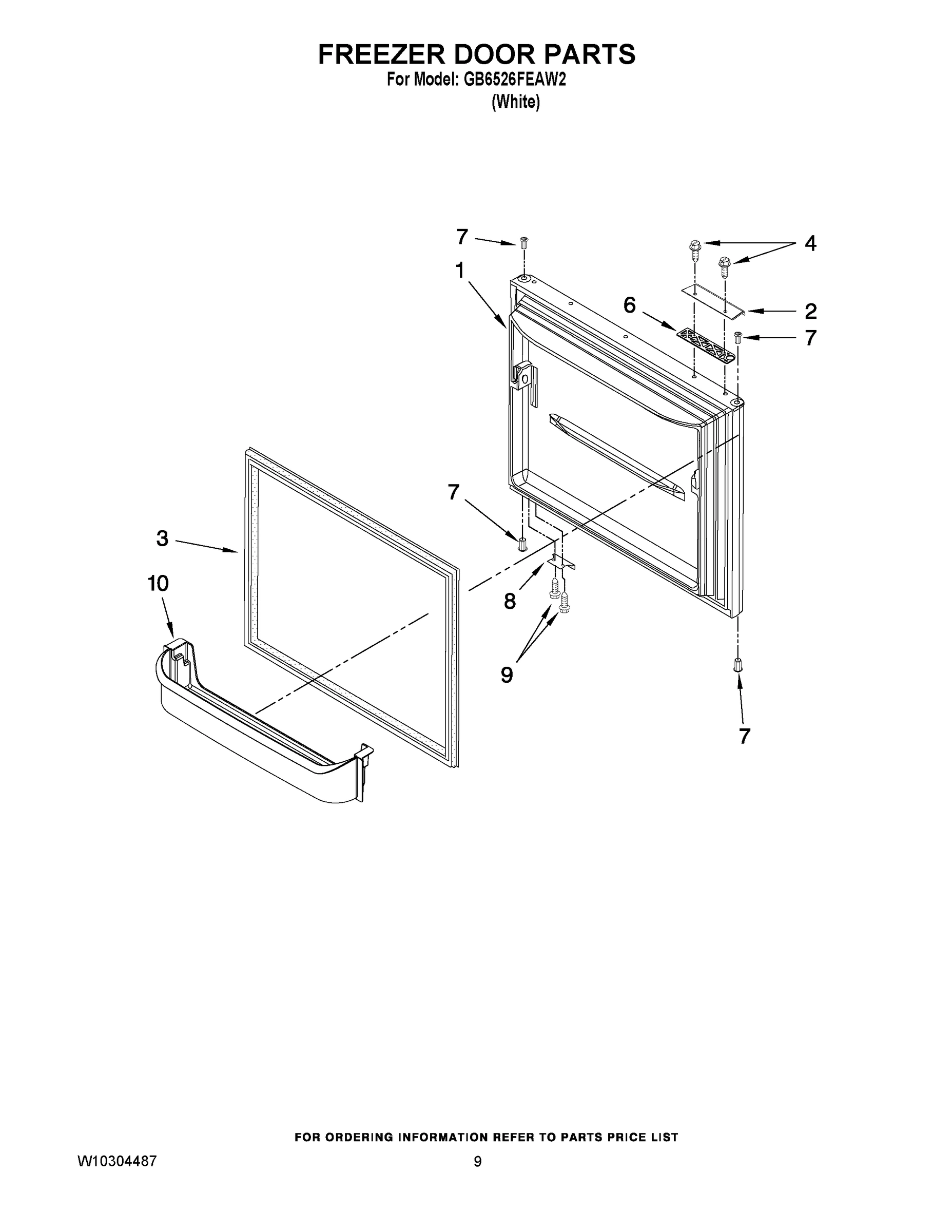

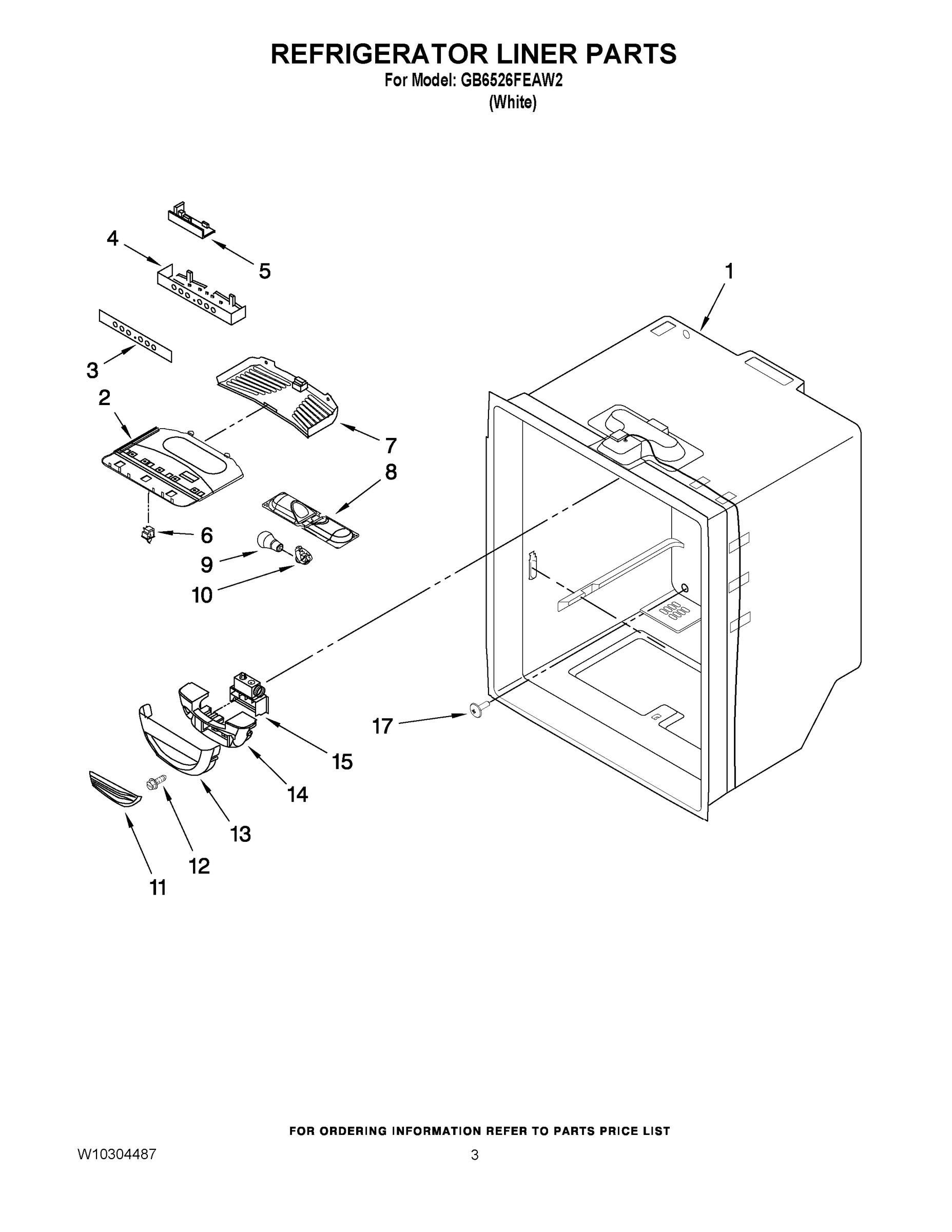

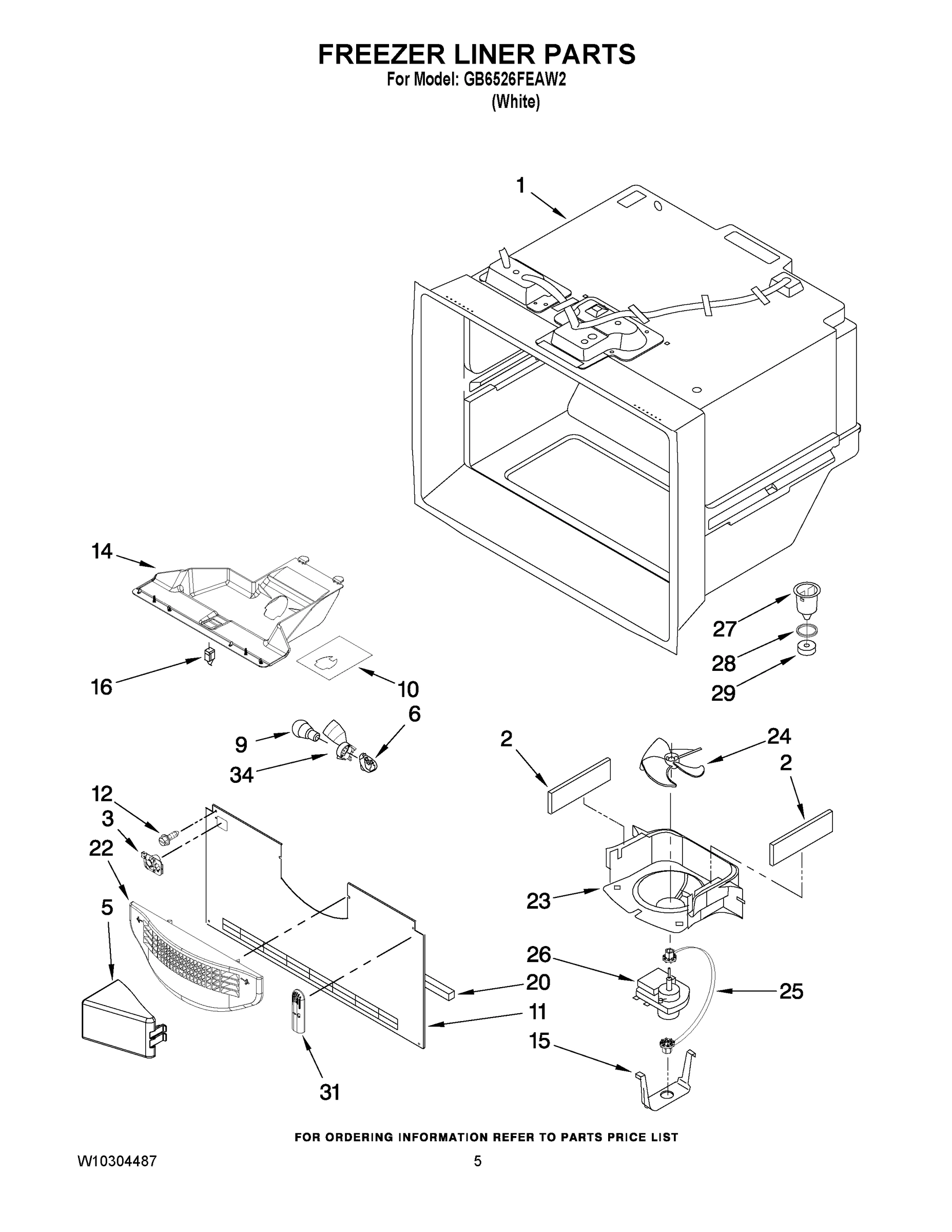

Model Whirlpool GB6526FEAW2 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $20.07

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

Owners Manual WPL 12828189SP Contact Us For Availability

1

TECH SHEET WPL W10279339 Contact Us For Availability

1

FREEZER DOOR (W/ INSULATION) (WHITE) WPL 13024225WQ Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 12658530WQ Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

2

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $83.12

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $57.00

2

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $129.31

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $132.45

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $16.36

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $4.82

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

4

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $60.90

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $63.87

5

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $62.53

5

WPW10708492-includeCORE Whirlpool WPW10708492 Backorder WPL WPW10708492-includeCORE $234.04

5

Roller Assembly WPL 12580304 Contact Us For Availability

5

VALVE-INLET WPL W10158153 Contact Us For Availability

6

12647901W Whirlpool Spacer Backorder WPL 12647901W $9.51

6

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $61.34

6

W11402521 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402521 $150.81

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

6

SWEEP, WATER VALVE WPL W10216614 Contact Us For Availability

7

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $4.82

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

8

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $147.83

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.71

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

9

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) WPL W10122523 Contact Us For Availability

9

HANDLE, DOOR (WHITE) WPL 12781004WN Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

RETAINER, (DOOR SHELF) WPL 12737601 Contact Us For Availability

SCREW WPL 12992801 Contact Us For Availability

11

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

11

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $63.89

11

Cover, Evaporator WPL 12226113 Contact Us For Availability

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $66.33

COVER, HINGE WHITE WPL 12561901W Contact Us For Availability

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $71.65

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

RETAINER, DOOR WPL 12690502 Contact Us For Availability

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $87.52

TRIM, CRISPER WPL W10231341 Contact Us For Availability

CLIP, EVAP. MOTOR WPL 13058002 No Longer Available

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $71.58

BIN, UTILITY WPL 10423131SP Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.85

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

17

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

17

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.85

17

TRAY, EGG WPL 10436506S Contact Us For Availability

18

12975112 Whirlpool Wire Harness Backorder WPL 12975112 $89.13

18

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

18

LID, UTILITY WPL 10436404S Contact Us For Availability

19

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $5.02

20

Basket, Freezer (Lower) WPL 12754804 Contact Us For Availability

20

Gasket, Bottom WPL 12739112 Contact Us For Availability

21

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

21

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $6.23

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

22

SCREW WPL W10001220 Contact Us For Availability

22

GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) WPL 12734401W Contact Us For Availability

23

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $59.65

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $67.69

23

DAM (LEFT SIDE) WPL 12225602 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

26

WP67005023 Whirlpool Refrigerator Evaporator Backorder WPL WP67005023 $231.79

26

Hinge, Bottom (White) WPL 12465002WD Contact Us For Availability

27

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

28

COVER, UNIT WPL W10212535 Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

29

Insulation, Sound WPL 12820505 Contact Us For Availability

30

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $27.16

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $48.02

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

33

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $8.23

34

SHROUD-LGHT SOCKET WPL W10119914 Contact Us For Availability

100

WPW10190972 Whirlpool Refrigerator Icemaker Backorder WPL WPW10190972 $107.09

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 4396920 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability
