Model Whirlpool ET22DMXFW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER DOOR, LIT/OPTIONAL
05 - UNIT
07 - ICEMAKER

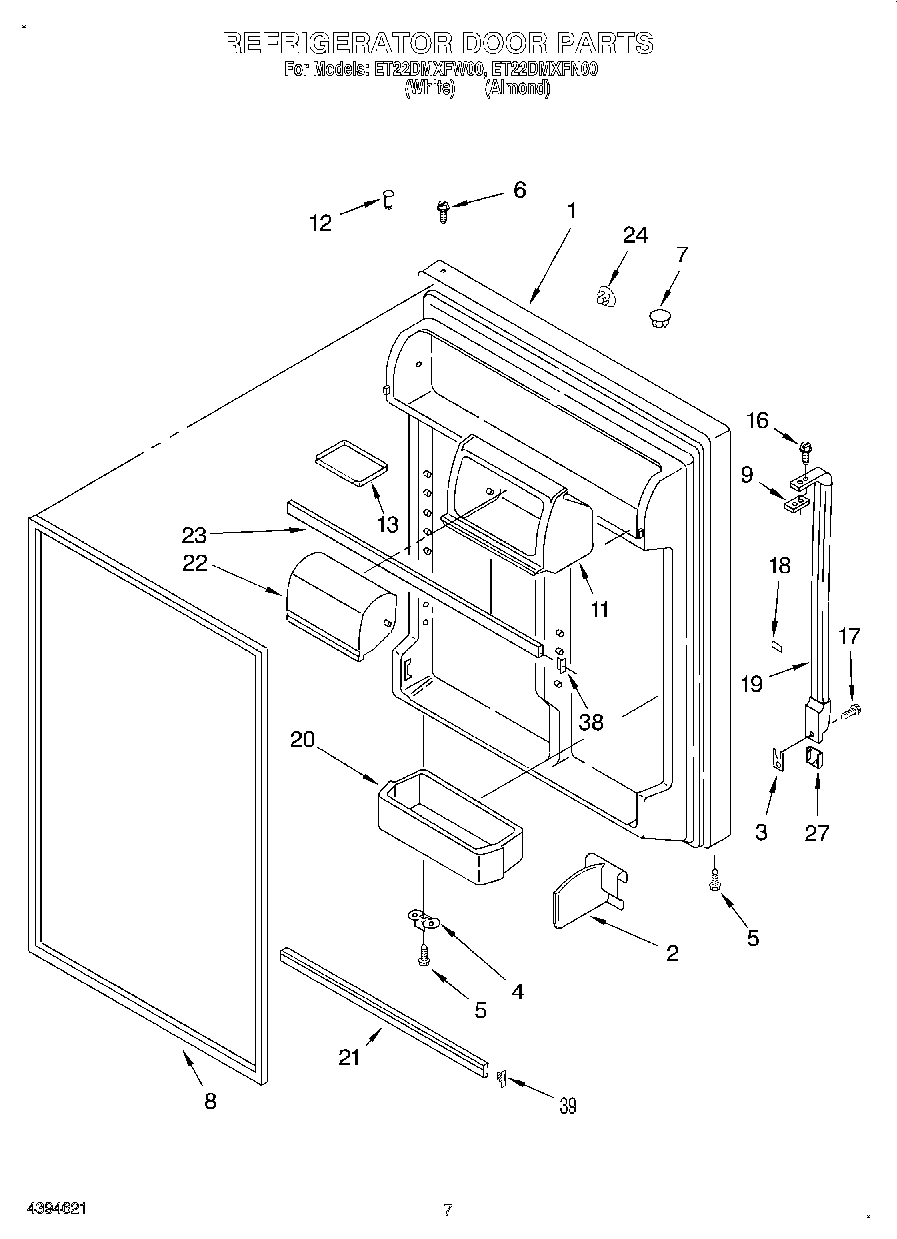

04 - REFRIGERATOR DOOR

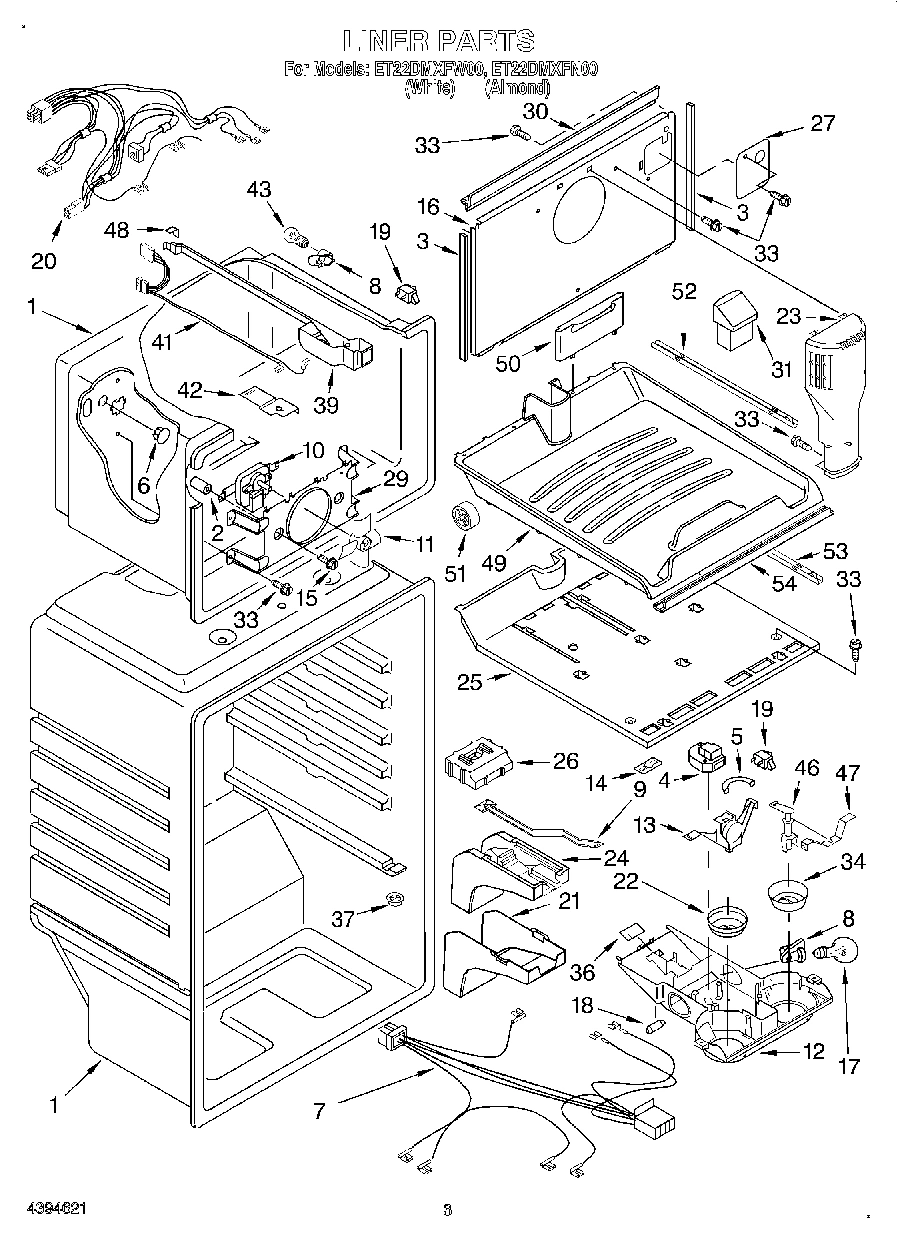

02 - LINER

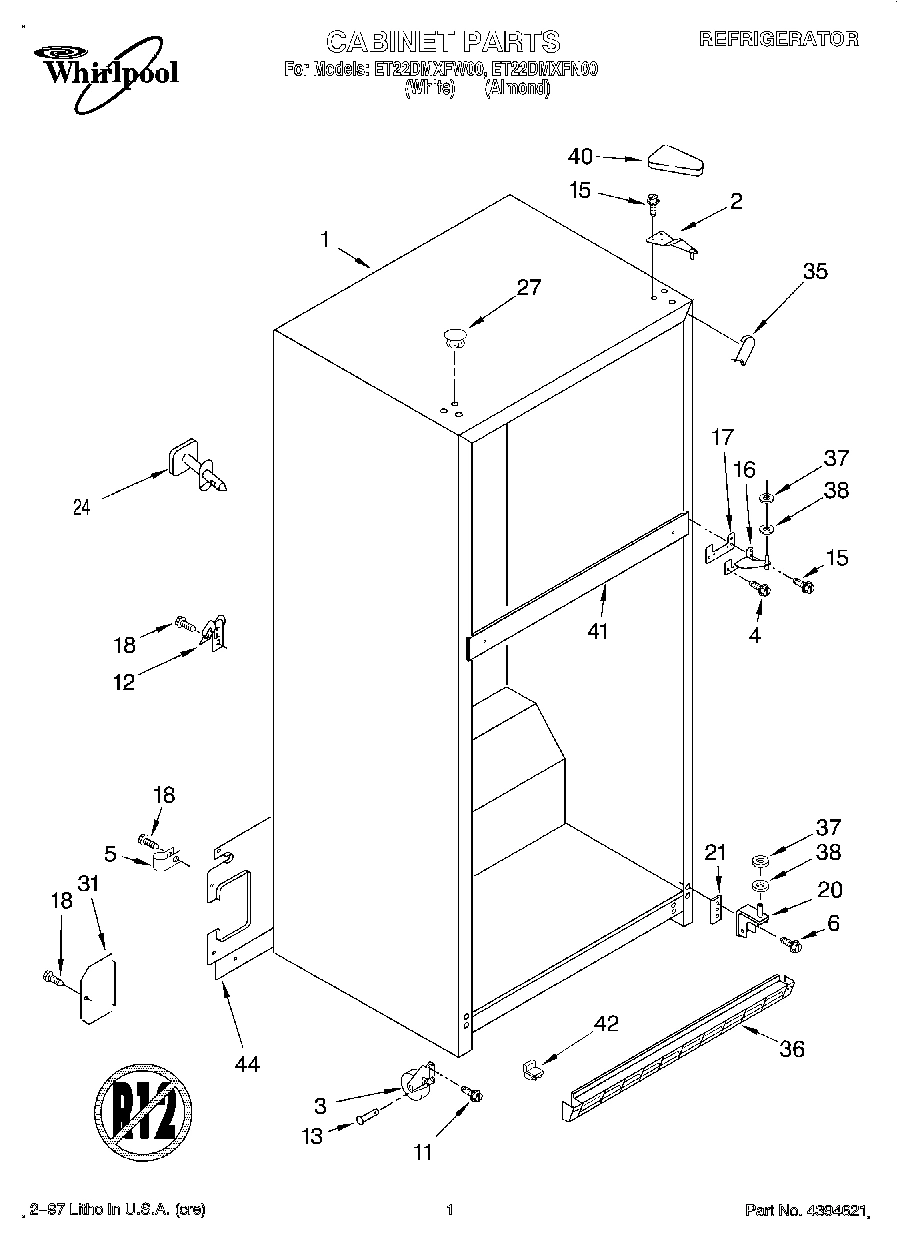

01 - CABINET

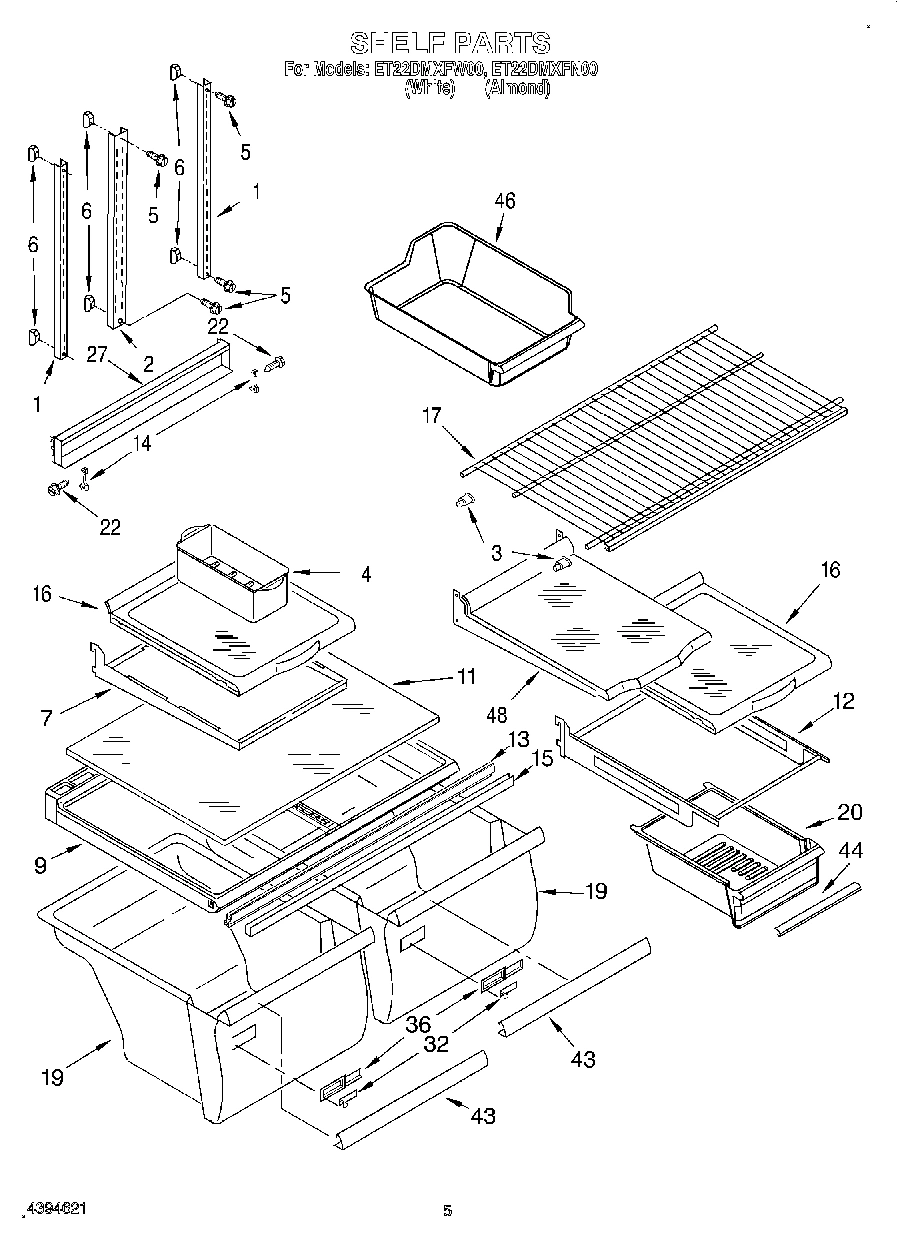

03 - SHELF
Common parts from model Whirlpool ET22DMXFW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Wh WPL 2183868 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Al WPL 2183869 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50049A8 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50046A8 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Shim, Handle WPL 2183124 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193074 Contact Us For Availability
7
Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179717 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Tray, Door WPL 2195388 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172684 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2183808 Contact Us For Availability
19
Handle (Almond) WPL 2183809 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI50047A5 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176241 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2189154 Contact Us For Availability
36
Grille (Almond) WPL 2189155 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Housing Base WPL 2184633 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2189994 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI50048A3 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
44
Trim, Meat Pan WPL 2176357 Contact Us For Availability
46
Post, Damper WPL 2179859 Contact Us For Availability
47
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2195349 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189846 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2189992 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 4,12, 14,16,20,22,27, 44 WPL 2182581 Contact Us For Availability
× ![]()
