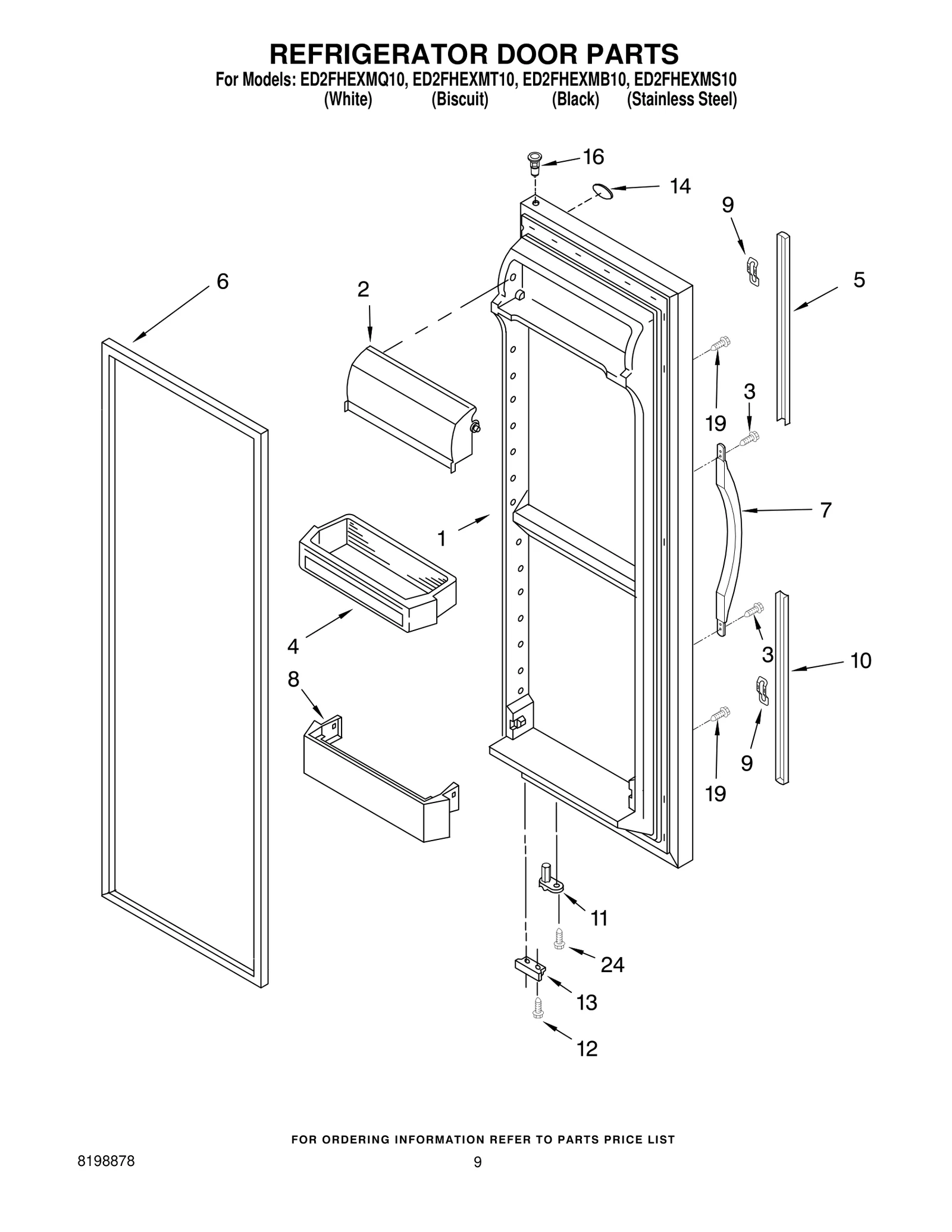

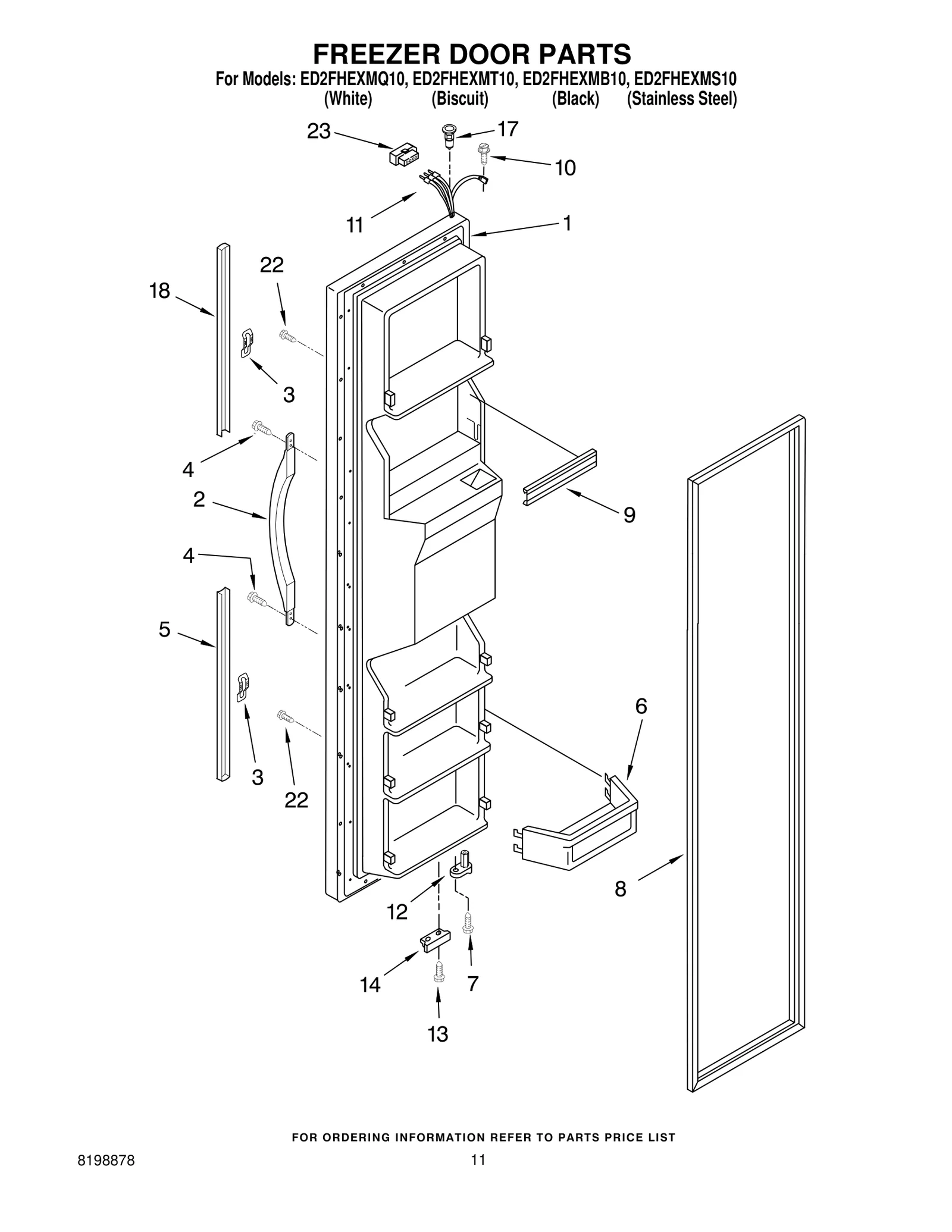

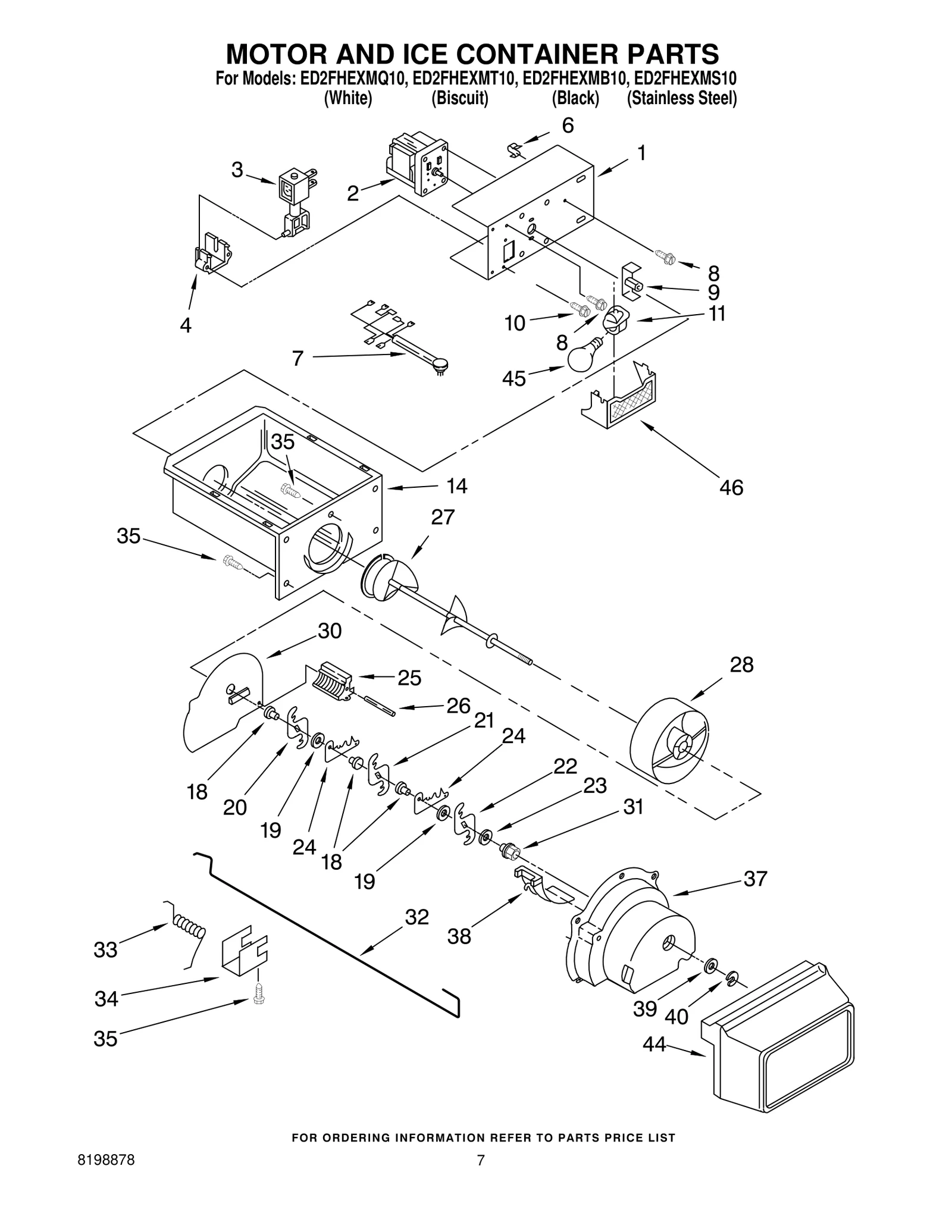

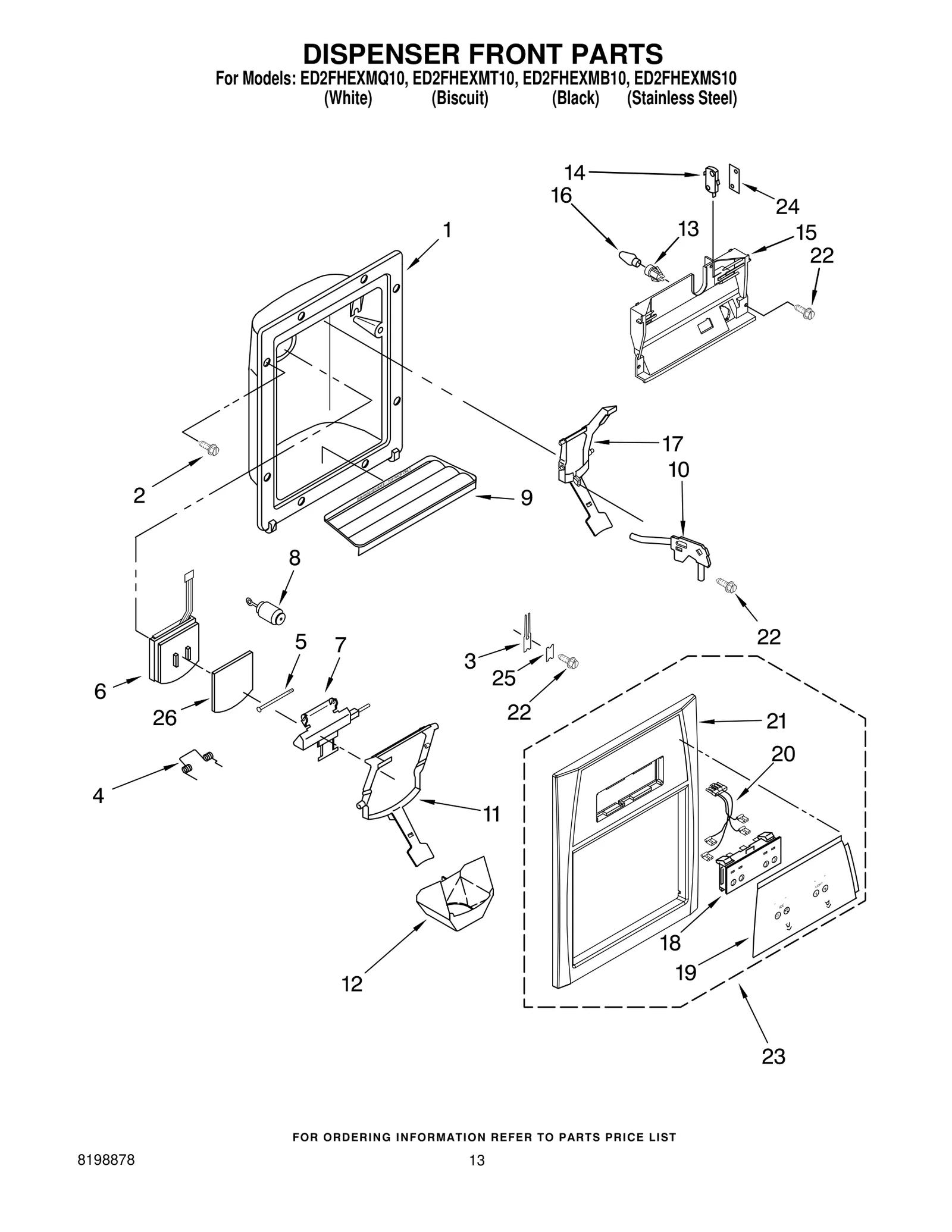

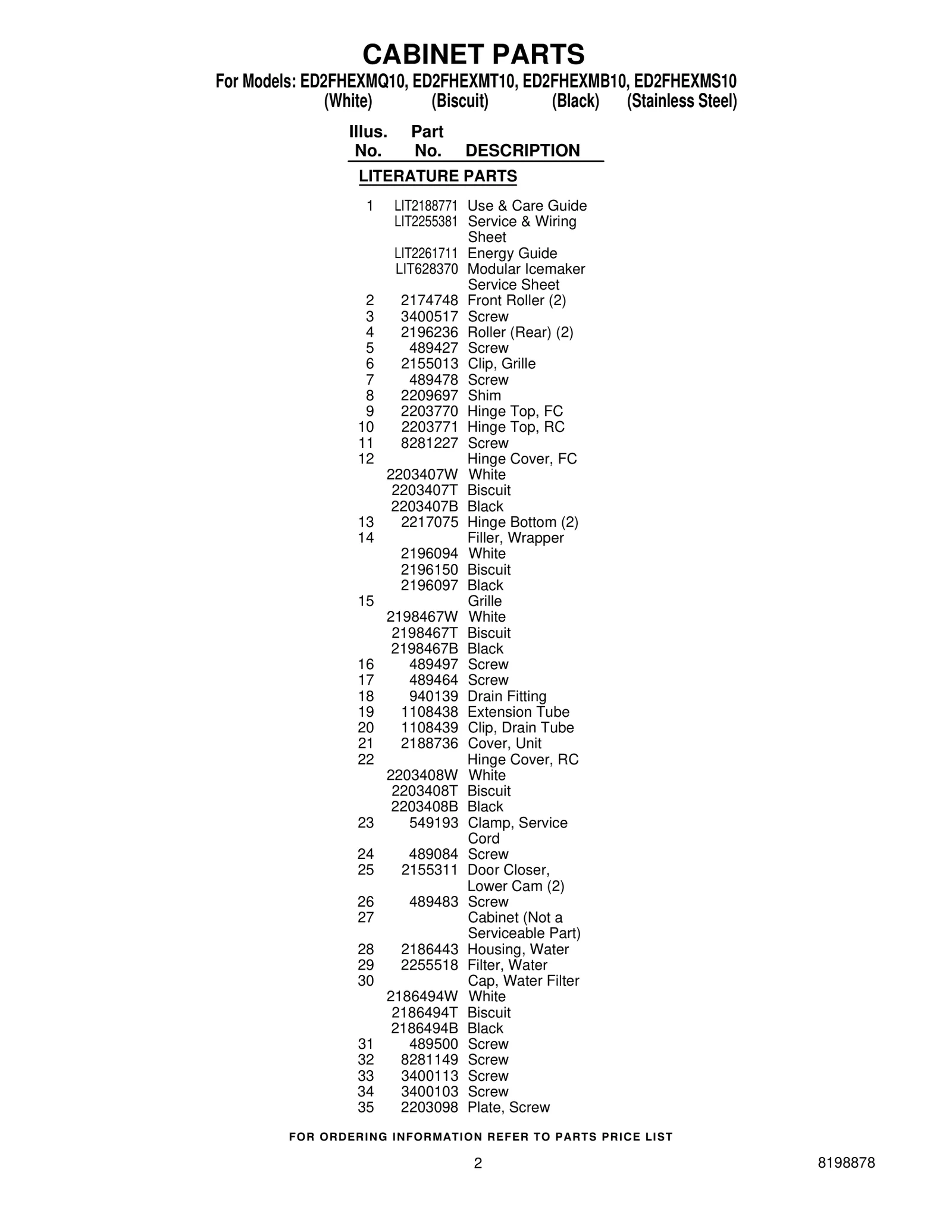

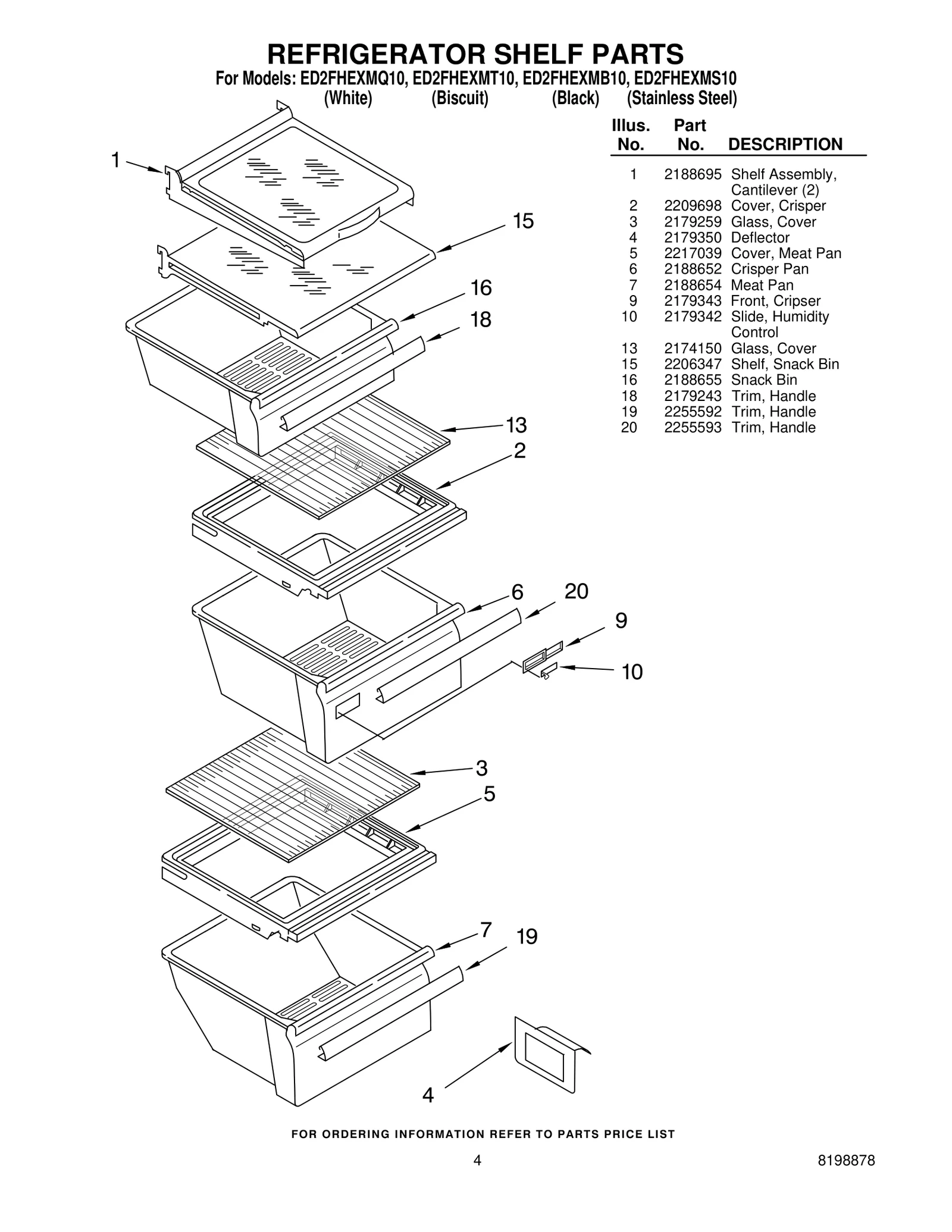

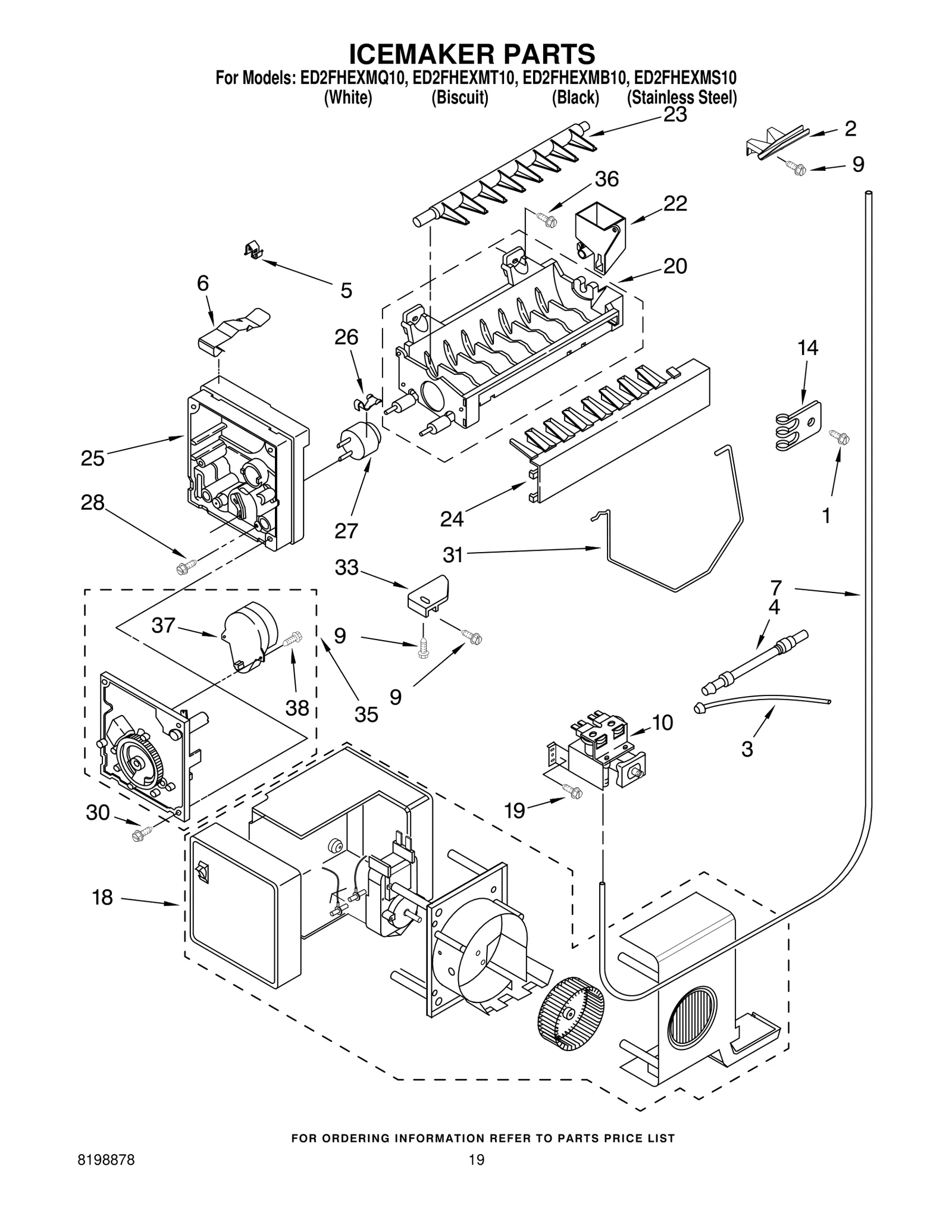

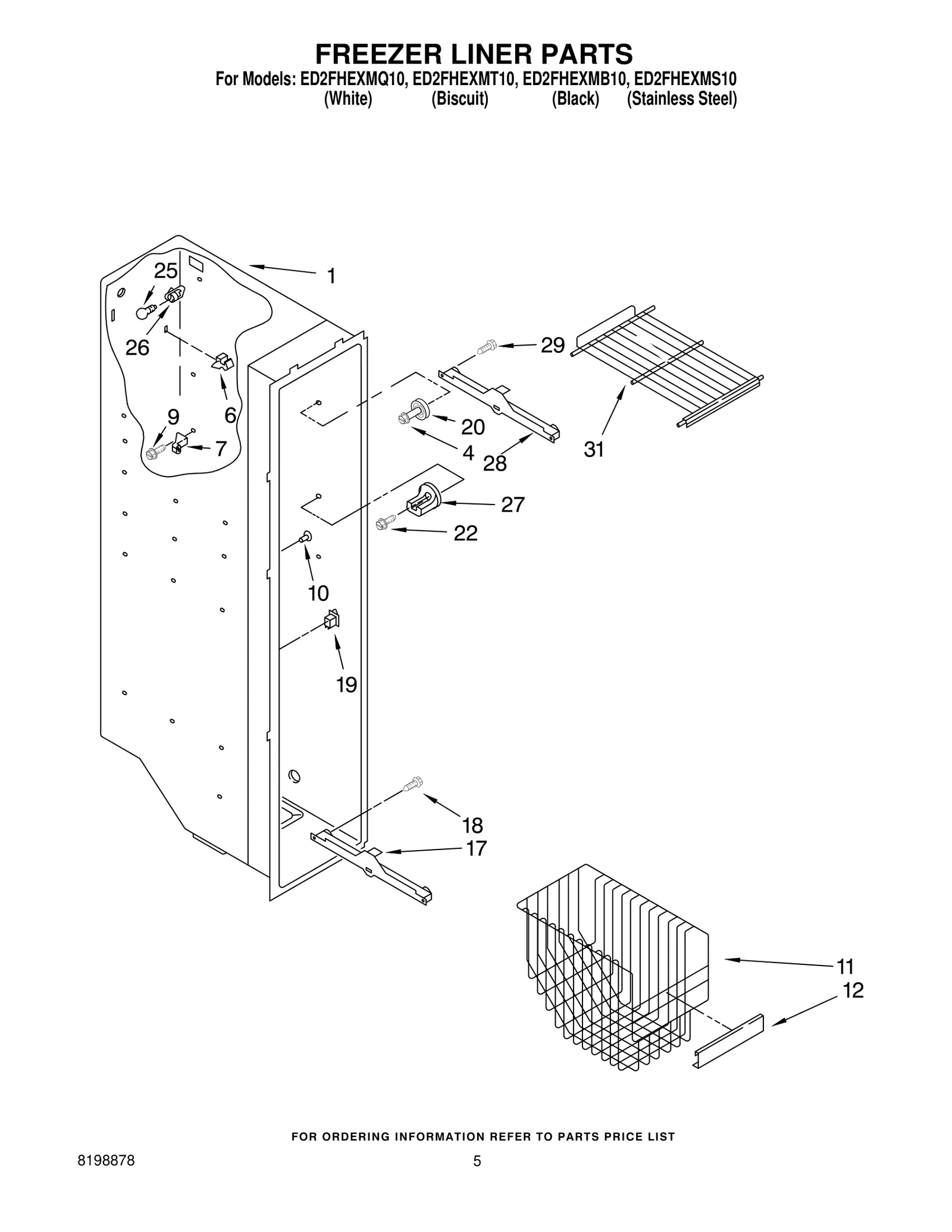

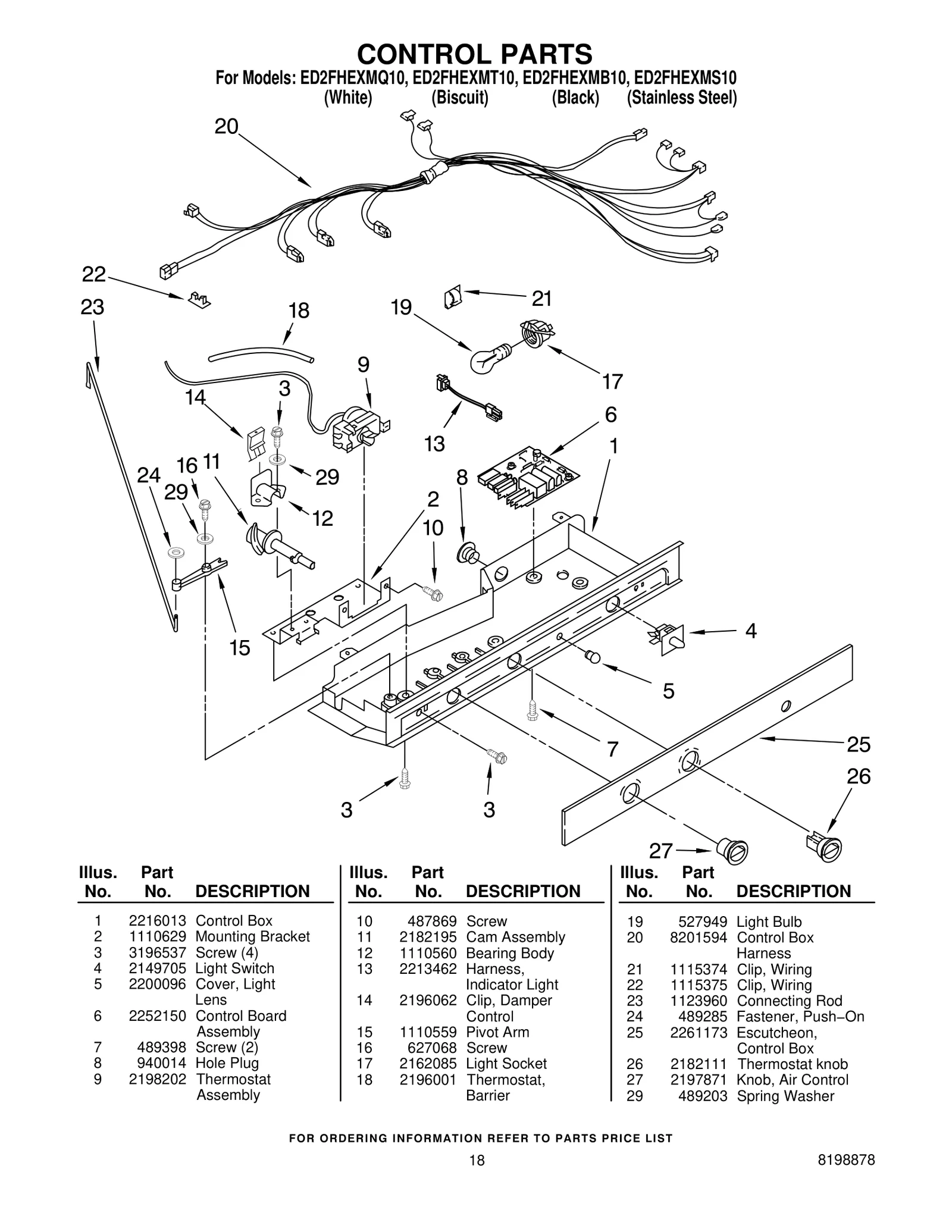

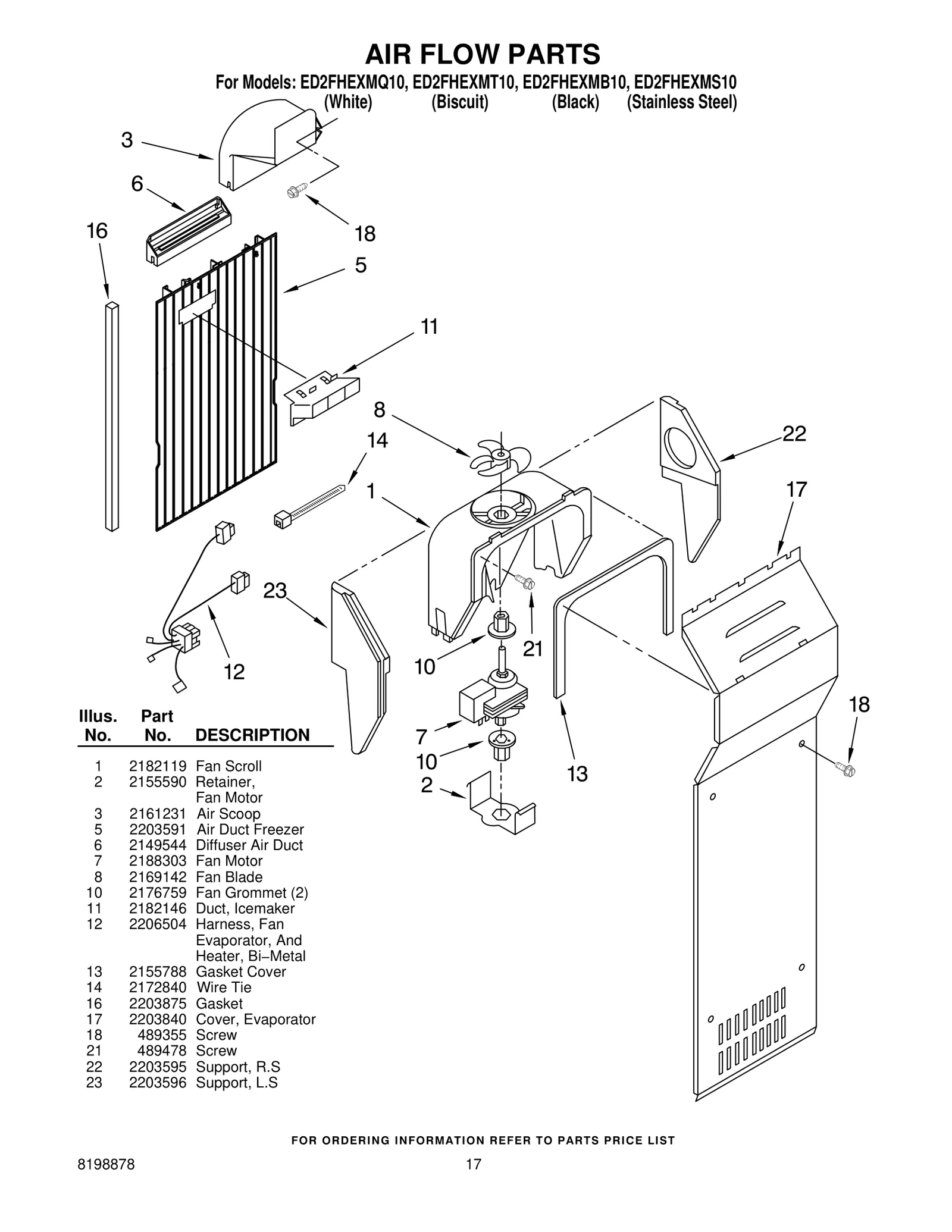

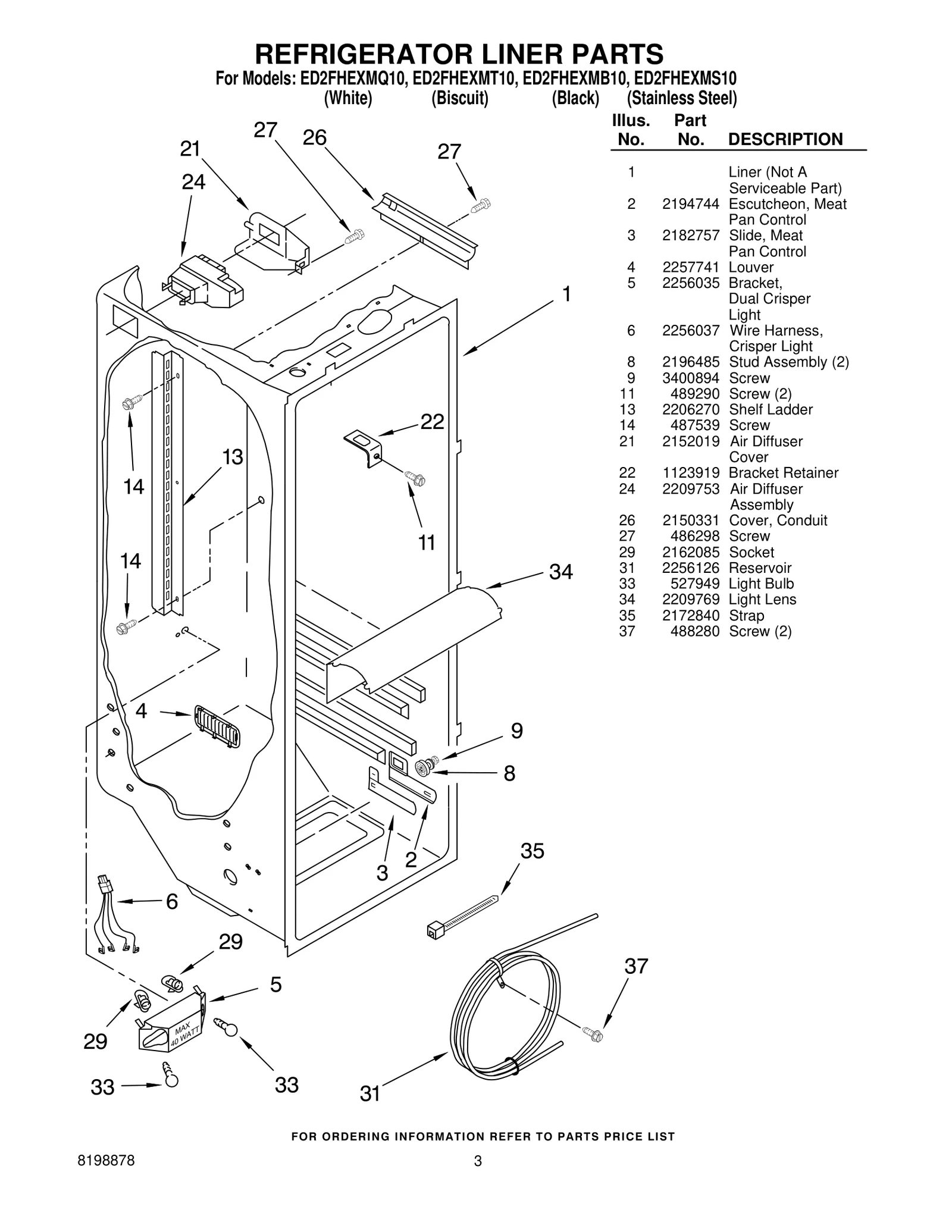

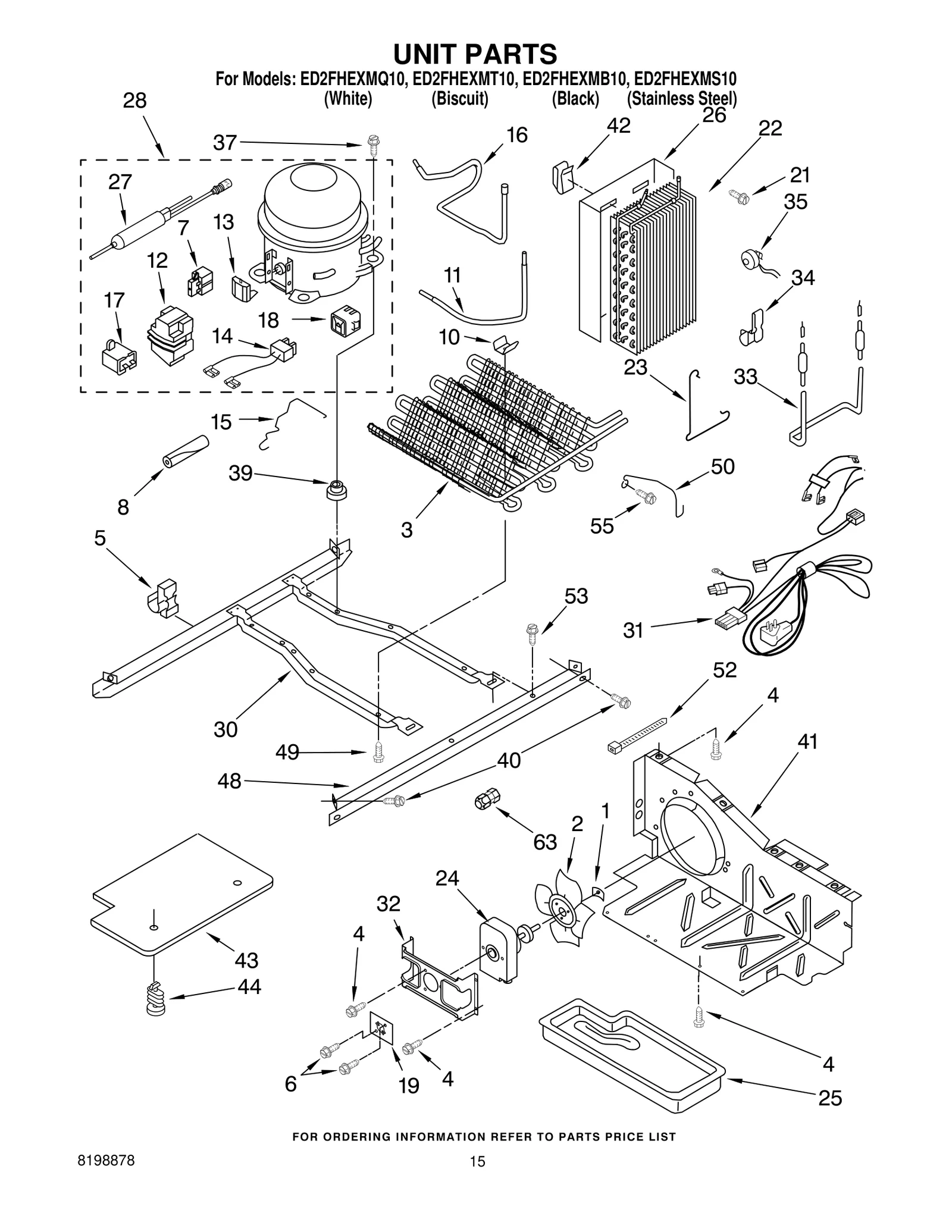

Model Whirlpool ED2FHEXMT10 Refrigerator – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.48

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle, Center — Black WPL 2186649B Contact Us For Availability

2

Retainer, Fan Motor WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center — White WPL 2186649W Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $102.11

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WPW10350006 Whirlpool Refrigerator Water Tube In Stock WPL WPW10350006 $76.73

3

Slide, Meat Pan Control WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $45.77

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Extension, Bottom — White WPL 2194969W Contact Us For Availability

5

Cover, Light Lens WPL 2200096 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Clip, Max−Ice WPL 2204881 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

8

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Shim WPL 2209697 Contact Us For Availability

9

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $53.12

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $39.17

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.36

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $76.67

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $83.79

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $69.10

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $71.16

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $46.18

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser — Biscuit WPL 2255431T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $72.32

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $95.20

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $106.42

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $90.95

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

Filler, Wrapper — White WPL 2196094 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $60.78

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

16

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $148.38

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $70.25

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $70.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.11

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

Max−Ice Assembly WPL 2255794 Contact Us For Availability

Extension, Top — White WPL 2194971W Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $135.74

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

21

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.92

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Clip, Wiring WPL 1115375 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

Escutcheon, Control Box WPL 2261173 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Thermostat knob WPL 2182111 Contact Us For Availability

Shield, Ice Door WPL 987121 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $33.67

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $57.30

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $35.58

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.35

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $38.88

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.89

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $86.55

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $94.12

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Valve, Access WPL 978029 Contact Us For Availability

100

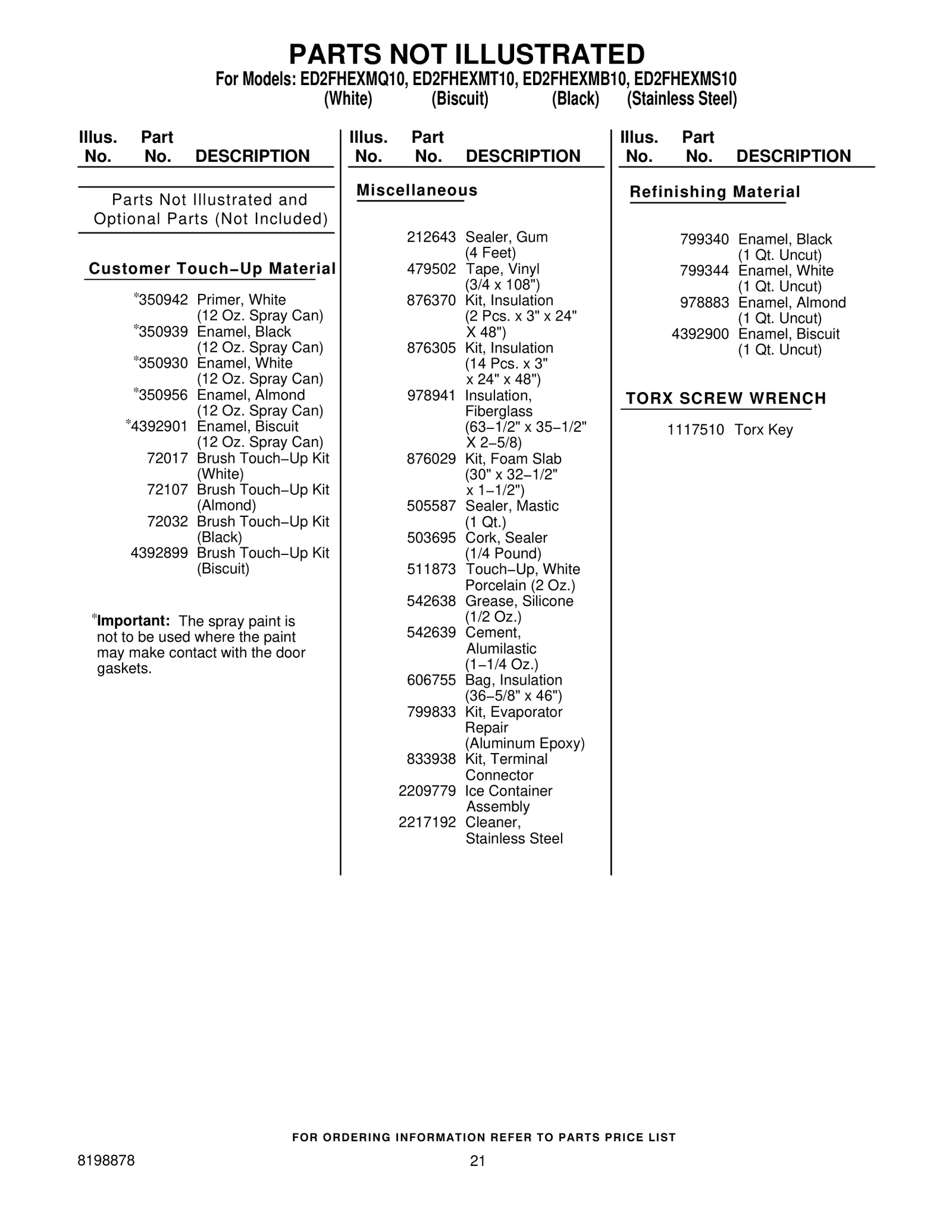

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-4

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

OPT-5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-9

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-11

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-13

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

OPT-15

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-16

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-17

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

OPT-19

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-20

Cement, WPL 542639 Contact Us For Availability

OPT-21

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

OPT-22

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-23

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-24

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $228.43

OPT-25

Cleaner, WPL 2217192 Contact Us For Availability

OPT-26

Enamel, Black WPL 799340 Contact Us For Availability

OPT-27

Enamel, White WPL 799344 Contact Us For Availability

OPT-28

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-29

Enamel, Biscuit WPL 4392900 Contact Us For Availability

OPT-30

Torx Key WPL 1117510 Contact Us For Availability
