Model Whirlpool ED22MKXLWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - SHELF

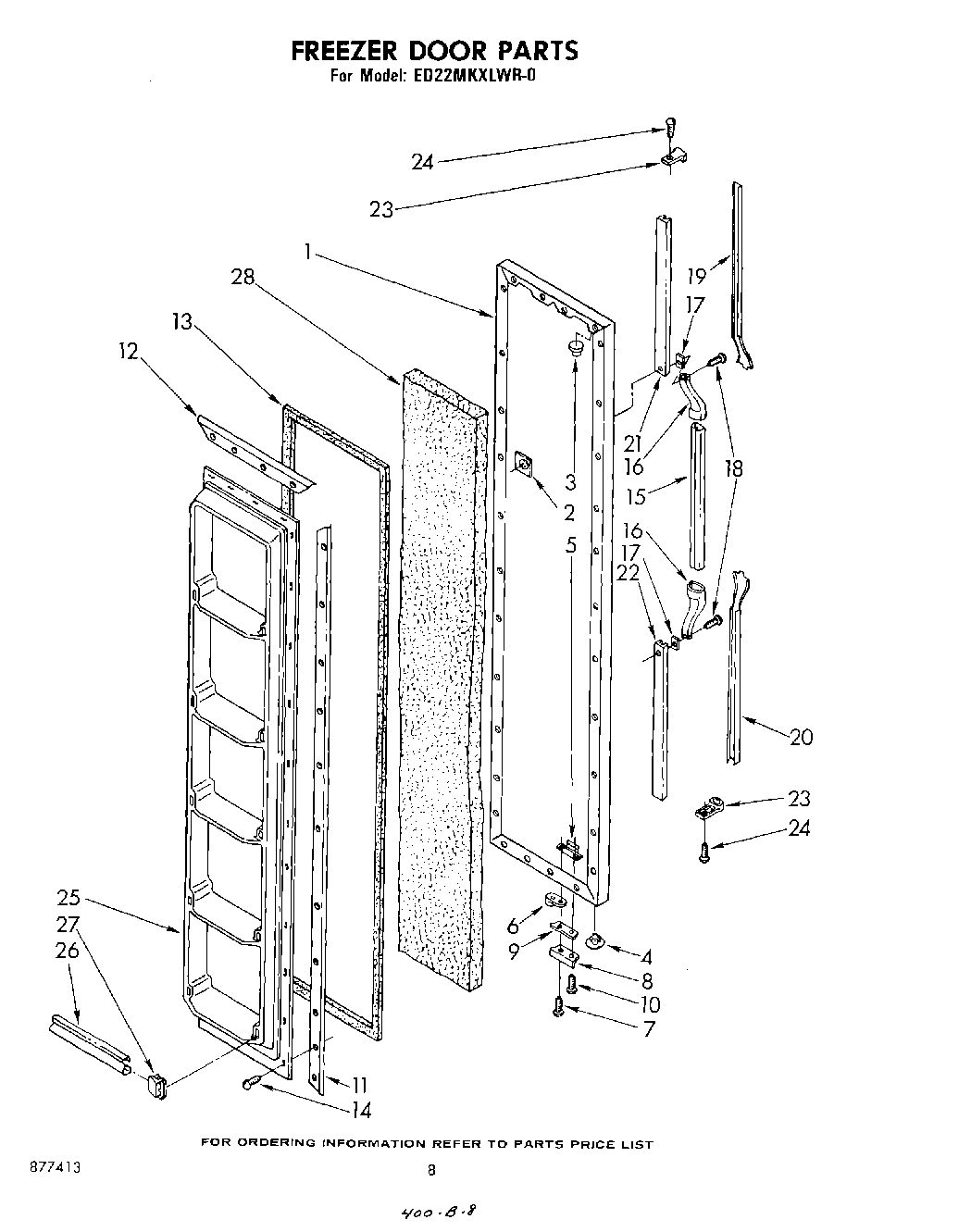

05 - FREEZER DOOR

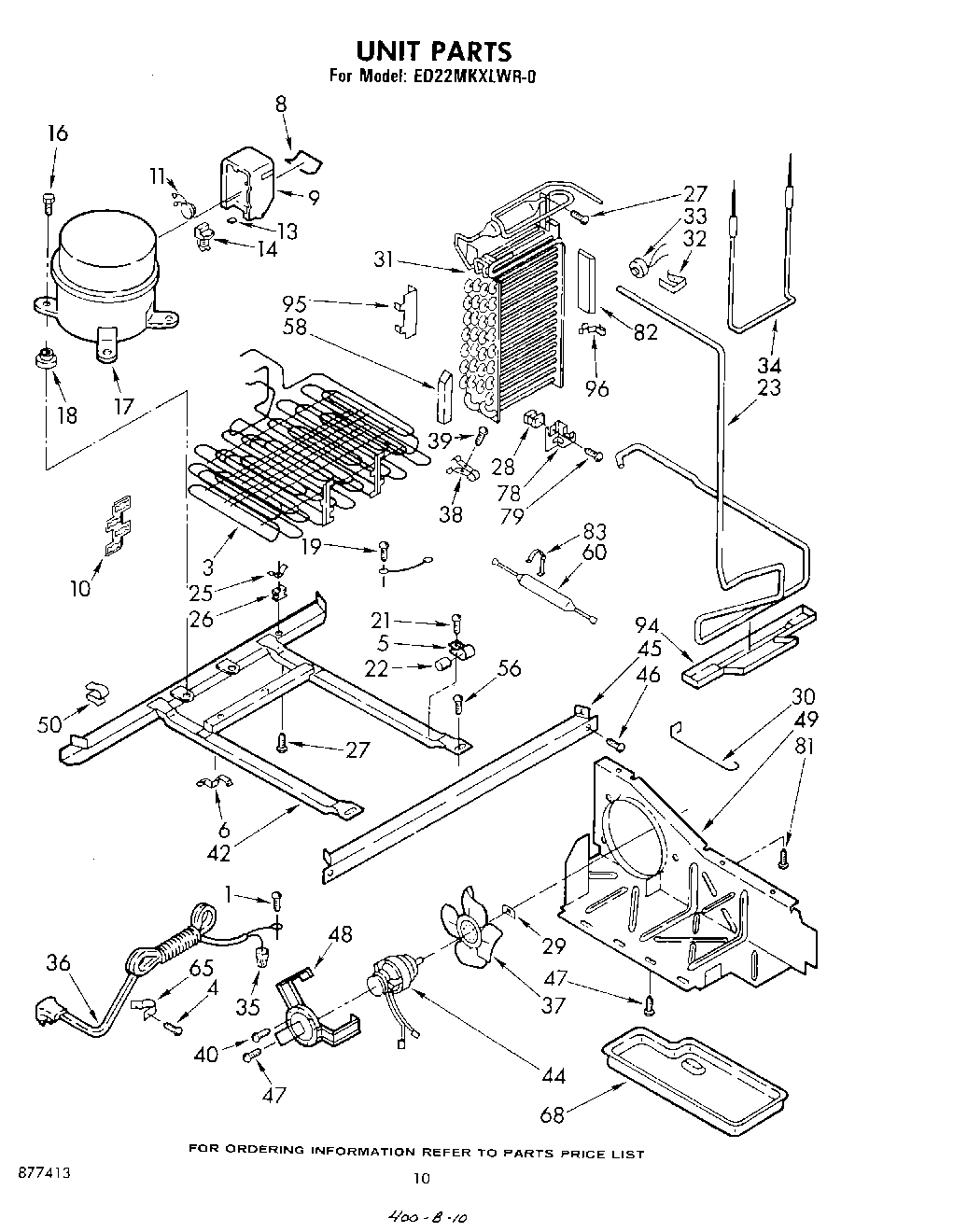

06 - UNIT

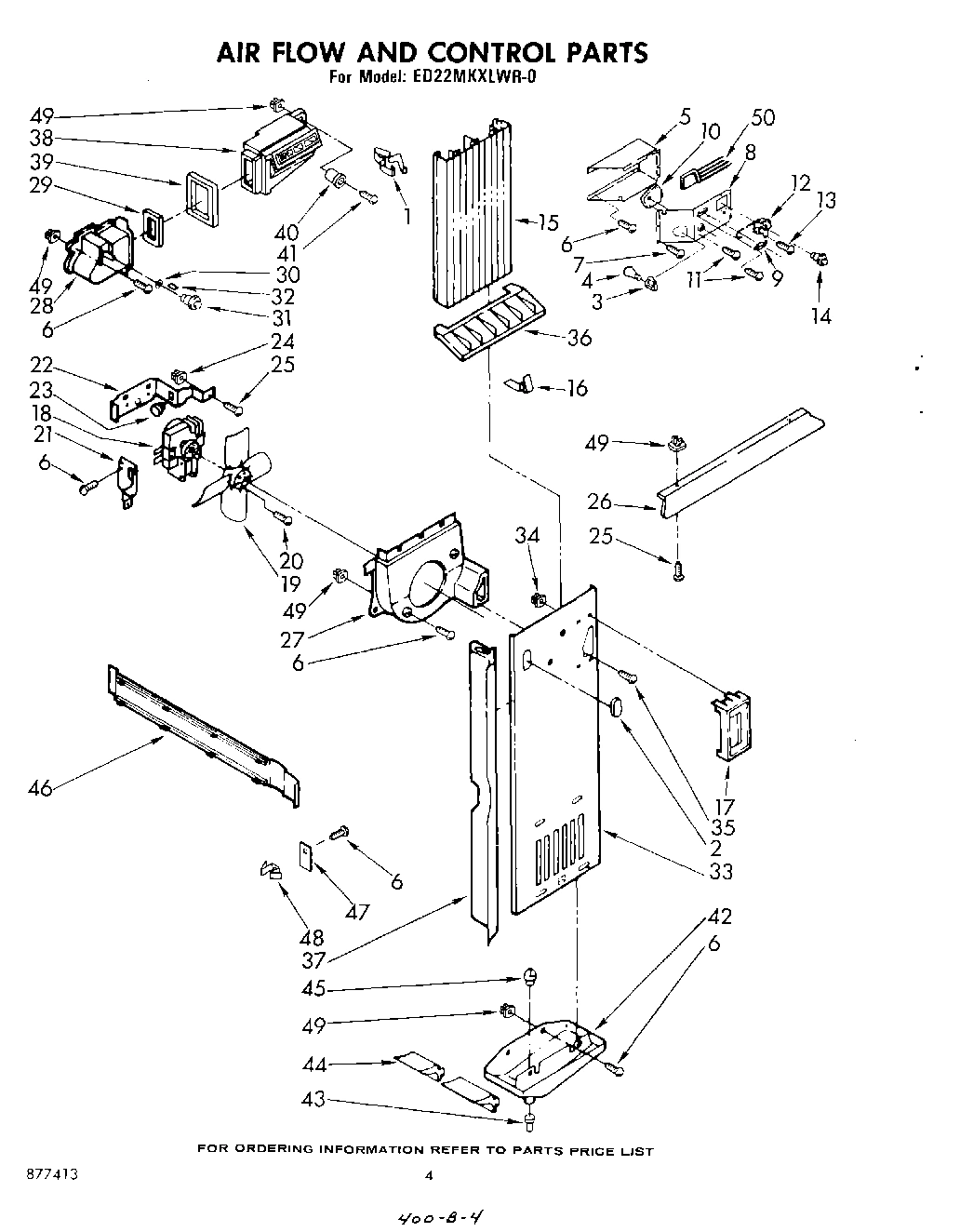

03 - AIR FLOW AND CONTROL , LITERATURE A

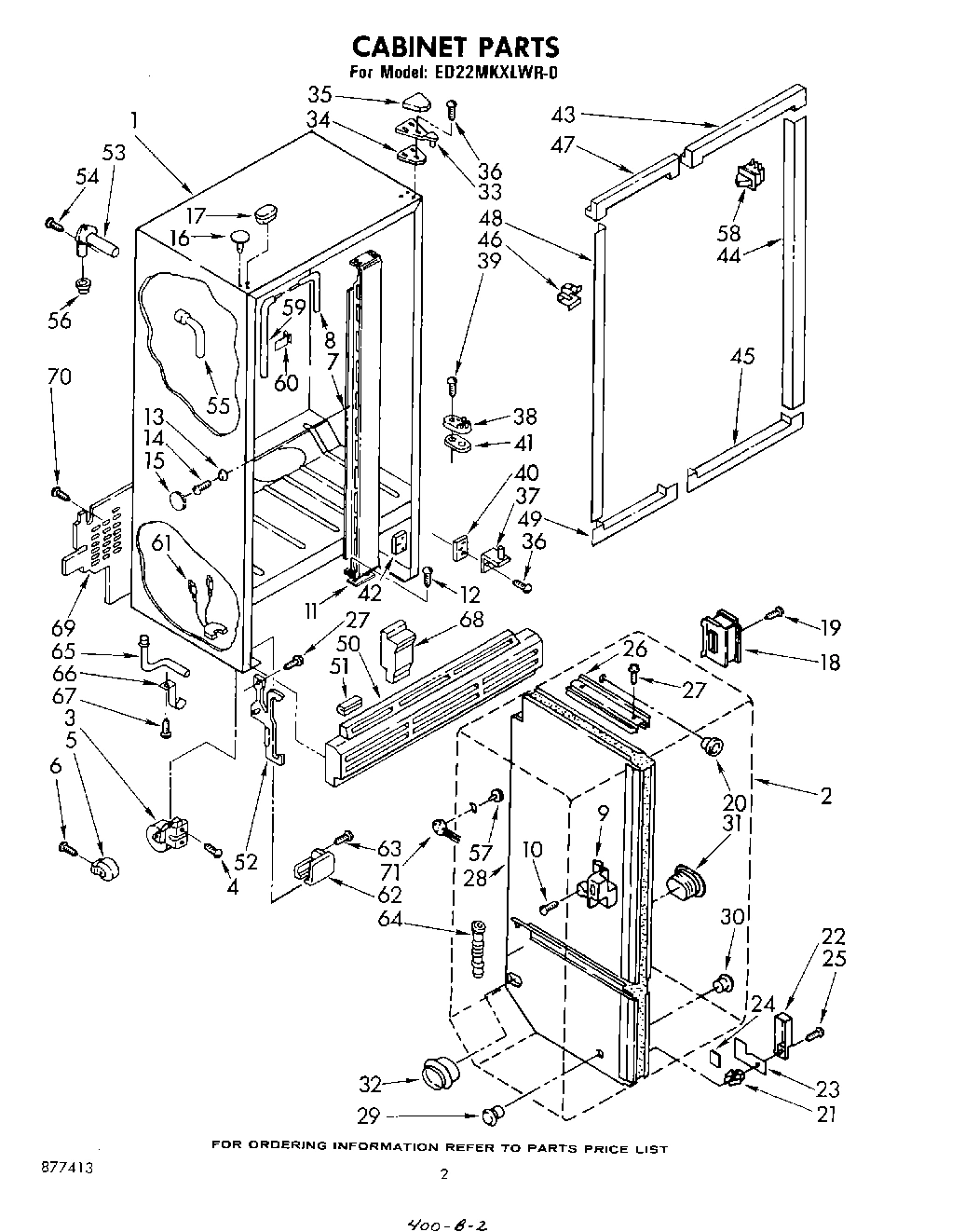

02 - CABINET

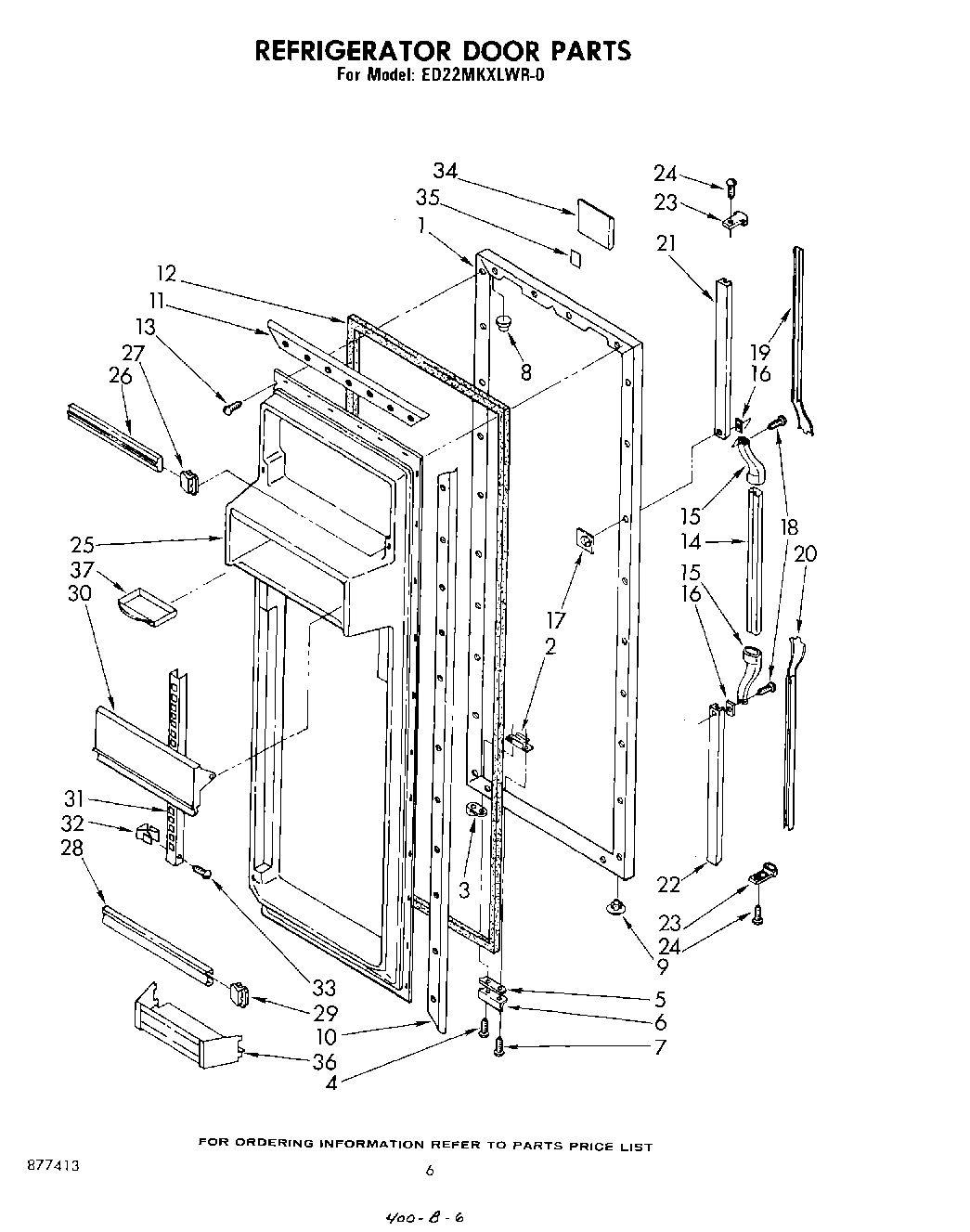

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED22MKXLWR0 SIDE BY SIDE REFRIGERATOR
1
Freezer, Door Panel (White) WPL 941254 Contact Us For Availability
1
Freezer, Door Panel (Coffee) WPL 941255 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 941256 Contact Us For Availability
1
Freezer Door Panel (New Avocado) WPL 941257 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 941258 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26603A2 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 941246 Contact Us For Availability
1
Refrigerator, Door Panel (Coffee) WPL 941247 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 941248 Contact Us For Availability
1
Refrigerator Door Panel (New Avocado) WPL 941249 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 941250 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Hole, Plug WPL 659776 Contact Us For Availability
2
Liner (Not A Serviceable Part) WPL ARI26604A1 Contact Us For Availability
3
Condenser & Precooler WPL 851123 Contact Us For Availability
3
Roller, Front WPL 981127 Contact Us For Availability
4
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
5
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
Box, Control WPL 984550 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
7
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
7
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
7
Center Rail Mullion (White) WPL 985974 Contact Us For Availability
7
Center Rail Mullion (Coffee) WPL 989920 Contact Us For Availability
7
Center Rail Mullion (Golden Harvest) WPL 989921 Contact Us For Availability
7
Center Rail, Mullion (Avocado) WPL 989922 Contact Us For Availability
7
Center Rail Mullion (Almond) WPL 989923 Contact Us For Availability
8
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
8
Spring, Case WPL 531318 Contact Us For Availability
8
Control Box Front WPL 934045 Contact Us For Availability
8
Heater, Mullion WPL 936199 Contact Us For Availability
9
Hole Plug (White) WPL 534927 Contact Us For Availability
9
Hole Plug (Almond) WPL 989197 Contact Us For Availability
9
Hole, Plug (Coffee) WPL 989878 Contact Us For Availability
9
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
9
Hole Plug (New Avocado) WPL 989880 Contact Us For Availability
9
Case, Relay WPL 549945 Contact Us For Availability
9
Stabilizer, Mullion WPL 849367 Contact Us For Availability
10
Screw (Repair) WPL 488930 Contact Us For Availability
10
Retainer Side, Gasket WPL 836120 Contact Us For Availability
10
Spacer Condenser (4) WPL 987210 Contact Us For Availability
10
Defrost Timer WPL 851160 Contact Us For Availability
11
Shelf Stud WPL 937521 Contact Us For Availability
11
Overload WPL 941583 Contact Us For Availability
11
Spacer WPL 983592 Contact Us For Availability
11
Retainer Top & Bottom Gasket WPL 836121 Contact Us For Availability
12
Stud WPL 936591 Contact Us For Availability
12
Retainer, Top & Bottom Gasket WPL 836122 Contact Us For Availability
13
Shelf, Stud WPL 208500 Contact Us For Availability
13
Bumper WPL 547272 Contact Us For Availability
13
Spacer Screw, Stabilizer WPL 849368 Contact Us For Availability
14
Handle, Center (New Avocado) WPL 935092 Contact Us For Availability
14
Handle, Center (Golden Harvest) WPL 935093 Contact Us For Availability
14
Handle, Center (White & Coffee) WPL 944376 Contact Us For Availability
14
Handle, Center (Almond) WPL 944377 Contact Us For Availability
14
Relay WPL 938263 Contact Us For Availability
14
Knob, Temperature Control WPL 836482 Contact Us For Availability
14
Screw, 8 x 7/8 WPL 488318 Contact Us For Availability
15
Center End Cap (2) WPL 935103 Contact Us For Availability
15
Air Duct WPL 848484 Contact Us For Availability
15
Hole Cover WPL 848414 Contact Us For Availability
16
Shim, Handle Center (2) WPL 935075 Contact Us For Availability
16
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
16
Baffle, Air WPL 987954 Contact Us For Availability
16
Hole, Plug (White) WPL 849391 Contact Us For Availability
16
Hole Plug (Coffee) WPL 989955 Contact Us For Availability
16
Hole Plug (New Avocado) WPL 989956 Contact Us For Availability
16
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
16
Hole Plug (Almond) WPL 989958 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Compressor WPL 464103 Contact Us For Availability
17
Grille, Freezer WPL 835740 Contact Us For Availability
17
Hole Plug (White) WPL 992770 Contact Us For Availability
17
Hole Plug (Coffee) WPL 992771 Contact Us For Availability
17
Hole Plug (New Avocado) WPL 992772 Contact Us For Availability
17
Hole Plug (Golden Harvest) WPL 992773 Contact Us For Availability
17
Hole Plug (Almond) WPL 992774 Contact Us For Availability
18
Grommet (4) WPL 547283 Contact Us For Availability
18
Control Connector & Gasket Assembly WPL 848433 Contact Us For Availability
19
Insert Handle (Top) WPL 941261 Contact Us For Availability
19
Blade, Fan WPL 839859 Contact Us For Availability
20
Insert, Handle Bottom WPL 941263 Contact Us For Availability
20
Grommet, Wiring WPL 851020 Contact Us For Availability
21
Retainer Insert (Top) WPL 941260 Contact Us For Availability
21
Fan, Bracket Double WPL 548263 Contact Us For Availability
22
Retainer Insert (Bottom) WPL 941262 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
22
Fan, Bracket Single WPL 548264 Contact Us For Availability
22
Escutcheon Meat WPL 984101 Contact Us For Availability
23
End Cap WPL 941259 Contact Us For Availability
23
Exchanger, Heat WPL 941683 Contact Us For Availability
23
Fan, Grommet WPL 548268 Contact Us For Availability
23
Slide, Meat Control WPL 984102 Contact Us For Availability
24
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
24
Screw Grommet WPL 538449 Contact Us For Availability
24
Pad, Foam WPL 992358 Contact Us For Availability
25
Interior Door Panel WPL 944379 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
25
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
25
Interior Door, Panel WPL 944372 Contact Us For Availability
26
Trim, Door Shelf WPL 991496 Contact Us For Availability
26
Grommet (4) WPL 548737 Contact Us For Availability
26
Baffle, Liner Top WPL 836216 Contact Us For Availability
26
Track Divider (Back) WPL 937580 Contact Us For Availability
26
Track, Divider (Top) WPL 988455 Contact Us For Availability
26
Track, Divider (Bottom) WPL 988457 Contact Us For Availability
26
Trim, Interior Door (Top) WPL 988746 Contact Us For Availability
27
Scroll Fan WPL 991285 Contact Us For Availability
28
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
28
Grommet WPL 944454 Contact Us For Availability
28
Air Scoop Assembly WPL 841269 Contact Us For Availability
28
Divider, Mullion WPL 935415 Contact Us For Availability
28
Trim, Interior Door (Bottom) WPL 988747 Contact Us For Availability
29
Gasket, Air Scoop WPL 844871 Contact Us For Availability
29
Retainer, Hole Insert WPL 843888 Contact Us For Availability
29
Retainer Door Trim WPL 943138 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
30
Retainer, Damper WPL 938439 Contact Us For Availability
30
Insert, Hole WPL 843887 Contact Us For Availability
30
Compartment, Door Utility WPL 935352 Contact Us For Availability
31
Evaporator WPL 850383 Contact Us For Availability
31
Control Knob WPL 837445 Contact Us For Availability
31
Insert, Air Return WPL 982921 Contact Us For Availability
31
Shelf Ladder, Door WPL 983804 Contact Us For Availability
32
Glass Cantilever WPL 944369 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
Knob, Retainer WPL 837444 Contact Us For Availability
32
Expansion Clip WPL 537095 Contact Us For Availability
32
Retainer, Insert WPL 982920 Contact Us For Availability
33
Reflector, Cantilever WPL 849028 Contact Us For Availability
33
Cover, Evaporator WPL 849496 Contact Us For Availability
33
Hinge, Top WPL 842039 Contact Us For Availability
34
Pan Slide & Cover WPL 935120 Contact Us For Availability
34
Screw, Grommet WPL 981616 Contact Us For Availability
34
Shim, Hinge Top WPL 836192 Contact Us For Availability
34
Nameplate WPL 945108 Contact Us For Availability
35
Pan Slide & Cover WPL 935119 Contact Us For Availability
35
Nut, Wire WPL 227991 Contact Us For Availability
35
WPL 989895 WPL 989895 Contact Us For Availability
35
WPL 989896 WPL 989896 Contact Us For Availability
35
WPL 989897 WPL 989897 Contact Us For Availability
35
Tape Strip WPL 991259 Contact Us For Availability
36
Crisper Basket, Rear WPL 982588 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
36
End Cap, Evaporator WPL 836144 Contact Us For Availability
36
WPL 488949 WPL 488949 Contact Us For Availability
36
Door Shelf, Cantilever WPL 944373 Contact Us For Availability
37
Crisper Gasket Front WPL 982587 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
37
Gasket, Evaporator Cover WPL 844844 Contact Us For Availability
37
WPL 986763 WPL 986763 Contact Us For Availability
37
WPL 986764 WPL 986764 Contact Us For Availability
38
Solid Shelf WPL 935422 Contact Us For Availability
38
Tube Clip WPL 510414 Contact Us For Availability
38
Air Diffuser Assembly WPL 991158 Contact Us For Availability
39
Solid Shelf Trim WPL 985522 Contact Us For Availability
39
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
40
Shelf, Freezer WPL 981500 Contact Us For Availability
40
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
40
WPL 836196 WPL 836196 Contact Us For Availability
41
WPL 987179 WPL 987179 Contact Us For Availability
41
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
42
Shelf Reflector WPL 935420 Contact Us For Availability
42
Frame WPL 936079 Contact Us For Availability
42
Drain Pan WPL 842404 Contact Us For Availability
42
WPL 836162 WPL 836162 Contact Us For Availability
43
Clip, Reflector WPL 939348 Contact Us For Availability
43
Fitting, Drain Pan WPL 841770 Contact Us For Availability
43
WPL 848475 WPL 848475 Contact Us For Availability
44
Shelf, Ice Cube Pan WPL 986975 Contact Us For Availability
44
Gasket, Drain Pan WPL 845564 Contact Us For Availability
44
WPL 848476 WPL 848476 Contact Us For Availability
45
Shelf Trim, Ice Pan WPL 985590 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
45
Cap, Drain WPL 842259 Contact Us For Availability
45
WPL 848477 WPL 848477 Contact Us For Availability
46
Freezer Bin, Plastic WPL 944370 Contact Us For Availability
46
Cover, Heat Exchanger WPL 848482 Contact Us For Availability
46
WPL 836090 WPL 836090 Contact Us For Availability
47
Pan Crisper WPL 943112 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
Heat Exchanger, Clip WPL 983605 Contact Us For Availability
47
WPL 848479 WPL 848479 Contact Us For Availability
48
Housing, Humidity Control WPL 942234 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
48
WPL 848480 WPL 848480 Contact Us For Availability
49
Slide, Humidity Control WPL 942235 Contact Us For Availability
49
Baffle, Air WPL 850391 Contact Us For Availability
49
Grommet WPL 842339 Contact Us For Availability
49
WPL 848481 WPL 848481 Contact Us For Availability
50
WPL 479502 WPL 479502 Contact Us For Availability
50
WPL 799344 WPL 799344 Contact Us For Availability
50
Seal, Humidity Control WPL 942236 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
50
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
50
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
50
Enamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
50
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
50
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
50
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
50
WPL 350941 WPL 350941 Contact Us For Availability
50
WPL 481782 WPL 481782 Contact Us For Availability
50
WPL 484310 WPL 484310 Contact Us For Availability
50
WPL 542639 WPL 542639 Contact Us For Availability
50
WPL 72108 WPL 72108 Contact Us For Availability
50
WPL 799340 WPL 799340 Contact Us For Availability
50
WPL 799351 WPL 799351 Contact Us For Availability
50
WPL 799832 WPL 799832 Contact Us For Availability
50
WPL 799908 WPL 799908 Contact Us For Availability
50
WPL 877413 WPL 877413 Contact Us For Availability
50
WPL 936011 WPL 936011 Contact Us For Availability
50
WPL 943013 WPL 943013 Contact Us For Availability
50
WPL 944005 WPL 944005 Contact Us For Availability
50
WPL 944006 WPL 944006 Contact Us For Availability
50
WPL 978883 WPL 978883 Contact Us For Availability
50
WPL 841670 WPL 841670 Contact Us For Availability
50
WPL 989941 WPL 989941 Contact Us For Availability
50
WPL 989943 WPL 989943 Contact Us For Availability
50
WPL 989945 WPL 989945 Contact Us For Availability
50
WPL 989947 WPL 989947 Contact Us For Availability
51
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
51
WPL 546131 WPL 546131 Contact Us For Availability
52
Front Cover, Crisper WPL 943114 Contact Us For Availability
52
WPL 844614 WPL 844614 Contact Us For Availability
53
Screw (Repair) WPL 488132 Contact Us For Availability
54
Overlay, Front Cover WPL 984750 Contact Us For Availability
55
Pan WPL 840037 Contact Us For Availability
55
WPL 849909 WPL 849909 Contact Us For Availability
56
Front Cover, Meat Pan WPL 943121 Contact Us For Availability
57
WPL 850738 WPL 850738 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
59
WPL 989660 WPL 989660 Contact Us For Availability
60
Ligh WPL 943218 Contact Us For Availability
60
WPL 935663 WPL 935663 Contact Us For Availability
61
WPL 935418 WPL 935418 Contact Us For Availability
61
WPL 548734 WPL 548734 Contact Us For Availability
62
WPL 984552 WPL 984552 Contact Us For Availability
62
WPL 549947 WPL 549947 Contact Us For Availability
64
WPL 985456 WPL 985456 Contact Us For Availability
64
WPL 836068 WPL 836068 Contact Us For Availability
65
WPL 841646 WPL 841646 Contact Us For Availability
66
WPL 841648 WPL 841648 Contact Us For Availability
67
WPL 488978 WPL 488978 Contact Us For Availability
68
Tray, Evaporator WPL 849331 Contact Us For Availability
68
WPL 836372 WPL 836372 Contact Us For Availability
69
WPL 850457 WPL 850457 Contact Us For Availability
71
WPL 481658 WPL 481658 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
82
Baffle, Air WPL 849335 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
94
Pan, Drip WPL 989269 Contact Us For Availability
95
Heat Shield WPL 850568 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp, Heater (4) WPL 549419 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
