Model Whirlpool ED22CQXFW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER

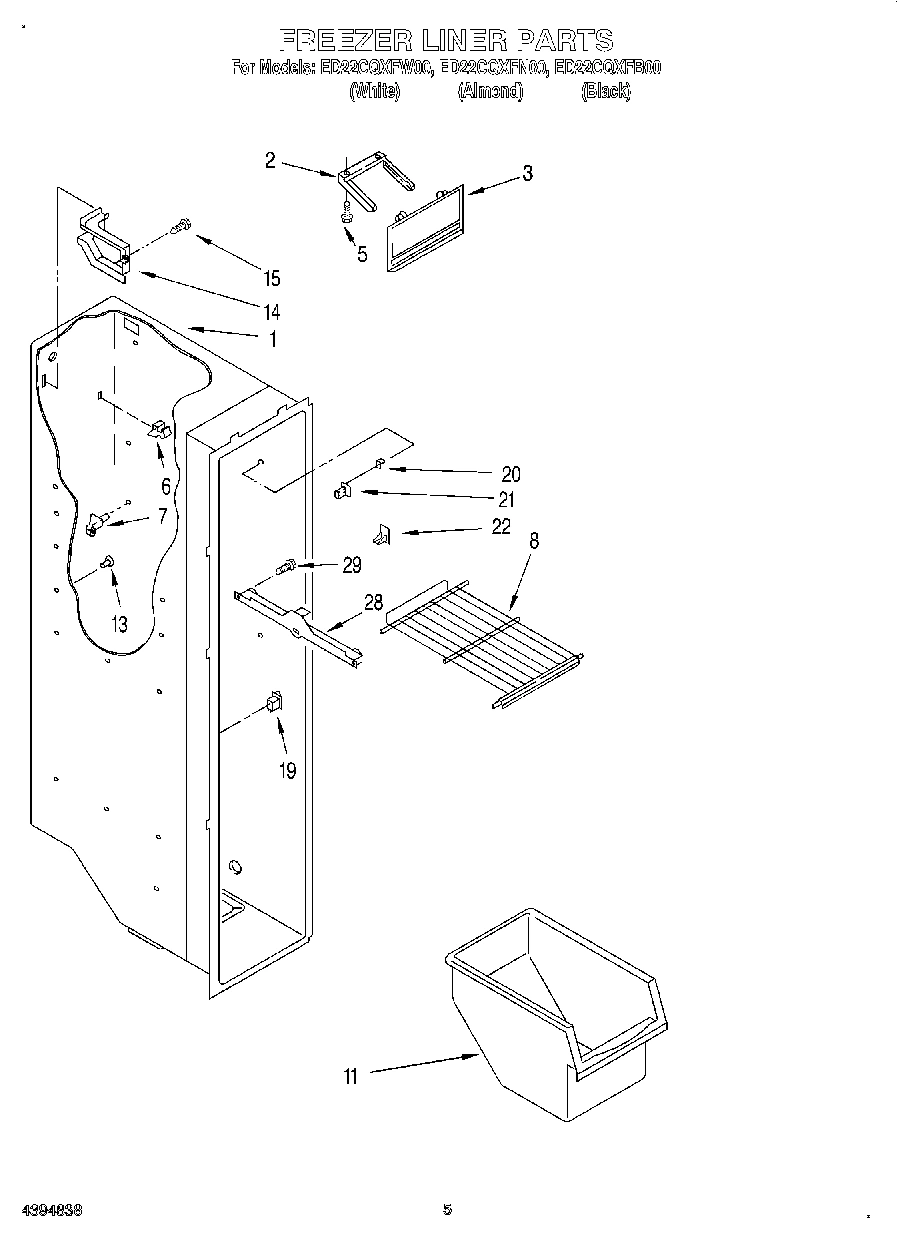

04 - FREEZER LINER

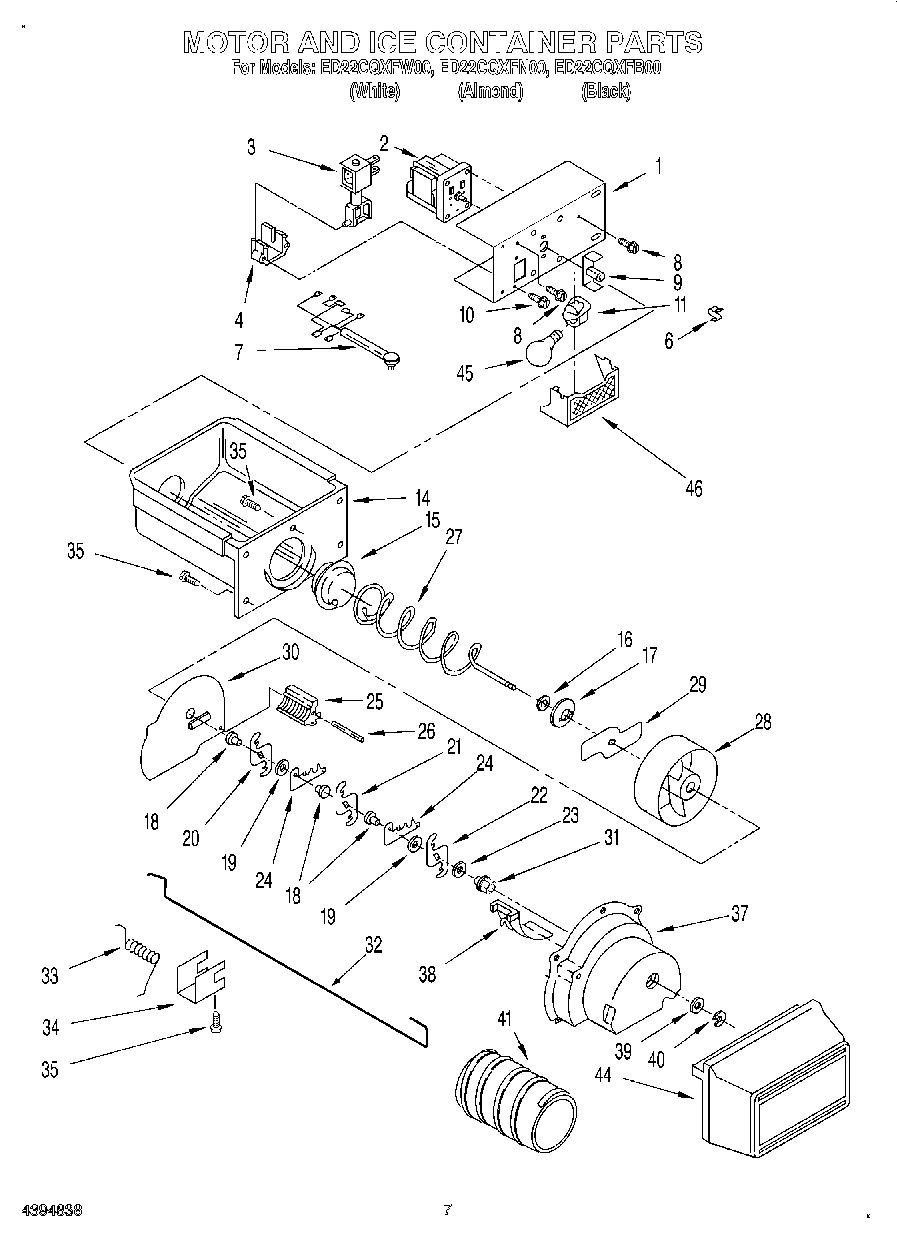

06 - MOTOR AND ICE CONTAINER

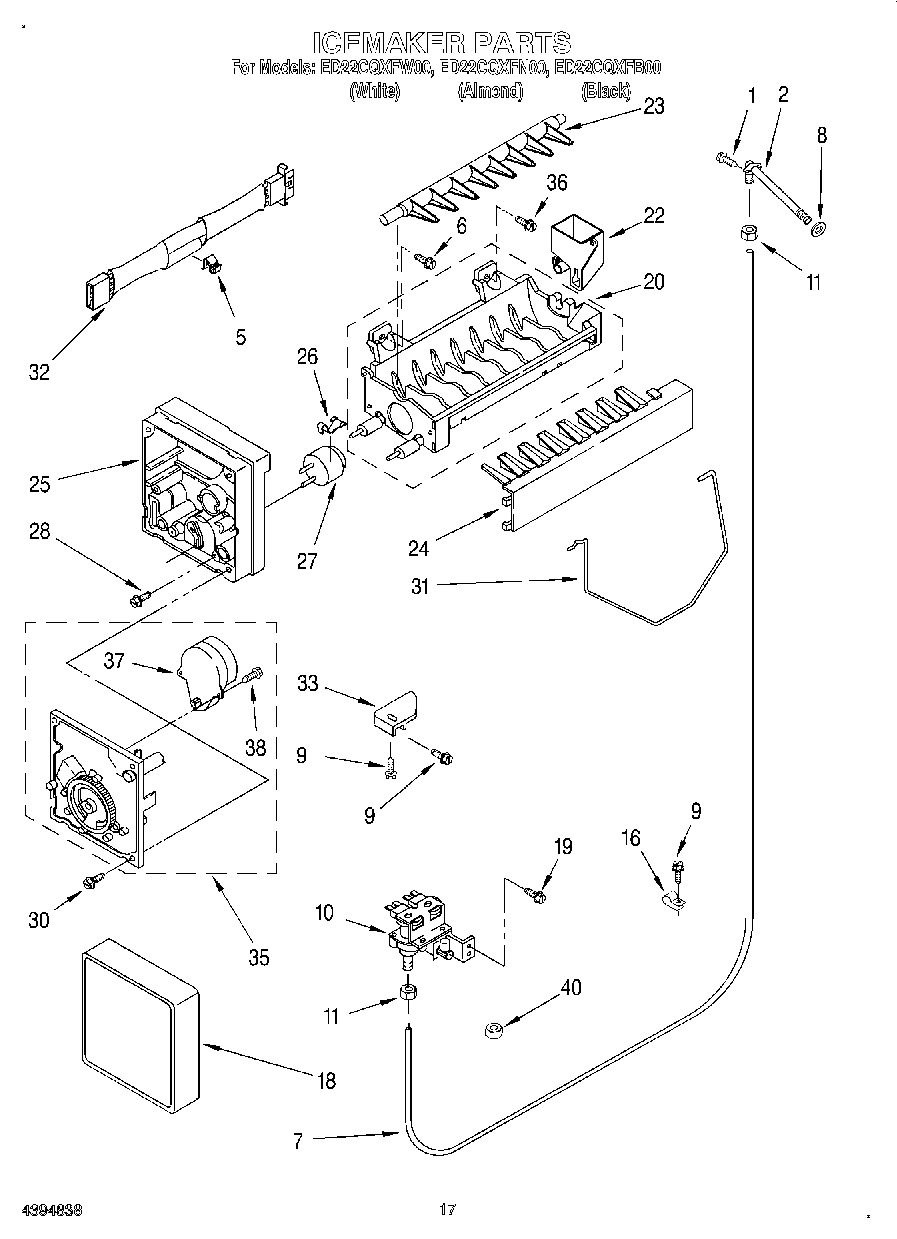

11 - ICEMAKER

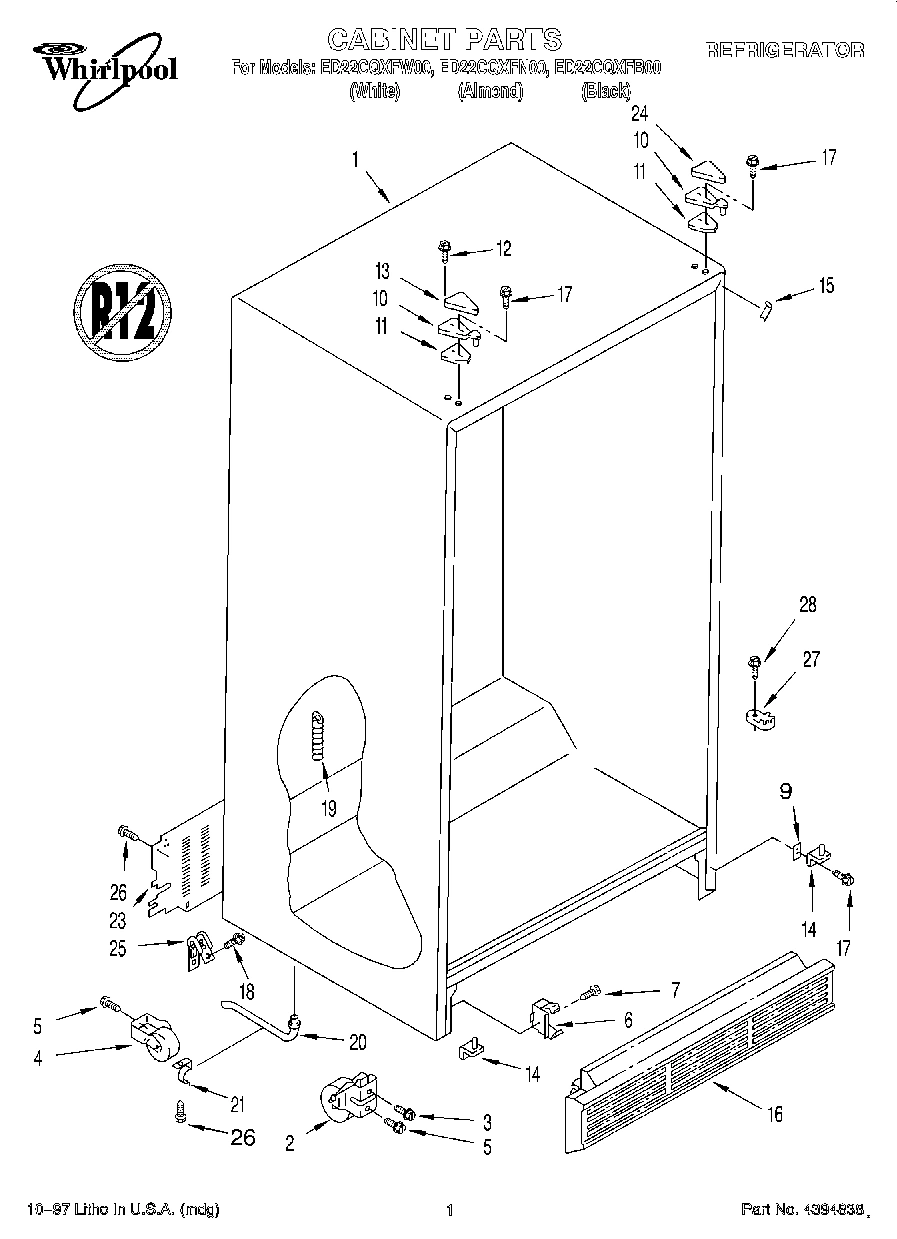

01 - CABINET

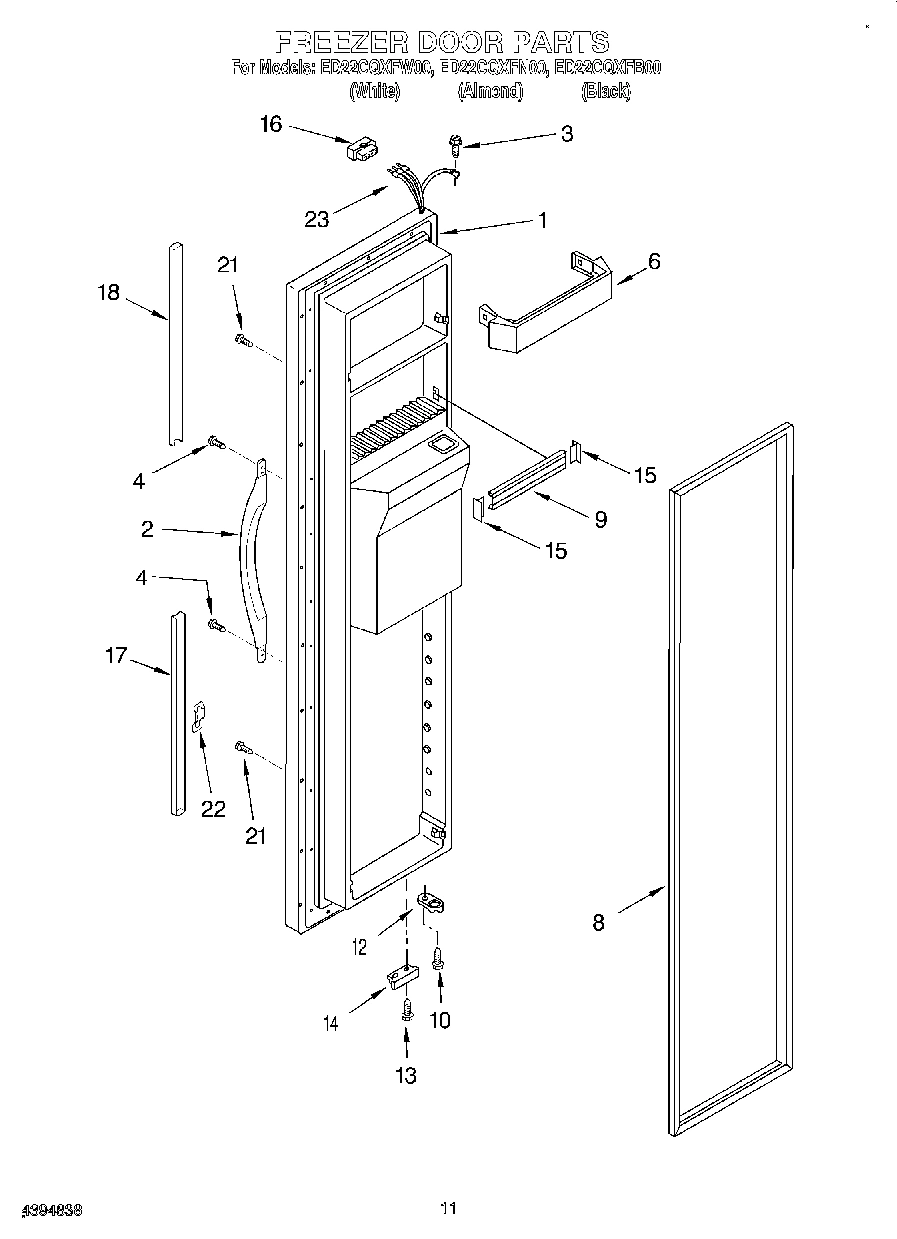

08 - FREEZER DOOR

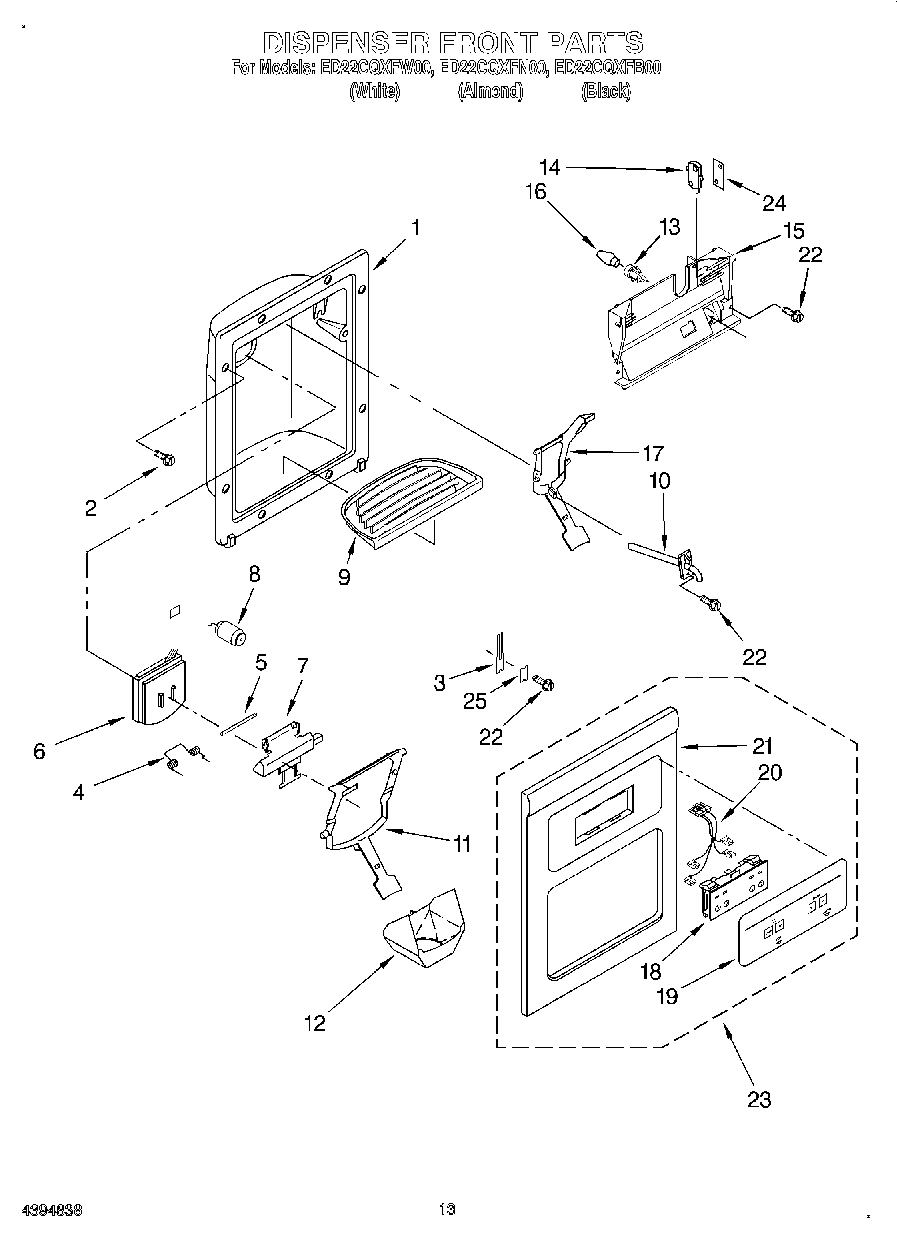

09 - DISPENSER FRONT
05 - AIR FLOW

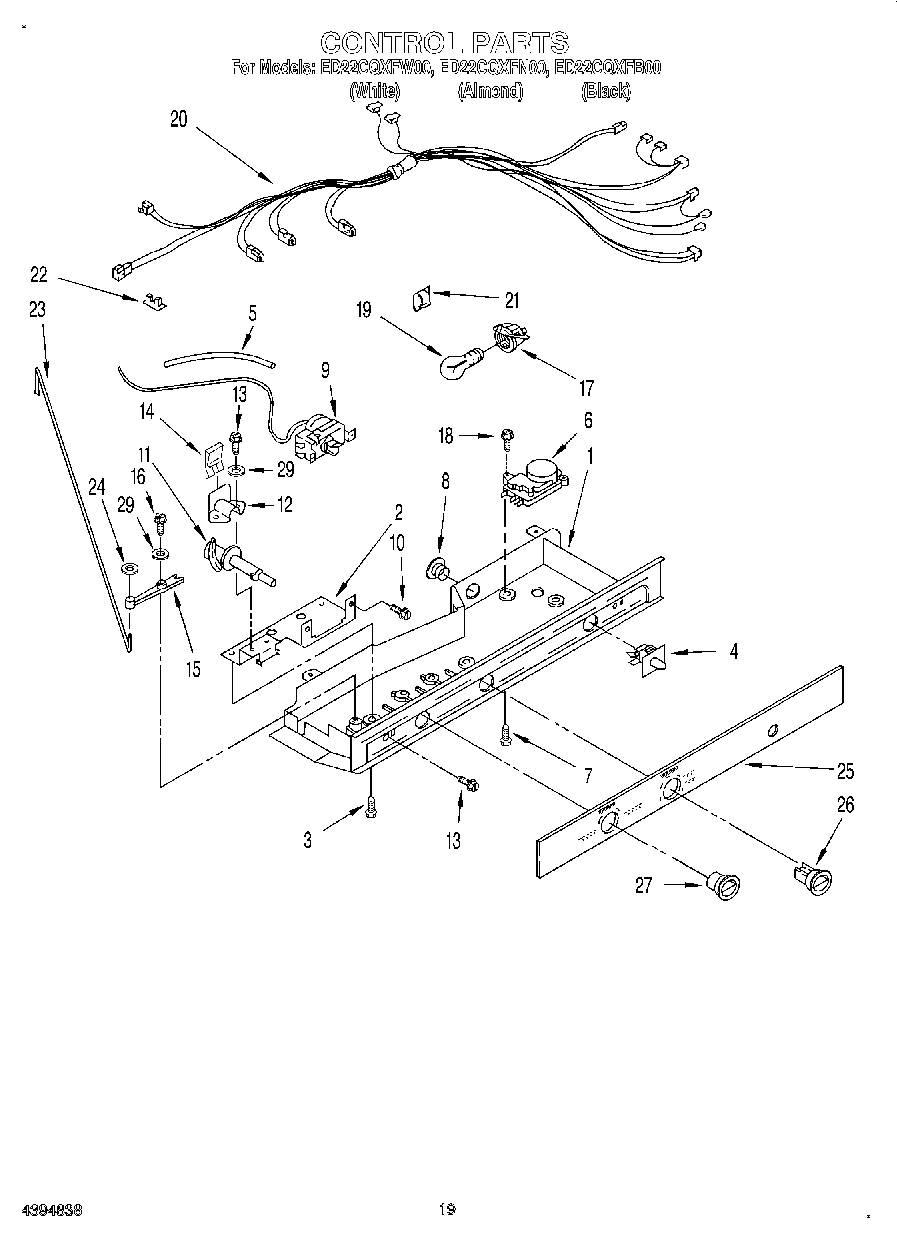

12 - CONTROL, LIT/OPTIONAL

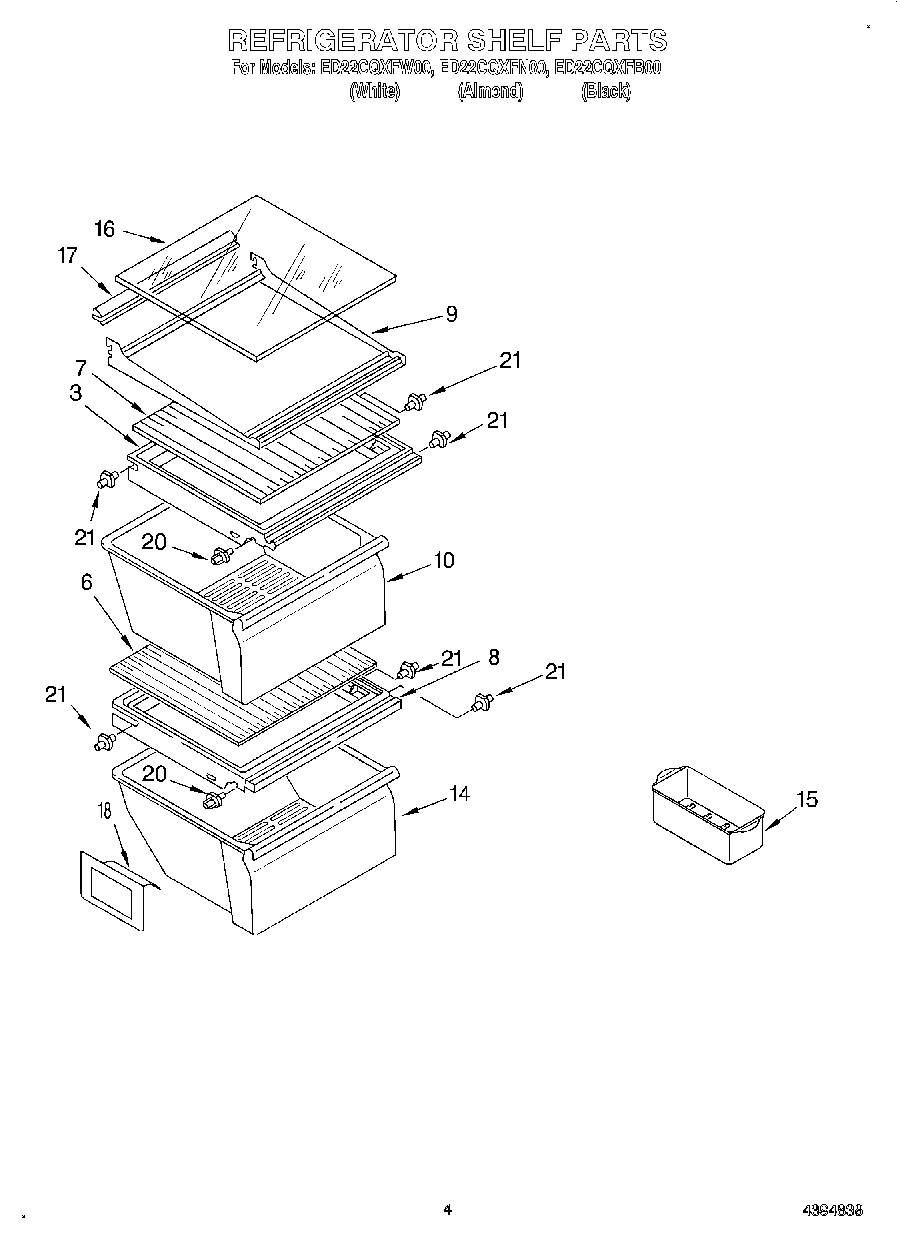

03 - REFRIGERATOR SHELF

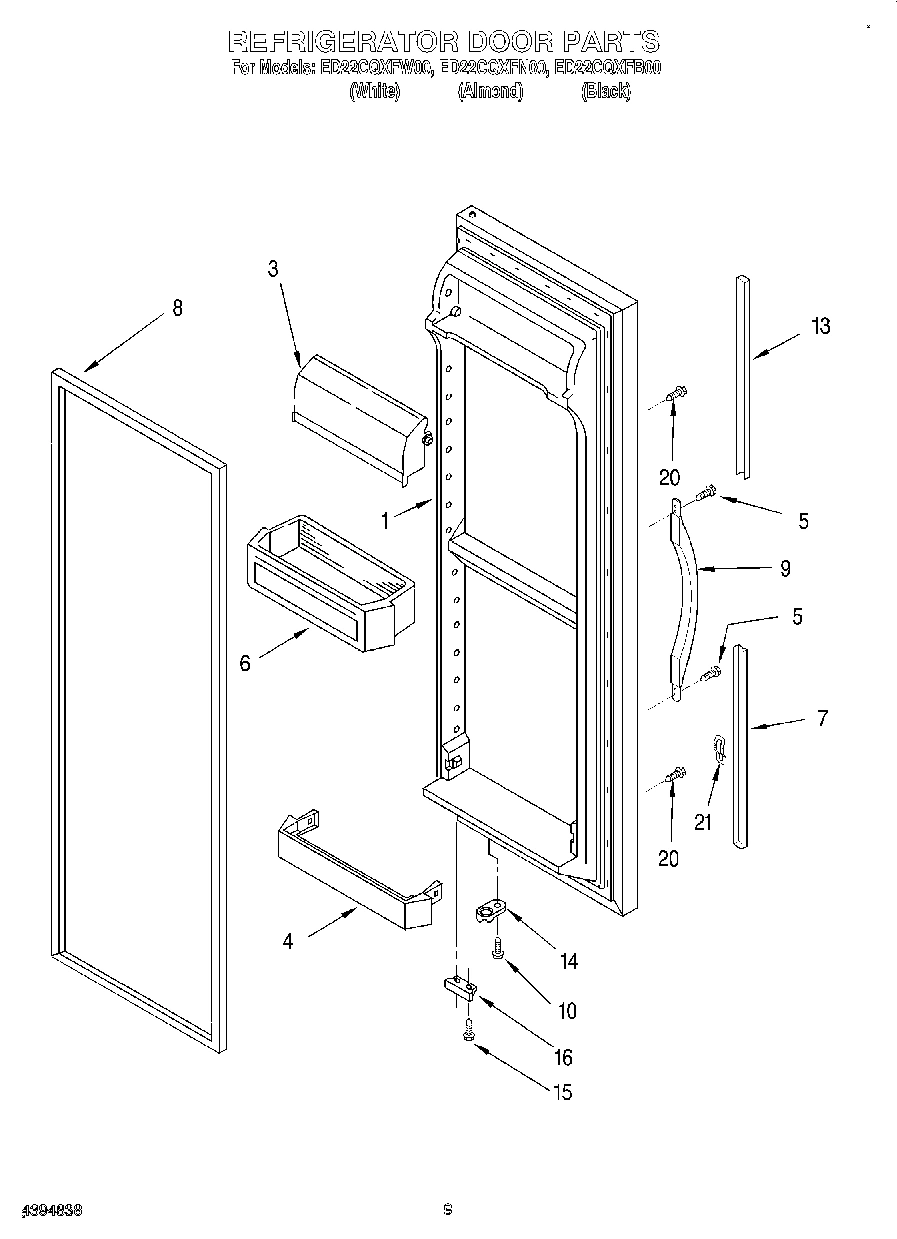

07 - REFRIGERATOR DOOR

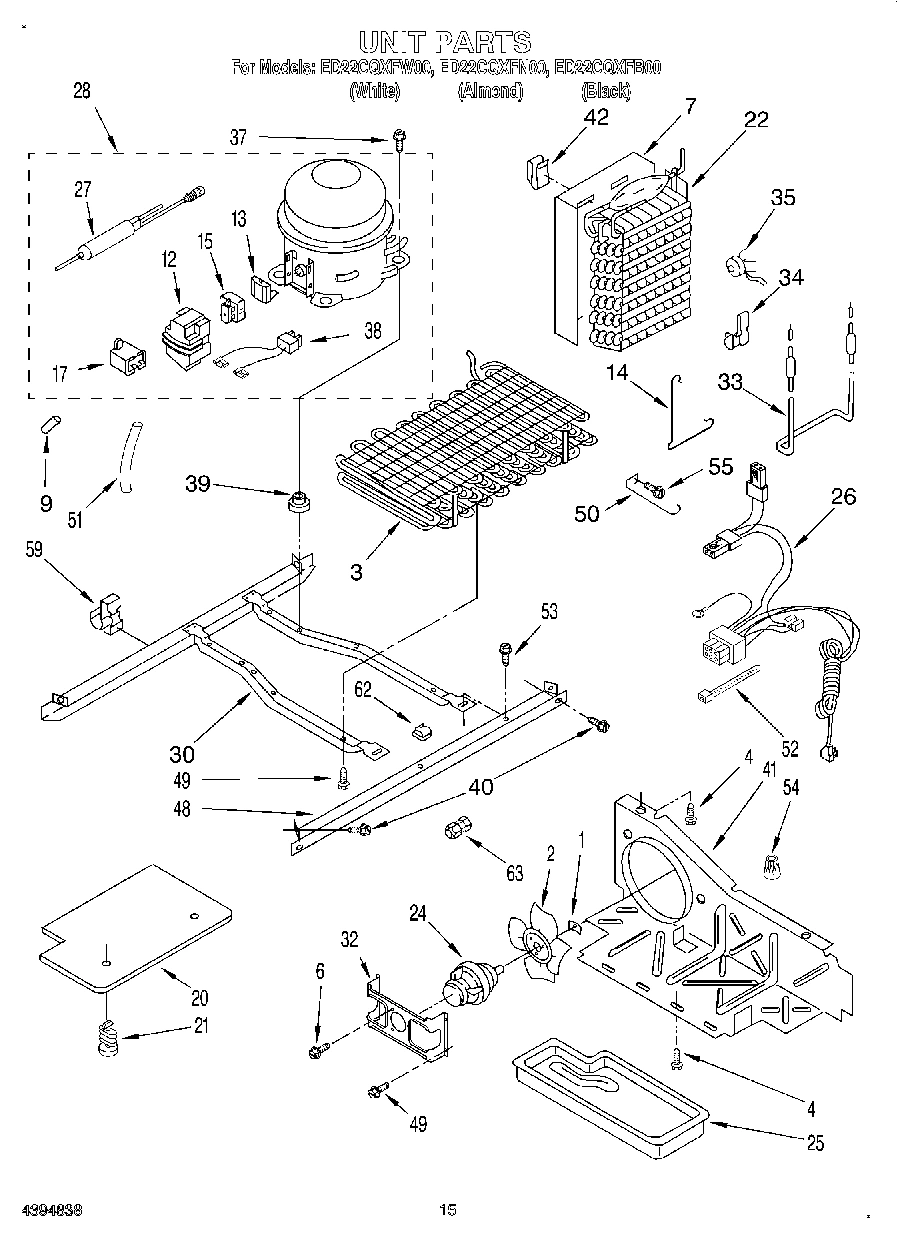

10 - UNIT
Common parts from model Whirlpool ED22CQXFW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT2198384 WPL LIT2198384 Contact Us For Availability
WPL LIT2198457 WPL LIT2198457 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194275B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194275W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
6
Timer, Defrost (10 Hour) WPL 2176648 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194970W Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
9
Shelf Assembly, Cantilever WPL 2163572 Contact Us For Availability
9
Handle, Center (Almond) WPL 2193345N Contact Us For Availability
9
Handle, Center (White) WPL 2193345W Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top (Almond) WPL 2194972N Contact Us For Availability
13
Extension, Top (White) WPL 2194972W Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Meat Pan WPL 2174118 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
16
Grille (Black) WPL 2155476 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Glass, Shelf WPL 2177986 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Retainer, Glass WPL 1125594 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate WPL 2194746 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
