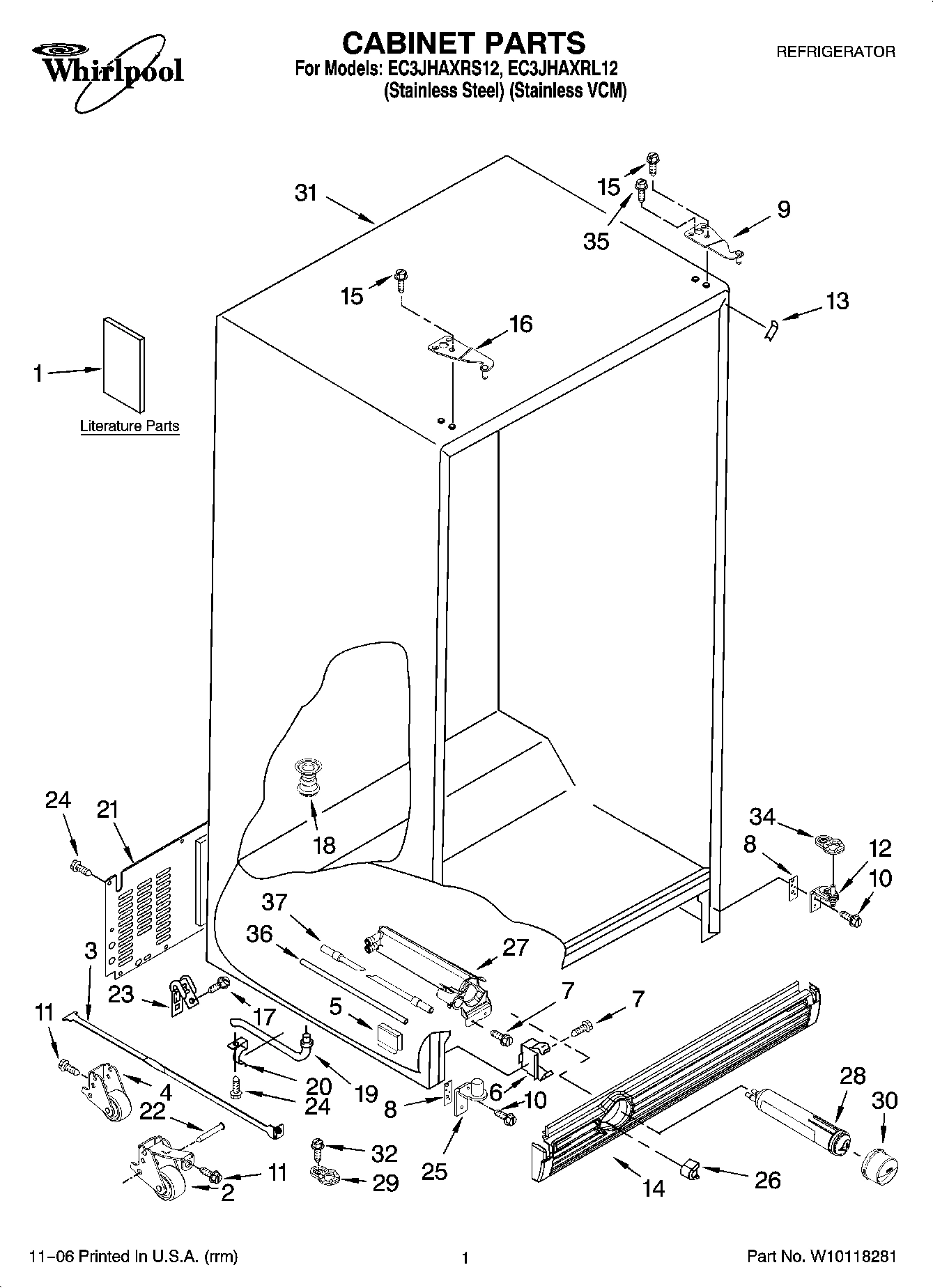

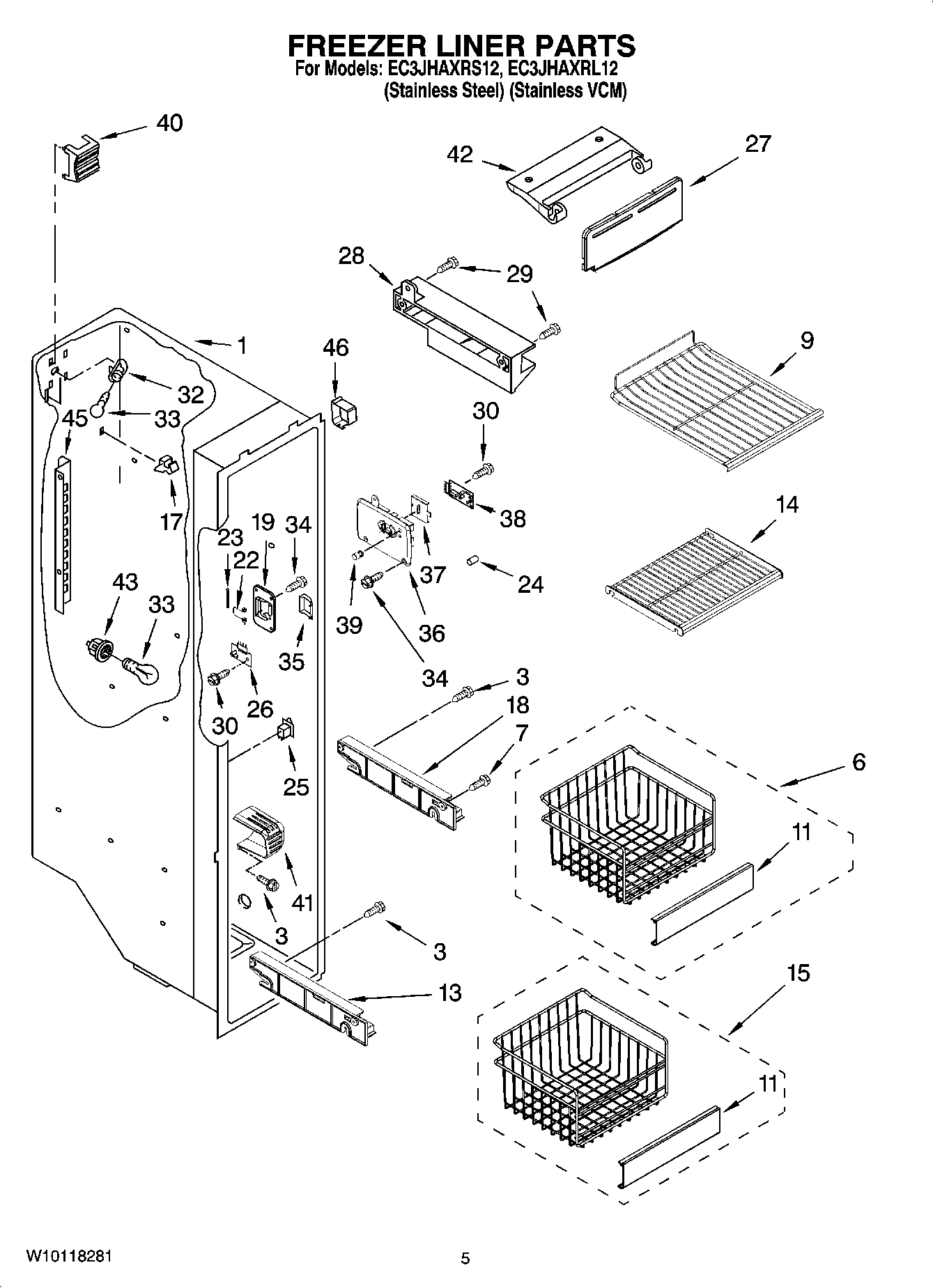

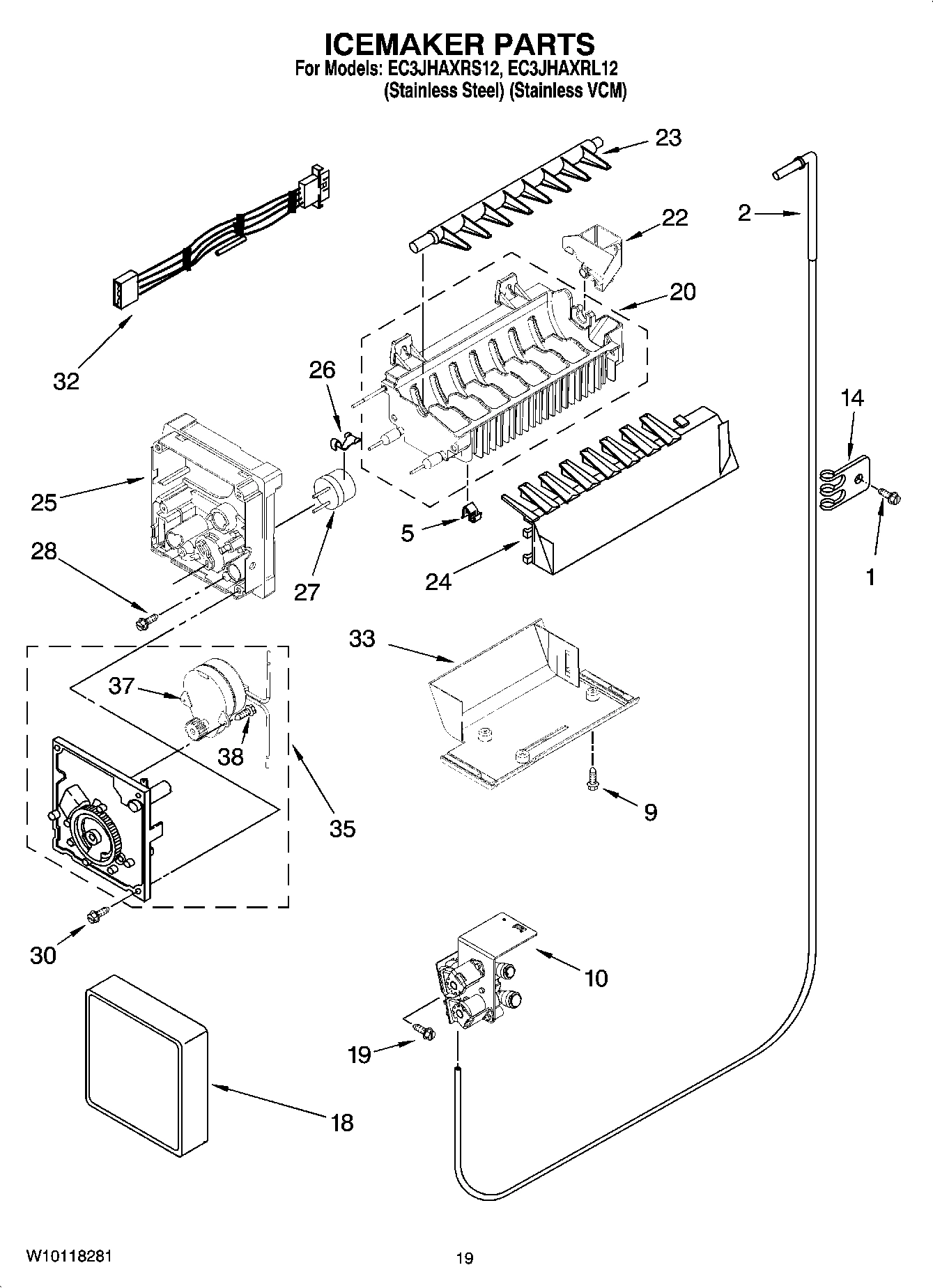

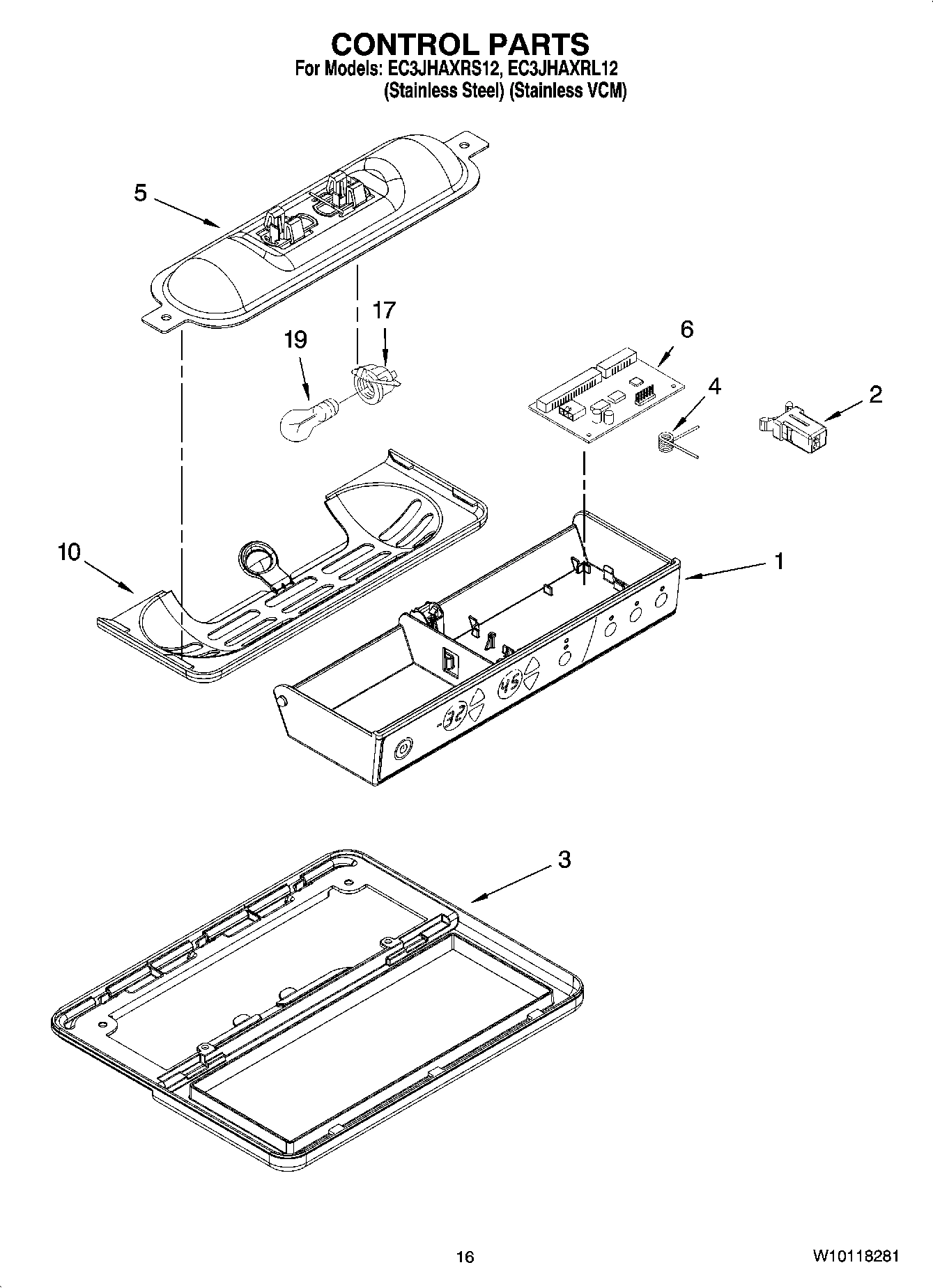

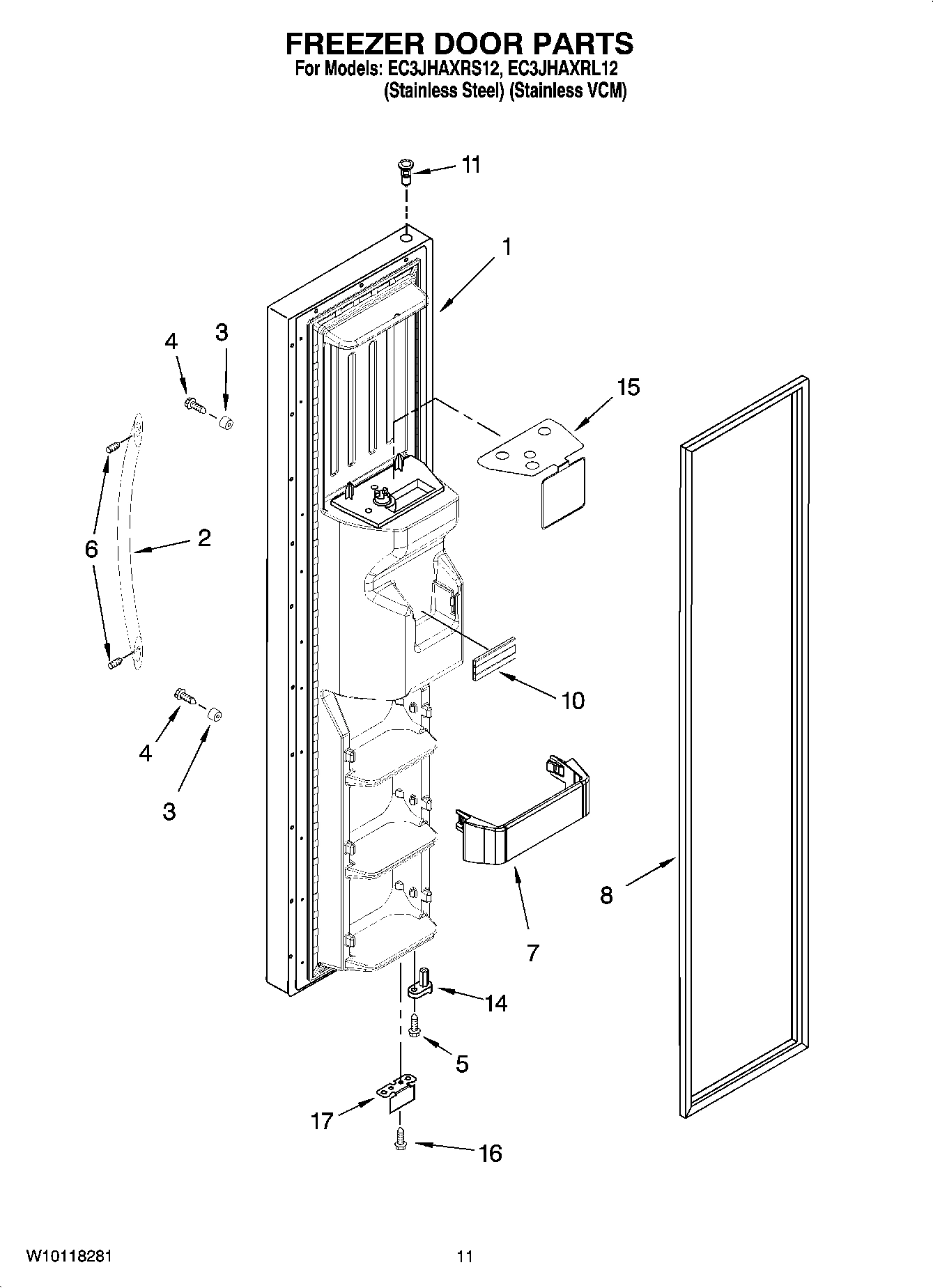

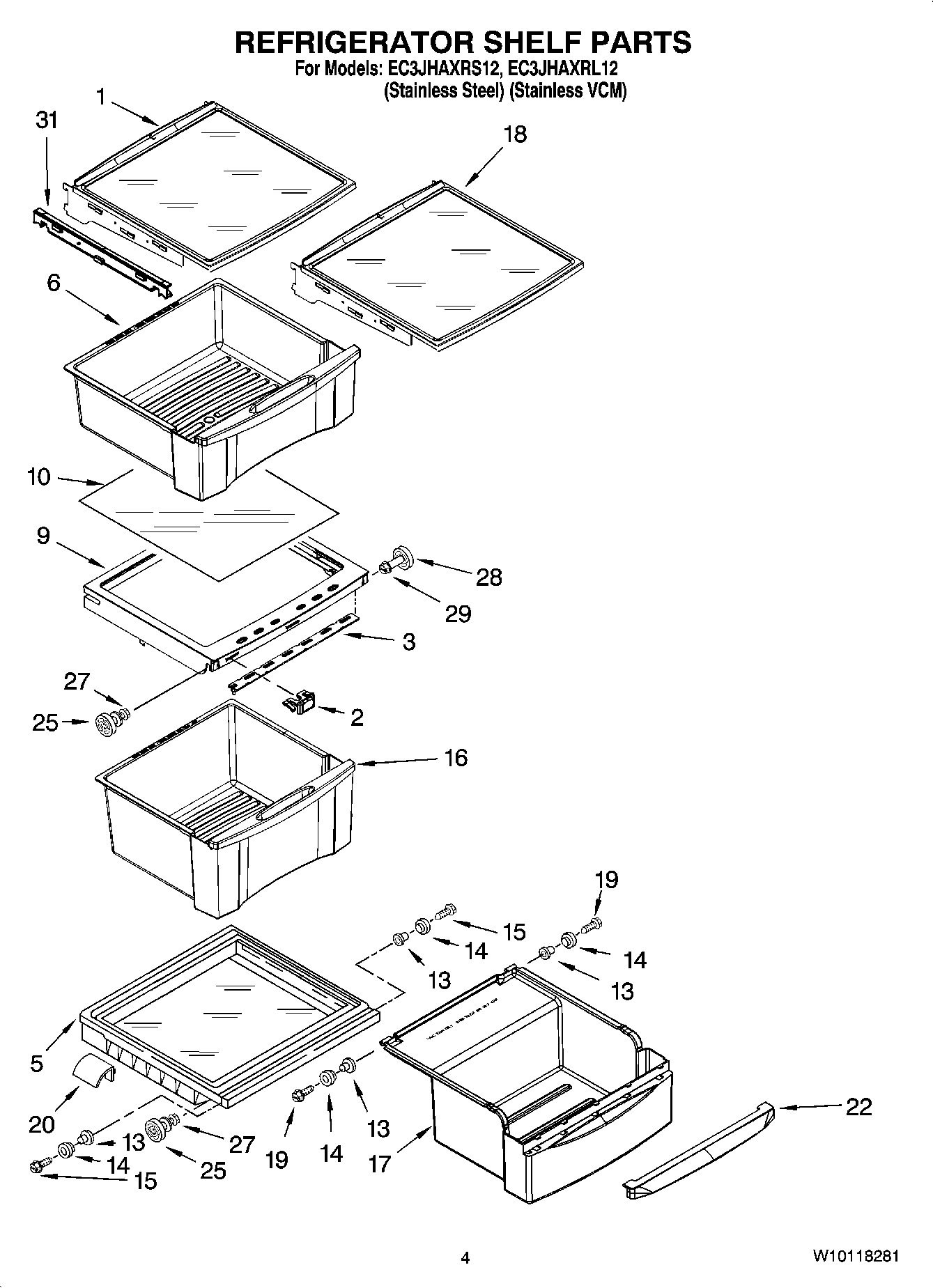

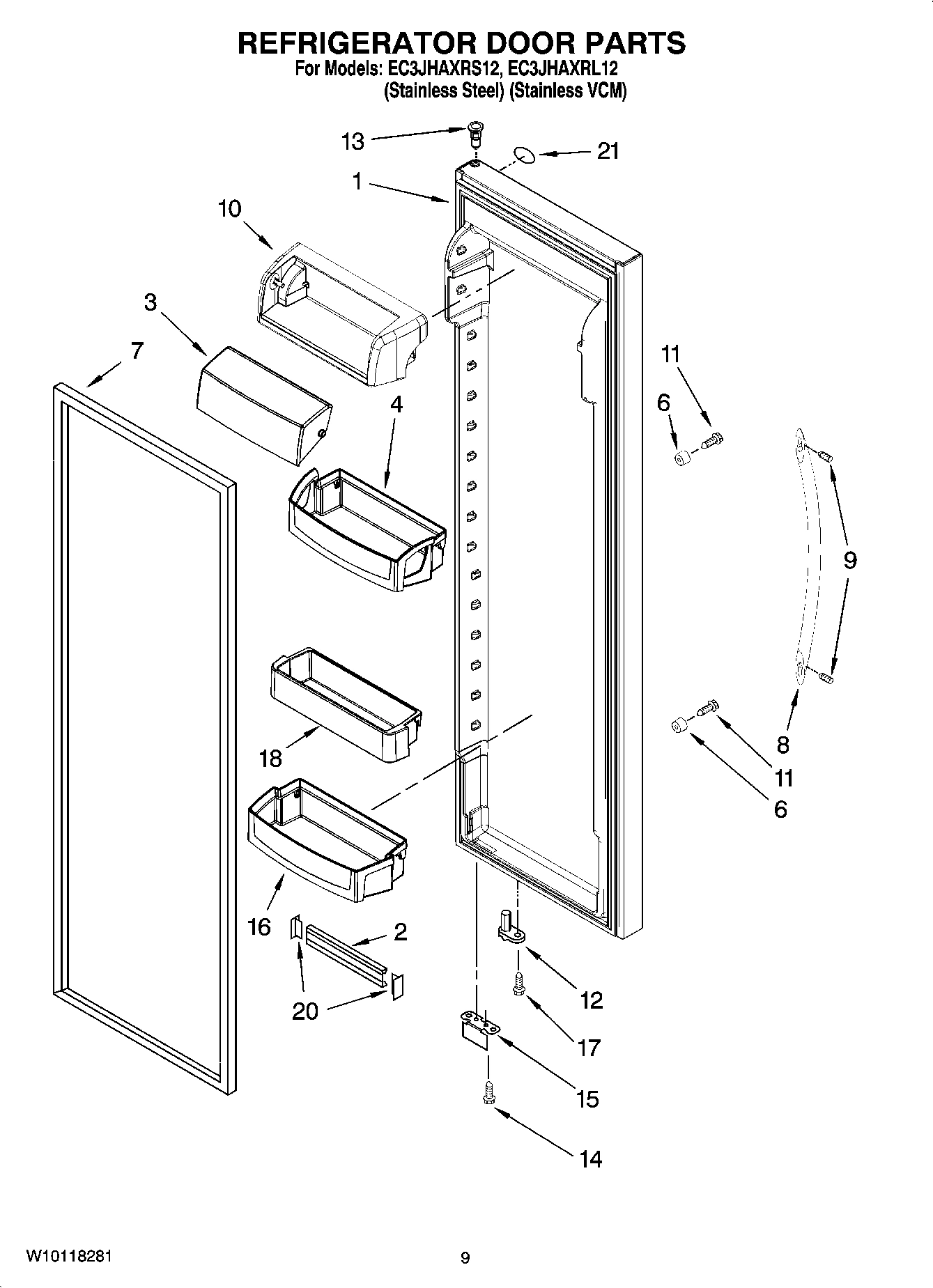

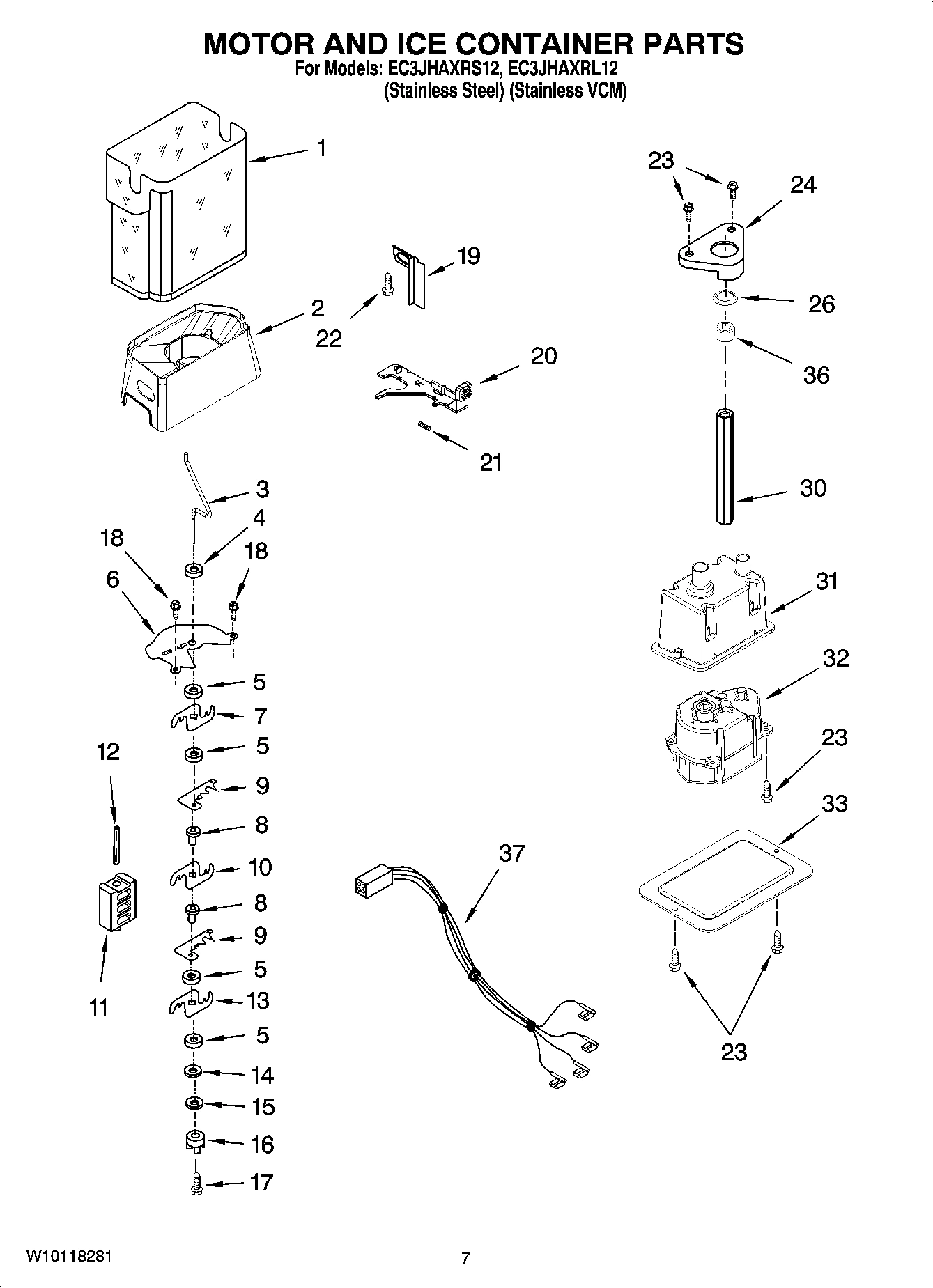

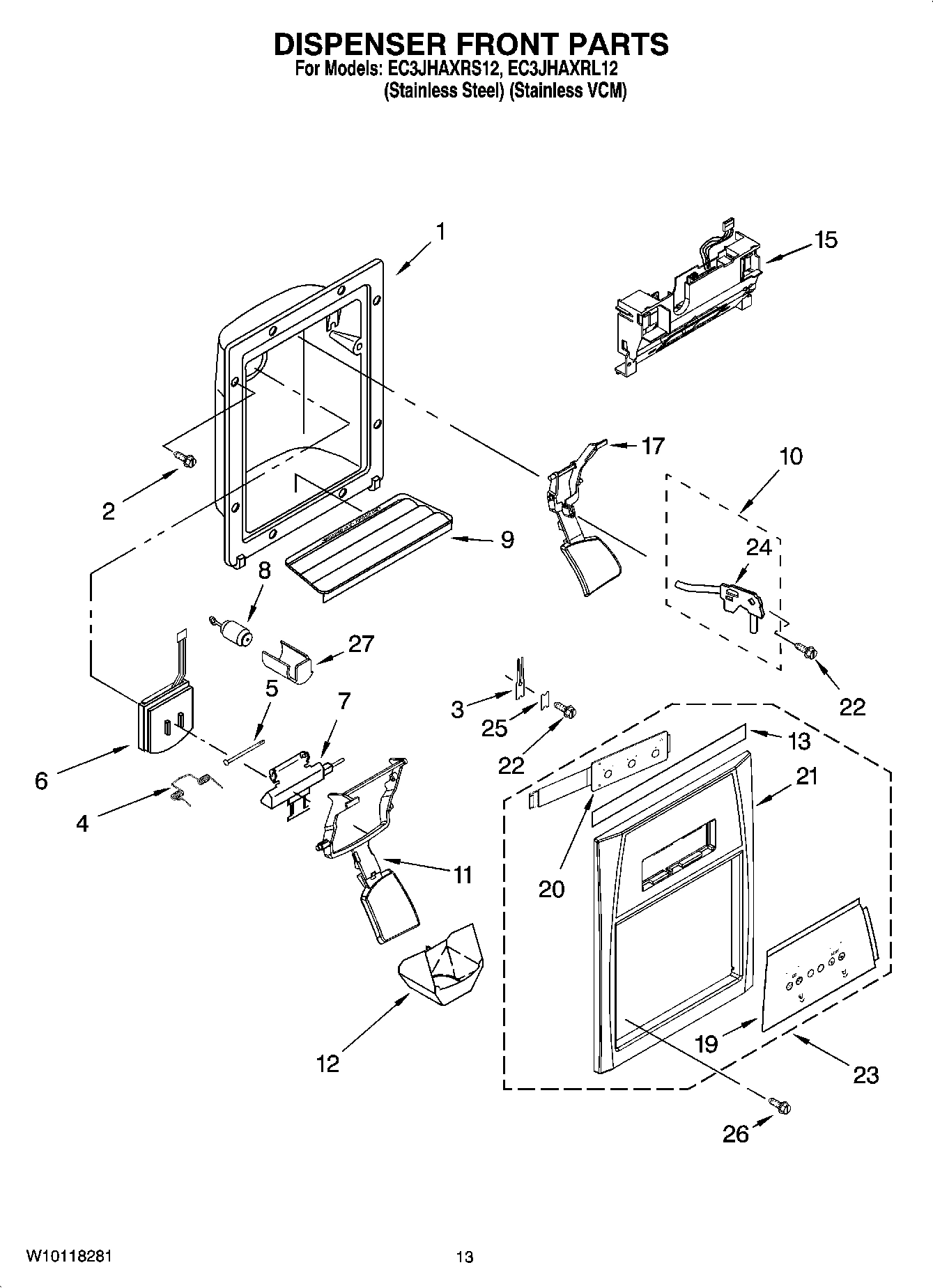

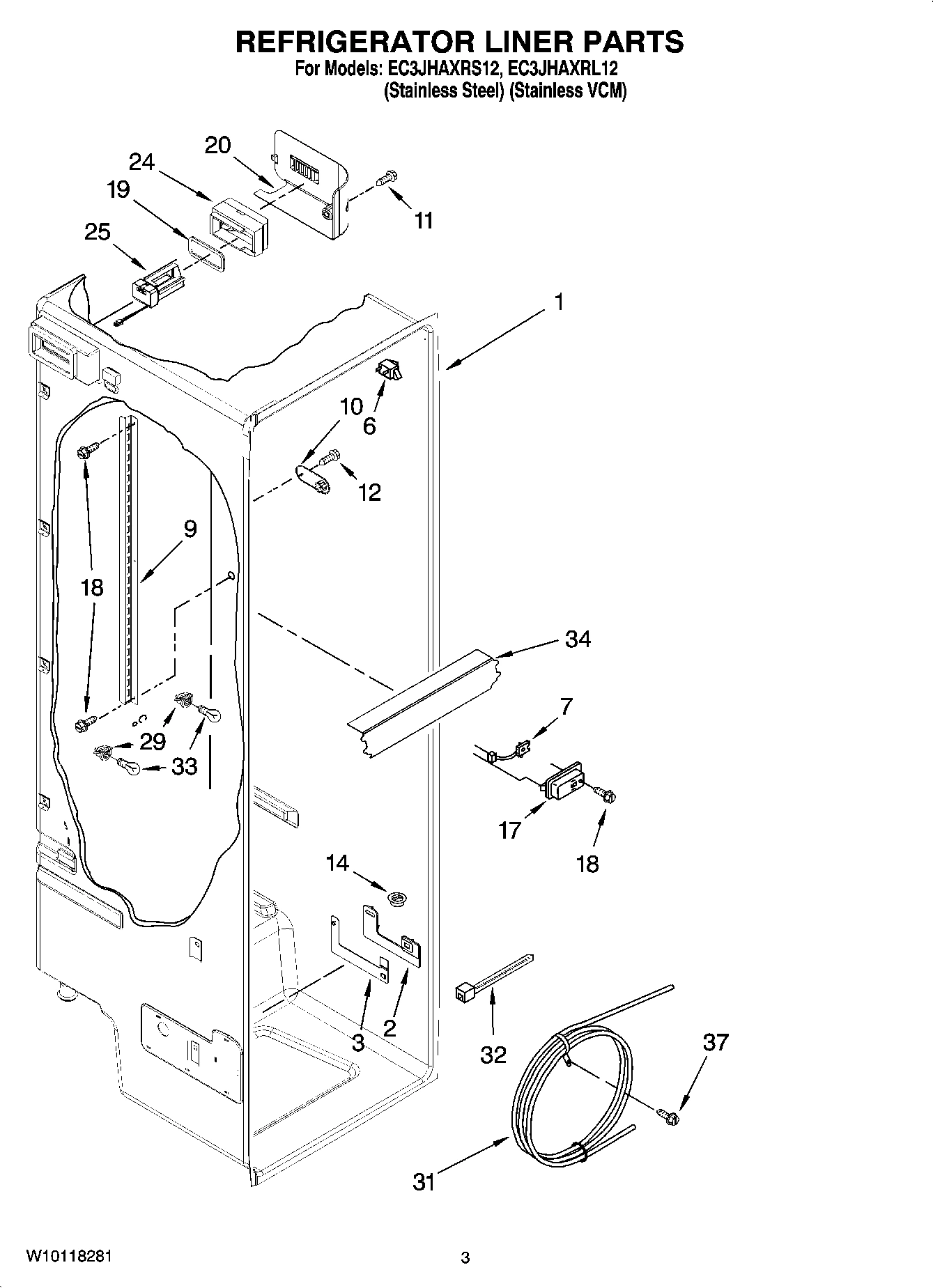

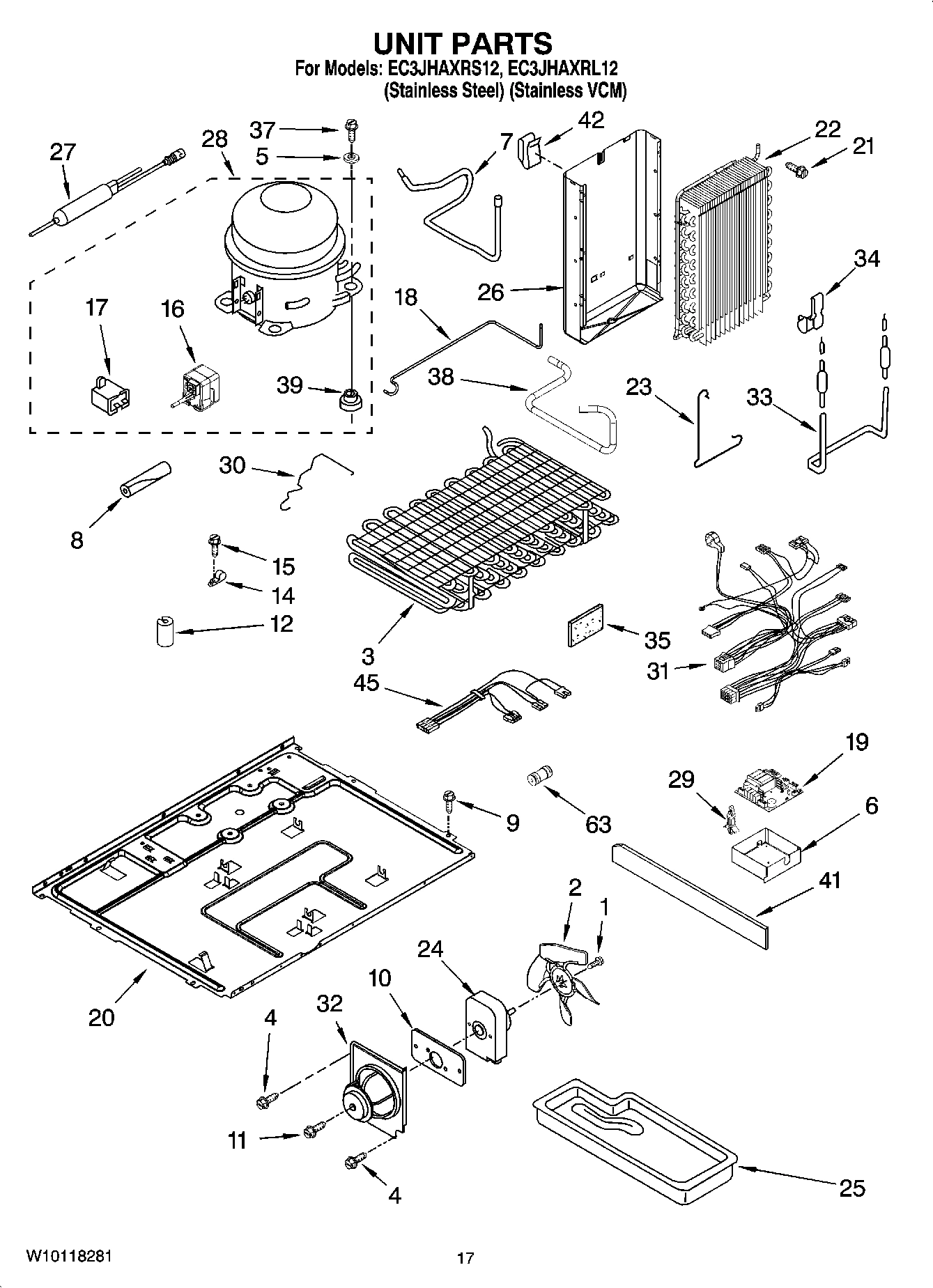

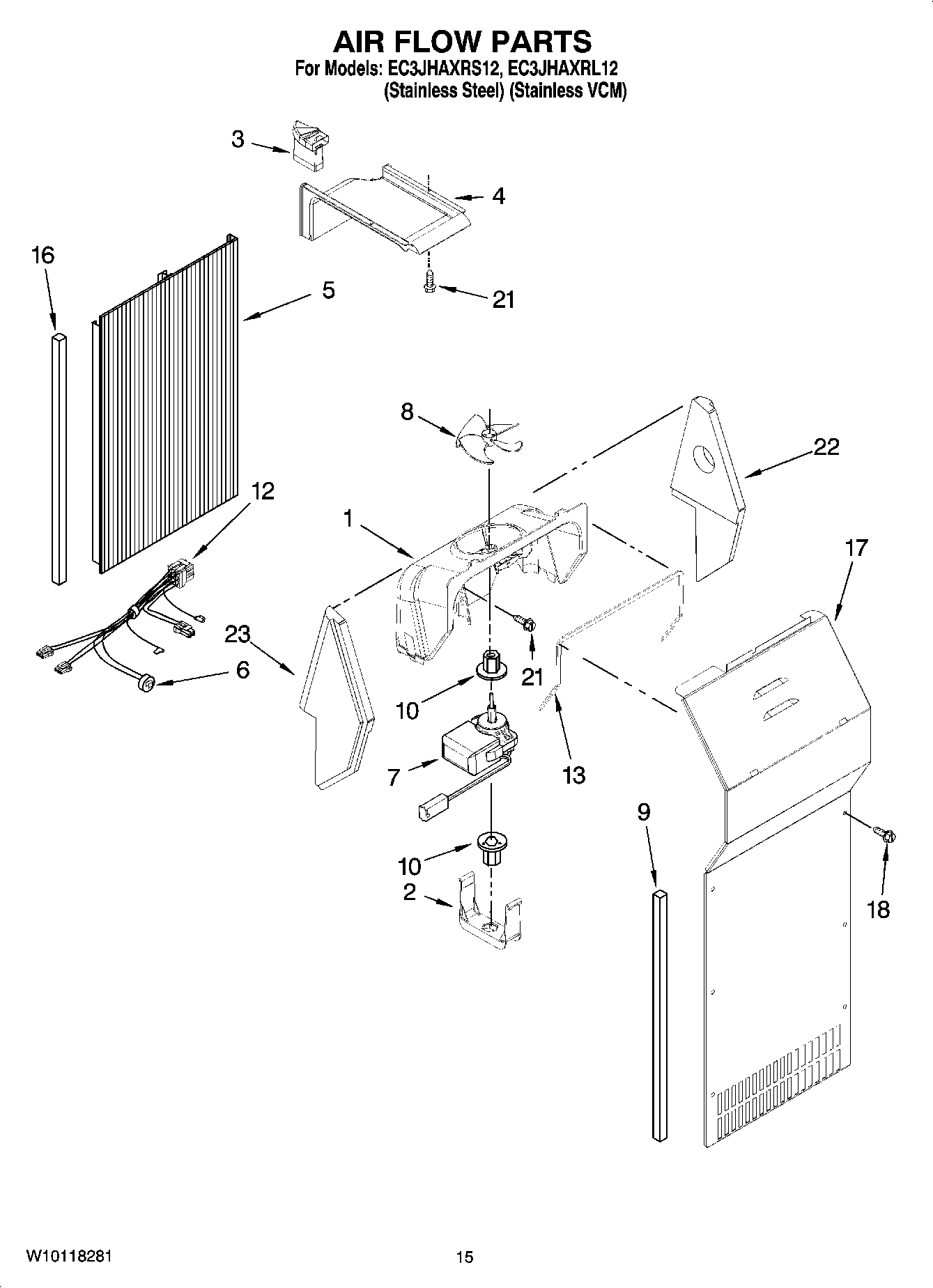

Model Whirlpool EC3JHAXRL12 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.39

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $39.77

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $290.41

1

Ice Bin WPL 2223317 Contact Us For Availability

1

Control Box (Includes 6) WPL 2319752 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25450A3 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI25451A4 Contact Us For Availability

2

2223524 Whirlpool Escutcheon Backorder WPL 2223524 $59.31

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $45.31

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $65.59

3

2223339 Whirlpool Slide Backorder WPL 2223339 $70.60

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $8.04

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Trim, Control Box WPL 2306952 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.89

4

Washer WPL 2258220 Contact Us For Availability

4

Spring, Torsion WPL 2223512 Contact Us For Availability

5

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $57.97

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $5.62

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.82

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.30

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

6

Basket, Deep (2) WPL 2223690 Contact Us For Availability

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.76

7

WP2315548 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315548 $99.29

7

Screw (8) WPL 8534064 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $63.41

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $29.93

9

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $12.14

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.39

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.71

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2 & 3) WPL 2223307 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

9

Shelf Assembly, Cantilever (2) WPL 2223500 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $56.83

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $58.49

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $139.68

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $85.47

Plate, Mounting WPL 2301979 Contact Us For Availability

Housing, Door Control WPL 2317740 Contact Us For Availability

2223782 Whirlpool Front Basket Backorder WPL 2223782 $123.65

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $43.76

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.53

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.50

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

Hinge Assembly, Bottom-RC (Includes 34) WPL 2307179 Contact Us For Availability

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

13

Shelf Track (Right Side) WPL 2223787 Contact Us For Availability

13

Shelf Track (Left Side) WPL 2223788 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $16.76

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $13.77

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

Shelf, Fixed WPL 2223681 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $5.91

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.71

15

Basket, Lower WPL 2223692 Contact Us For Availability

16

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $89.81

16

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.57

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $7.18

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $24.02

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $43.11

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $6.66

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $22.78

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $50.13

Glide Assembly, Basket (2) (Right Side) WPL 2224137 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2224138 Contact Us For Availability

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.79

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

Cover, Emitter WPL 2259487 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

20

Cover, Air Baffle WPL 2223403 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.19

21

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $58.91

21

Cover, Unit WPL 2223409 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $5.01

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $275.26

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.00

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

Handle WPL 2203029 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $6.96

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $5.84

Clamp WPL 2161324 Contact Us For Availability

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.19

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $8.13

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

Tube, P.C. Board WPL 2198665 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.32

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $245.91

Hinge Assembly, Bottom-FC (Includes 29) WPL 2307152 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.14

26

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $3.22

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $3.22

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $50.57

WPW10185438 Whirlpool Ice Maker Cover In Stock WPL WPW10185438 $50.89

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

2306900 Whirlpool Refrigerator Slide Backorder WPL 2306900 $65.06

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.75

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

29

Door Closer, FC WPL 2307051 Contact Us For Availability

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $12.60

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.87

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $16.85

31

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $69.96

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $55.72

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $3.22

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $77.34

33

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $6.29

34

Door Closer (RC) WPL 2307049 Contact Us For Availability

34

Light Lens WPL 2223663 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.40

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $32.21

36

Cover, Receiver WPL 2255558 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.44

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.59

40

Light Shield WPL 2198589 Contact Us For Availability

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $3.22

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $40.77

45

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $111.07

45

Ladder (Left Side) WPL 2320024 Contact Us For Availability

45

Ladder (Right Side) WPL 2320025 Contact Us For Availability

46

2303378 Whirlpool Shield Assembly Backorder WPL 2303378 $12.60

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $150.35
