Model Whirlpool DU8700XT1 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
05 - DISHRACK AND PANEL

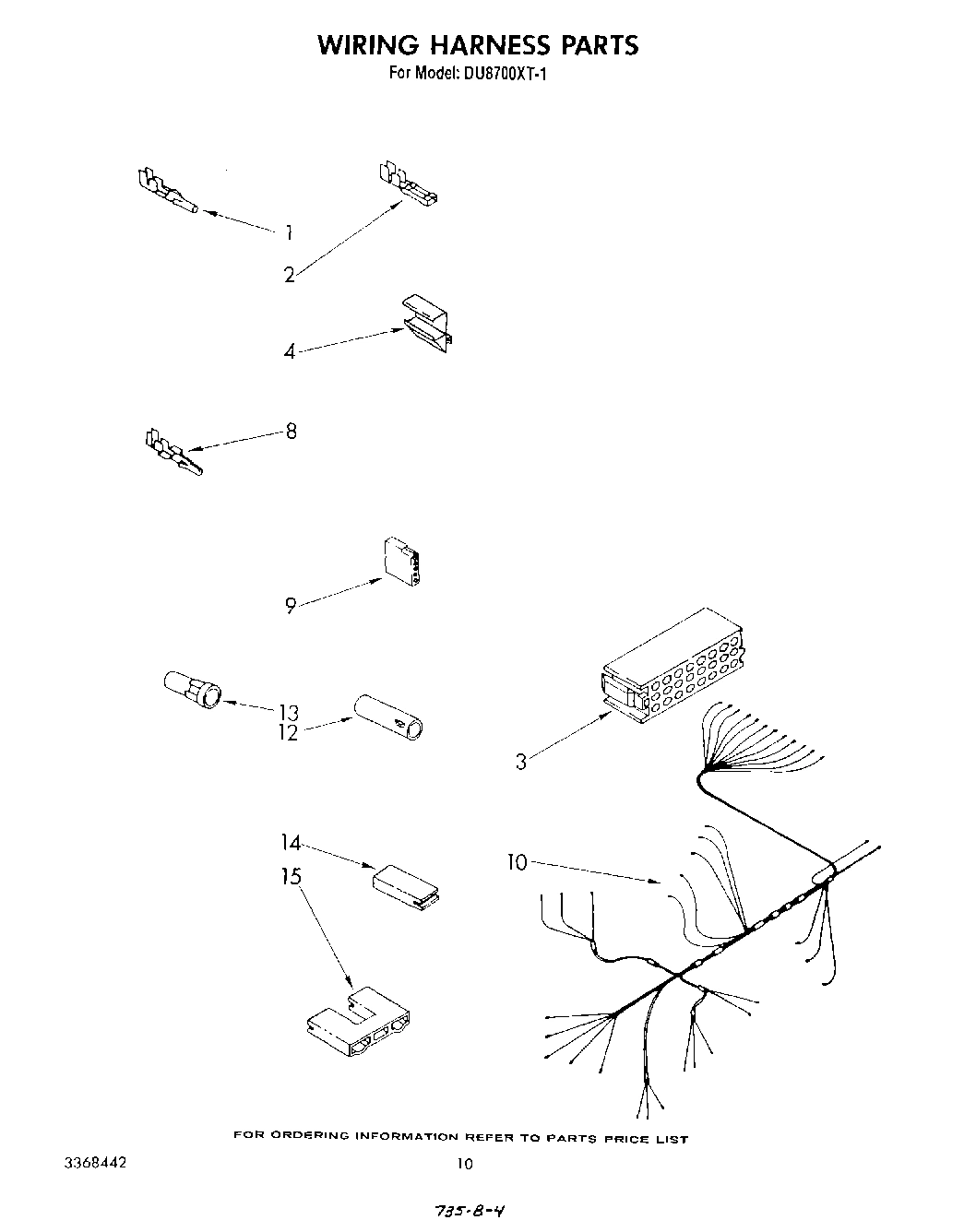

07 - WIRING HARNESS

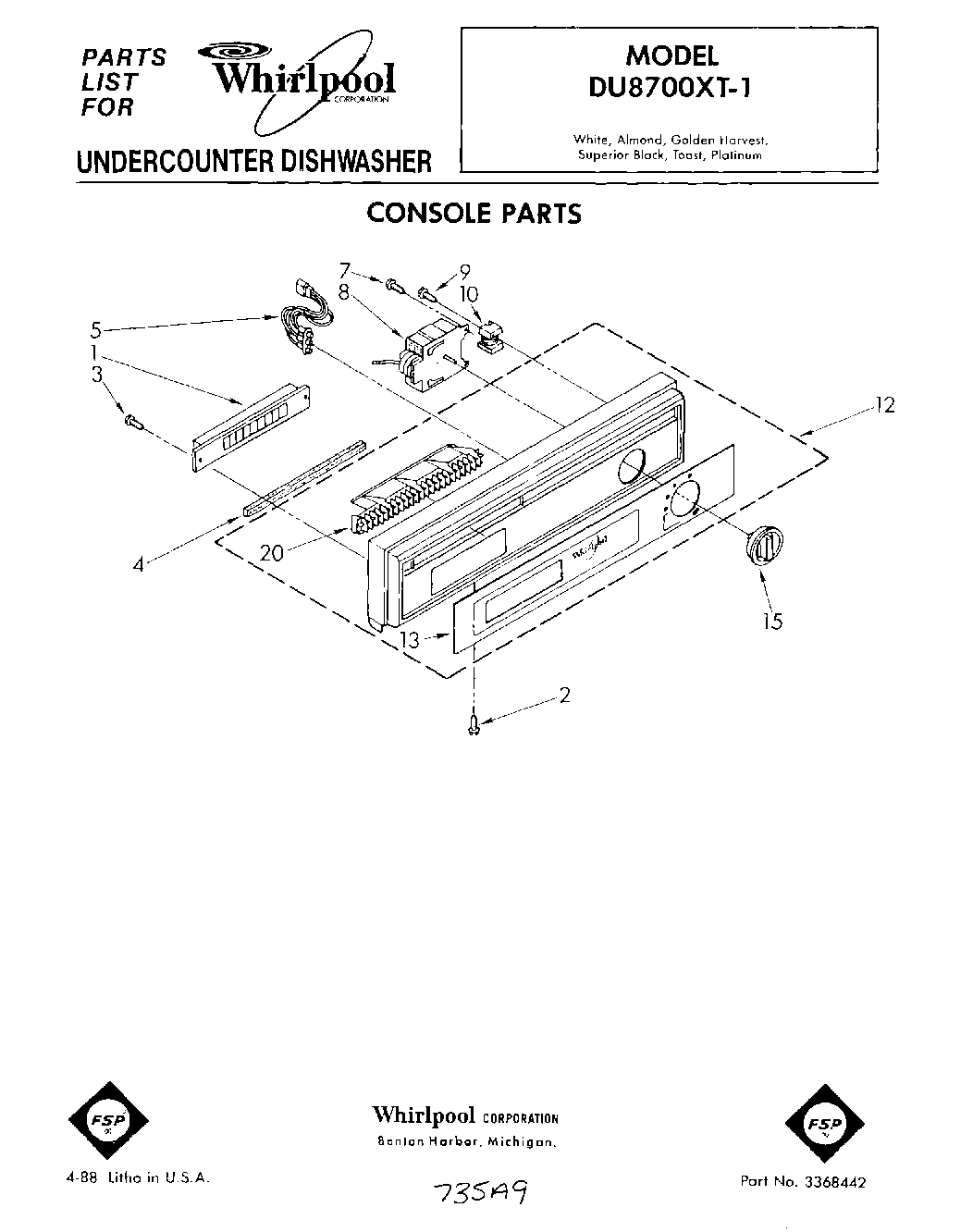

01 - CONSOLE

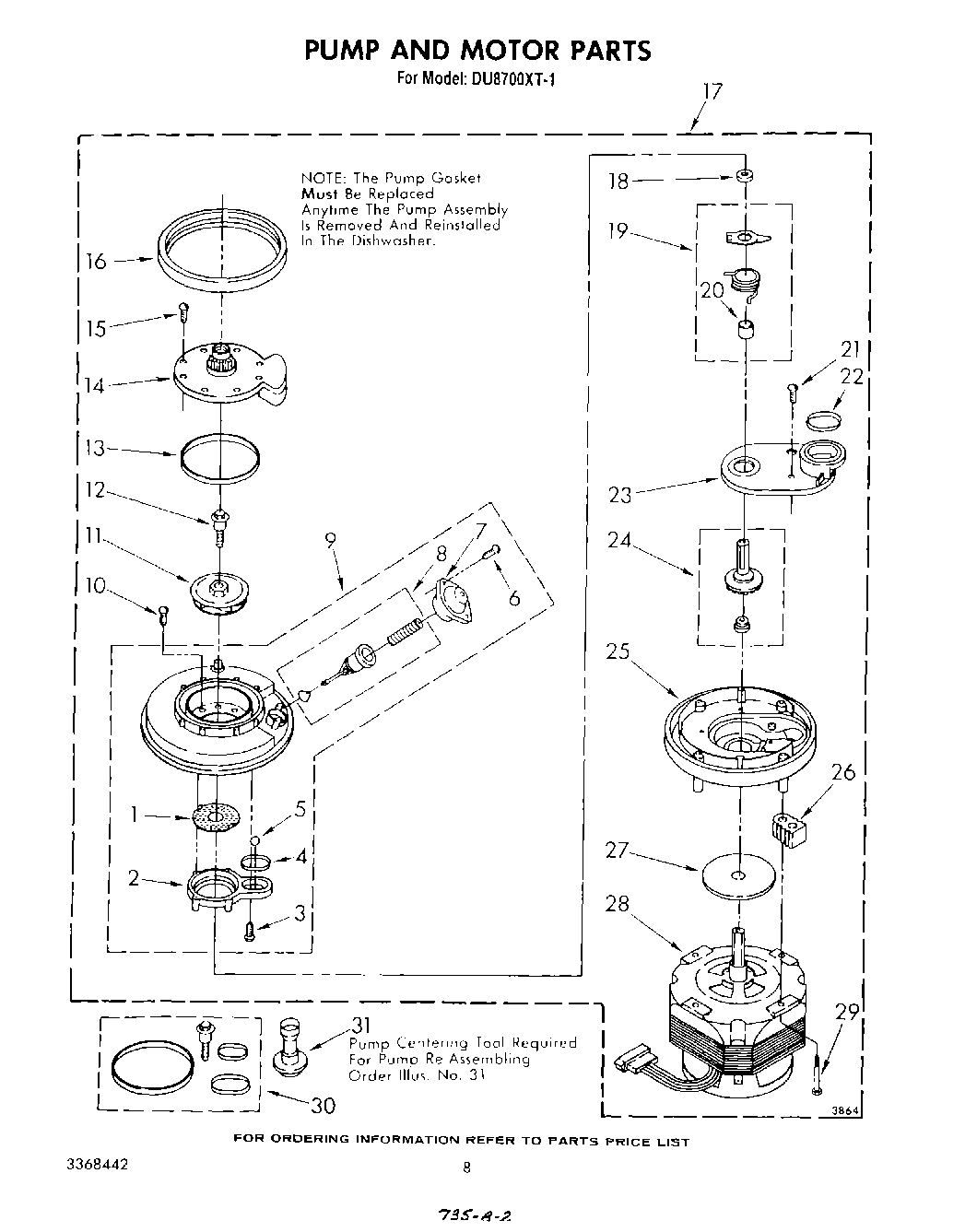

06 - PUMP AND MOTOR

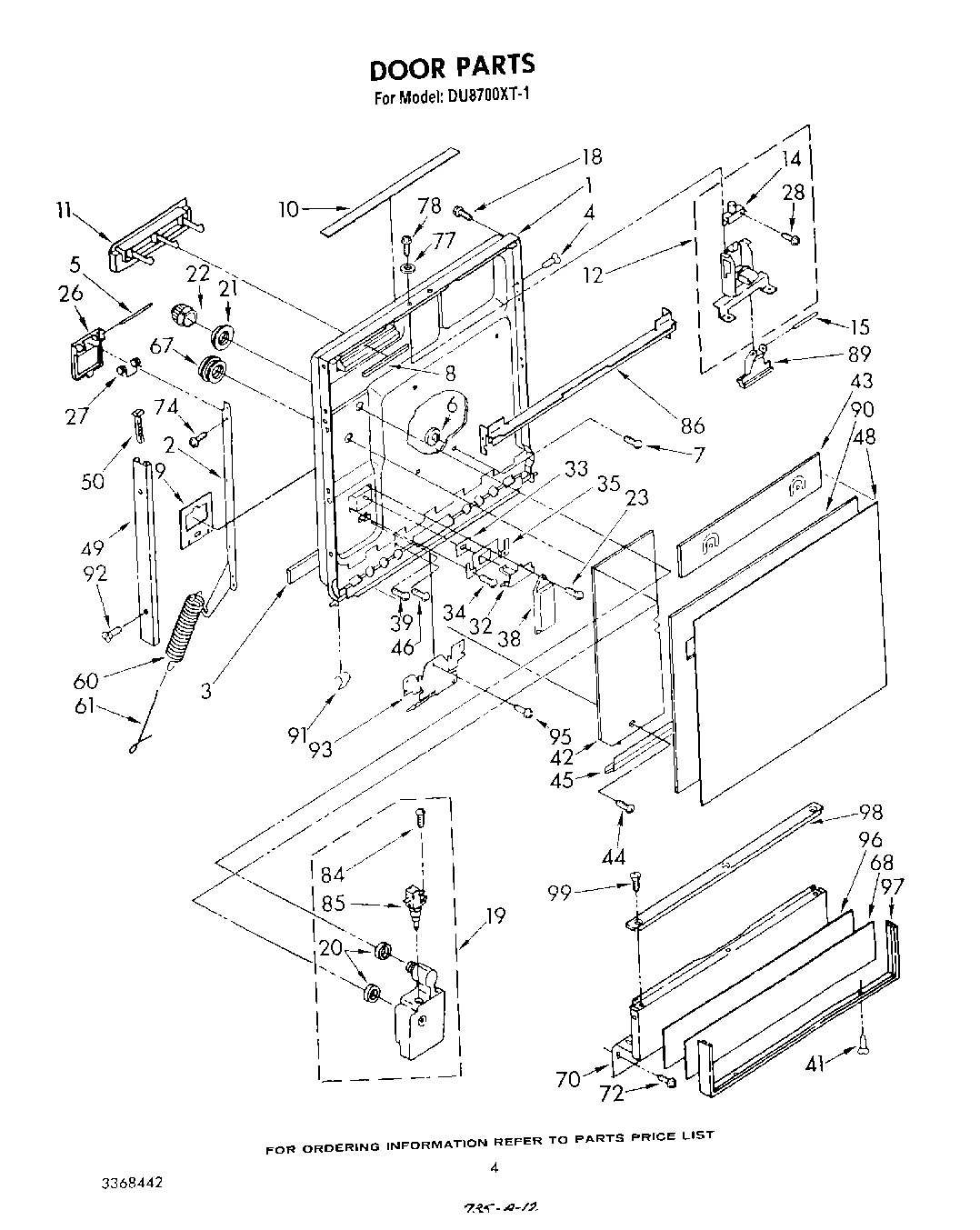

03 - DOOR

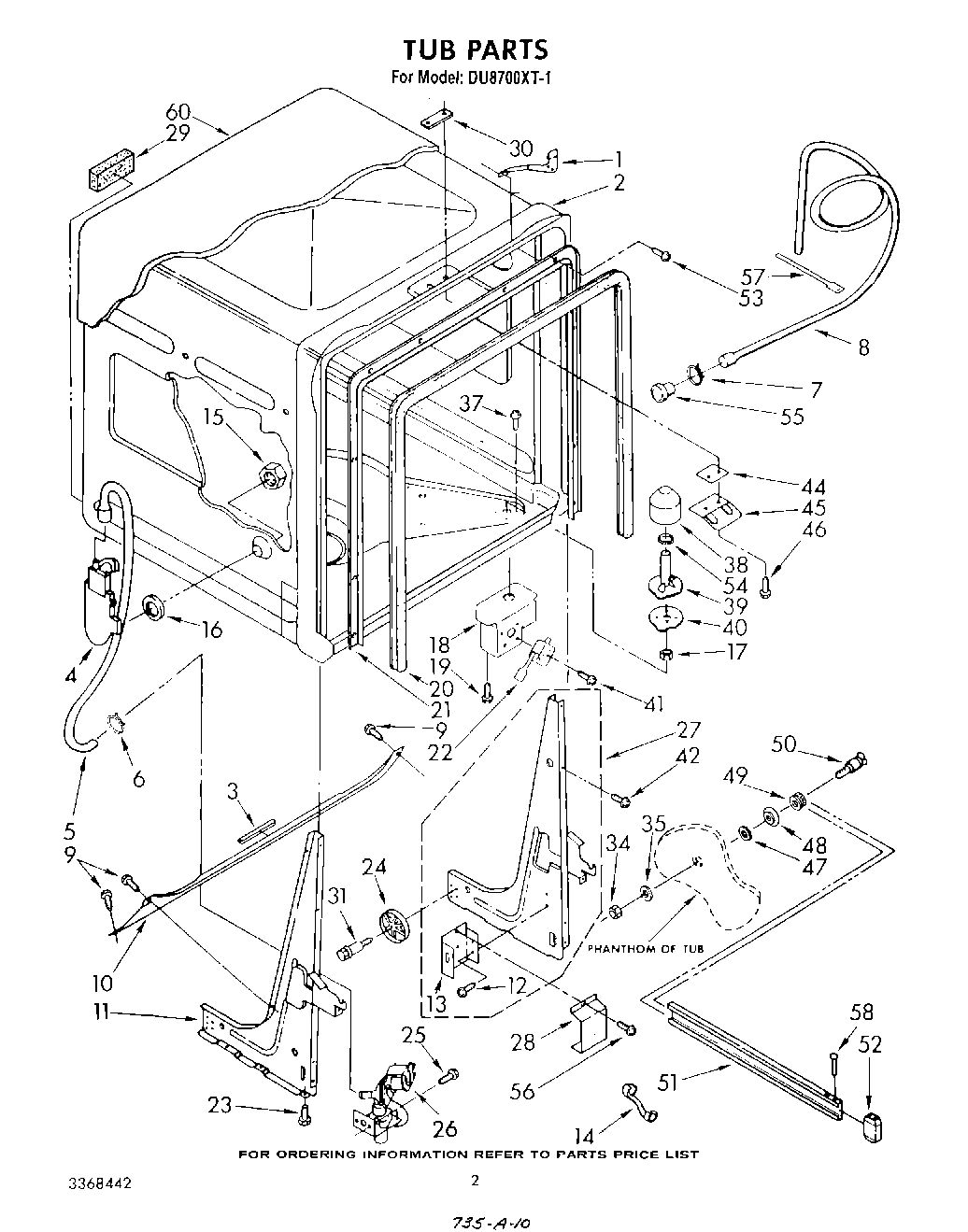

02 - TUB , LITERATURE AND OPTIONAL

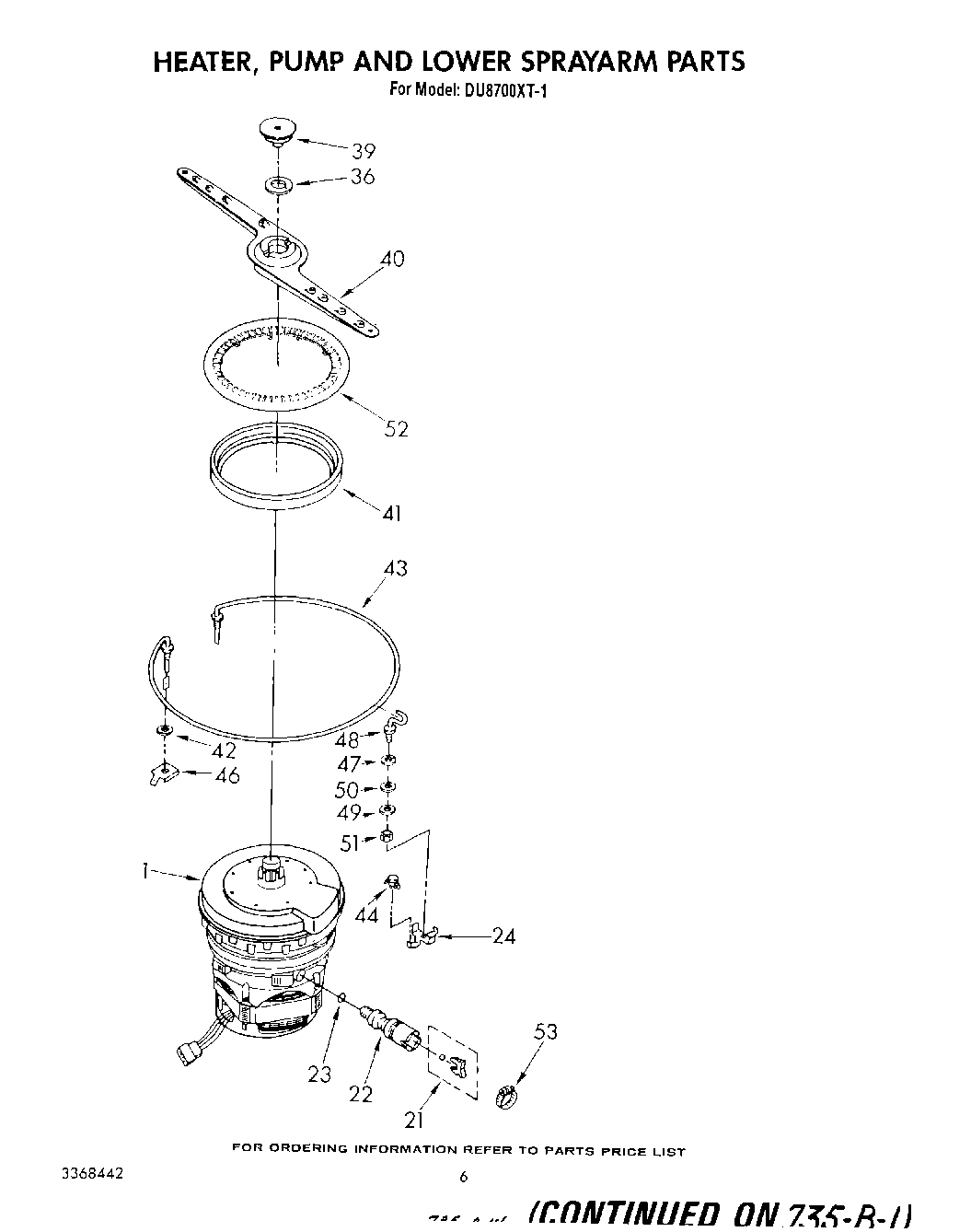

04 - HEATER, PUMP AND LOWER SPRAYARM
Common parts from model Whirlpool DU8700XT1 UNDERCOUNTER DISHWASHER
WPL LIT304290 WPL LIT304290 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3367804 WPL LIT3367804 Contact Us For Availability
WPL LIT3368442 WPL LIT3368442 Contact Us For Availability
WPL LIT677813 WPL LIT677813 Contact Us For Availability
WPL LIT677818 WPL LIT677818 Contact Us For Availability
WPL LIT677821 WPL LIT677821 Contact Us For Availability
WPL LIT677967 WPL LIT677967 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability
1
Pump & Motor Assembly (Includes Illus. 41) WPL 3367444 Contact Us For Availability
1
Door, Inner WPL 3367388 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
2
Base, Inlet (Includes Illus. 1 & 5) (Also Ord WPL 3367173 Contact Us For Availability
2
Support, Door (R.H.) WPL 3367201 Contact Us For Availability
2
Support, Door (L.H.) WPL 3367202 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Button, Retainer (5) WPL 300239 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
7
Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
8
Baffle WPL 719860 Contact Us For Availability
9
Spray Arm WPL 304204 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
9
Baffle WPL 303978 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability
10
Label, Users Guide WPL 303498 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
14
Alternate WPL 300232 Contact Us For Availability
14
Alternate WPL 303075 Contact Us For Availability
14
Alternate WPL 303885 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Screw, 8-18 x 1-7/8 Phlps. Pan Hd. Mach. St. WPL 304233 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 304442 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Grill, Vent WPL 304602 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability
21
Check Ball & Retainer WPL 300797 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
22
Alternate WPL 301671 Contact Us For Availability
22
Alternate WPL 301672 Contact Us For Availability
22
Alternate WPL 304589 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
25
Screw (2) WPL 9419621 Contact Us For Availability
25
Base, Pump (Includes Illus. 24) (Also Order I WPL 3367204 Contact Us For Availability
26
Alternate WPL 303650 Contact Us For Availability
26
alternate WPL 300453 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Motor (Includes Illus. 24, 27 & 31) (Also Ord WPL 302716 Contact Us For Availability
28
Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability
29
WPL 301817 WPL 301817 Contact Us For Availability
29
Block, Foam (2) WPL 3368107 Contact Us For Availability
30
WPL 675505 WPL 675505 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, and Connector WPL 3367910 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
41
Screw, 4-40 x 5/8 Hex Head Slotted Thread Cut WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
43
Barrier, Console WPL 303908 Contact Us For Availability
43
Alternate WPL 302113 Contact Us For Availability
43
Alternate WPL 302562 Contact Us For Availability
43
Heater WPL 660318 Contact Us For Availability
43
Alternate WPL 717141 Contact Us For Availability
43
Alternate WPL 719687 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Alternate WPL 303282 Contact Us For Availability
44
Alternate WPL 303652 Contact Us For Availability
44
Thermostat WPL 661504 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Bracket WPL 3368272 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
48
Panel, Front WPL ARI24416A9 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
51
Track (2) WPL 303297 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
52
End Cap, Track (4) WPL 303299 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex- WPL 3368008 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
58
WPL 303298 WPL 303298 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
WPL 261887 WPL 261887 Contact Us For Availability
60
WPL 261889 WPL 261889 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access WPL ARI24417A1 Contact Us For Availability
70
Plate, Toe WPL 3367671 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
84
WPL 304444 WPL 304444 Contact Us For Availability
85
WPL 304443 WPL 304443 Contact Us For Availability
86
WPL 304391 WPL 304391 Contact Us For Availability
89
WPL 304408 WPL 304408 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
92
WPL 3367288 WPL 3367288 Contact Us For Availability
93
WPL 303362 WPL 303362 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
96
WPL 303755 WPL 303755 Contact Us For Availability
97
WPL 303753 WPL 303753 Contact Us For Availability
98
WPL 303754 WPL 303754 Contact Us For Availability
× ![]()
