Model Whirlpool DU8300XX0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

Leveler (Thinner) WPL 350941 Contact Us For Availability

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Guide, Use & Care WPL LIT3369103 Contact Us For Availability

Parts List WPL LIT3369114 Contact Us For Availability

Instructions, Installation WPL LIT3369671 Contact Us For Availability

Energy Guide WPL LIT3369773 Contact Us For Availability

Wiring Diagram WPL LIT3370465 Contact Us For Availability

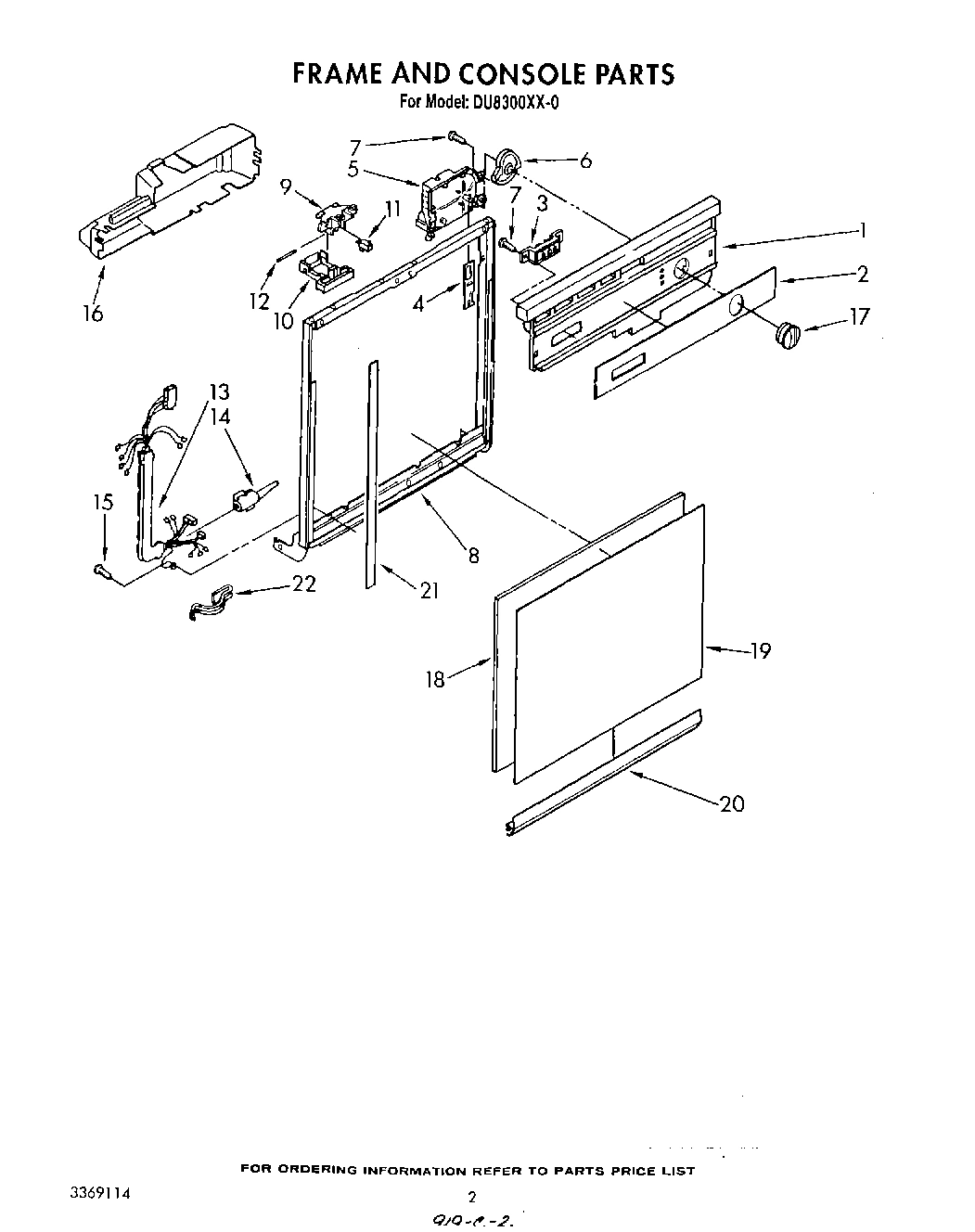

1

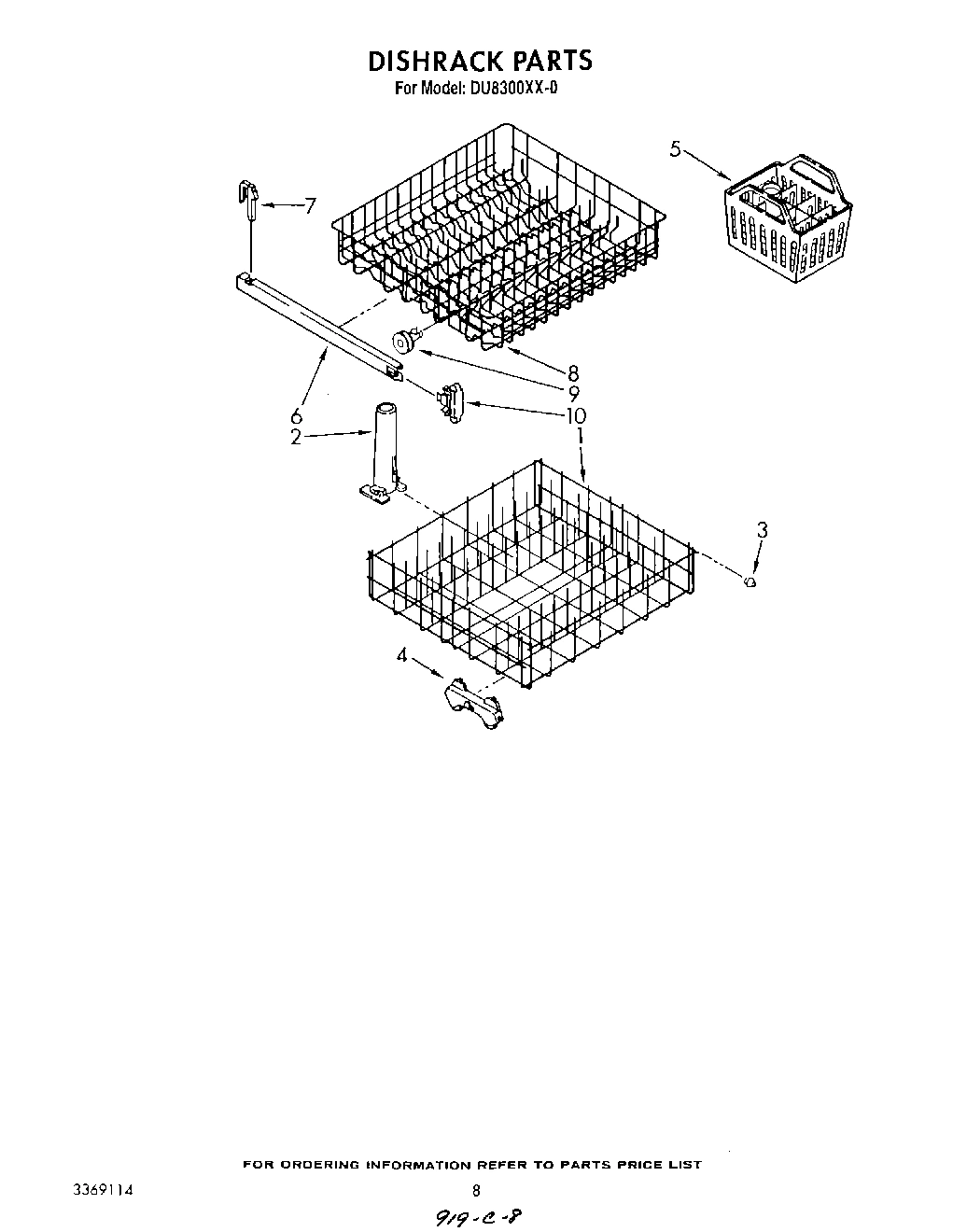

W10161215 Whirlpool Dishwasher Dishrack In Stock WPL W10161215 $371.79

1

WP3369011 Whirlpool Dishwasher Housing Backorder WPL WP3369011 $84.47

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

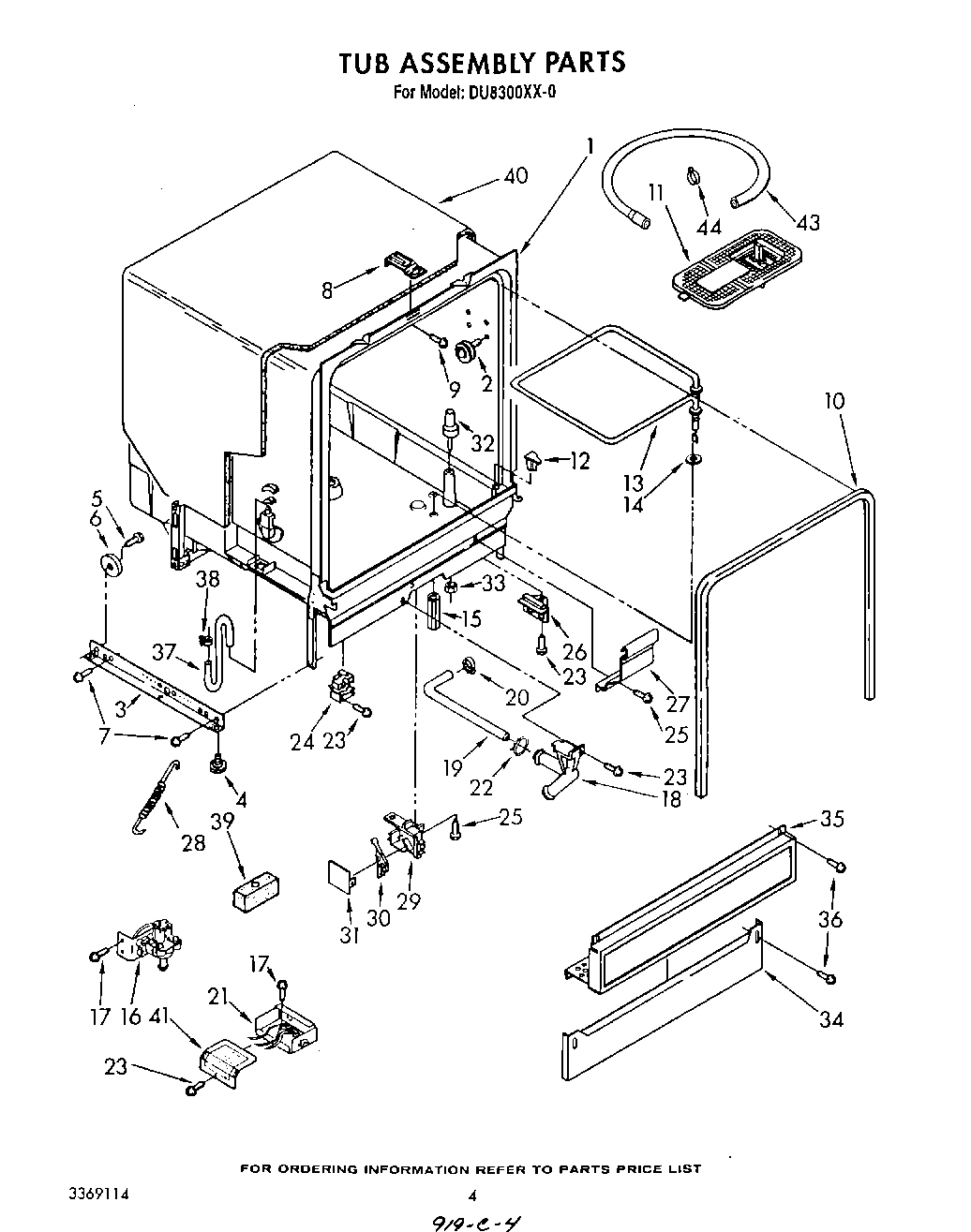

Tub Assembly WPL 3370860 Contact Us For Availability

1

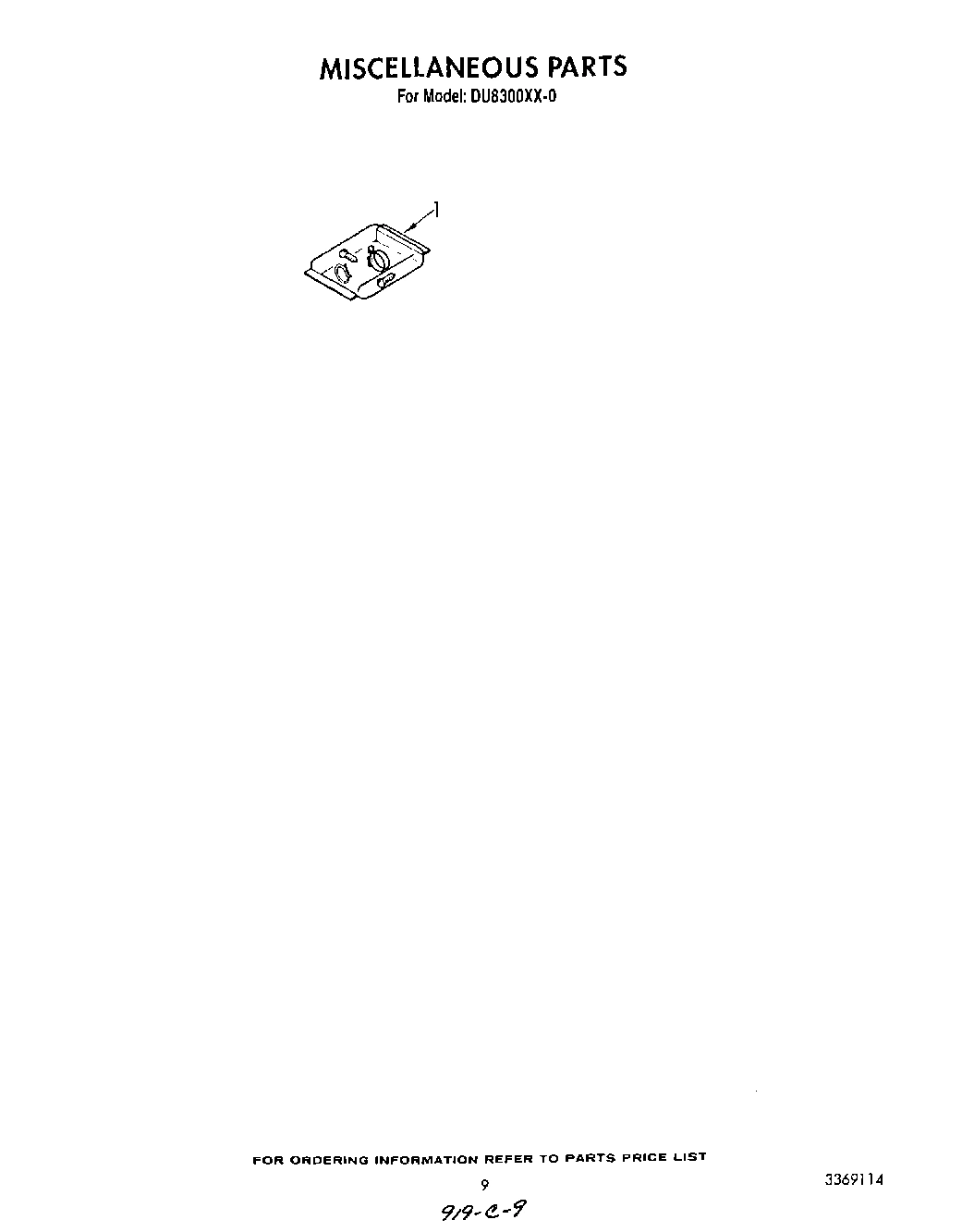

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

2

WP8268825 Whirlpool Dishwasher Protector In Stock WPL WP8268825 $66.99

2

Seal, Drain Cover WPL 3369031 Contact Us For Availability

2

Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability

3

W11189178 Whirlpool Dishwasher Hose In Stock WPL W11189178 $18.31

3

Runner (2) WPL 3368932 Contact Us For Availability

3

Bumper, Dishrack (2) WPL 304490 Contact Us For Availability

4

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $57.34

4

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $63.25

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

4

Follower, Cam WPL 3368997 Contact Us For Availability

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Screw, Shoulder (2) WPL 3370389 Contact Us For Availability

5

Basket, Silverware WPL 3368966 Contact Us For Availability

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $6.99

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Wheel (2) WPL 302819 Contact Us For Availability

6

Track, Dishrack (2) WPL 3369071 Contact Us For Availability

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

7

Seal Seat WPL 3369020 Contact Us For Availability

7

Stop, Track (2) WPL 3369046 Contact Us For Availability

8

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $161.99

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $6.99

8

Washer, Grommet WPL 3369038 Contact Us For Availability

8

Plate, Latch WPL 3368965 Contact Us For Availability

9

Screw, 8-32 WPL 3368919 Contact Us For Availability

9

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $4.82

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $61.91

WPW10509257 Whirlpool Door Gasket In Stock WPL WPW10509257 $56.78

End Cap, Track (2) WPL 300845 Contact Us For Availability

11

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $60.29

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.41

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $6.84

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $59.99

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

WPW10082894 Whirlpool Dishwasher Heater Backorder WPL WPW10082894 $93.02

13

Washer WPL 3369044 Contact Us For Availability

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.13

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

15

Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability

16

Cover, Timer WPL 3369192 Contact Us For Availability

16

Water Valve WPL 3369868 Contact Us For Availability

17

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

17

Knob, Timer WPL 3368998 Contact Us For Availability

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Check, Valve Assembly WPL 3369421 Contact Us For Availability

WP3369177 Whirlpool Dishwasher Seal Backorder WPL WP3369177 $7.37

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $28.60

Front Panel (Almond/White) (Optional) WPL 3369517 Contact Us For Availability

Hose, Coupler WPL 3369180 Contact Us For Availability

20

WP3369178 Whirlpool Dishwasher Check Ball In Stock WPL WP3369178 $7.72

20

Retainer, Panel WPL 3370441 Contact Us For Availability

20

Clamp WPL 3369082 Contact Us For Availability

21

Trim (2) WPL 3369586 Contact Us For Availability

21

Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability

22

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

22

Clamp WPL 3369327 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $95.03

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

26

WP3368928 Whirlpool Dishwasher Fuse In Stock WPL WP3368928 $56.99

27

Shield, Harness WPL 3368983 Contact Us For Availability

28

Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

30

Switch, Float WPL 3369067 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float Backorder WPL WP8519552 $78.32

33

Nut WPL 717488 Contact Us For Availability

35

Panel, Access WPL 3368936 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

37

Hose, Inlet WPL 3369414 Contact Us For Availability

38

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

39

Diverter WPL 3369317 Contact Us For Availability

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $17.77

41

Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability

43

675544 Whirlpool Drain Hose Backorder WPL 675544 $94.08

44

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82
