Model Whirlpool DP920QWDB5 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $21.98

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $26.24

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $25.17

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $24.99

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $18.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

1

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

1

Clip WPL 303722 Contact Us For Availability

1

Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability

1

Shell Assembly (Almond) WPL 3378112 Contact Us For Availability

2

WPW10273574 Whirlpool Dishwasher Filter and D In Stock WPL WPW10273574 $177.99

2

Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability

2

Support, Arm (Also Order Items 1 & 8) WPL 3368290 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

3

Spray Arm, Upper (Also Order Items 1 & 8) WPL 3377274 Contact Us For Availability

4

3378109 Whirlpool Dishwasher Cushion Backorder WPL 3378109 $62.18

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

4

WP3369505 Whirlpool Dishwasher Actuator Backorder WPL WP3369505 $31.63

4

WP3385142 Whirlpool Dishwasher Bumper Backorder WPL WP3385142 $60.40

5

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

5

Ball, Check WPL 302709 Contact Us For Availability

5

Tower, Pressure WPL 300848 Contact Us For Availability

6

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

6

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $63.25

6

Wheel (2) WPL 302819 Contact Us For Availability

6

Draw Bar, Electronic WPL 3369448 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $221.99

7

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

7

Cover, Valve WPL 302721 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $6.99

8

Support, Lock Spray Arm WPL 3374702 Contact Us For Availability

8

Housing, Hose WPL 3371343 Contact Us For Availability

8

Door Frame (Includes Item 27) WPL 3374711 Contact Us For Availability

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303882 Contact Us For Availability

9

Silverware Basket Assembly WPL 3369488 Contact Us For Availability

9

Cord, Power WPL 3379199 Contact Us For Availability

Lever, Latch WPL 3369457 Contact Us For Availability

Screw WPL 3400001 Contact Us For Availability

Cover, Basket WPL 3369485 Contact Us For Availability

Protector-Edge, Divider WPL 3378125 Contact Us For Availability

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $5.87

11

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

11

Stop, Track (4) WPL 3379941 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $4.82

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $4.82

WP3385089 Whirlpool Track In Stock WPL WP3385089 $63.60

Pin, Switch (2) WPL 3368955 Contact Us For Availability

Shroud, Caster WPL 3371640 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

13

Screw WPL 3370544 Contact Us For Availability

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.13

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability

Panel, Top WPL 3373198 Contact Us For Availability

15

675238 Whirlpool Check Valve In Stock WPL 675238 $58.47

15

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WPW10204131 Whirlpool Dishwasher Dishrack Adj In Stock WPL WPW10204131 $9.99

Gasket, Pump WPL 717000 Contact Us For Availability

Cover, Drip WPL 3371569 Contact Us For Availability

Socket, Caster WPL 300450 Contact Us For Availability

17

WP3370639 Whirlpool Caster Backorder WPL WP3370639 $51.96

17

Motor, Dual WPL 3374501 Contact Us For Availability

17

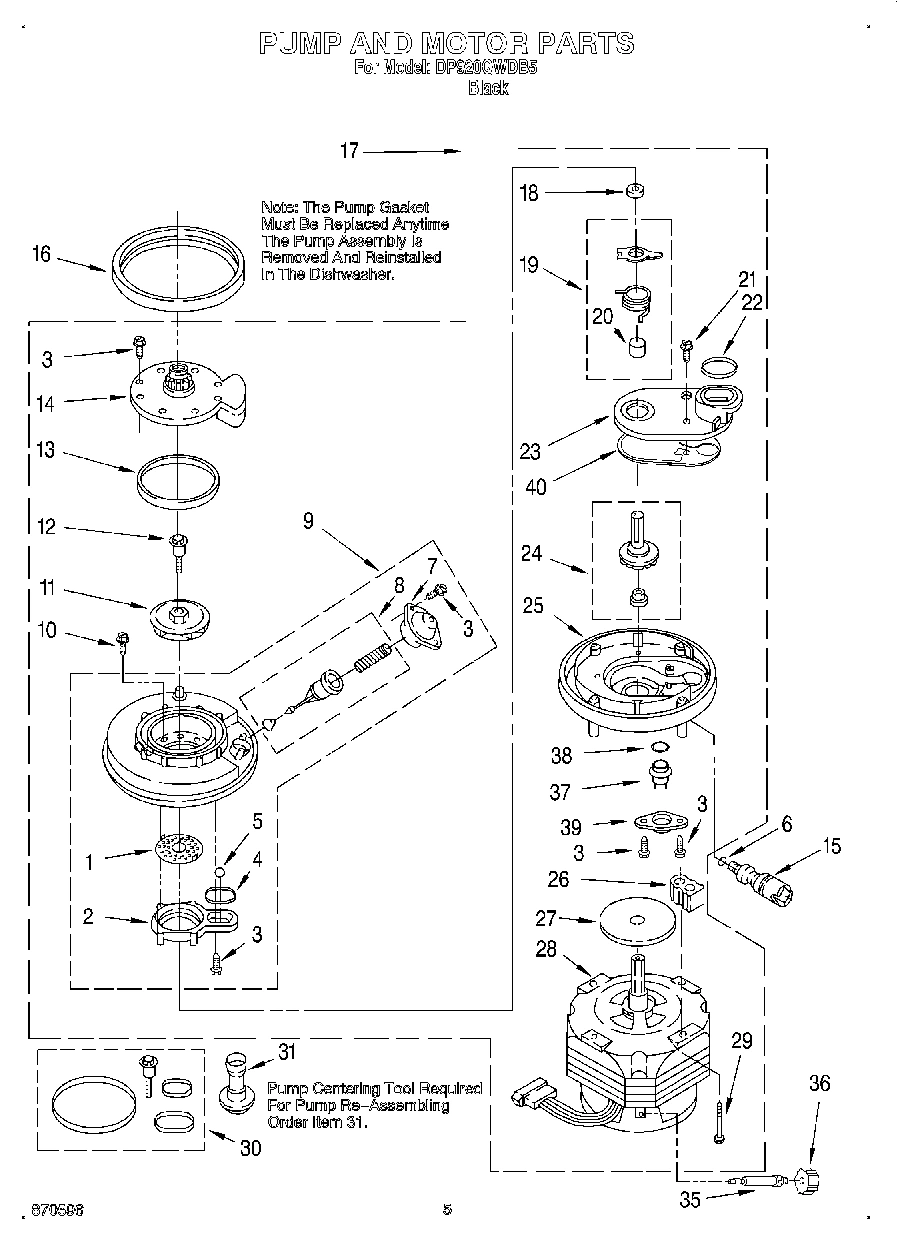

Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability

18

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $161.99

18

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $48.99

18

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $98.99

19

Trim, Basket WPL 717528 Contact Us For Availability

Retainer, Panel WPL 3374010 Contact Us For Availability

Sleeve, Drain Impeller WPL 3378139 Contact Us For Availability

Handle, Basket WPL 300086 Contact Us For Availability

Shield, Sound WPL 3371233 Contact Us For Availability

21

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

21

Screw (2) WPL 3370826 Contact Us For Availability

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

22

Sprayarm, Lower WPL 3369347 Contact Us For Availability

22

Protector-Edge, Divider WPL 3378126 Contact Us For Availability

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 3378207 Contact Us For Availability

24

Bearing, Nozzle WPL 719576 Contact Us For Availability

24

Frame Assembly WPL 3370551 Contact Us For Availability

25

Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability

25

Screw, 8-18 x 1/2 WPL 3371635 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $4.55

26

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

26

Screw, 8-18 x 5/8 WPL 3371644 Contact Us For Availability

27

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $8.89

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.36

27

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $64.64

28

WP3374343 Whirlpool Dishwasher Spring In Stock WPL WP3374343 $21.08

28

Motor (Includes Item 27) (Also Order Item 30) WPL 3376765 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

29

Screw WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $81.99

33

Nut WPL 717488 Contact Us For Availability

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

Weight, Absorber WPL 3378202 Contact Us For Availability

37

Hose, Inlet WPL 3371030 Contact Us For Availability

37

Thermostat WPL 3378083 Contact Us For Availability

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $6.68

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $17.77

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82

49

W10539489 Whirlpool Dishwasher Bracket-Stat Backorder WPL W10539489 $12.73

51

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $17.99

52

3379740 Whirlpool Dishwasher Heater Support Backorder WPL 3379740 $39.26
