Model Maytag DE27CS ELECTRIC DRYER – Common Parts & Diagrams

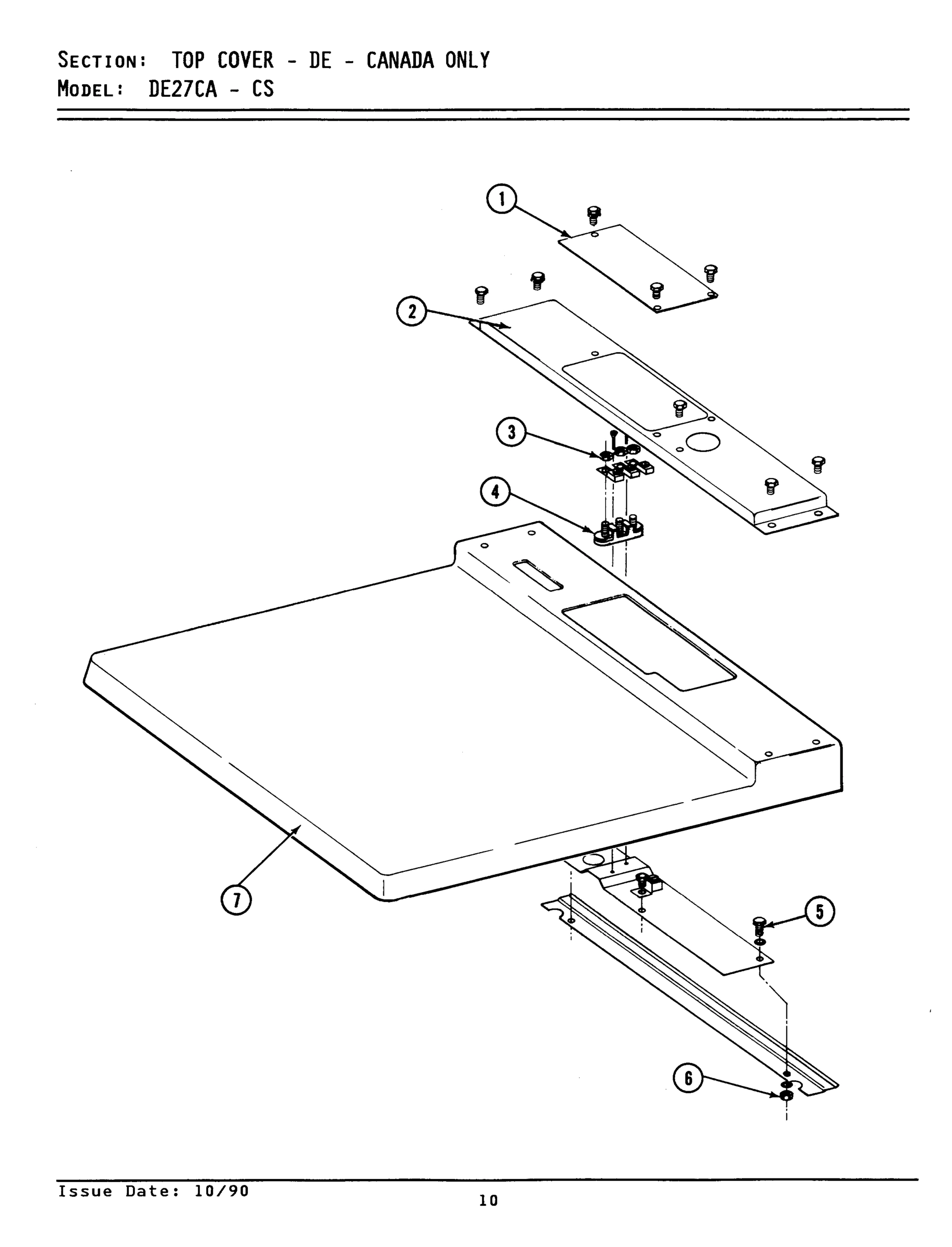

01 - TOP COVER-CANADA
02 - LINT SCREEN, TUMBLER (FRONT & BACK)

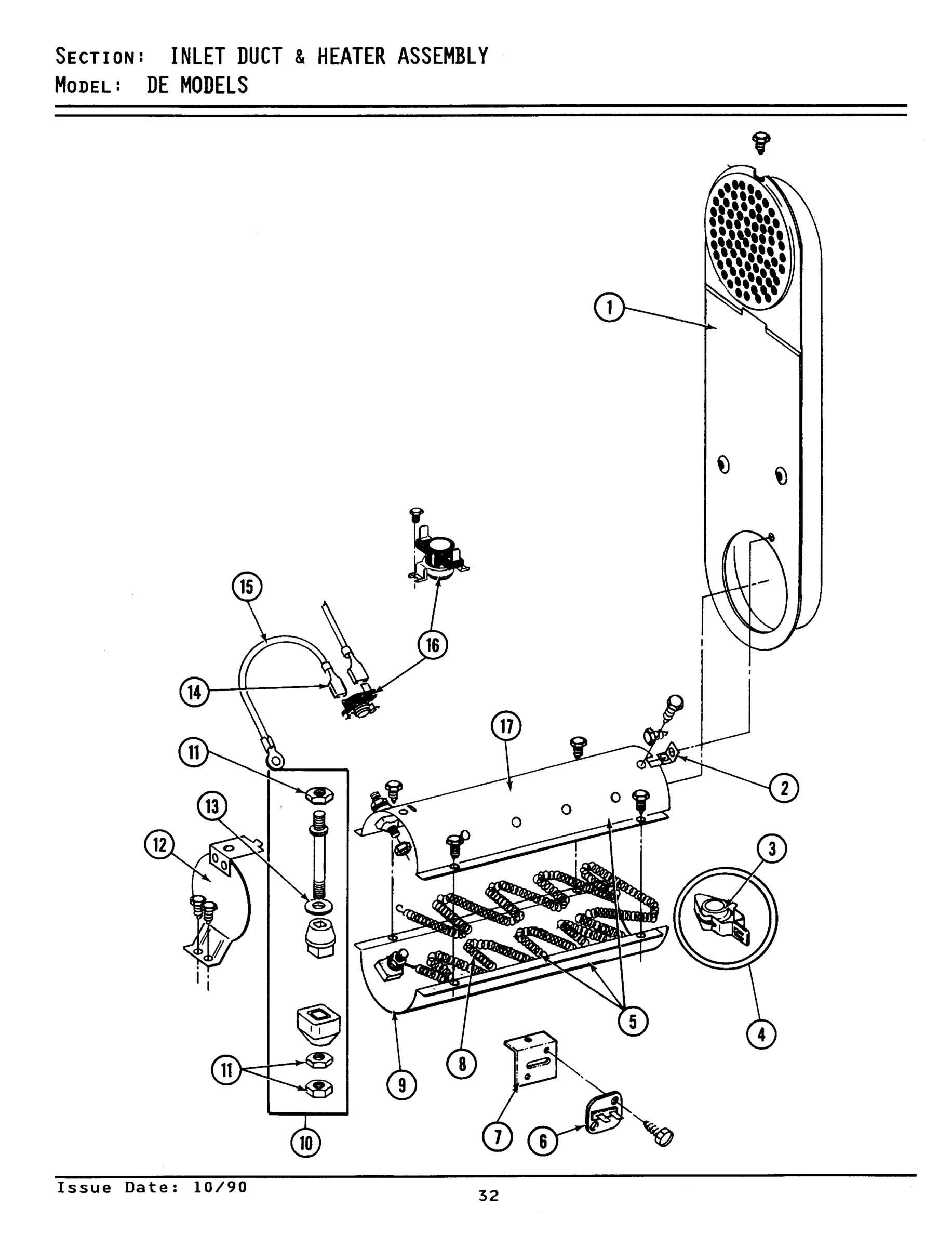

03 - INLET DUCT & HEATER ASSEMBLY

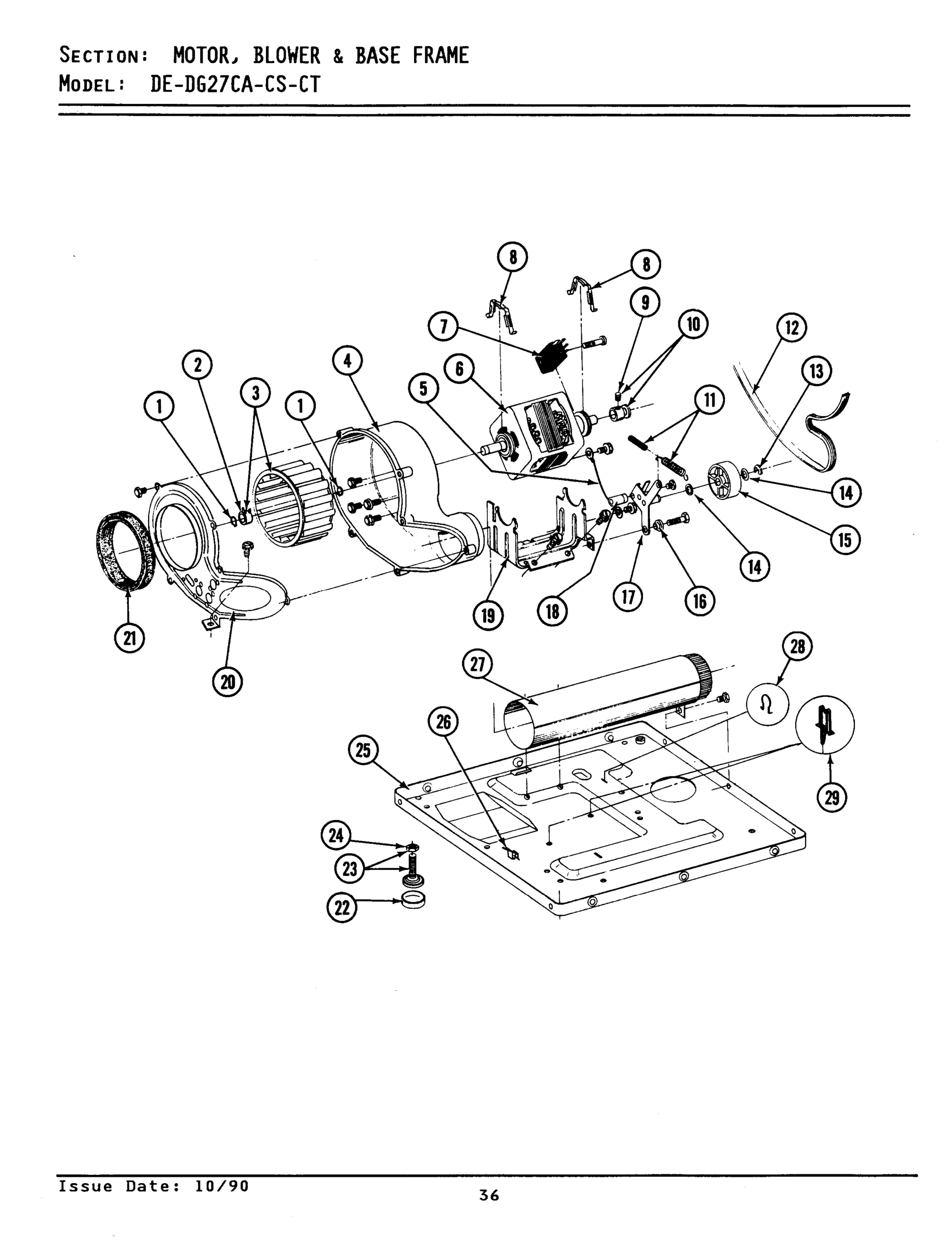

04 - MOTOR, BLOWER & BASE FRAME

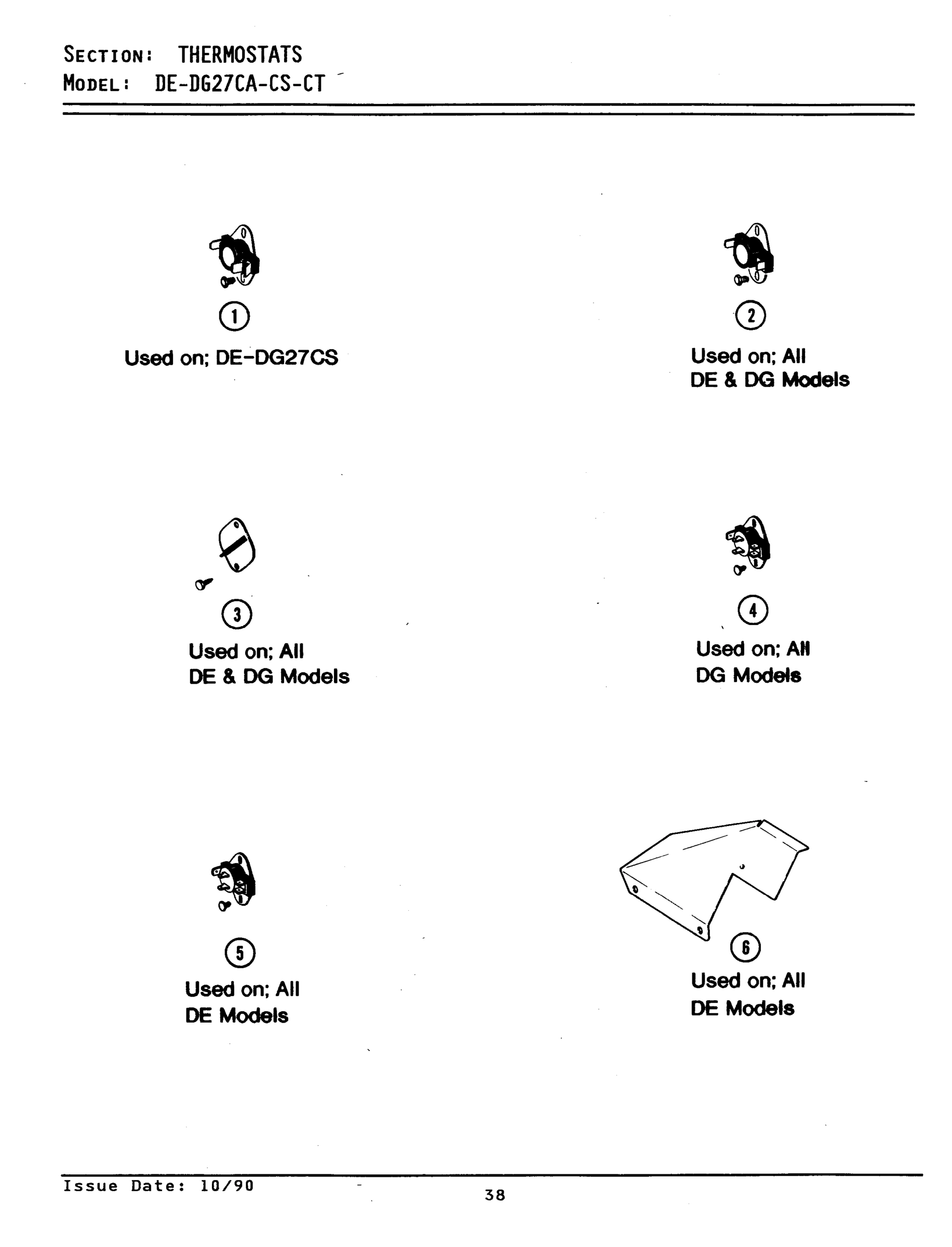

05 - THERMOSTATS

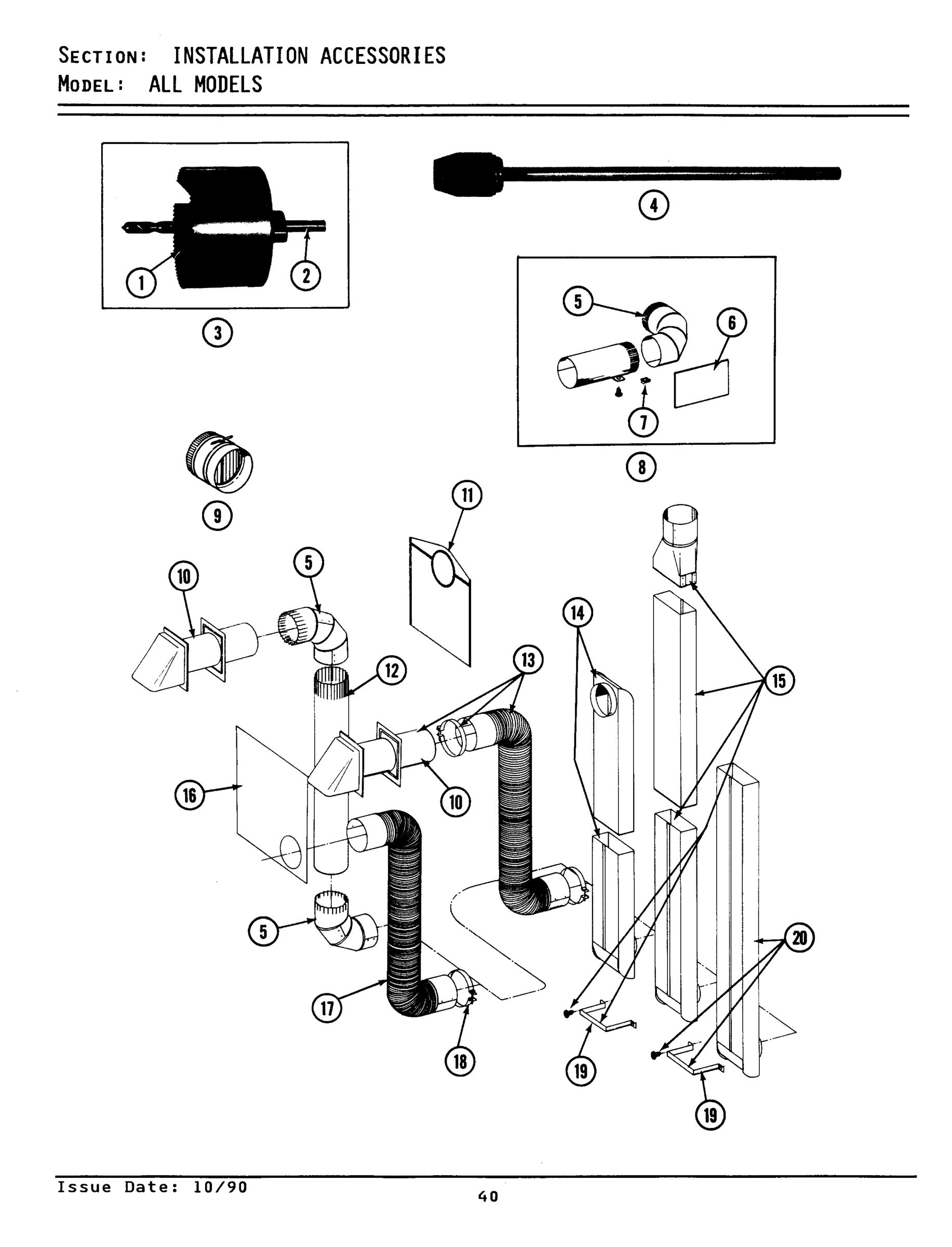

06 - INSTALLATION ACCESSORIES

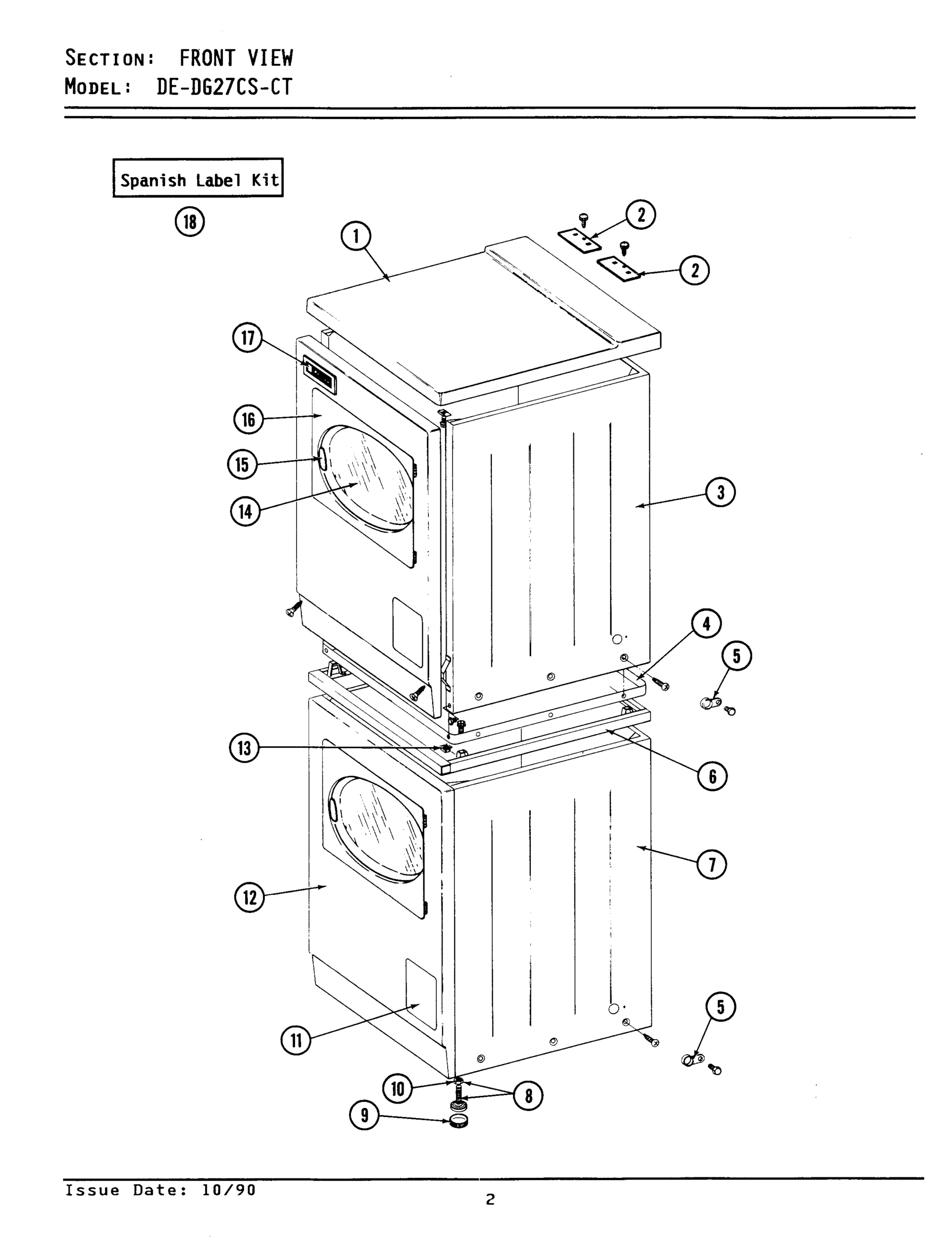

07 - FRONT VIEW

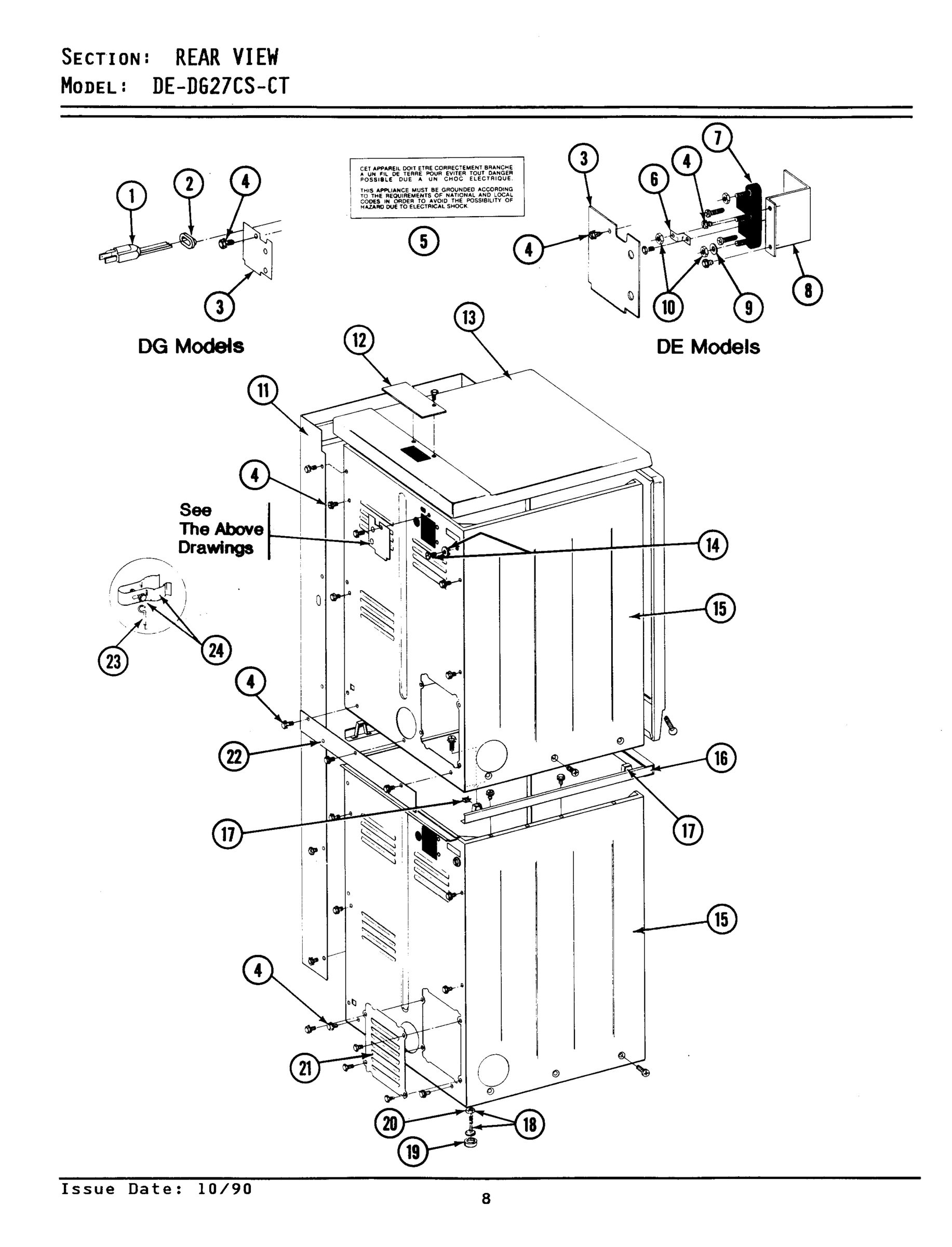

08 - REAR VIEW
09 - CONTROL CENTER SHROUD
10 - CONTROL CENTER

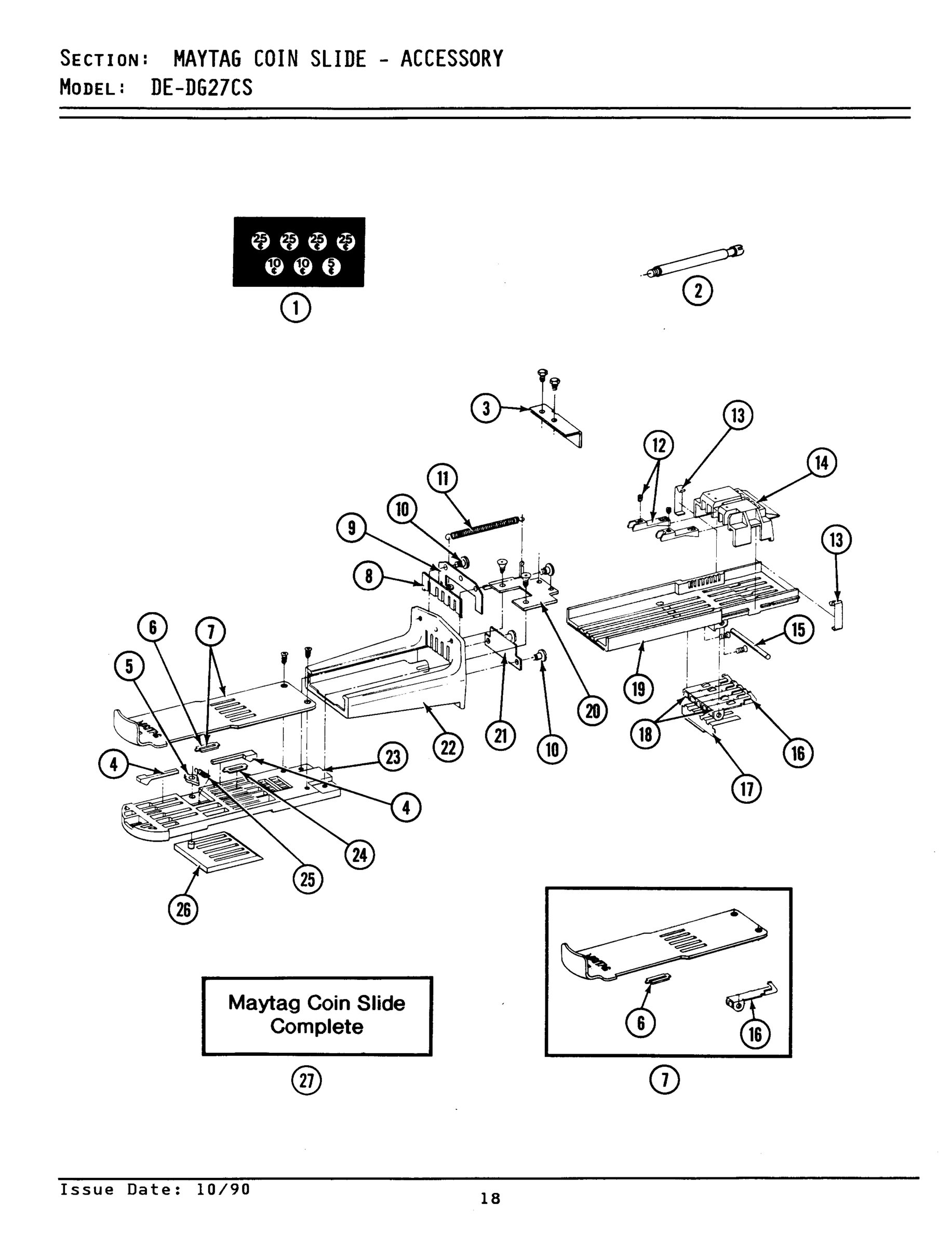

11 - MAYTAG COIN SLIDE (ACCESSORY)

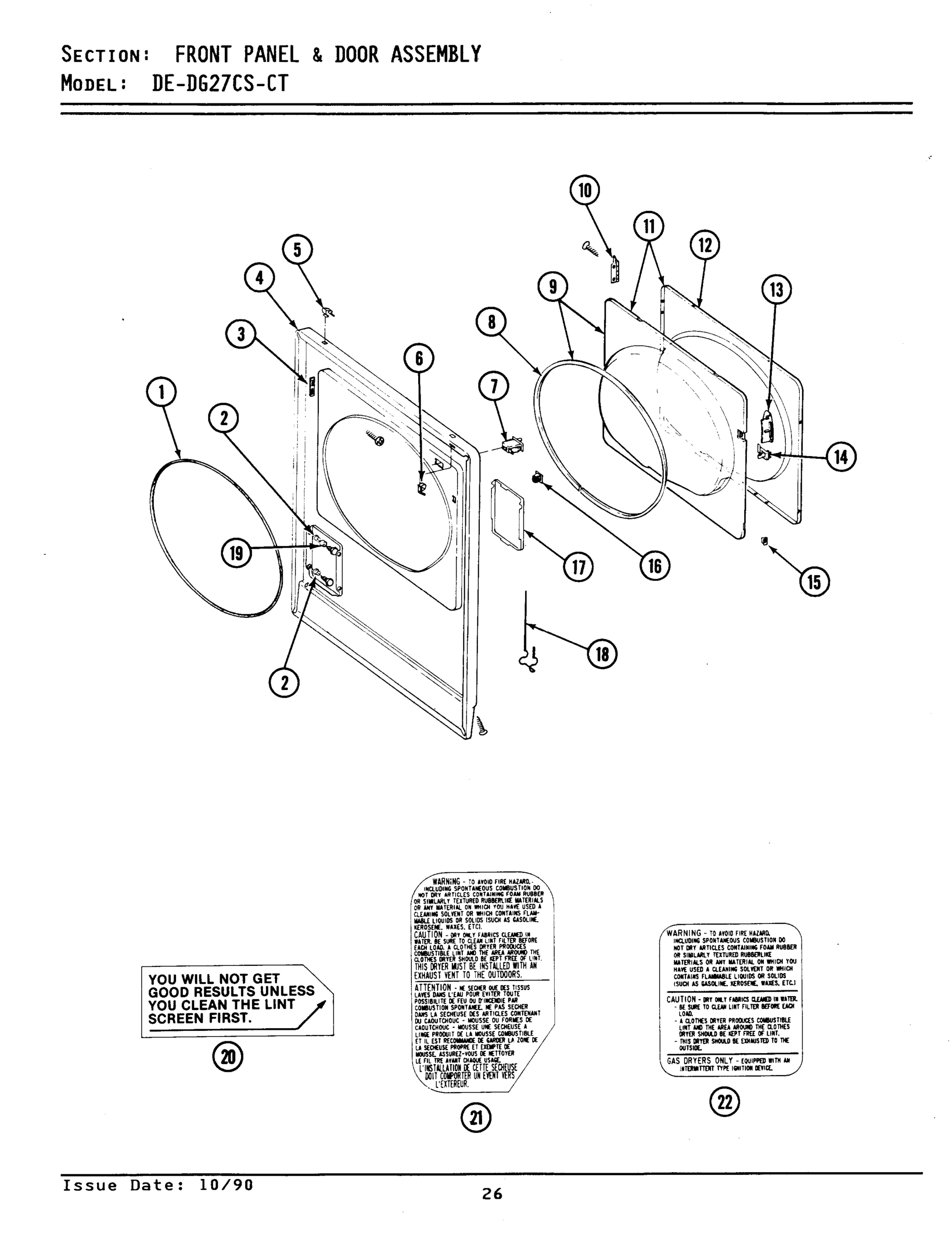

12 - FRONT PANEL\DOOR
13 - 50HZ CONVERSION LIST
Common parts from model Maytag DE27CS ELECTRIC DRYER
001
THERMOSTAT, PERM. PRESS MAY Y303225 Contact Us For Availability
001
MAY 314937 MAY 314937 Contact Us For Availability
001
PART NOT USED MAY 302521 Contact Us For Availability
001
MAY 205663 MAY 205663 Contact Us For Availability
001
MAY 305797 MAY 305797 Contact Us For Availability
001
MAY 214648 MAY 214648 Contact Us For Availability
001
MAY Y304656 MAY Y304656 Contact Us For Availability
002
INDICATOR LIGHT 240-50 MAY NLA Contact Us For Availability
002
PART NOT USED MAY 211881 Contact Us For Availability
003
MAY Y313270 MAY Y313270 Contact Us For Availability
003
DRIVER FOR INDEX WHEEL (NOT INCLUDED W/KIT) MAY 314330 Contact Us For Availability
003
MAY 204445 MAY 204445 Contact Us For Availability
003
MAY Y312905 MAY Y312905 Contact Us For Availability
003
MAY 306104 MAY 306104 Contact Us For Availability
003
BRACKET FOR COIN SLIDE MAY 314334 Contact Us For Availability
003
MAY Y313907 MAY Y313907 Contact Us For Availability
003
MAY 305186 MAY 305186 Contact Us For Availability
004
PART NOT USED MAY 306966 Contact Us For Availability
004
MAY Y313561 MAY Y313561 Contact Us For Availability
004
MAY Y303361 MAY Y303361 Contact Us For Availability
004
MAY 314663 MAY 314663 Contact Us For Availability
004
MAY 307253 MAY 307253 Contact Us For Availability
004
MAY 314547 MAY 314547 Contact Us For Availability
004
MAY 305812 MAY 305812 Contact Us For Availability
005
MAY 306967 MAY 306967 Contact Us For Availability
005
MAY Y059131 MAY Y059131 Contact Us For Availability
005
MAY 214519 MAY 214519 Contact Us For Availability
005
MAY Y314261 MAY Y314261 Contact Us For Availability
005
MAY Y014872 MAY Y014872 Contact Us For Availability
005
MAY 214572 MAY 214572 Contact Us For Availability
005
MAY 212982 MAY 212982 Contact Us For Availability
005
MAY Y313950 MAY Y313950 Contact Us For Availability
006
TIME ADJUSTMENT PEG MAY 314335 Contact Us For Availability
006
MAY Y310376 MAY Y310376 Contact Us For Availability
006
MAY 315122 MAY 315122 Contact Us For Availability
006
MAY 312302 MAY 312302 Contact Us For Availability
006
MAY Y311423 MAY Y311423 Contact Us For Availability
006
MAY Y312184 MAY Y312184 Contact Us For Availability
007
MAY 400008 MAY 400008 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 MAY Y303879 Contact Us For Availability
007
MAY 213323 MAY 213323 Contact Us For Availability
007
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
007
MAY Y312706 MAY Y312706 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY Y304652 MAY Y304652 Contact Us For Availability
008
MAY Y312904 MAY Y312904 Contact Us For Availability
008
MAY Y312702 MAY Y312702 Contact Us For Availability
008
MAY Y312270 MAY Y312270 Contact Us For Availability
008
MAY 214578 MAY 214578 Contact Us For Availability
008
MAY 314935 MAY 314935 Contact Us For Availability
009
MAY 211065 MAY 211065 Contact Us For Availability
009
MAY Y053241 MAY Y053241 Contact Us For Availability
009
MAY 308069 MAY 308069 Contact Us For Availability
009
MAY Y311270 MAY Y311270 Contact Us For Availability
009
INDICATOR LIGHT MAY 303963 Contact Us For Availability
010
MAY Y305185 MAY Y305185 Contact Us For Availability
010
MAY 307099 MAY 307099 Contact Us For Availability
011
MAY Y303945 MAY Y303945 Contact Us For Availability
011
MAY 311353 MAY 311353 Contact Us For Availability
011
MAY 315037 MAY 315037 Contact Us For Availability
011
MAY Y313424 MAY Y313424 Contact Us For Availability
011
MAY 214581 MAY 214581 Contact Us For Availability
012
MAY 204439 MAY 204439 Contact Us For Availability
012
MAY Y059130 MAY Y059130 Contact Us For Availability
012
MAY 314967 MAY 314967 Contact Us For Availability
013
MAY Y059143 MAY Y059143 Contact Us For Availability
013
MAY 307104 MAY 307104 Contact Us For Availability
013
MAY 314974 MAY 314974 Contact Us For Availability
013
HANDLE (HARVEST WHEAT) MAY 314975 Contact Us For Availability
013
MAY 214589 MAY 214589 Contact Us For Availability
014
MAY Y312527 MAY Y312527 Contact Us For Availability
014
MAY Y059135 MAY Y059135 Contact Us For Availability
014
MAY Y313559 MAY Y313559 Contact Us For Availability
014
MAY Y310632 MAY Y310632 Contact Us For Availability
014
MAY 305534 MAY 305534 Contact Us For Availability
014
MAY 910387 MAY 910387 Contact Us For Availability
014
MAY 314936 MAY 314936 Contact Us For Availability
014
MAY 314944 MAY 314944 Contact Us For Availability
015
MAY 314939 MAY 314939 Contact Us For Availability
015
MAY 307125 MAY 307125 Contact Us For Availability
015
MAY Y052634 MAY Y052634 Contact Us For Availability
015
MAY Y313910 MAY Y313910 Contact Us For Availability
016
MAY 215559 MAY 215559 Contact Us For Availability
016
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
016
MAY Y059134 MAY Y059134 Contact Us For Availability
016
CABLE STRAP-HARNESS TO BASE MAY 910768 Contact Us For Availability
016
MAY 911050 MAY 911050 Contact Us For Availability
017
MAY Y304353 MAY Y304353 Contact Us For Availability
017
MAY 310933 MAY 310933 Contact Us For Availability
017
MAY 212276 MAY 212276 Contact Us For Availability
017
MAY 314339 MAY 314339 Contact Us For Availability
017
MAY 214596 MAY 214596 Contact Us For Availability
018
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
018
MAY Y304630 MAY Y304630 Contact Us For Availability
018
MAY 314332 MAY 314332 Contact Us For Availability
018
MAY 205343 MAY 205343 Contact Us For Availability
018
PART NOT USED MAY Y314025 Contact Us For Availability
019
MAY 305798 MAY 305798 Contact Us For Availability
019
MAY 214594 MAY 214594 Contact Us For Availability
019
PART NOT USED MAY 312369 Contact Us For Availability
020
MAY Y305799 MAY Y305799 Contact Us For Availability
020
MAY 314847 MAY 314847 Contact Us For Availability
020
MAY 214597 MAY 214597 Contact Us For Availability
020
MAY Y313340 MAY Y313340 Contact Us For Availability
021
MAY Y312951 MAY Y312951 Contact Us For Availability
021
MAY 313428 MAY 313428 Contact Us For Availability
021
TIMER MOUNTING BRACKET MAY 314333 Contact Us For Availability
021
MAY 315277 MAY 315277 Contact Us For Availability
021
MAY 910708 MAY 910708 Contact Us For Availability
021
MAY 314941 MAY 314941 Contact Us For Availability
022
MAY 305796 MAY 305796 Contact Us For Availability
022
MAY 305800 MAY 305800 Contact Us For Availability
022
MAY 305813 MAY 305813 Contact Us For Availability
022
MAY 214584 MAY 214584 Contact Us For Availability
023
MAY 311155 MAY 311155 Contact Us For Availability
023
MAY Y303981 MAY Y303981 Contact Us For Availability
023
TIMER MOTOR RPR MAY 305870 Contact Us For Availability
024
MAY 301548 MAY 301548 Contact Us For Availability
024
MAY 313122 MAY 313122 Contact Us For Availability
024
MAY Y313671 MAY Y313671 Contact Us For Availability
024
MAY Y313427 MAY Y313427 Contact Us For Availability
025
MAY Y307081 MAY Y307081 Contact Us For Availability
025
MAY 214582 MAY 214582 Contact Us For Availability
026
MAY Y313439 MAY Y313439 Contact Us For Availability
027
MAY Y303442 MAY Y303442 Contact Us For Availability
028
MAY 410490 MAY 410490 Contact Us For Availability
028
COIN BOX-WHITE MAY 205423 Contact Us For Availability
028
COIN BOX-ALMOND MAY 205423L Contact Us For Availability
028
MAY 205423M MAY 205423M Contact Us For Availability
029
MAY Y313262 MAY Y313262 Contact Us For Availability
× ![]()
