Model Whirlpool CRE650 ELECTRIC RANGE – Common Parts & Diagrams

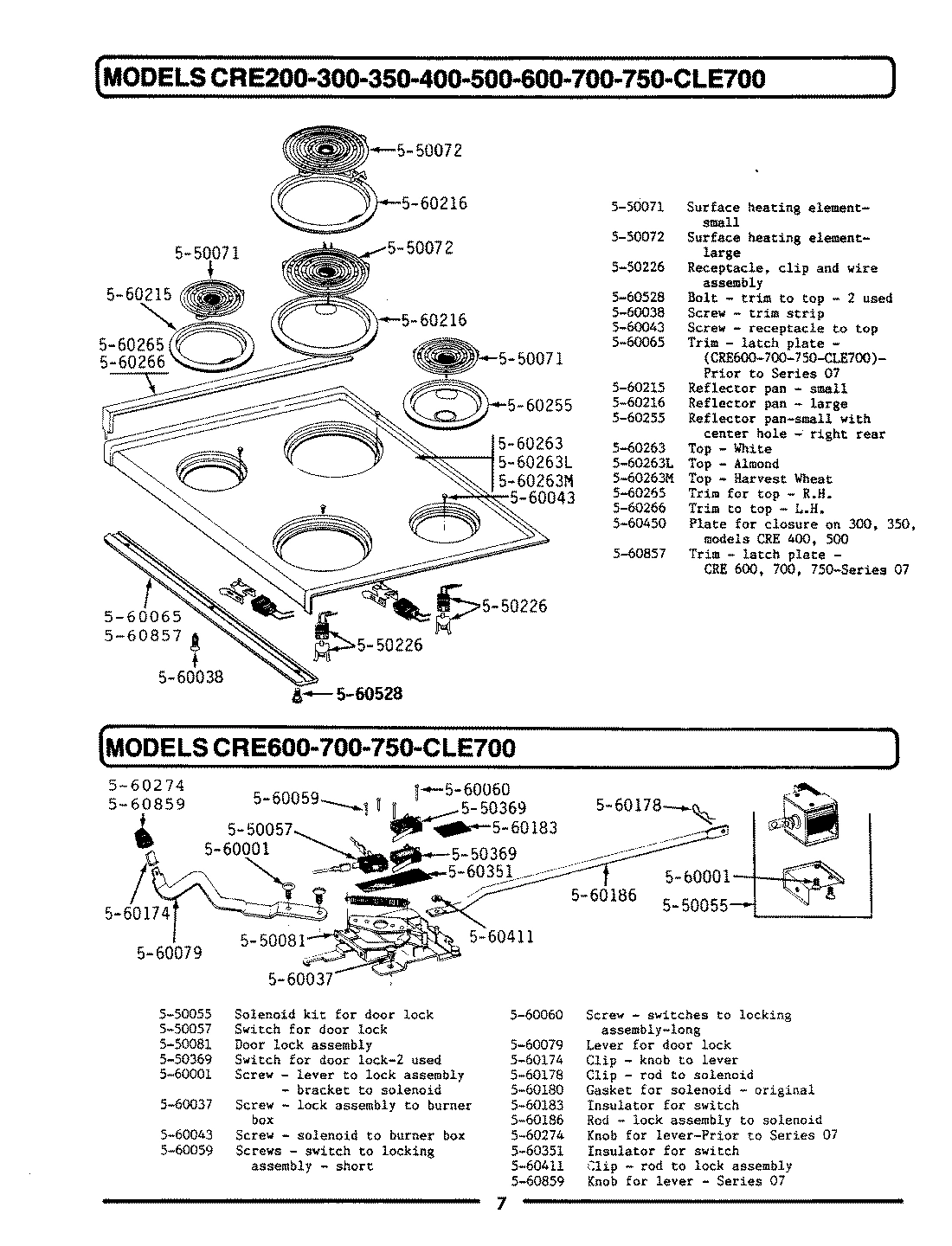

04 - LATCH ASSEMBLY

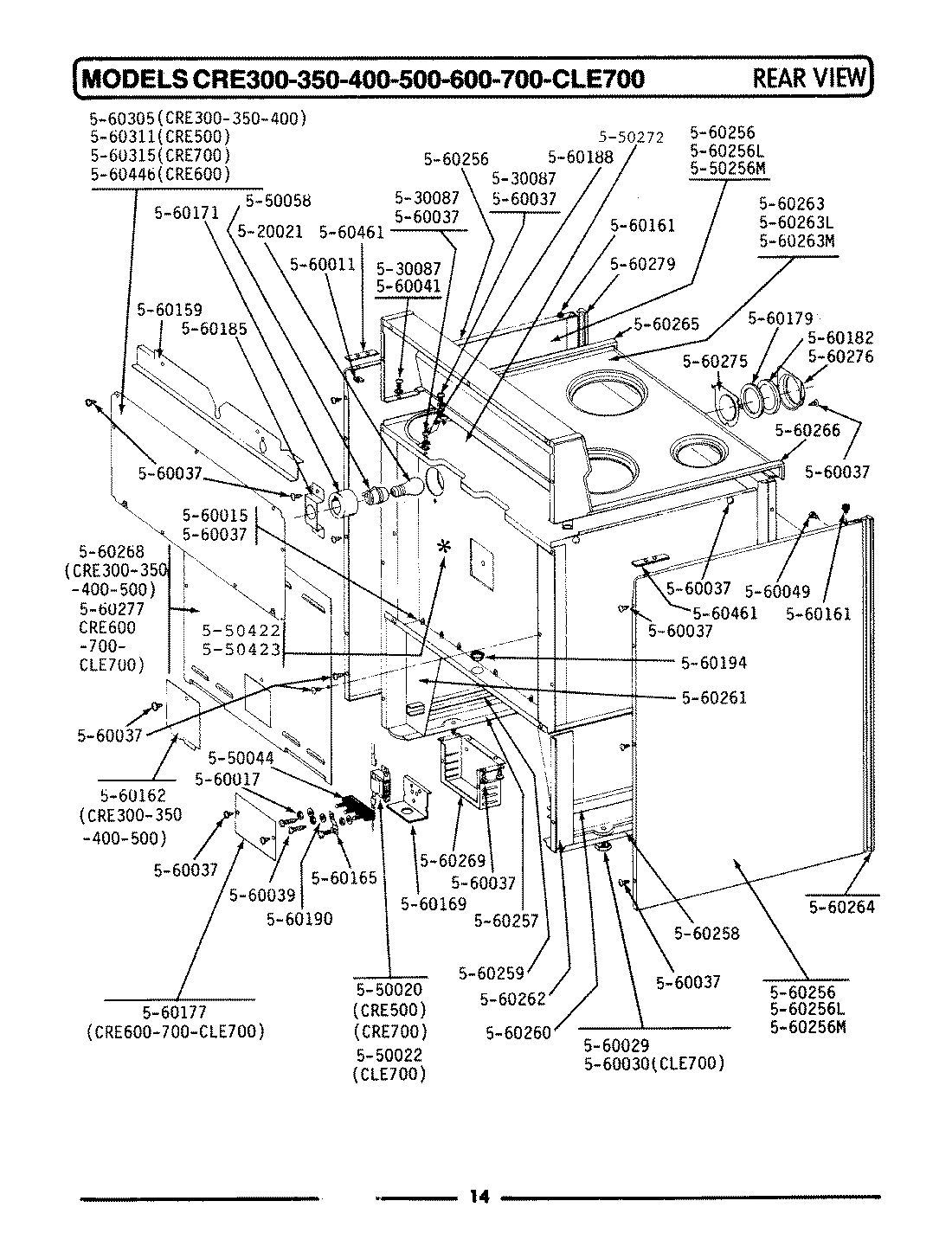

07 - REAR VIEW

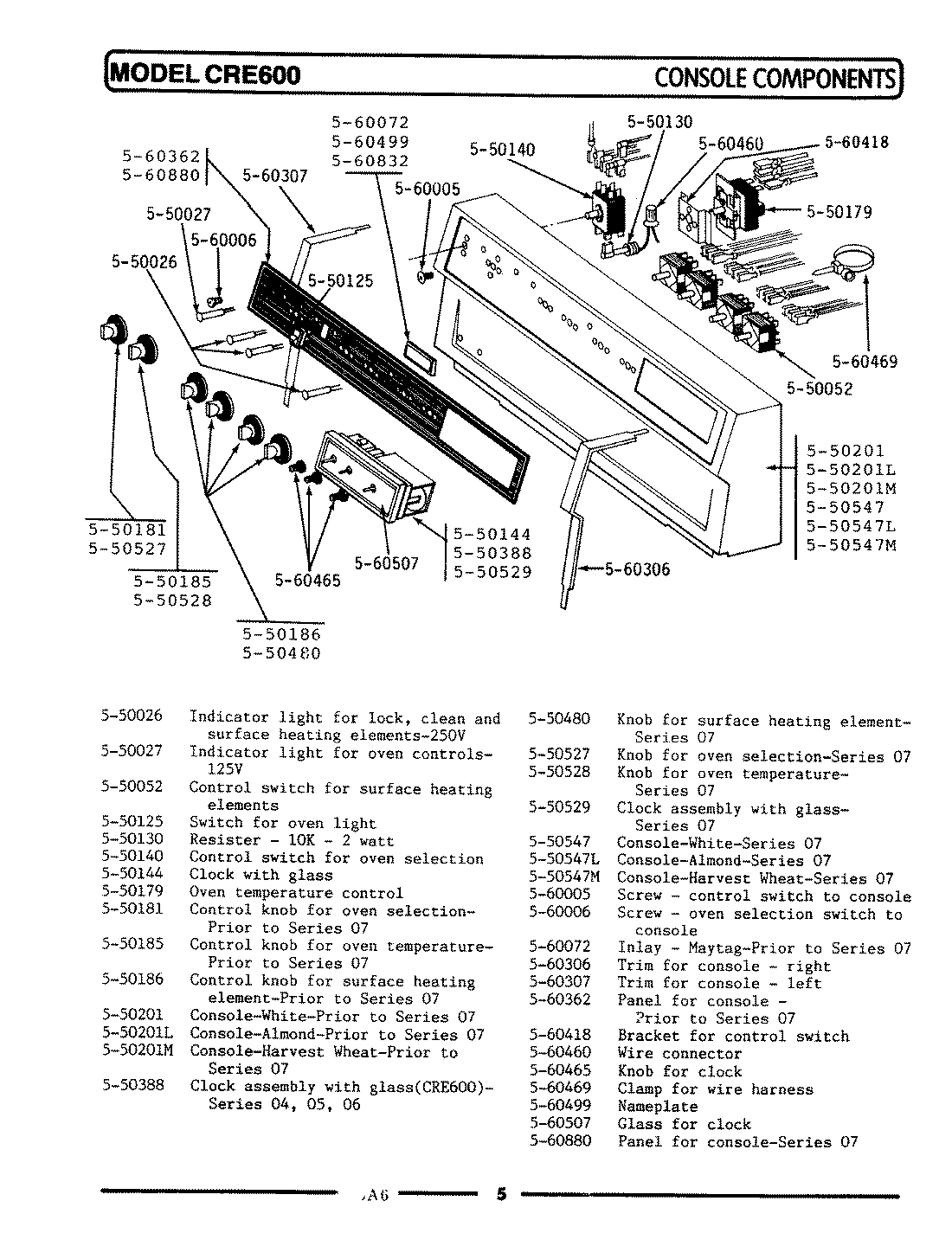

01 - CONTROL PANEL

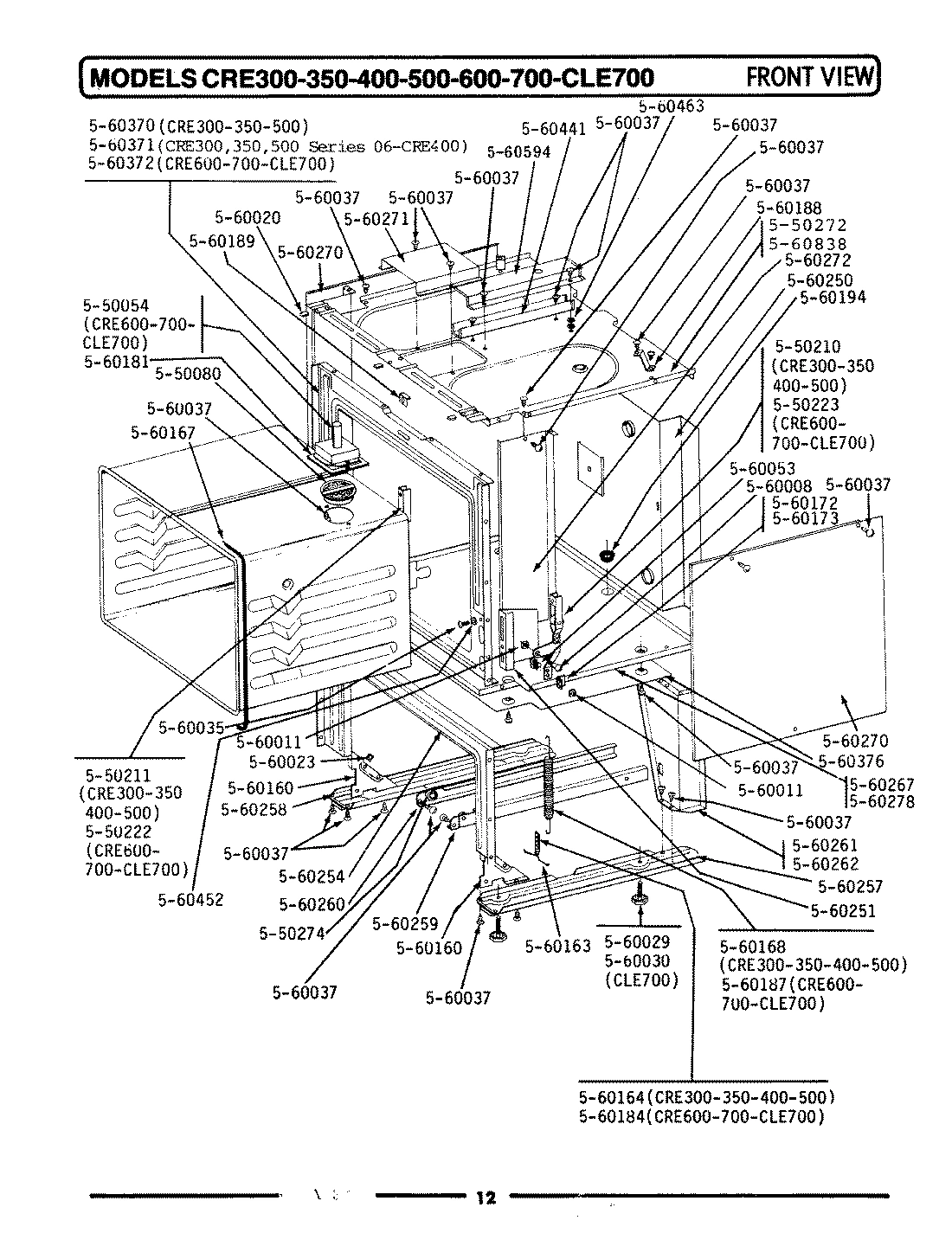

03 - FRONT VIEW
08 - TOP ASSEMBLY

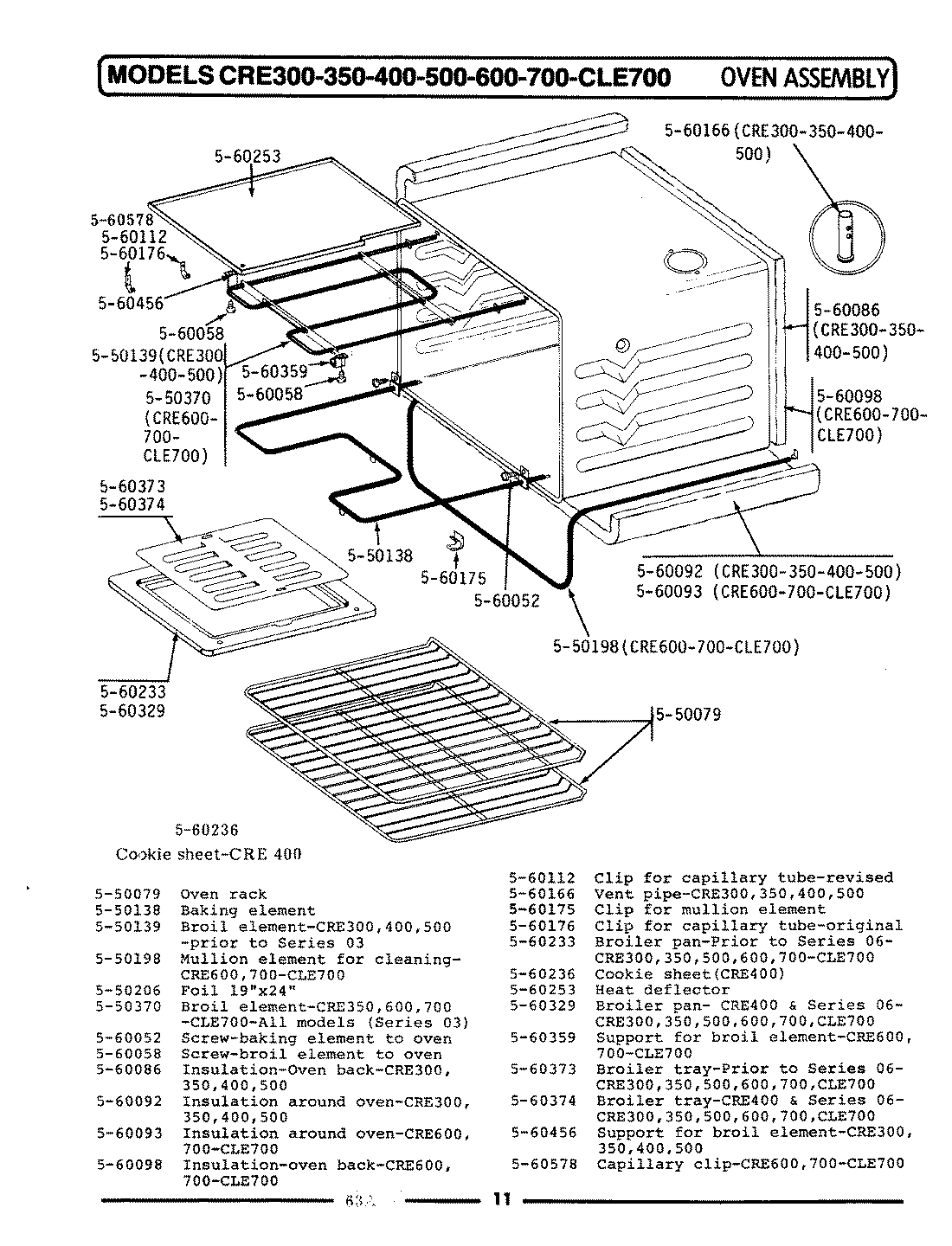

05 - OVEN ASSEMBLY

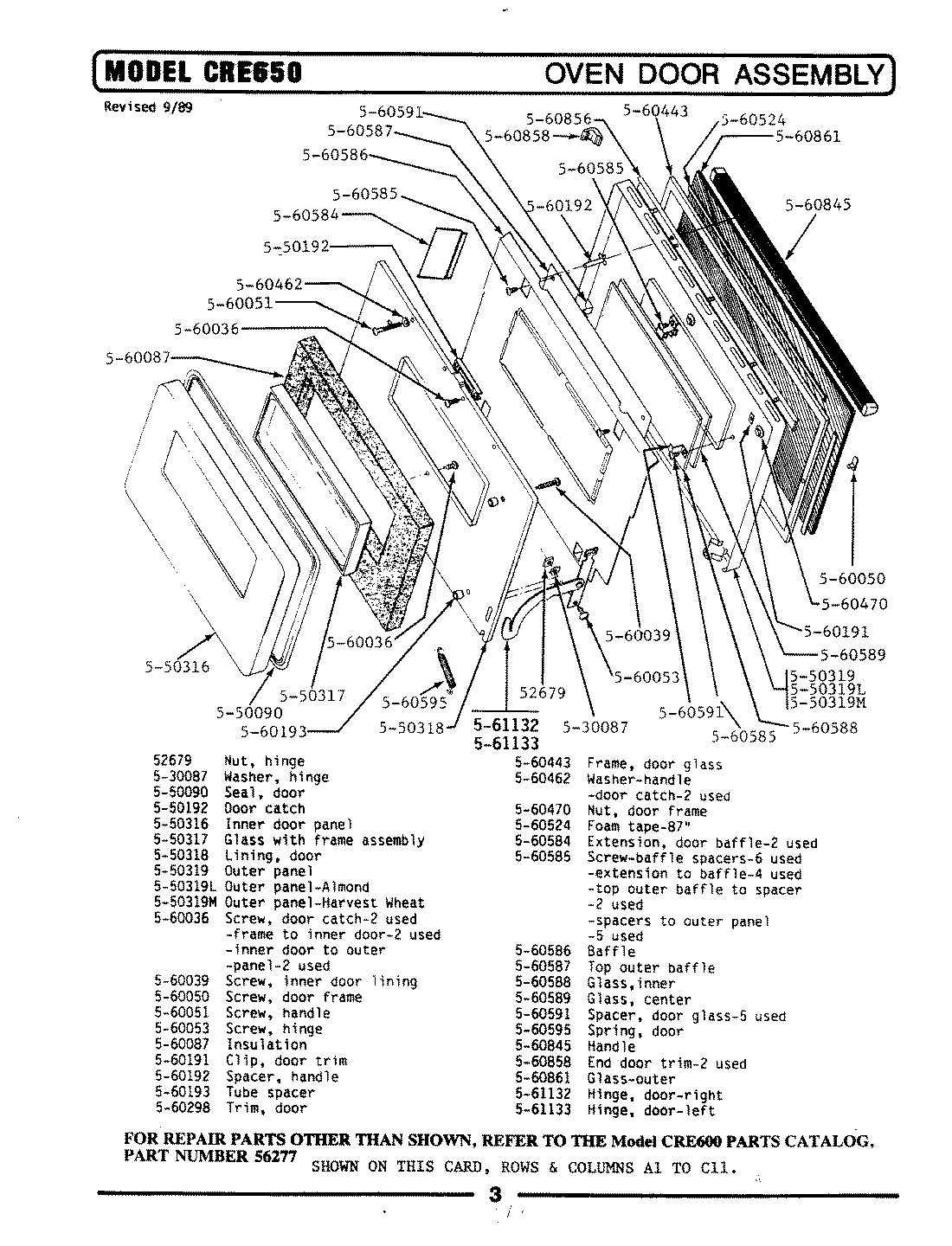

06 - OVEN DOOR ASSEMBLY

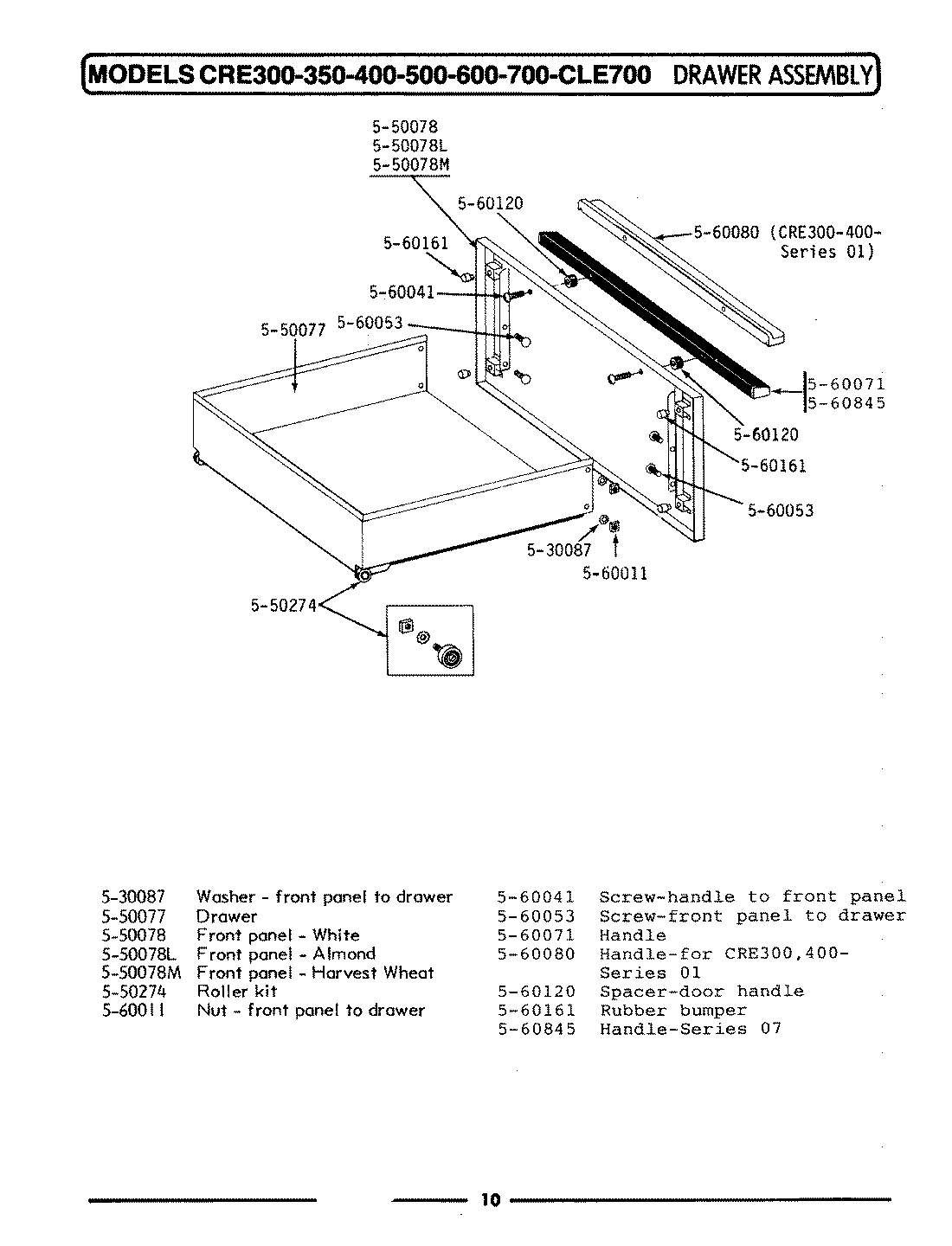

02 - DRAWER ASSEMBLY
Common parts from model Whirlpool CRE650 ELECTRIC RANGE
1
SOLENOID FOR DOOR LOCK KIT WPL 550055 Contact Us For Availability
1
LOCK WASHER WPL 530087 Contact Us For Availability
1
INDICATOR LIGHT-125 VOLT WPL 550026 Contact Us For Availability
2
SWITCH FOR DOOR LOCK WPL 550057 Contact Us For Availability
2
SOCKET FOR OVEN LIGHT WPL 550058 Contact Us For Availability
2
SWITCH FOR OVEN LIGHT WPL 550125 Contact Us For Availability
2
DRAWER WPL 550077 Contact Us For Availability
3
DOOR LOCK ASSEMBLY WPL 550081 Contact Us For Availability
3
CONSOLE-WHITE WPL 550201 Contact Us For Availability
3
LIGHT SWITCH WPL 550615 Contact Us For Availability
3
FOIL WPL 550206 Contact Us For Availability
3
SEAL FOR DOOR WPL 550090 Contact Us For Availability
3
DRAWER PANEL-WHITE WPL 550078 Contact Us For Availability
4
SWITCH FOR DOOR LOCK WPL 550369 Contact Us For Availability
4
CONSOLE-ALMOND WPL 550201L Contact Us For Availability
4
SMOKE ELIMINATOR WPL 550616 Contact Us For Availability
4
SCREW WPL 560528 Contact Us For Availability
4
ELEMENT KIT, BROIL WPL 550370 Contact Us For Availability
4
DOOR CATCH WPL 550192 Contact Us For Availability
4
DRAWER PANEL-ALMOND WPL 550078L Contact Us For Availability
5
RESISTOR WPL 550130 Contact Us For Availability
5
CONSOLE-HARVEST WHEAT WPL 550201M Contact Us For Availability
5
SCREW WPL 560038 Contact Us For Availability
5
SCREW WPL 560052 Contact Us For Availability
5
INNER DOOR PANEL WPL 550316 Contact Us For Availability
5
DRAWER PANEL-HARVEST WHEAT WPL 550078M Contact Us For Availability
6
CONTROL KNOB WPL 550480 Contact Us For Availability
6
BUSHING WPL 560134 Contact Us For Availability
6
SCREW WPL 560058 Contact Us For Availability
6
GLASS WITH FRAME ASSEMBLY WPL 550317 Contact Us For Availability
6
ROLLER REPAIR KIT WPL 550274 Contact Us For Availability
7
COVER FOR LIGHT SOCKET WPL 560171 Contact Us For Availability
7
KNOB, SELECTOR SWITCH WPL 550527 Contact Us For Availability
7
TRIM-LATCH PLATE WPL 560065 Contact Us For Availability
7
INSULATION WPL 560093 Contact Us For Availability
7
INNER DOOR LINER WPL 550318 Contact Us For Availability
8
SCREW WPL 560059 Contact Us For Availability
8
SCREW WPL 560041 Contact Us For Availability
8
GASKET FOR OVEN LIGHT WPL 560179 Contact Us For Availability
8
OVEN CONTROL KNOB WPL 550528 Contact Us For Availability
8
INSULATION WPL 560098 Contact Us For Availability
8
PANEL-WHITE WPL 550319 Contact Us For Availability
9
SCREW WPL 560060 Contact Us For Availability
9
NUT WPL 560015 Contact Us For Availability
9
GLASS LENS FOR OVEN LIGHT WPL 560182 Contact Us For Availability
9
CLOCK-AUTOMATIC WPL 550529 Contact Us For Availability
9
CLIP FOR CAPILLARY TUBE WPL 560112 Contact Us For Availability
9
PANEL-ALMOND WPL 550319L Contact Us For Availability
9
SCREW WPL 560053 Contact Us For Availability
10
LEVER FOR DOOR LOCK WPL 560079 Contact Us For Availability
10
NUT WPL 560017 Contact Us For Availability
10
BRACKET FOR OVEN LIGHT WPL 560185 Contact Us For Availability
10
NAME PLATE WPL 560832 Contact Us For Availability
10
CLIP-MULLION ELEMENT WPL 560175 Contact Us For Availability
10
PANEL-HARVEST WHEAT WPL 550319M Contact Us For Availability
10
HANDLE FOR DOOR WPL 560071 Contact Us For Availability
11
CLIP-KNOB TO LEVER WPL 560174 Contact Us For Availability
11
ADJUSTABLE LEG WPL 560029 Contact Us For Availability
11
TOP-WHITE WPL 560263 Contact Us For Availability
11
INLAY, BACKGUARD PANEL WPL 560884 Contact Us For Availability
11
BACK PANEL WPL 560250 Contact Us For Availability
11
CLIP-CAPILLARY TUBE WPL 560176 Contact Us For Availability
11
SCREW WPL 560036 Contact Us For Availability
11
SPACER WPL 560120 Contact Us For Availability
12
CLIP-ROD TO SOLENOID WPL 560178 Contact Us For Availability
12
SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability
12
RUBBER BUMPER WPL 560161 Contact Us For Availability
12
TOP-ALMOND WPL 560263L Contact Us For Availability
12
COVER FOR INSULATION WPL 560270 Contact Us For Availability
13
GASKET FOR SOLENOID WPL 560180 Contact Us For Availability
13
TOP-HARVEST WHEAT WPL 560263M Contact Us For Availability
13
RETAINER FOR OVEN LIGHT WPL 560275 Contact Us For Availability
13
HEAT DEFLECTOR WPL 560253 Contact Us For Availability
13
SCREW WPL 560050 Contact Us For Availability
13
DOOR HANDLE WPL 560845 Contact Us For Availability
14
INSULATOR FOR SWITCH WPL 560183 Contact Us For Availability
14
TRIM FOR TOP-RIGHT WPL 560265 Contact Us For Availability
14
RETAINER FOR OVEN LIGHT WPL 560276 Contact Us For Availability
14
SCREW WPL 560051 Contact Us For Availability
15
ROD-LOCK ASSM TO SOLENOID WPL 560186 Contact Us For Availability
15
SCREW WPL 560049 Contact Us For Availability
15
TRIM FOR TOP-LEFT WPL 560266 Contact Us For Availability
15
FRAME FOR OVEN WPL 560372 Contact Us For Availability
15
SUPPORT-BROIL ELEMENT WPL 560359 Contact Us For Availability
16
KNOB FOR LEVER WPL 560274 Contact Us For Availability
16
BRACKET FOR BURNER BOX WPL 560159 Contact Us For Availability
16
BURNER BOX BOTTOM WPL 560883 Contact Us For Availability
16
LATCH PLATE (TRIM FRONT) WPL 560857 Contact Us For Availability
16
INSULATION WPL 560087 Contact Us For Availability
17
INSULATOR FOR SWITCH WPL 560351 Contact Us For Availability
17
CLIP WPL 560191 Contact Us For Availability
18
CLIP-ROD TO LOCK ASSEMBLY WPL 560411 Contact Us For Availability
18
GROUND LUG WPL 560165 Contact Us For Availability
18
CAPILLARY CLIP WPL 560578 Contact Us For Availability
18
SPACER WPL 560192 Contact Us For Availability
19
KNOB, DOOR LOCK WPL 560859 Contact Us For Availability
19
BRACKET-TERMINAL BLOCK WPL 560169 Contact Us For Availability
19
TUBING SPACER WPL 560193 Contact Us For Availability
21
COVER-TERMINAL BLOCK WPL 560177 Contact Us For Availability
21
FRAME WPL 560443 Contact Us For Availability
22
WASHER WPL 560462 Contact Us For Availability
23
NUT WPL 560470 Contact Us For Availability
24
FOAM TAPE - 87 INCHES WPL 560524 Contact Us For Availability
25
BRACKET FOR TOP WPL 560188 Contact Us For Availability
25
EXTENSION FOR DOOR BAFFLE WPL 560584 Contact Us For Availability
26
WASHER WPL 560190 Contact Us For Availability
26
SCREW WPL 560585 Contact Us For Availability
27
BURNER BOX KIT WPL 550272 Contact Us For Availability
27
BAFFLE WPL 560586 Contact Us For Availability
28
BUSHING - WIRE HARNESS WPL 560194 Contact Us For Availability
28
TOP OUTER BAFFLE WPL 560587 Contact Us For Availability
29
SIDE PANEL-WHITE WPL 560256 Contact Us For Availability
29
GLASS - INNER DOOR WPL 560588 Contact Us For Availability
30
SIDE PANEL-ALMOND WPL 560256L Contact Us For Availability
30
GLASS FOR OVEN DOOR-CENTER WPL 560589 Contact Us For Availability
31
SIDE PANEL-HARVEST WHEAT WPL 560256M Contact Us For Availability
31
SPACER FOR DOOR GLASS WPL 560591 Contact Us For Availability
32
BASE SUPPORT-RIGHT WPL 560257 Contact Us For Availability
32
SPRING FOR OVEN DOOR WPL 560595 Contact Us For Availability
33
BASE SUPPORT-LEFT WPL 560258 Contact Us For Availability
34
TRACK FOR DRAWER-RIGHT WPL 560259 Contact Us For Availability
34
END, DOOR TRIM WPL 560858 Contact Us For Availability
35
TRACK FOR DRAWER-LEFT WPL 560260 Contact Us For Availability
35
GLASS, OVEN DOOR OUTSIDE WPL 560861 Contact Us For Availability
36
SUPPORT BRACKET-RIGHT WPL 560261 Contact Us For Availability
36
HINGE ASSY, OV DOOR RT WPL 561132 Contact Us For Availability
37
SUPPORT BRACKET-LEFT WPL 560262 Contact Us For Availability
37
HINGE ASSY, OV DOOR LF WPL 561133 Contact Us For Availability
41
TRIM FOR END PANEL WPL 560264 Contact Us For Availability
44
TERMINAL BOX WPL 560269 Contact Us For Availability
46
BACK PANEL WPL 560277 Contact Us For Availability
47
BACK PANEL WPL 560315 Contact Us For Availability
48
WIRE CONNECTOR WPL 560460 Contact Us For Availability
49
SPACER PAD FOR CONSOLE WPL 560461 Contact Us For Availability
50
THERMOSTAT WPL 550423 Contact Us For Availability
NI
POWER CORD - 4 FT. WPL 550246 Contact Us For Availability
NI
POWER CORD - 5 FT. WPL 550248 Contact Us For Availability
NI
TRIM FOR DOOR WPL 560298 Contact Us For Availability
× ![]()
