Model Whirlpool CNE200 ELECTRIC RANGE – Common Parts & Diagrams

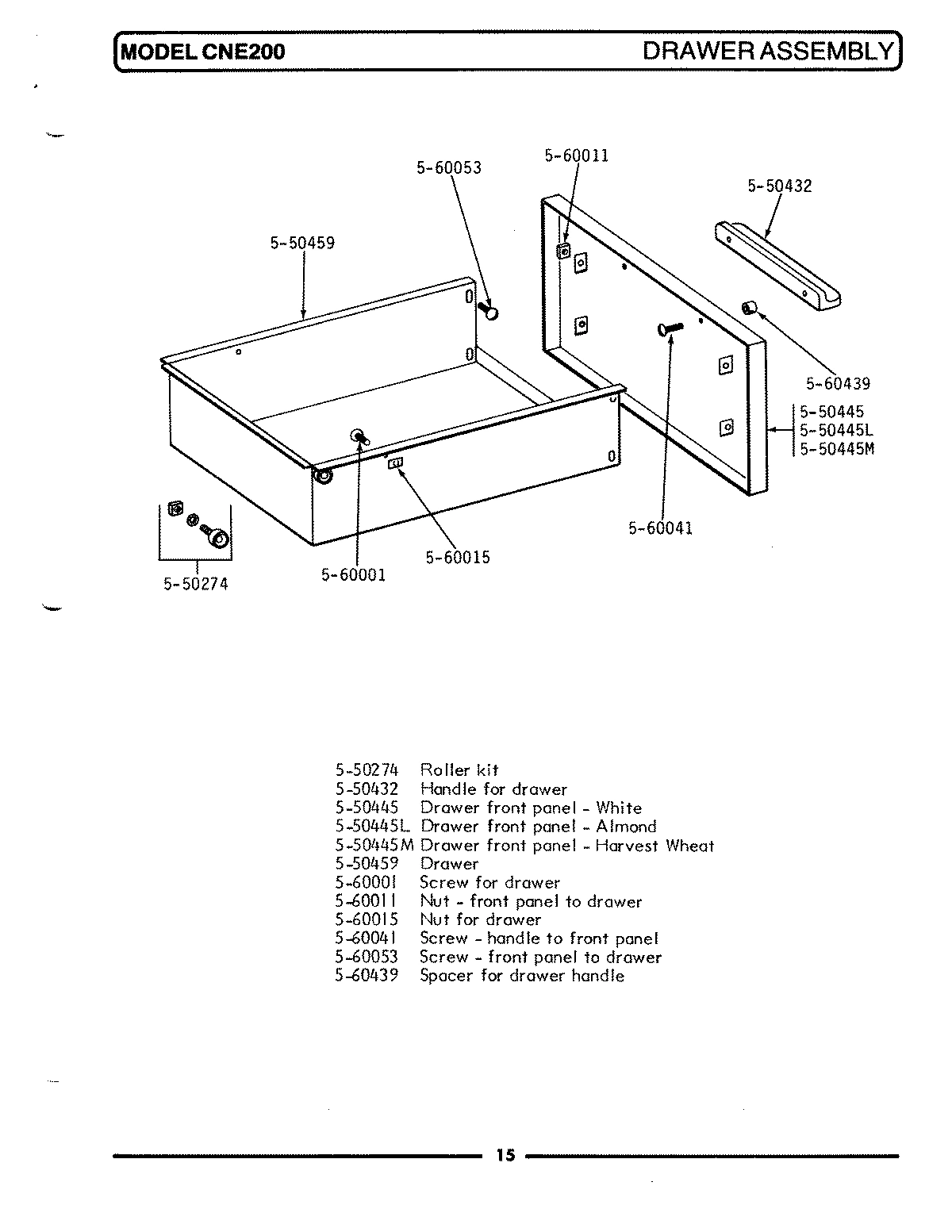

02 - DRAWER ASSEMBLY

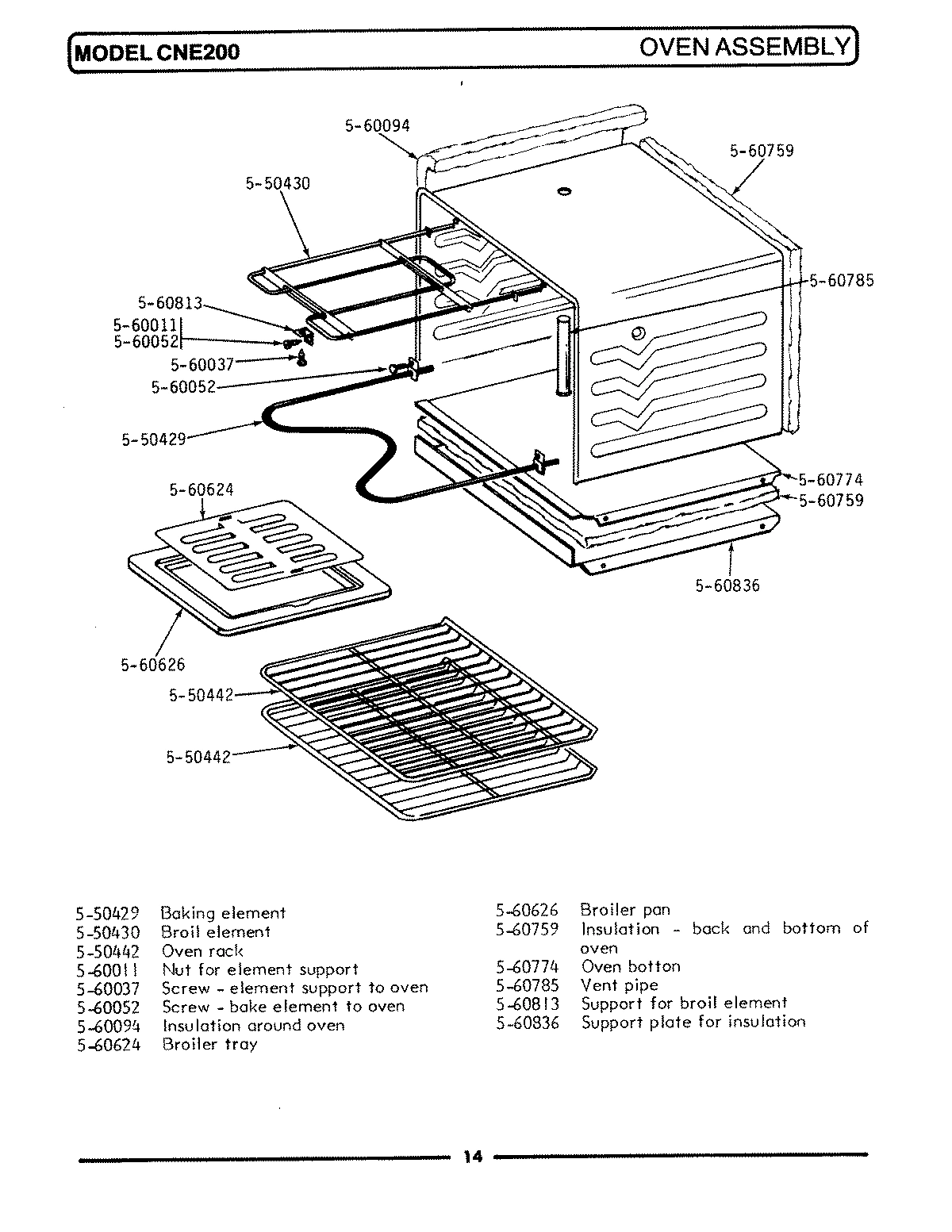

04 - OVEN ASSEMBLY

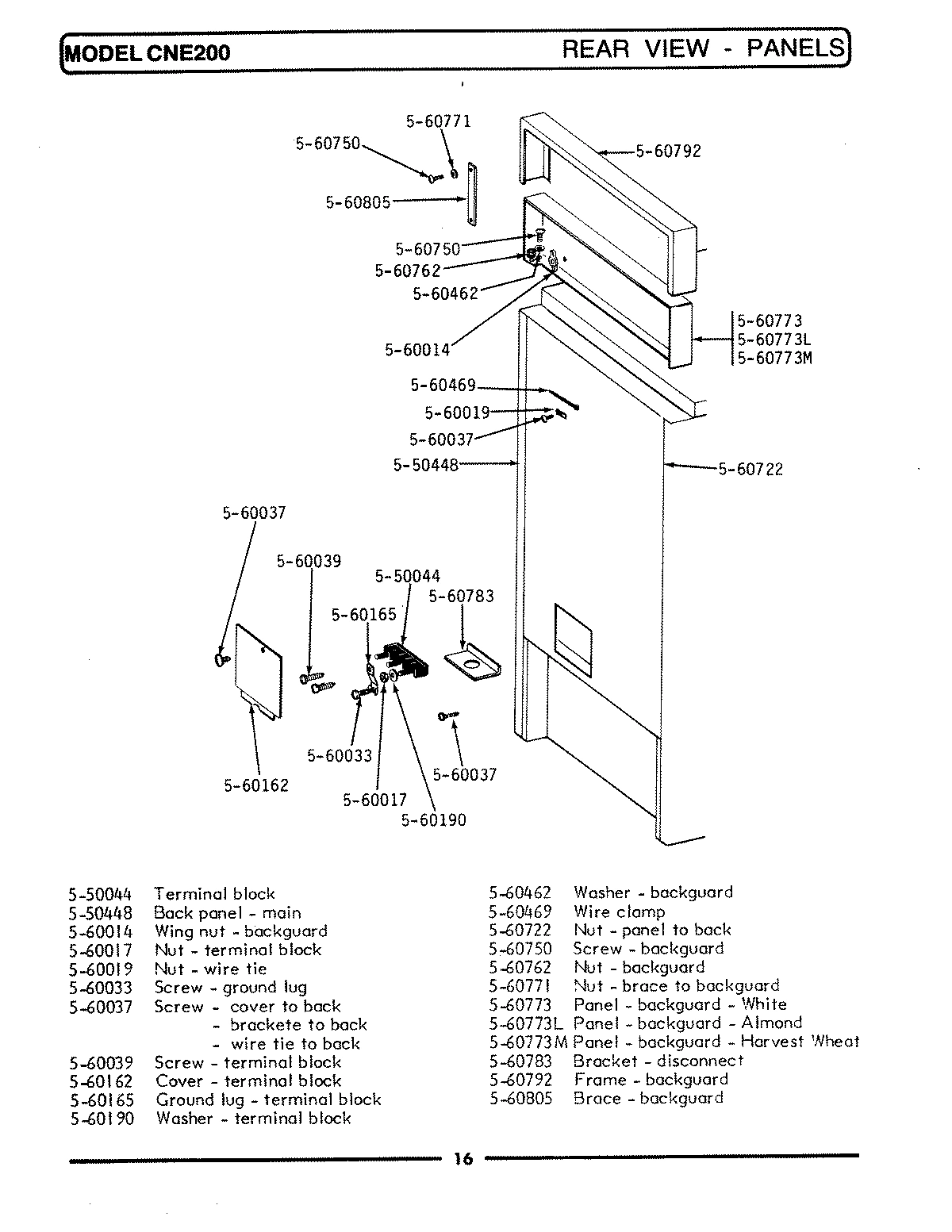

06 - REAR VIEW-PANELS

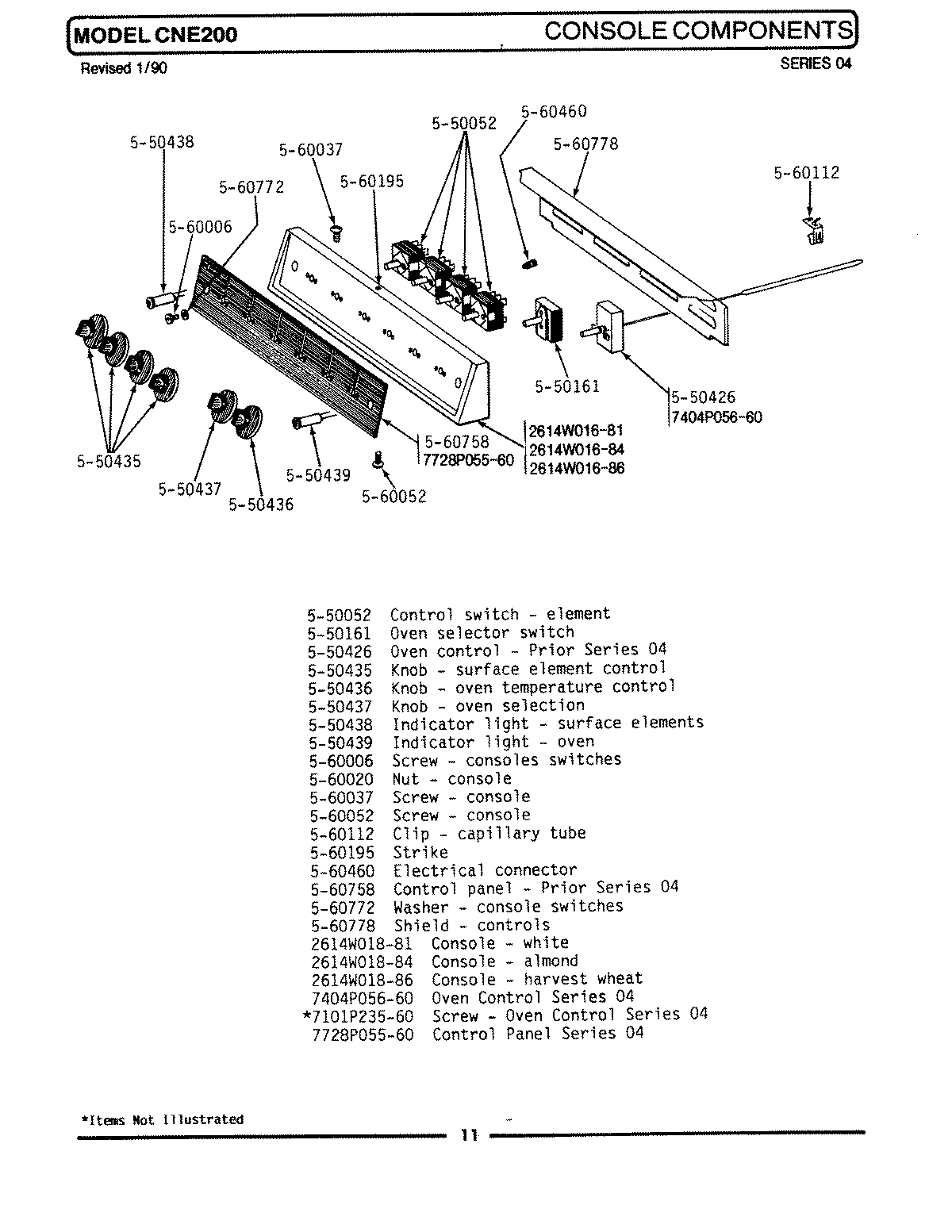

01 - CONTROL PANEL

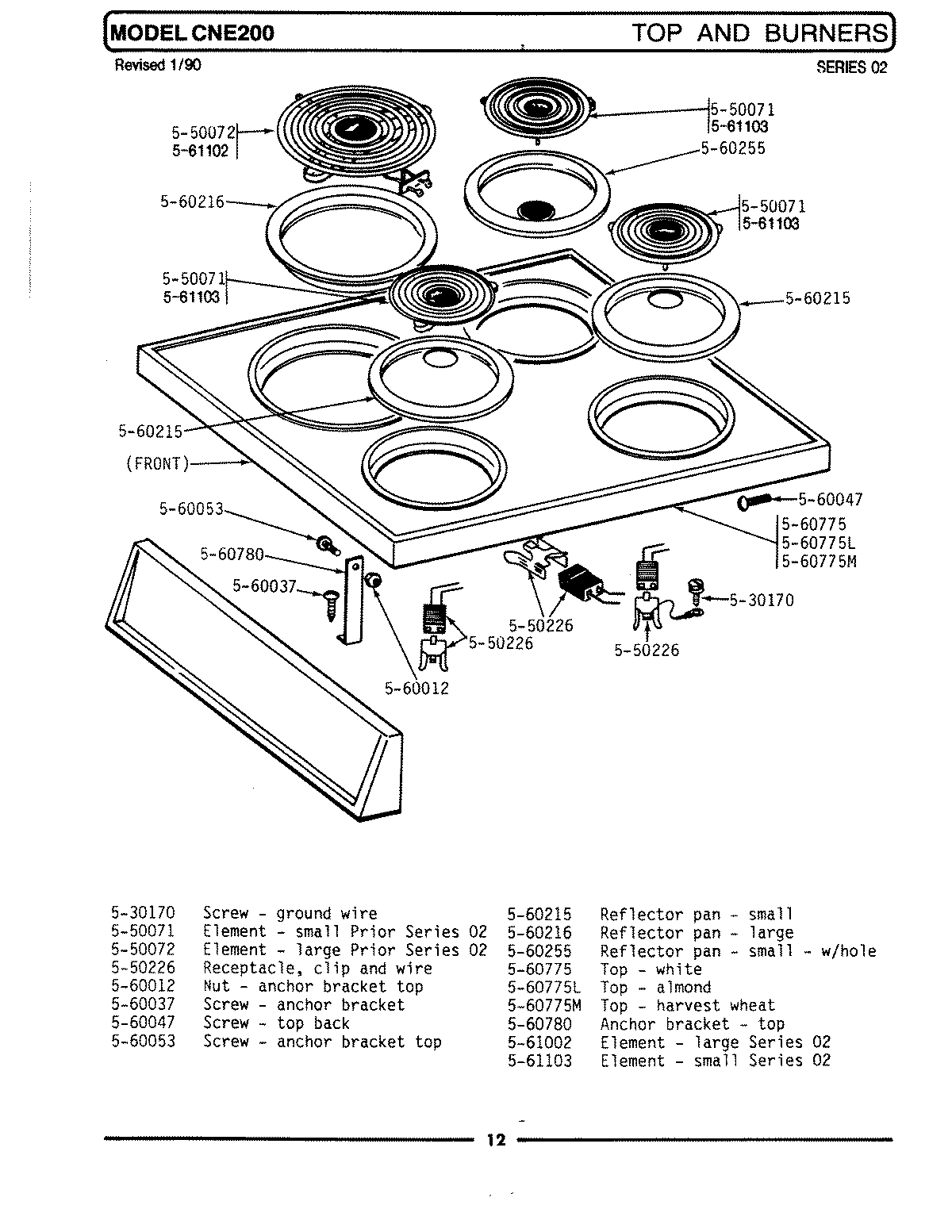

07 - TOP ASSEMBLY

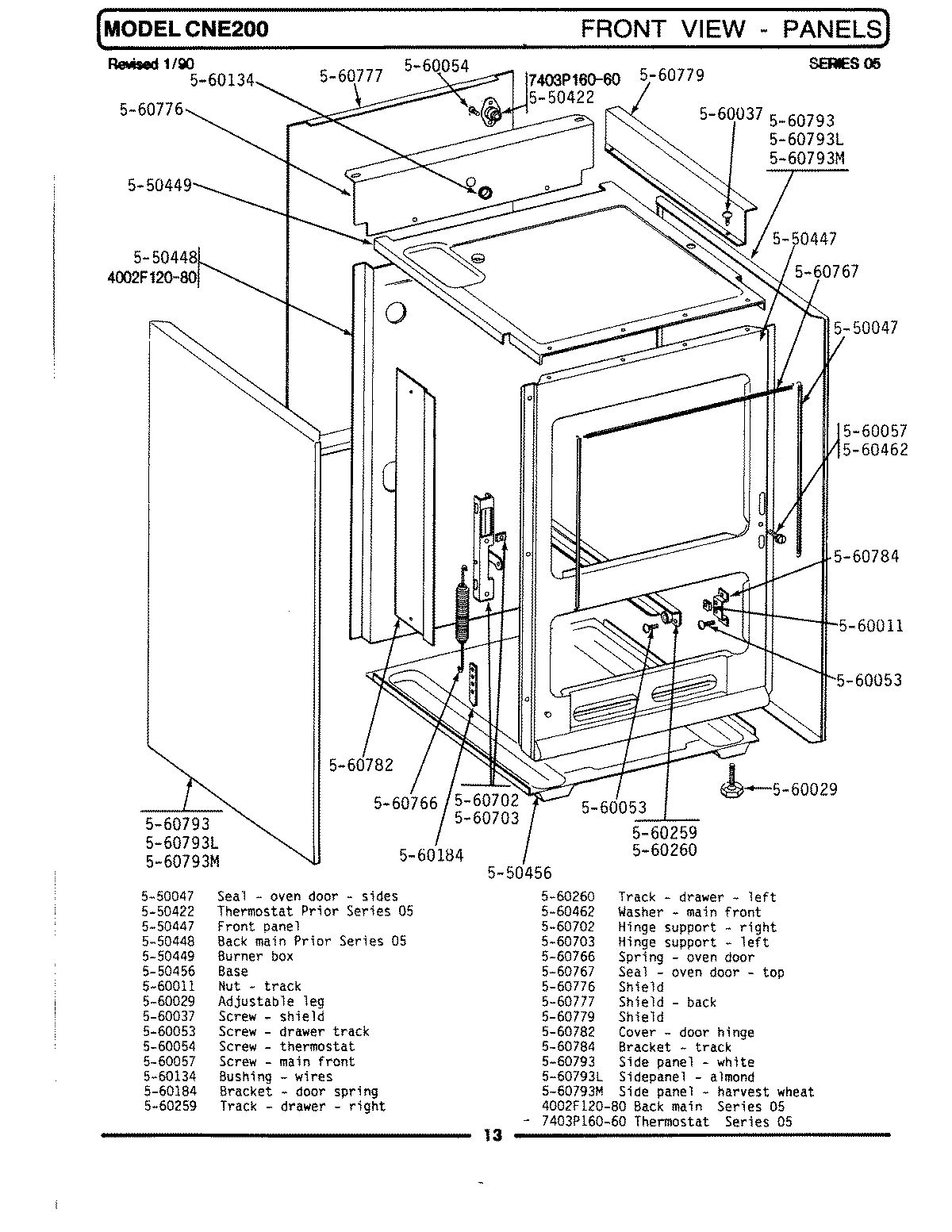

03 - FRONT VIEW - PANELS

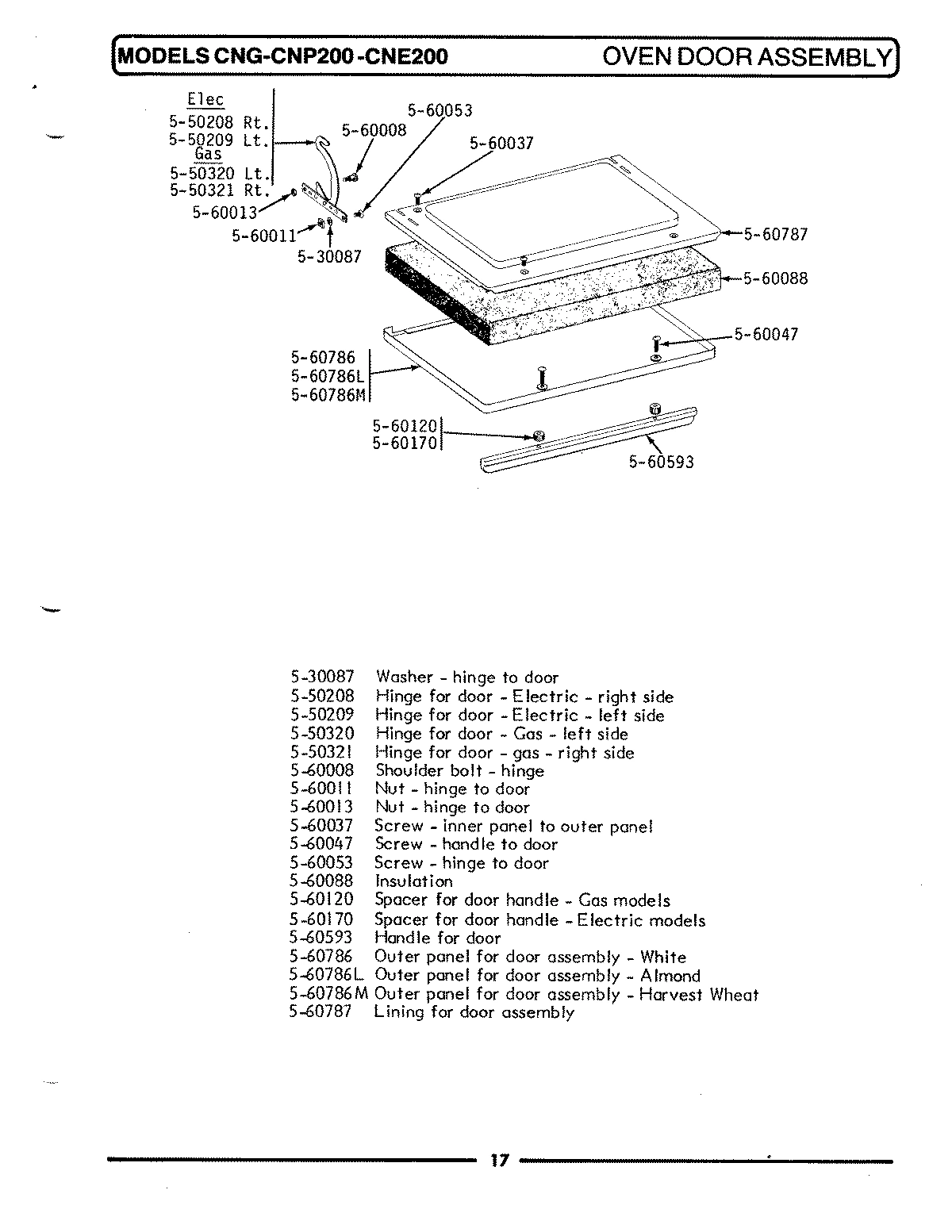

05 - OVEN DOOR ASSEMBLY
Common parts from model Whirlpool CNE200 ELECTRIC RANGE
1
ROLLER REPAIR KIT WPL 550274 Contact Us For Availability
1
CONTROL SWITCH-HEAT ELEMENT WPL 550052 Contact Us For Availability
1
SCREW WPL 530170 Contact Us For Availability
1
SEAL FOR OVEN DOOR WPL 550047 Contact Us For Availability
1
LOCK WASHER WPL 530087 Contact Us For Availability
2
HANDLE FOR BROILER DOOR WPL 550432 Contact Us For Availability
2
BROIL ELEMENT WPL 550430 Contact Us For Availability
2
CONTROL SWITCH-OVEN SELECTO WPL 550161 Contact Us For Availability
2
THERMOSTAT - DISC TYPE WPL 550422 Contact Us For Availability
2
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
2
HINGE SUPPORT-RIGHT WPL 550208 Contact Us For Availability
3
DRAWER PANEL-WHITE WPL 550445 Contact Us For Availability
3
RACK FOR OVEN WPL 550442 Contact Us For Availability
3
NUT WPL 560014 Contact Us For Availability
3
OVEN TEMPERATURE CONTROL WPL 550426 Contact Us For Availability
3
THERMOSTAT WPL 7404P05660 Contact Us For Availability
3
BODY, CARTON 30`` WPL 561002 Contact Us For Availability
3
FRONT PANEL WPL 550447 Contact Us For Availability
3
HINGE SUPPORT-LEFT WPL 550209 Contact Us For Availability
4
DRAWER PANEL-ALMOND WPL 550445L Contact Us For Availability
4
BACK PANEL - MAIN WPL 550448 Contact Us For Availability
4
NUT WPL 560017 Contact Us For Availability
4
KNOB FOR SURFACE ELEMENT WPL 550435 Contact Us For Availability
4
BACK MAIN WPL 4002F12080 Contact Us For Availability
4
HINGE FOR DOOR-LEFT WPL 550320 Contact Us For Availability
5
DRAWER PANEL-HARVEST WHEAT WPL 550445M Contact Us For Availability
5
NUT WPL 560019 Contact Us For Availability
5
KNOB FOR OVEN TEMPERATURE WPL 550436 Contact Us For Availability
5
NUT-CLOCK TO SUPPORT WPL 560012 Contact Us For Availability
5
BURNER BOX WPL 550449 Contact Us For Availability
5
HINGE FOR DOOR-RIGHT WPL 550321 Contact Us For Availability
6
DRAWER WPL 550459 Contact Us For Availability
6
SCREW WPL 560033 Contact Us For Availability
6
KNOB FOR OVEN SELECTION WPL 550437 Contact Us For Availability
6
BOTTOM ASSEMBLY WPL 550456 Contact Us For Availability
6
BOLT WPL 560008 Contact Us For Availability
7
INSULATION WPL 560094 Contact Us For Availability
7
INDICATOR LIGHT - ELEMENTS WPL 550438 Contact Us For Availability
8
TRAY FOR BROILER PAN WPL 560624 Contact Us For Availability
8
SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability
8
INDICATOR LIGHT - OVEN WPL 550439 Contact Us For Availability
8
ADJUSTABLE LEG WPL 560029 Contact Us For Availability
8
NUT WPL 560013 Contact Us For Availability
9
NUT WPL 560015 Contact Us For Availability
9
COVER-TERMINAL BLOCK WPL 560162 Contact Us For Availability
10
SCREW WPL 560041 Contact Us For Availability
10
INSULATION - BACK WPL 560759 Contact Us For Availability
10
GROUND LUG WPL 560165 Contact Us For Availability
10
NUT-BURNER BOX WPL 560020 Contact Us For Availability
10
SCREW-HANDLE TO DOOR WPL 560047 Contact Us For Availability
11
SCREW WPL 560053 Contact Us For Availability
11
OVEN BOTTOM WPL 560774 Contact Us For Availability
11
WASHER WPL 560190 Contact Us For Availability
11
SCREW WPL 560054 Contact Us For Availability
12
SPACER FOR BROILER DOOR WPL 560439 Contact Us For Availability
12
SCREW WPL 560052 Contact Us For Availability
12
VENT PIPE WPL 560785 Contact Us For Availability
12
TOP ASSEMBLY-WHITE WPL 560775 Contact Us For Availability
12
SCREW WPL 560057 Contact Us For Availability
12
INSULATION WPL 560088 Contact Us For Availability
13
SUPPORT FOR BROIL ELEMENT WPL 560813 Contact Us For Availability
13
NUT WPL 560722 Contact Us For Availability
13
CLIP FOR CAPILLARY TUBE WPL 560112 Contact Us For Availability
13
TOP ASSEMBLY-ALMOND WPL 560775L Contact Us For Availability
13
BUSHING WPL 560134 Contact Us For Availability
13
SPACER WPL 560120 Contact Us For Availability
14
SUPPORT PLATE F/INSULATION WPL 560836 Contact Us For Availability
14
STRIKE FOR TOP ASSEMBLY WPL 560195 Contact Us For Availability
14
TOP ASSEMBLY-HARVEST WHEAT WPL 560775M Contact Us For Availability
14
BRACKET FOR DOOR SPRING WPL 560184 Contact Us For Availability
14
SPACER-OVEN DOOR HANDLE WPL 560170 Contact Us For Availability
15
NUT WPL 560762 Contact Us For Availability
15
WIRE CONNECTOR WPL 560460 Contact Us For Availability
15
ANCHOR BRACKET WPL 560780 Contact Us For Availability
15
TRACK FOR DRAWER-RIGHT WPL 560259 Contact Us For Availability
15
HANDLE FOR STORAGE DRAWER WPL 560593 Contact Us For Availability
16
WASHER WPL 560771 Contact Us For Availability
16
INLAY FOR MANIFOLD WPL 560758 Contact Us For Availability
16
TRIM, CONTROL PANEL WPL 7728P05560 Contact Us For Availability
16
TRACK FOR DRAWER-LEFT WPL 560260 Contact Us For Availability
16
OUTER PANEL-WHITE WPL Y560786 Contact Us For Availability
17
WASHER WPL 560462 Contact Us For Availability
17
CONSOLE-WHITE WPL 560773 Contact Us For Availability
17
WASHER WPL 560772 Contact Us For Availability
17
OUTER PANEL-ALMOND WPL 560786L Contact Us For Availability
18
CONSOLE-ALMOND WPL 560773L Contact Us For Availability
18
SHIELD FOR CONTROLS WPL 560778 Contact Us For Availability
18
SUPPORT FOR HINGE - LEFT WPL 560702 Contact Us For Availability
18
OUTER PANEL-HARVEST WHEAT WPL 560786M Contact Us For Availability
19
CONSOLE-HARVEST WHEAT WPL 560773M Contact Us For Availability
19
MANIFOLD PANEL-WHITE WPL 560781 Contact Us For Availability
19
SUPPORT FOR HINGE - RIGHT WPL 560703 Contact Us For Availability
19
LINING FOR DOOR WPL Y560787 Contact Us For Availability
20
BRACKET - DISCONNECT WPL 560783 Contact Us For Availability
20
MANIFOLD PANEL-ALMOND WPL 560781L Contact Us For Availability
20
SPRING FOR DOOR WPL 560766 Contact Us For Availability
21
FRAME FOR CONSOLE WPL 560792 Contact Us For Availability
21
MANIFOLD PANEL-HARVEST WHEA WPL 560781M Contact Us For Availability
22
BRACKET FOR CONSOLE WPL 560805 Contact Us For Availability
22
SCREW WPL 7101P23560 Contact Us For Availability
23
SEAL FOR OVEN DOOR - TOP WPL Y560767 Contact Us For Availability
24
SHIELD WPL 560776 Contact Us For Availability
25
SHIELD - BACK WPL 560777 Contact Us For Availability
26
SHIELD FOR WIRES WPL Y560779 Contact Us For Availability
27
COVER FOR DOOR HINGE WPL 560782 Contact Us For Availability
28
BRACKET FOR TRACK WPL 560784 Contact Us For Availability
29
SIDE PANEL-WHITE WPL 560793 Contact Us For Availability
30
SIDE PANEL-ALMOND WPL 560793L Contact Us For Availability
31
SIDE PANEL-HARVEST WHEAT WPL 560793M Contact Us For Availability
× ![]()
