Model Whirlpool CLE700 ELECTRIC RANGE – Common Parts & Diagrams
01 - AUXILIARY BLOWER ASSEMBLY

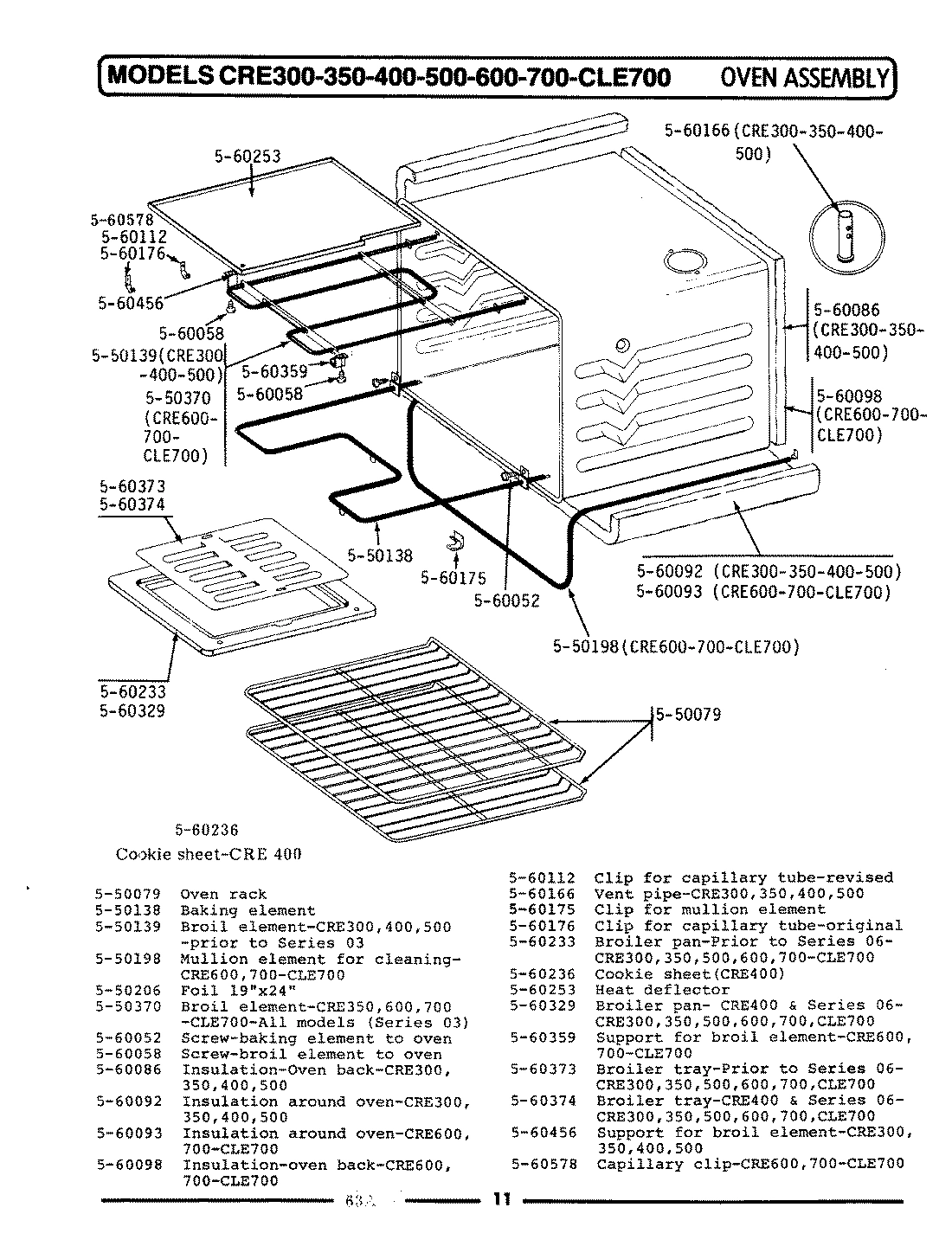

16 - OVEN ASSEMBLY
18 - TOP ASSEMBLY

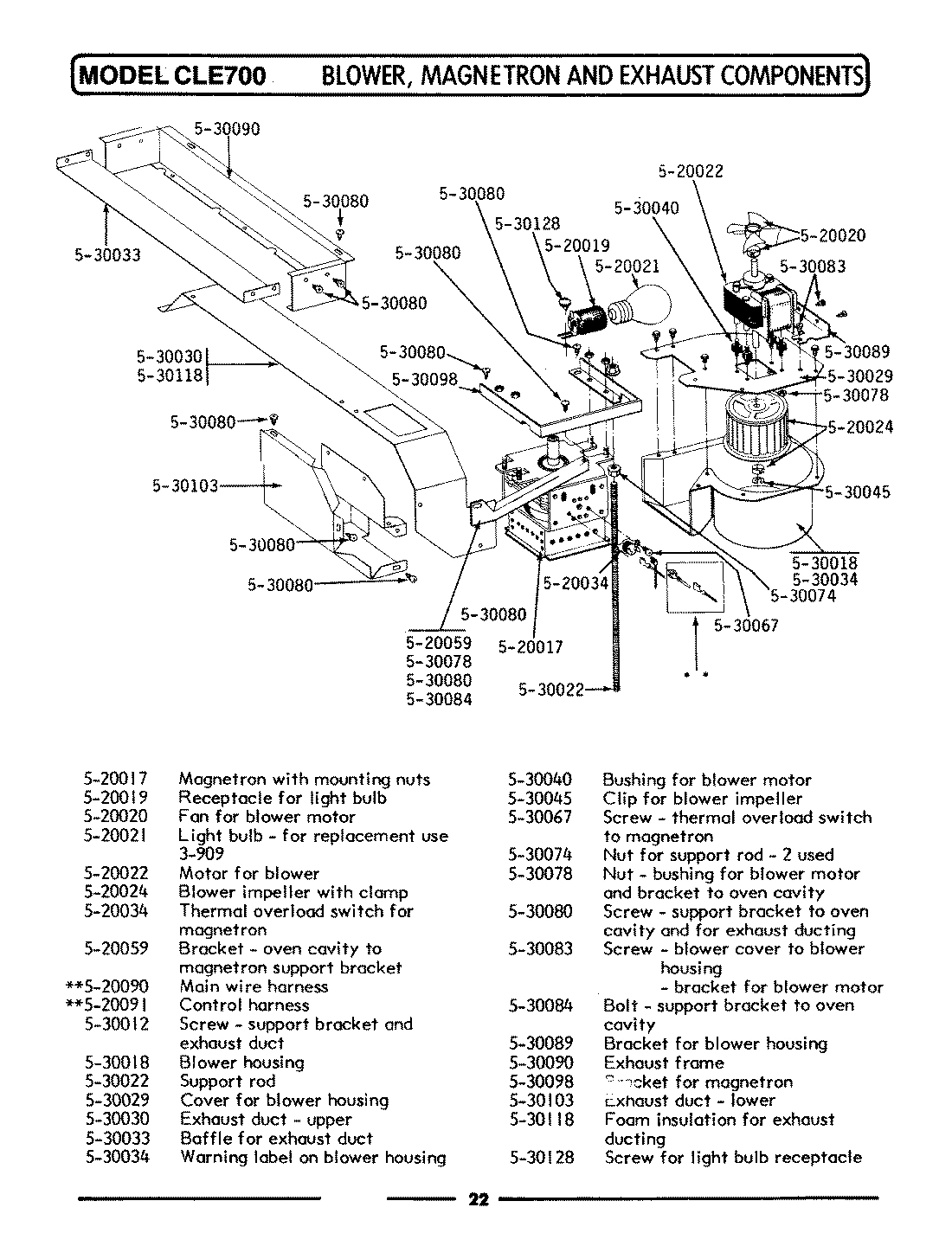

09 - MICROWAVE BLOWER & EXHAUST COMPONENTS

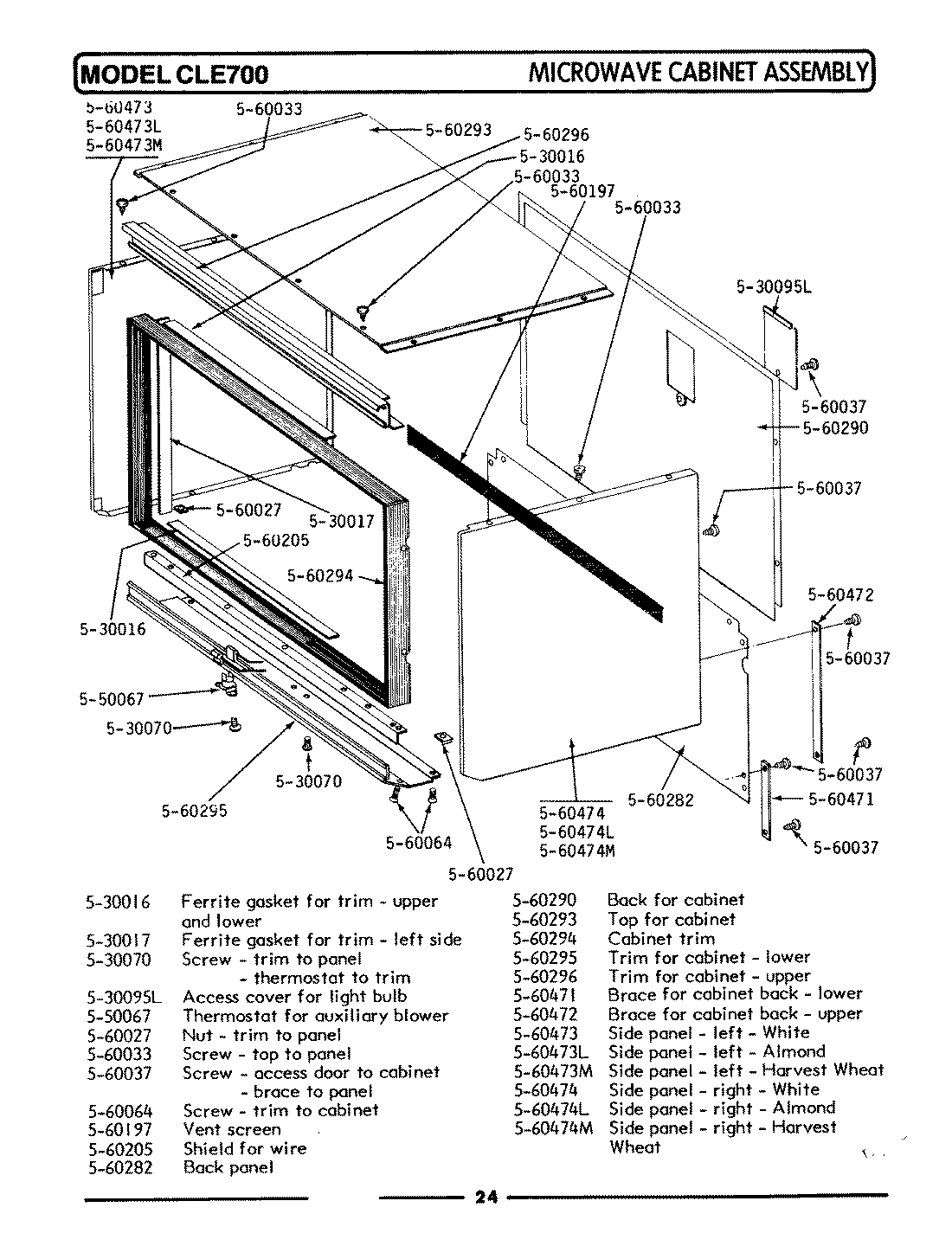

10 - MICROWAVE CABINET ASSEMBLY
07 - LATCH ASSEMBLY

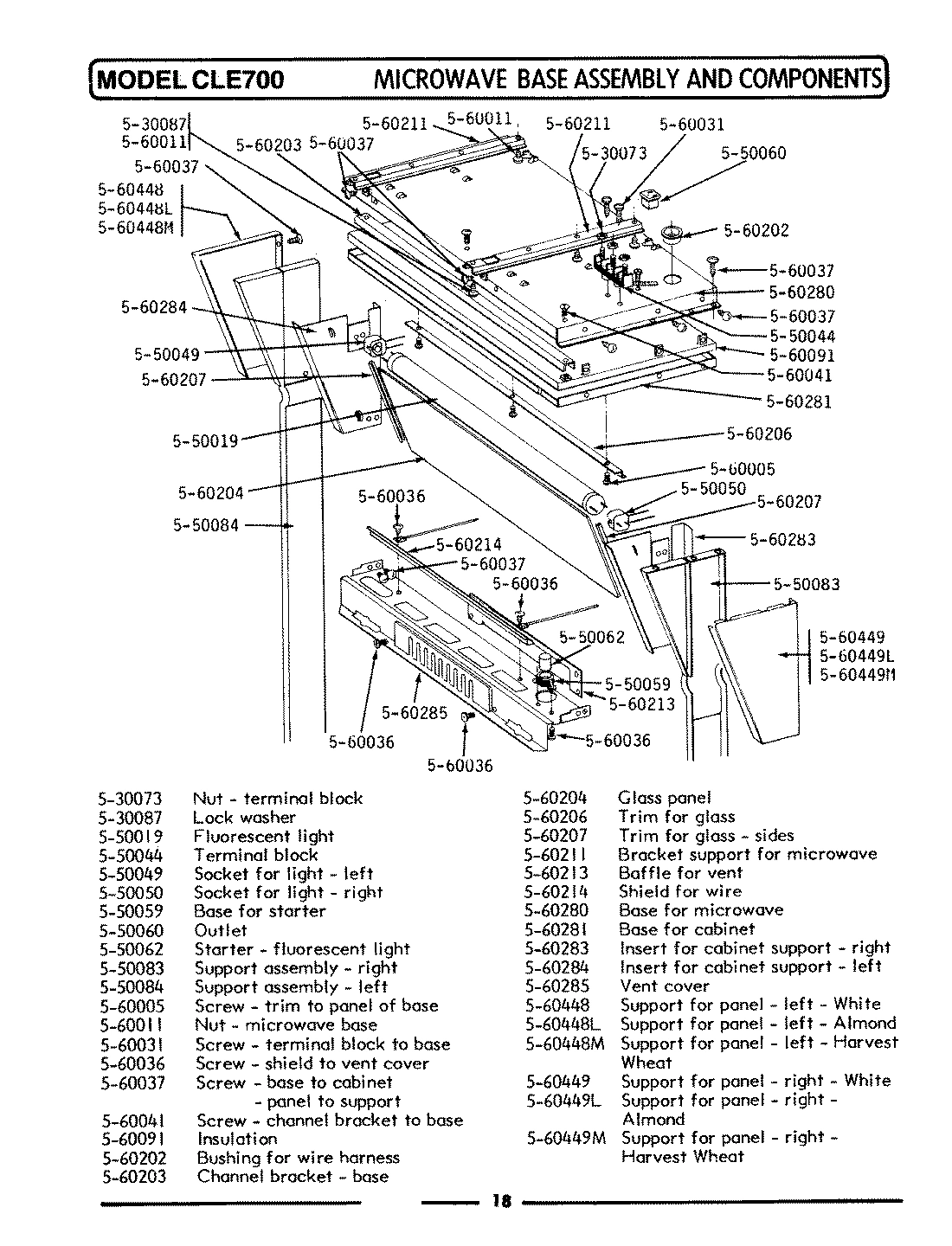

08 - MICROWAVE BASE ASSEMBLY

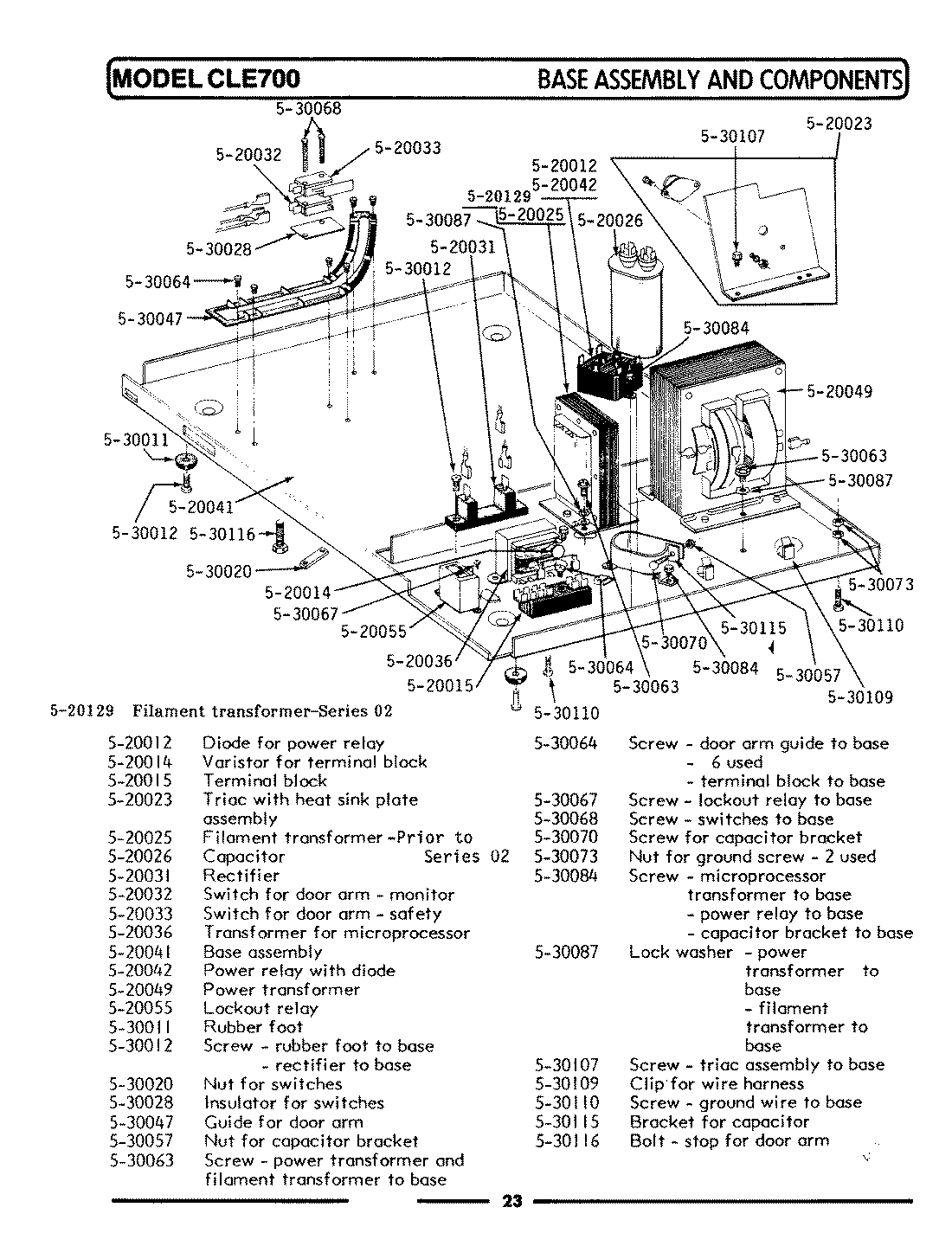

02 - BASE ASSEMBLY & COMPONENTS

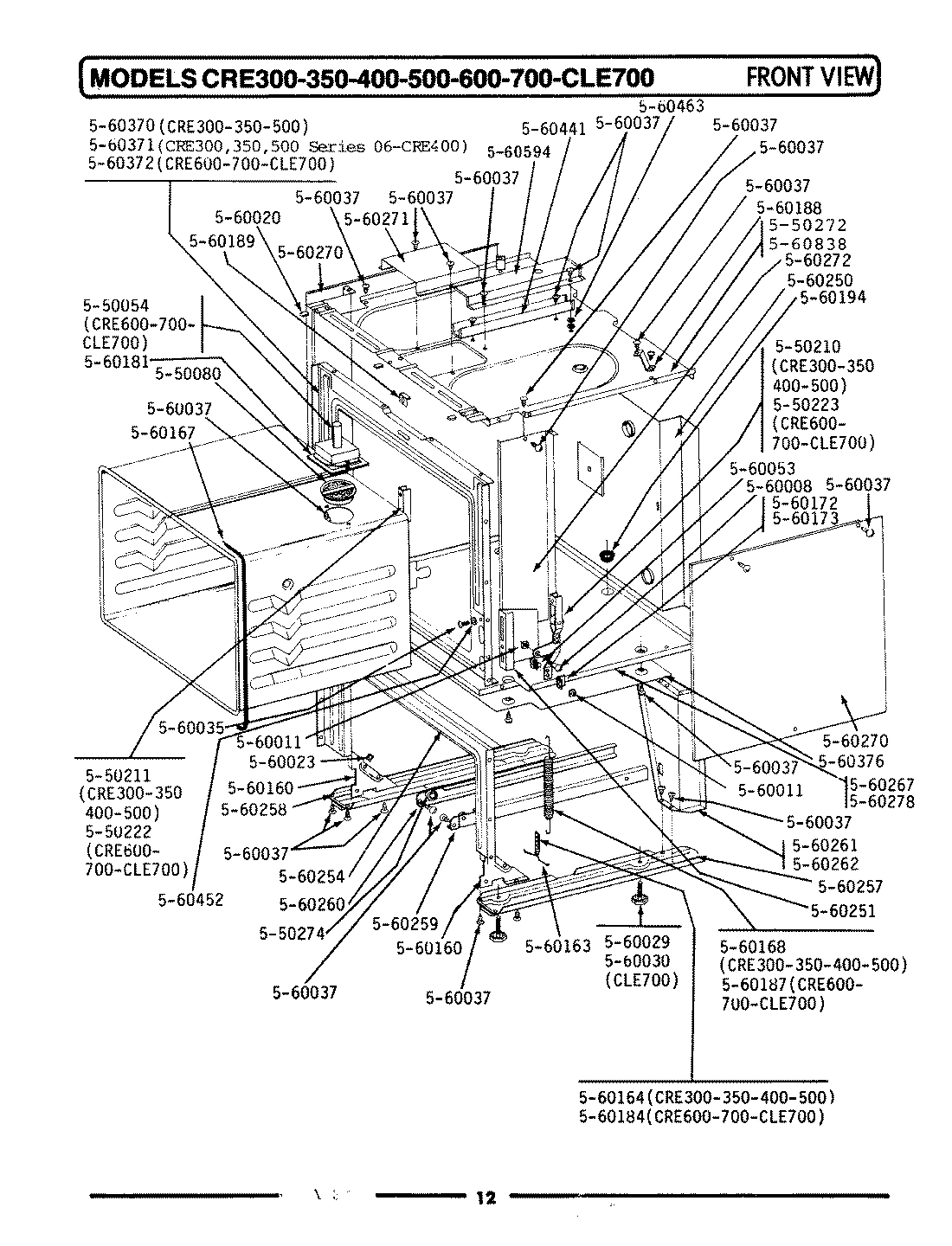

06 - FRONT VIEW

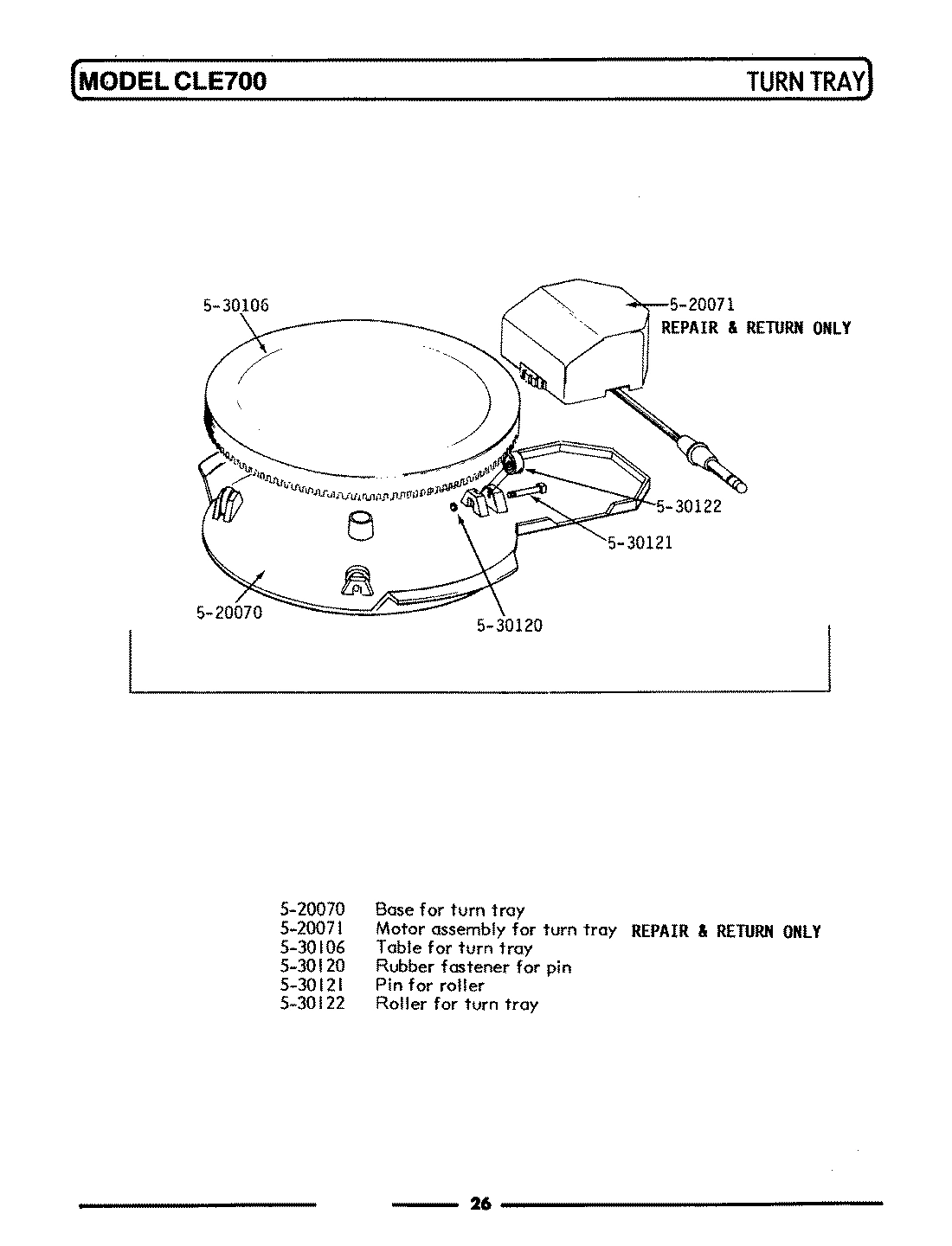

13 - MICROWAVE TURN TRAY

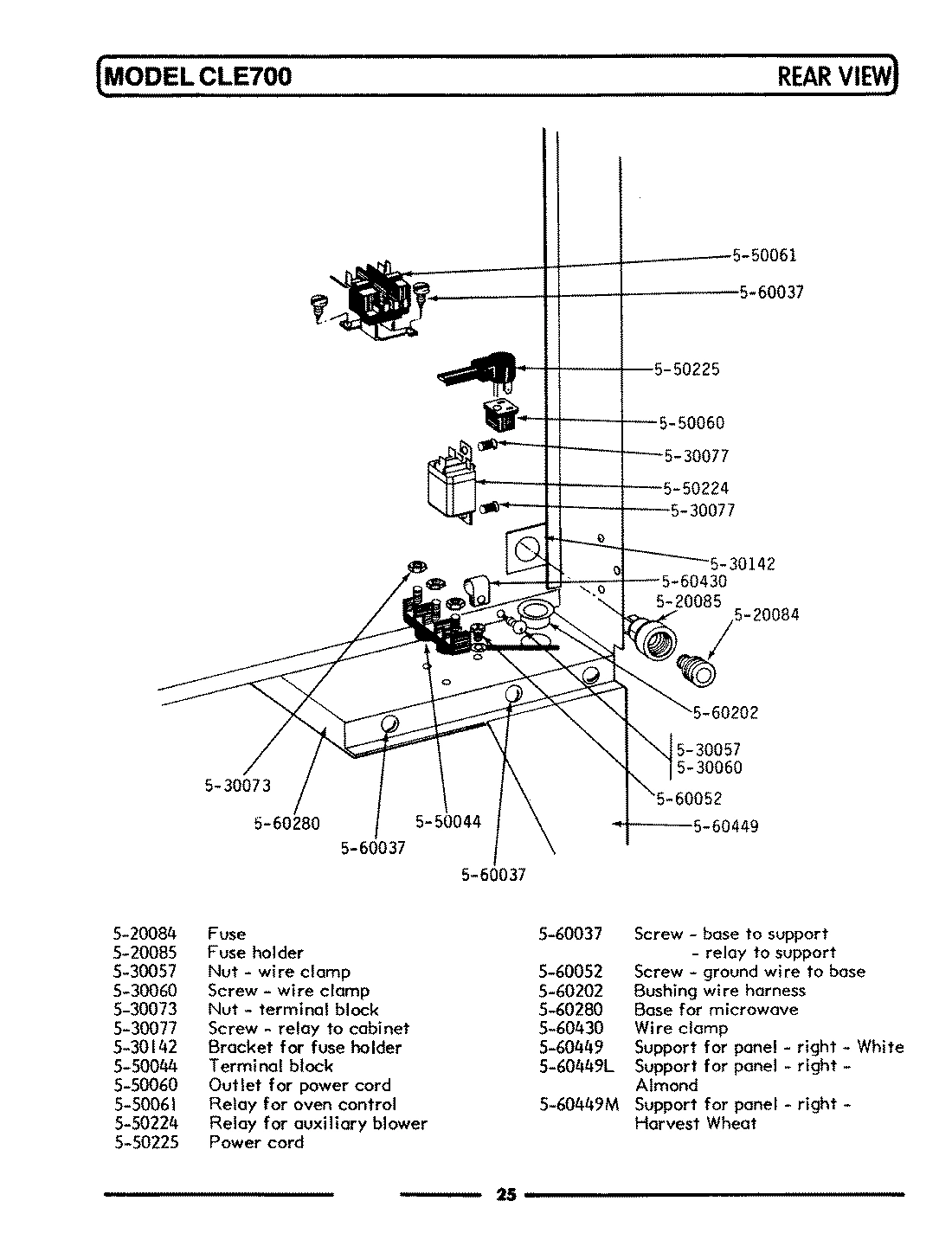

15 - MICROWAVE-REAR VIEW

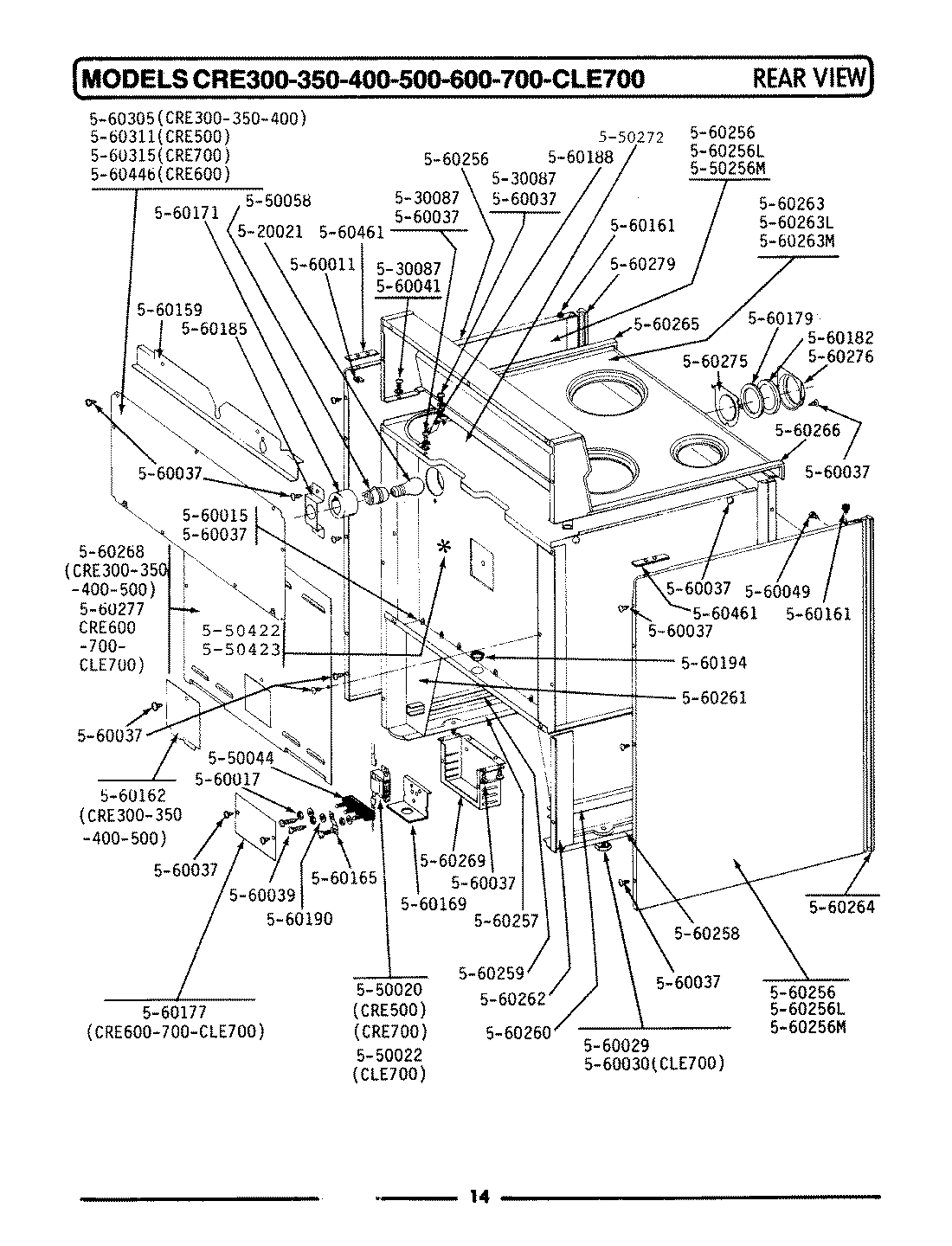

17 - REAR VIEW

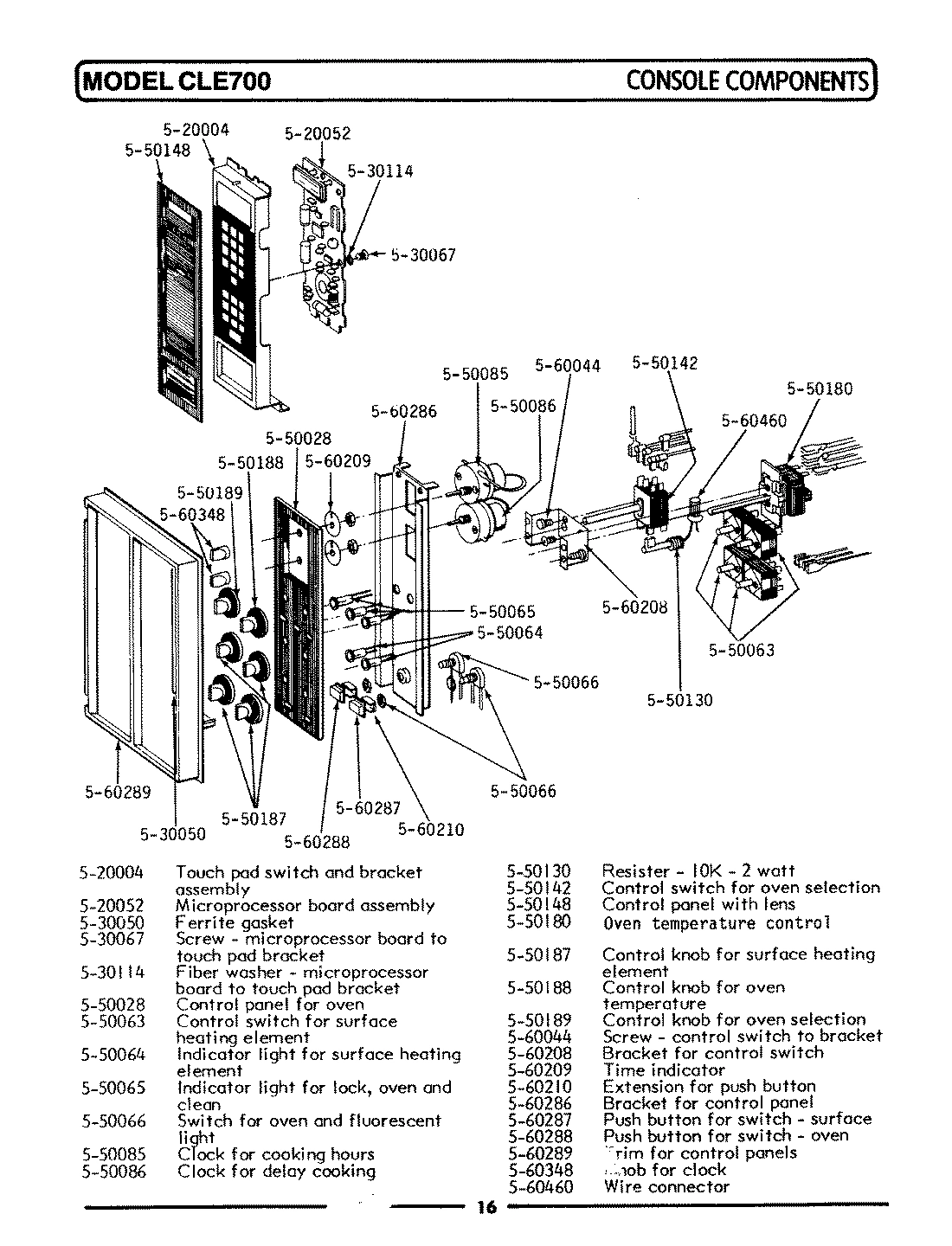

03 - CONTROL PANEL

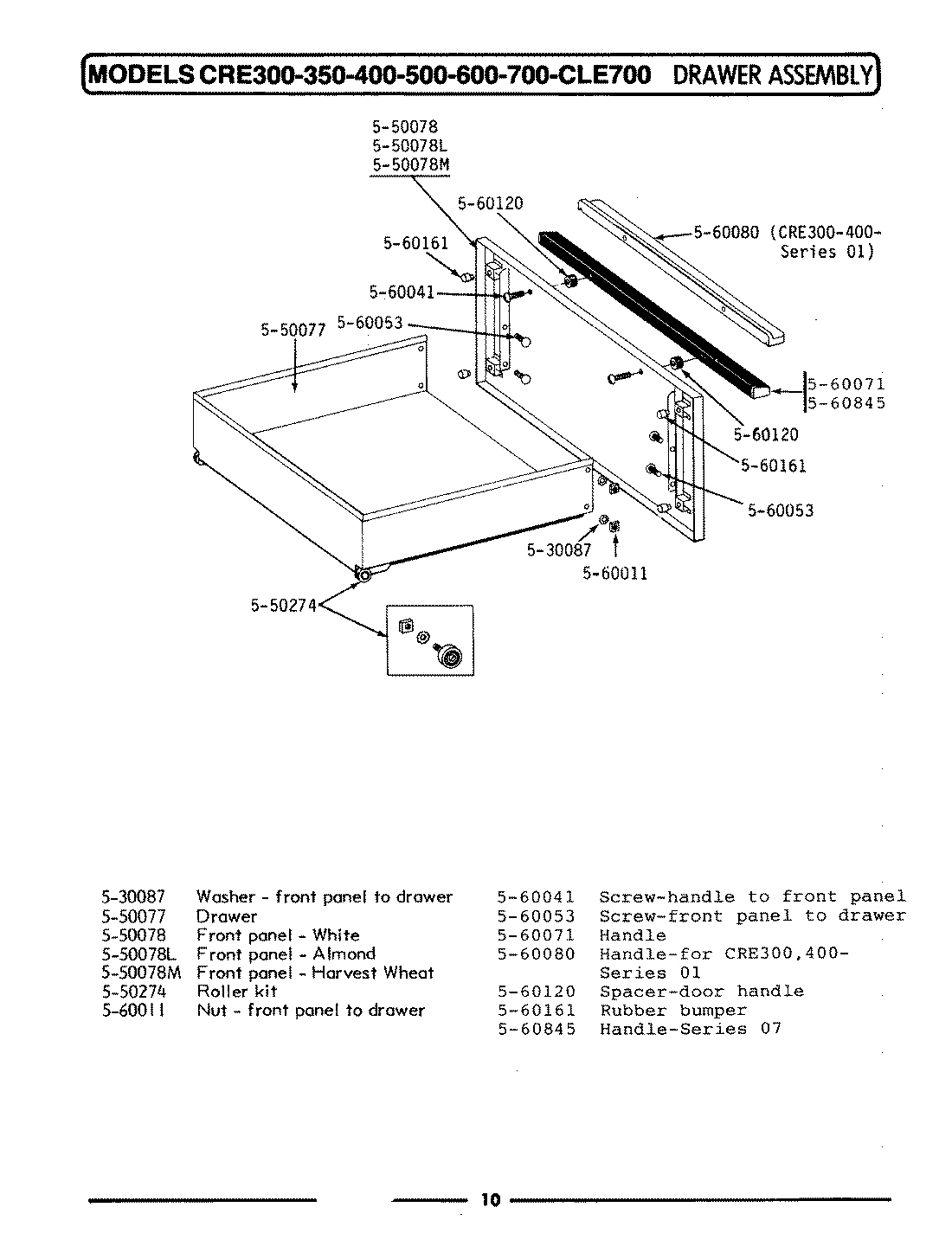

05 - DRAWER ASSEMBLY

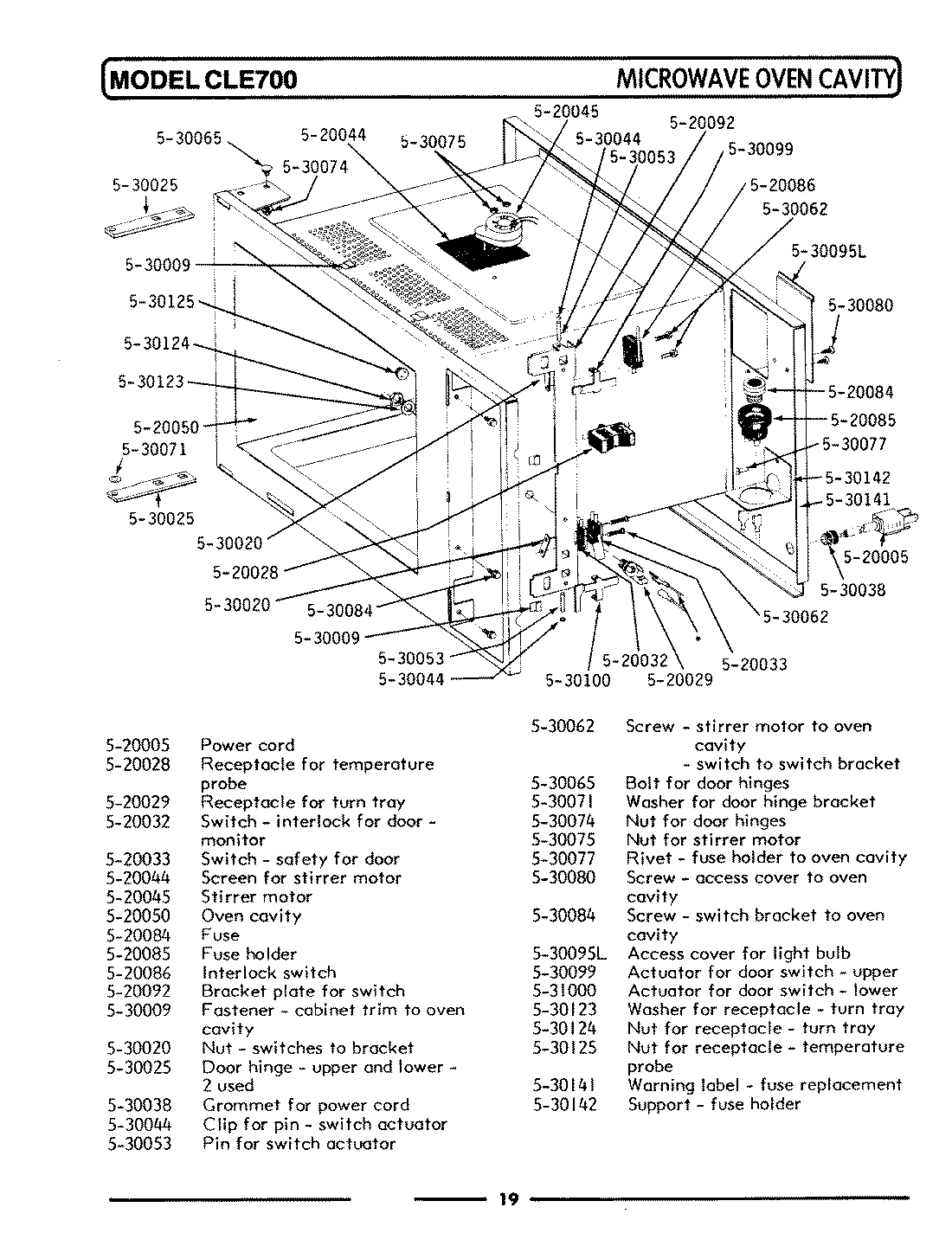

12 - MICROWAVE OVEN CAVITY

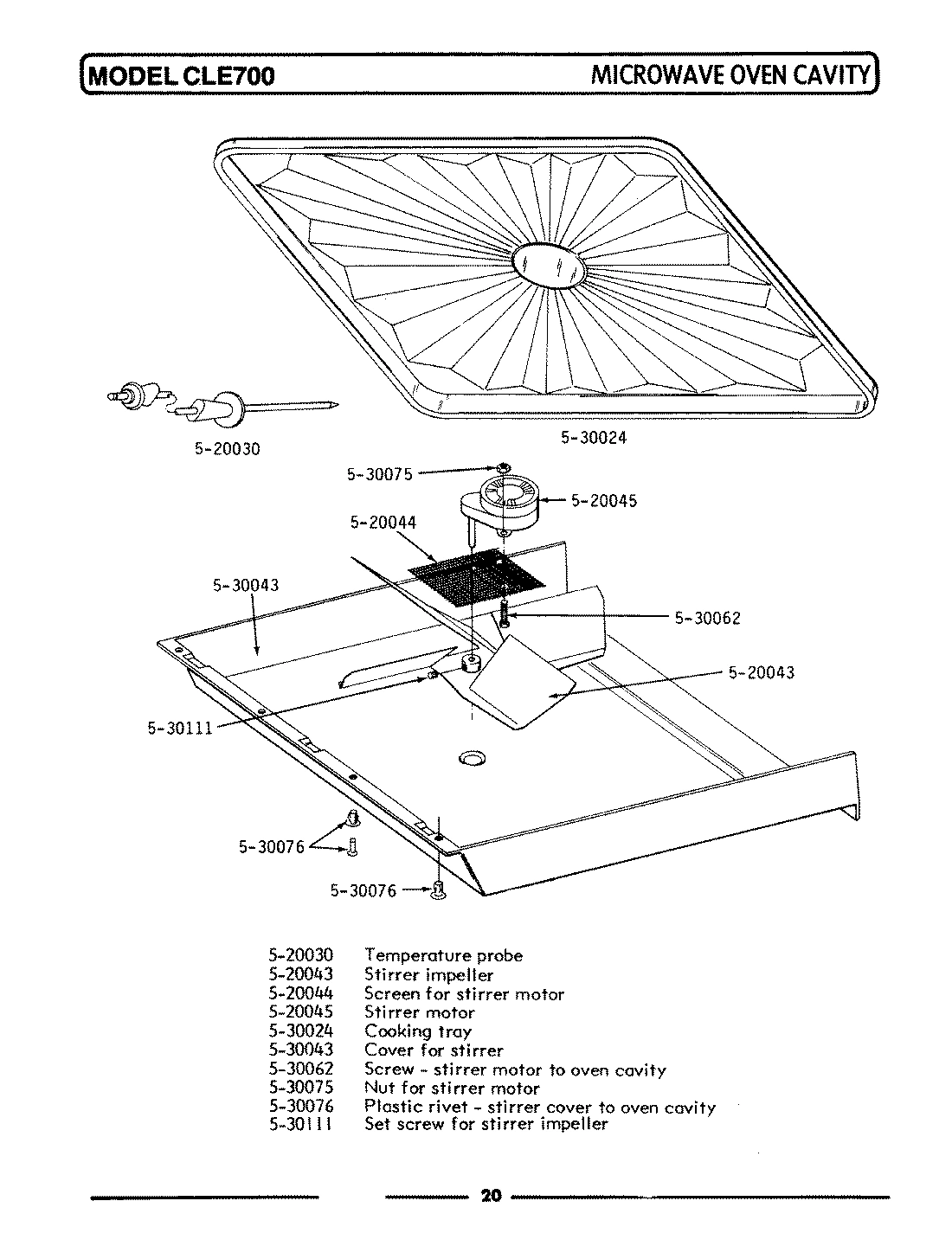

14 - MICROWAVE TURNTABLE

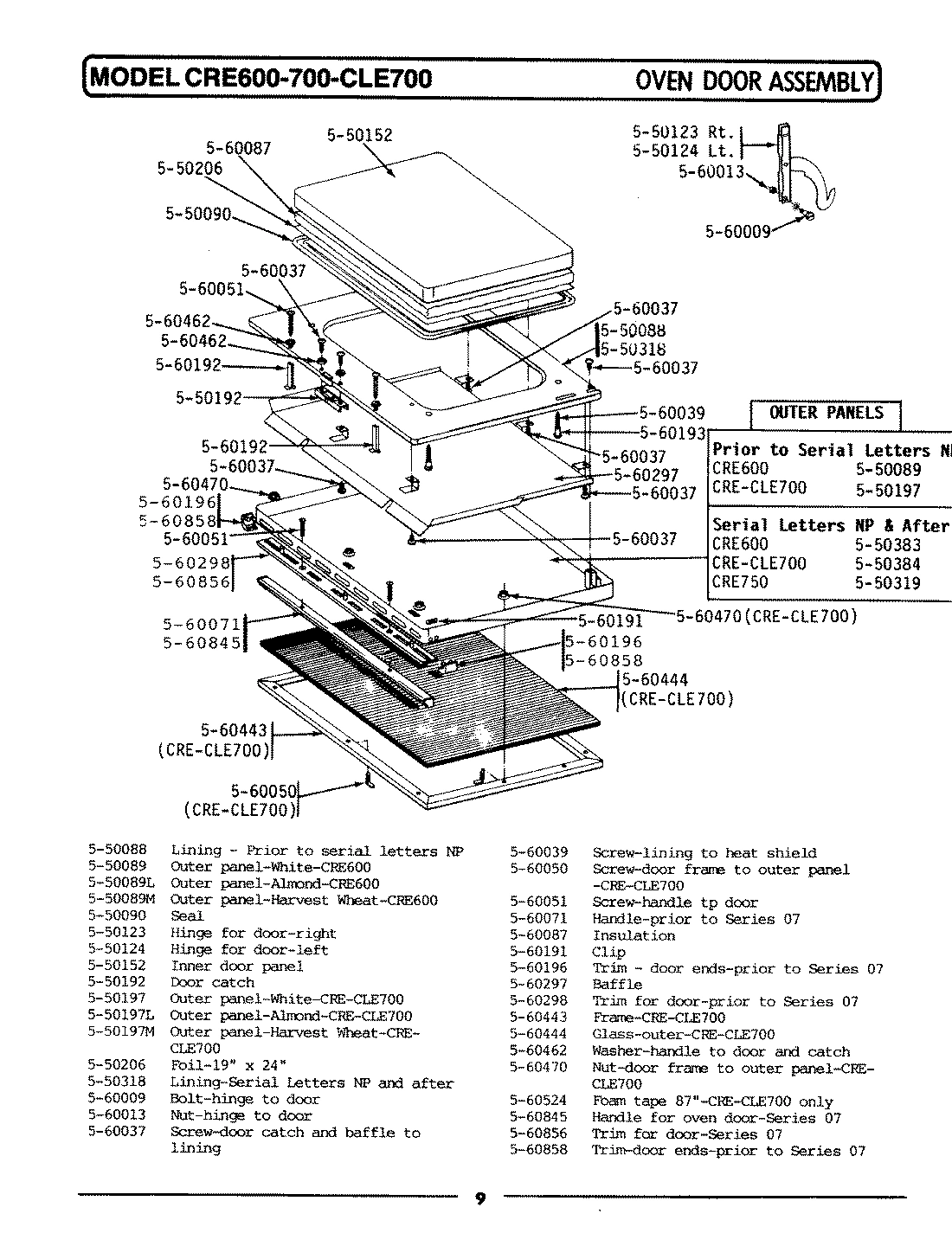

04 - DOOR ASSEMBLY

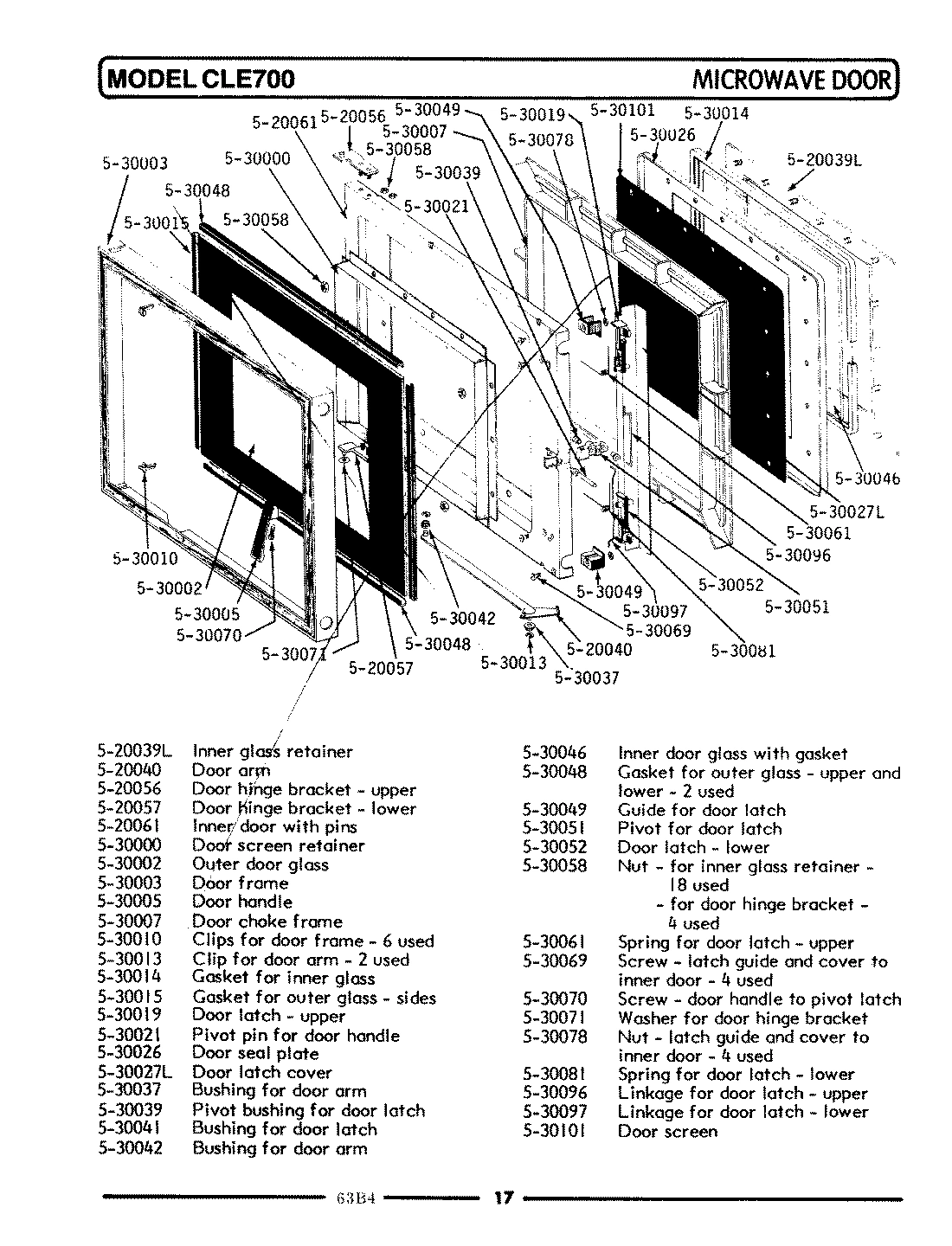

11 - MICROWAVE DOOR
Common parts from model Whirlpool CLE700 ELECTRIC RANGE
1
LOCK WASHER WPL 530087 Contact Us For Availability
1
MAGNETRON WPL 520017 Contact Us For Availability
1
GASKET FOR TRIM-UPPER, LOWE WPL 530016 Contact Us For Availability
1
SOLENOID FOR DOOR LOCK KIT WPL 550055 Contact Us For Availability
1
FILAMENT TRANSFORMER WPL 520129 Contact Us For Availability
1
VENT ASSEMBLY WPL 550054 Contact Us For Availability
1
BASE FOR TURN TRAY WPL 520070 Contact Us For Availability
1
TOUCH PAD SWITCH W/BRACKET WPL Y520004 Contact Us For Availability
1
POWER CORD WPL 520005 Contact Us For Availability
1
TEMPERATURE PROBE WPL 520030 Contact Us For Availability
1
INNER DOOR LINER WPL 550088 Contact Us For Availability
1
INNER GLASS RETAINER-ALMOND WPL 520039L Contact Us For Availability
2
RECEPTACLE FOR LIGHT BULB WPL 520019 Contact Us For Availability
2
GASKET FOR TRIM-LEFT SIDE WPL 530017 Contact Us For Availability
2
SWITCH FOR DOOR LOCK WPL 550057 Contact Us For Availability
2
DIODE WPL 520012 Contact Us For Availability
2
CATALYTIC BURNER WPL 550080 Contact Us For Availability
2
MOTOR, TURNTABLE WPL 520071 Contact Us For Availability
2
MICROPROCESSOR BOARD ASSM WPL 520052 Contact Us For Availability
2
DRAWER WPL 550077 Contact Us For Availability
2
RECEPTACLE-TEMPERATURE PROB WPL 520028 Contact Us For Availability
2
STIRRER IMPELLER WPL 520043 Contact Us For Availability
2
HINGE FOR DOOR-RIGHT WPL 550123 Contact Us For Availability
2
DOOR ARM WPL 520040 Contact Us For Availability
3
SCREW, No.6 X 3/8 INCH WPL 530082 Contact Us For Availability
3
MULLION ELEMENT WPL 550198 Contact Us For Availability
3
FAN FOR BLOWER MOTOR WPL 520020 Contact Us For Availability
3
DOOR LOCK ASSEMBLY WPL 550081 Contact Us For Availability
3
FLUORESCENT LIGHT WPL 550019 Contact Us For Availability
3
VARISTOR WPL 520014 Contact Us For Availability
3
NUT, No.6 - 32 WPL 530057 Contact Us For Availability
3
HINGE SUPPORT-LEFT WPL 550222 Contact Us For Availability
3
TABLE FOR TURN TRAY WPL 530106 Contact Us For Availability
3
BALLAST WPL 550022 Contact Us For Availability
3
GASKET INSERT F/PANEL-RIGHT WPL 530050 Contact Us For Availability
3
DRAWER PANEL-WHITE WPL 550078 Contact Us For Availability
3
RECEPTACLE FOR TURN TRAY WPL 520029 Contact Us For Availability
3
SCREEN FOR STIRRER MOTOR WPL 520044 Contact Us For Availability
3
HINGE FOR DOOR-LEFT WPL 550124 Contact Us For Availability
3
DOOR HINGE BRACKET-UPPER WPL 520056 Contact Us For Availability
4
SCREW WPL 560528 Contact Us For Availability
4
SCREW, No.5-40 X 1/4 INCH WPL 530067 Contact Us For Availability
4
SWITCH FOR DOOR LOCK WPL 550369 Contact Us For Availability
4
TERMINAL BLOCK WPL 520015 Contact Us For Availability
4
SWITCH-INTERLOCK FOR DOOR WPL 520032 Contact Us For Availability
4
HINGE SUPPORT-RIGHT WPL 550223 Contact Us For Availability
4
RUBBER FASTENER FOR PIN WPL 530120 Contact Us For Availability
4
SCREW, No.6-32 X 1/2 INCH WPL 530060 Contact Us For Availability
4
DRAWER PANEL-ALMOND WPL 550078L Contact Us For Availability
4
STIRRER MOTOR WPL 520045 Contact Us For Availability
4
INNER DOOR PANEL WPL 550152 Contact Us For Availability
4
DOOR HINGE BRACKET-LOWER WPL 520057 Contact Us For Availability
5
ELEMENT KIT, BROIL WPL 550370 Contact Us For Availability
5
SCREW WPL 560038 Contact Us For Availability
5
MOTOR FOR BLOWER WPL 520022 Contact Us For Availability
5
THERMOSTAT-AUXILIARY BLOWER WPL 550067 Contact Us For Availability
5
NUT FOR GROUND SCREW WPL 530073 Contact Us For Availability
5
SOCKET FOR LIGHT-LEFT WPL 550049 Contact Us For Availability
5
TRIAC W/HEAT SINK PLATE ASS WPL 520023 Contact Us For Availability
5
SWITCH-SAFETY FOR DOOR WPL 520033 Contact Us For Availability
5
ROLLER REPAIR KIT WPL 550274 Contact Us For Availability
5
PIN FOR ROLLER WPL 530121 Contact Us For Availability
5
SOCKET FOR OVEN LIGHT WPL 550058 Contact Us For Availability
5
FIBER WASHER WPL 530114 Contact Us For Availability
5
COOKING TRAY WPL 530024 Contact Us For Availability
5
DOOR CATCH WPL 550192 Contact Us For Availability
5
INNER DOOR WITH PINS WPL 520061 Contact Us For Availability
6
BLOWER ASSEMBLY-AUXILIARY WPL 550087 Contact Us For Availability
6
BLOWER IMPELLER WITH CLAMP WPL Y520024 Contact Us For Availability
6
NUT WPL 560027 Contact Us For Availability
6
SOCKET FOR LIGHT-RIGHT WPL 550050 Contact Us For Availability
6
FILAMENT TRANSFORMER WPL 520025 Contact Us For Availability
6
POWER CORD - 4 FT. WPL 550246 Contact Us For Availability
6
ROLLER FOR TURN TRAY WPL 530122 Contact Us For Availability
6
CONTROL PANEL FOR OVEN WPL 550028 Contact Us For Availability
6
COVER FOR STIRRER WPL 530043 Contact Us For Availability
6
DOOR PANEL-WHITE WPL 550197 Contact Us For Availability
6
DOOR SCREEN RETAINER WPL 530000 Contact Us For Availability
7
SCREW WPL 560058 Contact Us For Availability
7
TRIM-LATCH PLATE WPL 560065 Contact Us For Availability
7
THERMAL OVERLOAD SWITCH WPL 520034 Contact Us For Availability
7
SCREW WPL 560033 Contact Us For Availability
7
BASE FOR STARTER WPL 550059 Contact Us For Availability
7
SCREW WPL 560041 Contact Us For Availability
7
CAPACITOR WPL 520026 Contact Us For Availability
7
POWER CORD - 5 FT. WPL 550248 Contact Us For Availability
7
CONTROL SWITCH-HEAT ELEMENT WPL 550063 Contact Us For Availability
7
SCREW, No.4-40 X 1 INCH WPL 530062 Contact Us For Availability
7
DOOR PANEL-ALMOND WPL 550197L Contact Us For Availability
7
OUTER DOOR GLASS WPL 530002 Contact Us For Availability
8
INSULATION WPL 560093 Contact Us For Availability
8
BRACKET FOR OVEN CAVITY WPL 520059 Contact Us For Availability
8
SCREW WPL 560059 Contact Us For Availability
8
RECTIFIER WPL 520031 Contact Us For Availability
8
BOLT WPL 560008 Contact Us For Availability
8
SCREW WPL 560053 Contact Us For Availability
8
INDICATOR LIGHT WPL 550064 Contact Us For Availability
8
OVEN CAVITY WPL 520050 Contact Us For Availability
8
NUT FOR STIRRER MOTOR WPL 530075 Contact Us For Availability
8
DOOR PANEL-HARVEST WHEAT WPL 550197M Contact Us For Availability
8
DOOR FRAME WPL 530003 Contact Us For Availability
9
BRACKET FOR AUXILLARY BLOWE WPL 560212 Contact Us For Availability
9
FOIL WPL 550206 Contact Us For Availability
9
INSULATION WPL 560098 Contact Us For Availability
9
SCREW WPL 560064 Contact Us For Availability
9
SCREW WPL 560060 Contact Us For Availability
9
OUTLET WPL 550060 Contact Us For Availability
9
STARTER - FLUORESCENT LIGHT WPL 550062 Contact Us For Availability
9
FUSE WPL 520084 Contact Us For Availability
9
NUT WPL 560015 Contact Us For Availability
9
INDICATOR LIGHT WPL 550065 Contact Us For Availability
9
PLASTIC RIVET WPL Y530076 Contact Us For Availability
9
DOOR HANDLE WPL 530005 Contact Us For Availability
10
DUCT-AUXILIARY WPL 560291 Contact Us For Availability
10
CLIP FOR CAPILLARY TUBE WPL 560112 Contact Us For Availability
10
VENT SCREEN WPL 560197 Contact Us For Availability
10
LEVER FOR DOOR LOCK WPL 560079 Contact Us For Availability
10
SUPPORT ASSEMBLY-RIGHT WPL 550083 Contact Us For Availability
10
NUT-BURNER BOX WPL 560020 Contact Us For Availability
10
FUSE HOLDER WPL 520085 Contact Us For Availability
10
RELAY FOR OVEN CONTROL WPL 550061 Contact Us For Availability
10
NUT WPL 560017 Contact Us For Availability
10
SWITCH FOR LIGHT WPL 550066 Contact Us For Availability
10
SPACER WPL 560120 Contact Us For Availability
10
SET SCREW FOR STIRRER WPL 530111 Contact Us For Availability
10
INNER DOOR LINER WPL 550318 Contact Us For Availability
10
DOOR CHOKE FRAME WPL 530007 Contact Us For Availability
11
EXTENSION FOR DUCT WPL 560292 Contact Us For Availability
11
CLIP-MULLION ELEMENT WPL 560175 Contact Us For Availability
11
SHIELD FOR WIRE WPL 560205 Contact Us For Availability
11
CLIP-KNOB TO LEVER WPL 560174 Contact Us For Availability
11
SUPPORT ASSEMBLY-LEFT WPL 550084 Contact Us For Availability
11
TRANSFORMER F/MICROPROCESSO WPL 520036 Contact Us For Availability
11
NUT-BRACE WPL 560023 Contact Us For Availability
11
ADJUSTABLE LEG WPL 560029 Contact Us For Availability
11
RELAY FOR AUXILIARY BLOWER WPL 550224 Contact Us For Availability
11
RUBBER BUMPER WPL 560161 Contact Us For Availability
11
CLOCK FOR COOKING HOURS WPL 550085 Contact Us For Availability
11
INTERLOCK SWITCH WPL Y520086 Contact Us For Availability
11
BOLT WPL 560009 Contact Us For Availability
11
CLIP FOR DOOR FRAME WPL 530010 Contact Us For Availability
12
CLIP-CAPILLARY TUBE WPL 560176 Contact Us For Availability
12
BLOWER HOUSING WPL 530018 Contact Us For Availability
12
BACK PANEL WPL 560282 Contact Us For Availability
12
CLIP-ROD TO SOLENOID WPL 560178 Contact Us For Availability
12
BASE ASSEMBLY WPL 520041 Contact Us For Availability
12
ADJUSTABLE LEG WPL 560030 Contact Us For Availability
12
POWER CORD WPL 550225 Contact Us For Availability
12
CLOCK FOR DELAY COOKING WPL 550086 Contact Us For Availability
12
BRACKET PLATE FOR SWITCH WPL 520092 Contact Us For Availability
12
NUT WPL 560013 Contact Us For Availability
12
CLIP FOR DOOR ARM WPL 530013 Contact Us For Availability
13
SUPPORT ROD WPL 530022 Contact Us For Availability
13
BACK FOR CABINET WPL 560290 Contact Us For Availability
13
GASKET FOR SOLENOID WPL 560180 Contact Us For Availability
13
POWER RELAY WITH DIODE WPL 520042 Contact Us For Availability
13
RESISTOR WPL 550130 Contact Us For Availability
13
FASTENER WPL 530009 Contact Us For Availability
13
GASKET FOR INNER GLASS WPL 530014 Contact Us For Availability
14
SCREW WPL 560052 Contact Us For Availability
14
HEAT DEFLECTOR WPL 560253 Contact Us For Availability
14
COVER FOR BLOWER HOUSING WPL 530029 Contact Us For Availability
14
TOP FOR CABINET WPL 560293 Contact Us For Availability
14
INSULATOR FOR SWITCH WPL 560183 Contact Us For Availability
14
SCREW WPL 560031 Contact Us For Availability
14
POWER TRANSFORMER WPL 520049 Contact Us For Availability
14
NUT-SWITCHES TO BRACKET WPL 530020 Contact Us For Availability
14
SCREW-FRAME TO INNER DOOR WPL 560035 Contact Us For Availability
14
SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability
14
CONTROL SWITCH-OVEN SELECTO WPL 550142 Contact Us For Availability
14
GASKET FOR OUTER GLASS WPL 530015 Contact Us For Availability
15
EXHAUST DUCT-LOWER WPL 530030 Contact Us For Availability
15
TRIM FOR CABINET WPL 560294 Contact Us For Availability
15
ROD-LOCK ASSM TO SOLENOID WPL 560186 Contact Us For Availability
15
SCREW WPL 560036 Contact Us For Availability
15
BUSHING WPL 560202 Contact Us For Availability
15
LOCKOUT RELAY WPL 520055 Contact Us For Availability
15
CONTROL PANEL FOR MICROWAVE WPL 550148 Contact Us For Availability
15
DOOR HINGE-UPPER AND LOWER WPL 530025 Contact Us For Availability
15
SCREW WPL 560050 Contact Us For Availability
15
DOOR LATCH-UPPER WPL 530019 Contact Us For Availability
16
RUBBER FOOT WPL 530011 Contact Us For Availability
16
SUPPORT-BROIL ELEMENT WPL 560359 Contact Us For Availability
16
LATCH PLATE (TRIM FRONT) WPL 560857 Contact Us For Availability
16
BAFFLE FOR EXHAUST DUCT WPL 530033 Contact Us For Availability
16
TRIM FOR CABINET WPL 560295 Contact Us For Availability
16
KNOB FOR LEVER WPL 560274 Contact Us For Availability
16
BASE FOR MICROWAVE WPL 560280 Contact Us For Availability
16
SCREW WPL 560049 Contact Us For Availability
16
CONTROL SWITCH-OVEN TEMP WPL 550180 Contact Us For Availability
16
GROMMET FOR POWER CORD WPL 530038 Contact Us For Availability
16
SCREW WPL 560051 Contact Us For Availability
16
PIVOT PIN FOR DOOR HANDLE WPL 530021 Contact Us For Availability
17
WARNING LABEL-BLOWER HOUSIN WPL Y530034 Contact Us For Availability
17
TRIM FOR CABINET WPL 560296 Contact Us For Availability
17
INSULATOR FOR SWITCH WPL 560351 Contact Us For Availability
17
BRACE-MAIN FRONT WPL 560160 Contact Us For Availability
17
WIRE CLAMP WPL 560430 Contact Us For Availability
17
BRACKET FOR BURNER BOX WPL 560159 Contact Us For Availability
17
KNOB FOR SURFACE ELEMENT WPL 550187 Contact Us For Availability
17
HANDLE FOR DOOR WPL 560071 Contact Us For Availability
17
CLIP FOR PIN WPL 530044 Contact Us For Availability
17
DOOR SEAL PLATE WPL 530026 Contact Us For Availability
18
BUSHING FOR BLOWER MOTOR WPL 530040 Contact Us For Availability
18
BRACE FOR CABINET WPL 560471 Contact Us For Availability
18
CLIP-ROD TO LOCK ASSEMBLY WPL 560411 Contact Us For Availability
18
INSULATION WPL 560091 Contact Us For Availability
18
SUPPORT PANEL-WHITE WPL 560449 Contact Us For Availability
18
LINK FOR DOOR SPRING WPL 560163 Contact Us For Availability
18
KNOB FOR OVEN TEMPERATURE WPL 550188 Contact Us For Availability
18
PIN FOR SWITCH ACTUATOR WPL 530053 Contact Us For Availability
18
INSULATION WPL 560087 Contact Us For Availability
18
DOOR SEAL LATCH-ALMOND WPL 530027L Contact Us For Availability
19
CAPILLARY CLIP WPL 560578 Contact Us For Availability
19
CLIP FOR BLOWER IMPELLER WPL 530045 Contact Us For Availability
19
BRACE FOR CABINET WPL 560472 Contact Us For Availability
19
KNOB, DOOR LOCK WPL 560859 Contact Us For Availability
19
SUPPORT PANEL-ALMOND WPL 560449L Contact Us For Availability
19
INSULATOR FOR SWITCHES WPL 530028 Contact Us For Availability
19
BRACKET FOR HINGE-RIGHT WPL 560172 Contact Us For Availability
19
GROUND LUG WPL 560165 Contact Us For Availability
19
KNOB FOR OVEN SELECTOR WPL 550189 Contact Us For Availability
19
CLIP WPL 560191 Contact Us For Availability
19
BUSHING FOR DOOR ARM WPL 530037 Contact Us For Availability
20
SIDE PANEL-WHITE WPL 560473 Contact Us For Availability
20
CHANNEL BRACKET WPL 560203 Contact Us For Availability
20
SUPPORT PANEL-HARVEST WHEAT WPL 560449M Contact Us For Availability
20
GUIDE WPL 530047 Contact Us For Availability
20
BRACKET FOR HINGE-LEFT WPL 560173 Contact Us For Availability
20
BRACKET-TERMINAL BLOCK WPL 560169 Contact Us For Availability
20
SCREW WPL 560044 Contact Us For Availability
20
SCREW, 1/4-20 X 1/2 INCH WPL 530065 Contact Us For Availability
20
TRIM-DOOR ENDS WPL 560196 Contact Us For Availability
20
PIVOT BUSHING FOR DOOR LATC WPL 530039 Contact Us For Availability
21
SIDE PANEL-HARVEST WHEAT WPL 560473M Contact Us For Availability
21
GLASS PANEL WPL 560204 Contact Us For Availability
21
GASKET FOR VENT BOX WPL 560181 Contact Us For Availability
21
COVER FOR LIGHT SOCKET WPL 560171 Contact Us For Availability
21
BRACKET FOR CONTROL SWITCH WPL 560208 Contact Us For Availability
21
BAFFLE WPL 560297 Contact Us For Availability
21
BUSHING FOR DOOR LATCH WPL 530041 Contact Us For Availability
22
NUT FOR DOOR HINGES WPL 530074 Contact Us For Availability
22
SIDE PANEL-ALMOND WPL 560473L Contact Us For Availability
22
TRIM FOR GLASS WPL 560206 Contact Us For Availability
22
SCREW, No.10-24 X 3/8 INCH WPL 530063 Contact Us For Availability
22
BRACKET FOR DOOR SPRING WPL 560184 Contact Us For Availability
22
COVER-TERMINAL BLOCK WPL 560177 Contact Us For Availability
22
TIME INDICATOR WPL 560209 Contact Us For Availability
22
TRIM FOR DOOR WPL 560298 Contact Us For Availability
22
BUSHING FOR DOOR ARM WPL 530042 Contact Us For Availability
23
SIDE PANEL-WHITE WPL 560474 Contact Us For Availability
23
TRIM FOR GLASS WPL 560207 Contact Us For Availability
23
SCREW, No.6-32 X 1/4 INCH WPL 530064 Contact Us For Availability
23
SPRING FOR OVEN DOOR WPL 560187 Contact Us For Availability
23
GASKET FOR OVEN LIGHT WPL 560179 Contact Us For Availability
23
EXTENSION FOR PUSH BUTTON WPL 560210 Contact Us For Availability
23
FRAME WPL 560443 Contact Us For Availability
23
INNER DOOR GLASS WPL 530046 Contact Us For Availability
24
SIDE PANEL-ALMOND WPL 560474L Contact Us For Availability
24
BRACKET SUPPORT WPL 560211 Contact Us For Availability
24
RIVET WPL 530077 Contact Us For Availability
24
GLASS LENS FOR OVEN LIGHT WPL 560182 Contact Us For Availability
24
BRACKET FOR CONTROL PANEL WPL 560286 Contact Us For Availability
24
GLASS-OUTER WPL 560444 Contact Us For Availability
24
GASKET FOR OUTER GLASS WPL 530048 Contact Us For Availability
25
SIDE PANEL-HARVEST WHEAT WPL 560474M Contact Us For Availability
25
BAFFLE FOR VENT WPL 560213 Contact Us For Availability
25
SCREW, No.4-40 X 1 INCH WPL 530068 Contact Us For Availability
25
TRIM FOR OVEN WPL 560189 Contact Us For Availability
25
BRACKET FOR OVEN LIGHT WPL 560185 Contact Us For Availability
25
PUSH BUTTON WPL 560287 Contact Us For Availability
25
WASHER WPL 560462 Contact Us For Availability
25
GUIDE FOR DOOR LATCH WPL 530049 Contact Us For Availability
26
SCREW, No.8-32 X 1/4 INCH WPL 530084 Contact Us For Availability
26
BRACKET FOR BLOWER HOUSING WPL 530089 Contact Us For Availability
26
TRAY FOR WIRE WPL 560214 Contact Us For Availability
26
BRACKET FOR TOP WPL 560188 Contact Us For Availability
26
PUSH BUTTON WPL 560288 Contact Us For Availability
26
NUT WPL 560470 Contact Us For Availability
26
PIVOT FOR DOOR LATCH WPL 530051 Contact Us For Availability
27
EXHAUST FRAME WPL 530090 Contact Us For Availability
27
BULB ACCESS COVER-ALMOND WPL 530095L Contact Us For Availability
27
BACK PANEL WPL 560250 Contact Us For Availability
27
WASHER WPL 560190 Contact Us For Availability
27
TRIM FOR CONTROL PANEL WPL 560289 Contact Us For Availability
27
FOAM TAPE - 87 INCHES WPL 560524 Contact Us For Availability
27
DOOR LATCH-LOWER WPL 530052 Contact Us For Availability
28
BRACKET FOR MAGNETRON WPL 530098 Contact Us For Availability
28
BASE FOR CABINET WPL 560281 Contact Us For Availability
28
FRAME FOR DRAWER WPL 560254 Contact Us For Availability
28
BURNER BOX KIT WPL 550272 Contact Us For Availability
28
KNOB FOR CLOCK WPL 560348 Contact Us For Availability
28
DOOR HANDLE WPL 560845 Contact Us For Availability
28
ACTUATOR F/DOOR SWITCH-UPPE WPL 530099 Contact Us For Availability
28
NUT, No.10 - 32 WPL 530058 Contact Us For Availability
29
EXHAUST DUCT-LOWER WPL 530103 Contact Us For Availability
29
INSERT FOR SUPPORT-RIGHT WPL 560283 Contact Us For Availability
29
BUSHING - WIRE HARNESS WPL 560194 Contact Us For Availability
29
WIRE CONNECTOR WPL 560460 Contact Us For Availability
29
TRIM, DOOR WPL 560856 Contact Us For Availability
29
SPRING FOR DOOR LATCH-UPPER WPL 530061 Contact Us For Availability
30
FOAM INSULATION-EXHAUST DUC WPL 530118 Contact Us For Availability
30
INSERT FOR SUPPORT-LEFT WPL 560284 Contact Us For Availability
30
SCREW, No.4-40 WPL 530107 Contact Us For Availability
30
SIDE PANEL-WHITE WPL 560256 Contact Us For Availability
30
WASHER-TURN TRAY RECEPTACLE WPL 530123 Contact Us For Availability
30
END, DOOR TRIM WPL 560858 Contact Us For Availability
30
SCREW, No.8-32 X 3/8 INCH WPL 530069 Contact Us For Availability
31
SCREW-LIGHT BULB RECEPTACLE WPL 530128 Contact Us For Availability
31
SCREW, No.6-32 X 3/8 INCH WPL 530070 Contact Us For Availability
31
VENT COVER WPL 560285 Contact Us For Availability
31
CLIP FOR WIRE HARNESS WPL 530109 Contact Us For Availability
31
SIDE PANEL-ALMOND WPL 560256L Contact Us For Availability
31
NUT WPL 530124 Contact Us For Availability
32
SUPPORT PANEL-WHITE WPL 560448 Contact Us For Availability
32
SCREW, No.8-32 X 1/2 INCH WPL 530110 Contact Us For Availability
32
SIDE PANEL-HARVEST WHEAT WPL 560256M Contact Us For Availability
32
WASHER-DOOR HINGE BRACKET WPL 530071 Contact Us For Availability
32
NUT-TEMP PROBE RECEPTACLE WPL 530125 Contact Us For Availability
33
NUT, No.8 - 32 WPL 530078 Contact Us For Availability
33
SUPPORT PANEL-ALMOND WPL 560448L Contact Us For Availability
33
BRACKET FOR CAPACITOR WPL 530115 Contact Us For Availability
33
BASE SUPPORT-RIGHT WPL 560257 Contact Us For Availability
33
WARNING LABEL WPL 530141 Contact Us For Availability
34
SUPPORT PANEL-HARVEST WHEAT WPL 560448M Contact Us For Availability
34
BOLT-STOP FOR DOOR ARM WPL 530116 Contact Us For Availability
34
BASE SUPPORT-LEFT WPL 560258 Contact Us For Availability
34
SUPPORT, FUSE HOLDER WPL 530142 Contact Us For Availability
34
SPRING FOR DOOR LATCH-LOWER WPL 530081 Contact Us For Availability
35
TRACK FOR DRAWER-RIGHT WPL 560259 Contact Us For Availability
35
COVER FOR INSULATION WPL 560270 Contact Us For Availability
35
LINKAGE FOR DOOR LATCH-UPPE WPL 530096 Contact Us For Availability
36
TRACK FOR DRAWER-LEFT WPL 560260 Contact Us For Availability
36
COVER FOR DOOR LOCK WPL 560271 Contact Us For Availability
36
LINKAGE FOR DOOR LATCH-LOWE WPL 530097 Contact Us For Availability
37
SUPPORT BRACKET-RIGHT WPL 560261 Contact Us For Availability
37
COVER FOR DOOR HINGE WPL 560272 Contact Us For Availability
37
DOOR SCREEN WPL 530101 Contact Us For Availability
38
SUPPORT BRACKET-LEFT WPL 560262 Contact Us For Availability
38
COVER FOR WIRE WPL 560594 Contact Us For Availability
39
TOP-WHITE WPL 560263 Contact Us For Availability
39
FRAME FOR OVEN WPL 560372 Contact Us For Availability
40
TOP-ALMOND WPL 560263L Contact Us For Availability
40
SHIELD-OVEN BOTTOM WPL 560376 Contact Us For Availability
41
TOP-HARVEST WHEAT WPL 560263M Contact Us For Availability
41
BRACKET-WIRE HARNESS WPL 560441 Contact Us For Availability
42
PACKING-MAIN TOP WPL 560452 Contact Us For Availability
42
TRIM FOR END PANEL WPL 560264 Contact Us For Availability
43
TRIM FOR TOP-RIGHT WPL 560265 Contact Us For Availability
43
WASHER WPL 560463 Contact Us For Availability
44
TRIM FOR TOP-LEFT WPL 560266 Contact Us For Availability
44
BOTTOM, BURNER BOX WPL 560838 Contact Us For Availability
45
TERMINAL BOX WPL 560269 Contact Us For Availability
46
RETAINER FOR OVEN LIGHT WPL 560275 Contact Us For Availability
47
RETAINER FOR OVEN LIGHT WPL 560276 Contact Us For Availability
48
BACK PANEL WPL 560277 Contact Us For Availability
50
SPACER PAD FOR CONSOLE WPL 560461 Contact Us For Availability
NI
MAIN WIRE HARNESS WPL 520090 Contact Us For Availability
NI
CONTROL HARNESS WPL 520091 Contact Us For Availability
× ![]()
Login and Registration Form
