Model Whirlpool ARR6200L ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability

1

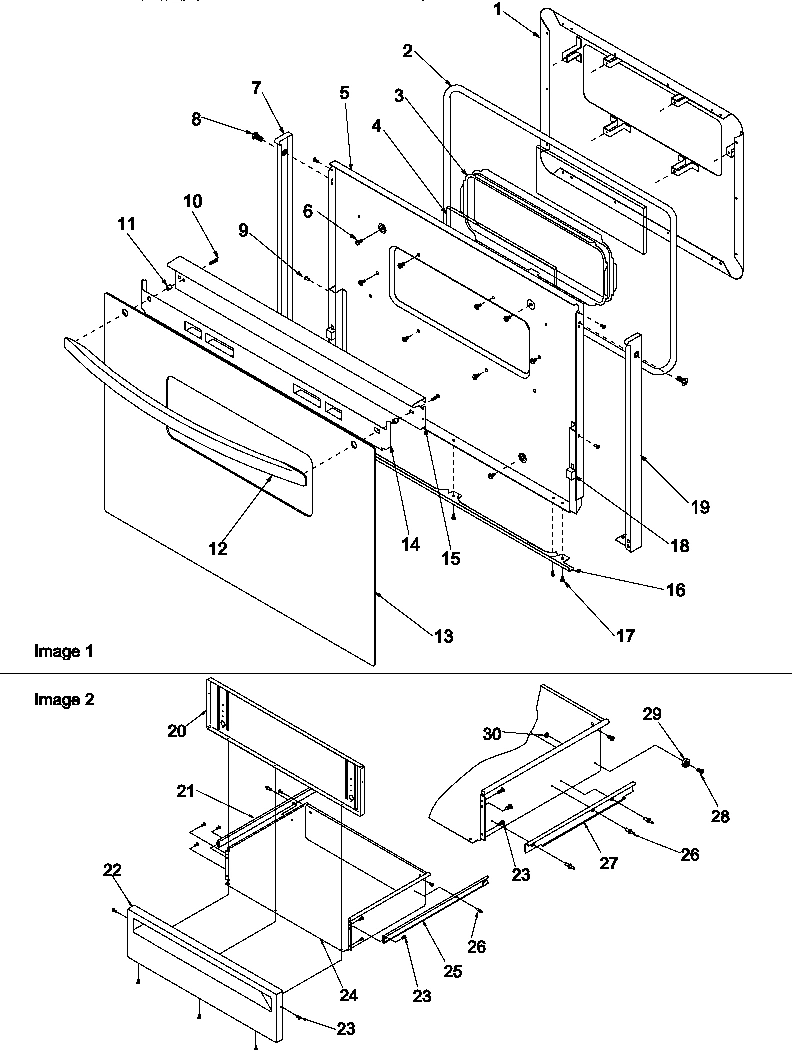

PAD, DOOR (ENAMELED) WPL 316976CG Contact Us For Availability

1

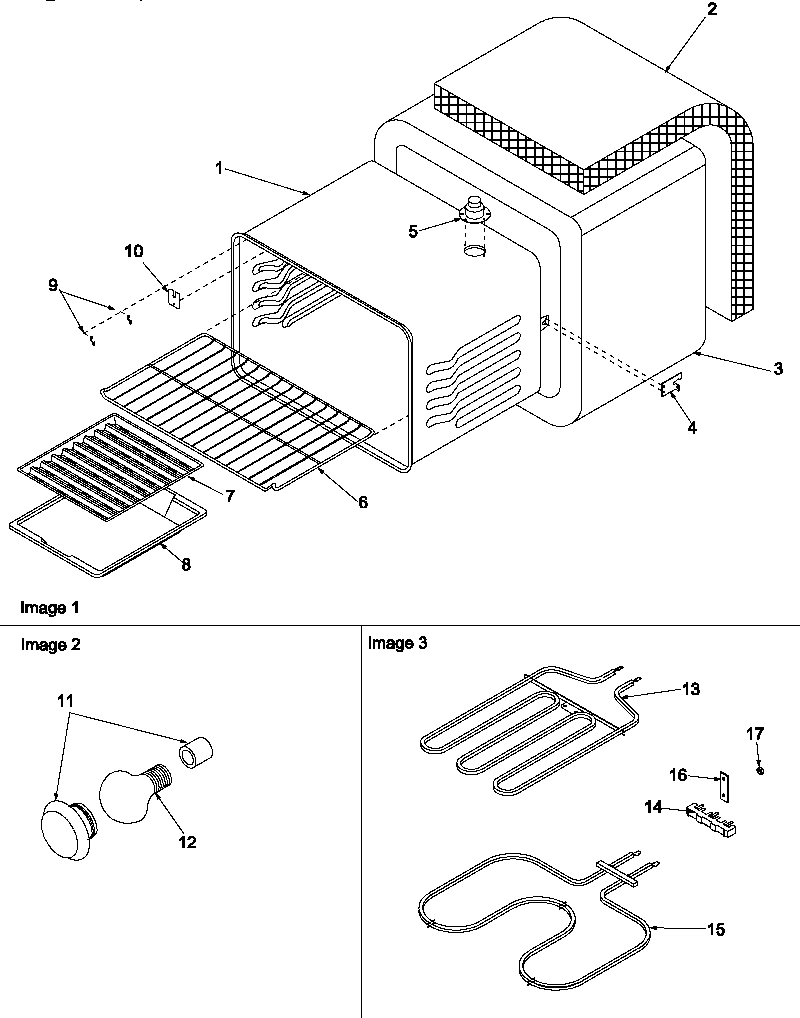

OVEN SHELL (EL. W/LT) WPL 316953CG Contact Us For Availability

2

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $77.62

2

WIRE CLIP WPL Y0041875 Contact Us For Availability

2

GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability

2

INSULATION, REAR WPL Y0316949 Contact Us For Availability

3

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $62.88

3

RETAINER, REAR (ELEC) WPL Y0316960 Contact Us For Availability

3

FRAME, WINDOW PACK WPL Y0316975 Contact Us For Availability

3

INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability

4

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

4

COVER, REAR WPL Y0307342 Contact Us For Availability

4

GLASS, DOUBLE COATED WPL Y0316974 Contact Us For Availability

4

BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability

5

ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability

5

BACKER, OVEN DOOR (SM WINDOW) WPL 316978CG Contact Us For Availability

5

SMOKE ELIMINATOR, TALL WPL Y0316951 Contact Us For Availability

5

PIN, HINGE WPL Y0315931 Contact Us For Availability

6

WP314763J Whirlpool Oven Rack Backorder WPL WP314763J $55.64

6

BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability

7

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

7

PANEL, SIDE (ALM) WPL 317036L Contact Us For Availability

7

END CAP, LT (BLK) WPL 309458B Contact Us For Availability

7

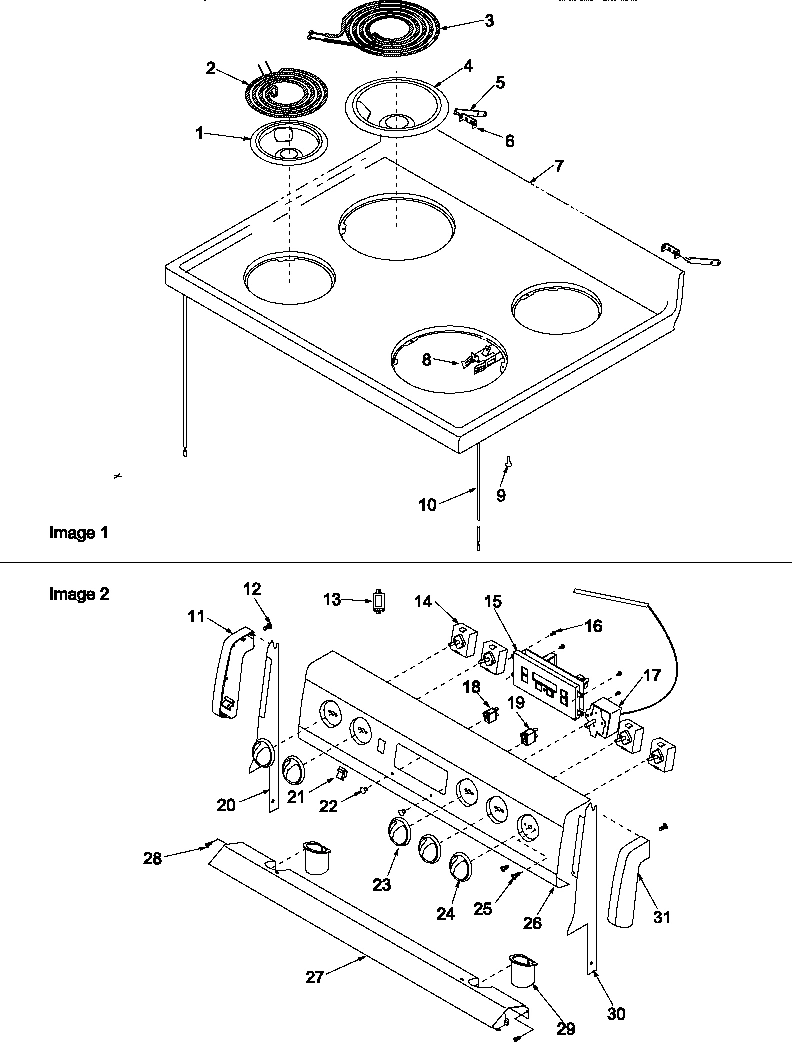

MAIN TOP-ELECTRIC UPSWEPT WPL 306899L Contact Us For Availability

8

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.57

8

SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability

9

SPACER, SNAP-IN WPL 31717001 Contact Us For Availability

9

RIVET, POP WPL Y0302648 Contact Us For Availability

9

CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability

SCREW, 10-32 X 1.250`` PAN HD WPL Y0316239 Contact Us For Availability

CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability

SUPPORT, MAINTOP WPL Y0315430 Contact Us For Availability

WP315843B Whirlpool Endcap Backorder WPL WP315843B $44.67

WP74011278 Whirlpool Light Backorder WPL WP74011278 $78.30

PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability

BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability

CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability

SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability

HANDLE, OVEN DOOR (BLK) WPL 31689501B Contact Us For Availability

BULB, LIGHT WPL Y0042175 Contact Us For Availability

13

WP77001094 Whirlpool Range Bake Element In Stock WPL WP77001094 $28.83

13

GLASS, OVEN DOOR WPL 315943B Contact Us For Availability

13

RELAY WPL Y0317033 Contact Us For Availability

WP74011243 Whirlpool Oven Switch Backorder WPL WP74011243 $99.24

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $19.62

COVER, CHIP WPL Y0315022 Contact Us For Availability

ASSY, GLASS HEAT SHIELD WPL 316981B Contact Us For Availability

15

TRIM, DOOR TOP WPL 31782102B Contact Us For Availability

15

CLOCK, CLEAN W/OVERLAY WPL 315568B Contact Us For Availability

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $23.97

HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability

SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability

SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability

17

$LEVELING LEG\BOTTOM BRACE RT$

LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability

17

HEX NUT (NKL) WPL 31750124 Contact Us For Availability

17

THERMOSTAT, SC ELEC WPL Y0316972 Contact Us For Availability

18

TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability

18

BUMPER, RUBBER WPL Y0309627 Contact Us For Availability

18

LIGHT, INDICATOR (250V) WPL 31722802 Contact Us For Availability

19

SEE NOTE FRONT FRAME,TALL -- (NOT FIELD REPLA WPL Y00000000 Contact Us For Availability

19

END CAP, RT (BLK) WPL 309457B Contact Us For Availability

20

HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability

20

LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability

20

BKGD. SUPPORT-LH WPL 315877B Contact Us For Availability

21

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

21

RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability

21

SWITCH, ROCKER WPL Y0063997 Contact Us For Availability

22

PANEL, DRAWER (ALM) WPL 309177L Contact Us For Availability

22

LENS, INDICATOR WPL Y0316265 Contact Us For Availability

23

TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability

23

KNOB, THERMOSTAT (BLK) WPL 315968B Contact Us For Availability

24

LEG,LEVELING xxx WPL 314187B Contact Us For Availability

24

DRAWER, STORAGE (WHT) WPL 316253W Contact Us For Availability

24

KNOB, INFINITE SW (BLACK) WPL 315845B Contact Us For Availability

25

$LEVELING LEG\BOTTOM BRACE LT$

LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability

25

RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability

25

SCREW, No.8-32 X 3/16`` WPL Y0316546 Contact Us For Availability

26

ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability

26

RIVET, POP WPL Y0076357 Contact Us For Availability

26

PANEL, BKGRD CLK W/LIGHT RS WPL 31746402 Contact Us For Availability

27

BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability

27

SHIELD, BKGD TRIM HEAT WPL 31722702B Contact Us For Availability

28

SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability

28

SCREW No.8ABX1/4 PH HD WPL Y0041807 Contact Us For Availability

30

BKGD. SUPPORT-RH WPL 315876B Contact Us For Availability

31

WP315841B Whirlpool Endcap Backorder WPL WP315841B $46.86

32

SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability

33

INSULATION, ESM WPL Y0091523 Contact Us For Availability

34

BRACKET, SWITCH WPL Y0302316 Contact Us For Availability

35

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

36

LATCH ARM WPL 303039B Contact Us For Availability

37

KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability

38

SCREW 6 32X5/16 PH FH WPL Y0041769 Contact Us For Availability

39

BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability

41

LATCH, OVEN DOOR (ELEC) WPL 31719901 Contact Us For Availability

42

SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability

43

SCREW 4-40X1 WPL Y0092365 Contact Us For Availability

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $8.89

SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability

SCREW, No.10-32X1/2 (PAN PH HD) WPL Y0316004 Contact Us For Availability

TAPE, FOAM WPL 0043184 Contact Us For Availability

INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability

LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability

WIRE, INSULATION RETAINER 100`` WPL 31715801 Contact Us For Availability

BRKT CLOCK MTG GALV WPL 31778901 Contact Us For Availability

SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability

CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability

HARNESS, COIL ELEM L.H. WPL Y0315918 Contact Us For Availability

HARNESS, COIL ELEM. R.H. WPL Y0315919 Contact Us For Availability
