Model Whirlpool ALG643RMC WASHER – Common Parts &amp; Diagrams

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

1

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

1

ASSY CYLINDER WPL Y504468 Contact Us For Availability

1

ASSY,LEAD-IN PIPE WPL 40050201 Contact Us For Availability

2

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

BAFFLE, CYLINDER (WHT) WPL 503703 Contact Us For Availability

2

LOCATOR, PANEL WPL 505187 Contact Us For Availability

2

COVER, TOP (BSQ) WPL 503674C Contact Us For Availability

2

SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability

3

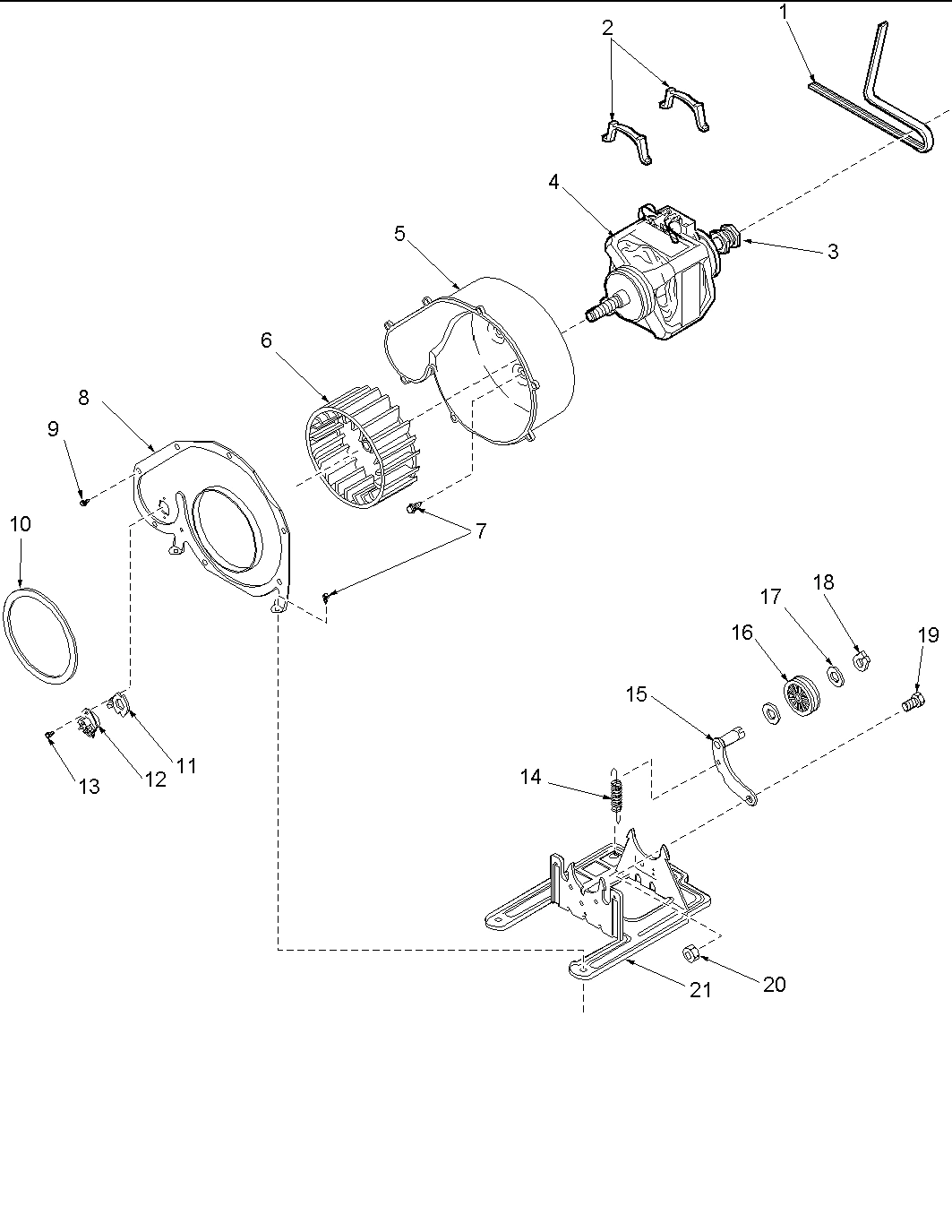

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

3

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

3

WP37001308 Whirlpool Igniter In Stock WPL WP37001308 $33.72

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

PANEL, HOME HOOD BACK WPL 40121401 Contact Us For Availability

3

SWITCH, TEMP SELECTOR WPL 40084201 Contact Us For Availability

4

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

4

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

4

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

4

CLIP, HOLD DOWN WPL Y503876 Contact Us For Availability

4

BUZZER, ADJUSTABLE WPL 40070501 Contact Us For Availability

5

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

5

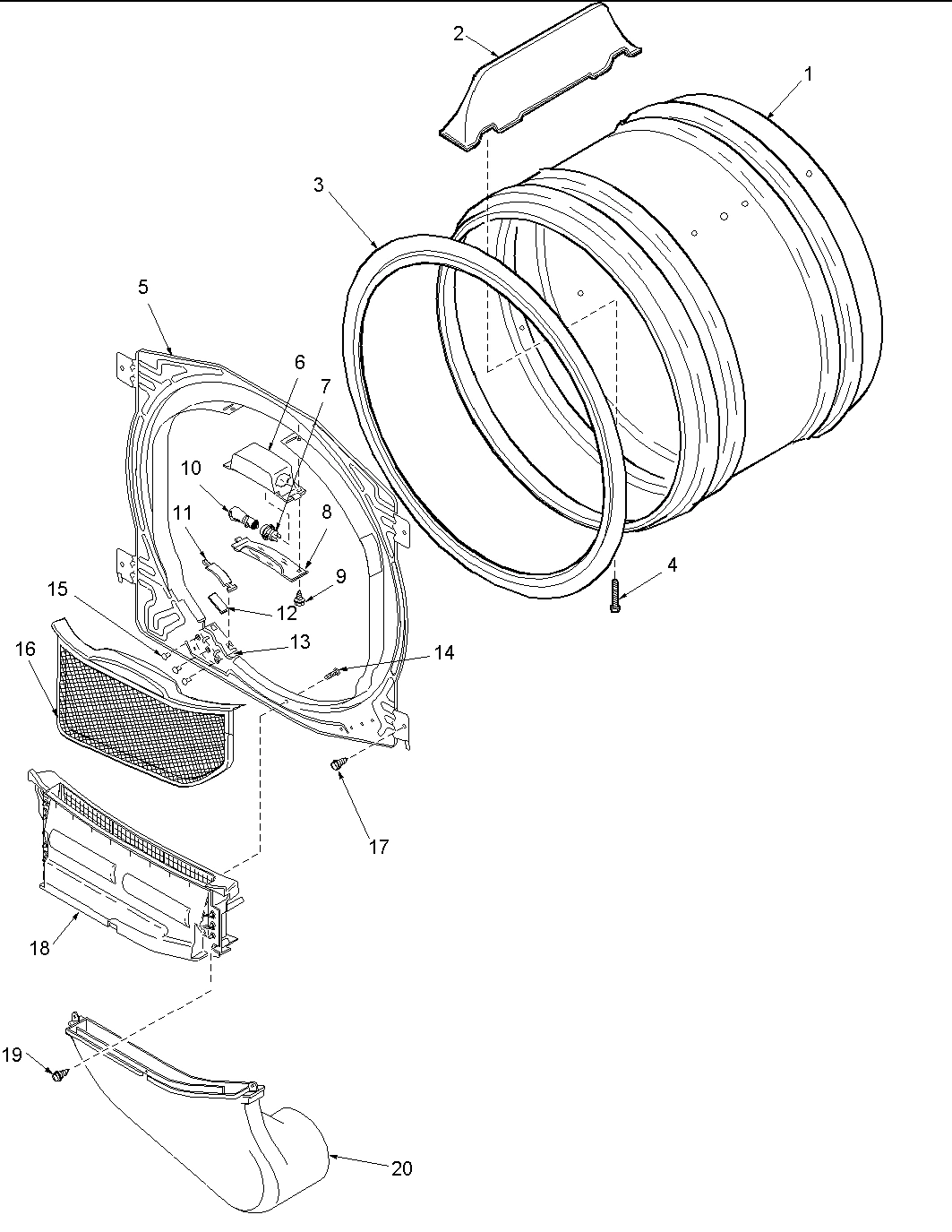

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

5

HOUSING, BLOWER WPL 56020 Contact Us For Availability

5

PANEL, TOP (BSQ) WPL 40070301C Contact Us For Availability

5

PLATE, ACCESS COVER WPL 503293 Contact Us For Availability

5

TIMER WPL 40112701 Contact Us For Availability

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

6

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

6

DUCT, EXHAUST WPL 505518 Contact Us For Availability

6

ENDCAP (RT-BSQ) WPL 40012701C Contact Us For Availability

7

DUCT, COMBUSTION WPL Y61888 Contact Us For Availability

7

HOLDER, LAMP WPL 504458 Contact Us For Availability

7

PANEL, SUPPORT WPL 40039610 Contact Us For Availability

7

ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

LENS, LIGHT WPL 40094301 Contact Us For Availability

8

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

8

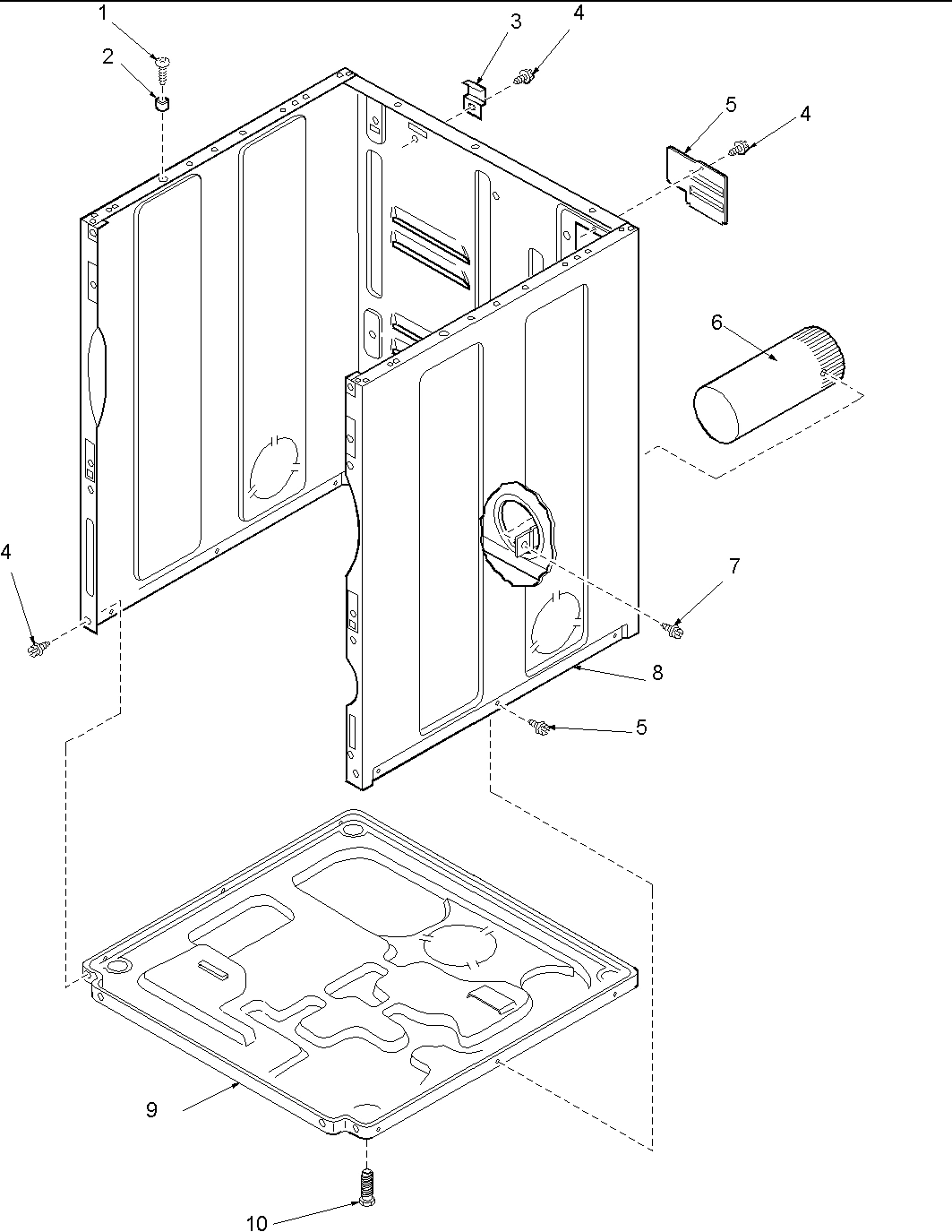

CABINET, DRYER (BSQ) WPL 40076402C Contact Us For Availability

8

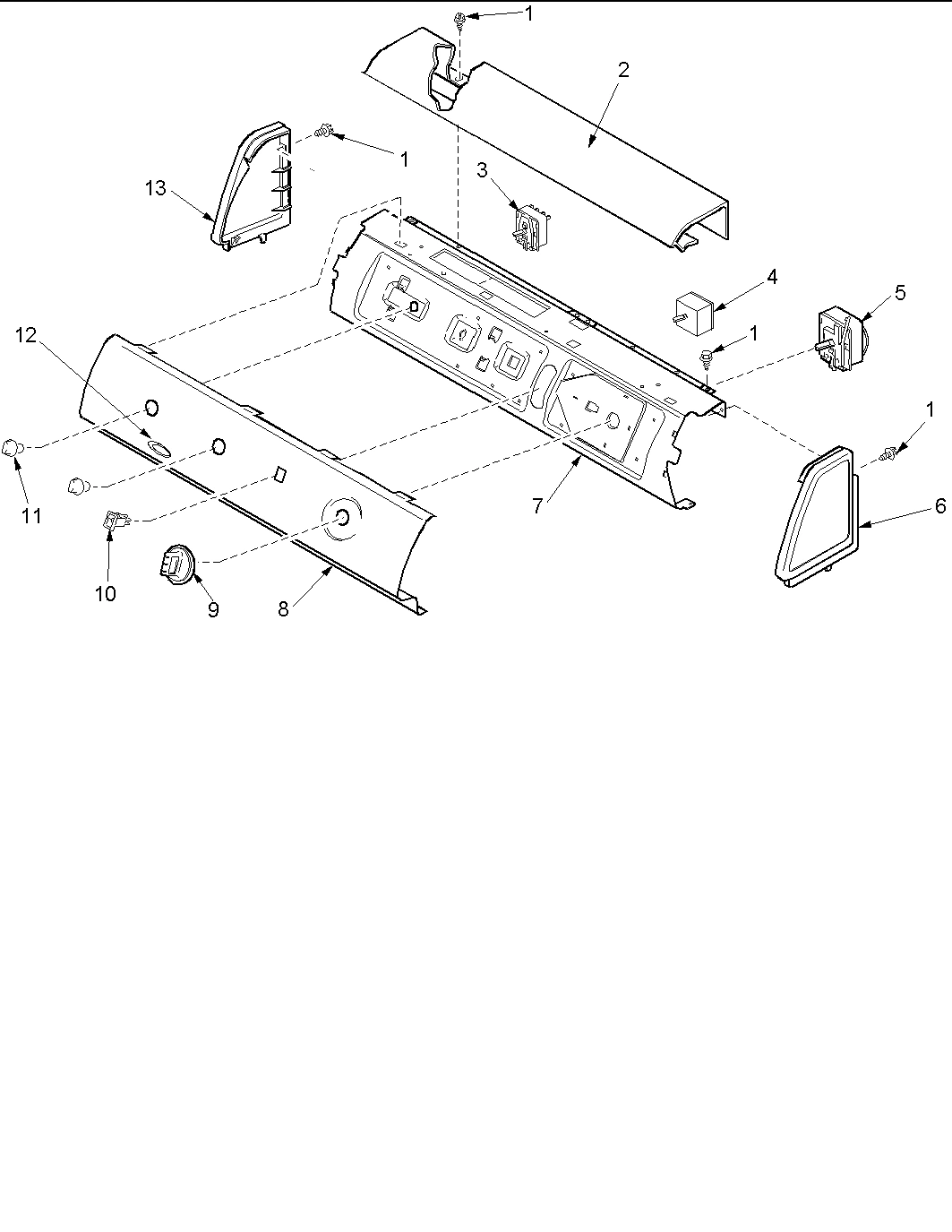

PANEL, GRAPHIC (BSQ) WPL 40092101C Contact Us For Availability

8

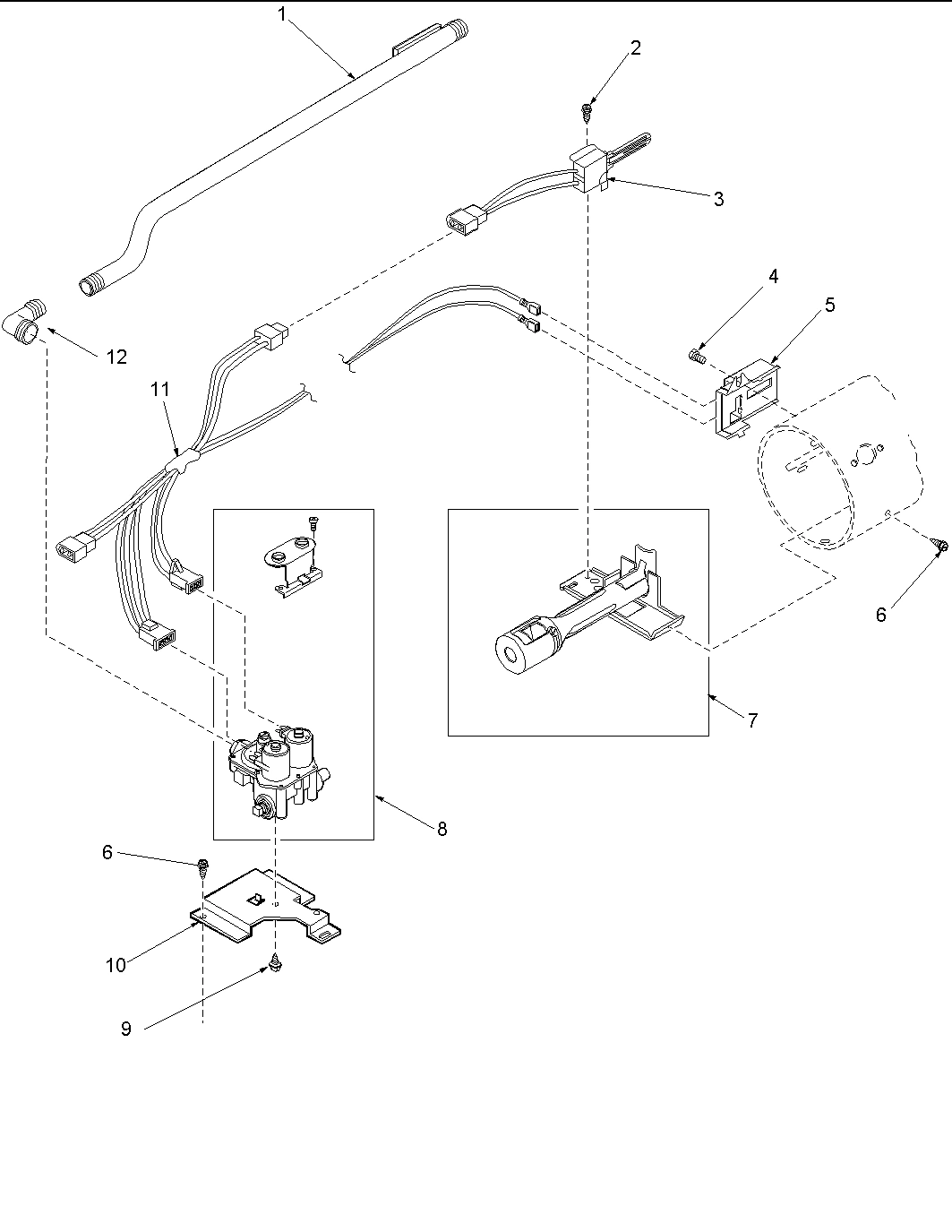

ASSEMBLY, GAS VALVE WPL Y504091 Contact Us For Availability

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

9

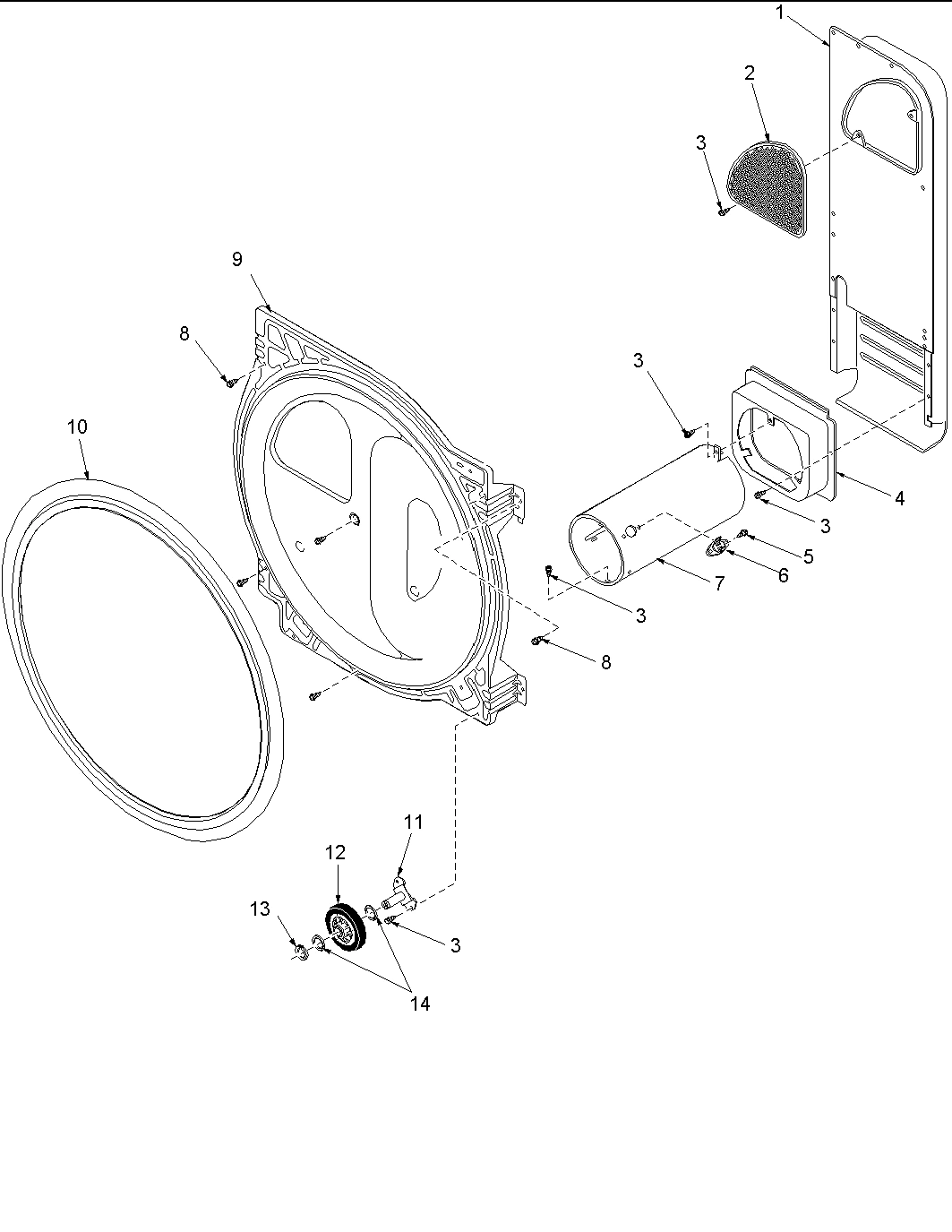

BLKHD, REAR (STN STEEL) WPL 504802 Contact Us For Availability

9

BASE, DRYER WPL 500070 Contact Us For Availability

9

ASSY, TIMER KNOB (BSQ) WPL 40013601C Contact Us For Availability

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

SEAL, BLOWER HOUSING WPL 40090001 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

SWITCH, ROCKER (BSQ) WPL 38424L Contact Us For Availability

BRACKET, MOUNTING WPL 500821 Contact Us For Availability

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

HEATER, THERMOSTAT WPL 61623 Contact Us For Availability

KNOB, SELECTOR (BSQ) WPL 40013402C Contact Us For Availability

ASSY,WIRE HARNESS-GAS WPL 40098501 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

WP503979 Whirlpool Thermostat Backorder WPL WP503979 $69.96

PAD, FELT-COIN WPL 500121 Contact Us For Availability

MEDALLION WPL 40083301 Contact Us For Availability

ELBOW, BRASS WPL 40049801 Contact Us For Availability

12002090 Whirlpool Glide Bracket Kit In Stock WPL 12002090 $78.26

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

ENDCAP (LT-BSQ) WPL 40012702C Contact Us For Availability

14

WP56076 Whirlpool Idler Spring Backorder WPL WP56076 $50.95

14

PANEL,FRONT-POWDER(BISQUE) WPL 503656C Contact Us For Availability

15

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

15

PANEL,ACCESS BSQ WPL 40045301C Contact Us For Availability

16

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

16

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

16

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

17

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

17

ASSEMBLY, SEAL & LINER WPL 503643W Contact Us For Availability

18

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

18

ASSY, AIR DUCT WPL 505528 Contact Us For Availability

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

20

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

20

DUCT, AIR LOWER WPL Y503626 Contact Us For Availability

21

MOUNT, MOTOR WPL 503613 Contact Us For Availability

21

WEDGE, DOOR HANDLE WPL 505328 Contact Us For Availability

22

PULL, DOOR (BSQ) WPL 503646C Contact Us For Availability

23

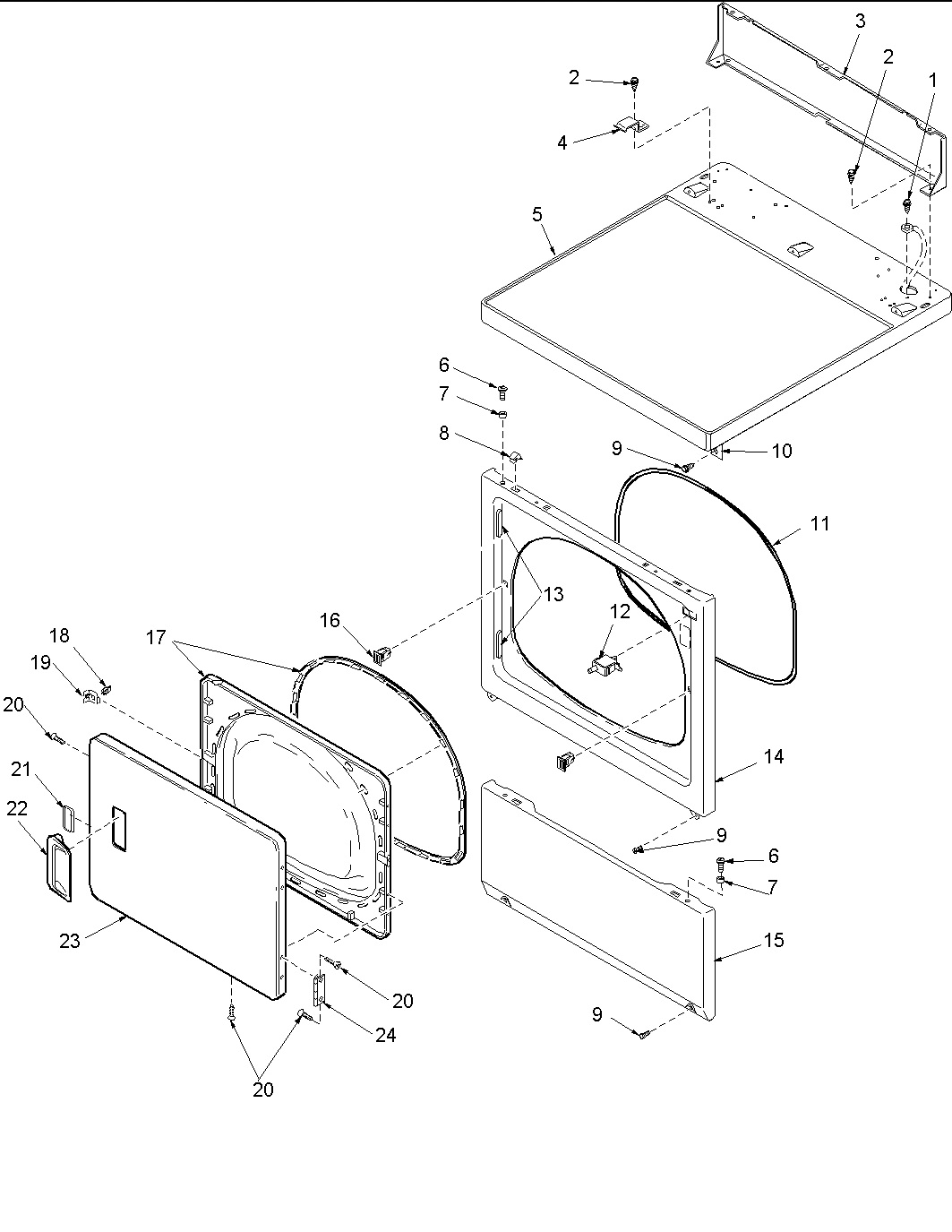

DOOR,DRYER-POWDER(BISQUE) WPL 503654C Contact Us For Availability

24

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

NI

RELIEF, STRAIN WPL 38384 Contact Us For Availability

NI

ASSEMBLY, POWER CORD WPL 502014 Contact Us For Availability

NI

HARNESS, WIRE WPL 40011702 Contact Us For Availability
